Aqua-Marina B0302944 User manual

Please read the operation instructions carefully before using this product.
Operation Instructions
AQUA MARINA
ELECTRIC PUMP
(Max. Air Pressure 20PSI)

Index
2
I. Content List...................................................3
II. Overview ....................................................3
III. Safety Instructions........................................4
IV. Inflation Operation.........................................5
V. Deflation Operation........................... ...........6
VI. Precautions................................................. 6
VII. Trouble Shooting........................................ 7
VIII. Maintenance and Storage ........................7
IX. Warranty......................................................8

I. Content List
Please check if all the following parts are in the box before use.
If any part is missing, please contact the local dealer for after-service.
Air PumpHose Battery Clamp
User Manual
Inflation inlet
Deflation outlet
DC plug
LCD screen
PSI/BAR toggle button
Up button
Down button
On/off button
Hose
Air nozzle
Flexible conduit adaptor
Battery clamp
II. Overview
4
3
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
1
2
11
10
9
20.00
3
12

4
III. Safety Instructions
*
Warning: To reduce the risk of injury, do not let children use it. Always
supervise children and those who are incapacitated.
*
Warning: This product is not suitable for people with reduced physical
strength, sensory ability or mental faculty, people who lack skills and people with
intellectual disabilities, unless they are under the protection of a guardian and are
supervised and guided.
*
Warning: Unplug the DC power before moving, maintaining, repairing or
adjusting this product
*
Warning: Do not bury the wire in soil. It shall be placed in the safe zone where
it won't be damaged by mower or other equipment.
*
Warning: If the power cord is damaged, it must be replaced by the
manufacturer or its service agent or similar authorized personnel to avoid
danger.
*
Warning: If you are standing in a place with water or your hands are wet,
please don't operate the power plug.
*
Warning: Check the maximum air pressure of the inflatable product before
inflating. The air bag can be damaged by exceeding the Max. air pressure.
*
Warning: Check the cigarette lighter socket before use to ensure that there is
no rust or residue inside. The poorly conductive cigarette lighter socket may
cause overheating of the product or power supply, which may damage the
product.
*
Warning: The purpose of using this product is limited to the description
described in the manual.
*
Warning: Do not use this device in an ambient temperature above 40℃.
*
Warning: The air pipework for this product is only applicable to the original
hoses.
*
Warning: Before use, check whether the air pipe is broken, whether the switch
is normal, and whether the cigarette lighter can be energized normally.
*
Warning: Avoid high temperatures, humidity, dust and direct exposure to
sunlight.
*
Warning: The maximum noise : 85dBi

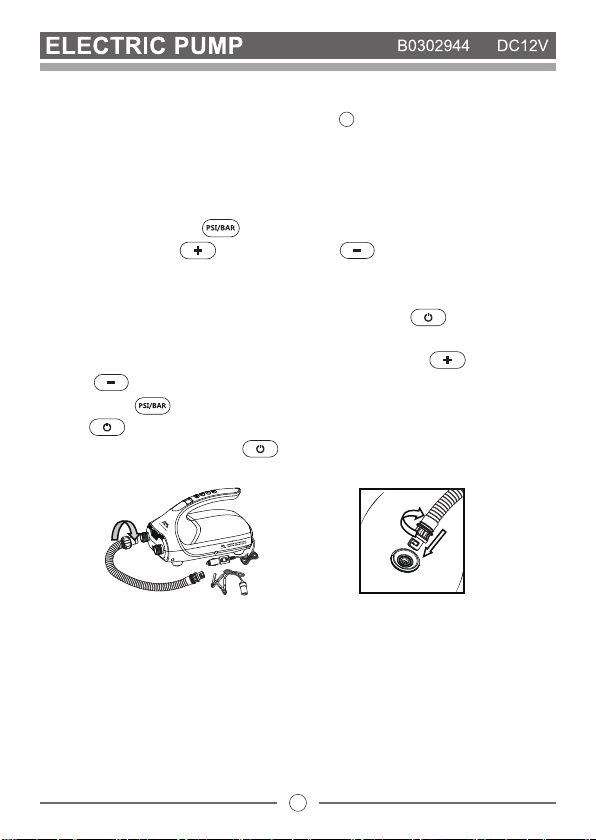

* Connect the end with flexible conduit adaptor of the hose to the air pump
inflation inlet ①, and twist clockwise to tighten it as Figure 1.
* Install the other end of the hose into the supporting air tap of the air
bag (step 1 in Figure 2).
* Plug the DC plug into the 12V DC socket.
* Press the toggle button to switch the unit of air pressure.
* Press the UP button or DOWN button to set the pressure value
you need, with the range of the pressure value from 0 to 20PSI,
(1PSI=0.0689BAR)
* After finishing the above steps, press the On/Off button to start
inflation.
* During the inflating process, you can press the UP button or DOWN
button to increase or decrease the targeted air pressure, press the
toggle button to switch the unit of air pressure, and press the On/Off
button to stop.
* Long press the On/Off button for 3 seconds to start inflation directly.
* When the air pressure reaches the set value, the air pump will stop
automatically.
* When the inflation is completed, unplug the power cord.
* When not in use, remove the inflation hose from the air pump and store it
properly.
5
IV. Inflation Operation
（Figure 2）
（Figure 1）
11

*
The applied power source must be the 12V DC power source (as Figure 4).
*
Do not block the inflation inlet ①and deflation outlet ②, and ensure that the
inflation inlet ①and deflation outlet ②shall remain smooth at all times.
*
Observe the local waste treatment provisions, and it is not allowed to throw
the air pump away randomly.
*
Don't use this product when the hose is damaged.
*
Don't pull out the hose when inflating, because
the high pressure may hurt you.
*
Don't keep the air pump working for more than 20
mins, because motor overheating may
cause internal damage. The air pump shall
be fully cooled for 30 mins after continuously
working up to 20 mins.
* Notice: The factory default setting air pressure is 10PSI (10PSI=0.689BAR).
From the second-time use, the default air pressure will be the value you set
in last time.
* Notice: When the air pump is powered on and without any operation over 2
minutes, it will enter standby mode. You can press any key to re-activate the
pump.
* Remove the hose from the inflation inlet and connect it to the deflation outlet
②, twist clockwise to tighten it, as Figure 3.
* Press the On/Off button to start the deflation. Press the On/Off button
again to stop the deflation.
6
VI. Precautions
V. Deflation operation
（Figure 4）
（Figure 3）

* Don't use this air pump if any part is damaged. Please contact local dealer
for after-sales service.
* This product shall not be exposed to the rain or immersed in water.
* The inflation inlet should not point to the face or body while working.
* Do not leave the air pump unattended while inflating.
* Do not turn off the car engine when the product is in use to avoid
unnecessary damage.
* After use, you may want to move, repair or adjust this product. Unplug the
power plug from the outlet beforehand.
* When it is not in use, it shall be properly stored after being fully cooled.
* It shall not be exposed to the sunlight or immersed in the water.
* Please store it in dry and ventilated place.
* Please wipe the pump by using a soft dry cloth with 75% concentration of
medical alcohol.
* Do not drop or violently shake the pump.
* Remove the hose from the inflation inlet and connect it to the deflation outlet
②, twist clockwise to tighten it, as Figure 3.
* Press the On/Off button to start the deflation. Press the On/Off button
again to stop the deflation.
7
VII. Trouble Shooting
VIII.Maintenance and Storage
Fault Inspection Solution
The air
pump
cannot be
started
normally
1. The power source is
not plugged properly.
2. The fuse in DC plug
③ is burnt out.
3. Overheating or
overload causes motor
stop.
1. Make sure that the power wire is
plugged in the 12VDC socket.
2. Change the fuse.
3. Cool the motor and restart it.
4. If the problem cannot be solved,
please contact local dealer for
after-sales service.
30-minute cooling
1. Change the hose or make sure it
is unblocked. If the hose is cracked,
replace with a new hose.
2. Reinstall the hose.
3. If the problem cannot be solved,
please contact local dealer for
after-sales service.
Check if the air pump is
working too long and its
inside is overheated.
1. Check whether the
hose ⑨is blocked or
cracked.
2. The joint between
the hose and air pump
or air valve is not
installed properly.
The machine
displays HOT
Slow or
abnormal
inflation or
deflation

• This product has a limited TWELVE (12) months warranty.
1. AM will make the final warranty determination, which may require inspection
and/or photos of the equipment, which clearly show the defect(s). If necessary,
this information must be sent to the AM distributor in your country with prepaid
postage. Product can be returned only if a return authorization number is given
in advance by the AM distributor. The return authorization number must be
clearly labelled on the outside of the package, or it will be refused.
2. If a product is deemed to be defective by AM, the warranty covers the repair or
replacement of the defective product only. AM will not be responsible for any
costs, losses, or damages incurred as a result of loss or misuse of this product.
3. This warranty does not cover damage caused by misuse, abuse, neglect, normal
wear and tear including, but not limited to, punctures, damage due to excessive
heat exposure, damage caused by improper handling and storage, or damage
caused by anything other than defects in material and workmanship.
4. This warranty is void if any unauthorized repair, change or modification has been
made to any part of the equipment.
5. The warranty for any repaired or replacement equipment is good from the date
of the original purchase only.
6. The original purchase receipt must accompany all warranty claims. The name of
the retailer and date of purchase must be clear and legible.
7. There are no warranties that extend beyond the warranty specified here in.
This product is designed in accordance with standards for
a specific use. Any modifications or transformations higher
than that indicated by the manufacturer could result in
serious risks for the user and will void the warranty.
WARNING
WARRANTY
AM warrants this product to be free from major defects in material or
workmanship to the original purchaser for below specified period from
the date of purchase. This warranty is subject to the following limitations:
ORIENTAL RECREATIONAL PRODUCTS(SHANGHAI) CO., LTD
1699 Daye Road, Fengxian, Shanghai, China
