Aqua PRO PRO1002403 User manual

SPA BLOWER
323302-013 7/07© 2007 AquaPRO®Systems
PRO1002403, PRO1502403, PRO2002403, PRO100120, PRO150120, PRO200120
101 Production Drive, Harrison, OH 45030 877.278.2797 fax [phone]
[email protected] www.aquaprosystems.com
OWNER'S MANUAL

THIS PAGE INTENTIONALLY LEFT BLANK.

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
The Air Blower is designed for outdoor
spa applications. It is designed for low
noise and a high air flow rate. The unit
is UL listed and the motor is protected
with a resetting thermal overload
device. The blower is designed for
permanent electrical connections.
The box contains the following:
• Blower
• Mounting Bracket
• UL Approved Check Valve
• Conduit Cover Plate, Gasket, and
Screws
• Instruction Manual
Unpacking/Unit Inspection
After unpacking the blower, carefully
inspect for any damage that may have
occurred during transit. Check for
loose, missing or damaged parts.
DAMAGE TO THE UNIT DURING
TRANSPORTATION IS NOT THE
RESPONSIBILITY OF THE
MANUFACTURER.
Important Safety
Instructions
When installing and using this
electrical equipment, basic safety
precautions should always be
followed.
READ AND FOLLOW ALL
INSTRUCTIONS.
Safety Guidelines
This manual contains information that
is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe
the following symbols:
Danger
indicates
an imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
Operating Instructions
Warning
indicates
a potentially hazardous situation
which, if not avoided, COULD result in
death or serious injury.
Caution
indicates
a potentially hazardous situation
which, if not avoided, MAY result in
minor or moderate injury.
Notice
indicates
important information, that if not
followed, may cause damage to
equipment.
General Safety
Information
CALIFORNIA PROPOSITION 65
This
product
or its power cord may contain
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
GENERAL
To reduce
the risk
of injury do not allow children to use
this product unless they are closely
supervised at all times.
Install
blower
no less than 1 foot (305 mm) above the
maximum water level to prevent water
from contacting electrical equipment.
Install in accordance with the
installation instructions.
Blower is
designed
for outdoor use. Install blower at least
two feet above the ground in an area
free of debris, chemicals, or sprinklers.
ELECTRICAL
Disconnect power before
attempting to install, service,
relocate or perform any
maintenance. Tag and disconnect
power and lock the fuse box / control
panel to prevent unexpected
application of power.
Risk of Electric Shock. Install
blower at least 5 feet (1.5 m)
from pool / spa water using
nonmetallic plumbing.
To reduce the risk of
electrical shock, connect the
green colored wire inside
the electrical box to the grounding
terminal of your electrical service or
supply with a continuous green
insulated solid copper conductor
minimum No. 8 AWG (8.4 mm2) solid
copper conductor between this unit
and any metal equipment, metal
enclosures of electrical equipment,
metal water pipe, or conduit within 5
feet (1.5 m) of the unit.
SAVE THESE INSTRUCTIONS.
Installation
Guidelines
Failure to
observe
installation guidelines, could result in
death or serious injury.
See Figure 1 for recommended
installation diagram.
1. Install at least 5 feet (1.5 m) from
pool / spa water using nonmetallic
plumbing. Install blower no less
than 1 foot (305 mm) above the
maximum water level to prevent
water from contacting electrical
equipment. Install in accordance
with the installation instructions.
2. The check valve supplied with the
unit must be installed in a vertical
orientation above the water level
in an easily accessible location for
serviceability. Take care to orient
the check valve with the arrow
pointing in the direction of the air
flow inside the pipe.
3. Use a separate dedicated 2-inch
rigid PVC supply line from the
blower to the spa.
1
www.aquaprosystems.com 1-877-AQUASYS
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for
PRO1002403, PRO1502403, PRO2002403,
PRO100120, PRO150120, and PRO200120

Installation
Guidelines (Continued)
Do not
glue the
blower to the supply line. Glue fumes
can potentially cause an explosion
when the blower starts. Install a 1/4”
self-tapping screw to secure the joint if
necessary.
Do not
install
blower below water level. Blower
must be at least one foot above the
maximum water level.
4. Mount blower in a vertical position
using vertical rigid PVC pipe as
shown in Figure 1. For additional
support use supplied bracket as
shown in Figure 1. For warm
climates, try to locate the blower in
a shaded location.
If the
blower
is to be installed more than 25 ft from
the spa, it will be necessary to install a
loop that is 1 foot above the water line
and as close to the spa as possible (See
Figure 1).
A loop
and a
check valve must be installed at least
one foot above the water level when
supercharging water jets.
5. Verify plumbing is free of leaks
before adding water to spa.
6. Do NOT install adjustable jets.
Adjustable jets can cause excessive
back pressure within the unit.
7. Hydrotherapy jets naturally aerate
when installed correctly. Do not use
blower to supplement aeration
when jets have been installed
incorrectly.
Wiring Guidelines
Failure to
observe
wiring instructions, could result in
death or serious injury.
All
wiring
and electrical connections must be
performed by a qualified electrician.
Installations must be in accordance
with local and national codes.
1. For electrical ratings, see product
decal.
2. Check the line voltage to make
certain it is correct for the blower
being used. Do not attempt to
2
connect 240 VAC to a 120-volt
blower; it will damage the blower
and void the warranty.
3. Refer to the National Electric Code
Guidelines for wire size and to
prevent electric shock.
4. Refer to the National Electric Code
Guidelines for proper selection of
wiring conduit and strain relief.
5. The blower field-wiring box is
designed for non-metallic electrical
tubing only. Refer to the National
Electric Code Guidelines for proper
selection of wiring, and strain
relief.
6. Be certain to connect the green
ground wire supplied with the
blower to the ground from
your electrical panel.
7. Connect remaining line wires
individually to the remaining wires
in the blower.
8. When wiring is complete carefully
install gasket and conduit cover
plate.
Overheating, short-circuiting and fire
damage will result from inadequate
wiring.
www.aquaprosystems.com
Figure 1
1-877-AQUASYS
Operating Instructions
Grade
Wall or post
Bracket
Rigid PVC pipe
Check valve
(location when
NOT using a
Hartford Loop)
Air flow
5 Foot minimum from water
(use non-metallic plumbing)
Orient blower
housing as shown
Conduit box and cover
Non-metallic
electrical tubing
24 inches above
surrounding
grade / 12 inch
minimum above
water
Mount using rigid PVC pipe. For additional support, use supplied bracket as shown.
Hartford Loop required if Blower is more
than 25 feet away from pool / spa
12 inch minimum
Alternate location for check valve if
Harford Loop is used

3
Blower Sizing
The number of holes in the seats and
floor of the spa can be used to
determine the size of the air blower
that will be required for your
application. See Chart 1 for
recommended blower size based on
the number and size of holes.
Water Jet
Applications
The blower can be used to boost the
output of hydrotherapy jets. A venturi
fitting is normally incorporated into
the jet design. The purpose of the
fitting is to allow air to mix with the
water in the jet. The venturi fittings
can be connected together and then
pressurized with air from the blower to
greatly increase the jet action.
www.aquaprosystems.com
New Spa
Applications
It is important to select a water pump
that will supply sufficient flow to the
jets. Consult with the jet manufacturer
for assistance in selecting a pump or
pumps that will accommodate the
number of jets desired in the spa.
Improper sizing can cause overheating
of the pump and blower.
Choose the correct size blower based
on the number of water jets in your
spa (see Chart 1). See the chart below.
Refer to the installation guidelines for
additional details.
Winterizing
The blower is designed for outdoor
use. There are no special off-season
requirements for the blower. In some
spa systems it is possible to protect
discharge lines from freezing by
operating the blower for several
minutes with the spa drained. The
airflow can be used to purge water
from the air lines.
1-877-AQUASYS
Chart 1
Notes
PRO1002403, PRO1502403, PRO2002403,
PRO100120, PRO150120, and PRO200120
Recommended Number of Holes
at the Following Hole Diameters
1/8 Inch 3/16 Inch 1/4 Inch
76 35 20
100 46 26
150 68 38
Total Hole Area
Square Inches
1.0
1.4
1.8
Blower
Model
PRO100120, PRO1002403
PRO150120, PRO1502403
PRO200120, PRO2002403
Number of
Water Jets
4 to 9
9 to 13
14 or more

4
www.aquaprosystems.com
1-877-AQUASYS
Operating Instructions
1. Check electrical connections and fuse
box / control panel
2. Disconnect power then check for
restrictions or blockage in air discharge
line
3. Replace motor
4. It is possible that if the blower is started
and stopped repeatedly in a short time
period, the thermal overload could
interrupt the circuit. Allow the unit to
cool and disconnect power. Restart after
5 - 15 minutes (depending on warmth
of ambient conditions).
1. Disconnect power then check for debris
or foreign object lodged in blower
motor
2. Replace motor
3. Verify voltage is correct for blower
1. Check electrical connections
Verify voltage is correct for blower
2. Install additional blowers, or reduce
piping restrictions
3. Re-orient check valve
1. Check for debris or foreign object
lodged in discharge line
2. Re-orient check valve
1. Check blower voltage requirements,
make certain line voltage is correct
2. Verify correct wire gage is being used
Blower will not
start
Blower hums but
will not run
Blower runs but
delivers little air
Internal blower
overload trips
Blower runs too
slow
1. Power Off
2. Internal blower
overload trips
3. Brushes worn out
4. Nuisance trips
1. Rotor locked
2. Brushes worn out
3. Wrong voltage
1. Low voltage
2. Blower too small for
application
3. Check valve installed
incorrectly
1. Blocked or restricted
air line
2. Check valve installed
incorrectly
1. Incorrect line voltage
2. Incorrect wire size
Symptom Possible Cause(s) Corrective Action(s) Safety Alert
Troubleshooting Chart - All repairs must be completed by licensed or certified professionals.
Disconnect power
BEFORE taking any
corrective action(s)
Disconnect power
BEFORE taking any
corrective action(s)
Disconnect power
BEFORE taking any
corrective action(s)
Disconnect power
BEFORE taking any
corrective action(s)
Disconnect power
BEFORE taking any
corrective action(s)

5
www.aquaprosystems.com 1-877-AQUASYS

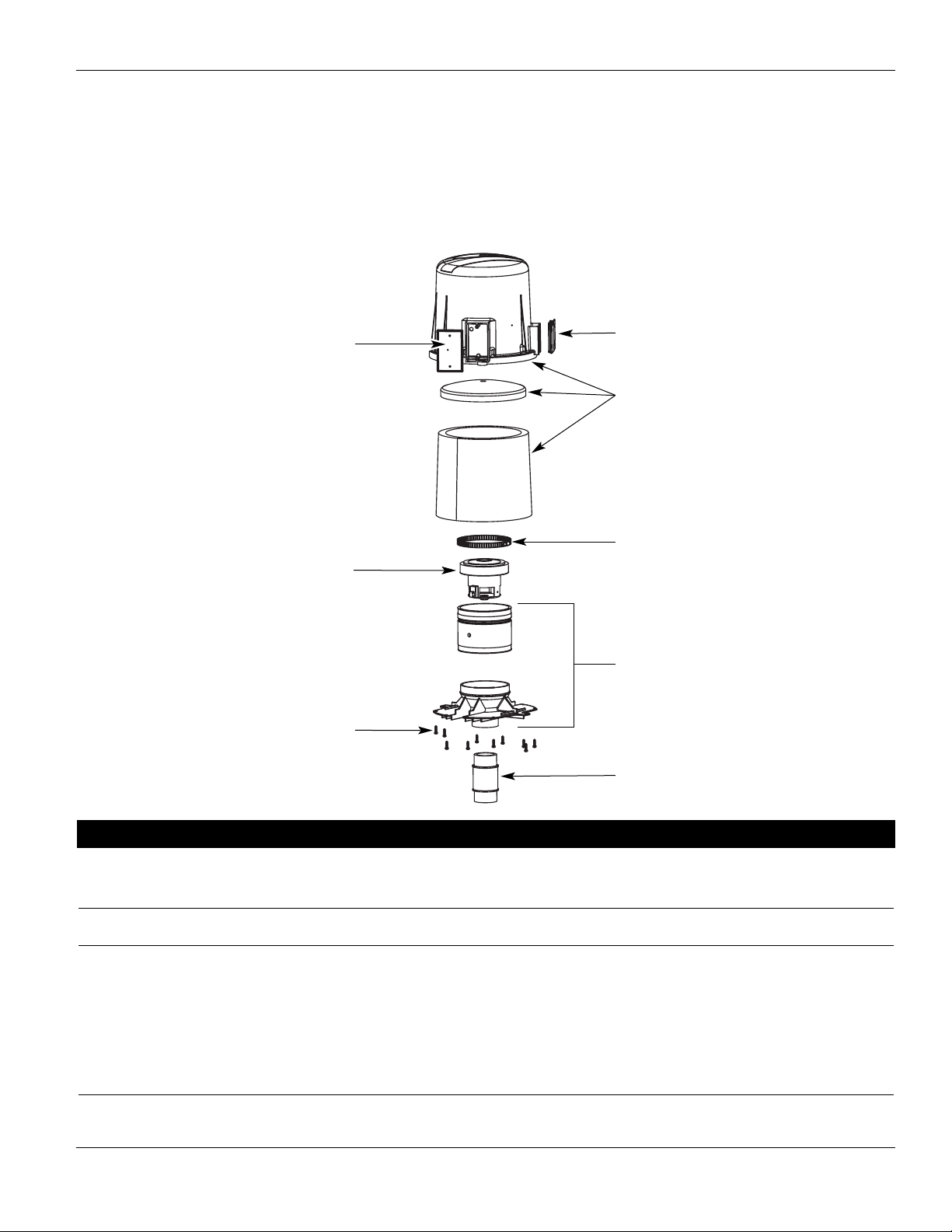

1 Conduit Cover Plate, Gasket, 2 Screws,
and Wiring Diagram (Kit) 81008-001 1
2 Blower Housing with Foam Inserts (Kit) 81006-001 1
3 Bracket 28569-001 1
4 Gear Clamp 67111-001 1
5 Motor 1
1 hp 120v 81000-001
1 hp 240v 81003-001
1-1/2 hp 120v 81001-001
1-1/2 hp 240v 81004-001
2 hp 120v 81002-001
2 hp 240v 81005-001
6 Discharge and Sleeve (Kit) 81007-001 1
7 8-16 x 3/4” Plastite Screw 67007-001 8
8 Check Valve 10116-001 1
Ref. No. Description Parts Number QTY.
For Replacement Parts, call 1-877-278-2797
Address parts correspondence to:
AquaPRO®Systems
101 Production Drive
Harrison, OH 45030 U.S.A.
Replacement Parts List
1
Please provide following information:
- Model number
- Serial number (if any)
- Part descriptions and number as shown in parts list
2
3
4
5
6
7
8
PRO1002403, PRO1502403, PRO2002403,
PRO100120, PRO150120, and PRO200120

6
www.aquaprosystems.com
1-877-AQUASYS
LIMITED WARRANTY
For one (1) year from the date of purchase, Wayne Water Systems, d/b/a AquaPRO Systems (“AquaPRO”) will repair or
replace, at its option, for the original owner any parts of its Blower (“Product”) which are found upon examination by
AquaPRO to be defective in materials or workmanship. This Limited Warranty covers labor for a period of one (1) year for
Product sold and installed in the United States (does NOT cover service labor for removal and reinstallation of the blower).
Please call AquaPRO at 1-877-AQUASYS (1-877-278-2797) for instructions. Be prepared to provide the model number and
serial number when exercising this limited warranty. Purchaser must pay all transportation charges on Products or parts
submitted for repair or replacement. All non-warranty service charges are the responsibility of the original owner. Failure to
pay for non-warranty service charges will void this Limited Warranty. This Limited Warranty does not cover Products that
have been damaged as a result of accident, abuse, misuse, neglect, improper installation, improper maintenance or failure to
operate in accordance with AquaPRO's written instructions. All maintenance and service must be performed by service
agents approved by AquaPRO. Any unauthorized alteration or repairs will void this Limited Warranty.
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE. THIS IS THE
EXCLUSIVE REMEDY AND ANY LIABILITY FOR ANY AND ALL INDIRECT OR CONSEQUENTIAL DAMAGES OR
EXPENSES WHATSOEVER IS EXCLUDED.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusions or limitations of
incidental or consequential damages, so the above limitations might not apply to you. This limited warranty gives you
specific legal rights, and you may also have other legal rights which vary from state to state. In no event, whether as a result
of breach of contract warranty, tort (including negligence) or otherwise, shall AquaPRO or its suppliers be liable for any
special, consequential, incidental or penal damages including, but not limited to loss of profit or revenues, loss of use of the
products or any associated equipment, damage to associated equipment, cost of capital, cost of substitute products, facilities,
services or replacement power, downtime costs, or claims of buyer's customers for such damages. This Limited Warranty does
not include freight charges for equipment or component parts, to and from the factory, services such as maintenance or
inspection, repair or damage due to negligence such as freezing conditions, incorrect installation, nor acts of God. It also
does not include refrigerant or other expendable materials. The liability of AquaPRO Systems shall not exceed the repair or
replacement of defective parts under this Limited Warranty. This Limited Warranty also does not include unnecessary service
calls due to erroneous operational reports, external valve positions, or electrical service. If a non-warranty service call is
made, and the homeowner is unwilling to pay for the service call, this Limited Warranty will be voided. This Limited
Warranty is voided if the product is repaired or altered by any persons or agencies other than those authorized by AquaPRO
Systems. This Limited warranty applies only within the continental USA. For warranty outside the continental USA, contact
AquaPRO Systems.
You MUST retain your purchase receipt along with this form. In the event you need to exercise a warranty claim, you MUST
present a copy of the purchase receipt at the time of service. Please call AquaPRO Systems at 1-877-278-2797 for service or
return authorization and instructions.
DO NOT MAIL THIS FORM TO AQUAPRO SYSTEMS. Use this form only to maintain your records.
MODEL NO. _____________________ SERIAL NO. _____________________ INSTALLATION DATE __________________________
Operating Instructions
