AquaRest Spas UHS User manual

1
UHS, UHH, UHP, HU1 & PU1
Spa Owner’s Manual
Version française au verso
PN 378100 Rev D

2

3
TABLE OF CONTENTS
REGISTRATION CARD............................................................................................ AFTER FRONT COVER
IMPORTANT SAFETY INSTRUCTIONS............................................................................................................................................4
ADDITIONAL IMPORTANT SAFETY PRECAUTIONS ..................................................................................................................5
SELECT A LOCATION..........................................................................................................................................................................7
FILLING YOUR SPA ..............................................................................................................................................................................7

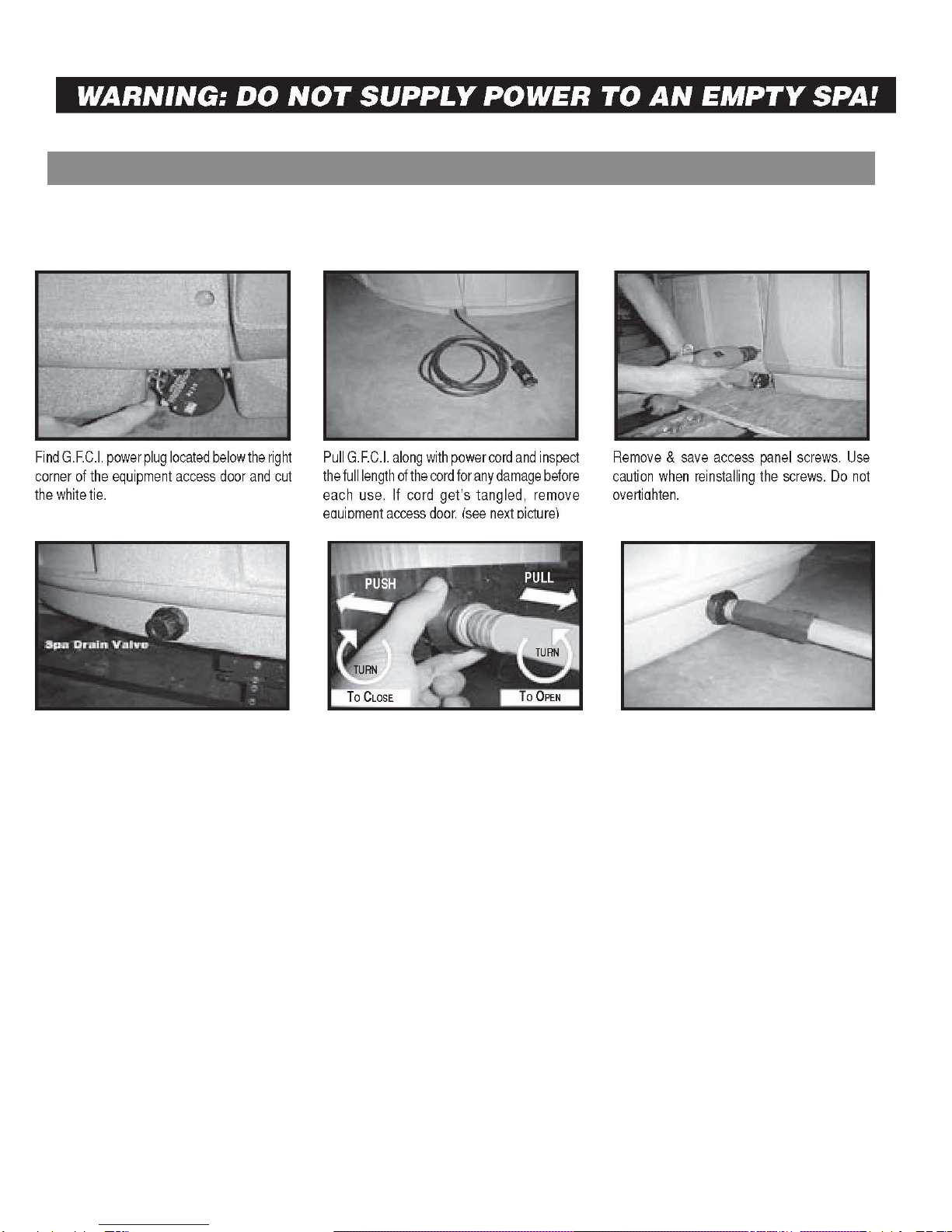

LOCATION OF ELECTRICAL CORD & DRAIN..............................................................................................................................8

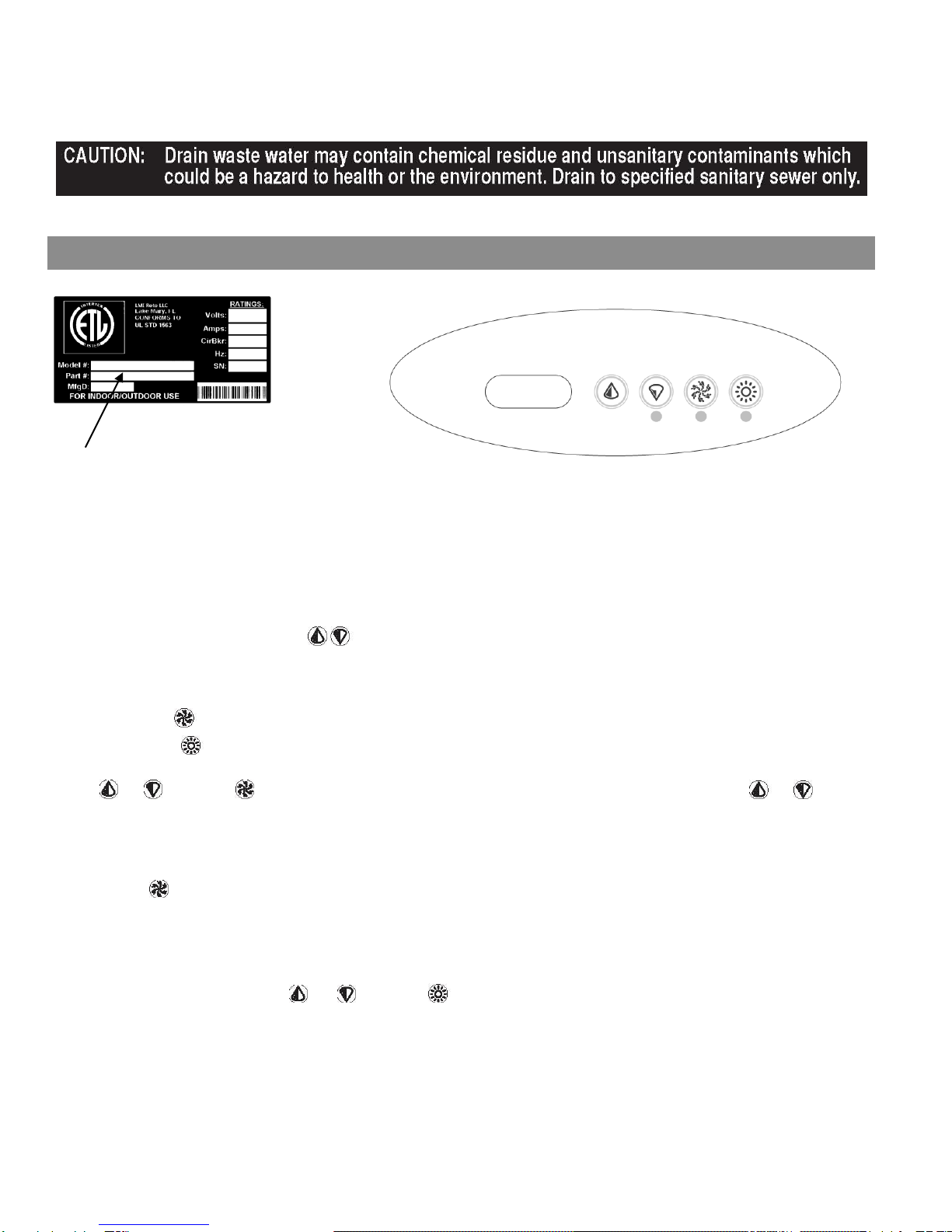

UHS SYSTEM OPERATION..................................................................................................................................................................9
UHH & UHP SYSTEM OPERATION.................................................................................................................................................10
UHH & UHP ADDITIONAL FUNCTIONS .......................................................................................................................................11
UHH & UHP DISPLAY MESSAGES ..................................................................................................................................................12
PU1 & HU1 SYSTEM OPERATION ...................................................................................................................................................13
ADDITIONAL PU1 & HU1 SYSTEM FEATURE..............................................................................................................................14
PU1 & HU1 DISPLAY MESSAGES.....................................................................................................................................................15
PU1 & HU1 SERIES 120-240 VOLTS HARD WIRE CONVERSION .............................................................................................16
PU1 & HU1 CONVERSION FROM 120V TO 240V ..........................................................................................................................18
EQUIPMENT OPERATION.................................................................................................................................................................19
ADJUSTING MASSAGE JETS...................................................................................................................................................................19
SUCTION FITTINGS................................................................................................................................................................................19
SURFACE SKIM FILTER..........................................................................................................................................................................19
TO CLEAN THE CARTRIDGE: .................................................................................................................................................................19
AIR INJECTION VENTURI ADJUSTMENT.................................................................................................................................................19
WATER CHEMISTRY..........................................................................................................................................................................20
WATER CHEMISTRY (CONTINUED)..............................................................................................................................................21
FREEZE PROTECTION.......................................................................................................................................................................22
MOST FREQUENTLY ASKED QUESTIONS.................................................................... ERROR! BOOKMARK NOT DEFINED.
TROUBLESHOOTING GUIDE ............................................................................................ERROR! BOOKMARK NOT DEFINED.
JET WRENCH TOOL INSTRUCTION AND RECOMMENDED USE..........................................................................................23
GLOSSARY OF TERMS.......................................................................................................................................................................24
WARRANTY ........................................................................................................................... ERROR! BOOKMARK NOT DEFINED.

4
I
Im mp po or rt ta an nt t S Sa af fe et ty y I In ns st tr ru uc ct ti io on ns s
When installing and using this electrical equipment, basic safety precautions should always be
followed, including the following:
READ AND FOLLOW ALL INSTRUCTIONS
1. WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely
supervised at all times.
2. WARNING: A wire connector is provided on this unit to connect a minimum 4.11 mm (No. 6 AWG) solid
copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal
water pipe, or conduit within 1.5m (5 feet) of the unit.
3. DANGER RISK OF INJURY: (For cord and plug connected units):
a. Replace damaged cord immediately
b. Do not bury cord
c. Connect to a grounded, grounding type receptacle only.
4. WARNING: (For units with a Ground Fault Circuit Interrupter (G.F.C.I.): This product is provided with a
Ground Fault Circuit Interrupter “G.F.C.I.” on the end of the spa’s power cord. This G.F.C.I. must be tested
before each use. With the product operating depress the “test” button on the G.F.C.I. The spa should not
operate. Depress the “Reset” button on the G.F.C.I. The product should now operate normally. If the spa fails
to operate in this manner, there is a ground current flowing indicating a possible electric shock. Disconnect the
power until the fault has been identified and corrected by a certified licensed electrician.
5. WARNING: (For permanently installed units):
The electrical supply for this product must include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with Section 442-20 of the National Electric Code. ANSI / NFPA 70-
1987. In addition, all 230 volt installations must be protected by a 230 volt Ground Fault Circuit Interrupter
"G.F.C.I.". Any G.F.C.I. circuit breaker used in the house panel must read current returning through the neutral
conductor. 230 volt 2 conductor G.F.C.I. circuit breakers will not operate correctly for your application.
6. DANGER RISK OF ACCIDENTAL DROWNING: Extreme caution must be exercised to prevent unauthorized
access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at
all times. For additional protection, select a cover which is classified by the Underwriters Laboratories Meeting
ASTM F1346-91 requirements.
7. DANGER RISK OF INJURY: The suction fittings in this spa are sized to match the specific water flow created
by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are
compatible.
Never operate spa if suction fittings are broken or missing. Never replace a suction fitting with one less than
the flow rate marked on the original suction fitting.
8. DANGER RISK OF ELECTRIC SHOCK: Install at least 1.5m (5 feet) from all metal surfaces. As an
alternative, a spa may be installed within 1.5m (5 feet) of metal surfaces if each metal surface is permanently
connected by a minimum No. 4.11 mm (No. 6 AWG) solid copper conductor to the wire connector on the
terminal box that is provided for this purpose.
9. DANGER RISK OF ELECTRIC SHOCK: Do not permit any electric appliance, such as light, telephone, radio,
or television, within 1.5m (5 feet) of a spa.
10. WARNING TO REDUCE THE RISK OF INJURY:
a. The water in a spa should never exceed 40°C (104°F). Water temperatures between 38°C (100°F)
and 40°C (104°F) are considered safe for a healthy adult. Lower water temperatures are
recommended for your children and when spa use exceeds 10 minutes.
b. Since excessive water temperatures have high potential for fetal damage during the early months of
pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 38°C
(100°F).
c. Before entering spa, the user should measure the water temperature with an accurate thermometer
since the tolerances of water temperature-regulating devices vary.
(Safety instructions continued on next page)

5
d. The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with
the possibility of drowning.
e. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure,
circulatory system problems, or diabetes should consult a physician before using a spa.
f. Persons using medication should consult a physician before using a spa since some medication may
induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.
11. WARNING:
a. People with infectious diseases should not use a spa or hot tub.
b. To avoid injury, exercise care when entering or exiting a spa or hot tub.
c. Do not use a spa or hot tub immediately following strenuous exercise.
d. Prolonged immersion in a spa or hot tub may be injurious to your health.
12. Caution: Maintain water chemistry in accordance to manufacturer’s instructions.
A
Ad dd di it ti io on na al l I Im mp po or rt ta an nt t S Sa af fe et ty y P Pr re ec ca au ut ti io on ns s
Your spa can be a source of great pleasure. It offers healthful stimulating recreation and is a delightful fun center for
you, your family and friends. However, it contains large quantities of water and is deep enough to present inherent
dangers to life and health unless the following safety rules are strictly observed.
13. Never permit the spa to be used unless it is attended by at least one person other than the bather.
Someone should be present to lend assistance if the bather should be in trouble due to injuries, cramps,
drowning especially in case of children, etc.
14. Always use care in and around your spa.
The spa has many rigid, unyielding parts and many areas that become wet and slippery; these are all
potentially dangerous when rough play is permitted or if care is not used particularly when entering or leaving
the spa.
(Safety instructions continued on next page)
15. Keep the water sanitary and healthful at all times.
Your filter system will remove suspended particles from the water. Regular application of spa chemicals in
proper quantities will destroy harmful bacteria and prevent formation of algae. Your surface skimmer will
remove insects, leaves, and other debris from the water surface. Unsanitary water is a serious health hazard.
16. The water in your spa should NOT be warmer than 38°-40°C (100° - 104° F).
Always keep an accurate thermometer in the water because your spa’s thermostat may be in error. Use a high
quality, shatterproof thermometer with increments of one degree or less.
The National Spa and Pool Institute consider a temperature of 38°C (100°F) safe and comfortable for a
healthy adult. Most healthy adults can enjoy this water temperature for as long as desired, although it may
raise the body temperature to the water temperature and eventually become uncomfortable (like a fever). At
higher water temperatures the soaking time should be shorter; never soak for more than 20 minutes when the
water temperature is 39°C (102°F) or higher. If you are planning a long rest in the spa, lower the water
temperature closer to normal body temperature, about 37.2°C (99°F). Some people find even lower water
temperatures relaxing and pleasing. Try different water temperatures in the 36.6°-39°C (98°-102°F) range until
you find what temperatures suit you best.
17. Hot water can raise the body temperature high enough to cause heat stroke.
This can be fatal even to healthy adults. If you have any questions about your own fitness or whether you
should soak in the spa, check with your physician.
18. Prolonged immersion in hot water may induce hyperthermia.
Hyperthermia occurs when internal body temperature reaches a level several degrees above the normal body
temperature of 36.6°C (98.6°F). The symptoms of hyperthermia include: (1) dizziness, (2) fainting, (3)
drowsiness, (4) lethargy, (5) increases in the internal body temperature. The effects of hyperthermia include:
(1) unawareness of impending hazard, (2) failure to perceive heat, (3) failure to recognize the need to exit spa,
(4) physical inability to exit spa, (5) unconsciousness resulting in danger of drowning.

6
19. WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia
in hot tubs or spas.
Despite the popular image of people in spas drinking wine or other alcoholic beverages, DO NOT use
alcoholic beverages before or during spa use. Alcohol is a depressant which causes slowed reflexes and
drowsiness, especially in conjunction with the relaxed soaking in hot water. This can lead to sleep or
unconsciousness and possibly result in drowning. Using your spa with other people who are also drinking is
not a preventative measure since they are likely to become similarly affected by the combinations of alcohol
and hot water soaking.
Soaking in hot water causes changes in the circulatory system, such as enlargement of blood vessels near the
skin. Therefore, people with a medical history of heart disease, circulatory problems, diabetes, high or low
blood pressure should check with their physician before using spas. Additionally, people taking medications
causing drowsiness, such as tranquilizers, narcotics, antihistamines, or anticoagulants should not use spas
without asking their physician.
20. Broken or missing drain covers should be replaced immediately.
Accidents can occur when long hair or a body part is trapped by suction from a drain or outlet whose cover is
broken or removed. Children are particularly vulnerable, and they should be warned against danger.
21. WARNING: Do not use electrical appliances in or around your spa. Do not use glass or other breakable items
in or around your spa. Do not remove spa cabinet panels and attempt to make repairs. Do not attempt
electrical repairs. Retain a certified licensed electrician.
22. This spa is for residential use only. It is not intended for commercial use.
SAVE THESE INSTRUCTIONS

7
S
Se el le ec ct t a a L Lo oc ca at ti io on n
Site Selection
Your new spa will provide you and yours with hour upon hour of healthy, relaxing enjoyment. The following suggestions
and recommendations will help you select a safe and compatible site for your spa, maximizing your enjoyment.
Before proceeding, please read the “Important Safety Instruction” at the beginning of this manual.
1. Certified Licensed Electrician Required. Electrical installation, (approval of and connection to power source)
must be completed by a qualified certified licensed electrician in compliance with all codes.
2. No Overhead Power Lines. Do not locate your spa under overhead power lines or in near proximity to existing
buried or exposed electrical circuits. See your electrician.
3. Childproof Your Spa. Plan for limiting access of children. Precautions such as self closing and locking gates or
access doors, fencing and other child barriers, as dictated by the site.
4. UL Safety Cover Required. In addition to its insulating factors, a good cover also provides a measure of
additional protection from unwanted access. Select a cover which is classified by the Underwriters Laboratories
meeting ASTM F1346-91 requirements.
CAUTION: Your spa must be installed on a level, flat, solid load-bearing surface. Do not locate the spa on a surface that
can be damaged or altered by water.
Provide a solid load-bearing site:
The site must provide a solid foundation with a minimum load bearing capacity of 34 kg per 929 sq. cm (75 pounds per
square foot). Concrete slabs and decks must be designed to support this weight. Do not select a site composed of
individual unsupported bricks, blocks, or other materials which will shift unevenly and cause damage to your spas internal
frame.

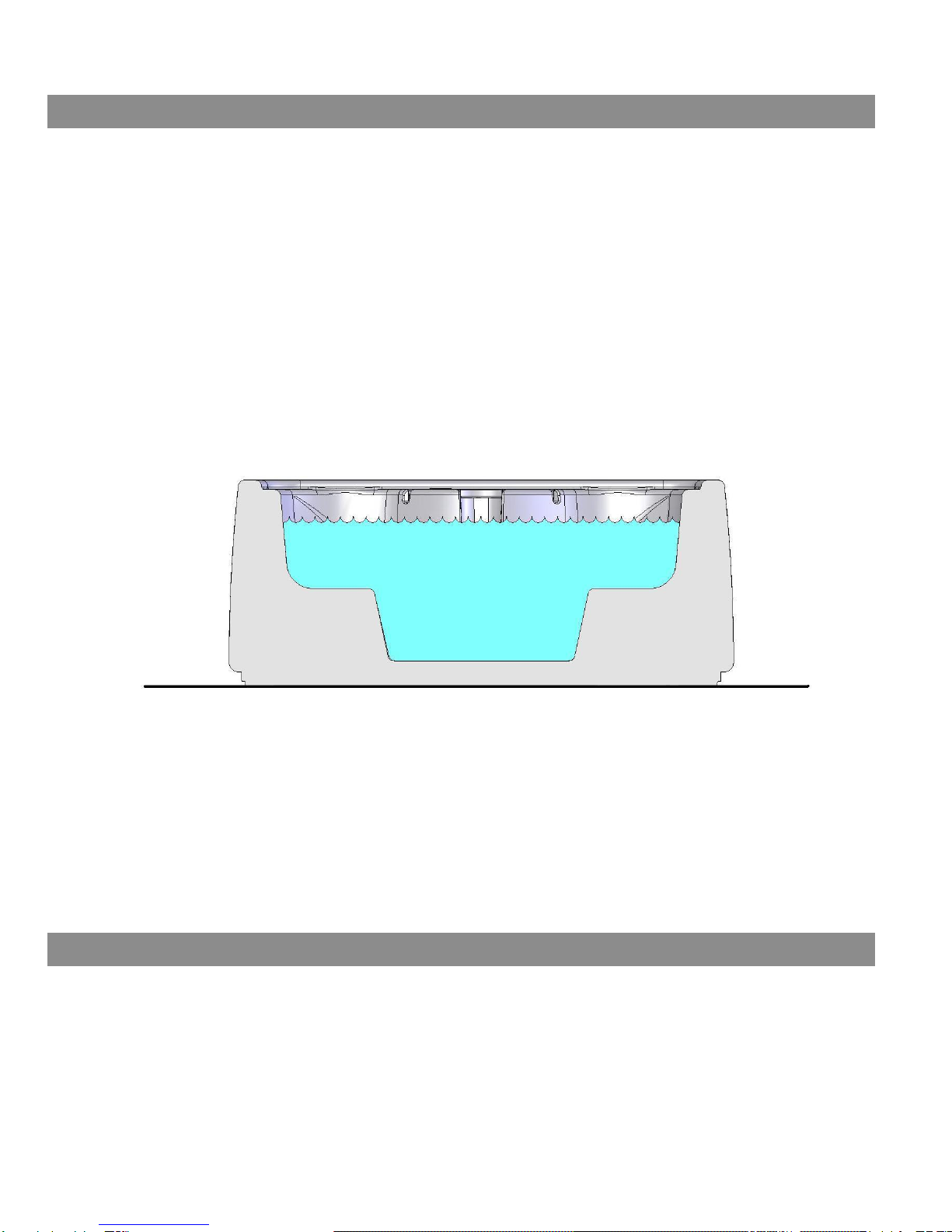

Provide a level, flat site:
A level site is critical to both the performance and enjoyment of your spa. Water
is unforgiving and will always settle level. A flat and level site provides the surface necessary to properly dispense weight
between the foot well (which bears most of the spa’s weight) and the structural frame which primarily provides stabilization
and secondary support. The importance of proper support for the foot well in conjunction with the spa cabinet can not be
over stressed.
F
Fi il ll li in ng g Y Yo ou ur r S Sp pa a
Make sure that the electrical cord has been routed properly. (See page 8). Do not supply electrical power at this
point.
Check to be sure that the drain valve is closed and that the drain safety cap is securely in place. (See page 8)
Remove filter cartridge and place garden hose end through opening (inside filter area), fill the spa with cold (never warm or
hot) water 150 to 200 mm (6” to 8”) below the top edge of the spa. Do not overfill, as the spa’s water level will rise as each
person enters the spa.
Always keep the spa water level above the jet openings.
Solid level flat surface capable of supporting 75 pounds per square foot.
15% weight load. 70% of spa’s weight load. 15% weight load.


8
L
Lo oc ca at ti io on n o of f E El le ec ct tr ri ic ca al l C Co or rd d & & D Dr ra ai in n
The spa equipment requires a 15 amp outlet, dedicated to the spa. The use of any extension cord will void your warranty.
Carefully read all of the safety requirements before plugging in the spa.
Figure 1 Figure 2 Figure 3
The spa drain valve assembly consists of a garden hose connector with a twist on/off valve and a safety drain
cap. It is located outside at the bottom of the spa.
EACH TIME BEFORE FILLING THE SPA
1. Make sure the drain valve is closed. Turn handle clockwise until it stops.
2. Make sure the safety cap is secure. Turn handle clockwise until it stops.
3. If the drain valve is facing a wall, leave enough space between the drain valve and wall 15.4 cm (6"
minimum) to allow enough room to connect a garden hose.
TO DRAIN THE SPA
Drain every three months. Draining your spa on a regular basis rids the spa of dissolved solids and protects your
spa equipment from the effects of residual calcium hardness and total alkalinity problems
1. Turn Power Off. Turn power off at the spa consoles and deactivate any disconnect switches at the
G.F.C.I. plug or load center.
2. Locate Spa Drain Valve. The drain valve is located outside, at the bottom of the spa. See figures 1, 2 and
3 for reference.
3. Remove Drain Valve Safety Cap. Remove the safety drain cap (see figure 1) and store for use when
refilling your spa. Attach a standard garden hose to the drain valve.

9
4. Select Safe Suitable Drain. Route the hose to a sewer drain capable of safely assimilating 300 plus
gallons of water which may contain both unsanitary contaminants and chemical residue. To open the
drain valve twist counter clockwise, then pull outward (see figure 2).
U
UH HS S S Sy ys st te em m O Op pe er ra at ti io on n
If not UHS see next pages.
Initial Start-Up
From the moment your spa is plug in, it is automatically pre-set to operate until it reaches 38°C (100°F). This process
could take up to 20 hours depending on the initial water temperature. The spa is also preset to filter the water for 1 hour
per day (30) and the clock starts the second you plug it in.
Temperature Adjustment 15.5°C-40°C (60°F-104°F)
When either of the Accu-temp pads are pressed once, the LCD will display the temperature which has been set.
Each time either one of these pads are pressed again, the temperature will change by 0.556°C (1°F). After 5 seconds, the
LCD will automatically display the current spa temperature.
Jets. Press the pad to run the pump on and off. If left running, the pump will automatically turn off after 15 minutes.
Light. Press the pad to turn the spa light on and off. If left on, the light will automatically turn off after 4 hours.
Spa Water Maintenance. This function enables you to program the amount of water filtration time.
Press or and then to enter the programming mode. Once in the programming mode press or to select
the filtration time.
00 In this mode there is no additional filtration.
30 In this mode the water will be filtered for 1 hour every day.
60 In this mode the water will be filtered for 2 hours every day.
To exit press
Standby Mode
This function allows you to disable the equipment when the filter needs to be serviced without disturbing the already
programmed filtration time. Press or and then to enter the standby mode. All spa functions are disabled except
for freeze control. To exit from standby press any button.
Display Messages:
OH “Overheat” (spa is deactivated)
DO NOT ENTER THE WATER. If the spa water has reached 44°C (108°F), remove the spa cover to cool the water. The
spa will remain shut down until the water and the heater sensor cools to 40°C (104°F). At that point press any button to
XXX-UHS-XX-X
1 0 2

10
reset the spa. If the spa will not reset, shut off the power to the spa and call your dealer or service organization.
SN“Non Functional High Temp Sensor” (heater is deactivated)
Open sensor. Call your dealer or service center.
U
UH HH H & & U UH HP P S Sy ys st te em m O Op pe er ra at ti io on n
If not UHH or UHP see previous or next pages.
Initial Start-Up
When your Spa is first activated, it will perform a self diagnostics test showing a series of numbers followed by Pr, then by --along
with the low speed pump for approximately 7 minutes. Also the internal clock that keeps track of the filtration cycles every 12 hours
will start at that point. The system is preset to heat up to 37.7° C (100° F) and it is also preset to run on low speed for two hours (F2).
Temperature Adjustment
21°C-40° C (70° F-104° F)
When either of the temperature pads or are pressed once, the LCD will display the temperature witch has been set. Each
time either one of this pads are pressed again, the temperature will change by .556°C(1°F), After 5 seconds, the LCD will
automatically display the current spa temperature.
Jets
Press the pad to run the pump on and off. If left running, the high speed pump will automatically turn off after 15 minutes or
low speed in four hours.
Light
Press the pad to turn the spa light on. To switch color modes, press the pad again immediately after turning it off. If left on, the
light will automatically turns off after four hours.
Spa Water Maintenance
This function enables you to program the amount of water filtration time.
Press or and to enter the programming mode.
Once in the programming mode press or to select the filtration time.
F2 In this mode the water will be filtered for 2 hours every 12 hours.
F4 In this mode the water will be filtered for 4 hours every 12 hours.
F6 In this mode the water will be filtered for 6 hours every 12 hours.
F8 In this mode the water will be filtered for 8 hours every 12 hours.
FC In this mode the water will be filtered continuously.
To exit press .
Standby Mode (SY)
This function allows you to disable the equipment when the filter requires service without disturbing programmed filtration
time.
Press repeatedly (or hold it down) until it gets to 21° C (70° F) then press it one more time (within a couple of
seconds) to enter the stand by mode. All spa functions are disabled except for freeze control. To exit from standby press
any button and re-enter desire set temperature.
For additional features and display messages, see next pages.
XXX-UHH-XX-X
1 0 2

11
U
UH HH H & & U UH HP P A Ad dd di it ti io on na al l F Fu un nc ct ti io on ns s
Spa heating modes
The Heating Mode offers the ability to control your heater in special circumstances. Your spa is preset at the factory to
Standard Mode. However, the Standard Heating Mode can be changed to Economy or Sleep by pressing the or
then button. With each press of the buttons, the display will cycle through the three different modes described
below.
Standard Mode (ST): Your spa is preset to this mode. This mode operates the heater whenever needed to maintain the
programmed spa water temperature. (See Temperature Adjustment page 10).
Economy Mode (EC): This mode operates the heater only during programmed Filtering Cycles (See Spa Water
Maintenance page 10). This mode is ideal for areas that charge a premium for electricity during peak hours. This mode will
maintain the thermostat setting. If it does not reach the thermostat setting, you may have to allow for more heating time by
increasing the Filtration Cycles.
Sleep Mode (SL): This mode works in the same manner as the Economy Mode except the thermostat setting is
automatically lowered by 20 degrees. This mode is best suited for extended leaves from home when it is not important to
maintain constant water temperature, such as vacations or business trips.
Summer Set Temperature
In hot weather, it is possible for water temperature to exceed the temperature setting. This is especially common when
your temperature setting is lower than air temperature. If the water temperature exceeds the temperature setting more
than 3°, an automatic safety circuit will turn off all of the electrical systems. The systems will remain off until either the
water temperature cools to below the setting, or the setting is increased above the water temperature.

12
U
UH HH H & & U UH HP P D Di is sp pl la ay y M Me es ss sa ag ge es s
MESSAGE
MEANING
ACTION REQUIRED
No message on display.
Power has been cut off to the
spa.
The control panel will be disabled until power
returns. Spa settings will be preserved until next
power up.
- -
Temperature unknown.
After the pump has been running for 2 minutes, the
temperature will be displayed.
H H
Overheat -The spa has shut
down. One of the sensors
has detected 47°C (118°F) at
the heater.
DO NOT ENTER THE WATER. Remove the spa
cover and allow water to cool. Once the heater has
cooled, reset by pushing any button. If spa does
not reset, shut off the power to the spa and call
your dealer or service organization.
O H
Overheat" -The spa has shut
down. One of the sensors
has detected that the spa
water is 43°C (110°F).
DO NOT ENTER THE WATER. Remove the spa
cover and allow water to cool. At 41°C (107°F), the
spa should automatically reset. If spa does not
reset, shut off the power to the spa and call your
dealer or service organization
1 C
Ice -Potential freeze condition
detected.
No action required. The pump will automatically
activate regardless of spa status.
S A
Spa is shut down. The sensor
that is plugged into the "A"
jack is not working.
If the problem persists, contact your dealer or
service organization. (May appear temporarily in an
overheat situation and disappear when the heater
cools.)
S y
Spa is shut down. The sensor
that is plugged into the "B"
jack is not working.
If the problem persists, contact your dealer or
service organization. (May appear temporarily in an
overheat situation and disappear when the heater
cools.)
S N
Sensors are out of balance. If
alternating with spa
temperature, it may just be a
temporary condition. If
flashing by itself, spa is shut
down.
If the problem persists, contact your dealer or
service organization.
H L
A significant difference
between temperature
sensors has been detected.
This could indicate a flow
problem.
Check water level in spa. Refill if necessary. If the
water level is okay, make sure the pumps have
been primed. If problem persists, contact your
dealer or service organization.
L F
Persistent low flow problems.
(Displays on the fifth
occurrence of "HL" message
within 24 hours.) Heater is
shut down, but other spa
functions continue to run
normally.
Follow action required for "HL" message. Heating
capability of the spa will not reset automatically;
you may press any button to reset.
D R
Possible inadequate water,
poor flow, or air bubbles in
the heater. Spa is shut down
for 15 minutes.
No water level in spa. Refill if necessary. If water
level is okay, make sure the pumps have been
primed. Press any button to reset, or this message
automatically will reset within 15 minutes. If
problem persists, contact your dealer or service
organization.
D Y
No water detected in heater.
(Displays on third occurrence
of "DR" message.) Spa is
shut down.
Follow action required for "dr" message. Spa will
not automatically reset. Press any button to reset.

13
P
PU U1 1 & & H HU U1 1 S Sy ys st te em m O Op pe er ra at ti io on n
If not PU1 or HU1 see previous pages.
Initial Start-Up
When your spa is first activated, it will perform a self diagnostic test showing a series on numbers followed by Pr, then by –along with
the low speed pump. Also the internal clock that keeps track of the filtration cycles every 12 hours will start at that point. The system
is preset to heat to 38° C (100° F) and is preset to run on low speed for two hours (F2).
Temperature Adjustment 21°-40° C (70°-104° F)
When the temperature button is pressed once, the LCD display will flash and show temperature set point. While flashing, press
the temperature button again to increase or decrease the temperature set point. To change the direction (increase and decrease),
wait until the LCD display stops flashing, then press the temperature button again. The LCD display will show the actual water
temperature five seconds after you have completed setting the temperature.
Jets
Press the jet button to start and stop the jet pump. If left operating, the jet pump will automatically turn off after thirty minutes.
To change this timing to fifteen minutes see page 18, number 2, Pump Time Out.
Light
Press the light button to turn the light on. Press again to turn the light off. If left on, the light will automatically turn off in
approximately four hours.
Freeze Protection
If the high limit sensor detects 6° C (44° F) at the heater, the equipment is automatically activated to provide freeze protection. This is
a normal function, not a corrective action. The equipment will continue to operate until the high limit sensor detects 7° C (45° F) at the
heater. Freeze protection is always enabled while electrical power is supplied to the spa, regardless of the spa’s status.
Standby Mode ( S 8 )
The spa can be disabled to while servicing the filter. To place the system into the standby mode, press the temperature button ,
then press the mode button . The display will display S 8. All but the freeze protect functions are disabled. Press any button to
resume normal spa operation.
Spa Water Maintenance
This function enables you to program the amount of water filtration and ozone sanitization (optional) timing.
Press the temperature button then the jet pump button to enter the filter programming mode. Press the temperature button
cycle through the available settings listed below. Once desired setting is reached, press the jet pump button to exit the program.
F2 Water is filtered two out of every twelve hours.
F4 Water is filtered four out of every twelve hours.
F6 Water is filtered six out of every twelve hours.
FC Water is filtered continuously, twenty-four hours per day.
XXX-PU1-XX-X
1 0 2

14
A
Ad dd di it ti io on na al l P PU U1 1 & & H HU U1 1 s sy ys st te em m f fe ea at tu ur re e
Spa Heating Modes
Your spa's heating system can be set to one of three operating modes: standard, economy, or sleep mode.
Standard Mode (displayed as ST): Your spa is preset at the factory to this mode. Standard mode operates the
heater whenever needed to maintain the programmed spa water temperature. (See Temperature Adjustment page
13).
Economy Mode (displayed as EC): This mode operates the heater only during programmed filtering cycles (See
Spa Water Maintenance page 13). This mode may be useful for areas that charge a premium for electricity
during peak hours. If the spa water temperature does not reach the thermostat setting, you may have to allow for
more heating time by increasing the filtration cycles.
Sleep Mode (displayed as SL): This mode works in the same manner as the economy mode, except the
thermostat setting is automatically lowered by 20 degrees. This mode may be useful during extended leaves
from home such as vacations, when it is not important to maintain constant water temperature.
To change the heating mode press the temperature button then the light button . the display will cycle
to the next mode. Each time you press this sequence of buttons, the display will cycle to the next mode: EC →
SL → ST then back to the beginning. The heating mode will be set to the last displayed.

15
P
PU U1 1 & & H HU U1 1 D Di is sp pl la ay y M Me es ss sa ag ge es s
MESSAGE
MEANING
ACTION REQUIRED
No message on display.
Power has been cut off to the
spa.
The control panel will be disabled until power
returns. Spa settings will be preserved until next
power up.
- -
Temperature unknown.
After the pump has been running for 2 minutes, the
temperature will be displayed.
H H
Overheat -The spa has shut
down. One of the sensors
has detected 47°C (118°F) at
the heater.
DO NOT ENTER THE WATER. Remove the spa
cover and allow water to cool. Once the heater has
cooled, reset by pushing any button. If spa does
not reset, shut off the power to the spa and call
your dealer or service organization.
O H
Overheat" -The spa has shut
down. One of the sensors
has detected that the spa
water is 43°C (110°F).
DO NOT ENTER THE WATER. Remove the spa
cover and allow water to cool. At 41°C (107°F), the
spa should automatically reset. If spa does not
reset, shut off the power to the spa and call your
dealer or service organization
1 C
Ice -Potential freeze condition
detected.
No action required. The pump will automatically
activate regardless of spa status.
S A
Spa is shut down. The sensor
that is plugged into the "A"
jack is not working.
If the problem persists, contact your dealer or
service organization. (May appear temporarily in an
overheat situation and disappear when the heater
cools.)
S b
Spa is shut down. The sensor
that is plugged into the "B"
jack is not working.
If the problem persists, contact your dealer or
service organization. (May appear temporarily in an
overheat situation and disappear when the heater
cools.)
S N
Sensors are out of balance. If
alternating with spa
temperature, it may just be a
temporary condition. If
flashing by itself, spa is shut
down.
If the problem persists, contact your dealer or
service organization.
H L
A significant difference
between temperature
sensors has been detected.
This could indicate a flow
problem.
Check water level in spa. Refill if necessary. If the
water level is okay, make sure the pumps have
been primed. If problem persists, contact your
dealer or service organization.
L F
Persistent low flow problems.
(Displays on the fifth
occurrence of "HL" message
within 24 hours.) Heater is
shut down, but other spa
functions continue to run
normally.
Follow action required for "HL" message. Heating
capability of the spa will not reset automatically;
you may press any button to reset.
D R
Possible inadequate water,
poor flow, or air bubbles in
the heater. Spa is shut down
for 15 minutes.
water level in spa. Refill if necessary. If water level
is okay, make sure the pumps have been primed.
Press any button to reset, or this message
automatically will reset within 15 minutes. If
problem persists, contact your dealer or service
organization.
D Y
water detected in heater.
(Displays on third occurrence
of "DR" message.) Spa is
shut down.
Follow action required for "dr" message. Spa will
not automatically reset. Press any button to reset.

16
All wiring MUST be in accordance with the National Electrical Code and all local codes.
P
PU U1 1 & & H HU U1 1 S Se er ri ie es s 1 12 20 0- -2 24 40 0 V Vo ol lt ts s H Ha ar rd d W Wi ir re e C Co on nv ve er rs si io on n
Conversion of the P1 Series Equipment
TheconversionofaPU1orHU1 equipmentpackagefromafactoryinstalled120voltsystemtoahardwired240voltsystemmustbecompletedbya
certified licensed electrician.
A G.F.C.I. AND A DISCONNECT SWITCH ARE REQUIRED
The National Electrical Coderequires that spas connected to 240 volts circuits be equipped with a “G.F.C.I.” and Disconnect Switch. See National
Electric Code Articles 680-12 and 680-42.
P1 SERIES SPAS ARE NOT EQUIPPED WITH A 240V G.F.C.I. OR A DISCONNECT SWITCH. A G.F.C.I. SHOULD BE
INSTALLED BY A CERTIFIED LICENSED ELECTRICIAN
OUTDOOR LOAD CENTER
Theadditionofanoutdoor loadcentersuchasaSiemensW0408ML 1125orequalmustbeaddedtothecircuit.Thistypeofloadcenterprovidesboth
a G.F.C.I. and Disconnect Switch in a convenient configuration as required by the National Electric Code. (See next pagefor suggested wiring
configuration)
ISOLATED, DEDICATED 240 VOLT, 30 OR 50 AMP CIRCUITS ARE REQUIRED
An isolated,dedicated 240volt, 30or50 amp circuitisrequired toprovide thepowernecessarytoproperlyoperate the240V equipment package.
PERMANENTLY HARD WIRED
All 240 volt operations wiring must be permanentlyhard wired, installed in grounded conduit and installed incompliance with the National Electrical
Code and all local codes.
WIRE SIZING MUST MEET ELECTRICAL CODES
All installations are different. Wire sizing must meet the National Electrical Code and all local code specifications.
See next pages for more conversion details.
W A R N I N G : U S E C O P P E R C O N D U C T O R S O N L Y !
WARNING: Shock Hazard! Under No Circumstances Should This Spa Be Installed By Anyone
Other Than A Certified Licensed Electrician!
ELECTRICAL DATA FOR THE USE OF CERTIFIED LICENSED ELECTRICIAN

17
REQUIRED WIRING FOR 240 VOLT INSTALLATION

18
All wiring MUST be in accordance with the National Electrical Code and all local codes.
P
PU U1 1 & & H HU U1 1 C Co on nv ve er rs si io on n F Fr ro om m 1 12 20 0V V t to o 2 24 40 0V V
Terminal Block Torque field connections should be between 21 and 23 inch lbs.
Readily accessible disconnecting means to be provided at time of installation.
Connect only to a circuit protected by a Class A Ground Fault Circuit Interrupter “G.F.C.I.” mounted at least 6 feet
(1.8m) from the inside walls of the spa and in line of sight from the equipment compartment.
Remove white wire from J1 1 to J32 and move key #10 to off position for 50 amp configuration.
1 Test Mode (normally off)
2 Pump Time Out. In “ON” position, Pump turns off after 30
minutes In “OFF” position, Pump turns off after 15 minutes
3 Panel Option (must be OFF). In “ON” position,
enables mini panel. In “OFF” position, enables current panel
4 Aux Freeze (must be OFF).
5 Panel Button Layout (must be OFF). In “ON”
position,enablesJ/L/-/+/w/BLW/AUXIn “OFF” position, enables
B/J/T/LorJ/T/L
6 Frequency (must be OFF). In “ON” position, 50Hz
operation In “OFF” position, 60Hz operation
7 Mode Changes (must be OFF). In “ON” position,
standard mode only. In “OFF” position, enables
standard/economy/sleep.
8 Temperature Display. In “ON” position, temperature
is displayed in degrees Celsius. In “OFF” position, temperature
isdisplayedindegreesFahrenheit
9 Blower / Pump 2 Enable. In “ON” position, enables
pump 2 In “OFF” position, disables pump 2.
10 Amperage Setting. In “ON” position, for 30 Amp
service In “OFF” position, for 50 Amp service.
ELECTRICAL DATA FOR THE USE OF CERTIFIED LICENSED ELECTRICIAN
WARNING: Shock Hazard! Under No Circumstances Should This Spa Be Installed By Anyone
Other Than A Certified Licensed Electrician!
A grounding lug has been provided on the
exterior of the pack chassis to allow
connection of a ground wire to a local
grounding point to be established in
compliance with the National Electric Code
(NEC) and all local codes.
GREEN
WHITE
BLACK
J11
J32
120V Power Connection
1 2 3 4 5 6 7 8 9 10
110110
O
N

19
E
Eq qu ui ip pm me en nt t O Op pe er ra at ti io on n
The spa is equipped with massage jets, two anti-vortex
main drains and an automatic skim filter.
Adjusting Massage Jets
The massage jets may be adjusted for both volume
and direction.
To adjust the jet for direction simply rotate the jet’s
eyeball fitting in the direction desired. To adjust the
jet’s flow rate, rotate the jet’s outer faceplate about 1/4
turn counter-clockwise to increase the flow or
clockwise to decrease the flow. (DO NOT FORCE)
Suction Fittings
Keeping the suction fitting covers clean and clear of all
obstructions is critical in order to have a safe operation
of the spa. See the safety instructions on page 4 for
additional for details.
Surface Skim Filter
The spa’s automatic surface skim filter is designed to
remove floating debris and contaminants such as body
lotions by drawing water through a specially
formulated filter cartridge element. It is critical that this
element be routinely cleaned.
To Clean the Cartridge:
1 Place system on Lockout Mode or disconnect
power.
2 Remove the filter cover.
3 Turn cartridge counterclockwise and pull up.
4 Remove the cartridge element and thoroughly
rinse with a garden hose until element is free from dirt
and debris.
5 Return the cartridge to the filter well by
following steps 1 - 4 in reverse order.
Air Injection Venturi Adjustment
Air injection into the massage jet water flow may be
controlled by manipulation of the venturi dials located
on either side of the spa. Each dial is independent and
controls up to 5 jets respectively.

20
W
Wa at te er r C Ch he em mi is st tr ry y
Spa water chemistry (or water balance) affects the safety of your equipment as well as the
appearance of your spa water. Water balance has five factors: pH, total alkalinity, calcium
hardness, temperature and total dissolved solids. pH is the most critical but total alkalinity and
calcium hardness must also be watched closely. Low calcium hardness can lead to corrosion of
equipment, while high calcium hardness can lead to scaling, cloudy water and staining. Water
temperature should never exceed 40°C (104°F), and total dissolved solids should be kept below
1500 PPM.
Algicidal and sanitizing chemicals are either alkaline or acid. Sodium and calcium hyprochlorites
are alkaline. Chlorine gas and practically all other dry chlorine spa products are acid. On the
market are a number of bromine sanitizers. Bromines are usually preferred since they don’t emit a
strong chlorine odor.
SEE YOUR SPA WATER EXPERT FOR ADDITIONAL INFORMATION
USE OF CALCIUM HYPOCHLORITES OR TRICHLORS WILL VOID WARRANTY
1. Check and adjust water conditions. You must maintain proper chemical balance to insure safe
sanitary conditions and to prevent your spa from becoming a breeding place for bacteria. This is
done by:
A. Test daily and maintain pH between 7.2 and 7.8. Adjust if necessary, above 7.8 use pH
decrease, if below 7.2 use pH Increase. Improper pH can damage spa finish, equipment,
cause eye irritation and chemical loss. Use dosage according to manufacturer’s label.
B. Test alkalinity and maintain at 80 ppm to 140 ppm. Adjust if necessary, above 140 ppm use
pH Decrease, if below 80 ppm use Total Alkalinity Control. Use dosage according to
manufacturer’s label.
C. Test daily and maintain proper sanitizer level. It’s recommended to use bromine sanitizer
and maintain bromine at 3.0
5.0 ppm. Typically two or three bathers relaxing in an average spa with 103°F (39.4°C)
temperature will consume all the bromine sanitizer in about twenty minutes. Therefore,
prolonged or heavy use may require additional bromine to maintain safe sanitary conditions.
D. “Shock” (with a non-chlorine shock) once a week and after each water change. Do not use
spa until the bromine residual has dropped to less than 5.0 ppm. NOTE: Improper pH will
cause early corrosion to your pump. Corrosion is not handled under any warranty.
SPA MAINTENANCE SCHEDULE
DAILY
Test and maintain pH: Ideal range 7.2 - 7.8b.
Test and maintain bromine: Ideal range 3.0 - 5.0 ppm.
WEEKLY
Test and maintain alkalinity 80 - 140 ppm. Shock with a non-chlorine shock.
Add Spa Clear.
MAINTENANCE
Add defoamer as needed.
Inspect filter cartridge every 2 weeks and clean when needed.
