Aquatek WP-A1908 User manual
19” Advanced Bathroom TV
Product Code: WP-A1908
Instructions Manual
2
Table of Contents
Safety Guidelines 3
Package Contents 4
Television Dimensions 5
Ports and Connectors 6
Technical Specications 7
Installation Guidelines 8
Installation Instructions – In Wall Installation Method 9
Installation Instructions – On Wall Installation Method 10
Front Panel Overview 11
Remote Control Overview 12
Remote Control Key Functions 13
OSD Menu User Guide - 1.1 Input Source Menu 14
OSD Menu User Guide - 1.2 Channel Menu 15
OSD Menu User Guide - 1.3 Picture Menu 16
OSD Menu User Guide - 1.4 Sound Menu 17

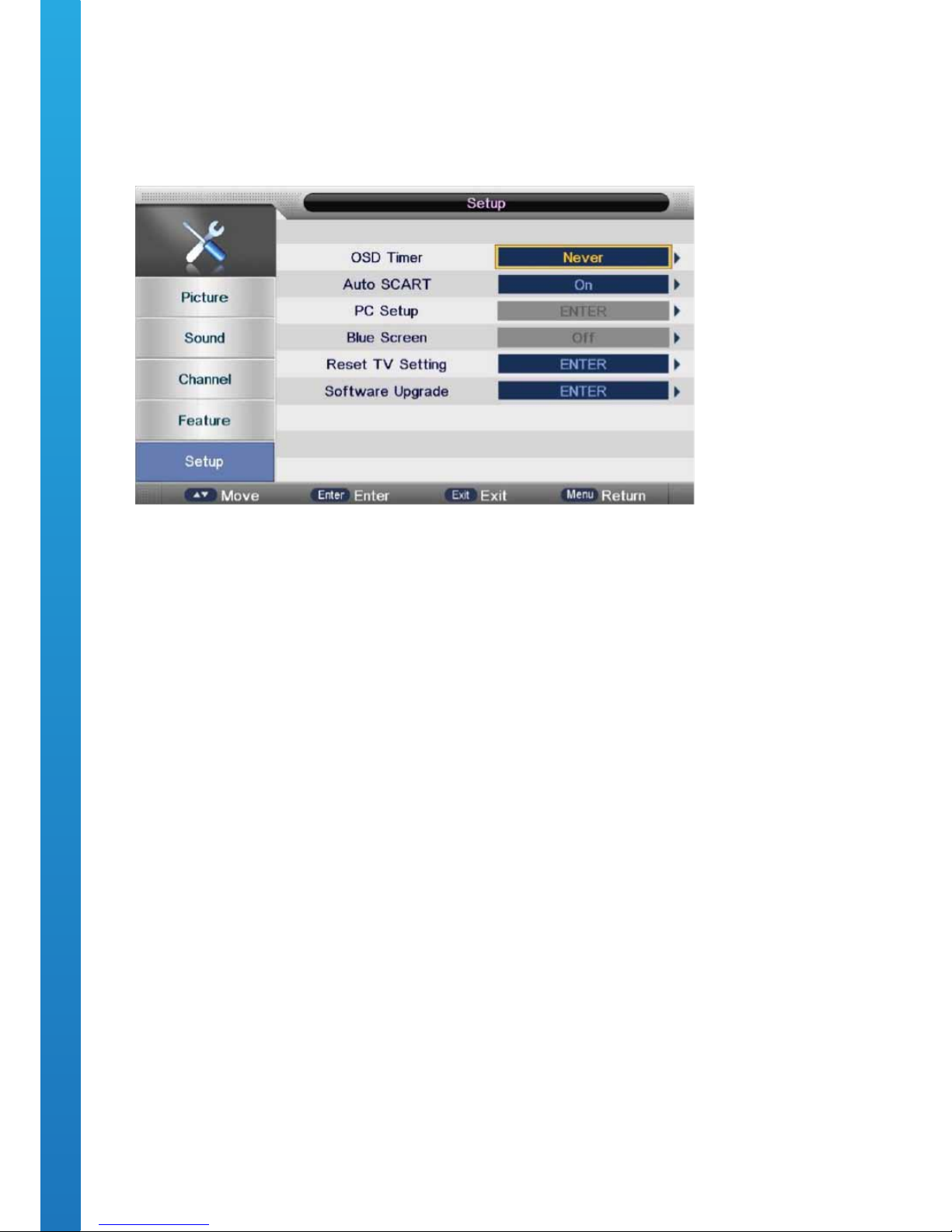

OSD Menu User Guide - 1.5 Setup Menu 18
OSD Menu User Guide - 1.6 Media Source Menu 19
Troubleshooting 21
Warranty Details 22
3
Safety Guidelines
This Aquatek Bathroom TV has been rated under IP65 Waterproof Classication. The item should not be
exposed to harsh weather conditions. For safety reasons we advise that no objects are placed on top of the
television unit once installed.
Please read the following before operating this television:
• Please do not allow children to operate this television without adult supervision or guidance.
• The television should not be subjected to temperatures below -10 Celsius or above + 50 Celsius when in
use. Do not install in areas that are subjected to direct heat or light.
• Please do no carry out any maintenance or servicing on this television unless you’re a qualied technician.
• If for any reason the transformer, mains cable, remote controller or television is not performing correctly,
please contact the provider.
• Please use a qualied electrician to install the power cables to your television. If the power cable is pinched
or cut when installed, the users or installers could be subject to an electric shock.
• Disconnect the television in the event of (a) a power cut, (b) leaving the unit ON for a long period of time
unattended, and (c) for cleaning the unit.
• Do not fully submerse the television in water.
• Do not allow the television to be subjected to acid or alkaline-based substances.
• Please install the television using the provided brackets, xtures and ttings supplied by the provider.
Follow installation instructions within this manual.
• Install the television in an area that is not subjected to vibrations or within the reach of young children.
• Do not subject the television screen to hard or sharp objects at any time.
• Do not apply harmful chemicals or corrosive liquids to the television screen.
• Please remove the protective lm from the television screen and speaker panels within one week of
installing.
4
Package Contents
Bathroom Television Waterproof Remote Control
12V Power Adapter and Wired Plug User Manual and Installation guide
Installation Bracket VESA Bracket (Optional Extra)
5
Television Dimensions
Product: Title:
19” Advanced Bathroom TV Television ‐Technical Drawing
49.5
6
༫ሎᇌ
580
365
565
350
49.5
5
S1908
DC
AV
SCART
USB
Audio
HDMI
TV
6
Ports and Connectors
Ports and Connectors 19" Advanced Bathroom TV
7
Technical Specications
Product 19” Advanced Bathroom TV
Model Number WP-A1908
Display
Screen Size 19”
Screen Type LCD
Resolution 1920 x 1080 pixels
Brightness 350 cd/m2
Aspect Ratio 16:9
Contrast Ratio 1000:1
Colour Depth 16.77 million
Viewing Angle 178 / 178 (H / V)
Response Time 5ms
Audio
Speakers 2 x Internal Speakers
Output 3W
System
Freeview (Digital) TV Yes
Freeview (Digital) Radio Yes
Analogue Tuner Yes
MHEG 5 System Yes
Design
Screen Finish Mirror
Frame Material Steel
Screen Material Glass
Ports and Connectors
TV / Aerial Yes
AV / Component Input (Y / Pb / Pr) Yes
SCART Input Yes
HDMI Input Yes
USB Input Yes
Audio Input Yes
Audio Output Yes
Operating Environment
Working Temperature -10°C ~ +50°C
Working Humidity 10% - 90%
Installation
Recess dimensions (for in-wall installation) 567mm (W) x 352mm (H) x 50mm (D)
Wall bracket compliance (for on-wall installation) VESA 100mm x 100mm
CE, WEEE, ROHS Yes
IP65 Waterproof Rating Yes
Power
Mains Power 110-240v (DC 12V/5A adapter)
Power Consumption 40W
Standby Consumption < 1W
Dimensions and Weights
Unit Size 580mm (W) x 365mm (H) x 50mm (D)
Unit Weight 12 kg
Packaged Size 725mm (W) x 500mm (H) x 150mm (D)
Gross Weight 13.5 kg
Package Contents Bathroom TV, Waterproof Remote Control, Power Adapter
and Wired Plug, Installation Bracket, User Manual and
Installation Guide
Product Warranty 2 Year Warranty
8
Installation Guidelines
• We advise that a professional body should install our bathroom televisions. We do not take any liability for
the television being installed incorrectly and then causing damage or harm to the installer or user.
• Please do not open or tamper with the television, as this can break the television seal, which may lead to
water penetrating the internal parts of the television.
• The brackets provided can easily endure the weight of the television, however please conrm the area
your xing the bracket to can hold the television bracket and television weight safely.
• Install the television on a smooth surface and in an area where people are not likely to collide with the
television once installed.
• Do not plug the power cable in an area subjected to water or moisture.
9
Installation Instructions – In Wall Installation Method
Installation Instructions 19" Advanced Bathroom TV
In-Wall Installation Method
1. Create an opening within the chosen area
of the wall. Opening dimensions: 567mm x
352mm x 50mm (W x H x D).
2. Create a channel within the wall below the
TV recess, which allows the cables to drop
into. Channel width: 50mm.
3. Place the in-wall bracket into the recess
and use the 4 x pilot holes to drill into the
wall. Place the 4 x raw plugs into the holes
that have been drilled and screw the bracket
into position.
4. Offer the TV up to the bracket that is fixed
within the wall. Line up the 4 x metal lugs
located on the side of the TV case with the 4
x channels located within the in-wall bracket
and simply push the TV into situ.
10
Installation Instructions – On Wall Installation Method
Installation Instructions 19" Advanced Bathroom TV
On-Wall Installation Method
1. Attach the female section of the VESA bracket to the wall
with the 4 x screws provided. Create each hole 8mm in radius
and 40mm deep.
2. Attach the male section of the VESA bracket to the back of
the television with the provided screws.
3. Simply offer the TV up to the wall and slide the two pieces of
the bracket into one another.
11
Front Panel Overview
Key Button Action
10 RC Sensor The infrared signal interceptor for the remote controller.
11 LED Power (ON/OFF) The television will display a red light when the unit is on Stand-
By and a green light when the television is ON.
10 11
10 11
12
Remote Control Overview
• The waterproof remote controller comes with two AAA/1.5A batteries ready installed.
• The remote controller doesn’t need syncing to the television.
• To control the television with the remote controller, simply aim the controller at the television. If there are
barriers between the remote controller and television the response may be delayed or non-existent.
• For the best remote controller connection stay within 3-metres of the television and keep the remote at a
30-degree angle. The remote controller will stay connected to the television up to a distance of 8 meters.
• The remote controller is rated IPX5 waterproof classication. Do not submerse the remote controller
underwater for long periods of time.
• To change the batteries use a small sized Philips screwdriver to release the screws on the back of the
remote controller.
13
Remote Control Key Functions
Button Function
POWER ON / Stand-By
INPUT Change Source Mode
P.MODE Switch to Picture Mode
S.MODE Switch to Sound Mode
MUTE Sound ON / OFF - The screen will display a MUTE
logo when the sound is OFF
DISPLAY Display the channel name or any other information
ZOOM Switch aspect ratio of the displayed picture
SLEEP This will turn the television OFF in a requested
amount of time
AUDIO/MTS Switch to NICAM under the ATV mode
0-9 Manual channel selection
-/-- Short cut to up to 10 channels
Back to the previous channel
VOL+ Increase the volume
VOL- Decrease the volume
CH+ Move up a channel
CH- Move down a channel
/ Up / Down selector for the On-Screen Menu
/ Left / Right selector for the On-Screen Menu
OK
MENU Enter or Exit the On-Screen Menu
FAV Display your favorite channel list
EPG Run the electronic program guide list within DTV
EXIT Exit On-Screen Menu
TEXT Open Teletext
HOLD Within Teletext press this key to hold a page
TV/RADIO Switch between DTV and DAB
SUBTITLE Language selection
INDEX Teletext Index Page
SIZE Teletext enlarge or reduce the size of the display
REVEAL Teletext reveal hidden text
SUBPAGE Teletext enter sub-page
FREEZE Freeze frame the current DVB screen
USB Mode ~ Play or Pause
USB Mode ~ Rewind
USB Mode ~ Fast Forward
DTV mode ~ record the current program to the USB
USB Mode ~ Stop
USB Mode ~ play the previous program
USB Mode ~ play the next program
COLOURED
BUTTONS Teletext Selector
2 Remote Control Key Functions.pdf 1 08/06/2013 10:01
Remote Control Key Functions
Remote Control Key Functions
Button Function
POWER ON / Stand-By
INPUT Change Source Mode
P.MODE Switch to Picture Mode
S.MODE Switch to Sound Mode
MUTE Sound ON / OFF - The screen will display a MUTE
logo when the sound is OFF
DISPLAY Display the channel name or any other information
ZOOM Switch aspect ratio of the displayed picture
SLEEP This will turn the television OFF in a requested
amount of time
AUDIO/MTS Switch to NICAM under the ATV mode
0-9 Manual channel selection
-/-- Short cut to up to 10 channels
Back to the previous channel
VOL+ Increase the volume
VOL- Decrease the volume
CH+ Move up a channel
CH- Move down a channel
/ Up / Down selector for the On-Screen Menu
/ Left / Right selector for the On-Screen Menu
OK
MENU Enter or Exit the On-Screen Menu
FAV Display your favorite channel list
EPG Run the electronic program guide list within DTV
EXIT Exit On-Screen Menu
TEXT Open Teletext
HOLD Within Teletext press this key to hold a page
TV/RADIO Switch between DTV and DAB
SUBTITLE Language selection
INDEX Teletext Index Page
SIZE Teletext enlarge or reduce the size of the display
REVEAL Teletext reveal hidden text
SUBPAGE Teletext enter sub-page
FREEZE Freeze frame the current DVB screen
USB Mode ~ Play or Pause
USB Mode ~ Rewind
USB Mode ~ Fast Forward
DTV mode ~ record the current program to the USB
USB Mode ~ Stop
USB Mode ~ play the previous program
USB Mode ~ play the next program
COLOURED
BUTTONS Teletext Selector
2 Remote Control Key Functions.pdf 1 08/06/2013 10:01
14
OSD Menu User Guide - 1.1 Input Source Menu
Press the INPUT button to display the input source menu.
Press▼/ ▲to select the input source you want to select.
Press the OK button to enter the input source.
Press the EXIT button to quit.
15

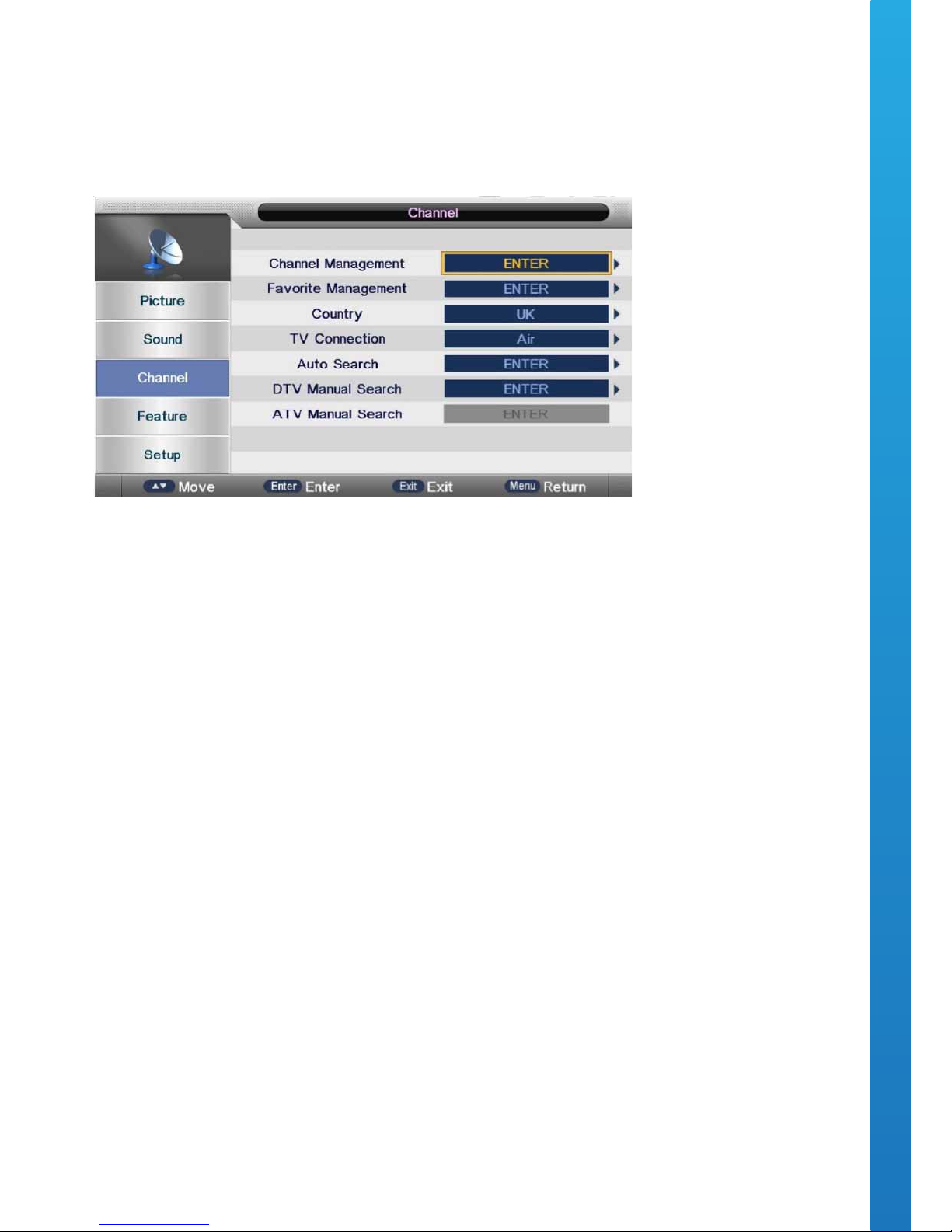

OSD Menu User Guide - 1.2 Channel Menu
Press the MENU button to display the main menu.
Press ▼/ ▲buttons to select CHANNEL in the main menu.
Press ▼ / ▲ buttons to select the option that you want to adjust in the CHANNEL menu.
Press the OK button to adjust.
After nishing your adjustment, press the MENU button to save and return back to the previous menu.
AUTO TUNING
Press ▼ / ▲ buttons to select Auto Tuning, then press the OK button to start the auto search.
DTV MANUAL TUNING
Press ▼ / ▲ buttons to select DTV Manual Tuning, then press the OK button.
Press ◄ / ► buttons to select the channel, then press the OK button to search for the program.
ATV MANUAL TUNING
Press ▼ / ▲ buttons to select ATV Manual Tuning, then press the OK button.
Press ◄ / ► buttons to select the channel number you want to store.
Press ▼ / ▲ buttons to select the other options.
Press ▼ / ▲ buttons to select search, then press the OK button to start tuning.
Press the red button on your remote control to save the settings and menu button to go back to the previous
menu.
16
OSD Menu User Guide - 1.3 Picture Menu
Press the MENU button to display the main menu. Then press ▼/▲ buttons to select PICTURE in the main
menu.
Press ▼ / ▲ buttons to select the option that you want to adjust in the PICTURE menu.
Press the OK button to adjust. After nishing your adjustment, press the MENU button to save and return back
to the previous menu.
PICTURE MODE
Press ▼ / ▲ buttons to select Picture Mode, then press the OK button to enter the sub-menu. Press ▼ / ▲
buttons to select Picture mode. Picture Options: Personal, Dynamic, Standard & Mild. You can change the
contrast, color, brightness and sharpness when the picture is in Personal mode.
BRIGHTNESS
Press ▼/▲ buttons to select Brightness, then press the OK button to enter the sub-menu. Press ◄ / ►
buttons to adjust.
CONTRAST
Press ▼ / ▲ buttons to select Contrast, then press the OK button to enter the sub-menu. Press ◄ / ► buttons
to adjust.
SHARPNESS
Press ▼ / ▲ buttons to select Sharpness, then press ◄ / ► buttons to adjust.
COLOUR
Press ▼ / ▲ buttons to select Colour, then press the OK button to enter the sub-menu. Press ◄ / ► button to
adjust.
ASPECT RATIO
Press ▼ / ▲ buttons to select the Aspect Ratio, then press the OK button to enter the sub-menu. Press ▼ / ▲
buttons to select Aspect Ratio. Available Aspect Ratios options: 4:3, 16:9, Zoom1, Zoom2 & Just Scan.
NOSIE REDUCTION
Press ▼ / ▲ buttons to select Noise Reduction, then press the OK button to select.
17
OSD Menu User Guide - 1.4 Sound Menu
Press the MENU button to display the main menu.
Press ▼ / ▲ buttons to select SOUND in the main menu.
Press ▼ / ▲ buttons to select the option that you want to adjust within the SOUND menu.
Press ◄ / ► buttons to adjust. After you’ve completed your selection, Press the MENU button to save and
return back to the previous menu.
SOUND MODE
Press ▼ / ▲ buttons to select the Sound Mode, then press the OK button to enter the sub-menu. Press ▼ / ▲
buttons to select sound mode. Optional Sound modes: Standard, Music, Movie, Sports & Personal.
You can alter the Treble and Bass output when the sound mode set to Personal mode.
You can press the SMODE button on the remote control to change the Sound Mode directly.
BASS
Press ▼ / ▲ buttons to select Bass, then press the OK button to enter the sub-menu.
Press ◄ / ► buttons to adjust.
TREBLE
Press ▼ / ▲ buttons to select Treble, then press the OK button to enter the sub-menu.
Press ◄ / ► buttons to adjust.
BALANCE
Press ▼ / ▲ buttons to select Balance, then press the OK button to enter the sub-menu.
Press ◄ / ► buttons to adjust.
AUTO VOLUME
Press ▼ / ▲ buttons to select Auto Volume, then press the OK button to select On or O.
SPDIF MODE
Press ▼/▲ buttons to select SPDIF MODE, then press the OK button to select Auto\ PCM \ O.
18
OSD Menu User Guide - 1.5 Setup Menu
Press the MENU button to display the main menu.
Press ▼ / ▲ buttons to select SETUP in the main menu.
Press ▼ / ▲ buttons to select the option that you want to adjust.
Press ◄ / ► buttons to adjust.
After completing the adjustment, Press the MENU button to save and return back to the previous menu.
OSD TIMER
Press ▼ / ▲ buttons to select OSD Timer, then press the OK button to enter sub-menu.
Press ▼ / ▲ buttons to select. Available OSD Timer options: 5secs, 10secs, 15secs, 20secs, 25secs & 30secs.
BLUE SCREEN
Press ▼ / ▲ buttons to select Blue Screen, then press the OK button to select either On or O.
RESET
Press ▼ / ▲ buttons to select Reset, then press the OK button to enter a dialogue.
Press ◄ button selecting Yes to restore to factory settings by choosing OSD language, Country and Conducting
Channel Tuning.
SOFTWARE UPGRADE (USB)
Press ▼ / ▲ buttons to select USB Software Update, then press the OK button to update the software by via
the USB PORT.
19
OSD Menu User Guide - 1.6 Media Source Menu
Please Note: Before operating the Media menu, Plug in the USB device then press the INPUT button to set the
Input Source to Media.
Press ▼ / ▲ buttons to select Media in the Source menu, then press the OK button to enter.
Press ◄ / ► buttons to select the option you want to adjust in the main Media menu, then press the OK
button to enter.
PHOTO MENU
Press ◄ / ► buttons to select PHOTO within the main menu, then press the OK button to enter.
Press the menu button to return back to the previous menu and exit menu to quit.
Press ◄ / ► buttons to select the drive disk you want to watch, then press the OK button to enter.
Press ◄ / ► buttons to select RETURN, to go back to the previous menu.
Press ◄ / ► buttons to select the le you want to open. When highlighting the option you want to select the
le information will appear on the right hand side and the picture will be appear in the center of the screen.
Press ◄ / ► buttons to select the folder you want to search for in the le by selecting menu, then press the
red button or OK on your remote controller to enter the sub-menu.
Press ◄ / ► buttons to select the picture you want to delete in the le by selecting menu, then press the red
button on your remote controller and press the OK button to delete the picture.
20
MUSIC MENU
Press ◄ / ► buttons to select the MUSIC option in the main menu, then press the OK button to enter. Press
the menu button to return back to the previous menu and exit the menu to quit.
Press ◄ / ► buttons to select the application you want to open, then press the OK button to enter.
Press ◄ / ► buttons to select the Return option to go back to the previous menu.
When highlighting the option you’ve selected, the le information will appear on the right hand side and music
will be previewed in the center of the screen.
Press ◄ / ► buttons to select the item you want to open in the le by selecting menu, then press the OK
button to add the le to your play list. Press the Media button to display and operate the le.
Press ◄ / ► buttons to select the menu at the bottom of the screen, then press the OK button to operate.
Press the menu button to go back to the previous menu and press the exit button to quit the entire menu.
Press the ▼button to hide the menu at the bottom of the screen.
MOVIE MENU
Press ◄ / ► buttons to select the MOVIE option in the main menu, then press the OK button to enter.
Press the menu button to return back to the previous menu and exit menu to quit.
Press ◄ / ► buttons to select the le you want to watch, then press the OK button to enter. Press ◄ / ►
buttons to select the Return option to go back to the previous menu.
When highlighting the option you’ve selected, the le information will appear on the right hand side and the
movie will be displayed in the center of the screen. Press the media button to play the selected movie.
Press the Display button to select the menu at the bottom of the screen, then press the OK button to operate.
Press the menu button to go back to the previous menu and the exit button to quit the entire menu.
TEXT MENU
Press ◄ / ► buttons to select TEXT within the main menu, then press the OK button to enter. Press the menu
button to return back to the previous menu and exit the menu to quit.
Press ◄ / ► buttons to select the le you want to open, then press the OK button to enter.
Press ◄ / ► buttons to select the RETURN option, to go back to the previous menu.
When highlighting the option you’ve selected, the le information will appear on the right hand side and the
text will be displayed in the center of the screen. Press the media button to play the selected item.
Press the media button to view the selected text. Then press the display button to show the menu at the
bottom of the screen and choose what you want to run. Then press the OK button to operate.
Other manuals for WP-A1908
1
This manual suits for next models
1
Table of contents
Other Aquatek LCD TV manuals
