SOYO Dymond DYLT032A User manual

1
Table of Contents
Preface ........................................................................................................................................................... 2
Before Using This Product
Communication Regulations ................................................................................................................ 3
Important Safety Instructions ............................................................................................................... 4
Safety Information ................................................................................................................................. 6
Maintenance and Precaution ................................................................................................................. 7
Getting Started (Preparation) ............................................................................................................... 9
Introduction Your Television
Supplied Accessories ........................................................................................................................... 10
TV Control Functions ........................................................................................................................... 11
Setting Up the Remote Control .............................................................................................................12
Remote Control Functions ................................................................................................................... 13
Inputs and Outputs .............................................................................................................................. 14
Connecting the Antenna or Analog Cable TV (CATV) ......................................................... 15
Connecting the Digital Set-Top Box (Commonly Used For HDTVs, Satellite TVs etc.) ......... 17
Connecting the Component Video ....................................................................................... 19
Connecting the S-video or Composite Video ....................................................................... 20
Connecting the PC ................................................................................................................ 21
Controlling the HDMI .......................................................................................................... 22
Setting Up Your Television
Changing the Source ............................................................................................................................ 23
Accessing the OSD (On Screen Display) Menu ................................................................................... 24
Icon Description ................................................................................................................................... 25
Video .................................................................................................................................................... 26
Audio ................................................................................................................................................... 28
Screen ................................................................................................................................................... 29

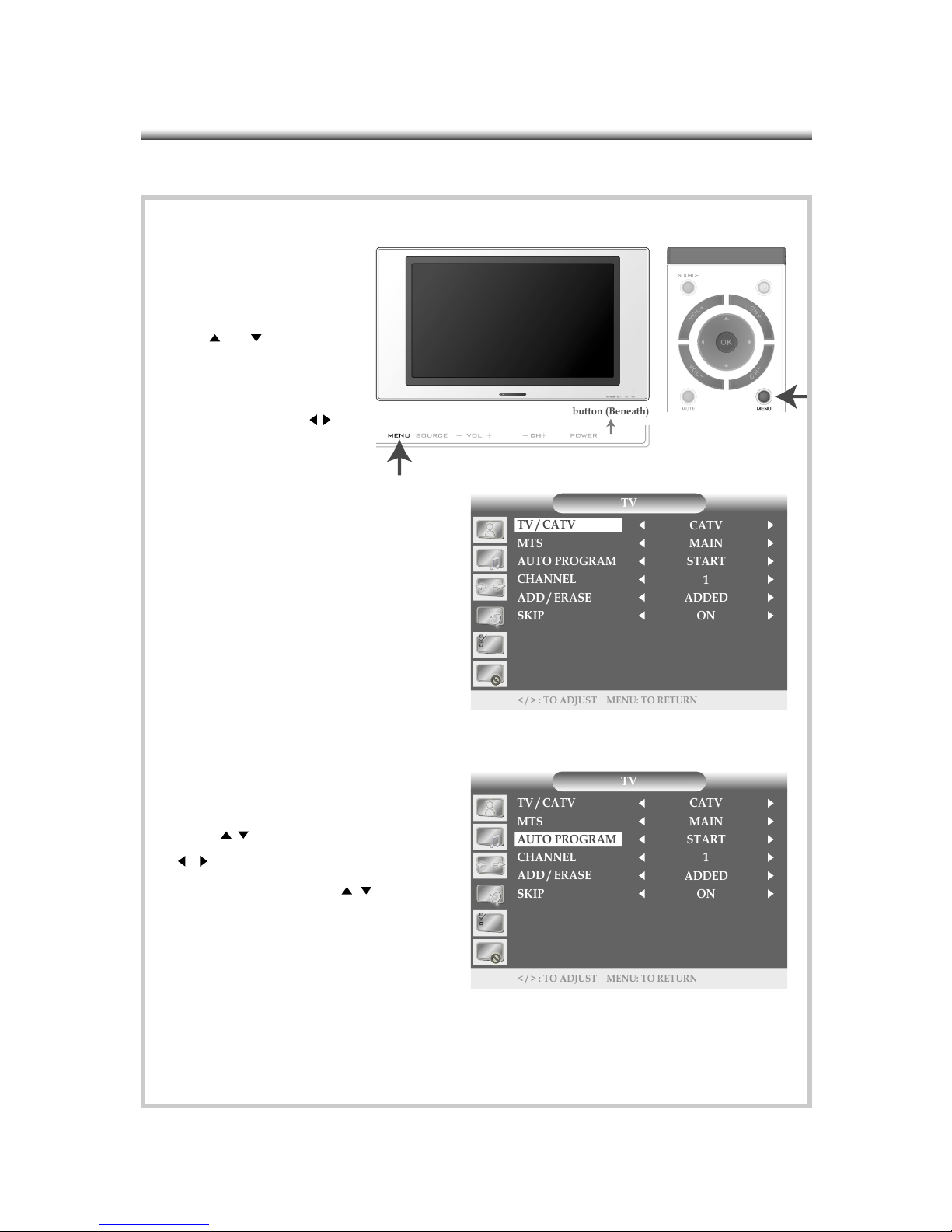

TV ......................................................................................................................................................... 31
Options ................................................................................................................................................. 33
V-Chip .................................................................................................................................................. 34
Setting Up TV Rating Limits .................................................................................................. 36
Setting Up Movie Rating Limits ............................................................................................ 37
Changing the Password ....................................................................................................... 38
TV Rating Descriptions ........................................................................................................ 39
Movie Rating Descriptions .................................................................................................. 39
Controlling PIP, PAP, and MAIN ........................................................................................................ 40
Basic Troubleshooting ........................................................................................................................ 41
General Specifications ......................................................................................................................... 43
RGB Frequency Table .......................................................................................................................... 44
Acronyms, Abbreviations, Functions, and Terms ........................................................................ 45

2
Preface
About This Manual
This manual is designed to make operating your 32” LCD TV as easy as possible. Informa-
tion in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. Due to continuing system improvements, these
changes will be incorporated in newer editions.
Copyright
© Copyright 2005
This document contains proprietary information protected by copyright. All rights are re-
served. No part of this manual may be reproduced in any form by any mechanical, electronic
or other means, without written consent.
Trademarks
All trademarks and registered trademarks are the property of their respective owners.

3
Communication Regulation
FCC Compliance
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected;
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause un-
desired operation.
Canada Class B Statement
This Class B device meets all requirements of the Canadian interference-causing equipment
regulations.
Cet appareil numérique de la Class B respecte toutes les exigencies du Réglemensur le mate-
riel brouilleur du Canada.

4
Important Safety Instructions
1. Read these instructions. All the safety and operating instructions should be read before
the product is operated.
2. Keep these Instructions. The safety and operating instructions should be retained for
future reference.
3. Heed all Warnings. All warnings on the product and in the operating instructions should
be adhered to.
4. Follow all Instructions. All operating and using instructions should be followed.
5. Cleaning. Unplug this product from the power outlet before cleaning. Clean only with
dry cloth.
6. Do not use this apparatus near water and moisture.
7. Ventilation. Do not block any ventilation openings. Install in accordance with the man-
ufacturer’s instructions.
8. Do not install the product near any heat sources such as radiators, heat registers, stoves,
or other apparatuses (including amplifiers) that produce heat.
9. Grounding or Polarization. Do not defeat the safety purpose of the polarized or ground-
ing-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the outlet.
10. Power-Cord Protection. Protect the power cord from being walked
on or pinched particularly at plugs, convenience receptacles, and
points that exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Only use the cart, stand, tripod, bracket, or table specified by the manufacturer, or pro-
vided with the apparatus. When a cart is used, use caution when moving the cart/ap-
paratus to avoid injury.
13. Unplug this apparatus during lightning storms or during long unused periods.
14. Outdoor Antenna Grounding. If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded to provide protection against
voltage surges and built-up static charges.
PORTABLE CART WARNING

5
15. Power Lines. An outside antenna system should not be located in the vicinity of over-
head power lines, electric lights, power circuits, or other areas where the antenna can fall
into such power lines or circuits. When installing an outside antenna system, extreme
care should be taken to prevent contact with power lines or circuits as contact with them
might be fatal.
16. Overloading. Do not overload power outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
17. Servicing. Do not attempt to service this product yourself. Opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to a qualified
service personnel.
18. Damage Requiring Service. Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
If the power-supply cord or plug is damaged,
If liquid has been spilled, or objects have fallen into the product,
If the product has been exposed to rain or water,
If the product does not operate normally ,
If the product has been dropped or damaged in any way, and
If the product exhibits a distinct change in performance.
19. Wall or Ceiling Mounting. The product should be mounted to a wall or ceiling only by
manufacturer’s recommendation.
Antenna
Lead-in
Wire
Antenna
Discharge
Unit
Electric
Service
Equirment
Ground
Clamp
Grounding
Conductors
Power service grounding
Electrode system
GROUND CLAMPS

6
Safety Information
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio or
television reception. However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause interference to radio and television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit from that to which the receiver is con-
nected.
Caution
To prevent fire, shock hazard, or interference, only use the recommended accessories. To
prevent electric shock, do not use the plug with an extension cord, receptacle, or other outlet
unless the blades can be fully inserted to prevent blade exposure. To reduce the risk of elec-
tric shock, do not remove the unit cover or back. There are no serviceable parts inside. Refer
servicing to a qualified personnel only.
This symbol is intended to alert the
user to the presence of uninsulated
dangerous voltage within the prod-
uct’s enclosure that may be of suffi-
cient magnitude to constitute risk of
fire or electric shock.
This symbol is intended to alert the
user to the presence of important op-
erating and maintence instructions
in the literature accompanying this
product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
RISK OF ELECTRIC SHOCK
DO NOT OPEN

7
Maintenance and Precaution
Do not place the TV in a closed compart-
ment. This will overheat the TV.
Do not remove the cover or back of the
TV. Any unauthorized changes or modi-
fication to the product will void the us-
er’s warranty.
Do not expose the TV to rain or mois-
ture.
 Turn off the product if liquid is acciden-
tally spilled into the TV. Contact your lo-
cal dealer for assistance.
Make sure the power cord from the AC
outlet is unplugged, and disconnect from
the antenna if the TV is left unattended
and unused for a long period. This will
prevent damages to the TV lighting and
power-line surge.
 According to the industrial standards,
when pulling the power cord from the
outlet, hold the power plug instead of
the cord.

8
Unplug the power cord from the AC out-
let before cleaning the TV. Use specific
screen cleaner kit for LCD screens. Do
not use liquid cleaners or aerosol clean-
ers.
Do not expose the TV to heat sources
such as radiators, heaters, stoves and
other heat-generating products (includ-
ing audio amplifiers).
Do not place heavy items or belongings
on the top of the TV.
 Do not use this TV with an extension
cord or power bar; this can cause a fire or
an electric shock.
 Hand carry the TV with at least another
person.

9
Getting Started (Preparation)
Distance recommendations:
Avoid improper installation and never position the unit where ventilation is impossible.
When installing this TV, distance recommendations must be maintained between the set and
the wall, as well as inside a tightly enclosed area or piece of furniture. Refer to the minimum
distance guidelines shown for a safe operation.
Cleaning the screen:
The screen is coated with a special thin film to reduce reflection. If this film is damaged, un-
even colors, discoloration, scratches, and other problems that cannot be repaired may occur.
Pay attention to the following when handling the screen.
Do not use glue or adhesive tape on the screen.
Do not write on the screen.
Do not allow the screen to come in contact with any hard objects.
Do not allow condensation to form on the screen.
Do not use alcohol, thinner, benzene or other solvents on the screen.
Do not rub the screen forcefully.
CAUTION:
Operate only from the power source specified (AC 120V, 60 Hz) on the unit.
Avoid damaging the AC plug and cord.
When you are not using this unit for a long period of time, it is recommended that you discon-
nect the power cord from the main outlet.
POWER CORD CONNECTION:
Connect the power cord, after completing all other connections.
1. Connect the power cord to this device.
2. Connect the power cord to the power outlet.
200 mm
150 mm
150 mm
200 mm
(1)
(2)

10
Supplied Accessories
The following items come along with your LCD TV:
Remote control
Two AAA batteries
Power Cord
User Manual
USER MANUAL
