SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
March 2008
Rough-In Plumbing

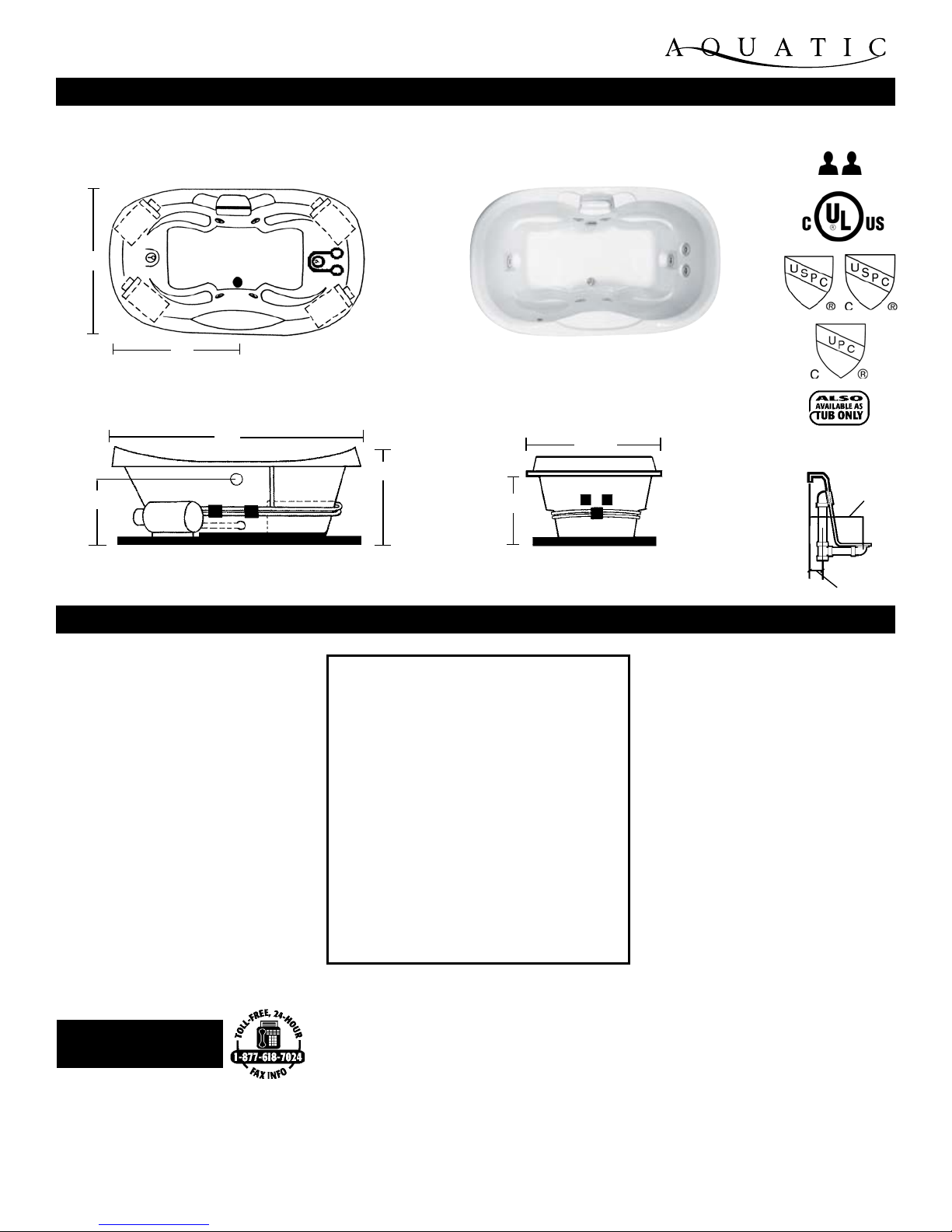

Measurements
UNIvErSAl OvAl
lUxUry SErIES MODEL # AI7242RUO / AI7242RUOTO (Tub Only)
GENERAL SPECIFICATIONS:
Tub Size 70” x 41 3/4” x 26 1/4”
178 cm x 106 cm x 67 cm
Bathing Well 42 1/2” long
23” wide
23 1/4” interior depth
Shipping Weight 219 lbs. / 99 kg
Tub Weight Filled 919 lbs. / 417 kg
Tub Only Weight 134 lbs. / 61 kg
Gallons to Overow 95 gal. / 360 L
Gallons to Operate 1 bather: 76 gal. / 288 L
2 bathers: 57 gal. / 216 L
ELECTRICAL SPECIFICATIONS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
OPTIONAL EQUIPMENT:
• Chromatherapy LED Lighting
• Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• 1.5 kW Inline Maintenance Heater
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• 2 HP, 3-Speed Run-Dry Pump Upgrade
• Optional Pump Location
• Remote Pump Location
• Pre-leveled ABS Support Base (Tub Only)
• Hand Held Jet - Chrome or Polished Brass
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
STANDARD EQUIPMENT:
8 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 Recessed Rotary Massage Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
Aquatic Quality Features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”Anti-Vibration Pump Mount for Quiet Pump Operation
- Extra Deep Bathing Well
- Color Matched Grab Bar
- 4 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base (Whirlpool)
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
Fax-On-Demand
Document # 1055
Two Person Bath
41 3/4”
22”
Note: Tub Only units do not come standard
with the Pre-leveled ABS Support Base.
20 1/8”
26 1/4”
70”
35”
41 3/4”
6 1/2”
13 1/4”
2 3
4
1
