Aquatic PAGOSA MOTIF AI6642M User manual

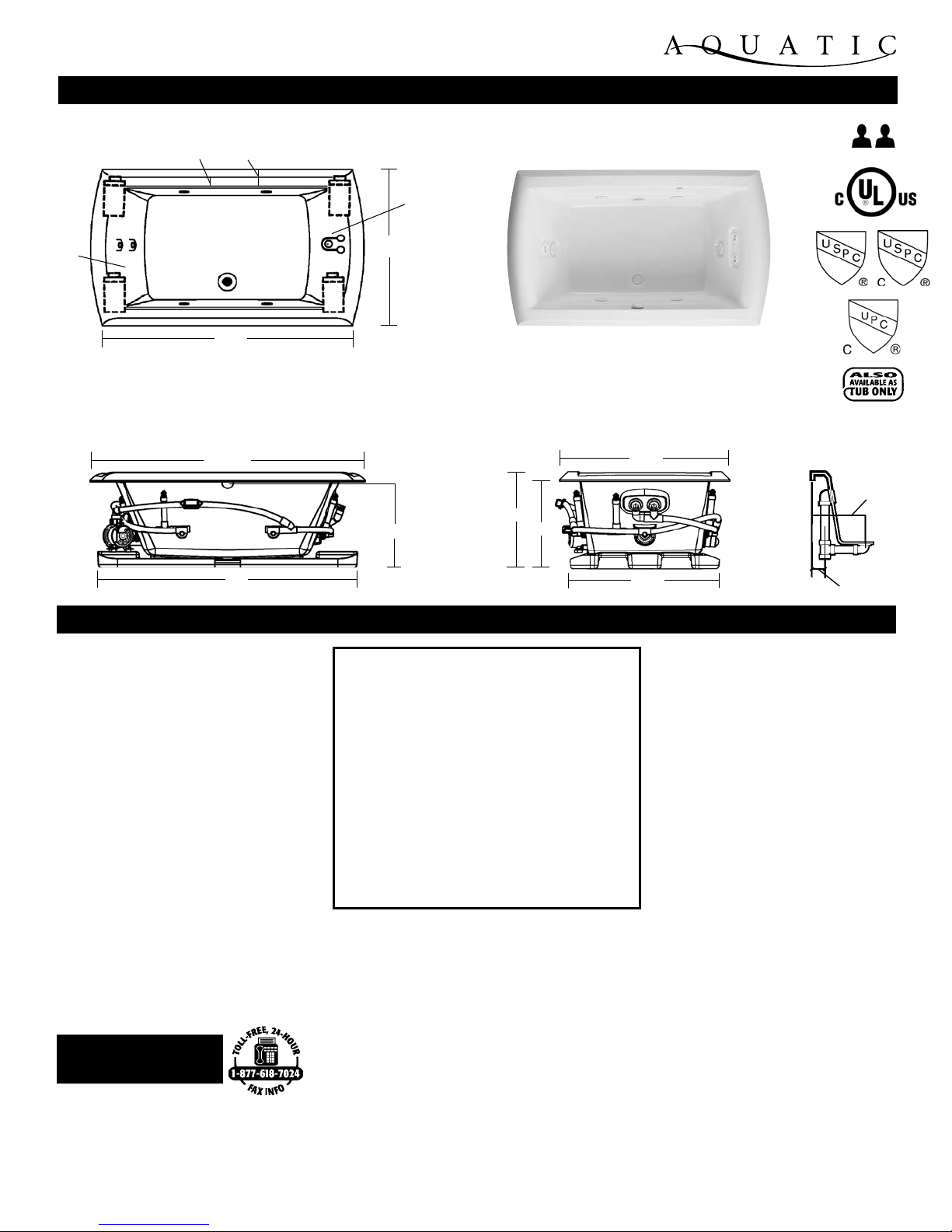

Rough-In Plumbing
Measurements
luxury SErIES MODEL # AI6642M / AI30AIR6642TO (Tub Only)
pagoSa MotIf
42 1/2”
3 1/2”
12 1/2”
Deck Width
2 3/4”
Total Width
5 1/4”
SpECIfICatIoNS:
GENERAL SPECIFICATIONS:
Tub Size 65 3/4” x 42 1/2” x 24 1/4”
167 cm x 108 cm x 62 cm
Bathing Well 35” long
25 1/2” wide
21 1/4” interior depth
Maximum Water Depth 17”
Shipping Weight 216 lbs. / 98 kg
Tub Weight Filled 910 lbs. / 413 kg
Tub Only Weight 101 lbs. / 46 kg
Weight w/Equipment 138 lbs. / 63 kg
Gallons to Overow 93 gal. / 352 L
Gallons to Operate 1 bather: 74 gal. / 280 L
2 bathers: 55 gal. / 208 L
ELECTRICAL SPECIFICATIONS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
OPTIONAL EQUIPMENT:
• Chromatherapy LED Lighting
• Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Bolt-On Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• 1.5 kW Inline Maintenance Heater
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Hand Held Jet - Chrome or Polished Brass
• 2 HP, 3-Speed Run-Dry Pump Upgrade
• Optional Pump Location
• Remote Pump Location
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
9 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 3 Recessed Rotary Massage Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
Aquatic Quality Features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STANDARD EQUIPMENT:
Fax-On-Demand
Document # 1297
The manufacturer accepts a 1/4” variance. There are variations on each tub and specications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
