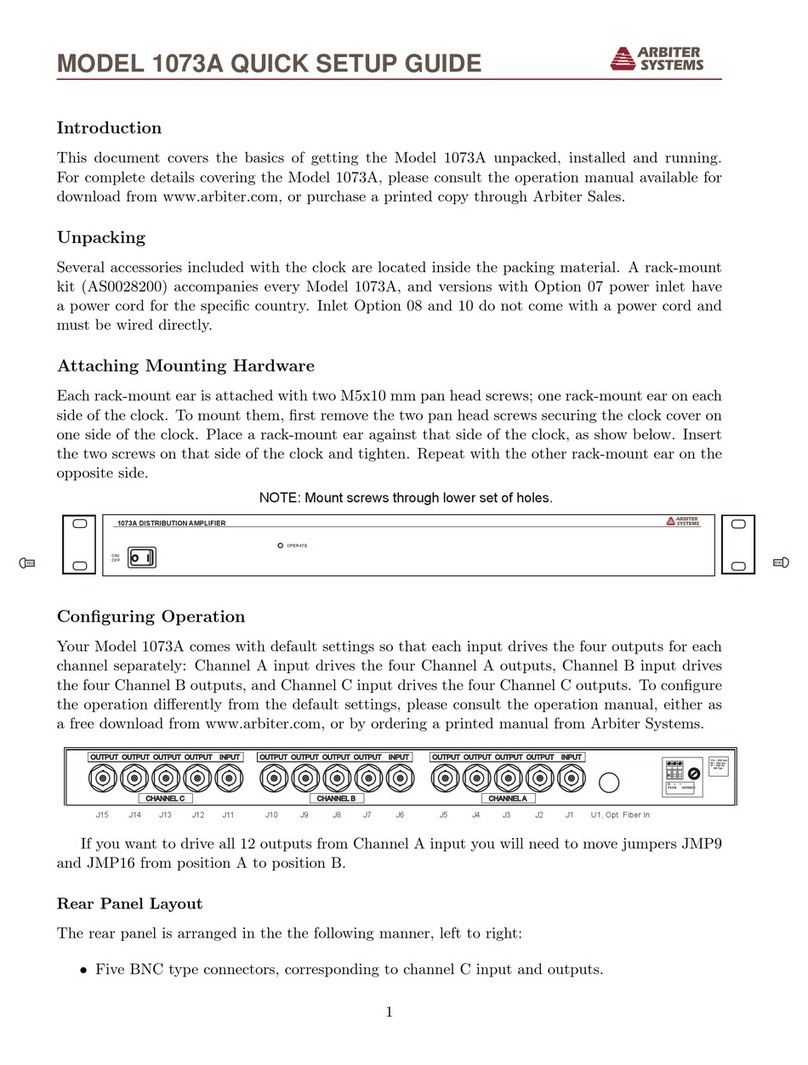

MODEL 1073A
DISTRIBUTION AMPLIFIER
OPERATION MANUAL
Arbiter Systems, Inc.
Paso Robles, CA 93446
U.S.A.
www.arbiter.com

ii
Description
This manual is issued for reference only, at the convenience of Arbiter Systems. Reasonable effort
was made to verify that all contents were accurate as of the time of publication. Check with Arbiter
Systems at the address below for any revisions made since the original date of publication.
Contact Information
Arbiter Systems, Inc.
1324 Vendels Circle, Suite 121
Paso Robles, CA 93446
USA
[phone]
Website: www.arbiter.com
mailto:techsupp[email protected]
mailto:[email protected]
What This Manual Covers
This manual describes the set up and operation of the Model 1073A Distribution Amplifier.

iii
LIMITED WARRANTY
Arbiter Systems makes no warranty, expressed or implied, on any product manufactured or sold
by Arbiter Systems except for the following limited warranty against defects in materials and
workmanship on products manufactured by Arbiter Systems.
Products manufactured by Arbiter Systems are guaranteed against defective materials and work-
manship under normal use and service from the date of delivery for one year. The responsibility
of Arbiter Systems under this warranty is limited to repair or replacement, at Arbiter Systems’
option, of any product found to be defective. Arbiter Systems shall have no liability under this
warranty unless it receives written notice of any claimed defect within the earlier of:
•Thirty days of discovery by Buyer, or;
•One year from the date of delivery.
For warranty service or repair, products must be returned to a service facility designated by Arbiter
Systems. Buyer shall prepay all shipping charges to Arbiter Systems, and Arbiter Systems shall pay
shipping charges incurred in returning the product to Buyer. However, Buyer shall pay all shipping
charges, duties and taxes for products returned to Buyer in a country other than the United States
of America.
THE WARRANTY SET FORTH HEREIN CONSTITUTES THE ONLY WARRANTY OBLIGA-
TIONS OF ARBITER SYSTEMS, EXPRESSED OR IMPLIED, STATUTORY, BY OPERATION
OF LAW, OR OTHERWISE. ARBITER SYSTEMS DISCLAIMS ANY WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND BUYER EXPRESSLY
WAIVES ALL OTHER WARRANTIES.
This limited warranty does not extend to any product, which has been subject to
1. Improper use or application, abuse, or operation beyond its rated capacity, or contrary to the
instructions in the operation and maintenance manuals (if any);
2. Accident;
3. Repair or maintenance performed by Buyer, except in accordance with the operation and
maintenance manuals, if any, and any special instructions of Arbiter Systems;
4. Modification without the prior written authorization of Arbiter Systems (whether by the
substitution of non-approved parts or otherwise). The remedies provided herein are Buyer’s
sole and exclusive remedies. In no event shall Arbiter Systems be liable for direct, indirect,
incidental or consequential damages (including loss of profits), whether based on contract,
tort, or other legal theory.
FOR THE FASTEST POSSIBLE SERVICE, PLEASE PROCEED AS FOLLOWS:
1. Notify Arbiter Systems, Inc., specifying the instrument model number and serial number and
giving full details of the difficulty. Service data or instrument-return authorization will be
provided upon receipt of this information.
2. If instrument return is authorized, forward prepaid to the manufacturer. If it is determined
that the instrument is not covered by this warranty, an estimate will be made before the
repair work begins, if requested.
See Contact Information on page ii.

iv

v
Model 1073A
Distribution Amplifier
Operation Manual
Table of Contents
Section 1 General Information
Section 2 Technical Specifications & Operational Parameters
Section 3 Physical Configuration
Section 4 Operation
Appendix A Conformity with European Union Directives (CE Mark)
Index
Copyright Arbiter Systems Incorporated April 2012. All rights reserved. International copyright
secured.
PD0022300D

vi

Contents
1 General Information 1
1.1 Scope ............................................ 1
1.2 EquipmentSupplied .................................... 1
1.3 Options ........................................... 2
1.3.1 Option 01, Fiber Optic Input for Channel A . . . . . . . . . . . . . . . . . . . 2
1.3.2 Option 04, On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.3 Option 07, IEC-320 Power Inlet, 85 – 264 Vac, 110 – 275 Vdc . . . . . . . . . 2
1.3.4 Option 08, 10 – 60 Vdc Terminal Power Strip, Surge Withstand . . . . . . . 2
1.3.5 Option 10, 110 – 275 Vdc, Terminal Power Strip, Surge Withstand . . . . . . 2
2 Technical Specifications & Operational Parameters 3
2.1 Scope ............................................ 3
2.2 OperatorInterface ..................................... 3
2.3 SystemInterface ...................................... 3
2.3.1 Configuration.................................... 3
2.3.2 OperatingModes.................................. 3
2.3.3 InputConnectors.................................. 4
2.3.4 OutputConnectors................................. 4
2.4 PhysicalCharacteristics .................................. 5
2.4.1 Dimensions ..................................... 5
2.4.2 Weight........................................ 5
2.4.3 PowerRequirements ................................ 5
2.4.4 Temperature .................................... 5
2.4.5 Electro-Magnetic Interference (EMI) . . . . . . . . . . . . . . . . . . . . . . . 5
3 Physical Configuration 7
3.1 Instrument ......................................... 7
3.1.1 Location Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1.2 PowerRequirements ................................ 7
3.1.3 PowerLineConnection .............................. 7
3.1.4 Rear-PanelLayout................................. 9
3.2 RackMounting....................................... 9
3.3 CoverRemoval ....................................... 10
3.4 JumperConfiguration ................................... 10
3.4.1 AC/DC Coupling of Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.4.2 InputBussing.................................... 11

viii CONTENTS
3.4.3 InputCharacteristics................................ 11
3.4.4 AC/DC Coupling of Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4.5 Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5 Fiber Optic Input (Option 01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5.1 Optical Input Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Operation 15
4.1 Front Panel Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1.1 LEDStatusIndicators............................... 15
4.1.2 Front Panel Line Switch (Option 04) . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Operator Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A CE Mark Certification 17
A.1 Introduction......................................... 17

List of Figures
3.1 Model1073ARearPanel.................................. 9
3.2 Model 1073A Main Board Jumper Locations . . . . . . . . . . . . . . . . . . . . . . 14
4.1 Model 1073A Distribution Amplifier, Front Panel . . . . . . . . . . . . . . . . . . . . 15

x LIST OF FIGURES

List of Tables
1.1 Available IEC-320 Cordsets by Country . . . . . . . . . . . . . . . . . . . . . . . . . 2
3.1 Input Coupling Jumper List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Channel B Input Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Channel C Input Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 OutputJumperList .................................... 13

xii LIST OF TABLES

Chapter 1
General Information
1.1 Scope
This manual describes Model 1073A Distribution Amplifier.
This manual is divided into four chapters and one appendix as follows:
Chapter 1 General Information
Chapter 2 Technical Specifications and Operational Parameters
Chapter 3 Physical Configuration and Installation
Chapter 4 Operation
Appendix A CE Mark
1.2 Equipment Supplied
The Model 1073A uses detachable connectors for Power and all Input/Output connections. The
following components are provided with the Model 1073A.
Main Power Module: The Model 1073A configuration includes a user specified power input
module. The three available options are:
Option 07: 85 – 264 Vac, 47 – 440 Hz or 110 – 270 Vdc, 3 VA, IEC-320 type power
input module, with an IEC-320 cordset.
Option 08: 10 – 60 Vdc, 3 W typical, power module with surge withstand capability
(SWC) using a 3-pole terminal strip for power inlet.
Option 10: 85 – 264 Vac, 47 – 440 Hz or 110 – 270 Vdc, 3 VA typical, power module
with SWC using a 3-pole terminal strip for power inlet.
Refer to paragraph 1.3 for a detailed description of each power module option.
Rack-Mount Ears (P/N: HD0034900): Two identical rack mounting ears are provided to
mount the instrument in an EIA standard 483 mm (19 inch) rack.
Self-Adhesive Rubber Feet (HP0006600): For bench-top applications, four self-adhesive rub-
ber feet are included.

2 General Information
1.3 Options
The Model 1073A allows for installation of options, which can enhance various aspects of perfor-
mance and features. The following is a list of available options.
1.3.1 Option 01, Fiber Optic Input for Channel A
Provides a fiber-optic input (channel A only) with ST connector and 820-nm receiver compatible
with multi-mode fiber (62.5/125 µm2, also usable with 50/125 µm2,100/140 µm2, and 200 µm2).
Accepts -25.4 to -9.2 dBm for +5V logic level and <-40 dBm for 0 V logic level for dc to 5 MHz.
1.3.2 Option 04, On/Off Switch
Provides a line switch on the front panel.
1.3.3 Option 07, IEC-320 Power Inlet, 85 – 264 Vac, 110 – 275 Vdc
Provides an AC/DC power module which includes an IEC-320 type inlet and mating cordset. Input
voltages are: 85 – 264 Vac, 47 – 440 Hz or 110 – 270 Vdc, 3 VA typical. Various cord sets, by
country, are available as Options P01 through P10 as seen in Table 1.1 below.
No. Country Specification Rating
P01 Continental Europe CEE 7/7 220V
P02 Australia, NZ, PRC AS3112-1981 240V
P03 U.K. BS 1363 240V
P04 Denmark Afsnit 107-2-01 240V
P05 India BS 546 220V
P06 Israel SI 32 220V
P07 Italy CEI 23-16/VII 1971 220V
P08 Switzerland SEV 1011.1959 220V
P09 North America and ROC NEMA 5-15P CSA C22.2#42 120V
P10 Japan JIS8303 120V
Table 1.1: Available IEC-320 Cordsets by Country
1.3.4 Option 08, 10 – 60 Vdc Terminal Power Strip, Surge Withstand
Provides input surge protection (SWC) for compliance with ANSI C37.90-1 and IEC 801-4. Input
voltages are: 10 – 60 Vdc, 3 W typical. Utilizes a 3-pole terminal strip for power inlet.
1.3.5 Option 10, 110 – 275 Vdc, Terminal Power Strip, Surge Withstand
Provides input surge protection for compliance with ANSI C37.90-1 and IEC 801-4. Input voltages
are: 85 – 264 Vac, 47 – 440 Hz, or 110 – 270 Vdc, 3 VA typical. Utilizes a 3-pole terminal strip for
power inlet.

Chapter 2
Technical Specifications &
Operational Parameters
2.1 Scope
This section contains information pertinent to the functional and operational characteristics of the
the Model 1073A Distribution Amplifier. Topics presented in this section are: Operator Interface(s),
System Interface(s) and Physical Characteristics.
NOTE: Specifications are subject to change without notice.
2.2 Operator Interface
One front panel Status LED (green) indicates power on.
2.3 System Interface
2.3.1 Configuration
Three channels (A, B and C), each with one input and four outputs.
2.3.2 Operating Modes
Independent Channels A, B and C independently driven by their individual inputs.
Common A All outputs driven by channel A input.
Common B Channel B and C outputs driven by Channel B input, Channel A outputs
driven by Channel A input.

4 Technical Specifications & Operational Parameters
2.3.3 Input Connectors
Three isolated 50-ohm BNC (one per channel), optional fiber optic (channel A only)
DC Coupled Opto-isolator (HCPL2601) + 562 ohms
Level 5 mA at 5 Volts, nominal
Polarity Center conductor positive
Frequency DC – 5 MHz
AC Coupled RF transformer; 50 ohms
Level 0 to +15 dBm (0.6 – 3.6 Vpp)
Frequency 100 kHz – 10 MHz
Fiber Type Option 01; 820 nm type-ST
Level -25.4 to -9.2 dBm for +5 V, -40 dBm for 0 V
Frequency DC - 5 MHz
Isolation 2000 Vrms, minimum, to common
2.3.4 Output Connectors
Four 50-ohm BNC per channel
Driver Each output, 74HC125 quad buffer; all four outputs connected in parallel
AC coupled
Level 5 Vpp, open-circuit, 2.5 Vpp (+12 dBm) into 50 ohms
Impedance 50 ohms + 0.1 µF capacitor, nominal
DC coupled
Level 5 Vpp, open circuit
Drive ±75 mA, maximum, per output
Impedance 15 ohms nominal

2.4 Physical Characteristics 5
2.4 Physical Characteristics
2.4.1 Dimensions
Instrument 430 mm W x 44 mm H x 260 mm D (16.9” x 1.7” x 10.05”)
2.4.2 Weight
Instrument 2.0 kg (4.5 lbs.), net
Shipping 3.6 kg (8 lbs.) includes manual and accessories
2.4.3 Power Requirements
Option 07 85 – 264 Vac, 47 – 440 Hz, or 110 – 270 Vdc, 3 VA typical. Including an
IEC-320, fused; mating cordset. Plug type specified as Options P1 through
P10.
Option 08 10 – 60 Vdc, 3 W typical. Using a 3-pole terminal strip with SWC for power
inlet.
Option 10 85 – 264 Vac, 47 – 440 Hz or 110 – 270 Vdc, 3 W typical. Using a 3-pole
terminal strip with SWC for power inlet.
2.4.4 Temperature
Operating 0 ◦C to +50 ◦C
Storage: -40 ◦C to +75 ◦C.
2.4.5 Electro-Magnetic Interference (EMI)
Options 07 and 10 Power Input Modules comply with FCC 20780, Class A and VDE 0871/6.78,
Class A.
Options 08 and 10 Power Input Modules with SWC comply with ANSI/IEEE C37.90-1 and IEC
801-4.

6 Technical Specifications & Operational Parameters

Chapter 3
Physical Configuration
3.1 Instrument
3.1.1 Location Considerations
The Model 1073A is designed to operate in an environment having an ambient temperature range
of 0 ◦C to +50 ◦C (+32 ◦F to +122 ◦F). Operation is possible at temperatures of −20 ◦C to +70 ◦C,
typical. No external ventilation is necessary.
For best access to the 1073A, allow adequate clearance for rear-panel connections, especially in
rack-mounting situations.
3.1.2 Power Requirements
The standard AC input voltage range for the Model 1073A is 85 Vac to 264 Vac, 47 Hz to 440 Hz,
110 to 275 Vdc, or 10 to 60 Vdc. See Section 3.1.3.
3.1.3 Power Line Connection
The Model 1073A is equipped with a user specified Power Input Module. The modules available
are described in the following paragraphs.
Option 07, AC/DC Power Input Module (IEC-320 Inlet)
AC Operation
This power inlet module operates across an AC input voltage range of 85 – 264 Vac, 47 – 440 Hz.
The mating cordset provided is dependent upon the cordset option (P1 through P10) which was
specified at the time of purchase. For further information about available cord sets for specific
countries, see Table 1.1, or contact Arbiter Systems.
To connect the input power, first plug the end of the power cord having the mating IEC
connector into the power inlet module on the rear panel, then plug the other end into an appropriate
power outlet.
WARNING: For maximum safety and best performance, always connect the
input cord to a properly grounded power source.

8 Physical Configuration
DC Operation
For 110 – 270 Vdc operation, the DC voltage should be applied between the LINE and NEUTRAL
terminals of the power inlet module, without regard to polarity (the internal power supply will
accept either polarity). When viewing the power inlet module from the rear of the instrument,
the LINE connection is the one nearest the bottom, and the NEUTRAL is nearest the top. The
GROUND terminal is offset from the others, and protrudes slightly farther out of the connector.
WARNING: Connect input only to a properly grounded power source.
Option 08, DC Power Input Module
If Option 08 is ordered, the power module accepts ONLY DC input voltages from 10 – 60 Volts. The
standard IEC-320 inlet is replaced with a 3-pole terminal strip with input surge withstand capability
(SWC). The terminal strip is intended for connection to DC power sources. When connecting power
to a clock with Option 08, BE SURE TO OBSERVE CORRECT POLARITY, as the power
supply used with Option 08 will not accept reverse input polarity.
NOTE: Do not connect Option 08 module to any AC voltage source.
Option 10, AC/DC Power Input Module
AC Operation
This option provides a input power module which operates across an AC input voltage range of
85 – 264 Vac, 47 – 440 Hz. Line connection is via a 3-pole terminal strip which provides surge
withstand capability (SWC). This terminal strip is intended for connection to AC power sources,
although the unit is capable of operation from both AC and DC sources.
DC Operation
The input power module supplied with this option also accepts DC voltages from 110 – 270 Vdc
via the 3-pole terminal strip (with SWC).
Fuse Replacement, All Power Supply Options
The IEC-320 input power connector assembly includes a 1-Amp, 250-Volt fast-acting 5 x 20 mm
fuse. The fuse is contained in a small compartment with a snap-fit latch, which also has a com-
partment for a spare fuse.
CAUTION: For continued protection, replace the input fuse only with
one of the same type, voltage rating, and current rating as originally
supplied.
The fuse compartment in Option 07 is located directly adjacent to the input connector socket,
and can be opened by pulling both sides directly upward, or by gently prying with a small flat-
blade screwdriver. To replace the fuse, first disconnect the line cord from the power source and
