arcelik 2052 DY User manual

2052 DY
Refrigerator

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
1 Your cooler/freezer 4
2 Important Safety
Warnings 5
Intended use ..................................... 5
General safety .................................. 5
For products with a water dispenser;. 9
Child safety........................................ 9
Compliance with WEEE Directive and
Disposing of the Waste Product: ....... 9
Package information.......................... 9
HC warning ..................................... 10
Things to be done for energy saving 10
3 Installation 11
Points to be paid attention to when the
relocation of the cooler/freezer......... 11
Before you start the cooler/freezer, .. 11
Electrical connection........................ 11
Adjusting the legs ............................ 12
Disposing of the packaging ............. 12
Disposing of your old cooler/freezer. 12
Placing and Installation .................... 12
Reversing the doors ........................13
4 Preparation 14
5 Using your cooler/
freezer 15
Setting the operating temperature ...15
Freezing........................................... 16
Defrosting of the appliance .............. 17
Making ice ....................................... 18
6 Maintenance and
cleaning 19
Protection of plastic surfaces .......... 19
7 Troubleshooting 20
CONTENTS

EN
4
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your cooler/freezer
1. Thermostat
2. Flap (Fast-Freeze compartment)
3. Ice cube tray & Ice bank
4. Drawers
5. Adjustable front feet
2
4
5
3
1MAX.
1
2
34

EN
5
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.
The service life of your
product is 10 years.
During this period,
original spare parts will be
available to operate the
product properly.
Intended use
• This product is intended
to be used indoors and
in closed areas such as
homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the cooler/
freezer. Do not intervene
or let someone intervene
to the cooler/freezer
without notifying the
authorised services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.

EN
6
• Unplug your cooler/
freezer before cleaning
or defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
cooler/freezer. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your cooler/freezer such
as the door as a means
of support or step.
• Do not use electrical
devices inside the
cooler/freezer.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your cooler/freezer with
any material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your cooler/freezer’s
mains supply by either
turning off the relevant
fuse or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Place the beverage with
higher proofs tightly
closed and vertically.
• Never store spray
cans containing
flammable and explosive
substances in the cooler/
freezer.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.

EN
7
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged cooler/freezer.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
cooler/freezer shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the cooler/
freezer into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This cooler/freezer is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
cooler/freezer.
• Never connect your
cooler/freezer to
electricity-saving
systems; they may
damage the cooler/
freezer.
• If there is a blue light on
the cooler/freezer, do not
look at the blue light with
optical tools.
• For manually controlled
cooler/freezers, wait for
at least 5 minutes to start
the cooler/freezer after
power failure.
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.

EN
8
• Avoid causing damage
on power cable when
transporting the cooler/
freezer. Bending cable
may cause fire. Never
place heavy objects on
power cable.
• Do not touch the plug
with wet hands when
plugging the product.
• Do not plug the cooler/
freezer if the wall outlet is
loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the cooler/
freezer to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the cooler/freezer; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
cooler/freezer with food.
If overloaded, the food
items may fall down and
hurt you and damage
cooler/freezer when you
open the door.
• Never place objects on
top of the cooler/freezer;
otherwise, these objects
may fall down when you
open or close the cooler/
freezer's door.
• As they require a precise
storage temperature,
vaccines, heat-sensitive
medicine and scientific
materials and etc. should
not be kept in the cooler/
freezer.
• If not to be used for a
long time, cooler/freezer
should be unplugged.
A possible problem in
power cable may cause
fire.
• The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.

EN
9
• Cooler/freezer may
move if adjustable legs
are not properly secured
on the floor. Properly
securing adjustable legs
on the floor can prevent
the cooler/freezer to
move.
• When carrying the
cooler/freezer, do not
hold it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another cooler/freezer
or freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
For products with a
water dispenser;
Pressure of water mains
should be minimum
1 bar. Pressure of
water mains should be
maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock,
the key should be kept
away from reach of
children.
• Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.

EN
10
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
11
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
cooler/freezer
1. Your cooler/freezer should be
unplugged.Before transportation
of your cooler/freezer, it should be
emptied and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
cooler/freezer should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the cooler/
freezer,
Check the following before you start to
use your cooler/freezer:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will
ensure the air circulation between
your cooler/freezer and the wall.
(The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the cooler/
freezer as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the cooler/
freezer to the wall socket. When the
fridge door is opened, fridge internal
lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the cooler/freezer
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your cooler/freezer
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

EN
12
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated
by the local authorities.
The packing of your cooler/freezer is
produced from recyclable materials.
Disposing of your old cooler/
freezer
Dispose of your old cooler/freezer
without giving any harm to the
environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your cooler/freezer.
Before disposing of your cooler/freezer,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the cooler/freezer will be
installed is not wide enough for the
cooler/freezer to pass through, then
call the authorized service to have
them remove the doors of your cooler/
freezer and pass it sideways through
the door.
1. Install your cooler/freezer to a place
that allows ease of use.
2. Keep your cooler/freezer away from
heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your cooler/
freezer in order to achieve an efficient
operation. If the cooler/freezer is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your cooler/freezer on an even
floor surface to prevent jolts.

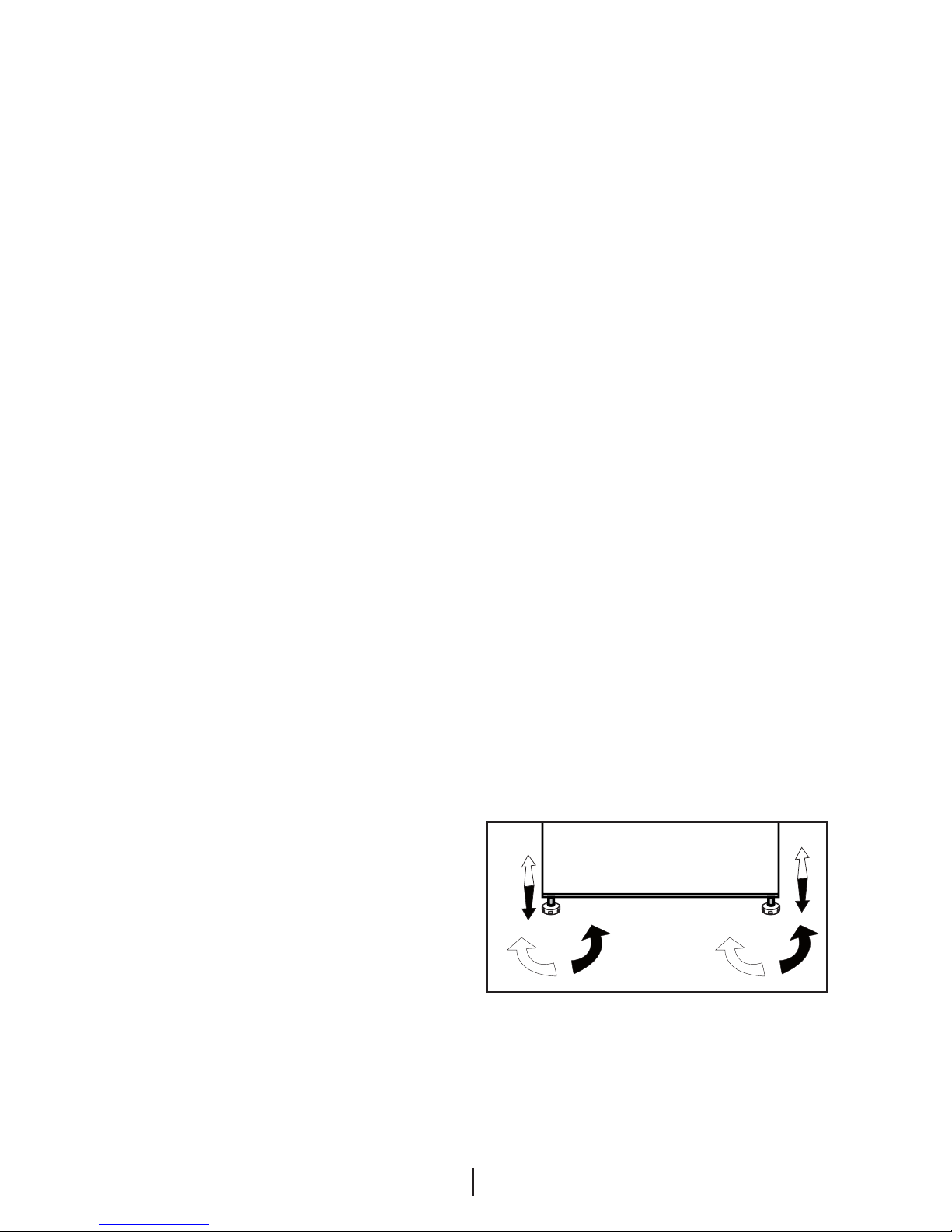

Adjusting the legs
If your cooler/freezer is unbalanced;
You can balance your cooler/freezer
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the cooler/freezer will
facilitate this process.

EN
13

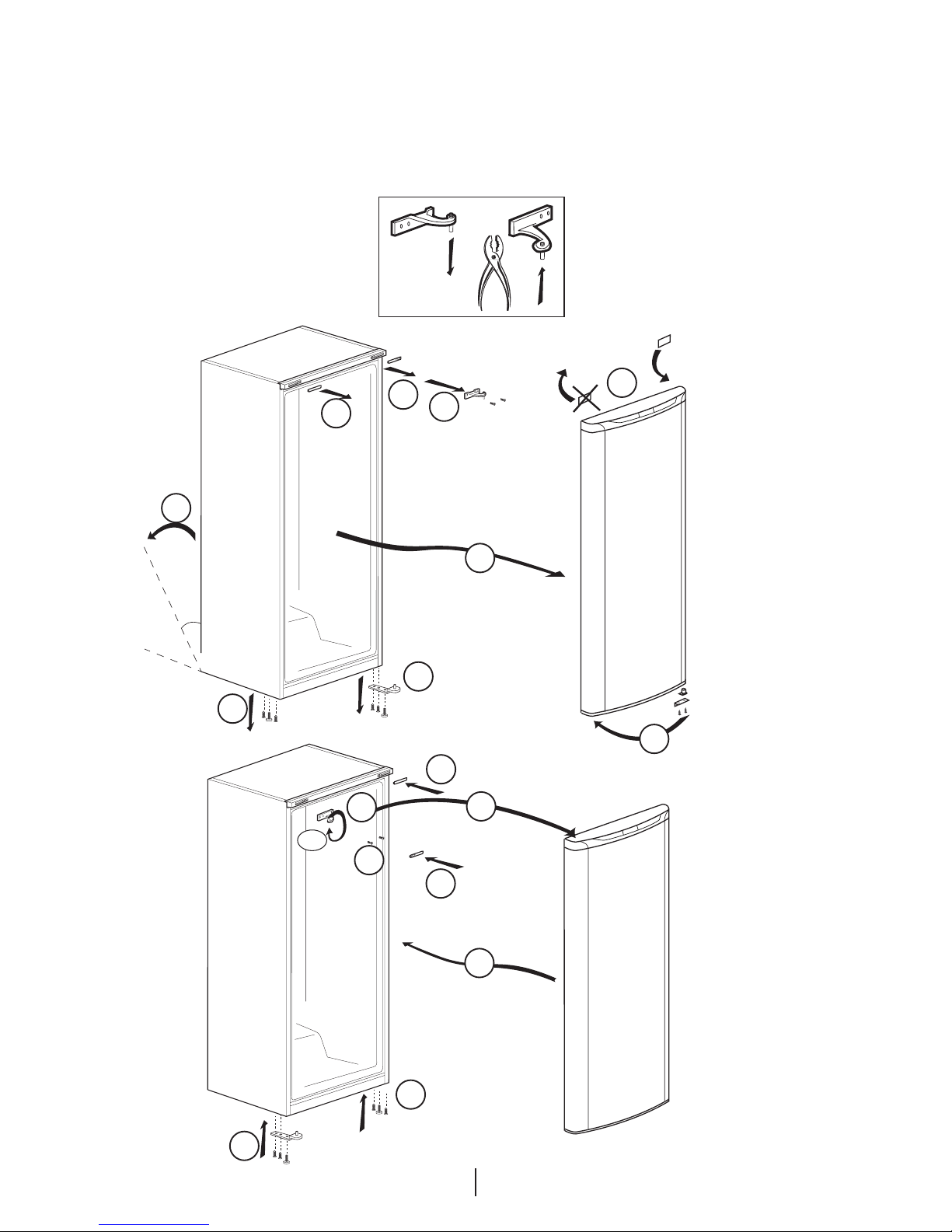

Reversing the doors
Proceed in numerical order .
8
5
(12)
180°
45°
3
2
1
6
4
9
7
10
11
14
12
16
16
13
15

EN
14
4Preparation
• Your cooler/freezer should be
installed at least 30 cm away from
heat sources such as hobs, ovens,
central heater and stoves and at least
5 cm away from electrical ovens and
should not be located under direct
sunlight.
• Please make sure that the interior
of your cooler/freezer is cleaned
thoroughly.
• If two coolers are to be installed side
by side, there should be at least 2 cm
distance between them.
• When you operate your cooler/freezer
for the first time, please observe the
following instructions during the initial
six hours.
• Its door should not be opened
frequently.
• It must be operated empty without
placing any food in it.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• The baskets/drawers that are
provided with the chill compartment
must always be in use for low energy
consumption and for better storage
conditions.
• Food contact with the temperature
sensor in the freezer compartment
may increase energy consumption of
the appliance. Thus any contact with
the sensor(s) must be avoided.
• This product has been designed to
function at ambient temperatures
up to 43 °C (90 SDgrF). Even if the
ambient temperature falls to -15
°C, frozen food in the freezer does
not thaw thanks to its Advanced
Electronic Temperature Control
System. For the first installation, the
product should NOT be placed under
low ambient temperatures. This is
because the freezer cannot go down
to standard operation temperature.
When reaching continuous operation,
the product can be moved to
another place. Thus, later you can
place your product in the garage
or an unheated room without the
concern of causing frozen food to
get rotten. However, it is likely that
above mentioned low temperatures
may cause the freezing of the food in
the fridge compartment; thus, please
consume the food items in the fridge
in a controlled way as needed. When
ambient temperature goes back
to normal, you may change button
setting according to your need.
• If the ambient temperature is below
0°C, the food in fridge compartment
will freeze. Therefore, we recommend
not using the fridge compartment
in such low ambient temperatures.
You may continue to use the freezer
compartment as usual.
• In some models, the instrument panel
automatically turns off 5 minutes
after the door has closed. It will
be reactivated when the door has
opened or pressed on any key.

EN
15
5Using your cooler/freezer
Setting the operating temperature
Warm Cold
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting (Warmest
setting)
MAX. = Highest cooling setting
(Coldest setting)
Please choose the setting according to
the desired temperature.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature of
your appliance should be -18 °C (0 °F).
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position MAX.
We recommend checking the
temperature with a thermometer to
ensure that the storage compartments
are kept to the desired temperature.
Remember to take the reading
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.

EN
16
MAX.
1
2
34
Indicator lights
There are three coloured indicator
lights located inside the appliance
which show the operating mode of the
freezer.
Amber Indicator
Illuminates when the thermostat knob
is turned to MAX. position and stays
on until the fast freeze operation is
deactivated manually.
Fast-freeze operation is for freezing
fresh food.
Green Indicator
Illuminates when the appliance is
connected to the mains and will glow
as long as there is electricity present.
The green indicator does not give any
indication of the temperature inside the
freezer.
Red Indicator High Temperature
Alarm
After the appliance is turned on for
the first time the alarm is not active
for 12 hours (The red LED indicator is
switched off).
After this period of time the red LED
indicator is switched on in the following
situations:
-If the appliance is overloaded with
fresh food -If the door is left open by
mistake.In these situations the red LED
indicator will continue to be switched
on until the appliance reaches the
preset temperature. If the red LED
indicator is still switched on then wait
for 24 hours before calling service.
Thermostat knob
The thermostat knob is located on the
indicator light frame.
Important:
When you press the fast-freeze switch
or adjust the set temperature, there
may be a short delay before the
compressor starts to operate. This is
normal and not a compressor fault.
Freezing
Freezing food
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.
• Attention
Do not freeze fizzy drinks, as the
bottle may burst when the liquid in it is
frozen.
Be careful with frozen products such
as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.

EN
17
Thus, the freezing capacity will not be
exceeded, and the temperature inside
the freezer will not rise.
• Attention
Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.
Fast freeze
If large amounts of fresh food are
going to be frozen, adjust the control
knob to max. 24 hours before putting
the fresh food in the fast freeze
compartment.
It is strongly recommended to
keep the knob at MAX. position at
least 24 hours to freeze maximum
amount of fresh food declared as
freezing capacity. Take special care not
to mix frozen food and fresh food.
Remember to turn the thermostat
knob back to its previous
position once food has frozen.
Defrosting of the appliance
Excessive build-up of ice will affect
the freezing performance of your
appliance.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your appliance when there is
only little or no food in it.
Take out the deep-frozen food from
the drawers. Wrap the deep-frozen
food in several layers of paper, or a
blanket, and keep it in a cold place.
Unplug the appliance or switch off the
circuit breaker to start the defrosting
process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
Use a sponge or a soft cloth to remove
thawing water if necessary.
Keep the door open during defrosting.
For quicker defrosting, place
containers with warm water inside the
appliance.
Never use electrical devices, defrosting
sprays or pointed or sharp-edged
objects such as knives or forks to
remove the ice.

EN
18

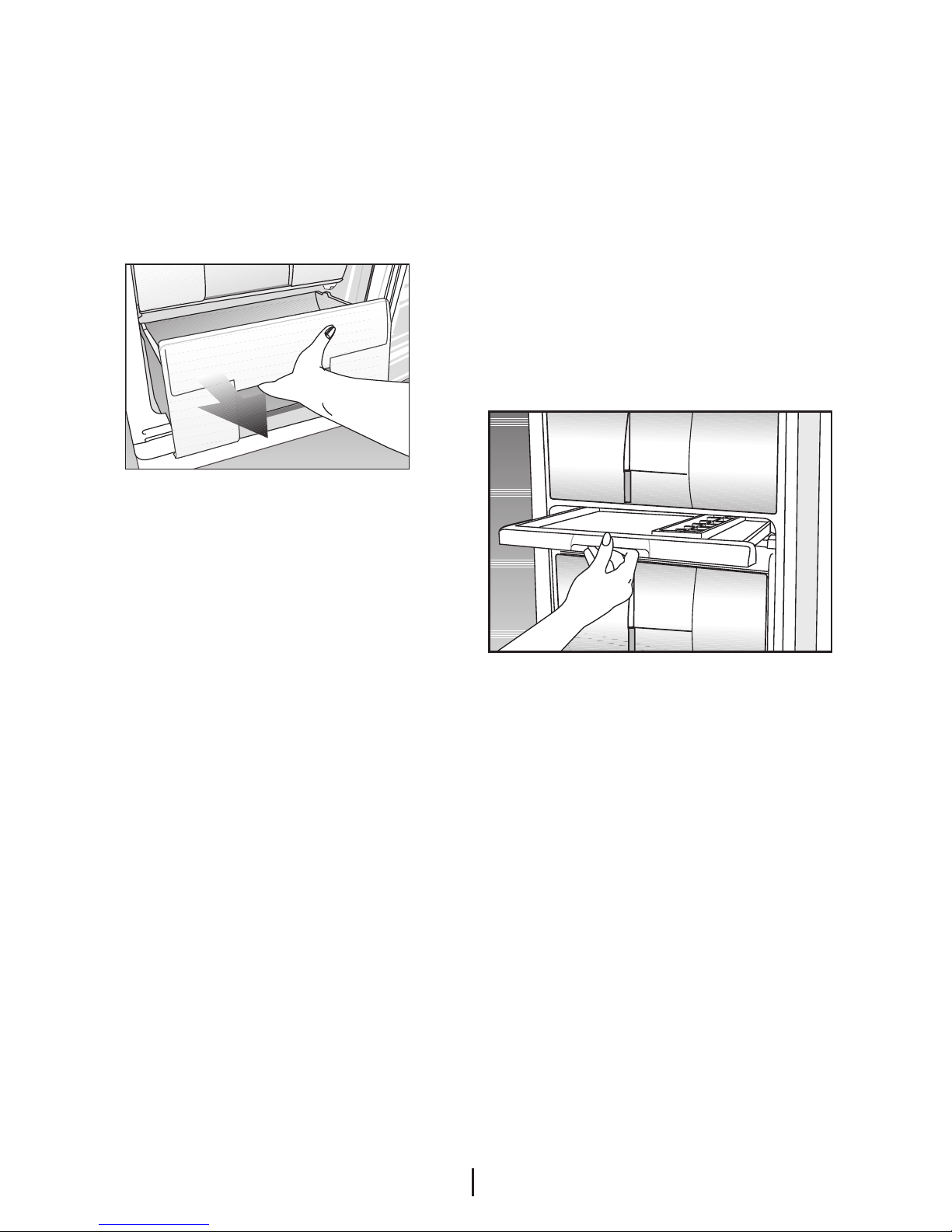

Making ice
*optional
Fill the ice container with water and
place it into the freezer compartment.
Your ice will be ready approximately in
two hours.
You can remove the ice in the ice
container by removing it from the
freezer and twisting it.
After the defrosting is done, clean the
inside (see the section ‘Cleaning and
care’).
Reconnect the appliance to the mains.
Place the frozen food into the drawers
and slide the drawers into the freezer.

EN
19
6Maintenance and cleaning
ANever use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
BNever use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your cooler/freezer and
wipe it dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your cooler/freezer is not going to
be used for a long period of time,
unplug the power cable, remove all
food, clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
ATo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
ANever use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your cooler/freezer
in unsealed containers as they
damage the plastic surfaces of your
cooler/freezer. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part of
the surface at once with warm water.

EN
20
7Troubleshooting
Please review this list before calling the service. It will save your time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The cooler/freezer does not operate.
• The plug is not inserted into the socket correctly. >>>Insert the plug into the
socket securely.
• The fuse of the socket which your cooler/freezer is connected to or the main
fuse have blown out. >>>Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL
CONTROL and FLEXI ZONE).
• Ambient is very cold. >>>Do not install the cooler/freezer in places where the
temperature falls below 10 °C.
• Door has been opened frequently. >>>Do not open and close the door of
cooler/freezer frequently.
• Ambient is very humid. >>>Do not install your cooler/freezer into highly humid
places.
• Food containing liquid is stored in open containers. >>>Do not store food with
liquid content in open containers.
• Door of the cooler/freezer is left ajar. >>>Close the door of the cooler/freezer.
• Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.
• Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures
or plug-out plug-ins as the refrigerant pressure in the cooling system of the
cooler/freezer has not been balanced yet. The cooler/freezer will start running
approximately after 6 minutes. Please call the service if the cooler/freezer does
not startup at the end of this period.
• The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting
cooler/freezer. Defrosting cycle occurs periodically.
• The cooler/freezer is not plugged into the socket. >>>Make sure that the plug is
fit into the socket.
• Temperature settings are not made correctly. >>>Select the suitable temperature
value.
• There is a power outage. >>>Cooler/freezer returns to normal operation when
the power restores.
The operation noise increases when the cooler/freezer is running.
• The operating performance of the cooler/freezer may change due to the
changes in the ambient temperature. It is normal and not a fault.
