Archos 9.7 Carbon User manual

1
ENEN
Table of contents
For more information, please consult the FAQs and the User manual of your product on:
www.archos.com. Make sure to read them before considering any product return.
Your deal may be no big deal.
Package Content........................................................................................................
Gettingstarted............................................................................................................
Description of the device........................................................................................
Through theWizard...................................................................................................
Connecting to a WiFi network...............................................................................
The AndroidTM interface............................................................................................
Getting familiar with AndroidTM.............................................................................
Troubleshooting.........................................................................................................
2
3
4
6
7
8
12
14

2

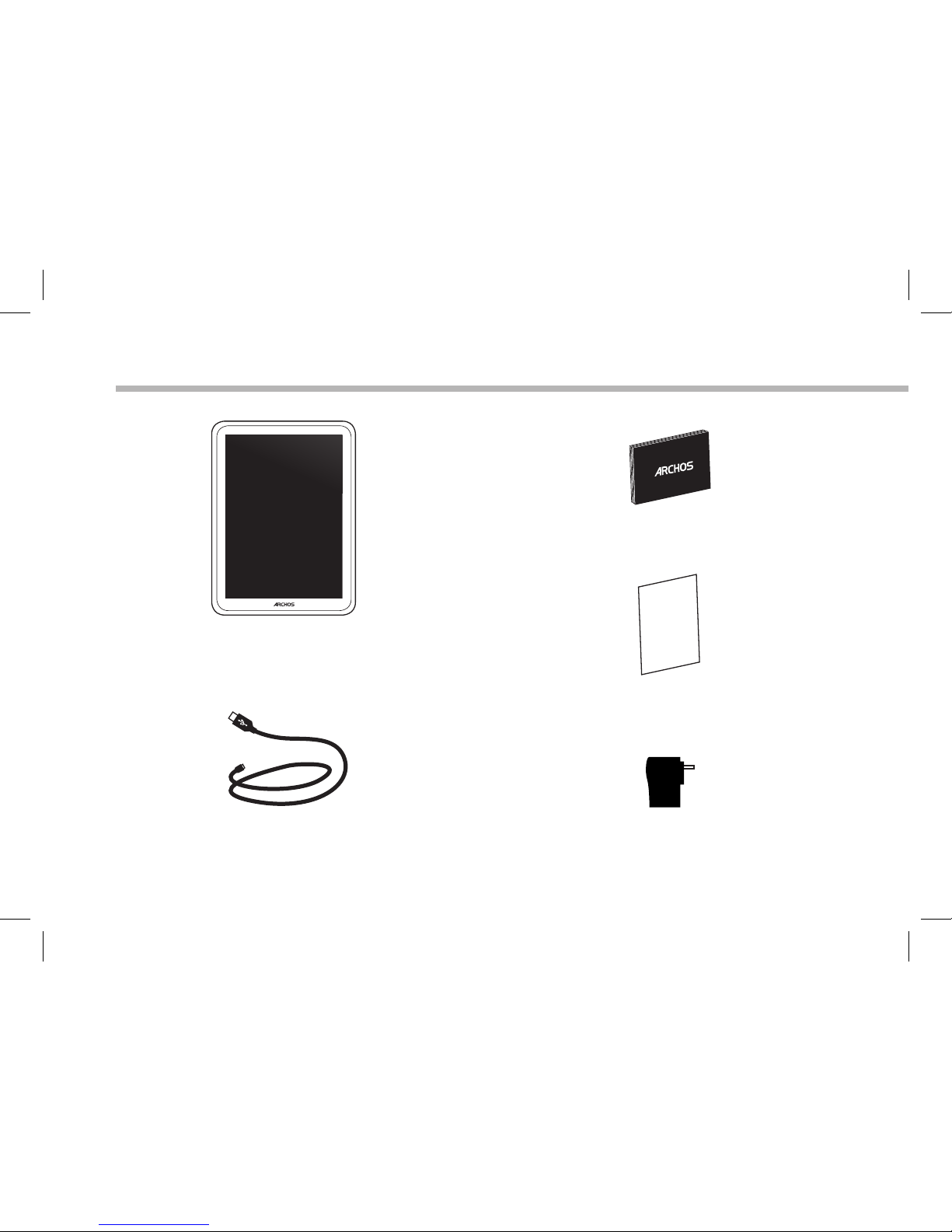

ARCHOS 9.7 Carbon
USB cable Charger
QSG booklet
Warranty,
legal & safety booklet
Package Content

3
EN
Getting Started
Charging
Charge your device by plugging your power cable into the ARCHOS (USB or power) Port.
The ARCHOS device will turn on and start charging.
The Power indicator light is red while the battery is charging.
It will turn green when the battery is fully charged.
You can use your ARCHOS whilst it charges.
Installation Wizard
The rst time you start up your ARCHOS, the installation wizard will help you set up your
device (language, Legal and Safety, time & date, WiFi network, 3rd party apps, touchscreen,
accelerometer). Simply follow the onscreen instructions.
TIPS:
To receive more complete service, please register your product.
With a computer: go to www.archos.com/register.

4
1 92 3
11
4
12
5
13
6 7
15
8
14
10
Description of the device

5
EN
USB host port
Mini-HDMI video output*
Power connector
Micro-USB port
Hardware reset
Micro-SD card slot
Charging indicator
Headphone jack
Microphone
Front camera
ON/OFF button
Volume buttons
Home button
Loudspeakers
Back camera
* With optional Mini-HDMI to HDMI cable.
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8

6
Through the Wizard
TIPS:
We recommend that you set up your device in the WiFi zone of the network that you will regularly
be using.
The rst time you start up your ARCHOS, the installation wizard will help you
set up your device:
- Touchscreen calibration
- Language
- Legal and Safety
- Date & time
- Wi network
- My location
- 3rd party apps

7
EN
Connectivity to a WiFI Network
TIPS:
- When entering a WiFi password, we recommend that you select “Show password” so you can
see the characters you are typing.
- To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
- If your WiFi is on and you are in range of a network that you previously connected to, your
ARCHOS will automatically attempt to connect to it.
WARNING: Make sure that you are in a WiFi zone.
You can access theWiFi settings quickly from the status bar in the bottom right
corner of the screen:
1. Touch the time in the status bar. The status dashboard is displayed.
2.Touch the time a second time in the status dashboard.The quick settings will display.
3. Touch WiFi to open the WiFi settings menu.
4. If the WiFi is o, slide the WiFi switch to the ON position. Once the WiFi is on, the
ARCHOS will scan for WiFi networks in range.
5. Touch the name of network you want to connect to.
Private networks are shown with a lock icon and will require you to enter your
password.

8
1
7
2
3
4
5
6
8
9
The AndroidTM Interface

9
EN
GoogleTM Search
>Touch for text search or search by voice
Recent apps buttons
Home button
Back button
All Apps button
> Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded
applications are here.
Widget
AndroidTM apps shortcuts
The status bar
> Displays notications and quick settings
Volume buttons
1
2
3
4
5
6
7
8
9

10
The AndroidTM Interface
The Quick settings:
- WiFi:
To turn on/o your WiFi connection.
- Auto-rotate screen:
To activate/deactivate automatic screen orienta-
tion as you turn your ARCHOS.
- Brightness:
To adjust the screen brightness.
- Notications:
To activate/deactivate incoming notications.
- Settings:
To access all your settings.

11
EN
The Recent Apps:
Opens a list of thumbnail images of apps you’ve
worked with recently.
- To open an app, touch it.
- To close an app, swipe it left or right.

12
Getting familiar with AndroidTM
The extended home screen:
Navigate between dierent home screen panels by swiping left and right.
Moving a home screen item:
Touch and hold your nger onto it until the positioning gridlines appear, then slide it
to the desired location, and release your nger.
Removing a home screen item:
Touch and hold it, slide your nger towards the top of the screen and drop it over the
Remove icon.
Uninstalling an item:
From the All apps screens, touch and hold it, slide your nger towards the top of the
screen and drop it over Uninstall bin.

13
EN
Creating application folders:
Drop one app icon over another on a home screen and the two icons will be combi-
ned.
Widgets:
Touch the All Apps icon on your home screen. Touch Widgets at the top of the screen.
From the main Widgets screen, you can move around widgets just as you do for app
icons.
Changing your wallpaper:
Hold your nger on the screen at an empty location, then choose from the list.
Locking the touchscreen:
From the quick settings dashboard in the status bar, touch settings. Scroll down and
touch security. Touch Screen lock. Touch the type of lock you would like to use. After
you set a lock here, a lock screen is displayed whenever your screen wakes up, reques-
ting the pattern, PIN or other specied key.

14
Troubleshooting
If your device is frozen:
Press the ON/OFF button for 10 seconds or use the Hardware reset. To use the Hardware
reset, press the “pinhole reset” button by using a sharp object such as a toothpick.
If your device doesn’t turn on:
1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the Hardware reset. To use the
Hardware reset, press the “pinhole reset” button by using a sharp object such as a
toothpick.
If the touchscreen doesn’t function correctly:
From Settings, touch Touchscreen calibration.
If you want to extent the life of your battery:
Decrease the screen brightness and turn o the wireless connections if not in use.
If your device functioning is too slow:
Close all apps which are not currently used.
If your WiFi reception is too low:
Make sure you are not far from the WiFi hotspot.
Update the rmware of the device. http://www.archos.com/support
From Settings > Repair & Formatting, select Reset Android.
Contact your Wi connection provider.
If you connect your device to your TV via HDMI:
Your tablet turns to be a touchpad and you can display a pointer on the TV screen.
To display the pointer, go to Settings > Developer options > User interface, and select
Show touches.

15
FR
FR
Table des matières
Pour plus d’informations, consultez-les FAQs et le manuel d’utilisateur de votre produit sur
www.archos.com. Consultez-les avant d’envisager un éventuel retour du produit. Le problème
que vous rencontrez peut être résolu facilement.
Contenu de la boîte...................................................................................................
Mise en route...............................................................................................................
Description de l’appareil........................................................................................
Assistant de démarrage..........................................................................................
Se connecter à un réseau WiFi...............................................................................
L’interface AndroidTM.................................................................................................
Se familiariser avec AndroidTM...............................................................................
Dépannage..................................................................................................................
16
17
18
20
21
22
26
28

16
Contenu de la boîte
ARCHOS 9.7 Carbon
Câble USB Chargeur
Guide d’utilisation rapide
Guide des garanties et des
mentions légales

17
FR
FR
Mise en route
Chargez la batterie
Connectez le câble d’alimentation à votre produit via le connecteur d’alimentation.
L’ ARCHOS s’allume et commence à se charger.
Le témoin d’alimentation est rouge lorsque la batterie est en chargement.
Il devient vert une fois que la batterie est complètement chargée.
Vous pouvez utiliser votre ARCHOS pendant le chargement.
Assistant de démarrage
La première fois que vous allumez votre ARCHOS, l’assistant de démarrage vous permet de
paramétrer votre appareil (calibration de l’écran tactile, langue, Mentions Légales et Consignes
de Sécurité, date & heure, connexion Wi, ma position, applications tierces).
ASTUCES:
Pour bénéficier d’une assistance complète, enregistrez votre produit.
A partir de votre ordinateur, allez sur www.archos.com/register

18
1 92 3
11
4
12
5
13
6 7
15
8
14
10
Description de l’appareil

19
FR
FR
Port USB hôte
Sortie vidéo mini-HDMI*
Connecteur d’alimentation
Port micro-USB
Bouton Reset
Lecteur carte Micro-SD
Témoin de charge
Entrée jack audio
Microphone
Webcam
Bouton ON/OFF
Boutons de volume
Bouton Home
Haut-parleurs
Appareil photo
* Câble vidéo (Mini-HDMI vers HDMI) non-fourni.
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8

20
L’assistant de démarrage
ASTUCES :
Pour le paramétrage de votre appareil, nous vous recommandons de vous placer dans la zone
Wifi du réseau que vous utilisez régulièrement.
La première fois que vous allumez votre ARCHOS, l’assistant de démarrage
vous permet de paramétrer votre appareil :
- Calibration de l’écran tactile
- Langue
- Mentions légales et Consignes de sécurité
- Date & heure
- Connexion Wi
- Ma position
- Applications tierces
