ARCTICO UPLTF 90 User manual

OPERATING INSTRUCTIONS
UPLTF 90 / 275

2

INDEX PAGE
Before using the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safeguarding the environment ..................................................
Precautions and general recommendations ...................................
Operating instructions.......................................................
Installing the freezer..........................................................
Electrical connection .........................................................
Warning....................................................................
Before commisioning .......................................................
Start procedure .............................................................
Caution!....................................................................
Control panel ...............................................................

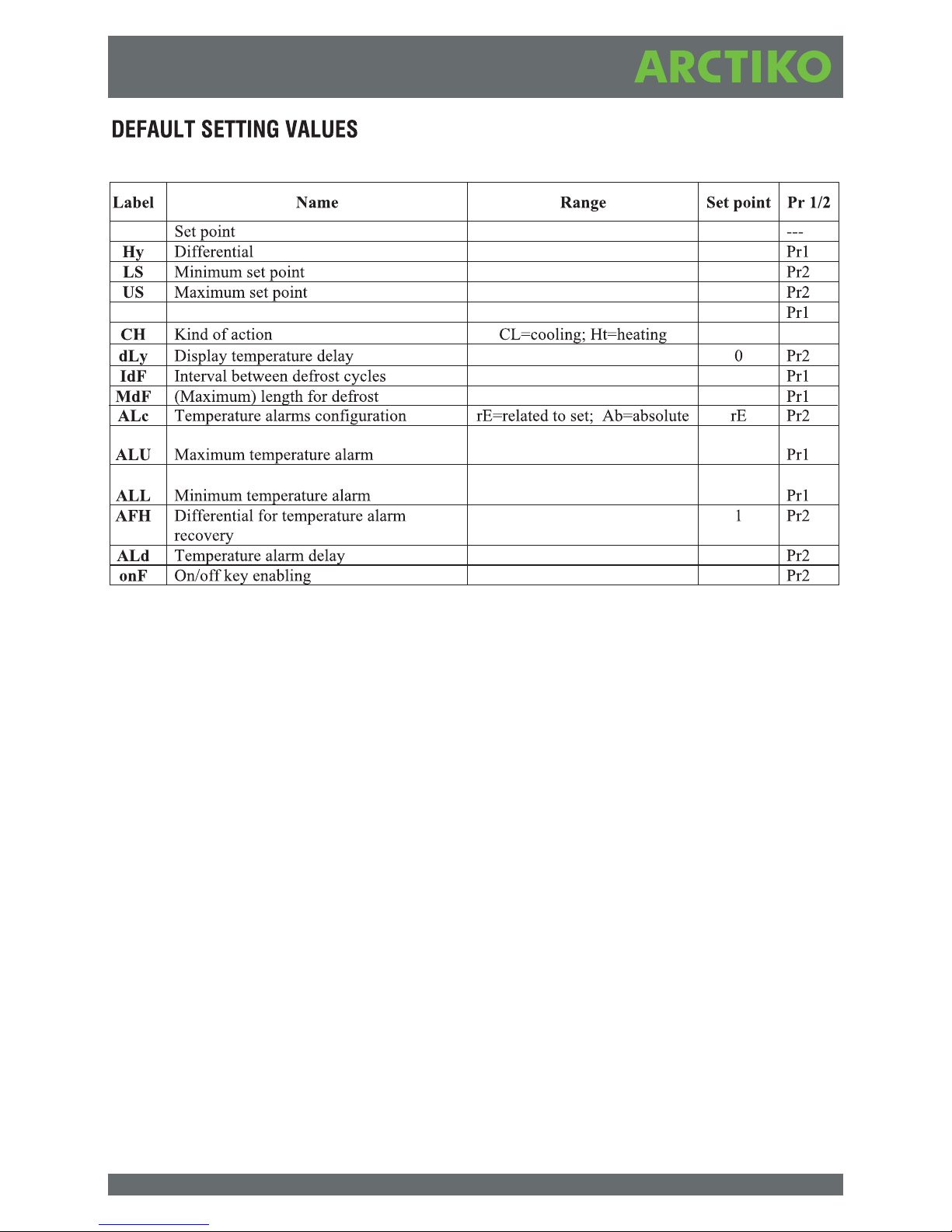

Parameter settings for unit ..................................................

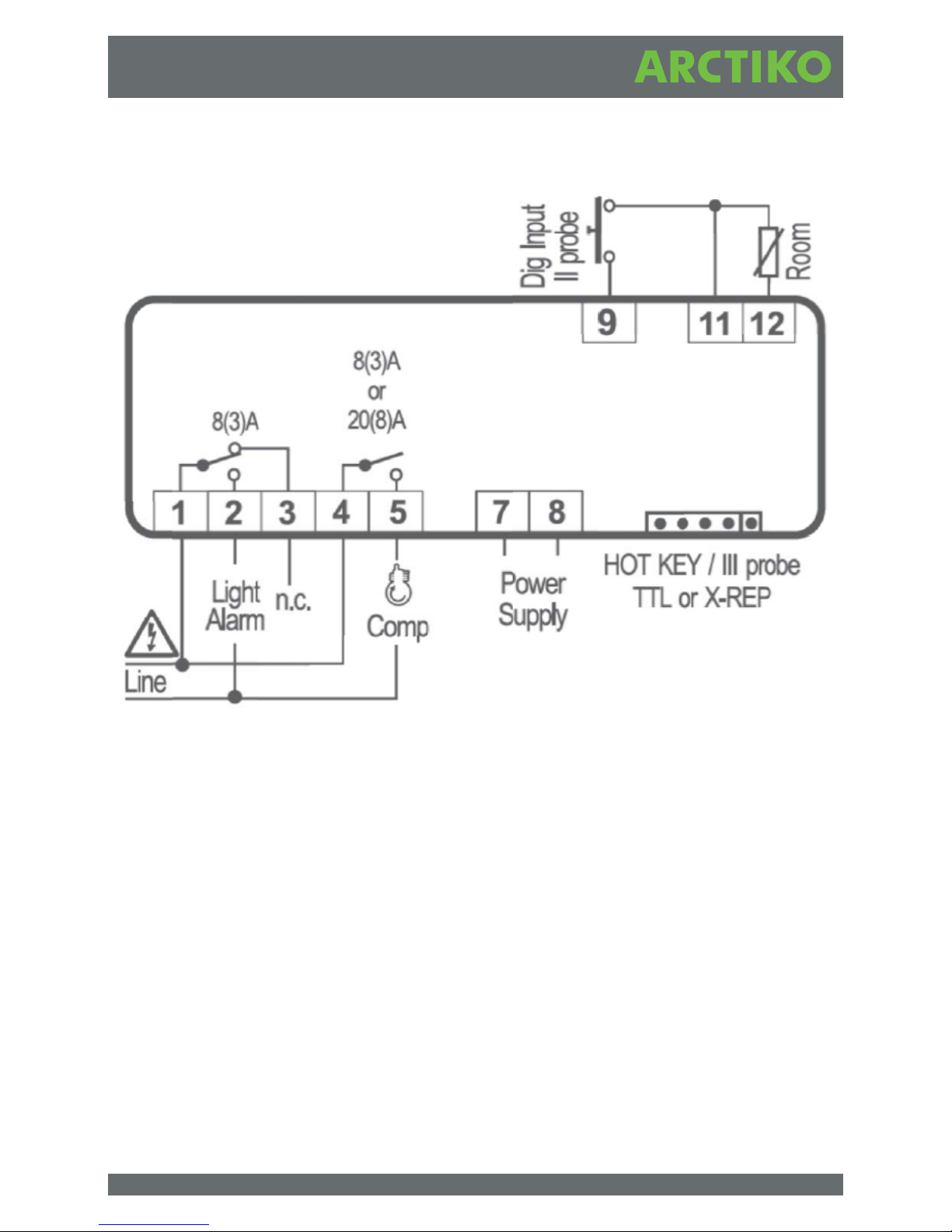

Connections ................................................................

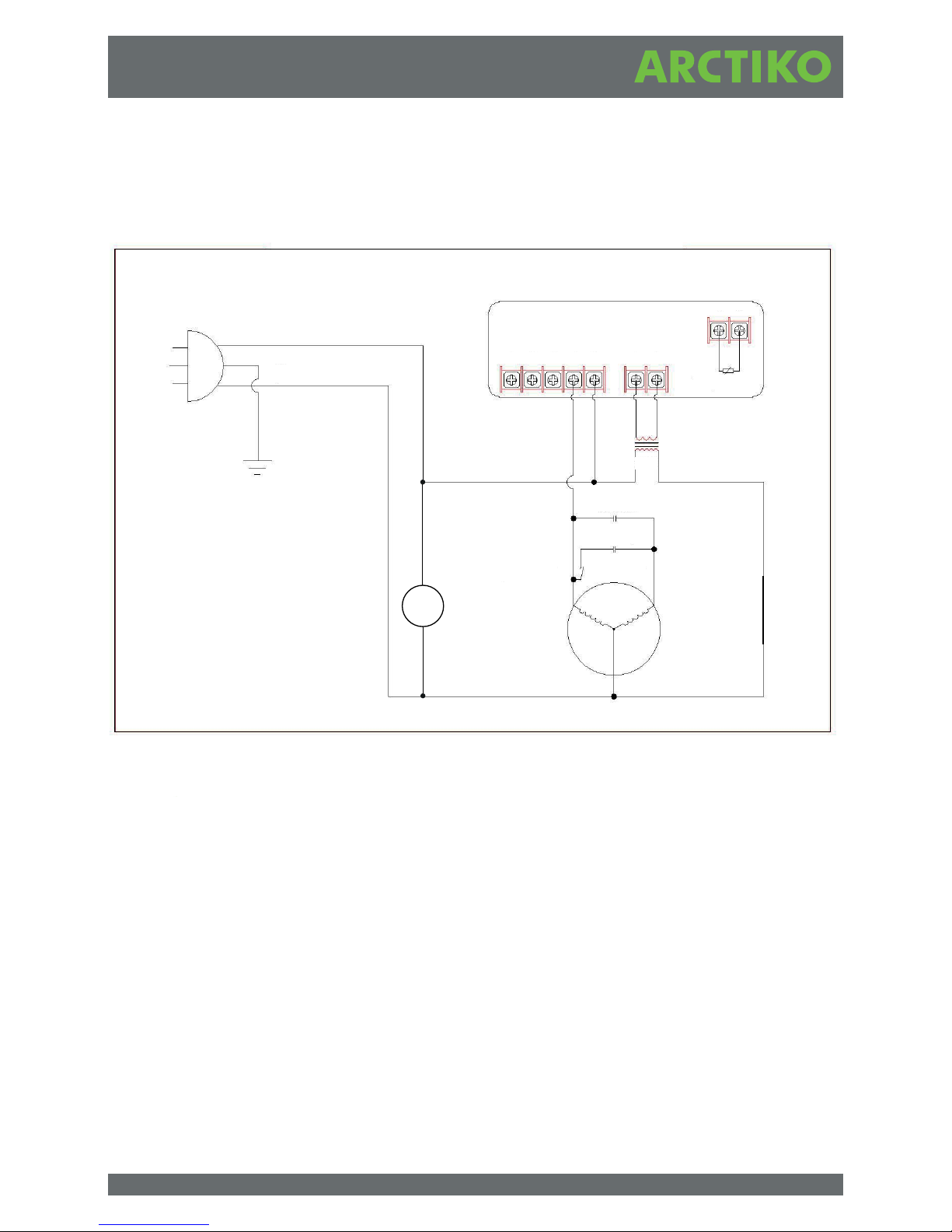

Wiring diagram .............................................................
Cleaning and maintenance of the freezer .....................................
Disposal and scrapping of the freezer ........................................
Disposing of the freezer ....................................................
3
4
4
4
5
5
5
6
6
6
6
8
15
16
17
18
18
18
7Potential free alarm contact ..................................................

IMPORTANT
Before using the freezer:
For safety reasons, the instructions should be read before the freezer is commissioned.
The operating instructions should always be available to and accessible for the personnel!
The appliance concerned complies with the below Directives and standards except as refrigerant amount.
Low Voltage Directive !""#$%&/EEC
Electromagnetic Compatibility Directive !""'/(")/EEC.
Only use the freezer for its specific purpose.
Safeguarding the environment:
1 Packing:
The packing material is entirely recyclable, and marked with recycling symbol.
Please follow the local regulations for scrapping.
2 Appliance:
The freezer is made of recyclable material. Dispose of the appliance should be according with the
local environmental regulations
Make the appliance unusable by cutting of the power supply cord and please the appliance must be
delivered to an authorised centre for recovery of refrigerant.
Information:
This appliance may contain a mixture of different refrigerant. For more information, please refer to
the rating plate affixed on the freezer.
Precautions and general recommendations:
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant system.
WARNING: Do not use electrical appliances inside the freezer storage compartment, unless they are
of the type recommended by the manufacturer.
• Always keep the keys in separate place and out of unauthorized personal and children.
• Before servicing or cleaning the appliance, unplug it from the mains or disconnect the electrical power
supply.
•The power supply cable may only be replaced by an authorised person.
• Frost formation on the interior wall and upper parts is a natural phenomenon, and therefore the
freezer should be defrosted during normal cleaning or maintenance.
4

Operating Instructions:
Low Temperature Freezing Cabinet
For safety reasons, these operating instructions should be read before the freezer is commissioned. The
operating instructions should always be available to and accessible for the personnel!
Instruct the personnel in the use of the freezer. There is a risk of frostbite if the contents or the sides of the
inner container are touched!
In the event of breakdown or irregularities contact professional instructors or repair technicians immediately.
Installing the Freezer
1. Always let an authorised electrician install the freezer (read the operating instructions).
2. The freezer should be located in a dry, cool place, out of direct sunlight. The freezer gives off a great
deal of heat when in operation. If the ambient temperature is too high, there is a risk that the freezer
will not operate correctly. Always ensure that the room is proper ventilated, so that the room
temperature does not exceed 25° C at most. Class N.
3. Place the freezer on a solid and flat substrate. This will eliminate any vibration and irritating noise. The
freezer should be placed with at least 30 cm free to the sides and against the wall.
Electrical Connection:
The machine meets current EU directives. Low voltage 2006/95/EEC.
Electromagnetic compatibility 2004/108/EEC.
The machine should be given extra protection in accordance with the Electricity Supply Regulations in order
to protect the user against dangerous electric shocks in the event of faults.
If the switch is for a three-pin plug, a three-pin plug should be used, and the conductor with yellow/green
insulation should be connected to the Earth terminal marked E.
Data regarding voltage and absorbed power / current are given on the rating plate.
Electrical connection must be made in accordance with the local regulations.
5
IMPORTANT!

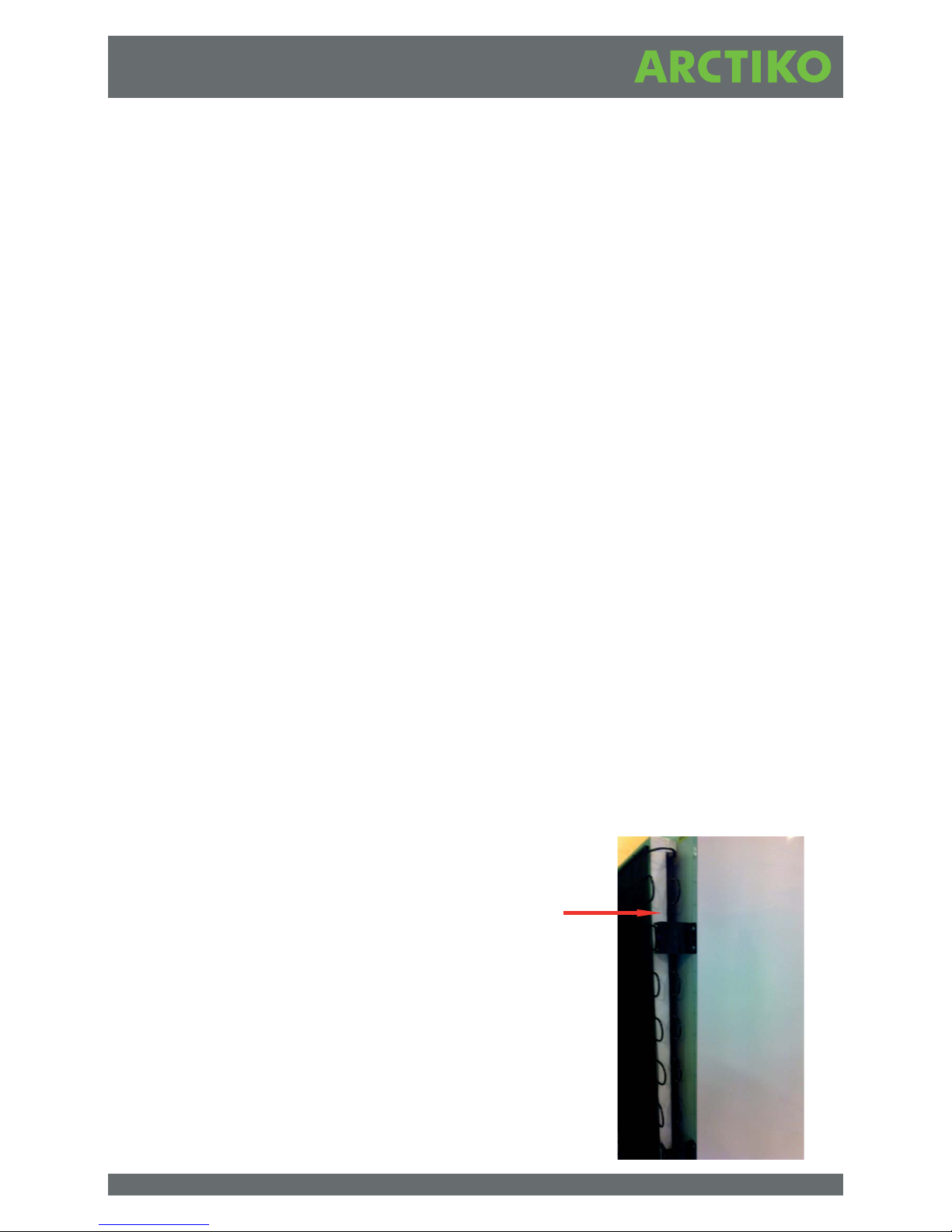

Please remove the styropor plate witch is placed between the two
condenser coils on the back of the freezer before commissioning
the freezer!

Warning-Regulations require that this appliance must be earthed:
The manufacture declines all liability for injury to persons or animals and for damage to property resulting
from failure to observe the above procedures and reminders.
If the socket and plug are not of the same type, please have the plug or socket replaced by a qualified
electrician.
Do under no circumstances use extension leads or adaptors.
1. The freezer should be connected by an authorised electrician, or by the company, which sold the
freezer! Incorrect installation may damage the freezer.
2. Place the freezer on a flat floor, which can take the weight of the freezer.
3. The electrical installation should be earthed.
4. Do not use extension cables, but connect the freezer directly to a fixed installation. If the freezer is
connected to a long extension cable there is the risk that the cable will become hot.
5. The freezer should be placed in a dry location, and should not be subjected to water on the cabinet. If
water gets into the electrical parts it may cause short-circuiting.
6. In the event of functional or electrical irregularities please contact an authorised servicing engineer
Before Commissioning:
Clean the freezer both inside and out using a damp, wrung out cloth. Dry with a dry cloth.
The smell from the plastic parts in the freezer will disappear once the freezer has been cooled down.
Start Procedure
Put the plug in the socket. The freezer should run for at least 1 hours before the thermostat is changed.
(Stabilisation of the cooling system).
Caution!
Do not place bottles or boxes containing carbonic acid or chemical agents in the freezer.
Do not place inflammable liquids such as ethane, petrol or alcohol in the freezer. Risk of explosion!
No bottles or tins should be placed in the freezer, as they could explode and cause injury to personnel.
Always use thermal gloves when operating the freezer, to reduce the risk of frost-bite.
In the event of repair work or corrective action in the installation in the machine room,
the plug should always be removed! Repair work in the installation should be carried
out by an authorised electrician!
6

7
POTENTIAL FREE ALARM CONTACT
The purpose of having the potential free contact (CTS) is to make it possible to receive a signal
when the controller of the freezer registers some kind of error. By using the potential free contact,
it is ensured to receive the signal regardless of which kind of surveillance system is used.
As the potential free contact works like a switch on/off contact, it is independent of any possible
software or hardware that might be used in the surveillance system.
You CANNOT se WHAT caused the setting of the alarm, but only that an alarm has been set off
and therefore has to be checked in order to locate the problem.

CONTROL PANEL (Dixell XR30CX Controller)
SET: To display target set point; in programming mode it
selects a parameter or confirm an operation.
(DEF): To start a manual defrost
(UP): To see the max. stored temperature; in programming
mode it browses the parameter codes or increases the displayed value.
(DOWN): To see the min stored temperature; in programming mode it browses the parameter codes or
decreases the displayed value.
To switch the instrument off, if onF = oFF.
NOT USED
KEY COMBINATIONS:
+ To lock & unlock the keyboard.
SET + To enter in programming mode.
SET + To return to the room temperature display.
USE OF LEDS
Each LED function is described in the following table
1. Press and release the key.
2. The “Lo” message will be displayed followed by the minimum temperature recorded.
3. By pressing the key again or by waiting 5s the normal display will be restored.
1. Press and release the key.
2. The “Hi” message will be displayed followed by the maximum temperature recorded.
3. By pressing the key again or by waiting 5s the normal display will be restored.
HOW TO SEE THE MIN TEMPERATURE
HOW TO SEE THE MAX TEMPERATURE
Figure 1
LED MODE FUNCTION
ON Compressor enabled
Flashing Anti-short cycle delay enabled
ON Defrost enabled
ON An alarm is occurring
ON Continuous cycle is running
ON Energy saving enabled
°C/°F ON Measurement unit
°C/°F Flashing Programming phase

HOW TO RESET THE MAX AND MIN TEMPERATURE RECORDED
1. Hold press the SET key for more than 3s, while the max. or min temperature is displayed. (rSt message
will be displayed)
2. To confirm the operation the “rSt” message starts blinking and the normal temperature will be displayed.
MAIN FUNCTIONS
HOW TO SEE THE SETPOINT
1. Push and immediately release the SET key: the display will show the Set point value;
2. Push and immediately release the SET key or wait for 5 seconds to display the probe value again.
1. Push the SET key for more than 2 seconds to change the Set point value;
2. The value of the set point will be displayed and the “°C” or “°F” LED starts blinking;
3. To change the Set value push the or arrows within 10s.
4. To memorise the new set point value push the SET key again or wait 10s.
HOW TO START A MANUAL DEFROST
Push the DEF key for more than 2 seconds and a manual defrost will start.
HOW TO CHANGE A PARAMETER VALUE
To change the parameter’s value operate as follows:
1. Enter the Programming mode by pressing the Set and DOWN key for 3s
(the “°C” or “°F ” LED starts blinking).
2. Select the required parameter.
3. Press the “SET ” key to display its value.
4. Use “UP” or “DOWN ” to change its value.
5. Press “SET ” to store the new value and move to the following parameter.
To exit: Press SET + UP or
wait 15s without pressing a key.
NOTE:the set value is stored even when the procedure is exited by waiting the time-out to expire.
THE HIDDEN MENU
The hidden menu Includes all the parameters of the instrument.
6.6.1 HOW TO ENTER THE HIDDEN MENU
1. Enter the Programming mode by pressing the Set+ key for 3s
(the “°C” or “°F ” LED starts blinking).
2. Released the keys, then push again the Set+ keys for more than 7s.
The Pr2 label will be displayed immediately followed from the HY parameter.
NOW YOU ARE IN THE HIDDEN MENU.
HOW TO CHANGE THE SETPOINT

3. Select the required parameter.
4. Press the “SET ” key to display its value.
5. Use or to change its value.
6. Press “SET ” to store the new value and move to the following parameter. To exit: Press SET + or
wait 15s without pressing a key.
NOTE1: if none parameter is present in Pr1, after 3s the “noP” message is displayed. Keep the keys
pushed till the Pr2 message is displayed.
NOTE2: the set value is stored even when the procedure is exited by waiting the time-out to expire.
6.6.2 HOW TO MOVE A PARAMETER FROM THE HIDDEN MENU TO THE FIRST LEVEL AND
VICEVERSA.
Each parameter present in the HIDDEN MENU can be removed or put into “THE FIRST LEVEL” (user level)
by pressing “SET ” +
In HIDDEN MENU when a parameter is present in First Level the decimal point is on.
HOW TO LOCK THE KEYBOARD
1. Keep pressed for more than 3 s the and keys.
2. The “POF” message will be displayed and the keyboard will be locked. At this point it will be possible only
to see the set point or the MAX o Min temperature stored
3. If a key is pressed more than 3s the “POF” message will be displayed.
TO UNLOCK THE KEYBOARD
Keep pressed together for more than 3s the and keys, till the “Pon” message will be displayed.
THE CONTINUOUS CYCLE
When defrost is not in progress, it can be activated by holding the key pressed .
for about 3 seconds.
The compressor operates to maintain the “ccS” set point for the time set through the “CCt” parameter. The
cycle can be terminated before the end of the set time using the same activation key “ ” for 3 seconds.
THE ON/OFF FUNCTION
With “onF = oFF”, pushing the ON/OFFkey, the instrument is switched off. The “OFF” message is
displayed. In this configuration, the regulation is disabled. To switch the instrument on, push again the
ON/OFFkey.
WARNING: Loads connected to the normally closed contacts of the relays are always supplied and
under voltage, even if the instrument is in stand by mode.

1
PARAMETERS
DISPLAY
DEFROST
REGULATION
Hy Differential: (0,1 ÷ 25,5°C / 1÷255 °F) Intervention differential for set point. Compressor Cut IN is
Set Point + differential (Hy). Compressor Cut OUT is when the temperature reaches the set point.
LS Minimum set point: (-100°C ÷ SET; [-148F ÷ SET): Sets the minimum value for the set point.
US Maximum set point: (SET÷150°C/ SET÷302°F). Set the maximum value for set point.
Ot Thermostat probe calibration: (-12.0÷12.0°C; -120÷120°F) allows to adjust possible offset of the
thermostat probe.
OdS Outputs activation delay at start up: (0÷255min) This function is enabled at the initial start up of
the instrument and inhibits any output activation for the period of time set in the parameter.
AC Anti-short cycle delay: (0÷50 min) minimum interval between the compressor stop and the
following restart.
CCt Compressor ON time during continuous cycle:(0.0÷24.0h; res. 10min) Allows to set the length of
the continuous cycle: compressor stays on without interruption for the Cct time. Can be used, for
instance, when the room is filled with new products.
CCS Set point for continuous cycle:(-100÷150°C; -148°F ÷ 302°F) it sets the set point used during the
continuous cycle.
Con Compressor ON time with faulty probe:(0÷255 min) time during which the compressor is active in
case of faulty thermostat probe. With COn=0 compressor is always OFF.
COF Compressor OFF time with faulty probe:(0÷255 min) time during which the compressor is OFF in
case of faulty thermostat probe. With COF=0 compressor is always active.
CH Type of action: CL = cooling; Ht = heating.
CF Temperature measurement unit: °C=Celsius; °F=Fahrenheit. WARNING: When the measurement
unit is changed the SET point and the values of the parameters Hy, LS, US, Ot, ALU and ALL have to
be checked and modified if necessary).
rES Resolution (for °C): (in = 1°C; dE = 0.1 °C) allows decimal point display.
dLy Display delay: (0 ÷20.0m; risul. 10s) when the temperature increases, the display is updated of 1
°C/1°F after this time.
IdF Interval between defrost cycles:(0÷120h) Determines the time interval between the beginning of
two defrost cycles.
MdF (Maximum) length for defrost:(0÷255min) When P2P = n, (not evaporator probe: timed defrost) it
sets the defrost duration, when P2P = y (defrost end based on temperature) it sets the maximum
length for defrost.
dFd Temperature displayed during defrost:(rt = real temperature; it = temperature at defrost start;SEt
= set point; dEF = “dEF” label)
dAd MAX display delay after defrost:(0÷255min). Sets the maximum time between the end of defrost
and the restarting of the real room temperature display.

1
ALARMS
ALARM RELAY MANAGEMENT
DIGITAL INPUT
ALC Temperature alarms configuration: (Ab; rE)
Ab= absolute temperature: alarm temperature is given by the ALL or ALU values. rE = temperature
alarms are referred to the set point. Temperature alarm is enabled when the temperature exceeds the
“SET+ALU” or “SET-ALL” values.
ALU MAXIMUM temperature alarm: (SET÷150°C; SET÷302°F) when this temperature is reached the
alarm is enabled, after the “ALd” delay time.
ALL Minimum temperature alarm:(-100.0 ÷ SET°C; -148÷302°F) when this temperature is reached the
alarm is enabled, after the “ALd” delay time.
AFH Differential for temperature alarm recovery: (0,1÷25,5°C; 1÷45°F) Intervention differential for
recovery of temperature alarm.
Ald Temperature alarm delay:(0÷255 min) time interval between the detection of an alarm condition and
alarm signalling.
dAo Exclusion of temperature alarm at startup: (from 0.0 min to 23.5h) time interval between the
detection of the temperature alarm condition after instrument power on and alarm signalling.
tbA Alarm relay silencing (with oA1=ALr): (n= silencing disabled: alarm relay stays on till alarm
condition lasts, y =silencing enabled: alarm relay is switched OFF by pressing a key during an alarm).
ALF Alarm relay activation for all the alarms:
y = the alarm relay is activated for all the alarms
n = the alarm relay is activated only in case temperature alarms and regulation probe failure.
bon Time of buzzer restart after muting, in case of alarm duration: (0÷30min; with 0 the buzzer is
always off after muting)
AoP Alarm relay polarity:it set if the alarm relay is open or closed when an alarm happens.
CL= terminals 1-2 closed during an alarm; oP = terminals 1-2 open during an alarm
i1F Digital input polarity: oP; the digital input is activated by opening the contact; CL: the digital
input is activated by closing the contact.
i1F Digital input configuration:
EAL = external alarm: “EA” message is displayed; bAL = serious alarm
“CA” message is displayed. PAL = pressure switch alarm, “CA” message is displayed; dor = door
switch function; dEF = activation of a defrost cycle; AUS =to switch on the second relay if oA1 = AUS;
Htr = kind of action inversion (cooling – heating); FAn = not set it; ES = Energy saving.
did: (0÷255 min) with i1F= EAL or i1F = bAL digital input alarm delay: delay between the detection of
the external alarm condition and its signalling.
with i1F= dor: door open signalling delay
with i1F = PAL: time for pressure switch function: time interval to calculate the number of the
pressure switch activation.

1
nPS Pressure switch number: (0 ÷15) Number of activation of the pressure switch, during the “did”
interval, before signalling the alarm event (I2F= PAL). If the nPS activation in the did time is reached,
switch off and on the instrument to
restart normal regulation.
odc Compressor status with door open: no, Fan = normal; CPr; F_C = Compressor OFF.
rrd Outputs restart after doA alarm: no = outputs not affected by the doA alarm; yES = outputs restart
with the doA alarm;
HES Temperature increase during the Energy Saving cycle: (-30,0°C÷30,0°C/-22÷86°F) it sets the
increasing value of the set point during the Energy Saving cycle.
Adr Serial address (1÷244): Identifies the instrument address when connected to a ModBUS compatible
monitoring system.
PbC Type of probe: it allows to set the kind of probe used by the instrument: PtC = PTC probe, Pt1 =
Pt1000 probe.
onF on/off key enabling: nu = disabled; oFF = enabled; ES = not set it.
rSE Real set point: (readable only), it shows the set point used during the energy saving cycle or during
the continuous cycle.
rEL Software release for internal use.
Ptb Parameter table code: readable only.
OTHER

1
ALARM SIGNALS
ALARM RECOVERY
Probe alarm “P1” starts some seconds after the fault in the related probe; it automatically stops some
seconds after the probe restarts normal operation. Check connections before replacing the probe.
Temperature alarms “HA” and “LA” automatically stop as soon as the thermostat temperature returns to
normal values.
Alarms “EA” and “CA” (with i1F=bAL) recover as soon as the digital input is disabled.
Alarm “CA” (with i1F=PAL) recovers only by switching off and on the instrument.
OTHER MESSAGES

1
CONNECTIONS
XR30CX: 20A COMPRESSOR
12Vac/dc supply: connect to the terminals 7 and 8.
24Vac/dc supply: connect to the terminals 7 and 8.
120Vac supply: connect to the terminals 7 and 8.

1
-40
-40
-10
2.0
-50°C~SET
SET~110°C
LS~US
0.1~25.5°C
AC Prevent start delay 0~50 minutes 1
Set
cL Pr1
0~20.0 minute
1 ~120 hours 8
0~255 minute 0
ALC=rE, 0~50°C; ALC=Ab,
ALL~110°C 10
ALC=rE, 0~50°C; ALC=Ab,
ALU~50°C 10
0.1~25.5°C
0~255 minute
nu
15
nu, oFF, ES

1
Wiring diagram
M
Fan
Compressor
Run Cap.
Start Cap.
Start Relay
Temp.sensor
Transformer
12V
220V
Temperature sensing control
Plug
L
N
12345 78
11 12

1
There is no guarantee for the contents of the freezer.
If the freezer does not work: call an authorised servicing engineer!
Contact the distributor or an authorised service repair shop!
Cleaning and Maintenance of the Freezer:
1. After prolonged operation a layer of frost or ice may form on the cooling elements. If the layer of frost or
ice becomes too thick, it will increase the energy consumption.
2. Take the contents out of the freezer. Pull out the plug and leave the door open until the ice can be
removed. (Remember safety gloves).
3. Remove the frost layer from time to time with a plastic scraper. Caution! Do not use any metal objects.
Risk of damage!
3. Dry the inner container with a cloth until it is not damp any longer!
4. Clean the outside of the freezer with a damp cloth. Be careful not to get damp (water) on the
electrical parts, or water into the vent holes, as water and damp may damage the electrical
parts and cause the freezer to short-circuit!
6. Use authorised cleaning products. The use of alcohol, dissolvent and alkaline cleaning agents
is prohibited.
4. As a rule of thumb, the appliance should be completely defrosted once a year.
5. The refrigerating machine with the heat exchanger - metal grating on the rear of the freezer should be
cleaned (dusted) once a year, e.g. with a paintbrush or vacuum cleaner. Dust deposits raise the energy
consumption and in extreme cases may lead to failure of the refrigerating machine due to overheating.
Ensure that no cables are pulled off or bent.
Do not put bottles containing carbonic acid or inflammable products in the freezer.
Disposal and scrapping of the freezer:
Remove the lock, so that there is no risk of children getting locked in the freezer whilst playing.
Note:
Before carrying out maintenance, unplug the appliance.
Do not use abrasive products, stain removers (e.g. acetone, trichloroethylene) to clean the appliance.
Disposing of the Freezer:
To prevent harmful environmental effects, contact the distributor and ask where the freezer should be
delivered.
Remove the locking function so that children cannot be locked in the freezer whilst playing.
You can obtain information on the disposal of refrigeration appliances from:
!Your supplier
tAuthorities (The Local council, Ministry of the Environment, etc.)

1
Notes:

LAMMEFJORDSVEJ 5
DK-6715 ESBJERG N
DENMARK
TEL. [phone]
FAX. [phone]
[e-mail]
WWW.ARCTIKO.COM
WWW.ARCTIKO.COM
50 80 024-0-GB
