Argent BETTE User manual

Bette Whirlpool
Installation Instructions
www.argentaust.com.au
Argent Australia Pty Ltd
Email: [email protected]om.au
Ph: 1300 364 748
Fax: [phone]
Technical Advice Hotline: [phone]
110608V1

1 Important Notes
Please take a little time to read these installation instructions before proceeding. Your
whirlpool has been factory tested and checked, therefore it is imperative that you reinspect
it within 24 hours of delivery, for any imperfections or damage, paying particular attention
to the edges and pipework, prior to commencing this installation.
If you nd anything of concern, please advice the retailer immediately, as no claim for
imperfections or damage will be accepted after installation.
Lifting
When moving the whirlpool, it should only be lifted by the edge of the bath or the steel
frame, do not lift by pumps or piping. The producer assumes no liability for damage
resulting from incorrect transport or incorrect lifting and handling.
2 Preliminary Fit
Check the whirlpool condition, clear the area where the whirlpool is going to be installed by
removing any unwanted material including dust, cement remants, etc, as this will prevent
damage to the system from the induction of debris.
Position the whirlpool where it is to be installed. Use a spirit level on the top edges to make
sure everything is perfectly horizontal. The height adjustable feet allow for easy adjustment
of the horizontal aligment, additional whirlpool support xing must be provided around the

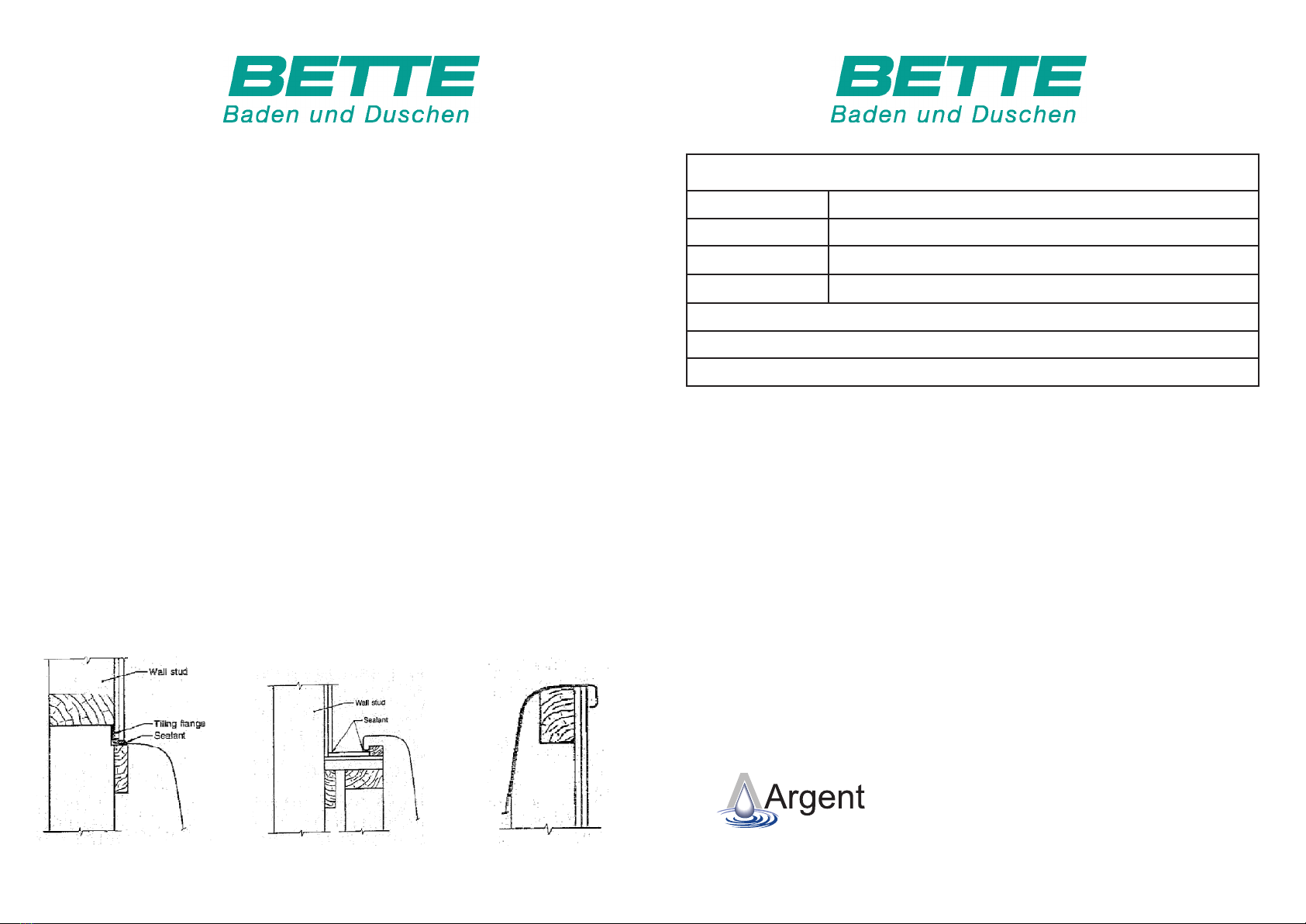

perimeter, as per the example below and also in compliance with local regulator standards
to comply to Building Standards AS/NZ 2023. A mimumum height of 180mm from bottom
of the whirpool to oor level is required to allow for the waste ttings.
Check that all feet are standing rmly on the ground, and adjust as required.
PURCHASE NOTES
Bath Model
Purchase Date
Retailer
Invoice Number
Additional Notes
110
For more information contact the Argent Technical Advice Hotline [phone]
www.argentaust.com.au
WARRANTY SUMMARY
Bette enamelled bath shell is covered by a 30 year guarantee for•
manufactures defects.
Baths must be inspect within 48 hours of delivery for visible signs of•
transport damage or visible faults.
The guarantee on enamelled bath shell covers faults outside of•
tolerances set down in Australian Standards AS2023.
Waste overow connections are covered by a 2 year guarantee.•
Whirlpool pump/ blowers / switches and pipe systems are covered by•
1 year guarantee.
Consequently damage and the cost of building in removal of products •
are not covered by the product guarantee.
To receive a full warranty statement please contact Argent Australia.•

9 Trouble shooting guide
SITUATION ACTION ALTERNATIVE RESULT
Whirlpool wont start 1) Check to make
sure that the power
is connected and
turned on.
2) is water level
50mm above the
highest jet
1) Use an appliance
that you know works
and plug it in to the
power point to check
the power supply.
2) ll water level
above highest jet
1 & 2) Still wont
start, call the
Technical advise
hotline
No air, just water
coming out of jet
Page 6, turn air ven-
turis anti clock wise
to open.
Different air venturis
operate different
banks of jets, check
all air venturis are
open
Still no air coming
out of jets, call the
Technical advise
hotline
Sanitising system
does not start.
Page 7, Check that
there is product in
the reservoir
Check that indicator
light is on advising
that there is power to
the unit
Still wont start,
callthe Technical
advise hotline
Light will not turn
on
Check to make
sure that the power
is connected and
turned on.
Light will not turn
on until whirlpool
has water above the
low level sensor
Still wont start, call
the Technical advise
hotline
No access panel Contact your build-
er/ installer as there
was a kit supplied
with your whirlpool.
Access panel may
not be initially
obvious due to its
discreet nature
Contact builder/
installer as it is there
responsibility to
facilitate this access.
No access panel =
No service
3 Electrical Supply
All electrical equipment, including the reattachment of the 3 pin electrical plug to
the whirlpool, should be performed by a qualied person to the National Regulatory
authority requirements.
The whirlpool control box has been factory sealed; any evidence of tampering with this
item will void the warranty.
4 Access and Framing
The pumps and technical systems of the whirlpool must remain accessible via an access
panel, (one has been supplied with this whirlpool, which will allow for a variable
access panel sizing of up to 400mm high x 1000mm wide, the maximum weight of the
completed access panel should not exceed 12 kg’s).
This access panel must be completely removable. Minimum recommended size of access
panel should be 300mm high x 450mm wide and positioned in a location that allows for
access to and or removal to all components and pumps. Whirlpools with heaters will need
additional access opening to allow for service on the heater if required.
The access panel system allows you to tailor the opening to any tile sizing, allowing for a
much more discrete access.
No Access Panel = No Warranty Service
Figure 4, Typical Minimum Access requirement 2
9
The 3 pin plug will need to be reattached by a electrician, this was delibrately
removed after factory testing to ensure this unit is retested on site by a suitably
qualied person prior to connecting to the power supply.
If a heater has been specied, this system will require 15 amp power connections,
to be installed by an electrician.

Access and Framing Continued
Where any of the edges of the whirlpool are in an alcove or will form part of or join the
walls, the plastic tiling bead supplied should be adhered to these edges using a suitable wet
area silicon sealant. Where the tiling bead forms a corner, this should be cut at a 45 degree
angle.
Complete the supporting framework of the whirlpool including allowance for the access
panel system. Do not sheet up yet!
Once you have completed the framework to the approved standard, with the whirlpool tted
to its nal position, the waste tting can now be connected to the plumbing discharge/ waste
pipe.
Note
When framing up, please be aware of the fact that the control pads and various other ttings
may protrude below the rim of the whirlpool and care should be taken to avoid damage or
constriction of these ttings.
8 Cleaning and care instructions .
With the correct care and proper treatment, you will enjoy your whirlpool for a long time.
Your whirlpool can be cleaned easily and without signicant effort if the following
techniques are employed.
Wipe your whirlpool down after use with a moistened soft cloth or chamois, if there is a
residue, you can additionally use mild detergent (dish washing liquid or mild soap) to assist
in the removal of any residue.
For lime deposits, remove these deposits with a vinegar solution diluted with water
(Ratio 1: 1)
Chrome plated ttings can also be cleaned with mild detergent and a soft cloth, polish with
a dry soft cloth afterwards.
For whirlpools without the optional sanitising system, the inside of the jets can be cleaned
by using a small bottle brush. The jets are directionally adjustable and non-removable.
Important Care and cleaning detail
Relative to cleaning product, Check the manufacture’s instructions and warning notes before
using any type of cleaner on your whirlpool.
Use only soft cloths, sponges or chamois to clean the surface, under no circumstances should
scrubbing brushes/ sponges, steel wool or any tools be used.
Do Not Use any scouring or aggressive and or rough cleaning agents. Chorine based
disinfectants and aggressive cleaners (EG acetone, thinners etc) may attack and or bleach
the ttings or enamelled surface.
Cleaning frequency
Your whirlpool should be sanitised regularly, and the amount of times you initiate this is
relative to how often you are using the whirlpool, notwithstanding, this should happen no
less than once a year even if you have not used the whirlpool.
3 8

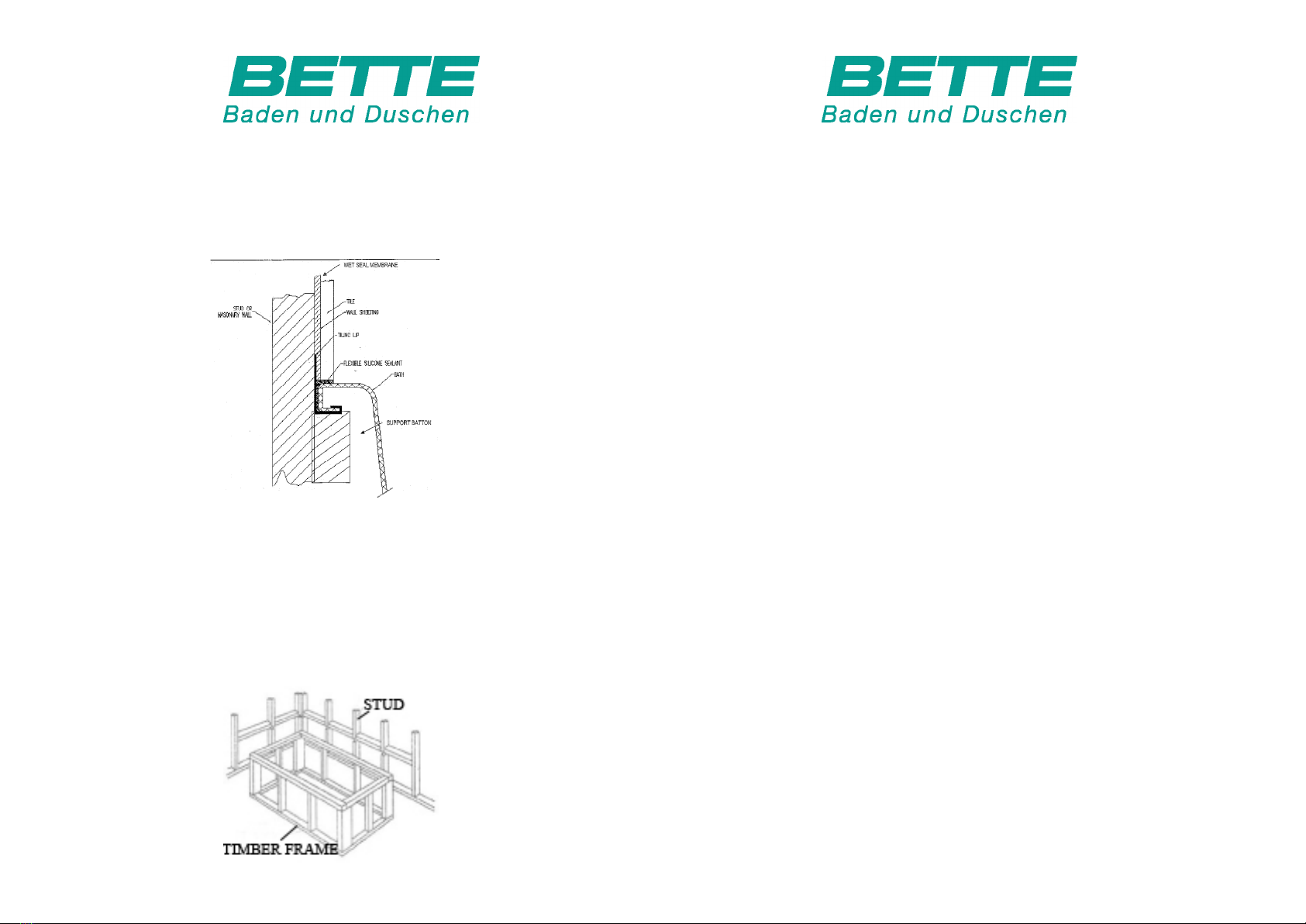

Figure 6, Typical Framing Detail
Figure 5, Access and Framing

5 Testing and sheeting
Although the whirlpool was fully tested in the factory prior to dispatch, damage may have
occurred during transport or installation. Therefore the following procedures should be carried
out now;
- Check to make sure the electrician has tested the whirlpool and connected the 3 pin power
plug to the whirlpool system. (This will have been removed after testing by the factory)
- Check that the whirlpool is clean and free of debris.
- Fill the bath with water above the level of the jets.
- Switch on the system (see Operating Instructions Page 5-8)
- Now check all functions are working.
-Check all water seals for possible leaks.
- Allow the whirlpool to run for 10 minutes.
- Check again for leaks, (check pipes, joints, coupling and jets)
Once you have completed these checks, sheeting
with villa board or similar approved wet area product
can be performed. Remember to install and allow for
access panel ttings when sheeting up.
An approved wet seal membrane will need to be applied
after sheeting has occurred and prior to tiling proceeding
in accordance with the approved standard.
Once tiling and grouting have been completed, apply a
bead of approved silicon based sealant to the edges of
he bath where it meets the tiles.
6 Need any Help
Ring Argent Technical advice hotline if required, Toll Free on 1800 356 717
If taking advantage of this service, please have your warranty number detail, which is located
on the control box and will start with the following prex PMFG, prior to ringing to allow our
team to assist you as efciently as possible.
74
Air Venturi’s
Each air venturi will operate different banks of jets to allow you to customise your whirlpool
experience.
Additional Control Pad, Sanitising system
If you have ordered the optional sanitising system/ bath
product dispenser, you will have an additional control
pad and a chrome lling closure included beside each
other on the top of your Bette whirlpool rim. (Pictured
here) The function on the RHS of this pad is used to
activate the sanitising feature. The function on the LHS
indicates when the dispenser needs relling and the LED
light will light up. The storage lling closure is top lling
and will hold up to 1.5litres of product.
To operate
Press the RHS button on the control pad and the liquid contained it the dispenser will be
dispersed with the pump running for 30 seconds, and then the pump will shut down. Relative
to cleaning product, Check the manufacture’s instructions and warning notes before using
any type of cleaner on your whirlpool. Use only soft cloths, sponges or chamois to clean the
surface, under no circumstances should scrubbing brushes/ sponges, steel wool or any tools
be used.
Do Not Use any scouring or aggressive and or rough cleaning agents. Chorine based
disinfectants and aggressive cleaners (EG acetone, thinners etc) may attack and or bleach the
ttings or enamelled surface. This will disperse approximately 1ml of product to each litre of
water. (This will amount to about 100ml in 30 seconds)
Leave the sanitised water solution in the whirlpool for 30 minutes, then empty and rinse the
whirlpool. You can choose to run the pump for some of this time; however, air venturis should
be in the off position to prevent excessive foaming of the sanitising agent. The sanitising
function has a dry running protection sensor that prevents the system from operating should
there be no product in the reservoir.

7 Operating Instructions
Your whirlpool is made from the highest quality steel with a unique glazed nish and it has a
hard smooth surface, it features a German whirlpool system that enhances the hydrotherapy
power of water.
This whirlpool has the following standard features,
1) Titanium based steel shell ( 30 year warranty)
2) Safety suction ( prevents getting stuck )
3) Corrosion resistant galvanised base frame with adjustable feet
4) Low level water sensor ( pump will not start with out water)
5) German operating system and pumps ( 1 year warranty)
6) Rigorous electrical and function testing prior to dispatch
7) Integral waste/ overow/ suction system
8) Combination of Midi and Micro jets, directionally adjustable.
9) Power matched pump to jet system
10) Air induced Venturis
This whirlpool may also have the following optional features;
1) 256 Diode LED light
2) Sanitising system/ Aromatherapy dispenser
3) 15Amp in line heater
Please Note
- This product is not intended for use by persons with reduced physical, sensory or
mental capacities, or lack of experience or knowledge, unless they have been given supervision
or instruction concerning the use of this whirlpool by a person responsible for their safety.
- People who have difculty walking or have another handicap must be extra careful
when getting in and out!
- Children should be supervised to ensure their safety and that they do not play with
the whirlpool ttings and controls.
- Please observe the cleaning and care instructions on page 7.
- Whirlpool pump will not start if the water level sensor is not covered by water.
Fill the bath to 50mm above the highest jet, please remember that once you get in the
whirlpool, water displacement will increase the water level. You may choose to decrease your
initial water level to allow for this displacement; also this will allow you to save water.
Importantly, the system will not start until the low level water sensor is covered.
Make sure the power is connected/ turned on at the main supply
Depending on the whirlpool system you have selected, you will have either one or two
control buttons on the rim of your whirlpool.
Main Control Pad, On/Off Button, Light switch
Every Bette whirlpool has this control switch, it has two key pad features, the On/Off pad
and the Light control pad.
On/Off Button
1st Press – Pump starts and runs continuously
2nd Press – This will activate the unique pulsing
feature of the Bette system, where the Pump will
alternately run for 2 seconds, and rest for 2 seconds.
This function will enhance your Whirlpool experience
by giving your body two different stimulations.
3rd Press – this shuts the system down.
Light Switch
This function is only active if you have specied
the 256 diode LED light with your whirlpool.
1st press – Light will cascade thought the myriad
of colour combinations offered by the 256 diode LED light.
2nd Press – Light will remain assigned to red.
3rd Press – Light switches off.
Air Venturi’s
Air Venturi’s are the additional chrome control(s) located
just below the rim of the Bette Whirlpool. Opening the air
venturis allows for the induction of air into the water via
the jets. This has the simultaneous benet of both softening
the water and increasing the massaging effect.
Simply turn the air venturi control anti clockwise to open. You may have up to 3 of these,
depending on the amount of jets you have on your whirlpool, see the chart below
5 6
10 jet Bette whirlpool 4 midi jets + 6 micro jets 1 air venturi
18 jet Bette whirlpool 6 midi jets + 12 micro jets 2 air venturi
26 jet Bette whirlpool 26 micro jets 3 air venturi
