Argo Avenger Series User manual

Argo Service Manual Fuel System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-1
SECTION FS
Fuel System
Table of Contents
General Instructions............................................................................. FS-2
Fueling the Vehicle................................................................................ FS-3
Removing the Fuel Tank (All Models, except Avenger).....................FS-4
Removing the Fuel Tank (Avenger Models) Supplement Pages........FS-4A
Vented Fuel System...............................................................................FS-4
Removing the Fuel Tank (6x6 Vehicles Prior to S7304).....................FS-7
Installing the Fuel Tank (All Models)..................................................FS-6
Installing the Fuel Tank (6x6 Vehicles Prior to S7304)......................FS-8
Inspecting the Fuel Tank and Fuel Line..............................................FS-6
Fuel Filter...............................................................................................FS-8

Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-2
Detailed information on standard workshop and safety procedures, and general
servicing operations is not included in this manual, which has been prepared to assist
qualified service personnel. ODG assumes no responsibility or liability for
PERSONAL INJURY or VEHICLE DAMAGE which results from any servicing
procedure performed, including those instructions outlined in this manual. Before
performing a servicing operation, an individual must have determined to his/her
satisfaction that a personal injury or vehicle damage will not result from the
servicing procedure or tools selected.
Keep all open flame or spark away from the Argo while servicing the fuel system.
Gasoline is extremely flammable, and can cause serious PERSONAL INJURY or
DEATH.
Before servicing the fuel tank or fuel line, drain or siphon the fuel tank.
Perform all service work on the fuel system in a well ventilated area.
General Instructions

Argo Service Manual Fuel System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-3
Fueling the Vehicle
Gasoline is extremely flammable and can explode under certain conditions. Do not
add fuel while the engine is running or hot. If fuel is spilled in, on or around the
vehicle, wipe it up immediately. Flush out any fuel spilled in the vehicle with water
and allow it to drain out through the drain plug holes. Do not smoke when filling the
fuel tank.
Use clean, fresh, unleaded gasoline in all models of the ARGO. Minimum 87 octane fuel
is recommended. The use of Briggs & Stratton Fuel Stabilizer is also recommended
with each tankful.
Leaded gasoline can be used as a substitute fuel. However, if leaded gasoline is used, the
engine will require more frequent servicing.
Never use gasoline containing methanol or white gas since engine or fuel system damage
could occur.
All models of the ARGO are equipped with a 32 litre (7.0 Imp. Gal., 8.4 U.S. Gal.) “see-
thru” polyethelene fuel tank located underneath the driver’s seat. depending on loading
and driving conditions, an ARGO can be driven for 7 to 12 hours on one tank of fuel.
Verify your vehicle’s actual fuel consumption before attempting any long trips. Never
travel in remote areas or set out on long trips without a full tank of fuel and adequate spare
fuel stored in approved watertight fuel containers.
The fuel filler neck and fuel cap are located on the right side of the vehicle behind the
driver’s seat. Replace the fuel cap if fuel leakage occurs, or if moisture is detected in the
fuel.
Never fill the tank to the point where the fuel level rises into the filler neck. If the tank is
overfilled, heat may cause the fuel to expand and overflow through the vent.
Portable fuel containers may contain contaminants (dirt, water, etc.) that will cause engine
operating problems. Use only clean, approved gasoline containers.
After filling the fuel tank, be sure the fuel cap is replaced securely. Do not drive the
vehicle unless the fuel cap is properly in place.

Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-4
Never use untreated gasoline that has been stored for more than 45 days. Stale
gasoline can cause deposits to form in the fuel lines and carburetor. These deposits
clog the fuel system and cause engine starting and operating problems.
When storing the ARGO for 45 days or more, use ARGO Part No. 127-77 Fuel
Stabilizer to treat fuel in the fuel tank and fuel containers.
Vented Fuel System - All Models
All ARGO models have fuel systems that are vented through a special hose connected to
the filler neck assembly that runs along the upper body to a fitting at the left rear.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Ensure that the vent line is not pinched, or becomes kinked between filler neck and
rear outlet fitting. Check the outlet fitting at the lower body occasionally for any
dirt or debris that may be plugging the venting system. Vehicle performance can be
drastically affected when fuel tank venting becomes restricted.
Removing the fuel Tank

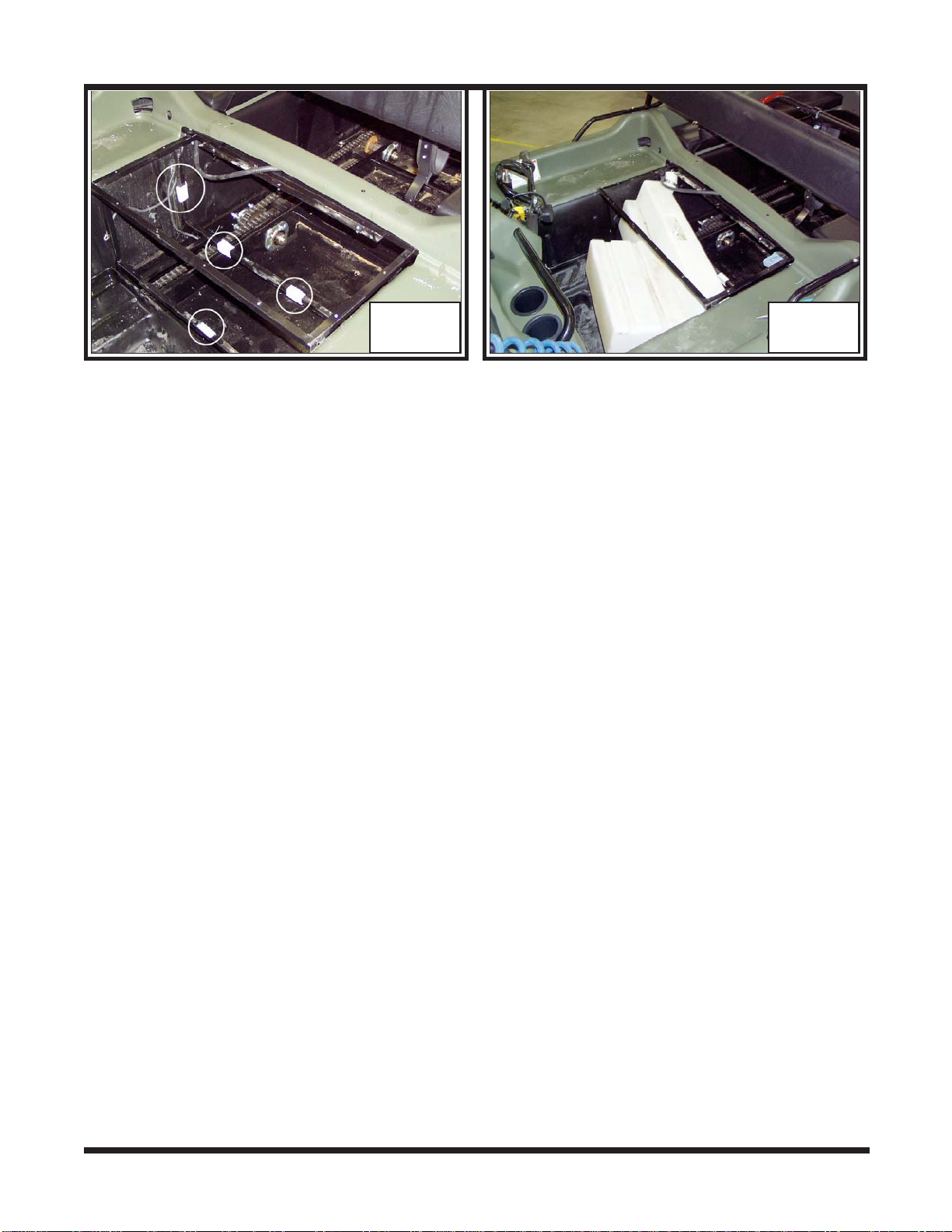

4. Slip the storage tray from the seat assembly, pulling it out towards the driver's
compartment. Photo FS-2
3. Remove the 4 fasteners securing the storage tray to the seat frame. Photo FS-1
5. Disconnect the fuel line at the pickup tube on the tank.
2. Remove the seat to expose the storage tray.
1. Drain any fuel that may be present in the fuel tank.
FS-1 FS-2
6. Remove the tank.

Argo Service Manual Fuel System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-5
7. Undo the gear clamp securing the filler hose at the fuel tank neck and pull the filler
neckassembly free of the tank. Pull the assembly from the tank at the fuel cap.
Photo FS-4
Ensure that the vent tube does not pull out from the filler neck and that it is not
kinked in any way when the filler neck assembly is reassembled to the new tank.
8. Pull the fuel tank up through the seat frame assembly and free of the vehicle.
Photo FS-5
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Depending on the design of the fuel tank,
earlier models may require that the tank
be removed from the vehicle by pulling it
from the seat frame into the rear
compartment. The tank will need to be
raisedhigh enoughforthe sediment bowl
to clear the seat frame assembly below.
To provide enough clearance, shim the
seat support at the 4 corners where the
storage tray fasteners were removed. Photo FS-3
FS-3
FS-4 FS-5
9. Unthread the fuel pickup tube from the tank and discard.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
The filler necks of vehicles manufactured prior to CB14963, RB14945, BF10092,
SN10111 & S10112, may not be pulled through the upper body filler hole as shown
below. Filler necks in these earlier models have a small metal vent tube welded to
the filler neck, to which the vent tube is crimped. Pull the tank from the vehicle
along with the filler neck assembly until the vent line is visible and can be
disconnected from the filler neck tube

Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-6
Installing the Fuel Tank
1. Thread the new pickup tube into the top of the fuel tank. Position the outlet facing
the rear of the tank.
2. Slip the new or cleaned tank through the
top of the seat support frame, or in from the rear compartment of the Argo. See
IMPORTANT on previous page.
3. Reconnect the filler hose to the tank and secure with the gear clamp.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Besuretoreplaceanymissingordamaged
cushioningrequiredonthefueltankframe
assembly before installing the tank. All
cushioning provides a secure fit for the
tank, and protectsthetankfromwear due
to vibration. Photo FS-6 FS-6
4. Be sure to reconnect the fuel vent hose at the filler neck and ensure that it is facing
up and not kinked or pinched in any way.
5. With the tank in place, reinstall the tool box and secure with the 4 fasteners
6. Replace the fuel filter with a new one.
7. Place the front seat back into the vehicle.
Inspecting the Fuel Tank and Fuel Line
Leakage in the fuel system is very dangerous! A spark or open flame can ignite
gasoline fumes, causing serious injury or death. Extensive vehicle damage will also
occur.
Regular inspection of the fuel tank and fuel line is essential to personal safety and good
vehicle performance. Inspect the fuel tank for:
•cracks or leaks
•loose or broken clamps
•loose connection in pick-up pipe

Argo Service Manual Fuel System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-7
•cracks, breaks or punctures in all fuel lines and hoses.
•cracked fuel filter casing
If any of these conditions exist, replace the affected component parts immediately.
Removing the Fuel Tank (6x6 Vanguards prior to S7304)
1. Drain the fuel tank.
2. Plug the filler pipe with a rag to prevent any foreign material from entering the tank.
7. Remove the fasteners securing the bench seat to the top of the fuel tank.
9. Disconnect the fuel line from the pickup tube.
13. Undo the gear clamp at the tank and pull the filler hose assembly free of the tank.
The vent tubing may remain attached to the metal neck assembly.
3. Remove the backrest. Locate and pry loose the 3 grey plugs in the upper
body behind the backrest.
4. Using a socket and extension, remove the 3 bolts and washers holding the backrest to
the upper body.
5. Lift the backrest out of the vehicle.
6. Remove the front floor pan.
8. Remove the seat cushion.
10. Slide the fuel tank and cage 2 or 3 inches toward the firewall.
11. Rotate the fuel tank 90 degrees.
12. Lift the fuel tank out of the seating compartment, sliding the fuel neck assembly out
of the upper body.
The vent tubing for the fuel system is attached to the metal filler neck section of the
filler neck assembly. Caution should be observed as not to damage the outlet nipple
welded to the metal neck assembly. Any bending or kinking of this small tube will
prevent the tank from venting causing serious performance issues later on.
14. Remove the tank & seat cage from the vehicle.

Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-8
15. Perform the servicing procedure, Inspecting the Fuel Tank
Installing the Fuel Tank (6x6 Vanguards prior to S7304)
1. Install any missing or torn pieces of cushioning to the fuel tank. There are 8 locations
that make contact with the fuel cage.
2. Assemble the cage and tank between the seat supports, at the same time reconnect-
ing the filler hose to the tank. As the fuel tank is completely installed, slide the fuel
neck intake assembly into the gas cap hole ensuring that the venting tube is vertical
to the vehicle body.
3. Tighten the gear clamp at the tank.
4. Reattach the fuel line to the pickup tube.
5. Fasten the fuel tank cage and seat to the seat support brackets. Tighten the bolts with
a socket and extension.
Insert the bolts squarely into the seat cushion and do not overtighten. Incorrectly
positioned and tightened bolts will strip or dislodge the thread inserts in the seat
cushions, resulting in a costly repair.
6. Reinstall the backrest.
7. Reinstall the front floor pan
All models of the ARGO are equipped with an in-line fuel filter (replacement fuel filter is
ARGO Part No. 125-64). On Conquest models the fuel filter is located in the fuel hose,
next to the fuel tank. On all other Argo models the fuel filter is located at the engine.
Replace the fuel filter after every 250 hours of operation or once a year. To replace the
filter, loosen the gear clamps with a standard screw driver and pull the rubber fuel lines
off of the filter. Install the new filter with the flow arrow pointing toward the engine.
Tighten the clamps securely. Start the engine and check for fuel leaks.
Fuel Filter

Argo Service Manual Fuel System
Ontario Drive & Gear ltd. www.odg.com/centaur
[phone] FAX [phone]
SECTION FS
Supplement Pages

Fuel System Argo Service Manual
Ontario Drive & Gear ltd. www.odg.com/centaur
[phone] FAX [phone]

Argo Service Manual Fuel System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-4A
Removing the fuel Tank (Avenger)
4. Drill out the 11 rivets that secure the tool box to the seat frame and remove.
3. Remove the battery.
2. Remove the seat to expose the storage tray & battery.
1. Drain any fuel that may be present in the fuel tank.
FS-1 FS-2
5. Disconnect the fuel line at the pickup tube on the fuel tank.
6. Undo the gear clamp securing the filler hose at the fuel tank neck and pull the filler
neck assembly free of the tank. Photo FS 1
7. Remove the tank from the vehicle. The tank will come forward into the drivers
compartment. Photo FS 1 & 2
Ensure that the vent tube does not pull out from the filler neck and that it is not
kinked in any way when the filler neck assembly is reassembled to the new tank.
9. Unthread the fuel pickup tube from the tank and discard.
Installing the Fuel Tank
1. Thread the new pickup tube into the top of the fuel tank. Position the outlet facing
towards the fuel neck side of the vehicle.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Be sure to replace any missing or damaged cushioning required on the fuel tank
frame assembly before installing the tank. All cushioning provides a secure fit for
the tank, and protects the tank from wear due to vibration. Photo FS-3

Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421 FS-5A
2. Slip the new or cleaned tank into the vehicle from the drivers compartment, recon-
necting the filler hose to the tank at the same time and secure it with the gear clamp.
Be sure to reconnect the fuel vent hose at the filler neck and ensure that it is facing
up and not kinked or pinched in any way.
3. With the tank in place, reinstall the tool box and secure with rivets.
4. Replace the fuel filter with a new one.
6. Place the front seat back into the vehicle.
•loose or broken clamps
•loose connection in pick-up pipe
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
5. Reinstall the battery
FS-3 FS-4
