Ariel ARL-084 Instruction Manual

Serial Number:
ARL-084P
Whirlpool Installation
& User Manual

1
No. English No. English

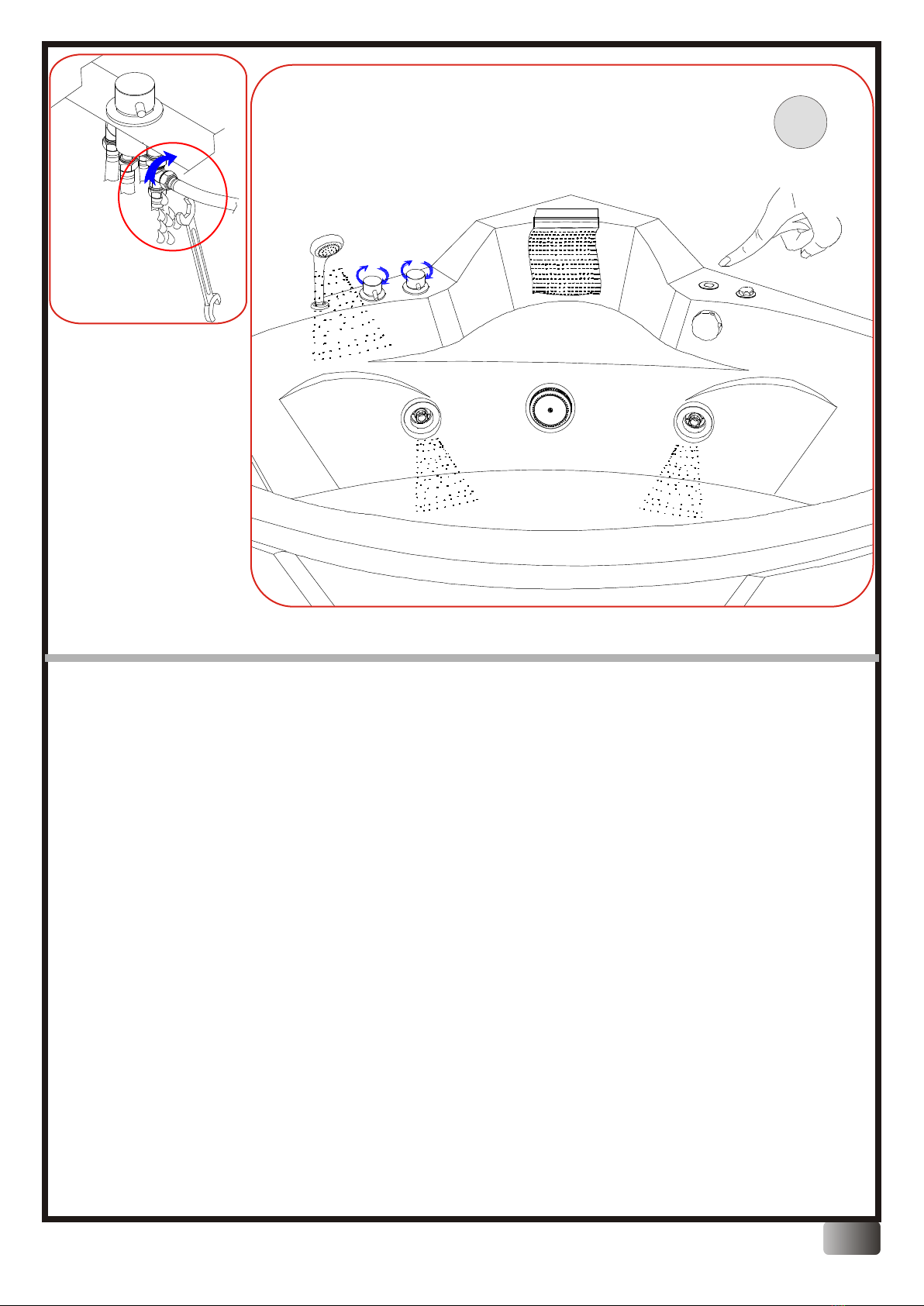

1Pneumatic on/off switch 7Air Regulator
2Waterfall 8 Multiple Direction Water Jet
3Shower Wand 9 Air Jet
4 Function Selector 10 Drain
5Hot/Cold Water Mixer & On/Off 11 Overflow Drain & Drain Knob
6Headrest

2
All measurements are given in Inches
Designs and sizes can vary. We accept no liability for errors,
manufacturing tolerance and product changes.

Thank you for purchasing this product. This manual is for use with
ARL-084PWhirlpool Bathtub. This manual describes the general installation
process, safety procedures, operating instructions, and basic maintenance.
Please take your time to read this manual in its entirety before installation and
before using this product. Please save this manual for future reference.
Important Precautions:
1. Please check the labeling on each package to ensure it matches the item
description you have ordered. Also visually inspect each package upon
delivery to ensure there are no damages. Upon delivery, if there are any
damages to the packaging or indications of damaged contents, it is required to
immediately and thoroughly inspect the contents of that package. All damages
must be noted on delivery receipt before accepting, signing or taking any
responsibility for any shipment. Any damages should be photographed and
must be reported. After extracting the product and parts from the packaging,
check that all parts are complete and that there are no visible errors, missing
parts or damages.
Warning!
2. Never lift the whirlpool tub by, or apply heavy pressure to, the critical parts
such as the jet plumbing, jets, electrical cables, hoses, and drain hose or
similar components.
General Precautions:
3. Do not allow children use any bathtub without the supervision of an adult.
This appliance is not intended for use by any persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or adequate instructions
concerning use of this appliance by a person responsible for their safety, and
at their discretion.
4. Be aware of the possibility that children can drown-and always have
supervision.
5. Be aware of the possibility that long hair can be sucked into the water
suction port. This could lead to injuries.
6. Exposure to extreme temperatures could potentially cause pregnancy
complications. Consult your doctor before use.
7. Avoid the use of drowsy medication, alcohol or drugs with the use of this
product; such usage may lead to possible unconsciousness, heat stroke,
drowning or increased risk of fatality.
8. Persons using any medication should consult a doctor before using this
product, as some medications can cause drowsiness, affect heart rate, blood
pressure or blood circulation.
3

4
9. Persons with a medical history of heart problems, blood circulation, high or
low blood pressure, obesity, diabetes or similar health concerns should consult
your doctor before using this product.
10. Excessive use of this product can lead to heatstroke. Heatstroke occurs
when the body loses its ability to regulate a normal temperature range.
11. Elevated body temperatures can cause such symptoms as dizziness,
drowsiness, unconsciousness and heatstroke. Heatstroke can lead to the
possibility of:
a) The loss of awareness to normally perceived dangers, b) the loss of sound
judgment for the need to stop using this product, c) the loss of sensitivity to
dangerous temperatures, e) the loss of the ability to stand, balance, walk or
exit this product, f) if pregnant, potential fetal damage, and/or g)
unconsciousness.
12. Unconsciousness can lead to the possibility of drowning.
13. An electrical protective device for an overload of power, short-circuit or
incorrect voltage must be used in conjunction with this product. It must be
properly functioning and regularly tested for proper functioning.
14. Do not use any other electrical devices in or near this product. Very low
voltage items without a power cord may be considered. Consult your licensed
electrician.
15. If any wires, cords or plumbing are damaged, it must be repaired by a
qualified professional to avoid risk.
16. Measurements, specifications, and local building codes should be
reviewed by a licensed professional before purchase.
Installation Precautions:
17. It is recommended to install this product in such a way that the critical
components are easily accessible, or with an access panel. This will ensure
any potential repair cost will be kept at a minimum.
18. Computerized systems and electrical components are already function
tested from the factory, but should always be tested again before installation.
19. Bathtubs are already leak tested from the factory, but should always be
leak tested again after shipping.
20. Before connecting the water supply lines, briefly flush the water lines to
free any loose particles that may have built up throughout the years, or may
have fallen in during new construction.
21. Ensure electrical connections, water supply lines and waste connections
are both compatible with this product, and their installation completed and
ready for connection the before installation of this product. Review the
specifications within this document, other documentation supplied,
specifications listed on the packaging of this product, and technical
specifications listed on the individual components. If there are any further
questions contact your place of purchase. The (optional) drain hose size is
1.5-inches (40mm); the water inlet connections with (optional) hoses are
½-inch National Pipe Thread (NPT/FIP/MIP).
15
Do not trash. Keep these instructions for future references.
Some features explained within this guide maybe optional and/or may not be
applicable for your specific model.

5
Technical ParametersTechnical Parameters
Rated Voltage AC110-120V 60Hz
Rated Current 10.2A
Normal Rated Power 1125W
Recommended Power Service GFCI-Protected 20A
Water Pipe Dimension ½"
Drainage Pipe Dimension 1 1/2" (40mm)
Max. Hot Water Temperature 176°F (80°C)
Recommended Hot Water 149°F (65°C)
Operating Pressure Max 116 PSI (8 bar / 0.8 mPa)
Recommended Operating Pressure 14.5-72.5 PSI (1-5 bar / 0.1-0.5mPa)
16
EN12764 2004 A1:+
AC110 120V 60H-z
14a
1500W
14
"L" = Live = Black or Brown
"N" = Neutral = White or Blue
“G"= Earth-Ground = Green or Yellow
22. Ensure the water supply lines for this product has its own dedicated water
shutoff valves installed in an accessible location.
23. Ensure there is enough space and access to connect, adjust or fasten the
various supply lines, waste line and other components.
24. Be sure to check each installation step with this manual to ensure the prod-
uct is installed correctly. The product must be installed with all the feet or sup-
portive legs touching the floor before any use. Leveling the product is an impor-
tant procedure and must be completed on-site – on the installation surface and
final installation position.
25. Always double-check all connections to ensure for proper installation, ten-
sion, and connection, including parts, plugs, hoses, nuts, screws, wires, etc.
26. Only a professional electrician is recommended to work on the high voltage
portions of installation and testing.
27. Electrical service must meet the requirements listed on the components of
the product, listed within this manual, or otherwise advised based on a thorough
analysis of any special circumstances.
28. An electrical protection device for short-circuits, power overloads or incor-
rect voltage must be installed and used in conjunction with this product.
29. This product or any appliance used near this product must be used in con-
junction with a Ground Fault Circuit Interrupter (“G.F.C.I.” or “G.F.I.”) or Resid-
ual Current Device (“R.C.D.”) with a trip current of not greater than 30mAor oth-
erwise required in accordance to local codes.
30. Do not cut or extend electrical wires or power-cord of the product without
the approval of a professional electrician and warranty service representative.
31. Appliances or components with ground or “earth” connections must be in-
stalled and used in conjunction with the product, and connected in accordance
to local codes.
32. The motor must be grounded with wire not less than 14awg (1.63mm-diam-
eter) or otherwise required in accordance to local codes.
33. Check local and national requirements before installing or purchasing this
product.
34. Local standards and codes must be followed and cannot be the responsibil-
ity of the supplier or its distributors.
35. Other electrical components, except the remote control device (optional),
should be kept, located or affixed away from the product, so they cannot fall
into the bath, while in use.
36. Do not disassemble the control panel or computer controller as it is not de-
signed for disassembly. Defects, damages or shock caused by such removal
cannot be the responsibility of the supplier or its distributors.
37. “H” hot (red) and “C” cold (blue) water supply connections and their orienta-
tion are critical to proper function of this product.
38. Ensure the (optional) “H” hot (red) and “C” cold (blue) water hoses will not
touch the floor when this product is fully installed, as it may cause rusting and
possibly weakening of those hoses.
39. Harsh chemicals such as acetone, ammonia or gasoline can possibly dis-
solve or damage portions of this product – do not use such chemicals for clean-
ing or installing this product.
40. Do not stack anything on top of this product, use it for support, or apply any
extreme pressure to critical areas that may cause misalignment or damage;
take special care when moving this product.
T
est standard: EN 12764: 2004+A1: 2008
EN 60335-2-60 (Low Voltage Directive 73/23/EEC)
EN 1111

After Installation:
41. Before supplying any power to the product, you should inspect the power
cables to ensure the power leads are properly connected.
42. After installation and before starting the product for the first time, you
should inspection all the connections to ensure they are properly connected;
including parts, plugs, hoses, nuts, screws, wires, etc.
43. After you have fully installed the unit and made all the inspections to
ensure the unit can function safely, fully clean the unit inside and out to ensure
the unit is ready for usage, and also to check for any potential lose debris that
may have fallen into any of the plumbing. After a thorough visual inspection,
close the drain and fill the tub up to the overflow drain, submerging all the jets
underwater. If any debris floats out, remove it.
44. The whirlpool system will not run unless the water-level sensor is fully
submerged underwater. The water-level sensor is placed above the water line
of the water jets.
45. Turn-on the whirlpool system and operate it for a minimum of 10-minutes.
Then turn-off the whirlpool system and without draining it, allow it to sit for a
minimum of 10-minutes. Now check all the plumbing, pipe works, hoses, joints,
threads and any other connections for any leaks. If there are any adjustments
made, restart this test and review all the connections again.
46. You must ensure the product works as it normally would: immediately test
all functions of the product to possibly find any errors. After testing, place the
tub against the wall(s) and seal the wall joints with an acid-free caulking agent
and then allow it to cure sufficiently before any further use.
Additional Precautions:
47. It is not generally recommended to use bath oils in whirlpool bathtubs, as
the oil residue can stick to the side walls of the tub and plumbing. Clean the
whirlpool system after any such uses.
48. It is not recommended to use coarse grain bath salts with the whirlpool
function, as it may enter the water pump and damage or cause additional wear
onto its internal components.
6
13
Maintenance:
Recommended cleaning the whirlpool features monthly with a whirlpool clean-
ing solution from your local hardware store. Follow the instructions of the
whirlpool cleaning solution. If not cleaned regularly you may notice black flakes
in the bath – if this happens you should clean the whirlpool system.
Consider cleaning the whirlpool system with whirlpool cleaning solution re-
peatedly until the black flakes disappear. Soap scum, hair, dead skin, skin care
products, oil, grease and/or bacteria can contaminate your whirlpool sys-tem, it
is important
to clean regularly.
Consider cleaning the whirlpool system using a cup of chlorine bleach (sodium
hypochlorite) and the minimum amount of warm or hot water to activate the
(water-level sensor) whirlpool system, in between regular cleanings with
whirlpool cleaning solution. Thoroughly flush and rinse the bathtub and
whirlpool system before use. (This is not meant as a substitute for whirlpool
cleaning solution)
The drain can be clogged by hair or soap scum and should be cleaned regu-
larly. Cleaning schedule is based off usage conditions; monitor time frame for
any slowing of drainage, and then set cleaning schedule.
Poor maintenance, infrequent, or irregular cleaning can cause damage to the
faucets or jets. Cleaning schedule is based off usage conditions; generally,
more frequent light cleanings are better than less frequent, heavy cleanings.
When cleaning the chrome parts, do not use cleaning compounds or instru-
ments with abrasives or harsh chemicals. Do not try to remove stains with hard
objects, such as blades or screwdrivers.
When cleaning the acrylic surfaces of the bathtub, use a soft sponge and a
detergent without ammonia, acetone or other harsh chemicals, to prevent sur-
faces from getting dulled or damaged.
Dulled surfaces can be refinished with an acrylic polishing compound (follow
instructions of polishing compound); first spot test in a non-visible surface area.
Warning: The use of cleaning materials other than those recommended by the
manufacturer can result in damage to the bathtub, whirlpool apparatus, or
other hardware. Spot test in non-visible area.
Warning: Any service, adjustment or repair is only recommended by an expe-
rienced professional. Only consider a licensed professional for all installation,
servicing or repair work.

7
Flowchart
No. ENGLISH No. ENGLISH
1 AirRegulator 6 Fancet:Cold Switch
2 Pneumatic switch 7 Drain Switch & Fill faucet
3 Handshower 8 WaterJet Suctions
4 Fancet:Hot Switch 9 Water Pump
5 Faucet:Selector Switch 10 Water Jet
Air Bubble Regulator Valve:
This valve is used to control the amount of air bubbles in the Water Jet Feature.
6
5
4
3
7
C
2H
9
10
8
1
12
12
34
23."
5
4

8
OFF
ON Shower
OFF
HC
ON
OFF
Waterfall
Flowchart
11
Faucet Operation:
Switch on/off:
1. The middle faucet is functional faucet. The faucet is closed when it keeps in the middle
position. When you rotate the faucet 90 to the left, the water will come out from the hand
shower; and when you rotate the faucet 90 to the right, the water will come out from the
waterfall.
2. The water temperature is controlled by the hot water faucet H and cold water faucet C. If
you rotate the H faucet by counterclockwise, then the temperature will goes higher .And it's
in a similar way for faucet C.
Press the on/off button at the first time to operate the bubble function; and press it by the second time to turn off the bubble function .
5
6

8
Power Receptacle
CC
HH
9
Test functions, Check for leaks. Ensure all connections are tight.
Install access panel.
910
"L" = Live = Black or Brown
"N" = Neutral = White or Blue
"G"= Earth-Ground = Green or Yellow
7
10
8

9
7
6
Power Receptacle
H
C
Connect any ground connections to your household ground.
Connect water connections and electrical supply.
HC
10
9

8
34
5
CH
*Some optional features maybe shown: Flex-Drain Hose
Review connections.Install handshower.
Install drain plug;test function.Connect drain.
OFF
ON Shower
OFF
HC
ON
OFF
Waterfall
Flowchart
11
Faucet Operation:
Switch on/off:
1. The middle faucet is functional faucet. The faucet is closed when it keeps in the middle
position. When you rotate the faucet 90 to the left, the water will come out from the hand
shower; and when you rotate the faucet 90 to the right, the water will come out from the
waterfall.
2. The water temperature is controlled by the hot water faucet H and cold water faucet C. If
you rotate the H faucet by counterclockwise, then the temperature will goes higher .And it's
in a similar way for faucet C.
Press the on/off button at the first time to operate the bubble function; and press it by the second time to turn off the bubble function .

7
1
2
Adjust leveling legs.
Remove access panel.
Flowchart
Air Bubble Regulator Valve:
This valve is used to control the amount of air bubbles in the Water Jet Feature.
12
No. No.
1 7
2/3 8 Waterfall
4 9 Water Jet
5 10 Water Pump
6 11 Water Suction
English English
Air Regulator Hot Water Supply Inlet
Hot/Cold Water Mixer & On/Off Selector
Function Selector
Shower Wand
Cold Water Supply Inlet

After Installation:
41. Before supplying any power to the product, you should inspect the power
cables to ensure the power leads are properly connected.
42. After installation and before starting the product for the first time, you
should inspection all the connections to ensure they are properly connected;
including parts, plugs, hoses, nuts, screws, wires, etc.
43. After you have fully installed the unit and made all the inspections to
ensure the unit can function safely, fully clean the unit inside and out to ensure
the unit is ready for usage, and also to check for any potential lose debris that
may have fallen into any of the plumbing. After a thorough visual inspection,
close the drain and fill the tub up to the overflow drain, submerging all the jets
underwater. If any debris floats out, remove it.
44. The whirlpool system will not run unless the water-level sensor is fully
submerged underwater. The water-level sensor is placed above the water line
of the water jets.
45. Turn-on the whirlpool system and operate it for a minimum of 10-minutes.
Then turn-off the whirlpool system and without draining it, allow it to sit for a
minimum of 10-minutes. Now check all the plumbing, pipe works, hoses, joints,
threads and any other connections for any leaks. If there are any adjustments
made, restart this test and review all the connections again.
46. You must ensure the product works as it normally would: immediately test
all functions of the product to possibly find any errors. After testing, place the
tub against the wall(s) and seal the wall joints with an acid-free caulking agent
and then allow it to cure sufficiently before any further use.
Additional Precautions:
47. It is not generally recommended to use bath oils in whirlpool bathtubs, as
the oil residue can stick to the side walls of the tub and plumbing. Clean the
whirlpool system after any such uses.
48. It is not recommended to use coarse grain bath salts with the whirlpool
function, as it may enter the water pump and damage or cause additional wear
onto its internal components.
6
13
Maintenance:
Recommended cleaning the whirlpool features monthly with a whirlpool clean-
ing solution from your local hardware store. Follow the instructions of the
whirlpool cleaning solution. If not cleaned regularly you may notice black flakes
in the bath – if this happens you should clean the whirlpool system.
Consider cleaning the whirlpool system with whirlpool cleaning solution re-
peatedly until the black flakes disappear. Soap scum, hair, dead skin, skin care
products, oil, grease and/or bacteria can contaminate your whirlpool sys-tem, it
is important
to clean regularly.
Consider cleaning the whirlpool system using a cup of chlorine bleach (sodium
hypochlorite) and the minimum amount of warm or hot water to activate the
(water-level sensor) whirlpool system, in between regular cleanings with
whirlpool cleaning solution. Thoroughly flush and rinse the bathtub and
whirlpool system before use. (This is not meant as a substitute for whirlpool
cleaning solution)
The drain can be clogged by hair or soap scum and should be cleaned regu-
larly. Cleaning schedule is based off usage conditions; monitor time frame for
any slowing of drainage, and then set cleaning schedule.
Poor maintenance, infrequent, or irregular cleaning can cause damage to the
faucets or jets. Cleaning schedule is based off usage conditions; generally,
more frequent light cleanings are better than less frequent, heavy cleanings.
When cleaning the chrome parts, do not use cleaning compounds or instru-
ments with abrasives or harsh chemicals. Do not try to remove stains with hard
objects, such as blades or screwdrivers.
When cleaning the acrylic surfaces of the bathtub, use a soft sponge and a
detergent without ammonia, acetone or other harsh chemicals, to prevent sur-
faces from getting dulled or damaged.
Dulled surfaces can be refinished with an acrylic polishing compound (follow
instructions of polishing compound); first spot test in a non-visible surface area.
Warning: The use of cleaning materials other than those recommended by the
manufacturer can result in damage to the bathtub, whirlpool apparatus, or
other hardware. Spot test in non-visible area.
Warning: Any service, adjustment or repair is only recommended by an expe-
rienced professional. Only consider a licensed professional for all installation,
servicing or repair work.

5
Technical ParametersTechnical Parameters
Rated Voltage AC110-120V 60Hz
Rated Current 10.2A
Normal Rated Power 1125W
Recommended Power Service GFCI-Protected 20A
Water Pipe Dimension ½"
Drainage Pipe Dimension 1 1/2" (40mm)
Max. Hot Water Temperature 176°F (80°C)
Recommended Hot Water 149°F (65°C)
Operating Pressure Max 116 PSI (8 bar / 0.8 mPa)
Recommended Operating Pressure 14.5-72.5 PSI (1-5 bar / 0.1-0.5mPa)
16
EN12764 2004 A1:+
AC110-120V 60Hz
9a
1100W
14
"L" = Live = Black or Brown
"N" = Neutral = White or Blue
“G"= Earth-Ground = Green or Yellow
22. Ensure the water supply lines for this product has its own dedicated water
shutoff valves installed in an accessible location.
23. Ensure there is enough space and access to connect, adjust or fasten the
various supply lines, waste line and other components.
24. Be sure to check each installation step with this manual to ensure the prod-
uct is installed correctly. The product must be installed with all the feet or sup-
portive legs touching the floor before any use. Leveling the product is an impor-
tant procedure and must be completed on-site – on the installation surface and
final installation position.
25. Always double-check all connections to ensure for proper installation, ten-
sion, and connection, including parts, plugs, hoses, nuts, screws, wires, etc.
26. Only a professional electrician is recommended to work on the high voltage
portions of installation and testing.
27. Electrical service must meet the requirements listed on the components of
the product, listed within this manual, or otherwise advised based on a thorough
analysis of any special circumstances.
28. An electrical protection device for short-circuits, power overloads or incor-
rect voltage must be installed and used in conjunction with this product.
29. This product or any appliance used near this product must be used in con-
junction with a Ground Fault Circuit Interrupter (“G.F.C.I.” or “G.F.I.”) or Resid-
ual Current Device (“R.C.D.”) with a trip current of not greater than 30mAor oth-
erwise required in accordance to local codes.
30. Do not cut or extend electrical wires or power-cord of the product without
the approval of a professional electrician and warranty service representative.
31. Appliances or components with ground or “earth” connections must be in-
stalled and used in conjunction with the product, and connected in accordance
to local codes.
32. The motor must be grounded with wire not less than 14awg (1.63mm-diam-
eter) or otherwise required in accordance to local codes.
33. Check local and national requirements before installing or purchasing this
product.
34. Local standards and codes must be followed and cannot be the responsibil-
ity of the supplier or its distributors.
35. Other electrical components, except the remote control device (optional),
should be kept, located or affixed away from the product, so they cannot fall
into the bath, while in use.
36. Do not disassemble the control panel or computer controller as it is not de-
signed for disassembly. Defects, damages or shock caused by such removal
cannot be the responsibility of the supplier or its distributors.
37. “H” hot (red) and “C” cold (blue) water supply connections and their orienta-
tion are critical to proper function of this product.
38. Ensure the (optional) “H” hot (red) and “C” cold (blue) water hoses will not
touch the floor when this product is fully installed, as it may cause rusting and
possibly weakening of those hoses.
39. Harsh chemicals such as acetone, ammonia or gasoline can possibly dis-
solve or damage portions of this product – do not use such chemicals for clean-
ing or installing this product.
40. Do not stack anything on top of this product, use it for support, or apply any
extreme pressure to critical areas that may cause misalignment or damage;
take special care when moving this product.
Test standard: EN 12764: 2004+A1: 2008
EN 60335-2-60 (Low Voltage Directive 73/23/EEC)
EN 1111

4
9. Persons with a medical history of heart problems, blood circulation, high or
low blood pressure, obesity, diabetes or similar health concerns should consult
your doctor before using this product.
10. Excessive use of this product can lead to heatstroke. Heatstroke occurs
when the body loses its ability to regulate a normal temperature range.
11. Elevated body temperatures can cause such symptoms as dizziness,
drowsiness, unconsciousness and heatstroke. Heatstroke can lead to the
possibility of:
a) The loss of awareness to normally perceived dangers, b) the loss of sound
judgment for the need to stop using this product, c) the loss of sensitivity to
dangerous temperatures, e) the loss of the ability to stand, balance, walk or
exit this product, f) if pregnant, potential fetal damage, and/or g)
unconsciousness.
12. Unconsciousness can lead to the possibility of drowning.
13. An electrical protective device for an overload of power, short-circuit or
incorrect voltage must be used in conjunction with this product. It must be
properly functioning and regularly tested for proper functioning.
14. Do not use any other electrical devices in or near this product. Very low
voltage items without a power cord may be considered. Consult your licensed
electrician.
15. If any wires, cords or plumbing are damaged, it must be repaired by a
qualified professional to avoid risk.
16. Measurements, specifications, and local building codes should be
reviewed by a licensed professional before purchase.
Installation Precautions:
17. It is recommended to install this product in such a way that the critical
components are easily accessible, or with an access panel. This will ensure
any potential repair cost will be kept at a minimum.
18. Computerized systems and electrical components are already function
tested from the factory, but should always be tested again before installation.
19. Bathtubs are already leak tested from the factory, but should always be
leak tested again after shipping.
20. Before connecting the water supply lines, briefly flush the water lines to
free any loose particles that may have built up throughout the years, or may
have fallen in during new construction.
21. Ensure electrical connections, water supply lines and waste connections
are both compatible with this product, and their installation completed and
ready for connection the before installation of this product. Review the
specifications within this document, other documentation supplied,
specifications listed on the packaging of this product, and technical
specifications listed on the individual components. If there are any further
questions contact your place of purchase. The (optional) drain hose size is
1.5-inches (40mm); the water inlet connections with (optional) hoses are
½-inch National Pipe Thread (NPT/FIP/MIP).
Do not trash. Keep these instructions for future references.
Some features explained within this guide maybe optional and/or may not be
applicable for your specific model.
