Ariens Lawn Tractor 54 User manual

441106 Rev. 1 (21547673) 02.04.11
Printed in the U.S.A.
ENGLISH
Parts Manual
HYDRO TRACTOR
Models
936055 54" Hydro Tractor

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “936055 (96046002800)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ..................................................................................................................3
ELECTRICAL............................................................................................................. 4-5
CHASSIS ................................................................................................................... 6-7
DRIVE......................................................................................................................... 8-9
ENGINE.................................................................................................................. 10-11

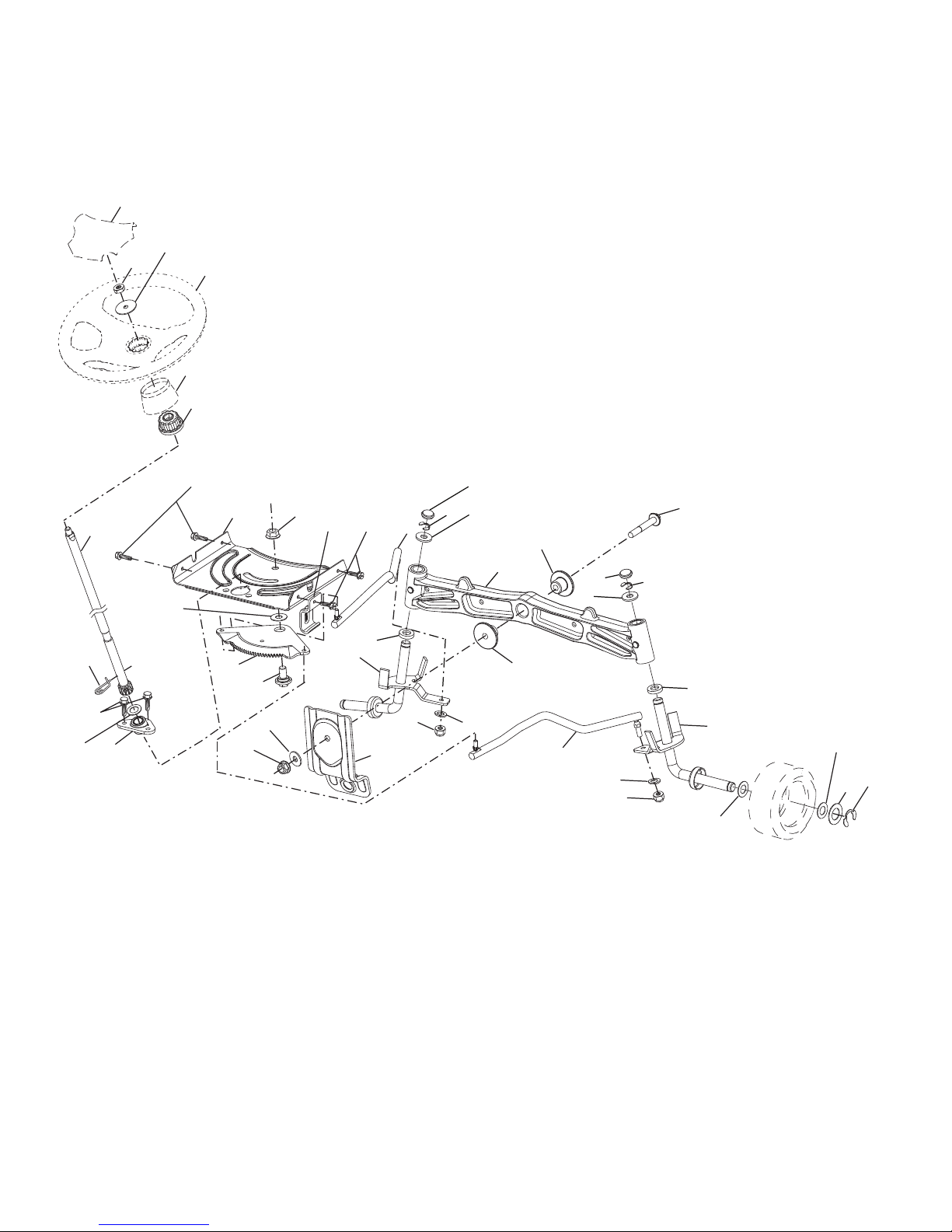

STEERING ............................................................................................................. 12-13

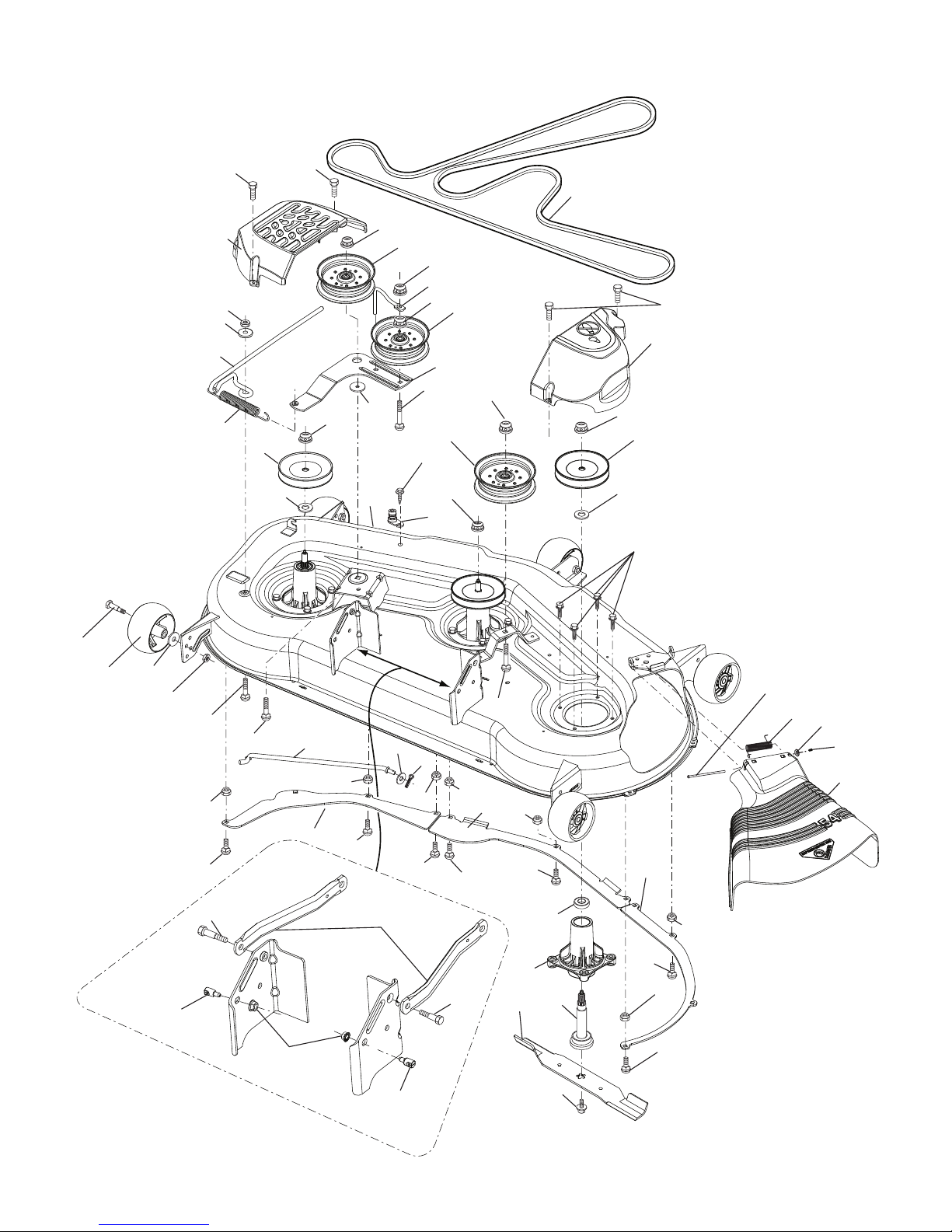

MOWER DECK ...................................................................................................... 14-15
MOWER LIFT......................................................................................................... 16-17

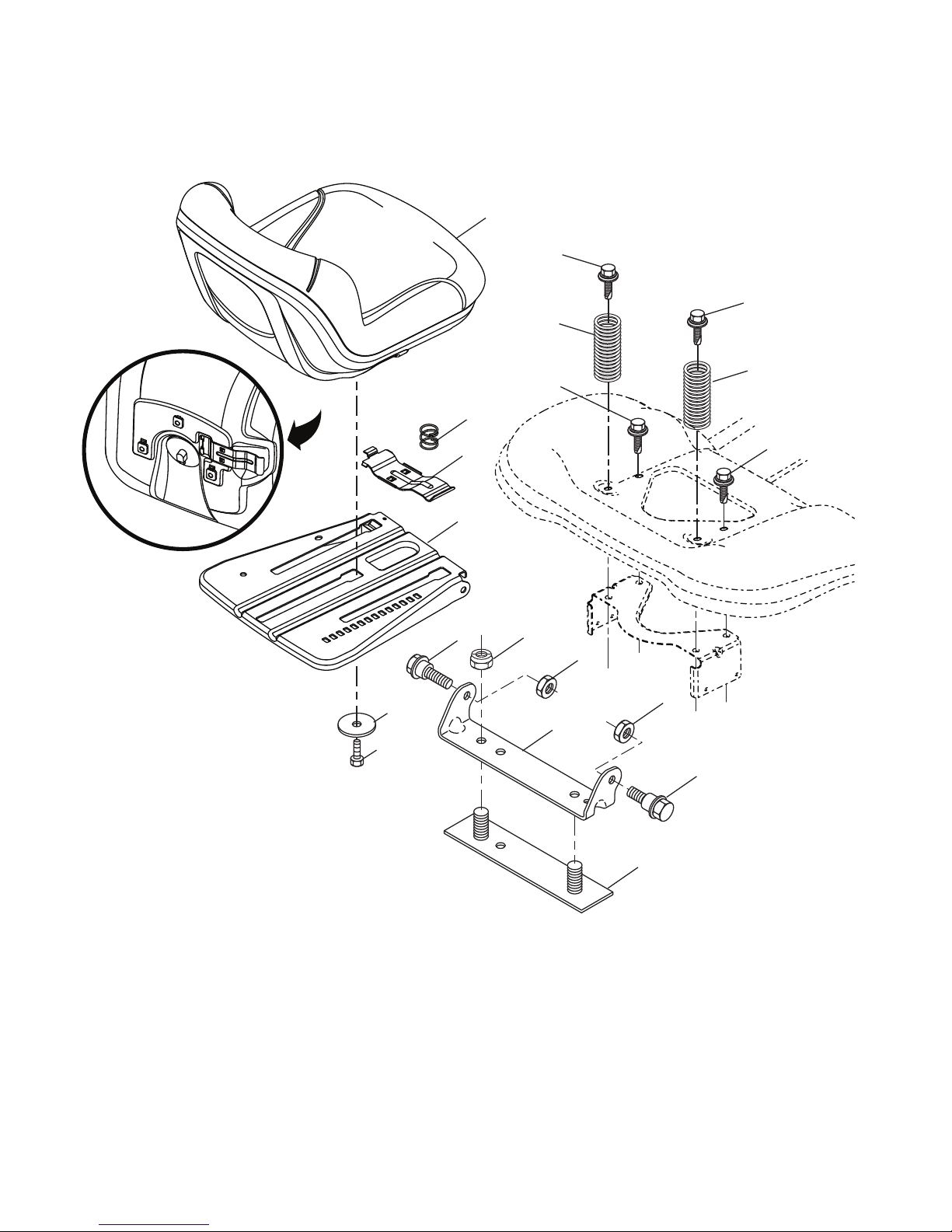

SEAT ...................................................................................................................... 18-19
DECALS................................................................................................................. 20-21
PARTS AND SERVICE........................................................................... BACK COVER

3
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28

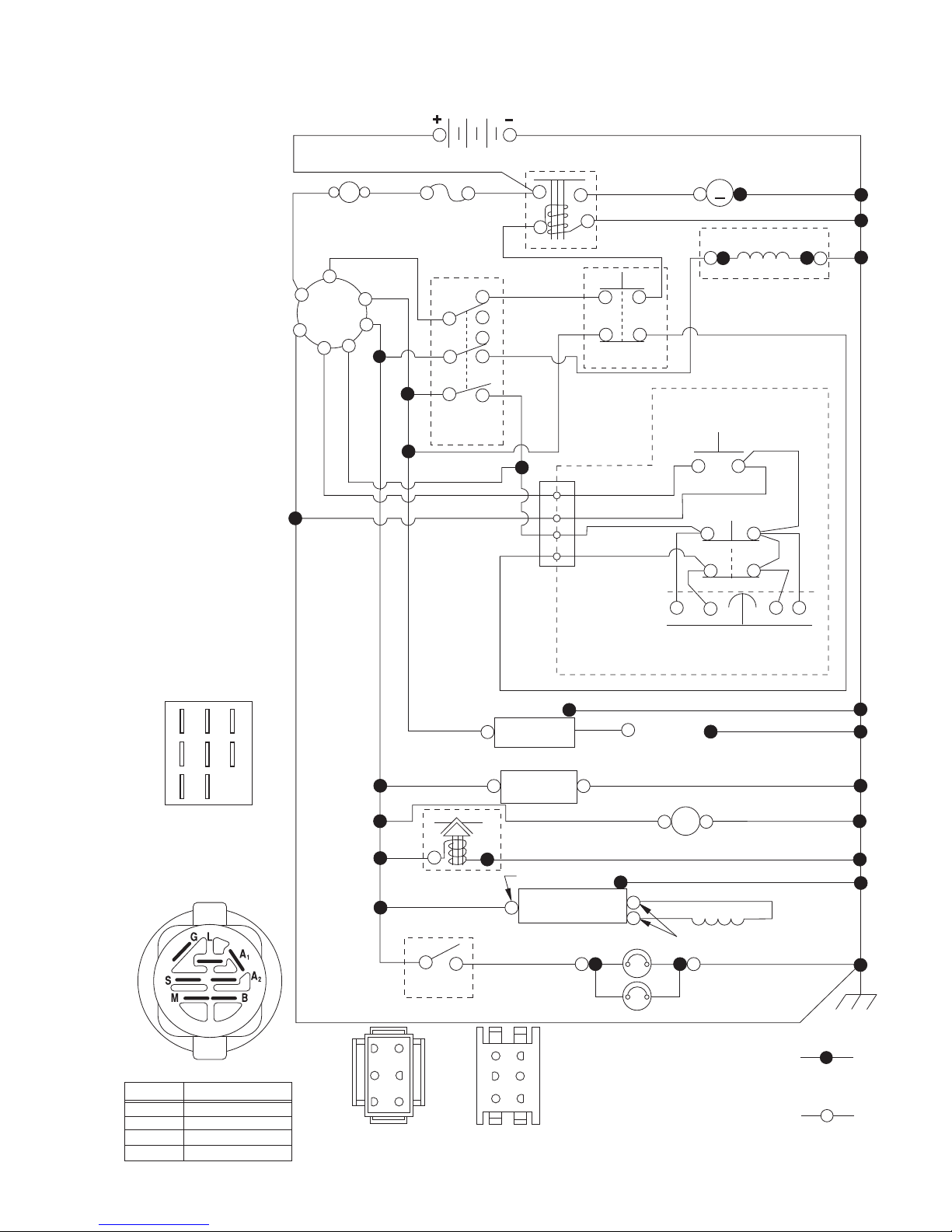

SCHEMATIC
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
S
M
B
G
L
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK

4
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30
33
22
79 21
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S
102
29
105

5
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
ELECTRICAL
1 532 16 34-65 21546162 BATTERY.12.VOLT.28.AMP.WET
2 874 76 04-12 21546803 BOLT HEX HD 1/4-20 UNC X 3/4
8 532 18 64-91 21546233 BOX.BATTERY.MOUNT.FRONT.LT
16 532 17 61-38 21546205 SWITCH.INTERLOCK.NONO.GRAY
21 532 17 56-88 21546226 HARNESS.ASM.LIGHT. (4152J)
22 532 00 41-52 21546673 BULB.LIGHT.#1156
24 532 40 02-53 21546556 CABLE.BTRY.PSWRE.DSH SOL.8"TEX
25 532 41 28-95 21547566 CABLE STARTER 6 G4. BL/RED14.5
26 532 17 51-58 21546200 FUSE.20 AMP.
27 873 51 04-00 21546779 NUT, KEPS HEX 1/4-20 UNC
28 532 14 54-91 21546112 CABLE.GROUND.21"BLK.6 GA.90T
29 532 40 15-45 21546574 SWITCH.SEAT.DELTA.OPC.9LB.
30 532 19 33-50 21546319 SWITCH.IGN.DLTA.P-IN.ROS
33 532 41 19-33 21547339 KEY/CHAIN.BLISTER PACK.GEN.USA
34 532 11 07-12 21546050 SWITCH.LIGHT/RESET.B/B/RED
40 532 40 11-04 21546569 HARNESS IGN ELEC RELAY
41 817 72 04-08 21546210 SCREW 1/4-20 X 1/2
42 532 13 15-63 21546082 COVER.TERMINAL.RED
43 532 19 25-07 21546294 SOLENOID.W/BRASS PLUNGER.2005
46 532 40 17-63 21547327 GUAGE.HOURMETER
50 532 17 46-51 21546196 SWITCH PTO
55 817 06 05-12 21546187 SCREW.5/16-18X3/4.SMGML.TAP/R
71 532 19 42-76 21546323 HARNESS.IGN.CHASSIS.TEX
79 532 17 52-42 21546201 SOCKET ASM.BULB.TWISTLOCK
90 532 43 53-95 21547570 COVER TERMINAL BATTERY FR. TEX
91 532 19 02-70 21546274 STRAP.BATTERY.MOUNT.FRONT
99 817 67 04-12 21546207 SCREW.HEXWSH.THDROL.1/4-20 X 3/4
100 819 09 14-16 21546277 WASHER.9/32 X 7/8 X 16GA.
102 532 40 44-54 21546594 HARNESS PIGTAIL
105 532 40 75-68 21546625 SWITCH REVERSE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

6
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
CHASSIS
14
148
182
176
176
175 177
122
150
130
18
178
5
176
176
195
206
205
61
130
15
25
68
68
68
68
183
183
236
236
34
235
235
chassis-tex_stealth pl_14
37
181
181
194
36
196 198
199
222
161
58
189
189
162
162
189
189
152
165
228
228
194
180
139
278
68
68

7
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
5 532 41 14-10 21547776 DASH
14 532 44 18-22 21547739 HOOD
15 532 16 18-41 21547543 LENS ELITE ARIENS BLACK
18 532 18 71-14 21547703 GRILLE
25 532 16 18-42 21547544 LENS ELITE HUSQ CLEAR RH
34 532 19 61-25 21546384 PLATE ENGINE
36 817 06 05-12 21546187 SCREW 5/16-18 X 3/4
37 532 44 12-85 21547783 FENDER
58 532 19 43-14 21547310 FENDER SUPPORT BRACKET
61 532 43 92-58 21547530 ASM LIGHT BOX
68 817 49 05-08 21546199 SCREW THDROL 5/16-18 X 1/2
122 532 19 25-12 21547529 SCREW 10-32 X 5/8
130 532 41 63-58 21546675 SCREW #10 X 0.750 BOS THREAD
148 532 16 46-55 21547545 BUMPER HOOD LARGE 1.75
139 532 17 18-73 21547301 BOLT SHOULDER 5/16-18
150 532 19 03-09 21547802 DUCT AIR ENGINE
152 532 19 95-35 21546501 SHIELD BROWNING/DEBRIS
161 532 41 18-79 21547778 CONSOLE FUEL WINDOW
162 532 14 24-32 21546106 SCREW HEX WSH HI-LO 1/4 X 1/2 UNC
165 532 19 68-26 21546413 SUPPORT TANK REAR
175 532 19 32-36 21547554 CROSSMEMBER LT
176 532 40 07-76 21546562 SCREW 10-24 X 5/8 WSHD QDRX
177 532 19 52-27 21546356 BUSHING STEERING
178 532 19 56-51 21547531 CARGO ASM NET
180 532 19 54-77 21547315 CHASSIS
181 532 40 47-96 21547557 BUSHING.MNT.FEND.CRGO.BLK.TEX
182 532 19 25-51 21547553 DASH LOWER LT CCS
183 874 52 05-20 21547383 BOLT.FIN.HEX.5/16-18 UNC X1-1/4
189 817 00 05-12 21546180 SCREW 5/16-18 X 3/4
194 873 90 05-00 21546789 NUT LOCK HEX FLANGE 5/16-18
195 532 40 41-37 21547532 PLUG HOLE DASH LOWER
196 532 41 18-78 21547777 CONSOLE ASM. DECK LIFT
198 532 44 15-52 21547784 INDICATOR DECK LIFT
199 532 19 63-77 21547316 PLATE DECK LIFT
205 532 18 71-11 21547701 SKIRT SIDE RH
206 532 18 71-12 21547702 SKIRT SIDE LH
222 532 13 77-29 21546091 SCREW THD. ROLL 1/4-20 X 5/8
228 532 19 51-61 21546343 STUD FASTENER
235 532 40 61-29 21546619 SPACER FENDER
236 873 93 05-00 21546793 NUT CENTER LOCK 5/16-18 UNC
278 532 19 63-94 21547317 X-PIECE HOOD
- - 532 42 39-21 21546721 KIT BUMPER

8
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
DRIVE
51
52
170
208
210
163
214
125
215
153
153
166
211
211
222
56
80
226
225
125
196
125
125
125
drive-tex_K66_pedal_8
69
116
73 69
99
2
3
33
183
116
73
2
7
9
33
183
169
69
3
79
171
216
143
213
221
160
206
26
207
209
92 125
116
186
189
49
187
50
51
52
51
190
185
184
221
42
29
64
188
35
167
160
161
159
15
17
159
74
224
197
196

9
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
1 - - - - - - - - - - - - TRANSAXLE, TUFFTORQ K66Y
2 532 00 70-70 21547403 KEY 1/4 X 2.5
3 532 00 75-63 21547404 WASHER THRUST AXLE HARDENED
7 532 19 98-37 21547324 HUB ASM. WHEEL
9 532 14 00-80 21547293 BOLT HUB WHEEL
15 819 13 13-16 21546284 WASHER 13/32 X 13/16 X 16 GA.
17 532 40 10-72 21547326 SPRING, BRAKE
26 532 19 96-79 21546508 SPRING RETURN CRUISE
29 532 40 72-45 21547448 ROD, BRAKE
33 812 00 00-53 21547379 RING E
35 532 19 72-75 21547556 ROD BRAKE PARKING LT TEX
42 532 00 88-83 21546831 COVER, FOOT PEDAL
49 872 11 06-14 21546766 BOLT
50 532 19 43-27 21546331 PULLEY IDLER FLAT
51 873 90 06-00 21546790 LOCK NUT 3/8-16
52 532 19 43-26 21546330 IDLER V-GROOVE 910" OFFSET
56 532 12 59-07 21546076 V-BELT, DRIVE
64 532 19 78-65 21546465 SHAFT ASM. PEDAL BRAKE CONTROL
69 532 12 38-00 21547391 WASHER 1-1/32 X 1-5/8 X 16 GA.
73 874 49 05-44 21546798 BOLT HEX 5/16-18 GR. 5
74 532 14 24-32 21546106 SCREW 1/4 X 1/2
80 532 40 71-82 21547333 STRAP TORQUE
92 874 76 05-20 21546806 BOLT 5/16-18 X 1/2
99 532 41 57-44 21547346 ROD BYPASS
116 873 90 05-00 21546789 NUT LOCK HEX FLANGE 5/16-18
125 817 00 05-12 21546180 SCREW 5/16-18 X 3/4
143 817 49 05-08 21546199 SCREW 5/16-18 X 1/2
153 532 12 47-88 21547536 RETAINER.SPRING
159 876 02 04-12 21546820 PIN COTTER 1/8 X 3/4
160 532 16 94-84 21546178 RETAINER CLIP
161 532 10 57-09 21546028 SPRING, RETURN, CLUTCH
163 532 40 72-46 21547334 ROD PEDAL CONTROL
166 532 42 91-64 21547349 NUT PUSH .625
167 532 40 52-57 21546608 LATCH BRAKE PARKING
170 532 19 43-22 21547311 KEEPER BELT CENTERSPAN
171 872 11 06-16 21546767 BOLT
183 532 19 73-57 21547319 SPACER AXLE
184 532 44 16-36 21547738 HANDLE PARKING BRAKE LT TEX 667
185 872 11 06-22 21546768 BOLT RDHD SQNK 3/8-16 X 2-3/4
186 532 19 43-21 21546328 SPACER RETAINER
187 819 13 32-10 21546287 WASHER
188 532 19 43-23 21546329 LINK CLUTCH GROUND DRIVE
189 532 19 43-17 21546324 BELLCRANK GROUND DRIVE
190 532 19 43-18 21546325 KEEPER BELLCRANK GROUND DRIVE
196 817 00 06-16 21546182 SCREW 3/8-16 X 1
197 532 19 97-69 21547322 BRACKET CLUTCH ANTI-ROTATION
206 532 19 78-67 21546467 BRACKET MOUNT LATCH CRUISE
207 532 19 78-68 21546469 LATCH CONTROL CRUISE
208 532 19 78-69 21546470 GEAR SECTOR CONTROL CRUISE
209 532 19 94-66 21547662 ROD CONTROL CRUISE
210 532 19 78-60 21547320 ROCKER ASM. PEDAL CONTROL
211 532 12 01-83 21546061 BEARING NYLON
213 532 41 23-24 21547717 KNOB CONTROL CRUISE
214 532 42 12-63 21547005 PEDAL FORWARD
215 532 40 17-23 21547707 PEDAL REVERSE
216 532 19 61-31 21546385 BRAKET PULLEY IDLER
221 532 40 31-87 21546588 RETAINER SPRING CLIP HANDLE
222 879 21 20-10 21546821 WASHER 21/32 X 1-1/4 X 10 GA.
224 532 41 22-98 21547716 CONSOLE TOOLBOX
225 532 40 73-11 21547335 KEEPER BELT TRANS.
226 532 40 71-09 21547332 BRACKET MOUNT TORQUE

10
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
ENGINE
1
29
SPARK ARRESTER KIT
84
45
engine-tex_Kohl-2cyl_5
18
15 12
11
41
42
85
90
9
62
87
71
70
79
69
2
21
20
22
116
37
28
37
81
82

11
1 - - - - - - - - - - - - ENGINE KOHLER MODEL NO. SV730-3041
2 532 14 97-23 21546118 MUFFLER
9 532 19 43-20 21546327 KEEPER.BELT.ENGINE.4.25"NSTG
11 532 17 93-35 21547305 CLUTCH.ELECTRIC
12 532 19 43-43 21547312 PULLEY.ENGINE
15 532 43 80-81 21547666 TANK.FUEL
18 532 43 02-14 21547353 CAP FUEL
20 532 42 61-84 21547665 CONTROL.THROTTLE
21 532 41 63-58 21546675 SCREW
22 532 19 15-96 21547761 CONTROL.CHOKE
28 532 40 11-35 21546570 LINE.FUEL.64"REAR.EMIS.CA.LP
29 532 13 71-80 21546090 KIT.SPARK ARRESTOR(392390 B&S)
37 532 12 34-87 21546069 CLAMP.HOSE.BLK
41 532 12 61-97 21546077 WASHER 1-1/2 X 15/32 X .250
42 810 04 07-00 21546004 WASHER.LOCK.HVY HLCL.SPR.7/16
45 873 51 04-00 21546779 NUT, KEPS HEX 1/4-20 UNC
62 532 43 40-17 21547370 SHIELD.HEAT.MUFFLER.
69 - - - - - - - - - - - - - - GASKET MUFFLER (ORDER FROM ENGINE MFGS)
70 532 14 66-99 21546115 EXHAUST TUBE LH
71 532 14 67-00 21546116 EXHAUST TUBE RH
79 532 19 23-34 21546293 SCREW SOCKET HD. 5/16-18 X .75
81 532 14 84-56 21546117 TUBE.DRAIN.OIL.EASY
82 532 42 82-87 21547348 VALVE OIL DRAIN
84 817 12 06-16 21546188 SCREW 3/8-16 X 1
85 532 17 99-53 21547306 BOLT.HEX.7/16-20 X 3.75 X GR. 5
87 532 19 82-39 21547321 BOLT.5/16-18 UNC X 1 W/SEMS.BLK
90 817 00 06-16 21546182 SCREW.3/8-16X1.SMGML.TAP/R.BLK
116 539 13 26-24 21547676 KNOB SHIFT
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
ENGINE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Kohler Co. 1-800-544-2444
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

12
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
STEERING ASSEMBLY
5
13
13
53 8
62
4
35
19
63
57
60
59
58
67
15
15
14
14
61
steering-tex_STDHRS_4_r1
70
68
69
16
28
13 22
64
21
51
26
1
45
63
20
67
66
9
9
8
8
7
7
2
6
6

13
1 532 42 41-46 21547582 WHEEL STEERING
2 532 19 59-68 21546377 AXLE.CAST.IRON
4 532 40 30-89 21547663 SPINDLE.WELDED.LH.15"TEX
5 532 40 30-90 21547664 SPINDLE.WELDED.RH.15"TEX
6 532 12 49-31 21547540 WASHER.THRUST..75 X 1.230
7 532 12 17-48 21546066 WASHER.25/32 X 1-5/8 X 16GA.
8 812 00 00-29 21546053 RING.KLIP.#T5304-75
9 532 12 12-32 21546064 CAP.SPINDLE.FR.TOP.BLK.
13 532 12 17-49 21546067 WASHER.25/32 X 1 1/4 X 16 GA.
14 810 04 06-00 21546003 WASHER, LOCK 3/8
15 873 54 06-00 21546782 NUT.CROWNLOCK.3/8-24
16 532 40 82-19 21546628 SHAFT STEERING
19 532 19 47-29 21546334 PLATE.STEER.DDL.NLT/NGT
20 532 41 14-25 21547710 BOOT.STEERING.
21 532 18 67-37 21546234 ADAPTER.WHEEL.STRG..760
22 532 42 05-37 21547007 STEERING SUPT. LOWER
26 532 42 46-91 21547568 STEERING SUPT.LOWER
28 817 00 06-12 21546181 SCREW.HEXWSH THDR 3/8-16 X 3/4.BL
35 532 19 47-32 21546335 GEAR SECTOR.PLATE.DDL.NLT/NGT
45 819 11 38-12 21546280 WASHER.11/32ID X2 3/8OD X 12GA
51 873 94 08-00 21546795 NUT.HEX.JAM.TOPLOCK.1/2-20 UNF
53 532 18 89-67 21546272 WASHER.HARDEN..793 X 1.637 X 060
57 532 19 72-46 21546418 BRACKET.UPSTOP.TEX
58 532 19 47-47 21546339 BOLT.SHOULDER.SECTOR.PIVOT.CFM
59 532 19 47-48 21546340 WASHER.THRUST.SECTOR.STEER.NLT
60 873 97 10-00 21546797 NUT.FLANGE LOCK.5/8-11
61 532 19 47-40 21546337 DRAGLINK.LH.BALLSTUD.DDL.
62 532 19 47-41 21546338 DRAGLINK.RH.BALLSTUD.DDL
63 817 00 05-12 21546180 SCREW.5/16-18X3/4.SMGML.TAP/BL
64 532 19 98-49 21546512 RETAINER.CLIP.SPRING.STEERING
66 871 02 07-48 21546754 BOLT.HEX.FGHD.7/16-14 X 3.SERR
67 532 19 47-37 21546336 BUSHING.PM.FRONT AXLE
68 873 90 07-00 21546791 NUT.LOCK.FLANGE.7/16-14.GR5
69 532 19 91-62 21546483 WASHER.1.5 X .505 X .118
70 532 19 61-97 21546386 BRACKET.DECK.SUSPENSION.FRONT
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
STEERING ASSEMBLY
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

14
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
MOWER DECK
MOWER?DECKªTEX??R





























 






































 




15
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
MOWER DECK
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
1 532 44 18-47 21547787 DECK.WELDMENT.54"MS-422
6 532 19 60-66 21546380 COVER MANDREL LH
7 532 19 71-81 21546417 COVER MANDREL RH
8 532 19 30-03 21546301 BOLT 7/16 ASM. BLADE
11 532 18 72-56 21546235 BLADE BAGGING
- - 532 18 72-55 21546848 BLADE, 54" MULCHING
12 532 40 03-37 21547325 ROD ANTI-SWAY
13 532 18 72-91 21546239 SHAFT ASM. W/LOWER BEARING
14 532 18 72-81 21546238 HOUSING, MANDREL
15 532 11 04-85 21546046 BEARING, BALL, MANDREL
16 819 13 13-12 21546283 WASHER 13/32 X 13/16 X 12 GA.
18 872 14 05-05 21546770 BOLT CARR. 5/16-18 X 5/8
19 532 19 42-08 21546321 PIN COTTER 5/16 BOW TIE LOCK
21 873 68 05-00 21546784 NUT, CROWNLOCK 5/16-18 UNC
24 532 10 53-04 21546025 CAP SLEEVE
25 532 17 81-02 21546212 SPRING, TORSION
26 532 11 04-52 21546045 NUT, PUSH
27 532 18 89-38 21547760 DEFLECTOR SHIELD
29 532 13 14-91 21546081 ROD, HINGE
30 532 17 39-84 21546192 SCREW, THDROLL WASHER HEAD
31 532 18 76-90 21546253 WASHER, SPACER MOWER VENTED
32 532 15 35-35 21546127 PULLEY, MANDREL
33 532 40 02-34 21546554 NUT, FLG. TOP LOCK
34 873 68 06-00 21546785 NUT CROWNLOCK 3/8-16 UNC
39 532 19 73-80 21546442 PULLEY, IDLER, STATIONARY
43 532 19 60-65 21546378 ARM, IDLER
46 532 13 77-29 21546091 SCREW, THDROLL. 1/4-20 X 5/8
47 532 19 61-03 21546382 V-BELT, MOWER
49 873 90 06-00 21546790 NUT, LOCK FLG. 3/8-16 UNC
50 872 11 06-16 21546767 BOLT RDHD SQNK 3/8-16 UNC X 2
52 532 19 73-79 21546440 PULLEY IDLER 4.50
58 532 18 73-42 21546241 BAFFLE RIGHT
59 532 18 73-44 21546243 BAFFLE LEFT
60 532 18 76-07 21546251 BAFFLE CENTER
97 532 17 85-15 21546214 WASHER HARDENED
98 532 19 61-05 21546383 SPRING DRIVE
113 872 11 05-08 21546762 BOLT RDHD SQNK 5/16-18 X 3/4
114 532 18 75-56 21546248 ROD TENSION RELIEF
116 532 19 34-06 21546320 BOLT, SHOULDER
117 532 17 48-73 21546197 GAUGE WHEEL
120 819 13 20-12 21546286 WASHER 13/32 X 1-1/4 X 12 GA.
122 532 18 75-57 21546250 BUSHING TENSION RELIEF
185 873 90 07-00 21546791 NUT LOCK FLANGE 7/16-14 GR. 5
187 532 19 51-61 21546343 STUD FASTENER W/"D" ANTI-ROTATION
188 873 90 05-00 21546789 NUT LOCK HEX FLANGE 5/16-18
189 532 19 51-85 21546345 ARM SUSP. MOWER REAR
190 532 19 65-39 21546411 BOLT SHOULDER
192 532 19 84-68 21546479 KEEPER BELT IDLER
194 874 49 07-36 21547675 BOLT CARR SQNK 3/8-16 X 2-1/4
196 872 14 06-20 21546772 BOLT RDHD 3/8-16 UNC X 2-3/4 GR. 5
241 532 15 29-27 21547128 SCREW TT #10-32.5 3/8 FLANGE
242 532 41 55-98 21547345 PORT WASHOUT
- - 532 41 64-05 21547347 COUPLING QUICK CONNECT
- - 532 18 72-92 21546240 MANDREL ASM. SERVICE
(INCLUDES KEY NOS. 13-15 AND 33)
- - 532 42 39-65 21546866 REPLACEMENT MOWER, COMPLETE

16
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
MOWER LIFT



 








LIFTTEX??R






17
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
MOWER LIFT
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
2 532 42 20-27 21547240 SHAFT ASM., LIFT
3 532 19 52-30 21547313 LEVER ASM., LIFT RH
7 532 41 15-55 21547565 GRIP.LEVER..5625 ID.BLACK 428
10 532 19 63-14 21546397 SPRING TORSION
87 532 19 42-09 21546322 PIN COTTER 7/16 BOW TIE LOCK
88 532 19 53-04 21547314 SPRING LIFT ASSIST
89 819 19 19-12 21546292 WASHER CLEAR ZINC
90 532 19 42-08 21546321 PIN COTTER 5/16 BOW TIE LOCK
91 532 40 34-07 21546592 LINK LIFT SUSP MOWER REAR
97 817 00 06-12 21546181 SCREW 3/8-16 X .75
98 532 19 52-64 21546359 LINK LIFT SUSP. FRONT MOWER

18
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
SEAT ASSEMBLY
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43

19
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
SEAT ASSEMBLY
1 532 42 30-10 21546703 SEAT.TA150.KB/SLD.BLK.ARIENS
2 532 18 01-66 21546216 BRACKET.PIVOT.FENDER.2002
3 532 14 06-75 21546101 STRAP ASM.FENDER.94
6 873 80 06-00 21546787 LOCKNUT, WASHER INSERT 3/8-16
7 532 12 41-81 21546074 SPRING.SEAT.CPRSN.2.250.BLK.ZI
8 532 17 18-77 21546190 BOLT.5/16-18 UNC X 3/4 W/SEMS.BLK
10 532 19 69-77 21546414 PAN ASM.SEAT.3PT.
21 532 17 18-52 21546189 BOLT.SHLD.5/16-18 UNC-2A.BLK D
37 873 80 05-00 21546786 LOCKNUT, WASHER INSERT 5/16-18
40 532 19 76-61 21546451 HANDLE.SLIDE.SEAT.TEX.MILSCO
41 532 19 82-00 21546473 SPRING.LATCH.SEAT.TEX
43 874 76 06-12 21546810 BOLT.FIN.HEX.3/8-16 UNC X 3/4
44 819 13 38-12 21546288 WASHER.13/32 X 2 3/8 X 12 GA.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

20
TRACTOR - - MODEL NO. 93605500 (96046002800), PRODUCT NO. 960 46 00-28
DECALS
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
10
7
1
5
2
1
6
3
13
9
8
14
12
11
4
7
10
