Ariens Razor 911173 User manual

Operator’s Manual
Manuel du Utilisateur
05088700A •8/17
Printed in USA
ENGLISH
FRANÇAIS
E10
Models
911173 – Razor Push
(SN 55,000 +)
911175 – Razor Self-Propelled
(SN 55,000 +)
911179 – Razor Self-Propelled,
Electric Start
(SN 55,000 +)
Razor

WELCOME . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . 2
Practices and Laws . . . . . . . . . . . . . . . . 2
Emission Control System. . . . . . . . . . . . 2
Required Operator Training. . . . . . . . . . 2
Safety Alert Symbols . . . . . . . . . . . . . . . 2
Signal Words . . . . . . . . . . . . . . . . . . . . . 2
Safety Decals. . . . . . . . . . . . . . . . . . . . . 3
Safety Rules. . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . 8
Package Contents . . . . . . . . . . . . . . . . . 8
Assembly . . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROLS & FEATURES. . . . . . . . . . 9
Operator Presence Control (OPC)
Lever . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear Door . . . . . . . . . . . . . . . . . . . . . . . 10
Mulch Plug . . . . . . . . . . . . . . . . . . . . . . . 10
Grass Bag . . . . . . . . . . . . . . . . . . . . . . . 10
Handlebar . . . . . . . . . . . . . . . . . . . . . . . 10
Cutting Height-Adjustment Lever. . . . . . 10
Engine Key. . . . . . . . . . . . . . . . . . . . . . . 10
Deck Washout Port . . . . . . . . . . . . . . . . 10
Wheel Drive Control Lever. . . . . . . . . . . 11
BEFORE OPERATION . . . . . . . . . . . . . 11
Empty Grass Bag. . . . . . . . . . . . . . . . . . 11
Prepare For Mowing . . . . . . . . . . . . . . . 11
Adjust Cutting Height. . . . . . . . . . . . . . . 14
Cutting Height Settings . . . . . . . . . . . . . 14
Adjust Handlebar Height . . . . . . . . . . . . 14
OPERATION . . . . . . . . . . . . . . . . . . . . . 15
Emergency Stopping . . . . . . . . . . . . . . . 15
Start the Engine. . . . . . . . . . . . . . . . . . . 15
Mow Grass. . . . . . . . . . . . . . . . . . . . . . . 16
Stop Engine . . . . . . . . . . . . . . . . . . . . . . 16
Mowing Tips. . . . . . . . . . . . . . . . . . . . . . 16
Mulching Tips. . . . . . . . . . . . . . . . . . . . . 16
MAINTENANCE . . . . . . . . . . . . . . . . . . 16
Maintenance Schedule . . . . . . . . . . . . . 16
Service Parts . . . . . . . . . . . . . . . . . . . . . 17
Service Position. . . . . . . . . . . . . . . . . . . 17
Check Engine Oil. . . . . . . . . . . . . . . . . . 17
Change Engine Oil. . . . . . . . . . . . . . . . . 17
Clean Engine Cooling Fins . . . . . . . . . . 17
Check Air Filter . . . . . . . . . . . . . . . . . . . 17
Check Fasteners . . . . . . . . . . . . . . . . . . 17
Clean Grass Bag . . . . . . . . . . . . . . . . . . 17
Wash Deck. . . . . . . . . . . . . . . . . . . . . . . 18
Check Mower Blade. . . . . . . . . . . . . . . . 19
Check Drive Belt . . . . . . . . . . . . . . . . . . 20
Check Fasteners . . . . . . . . . . . . . . . . . . 20
Lubricate Unit. . . . . . . . . . . . . . . . . . . . . 20
SERVICE & ADJUSTMENTS . . . . . . . . 21
Adjust Wheel Drive Control Lever . . . . . 21
Adjust Operator Presence Control
(OPC) Lever. . . . . . . . . . . . . . . . . . . . . 21
Battery Service . . . . . . . . . . . . . . . . . . . 22
TROUBLESHOOTING . . . . . . . . . . . . . 24
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 25
Short-Term Storage. . . . . . . . . . . . . . . . 25
Long-Term Storage . . . . . . . . . . . . . . . . 25
Start-of-Season Fuel Preparation . . . . . 25
ACCESSORIES. . . . . . . . . . . . . . . . . . . 25
SPECIFICATIONS. . . . . . . . . . . . . . . . . 26
WARRANTY . . . . . . . . . . . . . . . . . . . . . 27
TABLE OF CONTENTS

EN - 1
WELCOME
Congratulations on your purchase and welcome to the Ariens family! Every machine in the
Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your
machine will be part of your family for many years to come.
Have Questions or Need Assistance?
ariensstore.com • ariens.custhelp.com
A service guide and parts manual for your unit are available for free
download or purchase at ariens.com.
PRODUCT REGISTRATION
You or the dealer you purchased the unit from
must register the product at the time of
purchase. Know the model and serial
numbers of your unit and register online at
ariens.com or return the registration card to
Ariens Company. See Figure 1 for label
location.
Record model number here.
Record serial number here.
Figure 1
Model & Serial
Number Label
MANUALS
Before operating or servicing the unit, carefully
and completely read the manuals provided with
the unit. They contain safety instructions and
important information about unit controls.
The engine on this unit is covered by a
separate manual. Refer to the engine manual
for engine service recommendations. Contact
the engine manufacturer for a replacement
manual if necessary.
Your dealer must review important information
in this manual with you before or upon delivery
of the unit. It is your responsibility to read and
understand all safety precautions and
instructions in the manuals. If you do not
understand or have difficulty following the
instructions, contact your Ariens dealer for
assistance. To locate your nearest Ariens
dealer, go to ariensstore.com.
DISCLAIMER
Ariens reserves the right to discontinue, make
changes to, and add improvements upon its
products at any time without public notice or
obligation. The descriptions and specifications
contained in this manual were in effect at
printing. Equipment described in this manual
may be optional. Some illustrations may not be
applicable to your unit.

EN - 2
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of unit, severe personal
injury or death to you or bystanders, or result
in damage to property or the machine.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions. Learn applicable rules and laws
in your area. ALWAYS follow the practices set
forth in this manual.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental Protection Agency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens Company
dealer or an authorized engine
manufacturer's service center. Contact your
Ariens Company Equipment Retailer
concerning emission controls and component
questions.
REQUIRED OPERATOR
TRAINING Read and understand the
Operator's Manual and decals
on the unit. This information is
for your safety and the proper
use of your equipment.
Failure to follow these
instructions and warnings may cause death
or serious injury. If you have purchased this
product from an Ariens dealer, the dealer can
provide you with training.
Familiarize yourself and any other operators
with all controls and the safe use of the
features of this unit. If you loan, rent or sell
this product to others, provide them with all
manuals.
If you have any questions, please call our
customer support line at 920-756-4688 or
contact us at www.ariens.com. DO NOT use
this equipment if, after reading the Operator's
Manual and the on-board decals, you have
any questions about the safe use of this
product.
SAFETY ALERT SYMBOLS
SIGNAL WORDS
The safety alert symbol above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
1. Danger
2. Warning
3. Caution
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not followed, property damage
could result.
SAFETY WARNING: This cutting machine
is capable of amputating hands
and feet and throwing objects.
Failure to observe the safety
instructions in the manuals and
on decals could result in serious
injury or death.
This is the safety alert symbol. It
means:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided, WILL
RESULT in death or serious
injury.
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided,
COULD RESULT in death or
serious injury.
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate
injury. It may also be used to alert
against unsafe practices.

EN - 3
5. Important
IMPORTANT: Indicates general reference
information worthy of special attention.
SAFETY DECALS
The safety decals on your machine are visual
reminders of the important safety information
in this manual. All messages on your unit
must be fully understood and carefully
followed. Safety decals on the machine are
explained below.
ALWAYS replace missing or damaged safety
decals. Replacement decal information is in
the parts manual for your machine. Decals
can be ordered from your dealer.
See Figure 2 for safety decal locations.
Safety Decal Identification
Safety Decal Description
1. DANGER!
DANGER!
Read and understand the
operator’s manual before
operating unit.
07800404
KEEP HANDS and FEET AWAY
02988100
Figure 2
1
2
1.1 Amputation Hazard
To avoid amputation hazard
DO NOT put hands near
rotating blades.
To avoid amputation hazard
DO NOT put feet near
rotating blades.
To avoid amputation hazard
DO NOT put hands or feet
near moving belts.
Keep hands and feet away
from all rotating or moving
parts.
Keep all guards and shields
in place.
1.2 Discharge Hazard
Discharge Hazard – NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
Keep children and others
away from unit while unit is
in operation.
DO NOT operate mower
unless guards are in
operating position or entire
bagger is attached.

EN - 4
SAFETY RULES
The following safety instructions are based
on the B71.1 specifications of the American
National Standards Institute and ISO 5395 in
effect at the time of production.
1.3 Tipping Hazard
SERIOUS INJURY OR
DEATH MAY RESULT
FROM MACHINE
ROLLOVER
• Failure to follow these instructions
could result in serious injury or death
• DO NOT operate machine on steep
slopes or near drop offs
• Avoid sharp and/or quick turns
DO NOT operate on slopes.
Look down and behind
before and while moving
backward.
2. DANGER!
Keep hands and feet away
from all rotating or moving
parts.
Training
Read, understand, and follow all instructions
on the machine and in the manuals before
starting.
Be sure the area is clear of bystanders and
pets before operating. Stop machine if
anyone enters the area.
Improper use of power equipment can cause
serous permanent injury or death to the
operator or a bystander.
Understand:
• How to operate all controls
• The functions of all controls
• How to STOP in an Emergency
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them.
ALWAYS train any inexperienced operators
and require them to read and understand all
manuals and decals.
Only allow responsible adults, who are
familiar with the instructions, to operate this
machine.
Only the user can prevent and is responsible
for accidents or injuries occurring to
themselves, other people or property.
Operator Age
DO NOT allow children under the age of 18
to operate any outdoor power equipment.
Local regulations may restrict the age of the
operator.
Children
Tragic accidents can occur if the operator is
not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. NEVER assume
that children will remain where you last saw
them.
Be alert and turn mower off if a child enters
the area.
NEVER allow children to operate the
machine.
Use extreme care when approaching blind
corners, shrubs, trees, or other objects that
may block your view of a child.
Keep children out of the mowing area and in
the watchful care of a responsible adult
other than the operator.
Personal Protection
DO NOT wear loose clothing or jewelry and
tie back hair that may get caught in rotating
parts.
Wear adequate outer garments.
Wear adequate safety gear and protective
gloves.

EN - 5
DO NOT operate machine barefooted or
while wearing sandals. ALWAYS wear
substantial footwear.
ALWAYS wear eye and ear protection when
operating machine.
Before Operating
Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
Maintain the machine to be in compliance
with the maintenance schedule.
Clean grass and debris from unit, especially
from around muffler and engine, to help
prevent fires.
Inspect unit before each use for missing or
damaged decals and shields, correctly
operating safety interlock system, and
deterioration of grass catchers. Replace or
repair as needed.
Ensure safety interlock system is functioning
properly. DO NOT operate unit if safety
interlock is damaged or disabled.
NEVER tamper with safety devices. Check
their proper operation regularly. NEVER do
anything to interfere with the intended
function of a safety device or to reduce the
protection provided by the safety device.
Keep machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage
and remove any fuel-soaked debris.
Operation
Releasing the operator presence control
(OPC) handle stops engine and blade within
3 seconds.
Check this feature frequently. If feature fails
to operate, disconnect spark plug wire and
adjust as necessary or have the unit
inspected and repaired by an authorized
Ariens dealer before using.
Be sure the area is clear of bystanders
before operating. Stop machine if anyone
enters the area.
NEVER operate machine in a closed or
poorly ventilated area.
ALWAYS maintain unit in safe operating
condition. Damaged or worn out muffler can
cause fire or explosion.
This product is equipped with an internal
combustion type engine. DO NOT use unit
on or near any unimproved, forest-covered
or brush covered land unless exhaust
system is equipped with a spark arrester
meeting applicable local, state or federal
laws. A spark arrester, if it is used, must be
maintained in effective working order by
operator.
DO NOT operate machine while feeling
tired, ill or under the influence of alcohol or
other drugs.
DO NOT put hands or feet near rotating
parts or under the machine. Keep clear of
the discharge opening at all times.
DO NOT touch parts which are hot. Allow
parts to cool.
DO NOT operate machine without the entire
grass catcher, discharge guard, or other
safety devices in place and working.
ALWAYS keep hands and feet away from all
pinch points.
NEVER operate mower in wet grass.
ALWAYS be sure of your footing; walk;
NEVER run.
NEVER direct discharged material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet
back toward the operator. Stop the blade(s)
when crossing gravel surfaces.
Disengage the drive system, if so equipped,
before starting the engine (motor).
If the machine should start to vibrate
abnormally, stop the engine (motor) and
check for the cause immediately. Vibration is
generally a warning of trouble.
Keep safety devices or guards in place and
functioning properly. NEVER modify or
remove safety devices.
DO NOT pull machine backward unless
absolutely necessary. ALWAYS look down
and behind before and while moving
backward.
Stop engine before removing grass catcher
or unclogging chute.
If you strike a foreign object, stop and
inspect the machine. Repair, if necessary,
before restarting.
NEVER leave a running machine
unattended.

EN - 6
Stop the engine (motor) and wait until the
blade(s) comes to a complete stop before
cleaning the machine, removing grass
catcher, or unclogging the discharge guard.
On self-propelled models, wheel drive must
be disengaged when starting engine.
On self-propelled models, releasing wheel
drive control must stop mower’s forward
movement. If this feature fails to operate,
disconnect spark plug wire and repair before
using unit.
Lightning can cause severe injury or death.
If lightning is seen or thunder is heard in the
area, do not operate the machine; seek
shelter.
Operating Conditions
Watch for traffic when operating near or
crossing roadways.
Clear the area of objects such as rocks,
wire, toys, etc., which could be thrown by the
blades. Stay behind the handle when the
engine (motor) is running.
Use care when approaching blind corners,
shrubs, trees or other objects that may
obscure vision.
Dust, smoke, fog, etc. can reduce vision and
cause an accident.
Operate machine only in daylight or good
artificial light.
See manufacturer’s instructions for proper
operation and installation of accessories.
Only use accessories approved by the
manufacturer.
Slope Operation
Slopes are a major factor related to loss of
control and tip-over accidents, which can
result in severe injury or death. Operation on
all slopes requires extra caution. If you feel
uneasy on it, DO NOT mow it.
Mow across slopes, NEVER up and down.
Exercise caution when changing direction
on slopes.
Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause
a slip and fall accident. Tall grass can hide
obstacles.
DO NOT mow wet grass or excessive steep
slopes. Poor footing could cause a slip and
fall accident.
DO NOT operate near drop-offs, ditches, or
embankments. You could lose your footing
or balance.
Fuel
To avoid personal injury or propertydamage,
use extreme care in handling gasoline.
Gasoline is extremely flammable and the
vapors are explosive.
Ethanol blends must not exceed E10. Higher
ethanol content may cause your
machine to run hotter and damage your
engine.
Replace fuel cap securely and clean up
spilled fuel before starting engine.
Extinguish all cigarettes, cigars, pipes, and
other sources of ignition.
Use only an approved gasoline container.
NEVER store the machine or fuel container
where there is an open flame, spark, or pilot
light such as on a water or space heater or
other appliances.
NEVER fill containers inside a vehicle or on
a truck or trailer bed with a plastic liner.
ALWAYS place containers on the ground
away from your vehicle before filling.
NEVER fuel the machine indoors.
NEVER remove gas cap or add fuel with the
engine running. Allow engine to cool before
fueling.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use only an
approved gasoline container with an
appropriately sized dispensing spout.
NO smoking, NO sparks, NO flames.
Remove gas-powered equipment from the
truck or trailer and refuel it on the ground. If
this is not possible, then refuel such
equipment with a portable container, rather
than from a gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until the fueling is complete. DO NOT
use a nozzle lock-open device.
NEVER overfill fuel tank. Replace gas cap
and tighten securely.
If fuel is spilled on clothing, change clothing
immediately.

EN - 7
Accessories
Check grass catcher components and the
discharge guard frequently and replace with
the manufacturer’s recommended parts
when necessary.
Use only Ariens Company-recommended
attachments that are appropriate to your use
and can be used safely in your application.
Batteries
Avoid Electric Shock. Objects contacting
both battery terminals at the same time may
result in injury and unit damage. DO NOT
reverse battery connections.
No flames, No sparks, No smoking near
battery.
ALWAYS wear safety glasses and protective
gear near battery. Use insulated tools.
ALWAYS keep batteries out of reach of
children.
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and reproductive
harm. Wash hands after handling.
Reverse connections may result in sparks
which can cause serious injury. ALWAYS
connect positive (+) lead of harness to
positive (+) terminal and negative (–) lead to
negative (–) terminal.
A frozen battery can explode and result in
death or serious injury. DO NOT charge or
jump start a battery containing frozen fluid.
Thaw the battery before puttingon a charger
or jump starting.
Service
Maintain or replace safety and instruction
labels, as necessary.
Keep unit free of debris. Clean up oil or fuel
spills.
DO NOT change engine governor setting or
overspeed the engine.
NEVER make any adjustments or repairs
with the engine (motor) running. *Disconnect
the spark plug wire and ground against
engine to prevent unintended starting.
Allow engine to cool before servicing.
Moving parts can cut or amputate fingers or
a hand. On multiblade mowers, rotation of
one blade will cause all blades to rotate.
NEVER weld or straighten mower blades.
Mower blades are sharp. Wrap the blade or
wear gloves, and use extra caution when
servicing them.
The use of non-genuine replacement parts
or accessories could adversely affect
machine operation and safety.
Transporting Unit
Use extra care when loading or unloading
the machine onto a truck or into a trailer.
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
DO NOT transport machine while engine is
running.
ALWAYS stop engine and shut off fuel when
transporting unit.
Storage
NEVER store unit with fuel in fuel tank,
inside a building where any ignition sources
are present.
Keep machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage
and remove any fuel-soaked debris. Allow
machine to cool before storing.
For extended storage, shut off fuel and
clean unit thoroughly. See engine manual for
proper storage.

EN - 8
PACKAGE CONTENTS
See Figure 3.
ASSEMBLY
1. Remove contents from box.
Model 911173
2. Remove handlebar mounting hardware.
See Figure 4.
3. Rotate handlebar to desired position and
secure with mounting hardware. See
Figure 5.
Models 911175, 911179
4. Rotate handlebar to upright position.
5. Push operator presence control (OPC)
lever forward and rotate handlebar to
desired position. Release lever. See
Adjust Handlebar Height on page 14.
All Models
6. Check engine oil level and add oil if
necessary. Refer to engine manual.
7. Prepare mower for bagging, side
discharge or mulching. See Prepare For
Mowing on page 11.
ASSEMBLY
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.

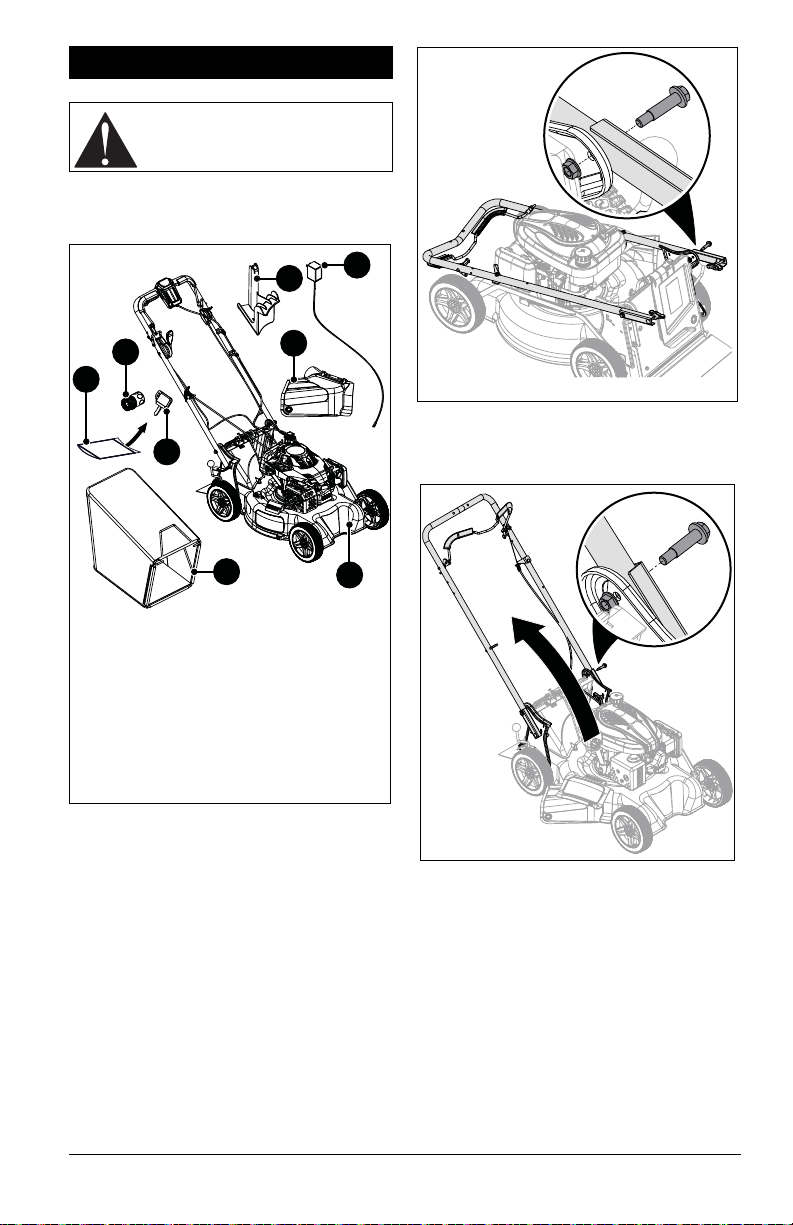

Figure 3
1. Mower
2. Side Discharge Chute
3. Mulch Plug
4. Hose Coupler
5. Grass Bag
6. Literature Pack
7. Battery Charger (Model 911179)
8. Engine Key (Model 911179)
1
2
4
3
5
7
6
8
Figure 4
Figure 5

EN - 9
1. Operator Presence Control (OPC) Lever
2. Wheel Drive Control Lever (Models
911175, 911179)
3. Handlebar
4. Cutting Height-Adjustment Lever
5. Grass Bag
6. Rear Door
7. Mulch Plug
8. Side Discharge Cover
9. Side Discharge Chute
10. Fuel Tank and Cap
11. Oil Fill / Dipstick
12. Air Filter
13. Recoil Starter Handle
14. Engine Key (Model 911179)
15. Battery (Model 911179)
16. Fuel Valve
17. Deck Washout Port
18. Hose Coupler

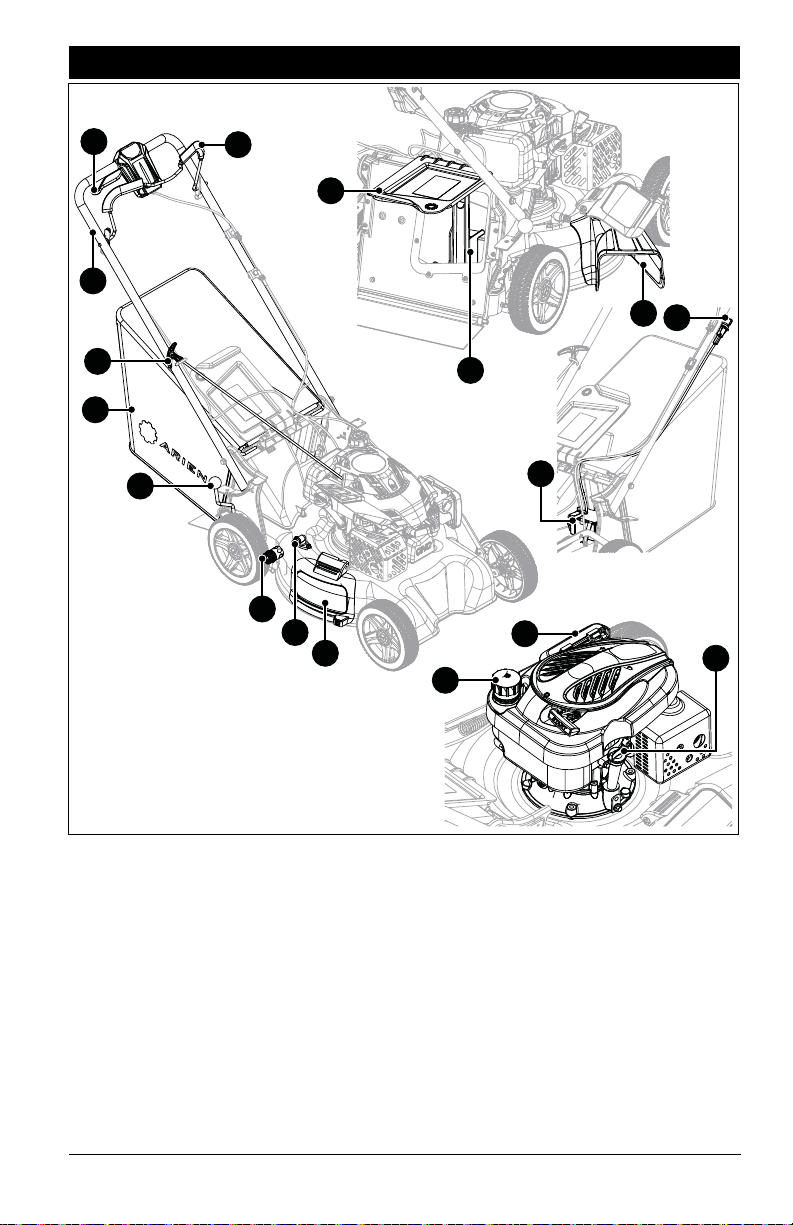

CONTROLS & FEATURES
Figure 6
1
2
3
6
5
4
18 17 810
12
15
7
914
11
13

EN - 10
See Figure 6 for all controls and features
locations.
OPERATOR PRESENCE
CONTROL (OPC) LEVER
See Figure 7.
Allows for engine start, operation and blade
rotation when pulled against handlebar. Lever
MUST remain engaged to mow.
When released, blade rotation disengages
and engine stops.
IMPORTANT: Releasing the OPC lever stops
engine and blade within 3 seconds. If feature
fails, see your Ariens dealer.
REAR DOOR
Opens to collect grass clippings while
bagging or to install mulch plug for side
discharge or mulching setup.
MULCH PLUG
Installs in rear door for mulching or side
discharge setup. See Mulch Grass Clippings
on page 13 or Side Discharge Grass
Clippings on page 12.
GRASS BAG
Collects grass clippings for bagging setup.
See Bag Grass Clippings on page 12.
HANDLEBAR
Height-adjustable for operator comfort. See
Adjust Handlebar Height on page 14.
CUTTING HEIGHT-ADJUSTMENT
LEVER
Adjusts cutting height from 2.5 cm – 10.2 cm
(1" – 4") in 1.3 cm (1/2") increments. See
Adjust Cutting Height on page 14.
ENGINE KEY
Model 911179
See Figure 8.
Starts the engine on fully-charged
electric-start models.
DECK WASHOUT PORT
When secured to coupler, garden hose
fastens to washout port and washes grass
clippings and debris from under deck. See
Wash Deck on page 18.
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.
Figure 7
To Start / While Mowing
Engine Stopped / Blade Rotation
Disengaged
Figure 8
Off
Start

EN - 11
WHEEL DRIVE CONTROL LEVER
Models 911175, 911179
See Figure 9.
When pulled toward handlebar, engages
wheel drive and propels mower forward.
Release lever to stop wheels.
Lever has variable speed control. The closer
its position to the handlebar, the faster the
mower drives forward. IMPORTANT:Allreferencestoleft,right,front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
1. Know how to stop in an emergency. See
Emergency Stopping on page 15.
2. Check fuel level and add fuel if needed.
IMPORTANT: Use fresh unleaded fuel with
an octane rating of at least 87. DO NOT use
E85 blended fuels; the engine is not E20 /
E30 / E 85 compatible. The maximum
recommended ethanol content is 10%. Ariens
recommends using a quality fuel stabilizer in
all fuel. See Short-Term Storage on page 25.
3. Check engine oil level and add oil if
needed. Refer to engine manual.
4. Check air filter condition. Refer to engine
manual.
5. Model 911179: Charge battery. See
Charge Battery on page 22.
6. Check function of all controls.
EMPTY GRASS BAG
1. Lift rear door slightly and remove bag
from bag mount. See Figure 12.
2. Slowly return rear door to closed position.
3. Empty bag.
NOTICE: Clean bag and mower pan after
bagging. DO NOT allow grass to collect
inside bag or mower pan. See Clean Grass
Bag on page 17.
PREPARE FOR MOWING
Mowing setup may be adjusted between
mulching, bagging and side discharge.
Figure 9
Fast
Slow
Stop
BEFORE OPERATION
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.
CAUTION: NEVER operate
mower with rear door open
unless bag is installed.
DO NOT operate mower without
either side discharge chute or
side discharge cover installed.

EN - 12
Bag Grass Clippings
1. Stop engine, wait for all moving parts to
stop and for hot parts to cool.

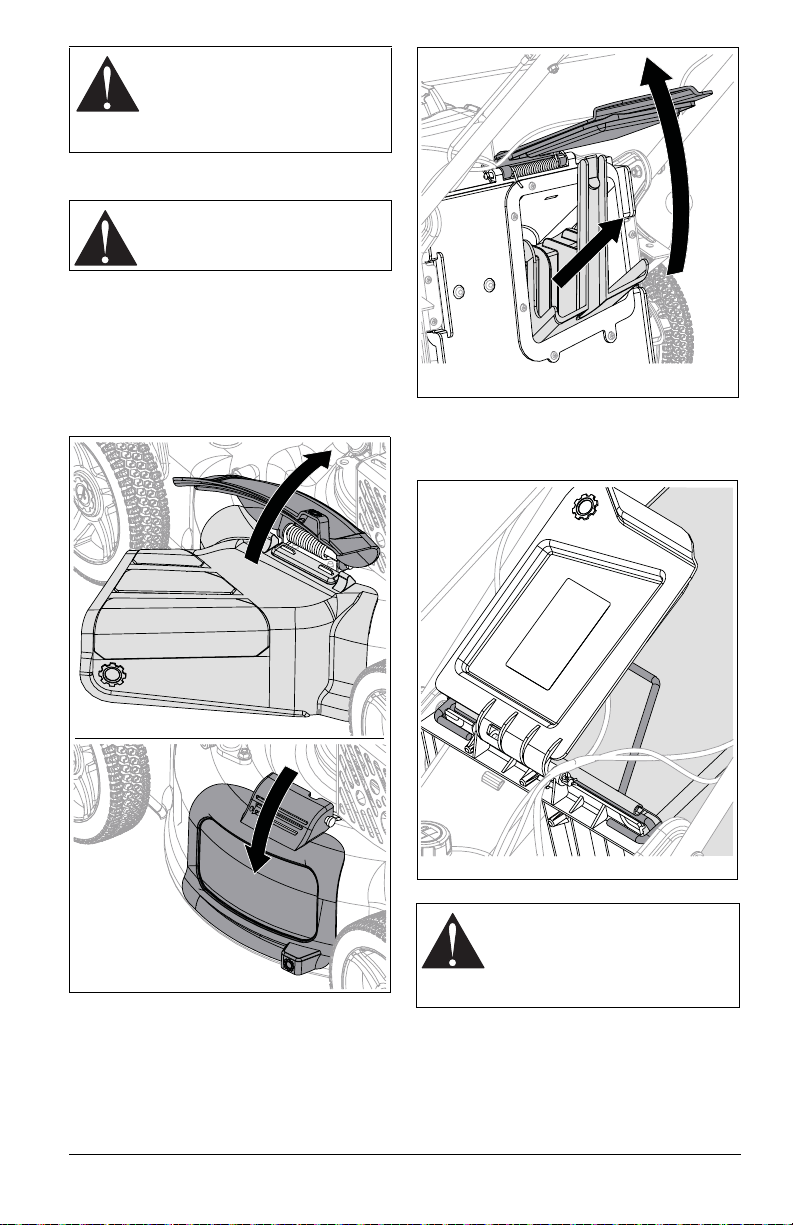

See Figure 10.
2. Lift discharge cover and remove
discharge chute.
3. Slowly return discharge cover to closed
position.
4. Lift rear door and remove mulch plug.
See Figure 11.
5. Hold rear door open and install grass bag
onto bag mount. Release rear door. See
Figure 12.
Side Discharge Grass Clippings
1. Stop engine, wait for all moving parts to
stop and for hot parts to cool.
2. Remove grass bag. See Empty Grass
Bag on page 11.
CAUTION: If clog or obstruction
prevents grass discharge, stop
engine, wait for moving parts to
stop and for hot parts to cool
before clearing obstruction.
CAUTION: Bag wears from
normal use. Check bag frequently
for wear and replace if necessary.
Figure 10
CAUTION: There should be no
gaps between bagger and
mounting surface. If necessary,
clear debris from bag mounting
surface.
Figure 11
Figure 12

EN - 13

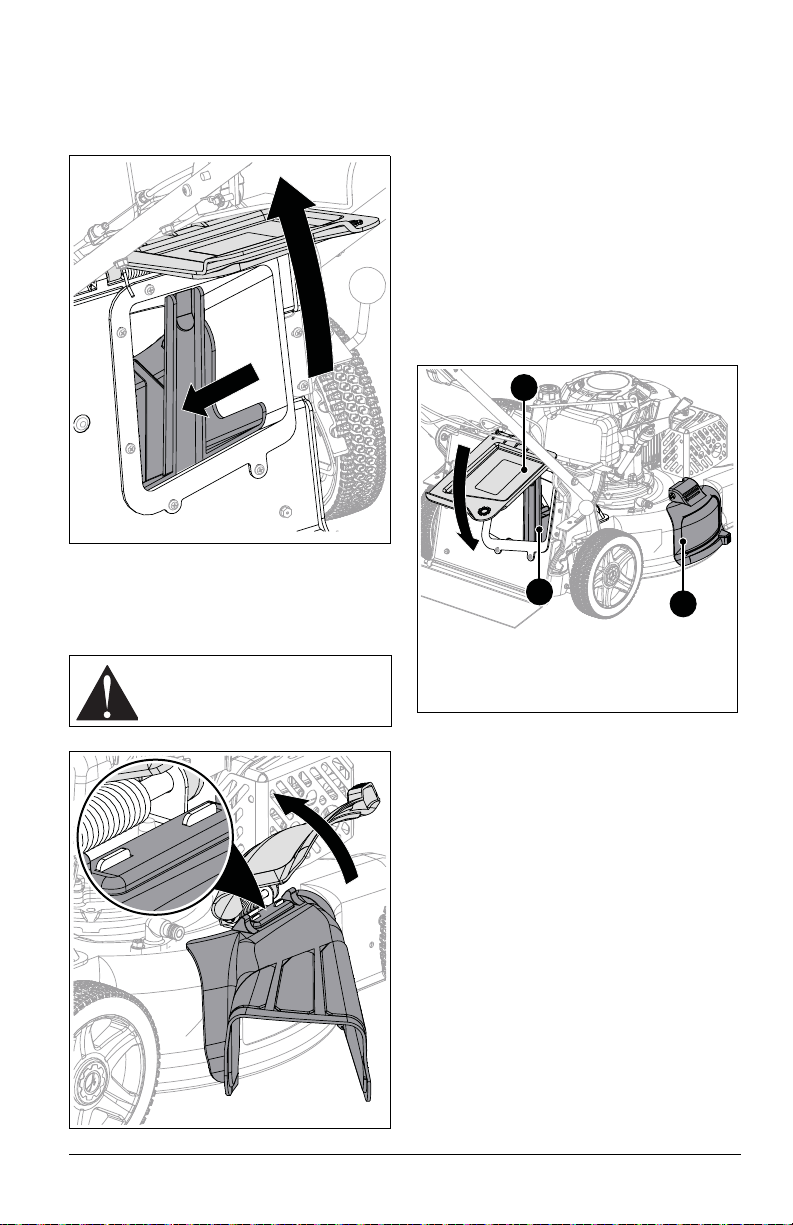

See Figure 13.
3. Lift rear door and install mulch plug.
IMPORTANT: Mulch plug locks into position.
Ensure that mulch plug is secure by gently
pulling on bottom of plug handle.
4. Slowly return rear door to closed position.
See Figure 14.
5. Open the side discharge cover.
6. Install side discharge chute onto tabs.
7. Slowly release side discharge cover and
allow it to rest on discharge chute.
Mulch Grass Clippings
1. Stop engine, wait for all moving parts to
stop and for hot parts to cool.
2. Lift discharge cover and remove
discharge chute. See Figure 10.
See Figure 15.
3. Slowly return discharge cover to closed
position.
4. Lift rear door and install mulch plug.
IMPORTANT: Mulch plug locks into position.
Ensure that mulch plug is secure by gently
pulling on bottom of plug handle.
5. Slowly return rear door to closed position.
CAUTION: Discharge chute
MUST completely cover
discharge opening.
Figure 13
Figure 14
Figure 15
1
1. Side Discharge Cover
2. Mulch Plug
3. Rear Door
2
3

EN - 14
ADJUST CUTTING HEIGHT
1. Stop engine, wait for all moving parts to
stop and for hot parts to cool.
2. Pull cutting height-adjustment lever out of
notch and rotate to desired setting. See
Figure 16.
CUTTING HEIGHT SETTINGS
ADJUST HANDLEBAR HEIGHT
Model 911173

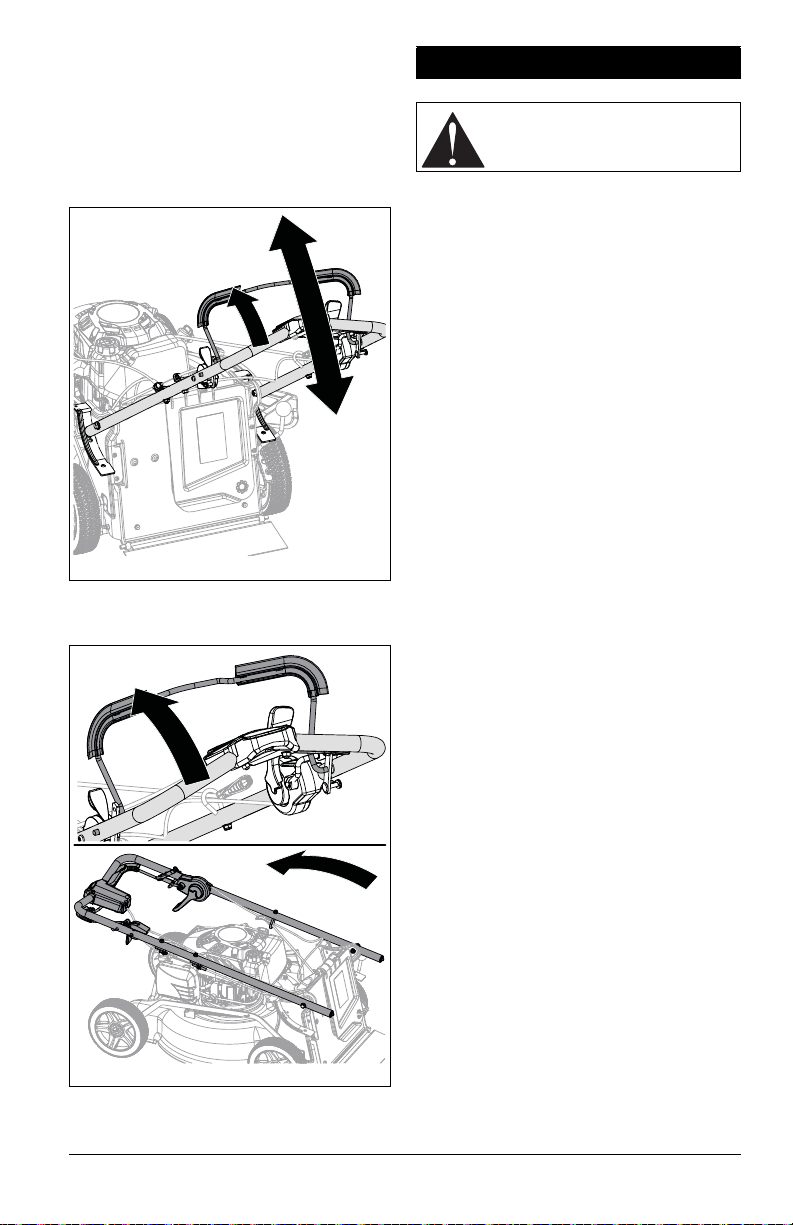

See Figure 17.
1. Loosen, but DO NOT remove upper
handlebar hardware.
2. Support handlebar and remove lower
handlebar hardware.
3. Rotate handlebar to desired height.
4. Align handlebar with nearest mounting
holes and reinstall hardware.
5. Tighten upper handlebar hardware.
• For storage, rotate handlebar completely
forward and reinstall hardware. See
Figure 18.
Notch Desired Grass Height
12.5cm(1")
2 3.8 cm (1 1/2")
35.1cm(2")
4 6.4 cm (2 1/2")
57.6cm(3")
6 8.9 cm (3 1/2")
7 10.2 cm (4")
Figure 16
Figure 17
Figure 18

EN - 15
Models 911175, 911179
See Figure 19.
1. Push OPC lever forward and raise or
lower handlebar to desired position.
2. Release OPC lever and move handlebar
up or down slightly until it locks in desired
position. Ensure handlebar is locked in
position before operating.
• For storage, rotate handlebar completely
forward. See Figure 20.
IMPORTANT:Allreferencestoleft,right,front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
EMERGENCY STOPPING
1. Release the operator presence control
(OPC) lever.
2. Models 911175, 911179:Release the
wheel drive control lever.
3. Wait for moving parts to stop before
leaving operator’s position.
START THE ENGINE
Electric Start
Model 911179
NOTICE: DO NOT start engine when charger
is connected to battery.
1. Pull operator presence control (OPC)
lever against handlebar and hold position.
2. Turn engine key to start position and
release when engine starts.
NOTICE: DO NOT operate starter
continuously for more than 15 seconds or
damage may occur.
IMPORTANT: If engine does not crank,
battery may be discharged. Start unit with the
recoil starter handle. See Manual Start on
page 15.
Manual Start
1. Pull operator presence control (OPC)
lever against handlebar and hold position.
2. Pull recoil starter handle.
a. Grasp handle and pull rope out slowly
until it pulls harder.
b. Pull handle firmly and quickly with a
rapid, continuous full-arm stroke.
c. Repeat until engine starts. If engine
does not start, see Troubleshooting
on page 24.
Figure 19
Figure 20
OPERATION
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.

EN - 16
MOW GRASS
1. Start the engine and hold OPC lever
position. See Start the Engine on
page 15.
2. Models 911175, 911179: Engage wheel
drive control lever to travel to starting
point. Release lever to stop wheels.
Model 911173: Push mower to starting
point.
3. Models 911175, 911179: Engage wheel
drive control lever to move mower
forward. Release lever to stop wheels.
Model 911173: Push mower.
4. To make turns, stop forward motion, push
handlebar down slightly and rotate mower
left or right.
STOP ENGINE
Model 911173
1. Release OPC lever and move unit to a
flat, level surface.
Models 911175, 911179
1. Release wheel drive control lever.
2. Release OPC lever and move unit to a
flat, level surface.
3. Model 911179: Remove engine key.
MOWING TIPS
• Cut grass when it is dry.
• Keep mower blades sharp.
• DO NOT set cutting height too low. For tall
grass, mow twice.
• DO NOT mow too fast.
• Discharge clippings into areas already cut.
• Vary cutting pattern with each mowing.
IMPORTANT: To prevent dirt and grass from
collecting on mower pan, avoid operating
over bare ground with only patches of grass.
MULCHING TIPS
• Cut no more than 2.5 cm (1") of grass per
cutting.
Your Ariens dealer can provide service and
adjustments to keep your unit operating at
peak efficiency. Contact an authorized engine
manufacturer’s service center for engine
service.
MAINTENANCE SCHEDULE
MAINTENANCE
CAUTION: AVOID INJURY. Read
and understand the Safety section
before proceeding.
Service Performed
Each Use
Every 5 hrs.
Every 25 hrs.
Every 100 hrs.
Check Operator
Presence Control /
Blade Brake Clutch
Handle •
Check Wheel Drive
Control •
Check Blade Brake
Clutch Lever •
Check Grass Bag •
Clean Unit •
Check Engine Oil * •
Check Cooling Fins * •
Check Mower Blade •
Check Drive Belt •
Check Fasteners •
Wash Deck •
Clean Grass Bag •
Check Air Filter * •
Change Engine Oil *
General Lubrication •
Check OPC Lever
Cable Adjustment •
Check Spark Plug *
Clean Engine
Cooling Fins * •
Check Muffler •
* Refer to engine manual for instructions.

EN - 17
SERVICE PARTS
See your Ariens dealer to purchase service
parts for your unit.
SERVICE POSITION
1. Place unit on a flat, level surface.
2. Stop engine, wait for all moving parts to
stop and for hot parts to cool.
3. Drain fuel from fuel tank and fuel system.
Refer to engine manual for instructions.
4. Disconnect spark plug wire.
5. Remove discharge chute, if installed.
6. Adjust handlebar to the vertical position.
7. Rotate unit onto its right side. Make sure
unit is secure and will not tip. See
Figure 21.
CHECK ENGINE OIL
NOTICE: Engine oil level MUST be
maintained at correct level or engine damage
may occur. Refer to engine manual.
CHANGE ENGINE OIL
Refer to engine manual.
CLEAN ENGINE COOLING FINS
Cooling fins circulate air around cylinder head
and engine block. Engine may overheat if fins
are clogged or damaged.
Refer to engine manual.
CHECK AIR FILTER
Check air filter and replace if clogged or
damaged.
IMPORTANT: Cutting height MUST be set to
lowest position to remove air filter cover.
Refer to engine manual.
CHECK FASTENERS
Check for loose or missing hardware.
CLEAN GRASS BAG
Check grass bag frequently for wear.
Remove grass bag, empty grass clippings,
wash with garden hose and allow it to dry.
Replace worn or damaged bag with Ariens
original equipment only.
Clean grass clippings and other debris from
mower pan. See Figure 22.
Description Part No.
Air Filter 21100121
Spark Plug 21100123
Blade 04544400
Battery
(Model 911179) 04765800
Battery Charger
(Model 911179) 04537000
Transmission Belt
(Models 911175, 911179) 07200633
Grass Collector Bag 05088500
Fuel Stabilizer – 118 mL
(4 oz)
• Except Canada
• For Canada Only 04730400 04742500
CAUTION: AVOID INJURY.
Before placing unit in service
position, close fuel valve and drain
fuel from tank and fuel system.
(Refer to engine manual for
instructions).
Make sure unit is secure and will
not tip.
Figure 21
Figure 22

EN - 18
WASH DECK
See Figure 23.
Occasional deck cleaning with the washout
port prevents debris buildup and maintains
cutting efficiency.
IMPORTANT: Use of the washout port may
deposit a dark-green residue on surface
where deck was cleaned.
1. Move unit to a flat, level surface.
2. Stop engine, wait for all moving parts to
stop and for hot parts to cool.
NOTICE: DO NOT use washout port when
mower is warm from operation.
3. Secure coupler to garden hose.
4. Firmly push coupler onto washout port
until coupler clicks.
5. Gently tug on the hose to verify coupler is
secure.
IMPORTANT: If water leaks from coupler,
coupler is not secure.
6. Open water-supply valve.
7. Start engine and engage mower blade.
Keep blade engaged until water color
under deck changes from green to clear.
See Start the Engine on page 15.
8. Stop engine, wait for all moving parts to
stop and for hot parts to cool. See Stop
Engine on page 16.
9. Pull lock collar away from washout port
and remove hose from port. See
Figure 24.
10. Remove coupler from hose end.
11. Start engine and engage blade for
approximately 2 – 3 minutes to remove
excess water from unit.
12. Stop engine and allow deck to dry before
storing.

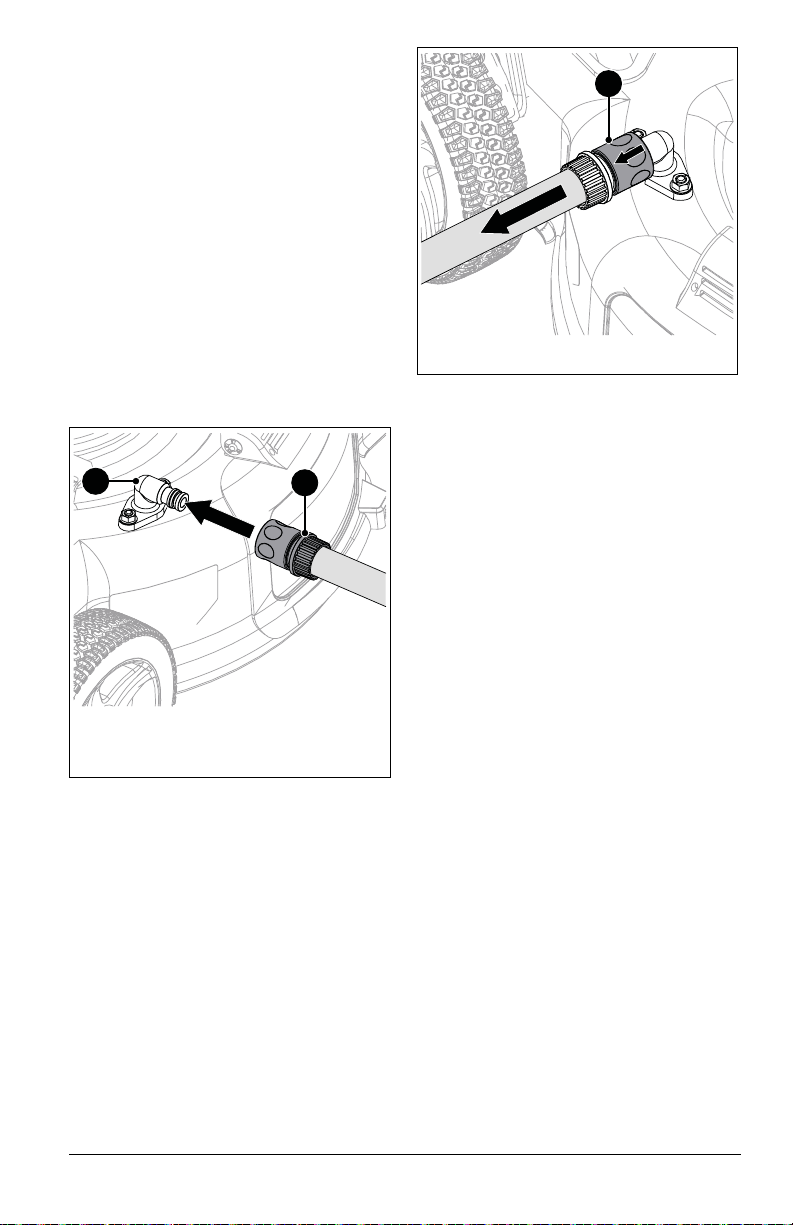

Figure 23
1. Hose Coupler
2. Washout Port
1
2
Figure 24
1. Lock Collar
1
