Aries 921024 - Deluxe 24 2015 User manual

04855200 • 8/15
ENGLISH
E10
Service Guide
Models
921024 – Deluxe 24
(SN 150000 +)
921030 – Deluxe 28
(SN 150000 +)
921032 – Deluxe 30
(SN 150000 +)
921044 – Deluxe 28
(SN 000101 +)
921319 – Deluxe 24 CE
(SN 120,000 +)
921320 – Deluxe 30 CE
(SN 120,000 +)
921321 – Deluxe 28 CE
(SN 120,000 +)
Sno-Thro®
Deluxe Series

EN – 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRACTICES & LAWS . . . . . . . . . . . . . . . . . . 3
REQUIRED OPERATOR TRAINING. . . . . . . 3
SAFETY ALERT SYMBOL . . . . . . . . . . . . . . 3
SIGNAL WORDS . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . 4
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . 5
DRAINING FUEL SYSTEM . . . . . . . . . . . . . . 8
SERVICE POSITION . . . . . . . . . . . . . . . . . . . 8
BOTTOM COVER REMOVAL . . . . . . . . . . . . 9
SEPARATE AUGER HOUSING
FROM FRAME . . . . . . . . . . . . . . . . . . . . . . . 10
ATTACHMENT DRIVE BELT
REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . 12
TRACTION DRIVE BELT
REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . 14
ATTACHMENT BRAKE REPLACEMENT. . . 15
FRICTION DISC REPLACEMENT. . . . . . . . . 17
AUGER REPLACEMENT . . . . . . . . . . . . . . . 19
AUGER GEARCASE REPLACEMENT. . . . . 22
IMPELLER REPLACEMENT. . . . . . . . . . . . . 23
ENGINE REPLACEMENT . . . . . . . . . . . . . . . 24
TRACTION DRIVE CABLE
REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . 26
AXLE BUSHING REPLACEMENT
(LEFT SIDE) . . . . . . . . . . . . . . . . . . . . . . . . . 27
AXLE BUSHING REPLACEMENT
(RIGHT SIDE) . . . . . . . . . . . . . . . . . . . . . . . . 28
FLANGE BUSHING REPLACEMENT. . . . . . 30
BEARING FLANGE REPLACEMENT. . . . . . 31
DIFFERENTIAL GEAR REPLACEMENT . . . 31
CHUTE GEAR REPLACEMENT . . . . . . . . . . 32
SCRAPER BLADE REPLACEMENT. . . . . . . 34
SERVICE PARTS. . . . . . . . . . . . . . . . . . . . . . 35
SERVICE RECORD . . . . . . . . . . . . . . . . . . . . 36
TABLE OF CONTENTS

EN – 2
Have Questions or Need Assistance?
ariensstore.com (Dealer Locator)
ariens.custhelp.com (Self-Support)
A parts manual and an operator’s manual for your unit are
available for free download or purchase at ariens.com.
Ariens recommends using only genuine Ariens replacement parts on this unit. Using unauthorized
parts may adversely affect the performance, durability or safety of this unit and may void the warranty.
Installing unauthorized parts will not automatically void the warranty; however, the warranty will not
apply if the installation and use of unauthorized parts damages the unit. The Ariens warranty applies
solely to defects in Ariens materials and / or factory workmanship. Ariens disclaims liability for any
claims or damages – whether warranty, property damage, personal injury or death – arising from using
unauthorized replacement parts.
Before operating or servicing the unit, carefully and completely read the Operator’s Manual and
engine manual provided with the unit at time of purchase. They contain important safety instructions
and information about unit controls.
Be aware of your mechanical aptitude when applying information in this manual for service and / or
repairs. If you are not comfortable or capable of completing service and / or repairs to the machine,
take the machine to an authorized Ariens service dealer.
WELCOME

EN – 3
Read these safety rules and follow them closely. Failure to
follow these rules could lead to loss of control of unit,
severe personal injury or death to you or bystanders, or
result in damage to property or the machine.
PRACTICES & LAWS
Practice usual and customary safe working precautions.
Learn applicable rules and laws in your area. Always follow
the practices set forth in this manual.
REQUIRED OPERATOR TRAINING
The original purchaser of this unit was instructed by the
seller on safe and proper operation. If unit is to be used by
someone other than the original purchaser, loaned, rented,
or sold, ALWAYS provide this manual and any needed
safety training before operation.
SAFETY ALERT SYMBOL
SIGNAL WORDS
The safety alert symbol above and signal words below are
used on decals and in this manual. Read and understand
all safety messages.
1. Danger
2. Warning
3. Caution
4. Notice
NOTICE: Indicates information or procedures that are
considered important but not hazard related. If not
followed, property damage could result.
5. Important
IMPORTANT: Indicates general reference information
worthy of special attention.
SAFETY
WARNING: AVOID INJURY. This snow thrower
is capable of crushing or amputating body parts.
Failure to observe the safety instructions in the
manuals and on decals could result in serious
injury or death.
ALWAYS disengage auger, stop unit and engine,
remove key and allow moving parts to stop
before leaving operator’s position.
This is the safety alert symbol. It means:
• ATTENTION!
• YOUR SAFETY IS INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
DANGER: Indicates an IMMINENTLY
HAZARDOUS SITUATION! If not avoided, WILL
RESULT in death or serious injury.
WARNING: Indicates a POTENTIALLY
HAZARDOUS SITUATION! If not avoided,
COULD RESULT in death or serious injury.
CAUTION: Indicates a POTENTIALLY
HAZARDOUS SITUATION! If not avoided, MAY
RESULT in minor or moderate injury. It may also
be used to alert against unsafe practices.

EN – 4
SAFETY DECALS
The safety decals on your machine are visual reminders of
the important safety information in this manual. All
messages on your unit must be fully understood and
carefully followed. Safety decals on the machine are
explained below.
Always replace missing or damaged safety decals.
Replacement decal information is in the parts manual for
your machine. Decals can be ordered from your dealer.
See Figure 1 for safety decal locations.
Safety Decal Locations
Safety Decal Descriptions
1. CAUTION!
Danger!
Only use clean-out tool to clear blockages.
NEVER use your hands.
NEVER direct discharge towards persons or
property that may be injured or damaged by
thrown objects.
Keep people away from unit while operating.
Keep children out of work area and under
watchful care of a responsible adult.
08000519B
080000945
Figure 1
3
2
1
Stop engine, remove key, and read manual
before making any repairs or adjustments.
Read Operator’s Manual.
Wear appropriate hearing protection.
2. DANGER!
Danger!
ROTATING PARTS! Only use clean-out tool
to clear blockages. NEVER use your hands.
High-speed auger/impeller rotates below
discharge opening. Wait for all moving parts
to stop before removing clogs or servicing.
3. DANGER!
Danger!
ROTATING PARTS! Keep clear of auger
while engine is running.
• Read Operator’s Manual.
• Allow operation only by properly-trained
adult, never children.
• Stop engine and remove ignition key prior
to leaving the operator’s position for any
reason.
• Keep all controls, guards and safety
devices properly serviced and functional.
• NEVER direct discharge towards persons
or property that may be injured or damaged
by thrown objects.

EN – 5
SAFETY RULES
The following safety instructions are based on the B71.3
specifications of the American National Standards Institute
in effect at the time of production.
Training
Read, understand and follow all instructions on the
machine and in the manual(s) before operating this unit.
Be thoroughly familiar with the controls and the proper use
of the equipment. Know how to stop the unit and
disengage the controls quickly.
Never allow children to operate or play on or near the
equipment. Never allow adults to operate the equipment
without proper instruction.
Keep the area of operation clear of all persons,
particularly small children. Be alert and shut off unit if
children enter area.
Exercise caution to avoid slipping or falling, especially
when operating the snow thrower in reverse.
Always remove key and/or wire from spark plug before
assembly, maintenance or service. Unintentional engine
start up can cause death or serious injury.
Complete a walk-around inspection of the unit to
understand the unit, your work area and all safety decals.
Understand how to operate all controls, the functions of all
controls and how to STOP in an emergency.
Preparation
Always check overhead and side clearances carefully
before operation.
Always be aware of traffic when operating near streets or
along curbs.
Thoroughly inspect the area where the equipment is to be
used and remove all doormats, sleds, boards, toys, wires
and other foreign objects.
Disengage all clutches and shift into neutral before
starting the engine.
Use extension cords and receptacles as specified by the
manufacturer for all units with electric drive motors or
electric starting motors.
Handle fuel with care; it is highly flammable.
• Use an approved fuel container.
• Never add fuel to a running engine or hot engine.
• Fill fuel tank outdoors with extreme care. Never fill fuel
tank indoors.
• Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers
on the ground, away from your vehicle, before filling.
• When practical, remove gas-powered equipment from
the truck or trailer and refuel it on the ground. If this is
not possible, then refuel such equipment on a trailer
with a portable container, rather than from a gasoline
dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank
or container opening at all times, until refueling is
complete. Do not use a nozzle lock-open device.
• Replace gasoline cap securely and wipe up spilled fuel.
• If fuel is spilled on clothing, change clothing
immediately.
Adjust the auger / impeller housing height to clear gravel
or crushed rock surface.
Never attempt to make any adjustments while the engine
is running (except when specifically recommended by
manufacturer).
Always allow unit and engine to adjust to outdoor
temperature before clearing snow.
Operation
Disengage all controls before starting engine.
Never leave a running unit unattended. Always stop
engine and remove key before leaving unit to prevent
unauthorized use.
Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
Moving and/or rotating parts can cut off body parts such
as fingers or a hand. NEVER place your hands, other
body part or clothing near any moving parts while unit is
running.
Always keep hands away from all pinch points.
Do not touch parts which might be hot from operation.
Allow parts to cool before attempting to maintain, adjust or
service.
Thrown objects can cause injury. Check for weak spots on
docks, ramps or floors. Avoid uneven work areas and
rough terrain and stay alert for hidden hazards.
Exercise extreme caution when operating on or crossing
gravel drives, walks or roads. Stay alert for hidden
hazards or traffic.

EN – 6
After striking a foreign object, stop the engine, remove the
wire from the spark plug, disconnect the cord on electric
motors, thoroughly inspect the snow thrower for any
damage, and repair the damage before restarting and
operating the snow thrower.
If the unit should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
Stop the engine whenever you leave the operating
position, before unclogging the auger / impeller housing or
discharge chute, and when making any repairs,
adjustments or inspections.
When cleaning, repairing or inspecting the snow thrower,
stop the engine and make certain the auger / impeller and
all moving parts have stopped. Disconnect the spark plug
wire and keep the wire away from the plug to prevent
someone from accidentally starting the engine.
Do not run the engine indoors, except when starting the
engine and for transporting the snow thrower in or out of
the building. Open the outside doors; exhaust fumes are
dangerous.
Never operate the snow thrower without proper guards,
and other safety protective devices in place and working.
Always stand clear of the discharge area when operating
this unit.
Never direct the discharge toward people or areas where
injury or property damage can occur from thrown objects.
Keep children and others away.
Do not overload the machine capacity by attempting to
clear snow at too fast a rate.
Never operate the machine at high transport speeds on
slippery surfaces. Look behind and use care when
operating in reverse.
Do not operate in reverse unless absolutely necessary.
Always back up slowly and look down and behind before
and while backing.
Do not carry passengers.
Disengage attachment when not in use and when
traveling from one work area to another.
Disengage power to the auger / impeller when snow
thrower is transported or not in use.
Use only attachments and accessories approved by the
manufacturer of the snow thrower (such as wheel weights,
counterweights or cabs).
This product is equipped with an internal combustion
engine. Do not use unit on or near any unimproved,
forest-covered or brush-covered land unless exhaust
system is equipped with a spark arrester meeting
applicable local, state or federal laws. A spark arrester, if
used, must be maintained in effective working order by
operator.
Never operate the snow thrower without good visibility or
light. Always be sure of your footing, and keep a firm hold
on the handles. Walk; never run.
Never operate unit after or during the use of medication,
drugs or alcohol. Safe operation requires complete and
unimpaired attention at all times.
Never allow anyone to operate this unit when their
alertness or coordination is impaired.
Never touch a hot engine or muffler.
Avoid contact with sharp edges; sharp edges can cut.
Do not throw snow higher than necessary.
Clearing a Clogged Discharge Chute
Hand contact with the rotating auger / impeller inside the
discharge chute is the most common cause of injury
associated with snow throwers. Never use your hand to
clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the auger / impeller
blades have stopped rotating.
3. Always use a clean-out tool, not your hands.
Maintenance and Storage
Secure unit so it will not tip over during maintenance.
Before cleaning, removing clogs or making any
inspections, repairs, etc., disengage clutch(es), stop
engine, remove key, allow moving parts to stop and hot
parts to cool.
Check shear bolts and other bolts at frequent intervals for
proper tightness to be sure the equipment is in safe
working condition.
Check clutch and brake operation frequently.
Do not change engine governor settings and do not over-
speed engine.
Adjust and service as required. Motion of drive wheels
and auger / impeller must stop quickly when clutch levers
are released.
Always maintain unit in safe operating condition.
Damaged or worn out muffler can cause fire or explosion.
Keep unit free of ice or other debris. Clean up oil or fuel
spills.
Always keep protective structures, guards, and panels in
good repair and secured in place. Never modify or remove
safety devices.
Never store the machine with fuel in the fuel tank inside a
building where ignition sources are present such as hot
water heaters, space heaters or clothes dryers. Close fuel
valve and allow the engine to cool completely before
storing in any enclosure or covering the unit.

EN – 7
Always refer to operator's manual for important details if
the snow thrower is to be stored for an extended period.
Maintain or replace safety and instruction labels as
necessary.
Run the machine a few minutes after throwing snow to
prevent freeze-up of the auger / impeller.
Personal Protection
Do not operate the equipment without wearing adequate
winter garments. Avoid loose fitting clothing that can get
caught in moving parts. Wear footwear that will improve
footing on slippery surfaces.
Wear adequate safety gear, including safety glasses with
side shields and protective gloves.
Do not wear loose clothing or jewelry, and tie back hair
that may get caught in rotating parts.
NEVER attempt to unclog or clean unit while engine is
running. Rotating auger / impeller can cause serious
injury.
Protect eyes, face and head from objects that may be
thrown from unit. Wear appropriate hearing protection.
Always wear safety glasses or eye shields during
operation or while performing an adjustment or repair to
protect eyes from foreign objects that may be thrown from
the machine.
Slope Operation
Exercise extreme caution when operating on slopes. DO
NOT operate on steep slopes. DO NOT clear snow across
the face of slopes; go up and down. Keep all movement
on slopes slow and gradual.
Use a slow speed to avoid stops or shifts on slopes. Avoid
starting or stopping on a slope. Do not park unit on a slope
unless absolutely necessary. When parking on a slope
always block the wheels.
Do not operate near drop-offs, ditches, or embankments.
Unit can suddenly turn over if a wheel is over the edge of
a cliff or ditch, or if an edge caves in.
Fuel
DO NOT run engine in an enclosed area. Always provide
good ventilation. Fumes from engine exhaust can cause
injury or death.
Fuel is highly flammable and its vapors are explosive.
Handle with care. Use only an approved gasoline
container with an appropriately-sized dispensing spout.
No smoking, no sparks, no flames. Always allow engine to
cool before servicing.
Never fill fuel tank when engine is running or hot from
operation.
Never fill or drain fuel tank indoors.
Replace fuel cap securely and clean up spilled fuel.
Never fill fuel containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers on
the ground away from your vehicle before filling.
When practical, remove gas-powered equipment from the
truck or trailer and refuel it on the ground. If this is not
possible, then refuel on a trailer with a portable container,
rather than from a gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
If fuel is spilled on clothing, change clothing immediately.
Properly remove fuel before tipping unit up onto housing
to avoid spills.
Towing/Transporting
Always stop engine, remove key and close fuel valve or
drain fuel when transporting unit on a truck or trailer.
Use extra care when loading or unloading unit onto trailer
or truck. Secure unit chassis to transport vehicle. Never
secure from rods or linkages that could be damaged. Do
not transport machine while engine is running.
Accessories
Use only Ariens Company-recommended attachments or
accessories that are designed for your unit and that are
appropriate to your use and can be used safely in your
application.

EN – 8
DRAINING FUEL SYSTEM
1. Move unit to an open, well-ventilated area with no
flames or sparks.
2. Remove cap from fuel tank and siphon fuel into a
clean gasoline container.
3. Reinstall cap onto fuel tank and tighten.
4. Start engine to burn remaining fuel in fuel system and
leave engine running until it “runs dry” and stops.
Refer to Operator’s Manual for engine start procedure.
5. Stop engine, remove key and close fuel valve.
SERVICE POSITION
See Figure 2.
IMPORTANT: NEVER store unit in service position.
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain fuel
from tank and fuel system. See Draining Fuel
System on page 8. Make sure unit is secure and
will not tip.
Figure 2

EN – 9
BOTTOM COVER REMOVAL
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 8.
See Figure 3.
4. Remove snap clips from axle ends and remove
wheels.
See Figure 4.
IMPORTANT: Be aware of key on axles. If key is removed,
reinstall before reinstalling wheel.
See Figure 5.
5. Remove hardware retaining bottom cover to frame
and remove cover.
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain fuel
from tank and fuel system. See Draining Fuel
System on page 8. Make sure unit is secure and
will not tip.
Figure 3
1. Snap Clip
2. Wheel
1
2
Figure 4
1. Key
2. Keyway 1
2




Figure 5
1. Bottom Cover
2. Hex Bolt
2
1

EN – 10
SEPARATE AUGER HOUSING FROM
FRAME
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
See Figure 6.
3. Remove hardware retaining chute gear cover to chute
pedestal and remove cover.
4. Remove spring clip from chute rotation rod and
remove rod.
5. Remove chute rotation rod from dash panel and
remove from unit.
See Figure 7.
6. Remove hairpin and sleeve bushing from deflector
arm under dash panel.
7. Remove cable from deflector arm and remove cable
snap from deflector anchor.
See Figure 8.
Remove chute deflector cable from J-clamp on engine
mount.
Figure 6
1. Tapping Screw
2. Chute Gear Cover
3. Spring Clip
4. Chute Rotation Rod
1
2
4
3
Figure 7
1. Sleeve Bushing
2. Hairpin
3. Cable Snap
4. Deflector Arm
5. Deflector Anchor
12
5
3
4
Figure 8
1. J-Clamp
2. Chute Deflector Cable
1
2

EN – 11
See Figure 9.
8. Loosen, but DO NOT remove hardware securing belt
cover to unit, and remove belt cover.
See Figure 10.
9. Remove hardware securing belt finger to engine and
remove belt finger.
10. Remove attachment drive belts from attachment
sheave.
See Figure 11.
11. Position support, such as a trash can, under
handlebars so tractor / frame remains upright when
separated from auger housing.
12. Chock or block wheels to prevent tractor / frame
movement when separated from auger housing.
Figure 9
1. Belt Cover
2. Tapping Screw
1
2
Figure 10
1. Attachment Drive Belt
2. Attachment Sheave
3. Belt Finger
4. Hex Bolt
5. Locking Washer
6. Flat Steel Washer
1
4
3
2
5
6
Figure 11

EN – 12
See Figure 12.
13. Remove hardware securing auger housing to frame.
14. Tip auger housing apart from frame on mount rod and
separate housing from unit.
ATTACHMENT DRIVE BELT
REPLACEMENT
Remove Attachment Drive Belts
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing From Frame on page 10.
See Figure 13.
4. Remove attachment drive belts from attachment drive
pulley.

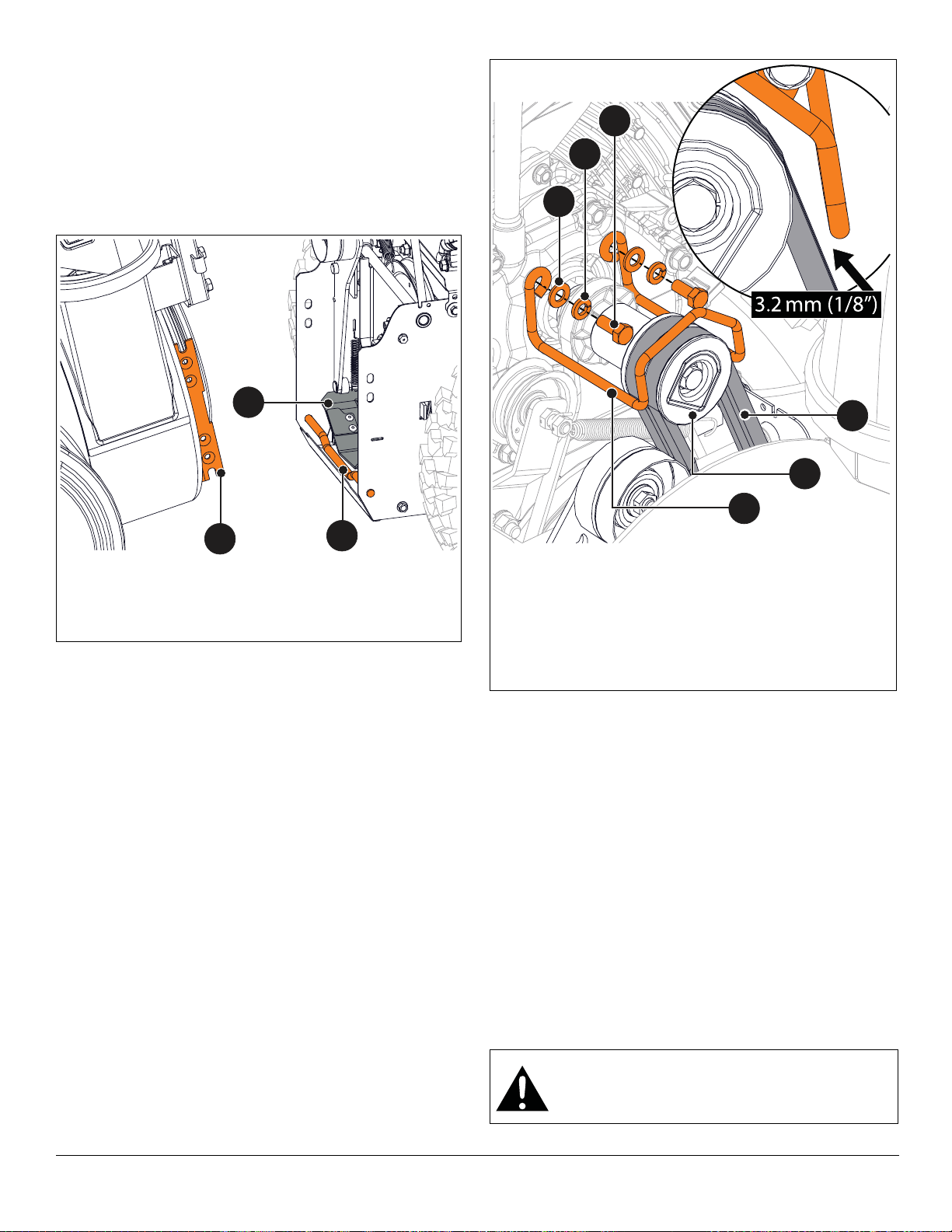

Figure 12
1. Tapping Screw
2. Mount Rod
1
2
Figure 13
1. Attachment Drive Belt
2. Attachment Drive Pulley
1
2

EN – 13
Install Attachment Drive Belts
1. Install belts onto attachment drive pulley
See Figure 14.
2. With a helper, engage attachment clutch lever so
attachment brake will not obstruct attachment drive
pulley in step 3.
3. Tilt auger housing rear up and lower into frame so
housing mount brackets sit on mount rod.
4. Release attachment clutch lever.
5. Align top holes in housing mount brackets with holes
in frame and reinstall, but DO NOT tighten, four
tapping screws.
IMPORTANT: Unit must be on a flat, level surface during
steps 6 – 8.
6. Check tire pressure and adjust if necessary. Refer to
Operator’s Manual for specification.
7. Loosen skid shoe hardware and adjust skid shoes.
Refer to Operator’s Manual for adjustment procedure.
8. Torque tapping screws installed in step 5 to
22.8 – 34.1 N•m (16.8 – 25.2 lb-ft).
See Figure 15.
9. Install belts onto attachment sheave.
10. Reinstall belt finger and secure with two flat steel
washers, two locking washers and two hex bolts.
11. Check belt finger clearance:
• Engage attachment clutch lever and make sure belt
finger located opposite belt idler is less than 3.2 mm
(1/8") from belt, but not touching the belt.
• If needed, adjust clearance by loosening hex bolts,
repositioning belt finger, and tighten bolts.
12. Reinstall belt cover and tighten hardware.
13. Insert short end of chute rotation rod in dash panel
until opposite end clears chute gear.
14. Insert chute rotation rod into chute gear and secure
with spring clip.
15. Reinstall chute gear cover and secure with tapping
screw.
16. Reinstall chute deflector cable into J-clamp on engine
mount.
17. Reinstall chute deflector cable snap into deflector
anchor and secure cable eyelet to deflector arm with
sleeve bushing and hairpin. See Figure 7.
18. Adjust attachment clutch / brake. Refer to Operator’s
Manual for adjustment procedure.
19. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.
Figure 14
1. Attachment Brake
2. Mount Bracket
3. Mount Rod
1
23
WARNING: AVOID INJURY. Auger / impeller
must stop within 5 seconds when attachment
clutch lever is released.
Figure 15
1. Attachment Sheave
2. Belt Finger
3. Attachment Drive Belts
4. Hex Bolt
5. Locking Washer
6. Flat Steel Washer
1
2
3
6
5
4

EN – 14
TRACTION DRIVE BELT
REPLACEMENT
Remove Traction Drive Belt
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing From Frame on page 10.
See Figure 16.
4. Disconnect idler spring from traction drive idler.
5. Disconnect swing gate return spring from frame.
6. Remove hardware securing swing gate spacer to
frame and remove swing gate spacer.
7. Move swing gate left so swing gate tab is out of stop
hole in frame.
8. Move swing gate forward to access traction drive belt
and remove belt.
Install Traction Drive Belt
See Figure 17.
1. Install belt onto traction drive pulley.
2. Install belt onto traction sheave.
3. Move swing gate so swing gate tab aligns with stop
hole in frame.
4. Move swing gate right so top of swing gate inserts
through support bushing and swing gate tab inserts
through stop hole.
5. Reinstall swing gate spacer, but DO NOT secure with
hardware.
IMPORTANT: Make sure pivot bushing is correctly seated
in frame and is flush with frame.
6. Align pivot bushing holes with holes in frame and
swing gate spacer. Secure with two tapping screws.
7. Reconnect idler spring to traction drive idler.
8. Reconnect swing gate return spring to frame.
9. Reinstall attachment drive belts. See Install
Attachment Drive Belts on page 13.
10. Adjust attachment clutch / brake. Refer to Operator’s
Manual for adjustment procedure.
Figure 16
1. Tapping Screw
2. Swing Gate Spacer
3. Swing Gate Return Spring
4. Swing Gate
5. Swing Gate Finger & Stop Hole
6. Traction Drive Idler
7. Traction Sheave
8. Idler Spring
1
268
43
5
7
Figure 17
1. Traction Drive Pulley
2. Traction Drive Belt
3. Traction Sheave
4. Support Bushing
5. Swing Gate Tab & Stop Hole
6. Pivot Bushing
7. Idler Spring
8. Traction Drive Idler
9. Swing Gate Spacer
1
2
6
3
5
8
7
4
9

EN – 15
11. Adjust traction drive clutch. Refer to Operator’s
Manual for adjustment procedure.
12. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.
ATTACHMENT BRAKE REPLACEMENT
Remove Attachment Brake
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing From Frame on page 10.
See Figure 18.
4. Remove hardware securing attachment brake to brake
mount bracket.
5. Disconnect extension spring from attachment brake
arm and remove attachment brake arm.
Install Attachment Brake
1. Install hex bolt through brake mount bracket.
2. Install attachment brake arm onto hex bolt.
3. Reinstall sleeve bushing into attachment brake arm.
4. Secure attachment brake arm to brake mount bracket
with top locking flange nut, but DO NOT overtighten.
5. With flathead screwdriver or similar pry bar, reconnect
extension spring to attachment brake arm.












Figure 18
1. Top Locking Flange Nut
2. Sleeve Bushing
3. Hex Bolt
4. Attachment Brake Arm
5. Extension Spring
6. Brake Mount Bracket
1
23
6
4
5

EN – 16
See Figures 19 and 20.
6. Engage and disengage attachment clutch to verify
brake roller on attachment idler does not interfere with
brake pad.
IMPORTANT: Make sure brake roller does not bind.
7. Reinstall attachment drive belts. See Install
Attachment Drive Belts on page 13.
8. Place unit in service position. See Service Position on
page 8.
9. Remove bottom cover. See Bottom Cover Removal on
page 9.
See Figure 21.
10. Check attachment brake:
• Brake must contact attachment belt when
attachment clutch is disengaged.
• Brake must be more than 1.6 mm (1/16”) away from
attachment belt when attachment clutch is engaged.
11. Reinstall bottom cover and secure with six hex bolts.
12. Align wheel keyways with axle keys and reinstall
wheels. Secure with snap clips.
13. Return unit to operating position.
14. Adjust attachment clutch / brake. Refer to Operator’s
Manual for adjustment procedure.
15. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.





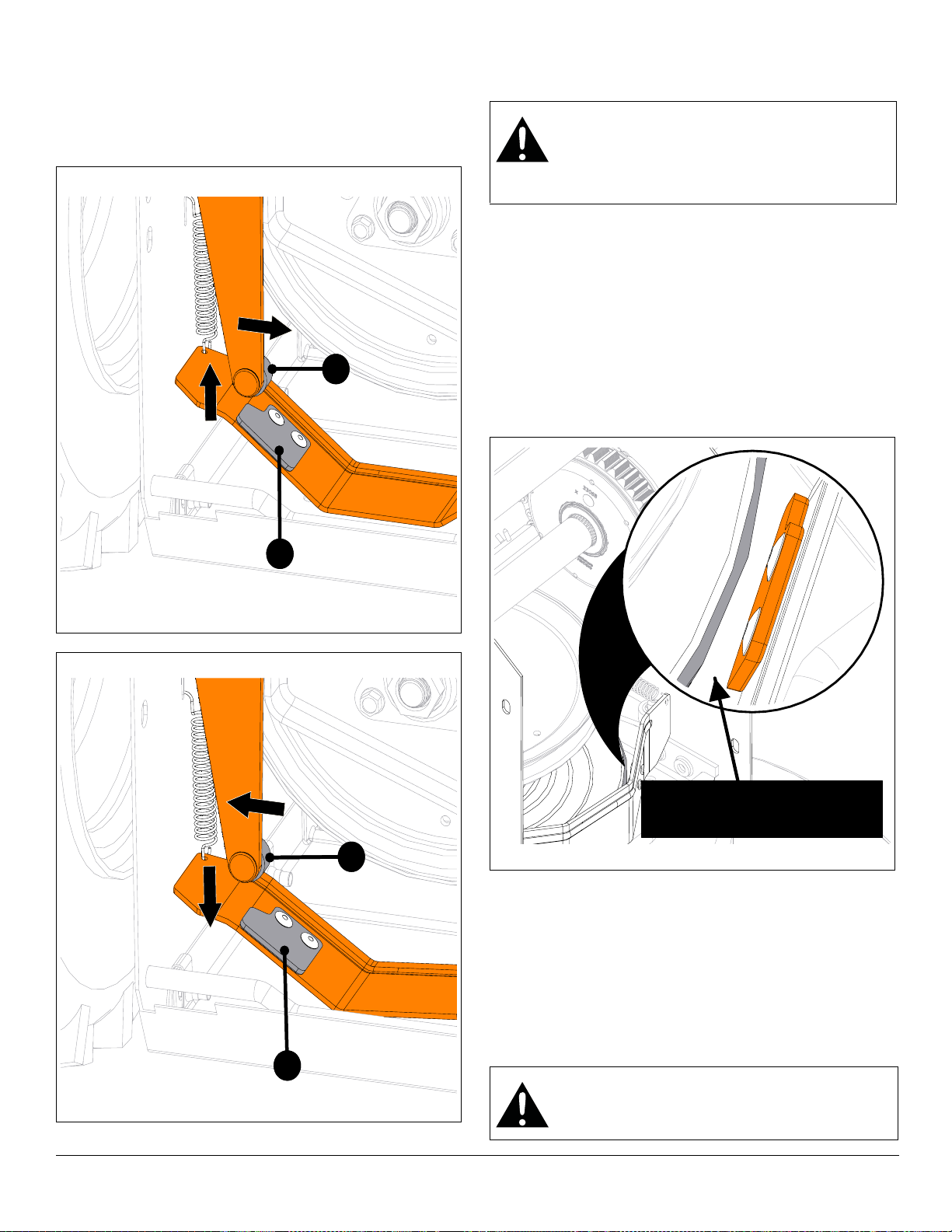

Figure 19
Attachment Clutch Disengaged / Brake Engaged
1. Brake Pad
2. Brake Roller
1
2




Figure 20
Attachment Clutch Engaged / Brake Disengaged
1. Brake Pad
2. Brake Roller
1
2
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain fuel
from tank and fuel system. See Draining Fuel
System on page 8. Make sure unit is secure and
will not tip.
WARNING: AVOID INJURY. Auger / impeller
must stop within 5 seconds when attachment
clutch lever is released.
PP
Figure 21

EN – 17
FRICTION DISC REPLACEMENT
Remove Friction Disc
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 8.
4. Remove bottom cover. See Bottom Cover Removal on
page 9.
See Figure 22.
5. Remove hairpin securing adjustment pivot pin to
speed selector arm and remove adjustment pivot pin.
See Figure 23.
6. Remove spring clip from right side of hex shaft.
7. Remove hardware securing bearing flange to left side
of frame and remove bearing flange.
See Figure 24.
8. Disconnect hex shaft from sprocket and remove
sprocket from chain.
9. Move hex shaft left until removed from friction disc
assembly.
10. Remove friction disc assembly from unit.
WARNING: AVOID INJURY. Before placing unit
in service position, close fuel valve and drain fuel
from tank and fuel system. See Draining Fuel
System on page 8. Make sure unit is secure and
will not tip.
Figure 22
1. Speed Selector Arm
2. Hairpin
3. Adjustment Pivot Pin
1
32
Figure 23
1. Bearing Flange
2. Hex Shaft
3. Spring Clip
4. Tapping Screw
1
2
3
4
Figure 24
1. Friction Disc Assembly
2. Hex Shaft
3. Sprocket
4. Chain
1
23
4

EN – 18
See Figure 25.
11. Remove hardware securing friction disc to drive
carrier and remove friction disc.
Install Friction Disc
1. Install friction disc to drive carrier with cup side
positioned toward drive carrier.
2. Secure friction disc to drive carrier with three tapping
screws. Torque to 7 – 8 N•m (5 – 6 lb-ft).
See Figure 26.
3. Reinstall friction disc assembly into shift fork so shift
fork bracket and flat steel washer are positioned
against shift fork as shown.
NOTICE: Move shift fork left for easy access.
4. Reinstall hex shaft through frame and friction disc
assembly.
See Figure 27.
5. Reinstall sprocket into chain.
6. Insert hex shaft through sprocket and into bearing on
right side of frame.
Figure 25
1. Friction Disc
2. Drive Carrier
3. Tapping Screw
12
3
Figure 26
1. Shift Fork
2. Flat Steel Washer
3. Shift Fork Bracket
4. Friction Disc Assembly
5. Hex Shaft
1
2
4
3
5




Figure 27
1. Hex Shaft
2. Sprocket
1
2

EN – 19
7. Reinstall bearing flange and secure with three tapping
screws.
8. Reinstall spring clip into hex shaft.
9. Reinstall adjustment pivot pin onto speed selector arm
and secure with hairpin.
10. Reinstall bottom cover and secure with six hex bolts.
11. Align wheel keyways with axle keys and reinstall
wheels. Secure with snap clips.
12. Return unit to operating position.
13. Reconnect spark plug wire.
14. Adjust speed selector lever. Refer to Operator’s
Manual for adjustment procedure.
IMPORTANT: Check all adjustments after first use.
AUGER REPLACEMENT
Remove Auger
NOTICE: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Separate auger housing from frame. See Separate
Auger Housing From Frame on page 10.

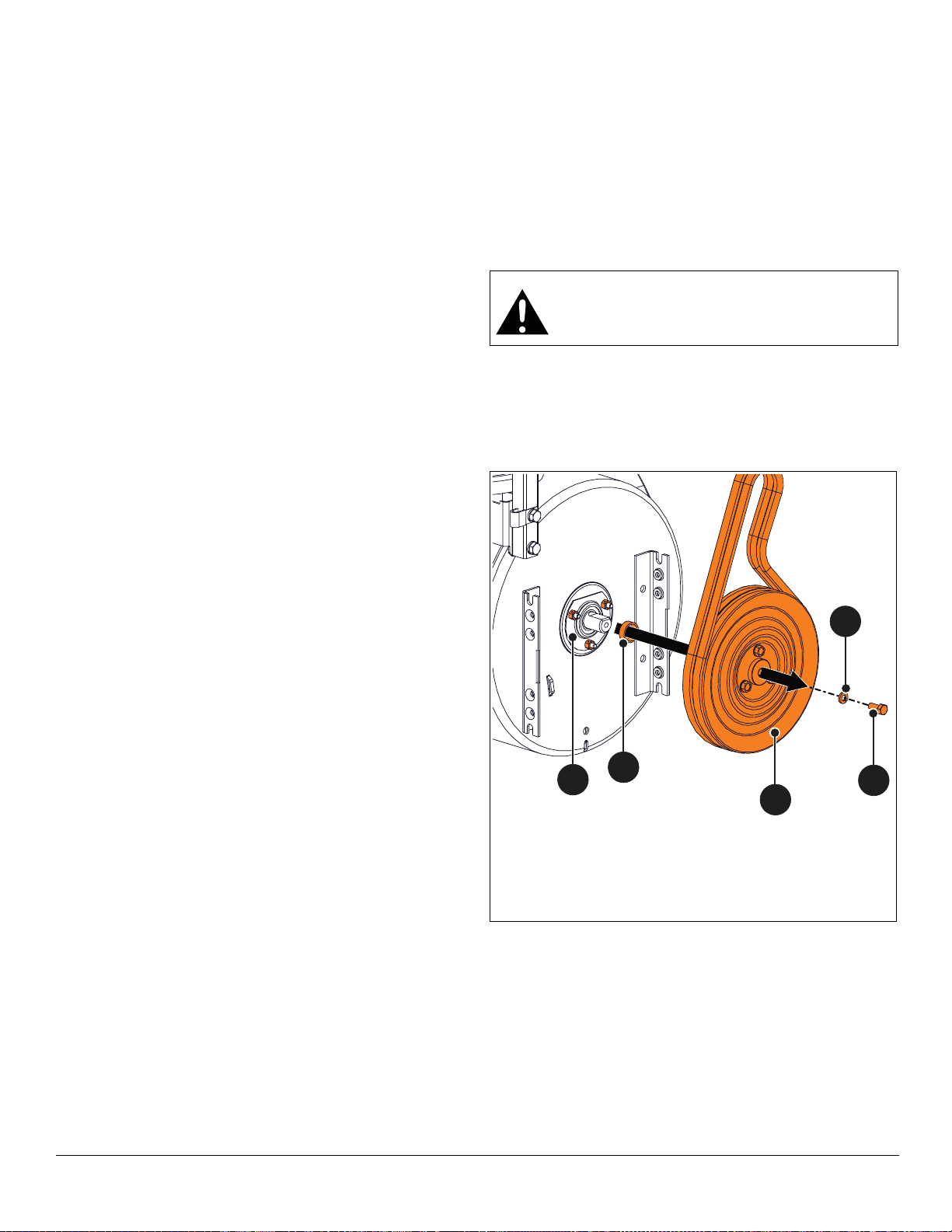

See Figure 28.
4. Hold attachment drive pulley in place and remove
hardware securing pulley assembly to impeller shaft.
5. Remove spacer bushing from impeller shaft.
6. Loosen, but DO NOT remove hardware securing
bearing plate to auger housing.
CAUTION: AVOID INJURY. Attachment drive
pulley edges are sharp. Wear gloves when
handling pulley.
Figure 28
1. Hex Bolt
2. Locking Washer
3. Attachment Drive Pulley Assembly
4. Bearing Plate
5. Spacer Bushing
1
3
45
2
