Congratualtions on choosing an Ariston appliance, which you will find is dependable and easy to use.We recommend
that you read this manual for best performance and to extend the life of your appliance.Thank you.
Close-up View
12
3
4
5
6
7
8
9
10
11
12
A
B
CH
I
1
2
3
4
5
6
A
B
CH
G
12
3
4
5
6
7
8
9
10
11
12
A
B
CH
L
A
B
C
E
D
F
A
B
C
GElectric Hot Plates (only on certain models)
HIndicatorLightforElectricHotPlates(onlyoncertain
models) - On those models equipped with electric hot
plates and ignitor, the indicator light is incorporated
into the ignition button.one.
ICeramic Glass Module (only on certain models)
LCooktop Broiler (only on certain models)
AGas Burners
BSupport Grid for Cookware
CControl Knobs for Gas Burners and Electric Hot
Plates
DIgnitor for Gas Burners (only on certain models)
EIgnition Button for Gas Burners (only on certain
models)
FSafety Device (only on certain models) - Activates if
the flame accidentally goes out (spills, drafts, etc.),
interrupting the delivery of gas to the burner.
NOTICE
The stainless steel grease pan and the cast-iron grill, located in the burner and grate packing box, must be installed,
respectively, below and above the electric heating element so that the element is enclosed between the two.
A
B
C

13
How To UseYour Appliance
The position of the corresponding gas burner or electric
hot plate (if present) is indicated on each control knob.
Gas Burners
The burners differ in size and power. Choose the most
appropriate one for the diameter of the cookware being
used.
Theburnercan be regulatedwiththe corresonding control
knob by using one of the following settings:
• Off
High
Low
To turn on one of the burners, place a lighted match or
lighter near the burner, press the knob all the way in and
turn in the counter-clockwisedirectiontothe "High" setting.
On those models fitted with a safety device (F), the
knob must be pressed in for about 6 seconds until the
device that keeps the flame lighted warms up.
Onthosemodelsfittedwithan ignitor (D),the"E"ignition
button, identified by the symbol, must first be pressed
and then the corresponding knob pushed all the way in
andturnedin the counter-clockwisedirection to the "High"
setting.
Some models are equipped with an ignition switch
incorporated into the control knob. If this is the case, the
ignitor(D)is present, butnot the "E" switch(the symbol
is located near each knob).
To light a burner, simply press the corresponding knob all
the way in and then turn it in the counter-clockwise
direction to the "High" setting, keeping it pressed in until
the burner lights.
Caution: If the burner accidently goes out, turn off the
gas with the control knob and try to light it again after
waiting at least 1 minute.
To turn off a burner, turn the knob in the clockwise
direction until it stops (it should be on the “•” setting).
Electric Hot Plates (only on certain models)
The hot plates vary in diameter and power: "normal" and
"fast". The latter can be identified by a red boss in the
center of the hot plate itself.
The hot plate can be regulated by turning the
correspondingknob in theclockwiseor counter-clockwise
direction to any one of the 6 different settings:
0Off
1Low
2-5 Medium
6High
Thesection entitled, "PracticalCooking Advise", provides
information on the recommendedsettingsforvarioustypes
of food or cooking processes.
When the knob is on any of the settings other than "Off",
the "H" operating light comes on.
Cooktop Broiler (only on certainmodels)
The broiler can be regulated by turning the corresponding
knob in the clockwise or counter-clockwise direction to any
of the 12 possible settings:
0Off
1Low
2-11 Medium
12 High
When the knob is on any of the settings other than "Off",
the "H" operating light comes on.
Ceramic Glass Module (only on certain models)
Thiscooktop isfittedwithdual-ringradiantheating elements
located beneath the glass.It is possible to turn on only the
circularpartoftheelemement(identified bythe letter "A") or
the cooking surface can be enlarged by turning on both "A"
and"B".Toturnonlythe circular"A"element,simplyturn the
knobin theclockwisedirectiontoany oneofthe12available
settings.To add the "B" section, turn the knob to setting 12
andthen clickit into the setting.Thenproceedbyturning
the knob in the counter-clockwise direction to one of the 12
settings.
Thefigureshowstheheatingzones,whichbecomeredwhen
the element is turned on.
A. Circular heating zone;
B. Extended heating zone;
C. Indicator light to show when the cooking zone is above
60°C, even after the heating element has been turned
off.
A
C
B
When the knob is on any of the settings other than "Off",
the "H" operating light comes on.
How to KeepYour Cooktop in Shape
Before cleaning or performing maintenance on your
appliance, disconnect it from the electrical power supply.
To extend the life of the cooktop, it is absolutely
indispensable that it be cleaned carefully and
thoroughly on a frequent basis, keeping in mind the
following:
• Theenameled parts andthe glass top,if present, must
be washed with warm water without using abrasive
powders or corrosive substances which could ruin
them;
• The removable parts of the burners should be washed
frequently with warm water and soap, making sure to
remove caked-on substances;
• On cooktops with automatic ignition, the end of the
electronicignitiondevice mustbecleaned carefully and
frequently, making sure that the gas holes are not
clogged;
• Theelectrichobs should be cleaned using a damp cloth
and then rubbed with oil while still warm;
• Stainless steel can be stained if it remains in contact

14
with highly calcareous water or aggressive detergents
(containing phosphorous) for an extended period of
time. It is recommended that these parts be rinsed
thoroughly with water and then dried well. It is also a
good idea to clean up any spills;
• Before using the ceramic glass module, the surface
must be cleaned, using a damp cloth to remove dust
or food residues.The ceramic glass surface should be
cleaned regularly with a soultion of warm water and a
non-abrasive detergent.Periodically, special products
willneed to be used toclean the surface. First,remove
all food buildup or grease with a cleaning scraper, e.g.
(not supplied) (Fig. A).
Clean the cooking surface when it is still warm with a
suitable cleaning product and paper towels.Then rub
witha damp cloth and dry.Aluminumfoil,plastic items,
objectsmade of synthetic material, sugar orfoodswith
ahigh sugar content that have melted onto the surface
must be removed immediatley with a scraper while
the cooking surface is still hot. Special cleaning
productsforceramicglass surfacesforma transparent
protective layer which fights diry buildup. This also
protects the surface from damage caused by food with
a high sugar content. Do not use abrasive sponges or
cleaningproductsunder anycircumstances.Thisholds
true for chemically aggressive cleaners, like oven
sprays and stain removers (Fig.B);
Fig.A Fig.B
•When cleaning the grill, it is recommeded that you do
so while it is still hot, using the handles provided to
move it from the cooktop to the sink. To remove the
pan beneath the grill, it is a good idea to wait until the
heatingelement has cooled (roughlyafter 15 minutes).
Greasing the GasValves
Over time, the gas valves may stick or become difficult to
turn.If this is the case, the must be cleaned on the inside
and the regreased.
N.B.:This proceduremustbeperformedbyatechnician
authorized by the manufacturer.
Practical Advice
Practical Advise on Using the Burners
For best performance, follow these general guidelines:
• Use the appropriate cookware for each burner (see
table) in order to prevent the flame from reaching the
sides of the pot or pan;
• Alwasy use cookware with a flat bottom and keep the
lidon;
• When the contents come to a boil, turn the knob to
"Low".
Burner ø Cookware diameter (cm)
Fast (R) 22 – 24
Reduced Fast (RR) 22 – 24
Semi Fast (S) 16 – 20
Auxiliary (A) 10 – 14
Semi-Fischburner (SP) 16 - 20
Triple Crown (TC) 24 - 26
To identify the type of burner, refer to the designs in the
section entitled, "Burner and Nozzle Specifications".

15
Setting Normal or Fast Plate
0Off
1Cooking vegetables, fish
2Cooking potatoes (using steam) soups,
chickpeas, beans.
3Continuing the cooking of large quantities of
food, minestrone
4For roasting (average)
5For roasting (above average)
6For browning and reaching a boil in a short
time.
Practical Advise on Using the Broiler
Preheat the broiler by turning the knob to 12.Settings 1-8
arerecommendedforreheatingfoodorforkeepingitwarm
after it has been cooked.In general, cooking vegetables
can cause stains which are difficult to remove.
Food Weight
(kg) Knob Setting Preheati- ng (min.) Cooking Time (min.)
Pork
Chops 0.5 12 515
10 20
Steak 0.6 12 5 10
Sausages 0.45 10 5 20
Shish Kabobs
(meat) 0.4 12 5 14
Hamburgers 0.4 10 5 15
Toasted
Sandwiches No. 3 11 5 2
Bread 3 Slices 11 5 3
Aubergines 3 Slices 12 5 5 – 7
Oven-roasted
Tomatoes No. 4 12 5 10 – 15
Practical Advice on Using the Half Fish-Kettle Burner
The two central burners, or Half Fish-Kettle burners, are
eliptic in form and can be turned up to 90°. This makes
the cooktop more flexible in terms of how it can be used.
To turn the two central burners 90°, proceed as follows:
• Make sure that the burners are cool;
• Lift the burner completely out of its housing;
• Replace it in its housing in the position desired;
• Make sure that the burners are positioned correctly
beforeuse.
Inaddition, the twocetnralburners can beused in tandem
or speartely with cookware of different shapes and sizes:
• Double burner for a fish-kettle or oval cookware (Fig. A).
• Double burner for a griddle or rectangular/square
cookware with minimum dimensions of 28x28 cm
(Fig. B)
• Double burner for large cookware (diameter of 26-28
cm) (Fig. C).
• Single burner for medium size cookware (diameter of
16-20 cm) (Fig. D).
Fig.A Fig. B
Fig.C Fig. D
Practical Advice on Using the Electric Hot Plates
In order to avoid heat loss and damage to the hot plate,
use cookware with a flat bottom the diameter of which is
not less than that of the hot plate.

16
Practical Advise on Using the Ceramic Glass Module
Set. Radiant Burner
0Off
1To melt butter and chocolate.
2To heat liquids.
3
4For creams and sauces.
5
6For cooking at the boiling point.
7
8For roasts.

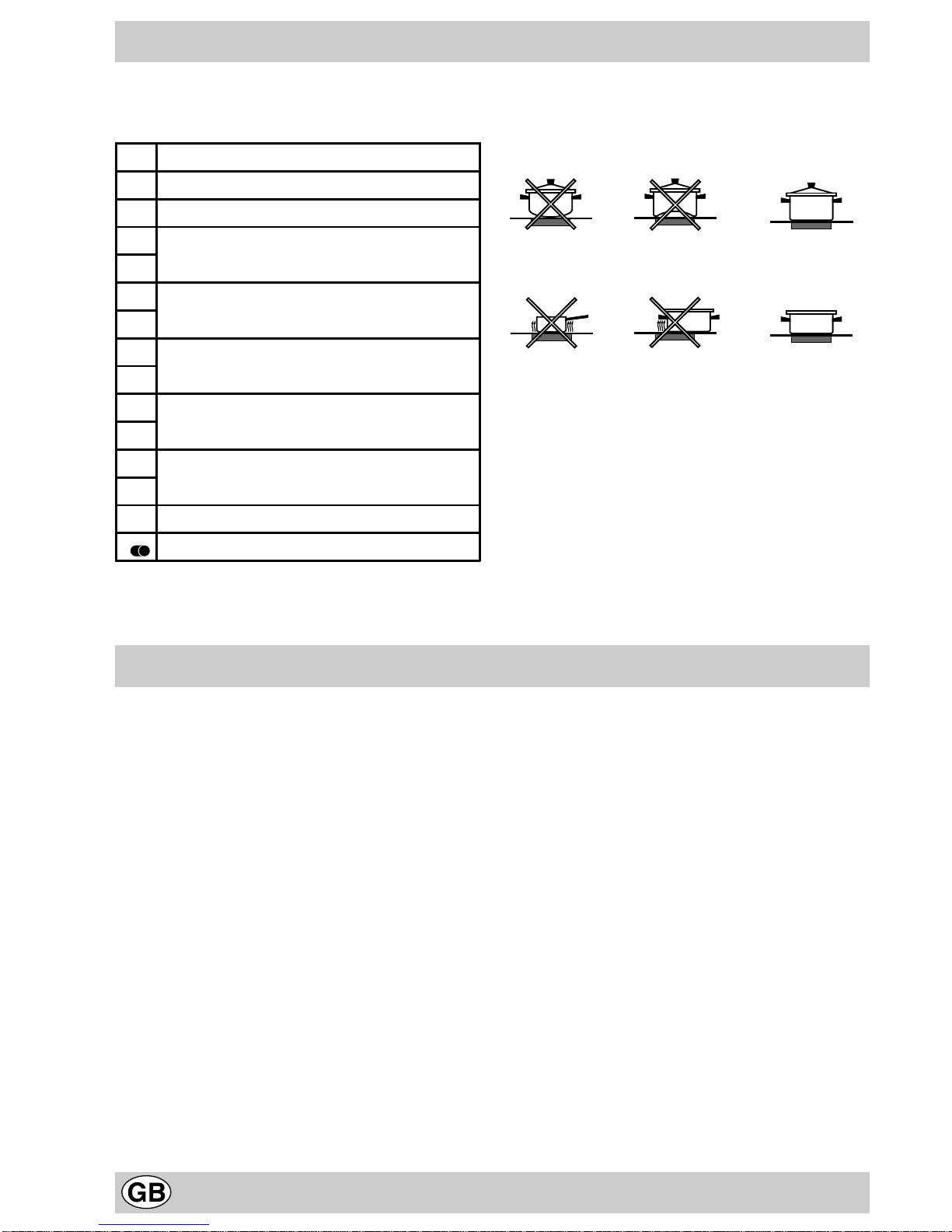

9
10 For boiling large pieces of meat.
11
12 For frying.
For utilising both cooking areas.
For best performance, keep in mind the following:
• All types of casseroles can be used on the ceramic
glasscooking surface.However, it is important that the
bottombeperfectly flat.Casseroleswith thickerbottoms
distribute heat more evenly.
•Usecookwarethe diameterof which is atleast as large
as the cooking area so that all of the heat produced by
the heating element is used.
• Make sure that the bottom of the pot is always dry and
clean to insure good contact between the cookware
and the cooking surface.This will also increase the life
of the pots and of the ceramic glass surface as well.
• Do not use the same cookware that you use for gas
burners because the concentrated heat they produce
can deform the bottom of the pot.Therefore, you will
not achieve best results when using these pots on the
ceramic glass surface.
Notice:Theglueused to sealthe glass surfacemayleave
traces on the appliance.We recommend that the module
becleaned with anon-abrasivecleaner beforebeing used
the first time. During the first few hours of use, you may
detect the smell of rubber;this will disappear after a short
time.
Is there a problem?
It may occur that the cooktop does not function or does
not function properly.Before calling customer service for
assistance, lets see what can be done.
First of all, check to see that there are no interruptions in
the gas and electrical supplies, and, in particular, that the
gas valves for the mains are open.
The burner does not light or the flame is not uniform
around the burner.
Check to make sure that:
• The gas holes on the burner are not clogged;
• All of the movable parts that make up the burner are
mounted correctly;
• There are no draughts around the cooking surface.
The flame does not stay lighted on the model with the
safety device.
Check to make sure that:
• You press the knob all the way in;
• You keep the knob pressed in long enough to activate
the safety device.
• The gas holes are not clogged in the area
corresponding to the safety device.
The burner does not remain on when set to "Low".
Check to make sure that:
• The gas holes are not clogged.
• There are no draughts near the cooking surface.
• The minimum has been adjusted correctly (see the
section entitled, "Minimum Regulation").
The cookware is not stable.
Check to make sure that:
• The bottom of the cookware is perfectly flat.
• The cookware is centered correctly on the burner or
electric hot plate.
• The support grids have not been inverted.
If, despite all of these checks, the cooktop does not
function properly and problem persists, call the nearest
Merloni Elettrodomestici Customer Service Centre,
informing them of:
- The type of problem.
-The abbreviation used to identify the model (Mod....) as
indicated on the warranty.
Never call upon technicians not authorized by the
manufacturer, and refuse to accept spare parts that are
not original.

17
Safety Is a Good Habit to Get Into
• This manual is for a class 3 built-in cooktop.
• This appliance is designed for non-professional use in
thehome and its featuresand technical characteristics
must not be modified.
• These instructions are only valid for the countries the
symbolsforwhich appear on the manualand the serial
plate.
• Theelectricalsystemofthisapplianceissafeonlywhen
it is correctly connected to an adequate earthing
system, as required by current safety standards.
Prevent children and the disabled from coming into
contact or having access to the following,as they are
possible sources of danger:
- The controls and the appliance in general;
- The packaging (plastic bags, polystyrene, nails, etc.);
- Theappliance,during and immediately after use given
the heat generated by its use;
- The ceramic glass cooking surface (if present)
immediately before and after use, as the cooking
surface will remain hot for at least a half hour after
being turned off;
- Theappliance when nolonger in installed(in this case,
all potentially dangerous parts must be made safe).
The following should be avoided:
- Touching the appliance with wet parts of the body;
- Using the appliance with bare feet;
- Pulling on the appliance or the power supply cord to
disconnect them from the electrical outlet;
- Improper and/or dangerous use;
- Obstructing the ventilation or heat dissipation slots;
- Allowing the power supply cord of small appliances to
come into contact with the hot parts of the cooktop;
- Exposure to atmospheric agents (rain, sun);
- Using flammable liquids nearby;
- Usingadaptors,multipleoutletplugsand/orextensions;
- Using unstable or deformed cookware;
- Leaving the electric hobs on (or the ceramic glass
cooking surface) without cookware on top of them;
- Using the ceramic glass cooking surface (if present)
as a counter top;
- Turning on the radiant heating elements (if present)
when there is aluminum foil or plastic objects on the
ceramic glass surface;
- Striking the ceramic glass cooking surface (if present)
with pointed objects;
- Closingthe glass top (if present) while the gas burners
or electrical hot plates are still hot;
- Trying to install or repair the appliance without the
assistance of qualified personnel.
The assistance of qualified personnel must be called
upon in the following cases:
- Installation (in accordance with the manufacturer's
instructions);
- When in doubt about the operation of the appliance;
- Replacement of the electrical outlet becuase it is
incompatible with the plug.
Contact service centers authorized by the
manufacturer in the following cases:
When in doubt about the condition of the appliance
after having removed the packing;
- Damage to or replacement of the power supply cord;
- In the case of a breakdown or malfunction: ask for
original spare parts.
- Inthe eventthe ceramic glass cooking surfacebreaks.
It is recommended that you follow the guidelines
below:
- Only use the appliance to cook food, avoiding all other
uses;
- Check the condition of the appliance after it has been
unpacked;
- Disconnectthe appliance from the powersupply in the
event of malfunction and always before cleaning or
maintenance;
- When not in use, disconnect the appliance from the
power supply and turn off the gas valve (if present);
- Disconnect the appliance from the electrical supply in
the event the ceramic glass cooking surface breakds.
- Always check to make sure that the control knobs are
on the “•”/”o” setting when the appliance is not in use;
- Cut the power supply cord after disconnecting it from
the electrical mains when you decide to no longer use
theappliance.
• The manufacturer will not be held liable for any
damages arising out of : incorrect installation or
improper, incorrect or unreasonable use.
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• call only the Service Centers authorized by the manufacturer
• always use original Spare Parts

18
Installation Instructions for built-in
The following instructions are directed at the qualified
installer so that the installation and maintenance
proceeduresmaybe followedinthe most professional and
expertmannerpossible.Important: Unplug the electrical
connection before performing any maintenance or
regulation upkeep work.
Positioning forgas hob
Important: this unit may be installed and used only in
permanently ventilated rooms according to the British
Stancards Codes Of Practice:B.S. 6172 / B.S. 5440, Par.
2 and B.S. 6891 Current Editions. The following
requirements must be observed:
a) The room must be fitted with a ventilation system which
vents smoke and gases from combustion to the outside.
This must be done by means of a hood or electric
ventilatorthat turnson automatically each timethe hood
is operated.
In a chimney stack or branched flue. Directly to the Outside
(exclusively for cooking appliances)
b) The room must also allow for the influx of the air needed
for proper combustion. The flow of air for combustion
purposesmustnotbelessthan2m3/hperkWofinstalled
capacity.Thesupply ofsaidaircanbe effectedbymeans
of direct influx from the outside through a duct with a
innercross section ofatleast100cm²which mustnotbe
able to be accidentally blocked.Those appliances which
are not fitted with a safety device to prevent the flame
from accidentally going out must have a ventilation
openingtwicethesizeotherwiserequired,i.e.aminimum
of 200cm2(Fig. A). Otherwise, the room can be vented
indirectly through adjacent rooms fitted with ventilation
ducts to the outside as described above, as long as the
adjacent rooms are not shared areas, bedrooms or
present the risk of fire (Fig. B).
Detail A Adjacent Room to be
Room Vented
A
Examples of ventilation holes Enlarging the ventilation slot
forcomburantair. between window and floor.
Fig.A Fig.B
c) Intensive and prolonged use of the appliance may ne-
cessitatesupplementalventilation,e.g.openingawindow
orincreasingthepoweroftheairintakesystem(ifpresent).
d) Liquidified petroleum gases are heavier than air and, as
a result, settle downwards. Rooms in which LPG tanks
are installed must be fitted with ventilation openings to
the outside in order to allow the gas to escape in the
event of a leak.Therefore, LPG tanks, whether empty or
partially full, must not be installed or stored in rooms or
spacesbelowgroundlevel(cellars,ect.).It isalsoagood
idea to keep only the tank currently being used in the
room, making sure that it is not near sources of heat
(ovens,fireplaces,stoves,etc.)thatcouldraisetheinternal
temperature of the tank above 50°C.
Installation of built-in stove tops
Thegas hobs are preparedwith protection degreeagainst
excessive heating of type X, the appliance can therefore
beinstalled nextto cabinets, provided the height does not
exceed that of the hob. For a correct installation of the
cooking hob the following precautions must be followed:
a) The hob may be located in a kitchen, a kitonen/diner
or bed sitting room, but not in a bathroom or shower
room.
b) The furniture standing next to the unit, that is higher
than the working boards, must be placed at least
110mm from the edge of the board.
c) The cabinets should be positioned next to the hood at
a height of at least 420 mm (Fig. C).
HOOD
900
Min. mm.
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
420
Min. mm.
Fig.C
d) Should the hob be installed directly under a cupboard,
the letter should be at least 700mm (millimetres) from
the worktop, as shown in Fig. C.
e) The dimensions of the room for the furniture must be
those indicated in the figures in the last two pages of

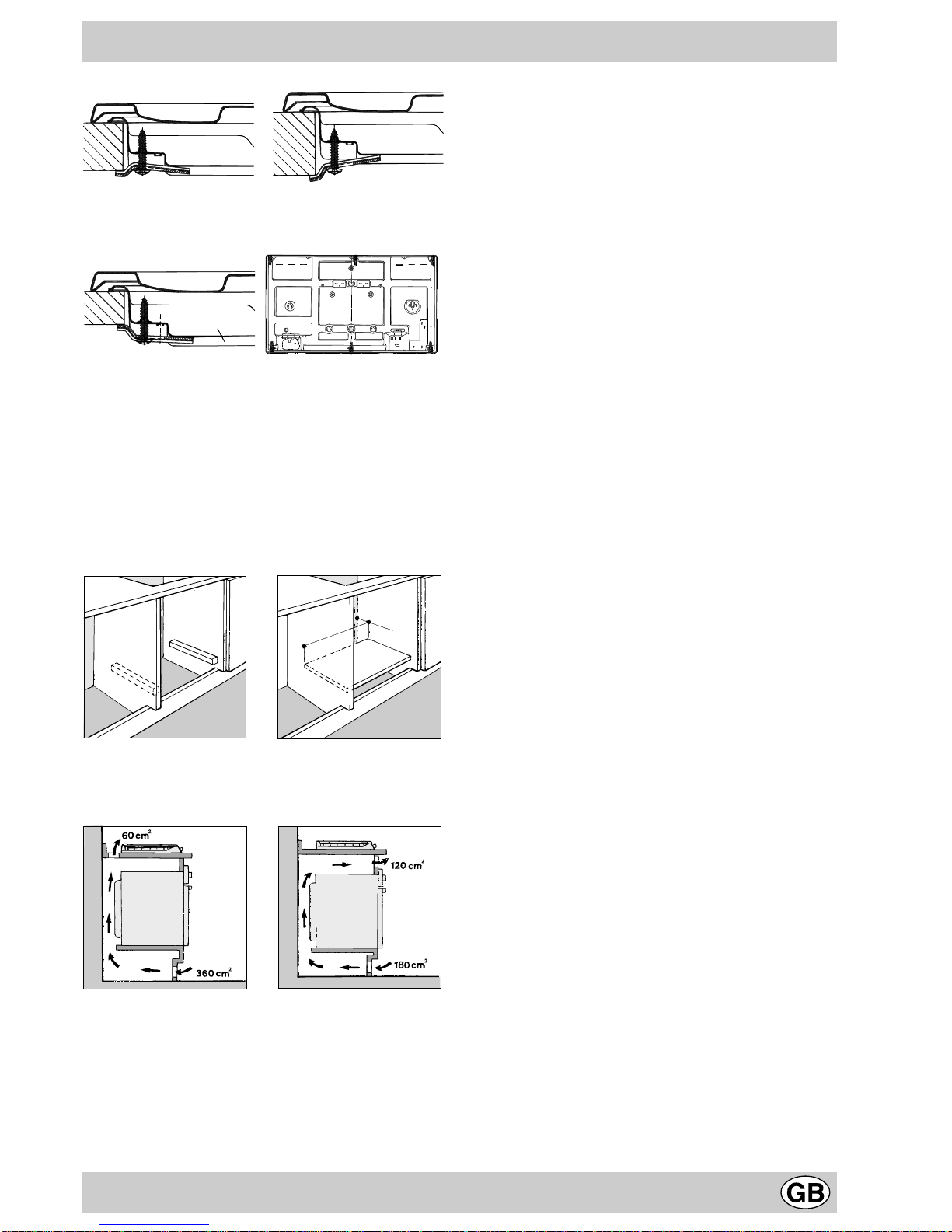

the cover. Fixing hooks are provided which allow to
place the hob plate on work tops that measure from
20to 40 mm in thickness(seeFig.D).Toobtain a good
fixingofthe hob plateit is advisableto use all thehooks
supplied.
475 mm.
835 mm.
min. 55 mm.
Fig.D

19
Hook position for Hook position for
H=30mm top H=40mm top
Front
Hook position for Back
H=20mm top
N.B: Use the hook contained in the "accessoires set"
f) In the event the cooktop is not installed above a built-
in oven, a wood panel must be inserted as insulation.
This panel must be placed at least 20 mm from the
bottom of the cooktop itself.
Important:When installing the hob above a built-in oven,
the oven should be placed on two wooden strips; in the
case of a joining cabinet surface, remember to leave a
space of at least 45 x 560 mm at the back.
560 mm.
45 mm.
Wheninstallingonabuilt-inoven withoutforcedventilation,
ensure that there are air inlets and outlets for ventilating
the interior of the cabinet adequately.
Gas connection for gas hob
The cooker should be connected to the gas-supply by a
corgiregistered installer.Duringinstallationof this product
itisessentialtofitanapprovedgastaptoisolatethe supply
fromthe appliance for the convenience of anysubsequent
removal or servicing. Connection of the appliance to the
gas mains or liquid gas must be carried out according to
the prescribed regulation in force, and only after it is
ascertained that it is adaptable to the type of gas to be
used. If not, follow the instructions indicated in the
paragraph headed “Adaptation to different gas types”.In
thecase of connection to liquidgas,bytank,use pressure
regulators that conform to the regulation in force.
Important: Forsafety,forthe correct regulation ofgas use
andlonglifeof the appliance,ensure that thegaspressure
conforms to the indications given in table 1 “Nozzle and
burner characteristics”.
Connection to non-flexible tube
(copper or steel)
Connectionto the gas source mustbe done in such a way
as to not create any stress points at any part of the
appliance.
The appliance is fitted with an adjustable, "L" shaped
connectorand agasketfortheattachmentto thegassupply.
Shouldthis connectorhave tobeturned, thegasketmustbe
replaced (supplied with the appliance).
The feeding connector of the gas to the appliance is
threaded 1/2 gas male cylinder.
Connection to flexible steel tube
The gas feed connector to the appliance is a threaded,
male 1/2" connector for round gas pipe. Only use pipes
and sealing gaskets that that conform to the standards
currentlyinforce.Themaximumlengthof the flexiblepipes
mustnot exceed2000 mm. Once the connectionhasbeen
made, ensure that the flexible metal tube does not touch
any moving parts and is not crushed.
Check the Seal
Once the appliance has been installed, make sure all the
connections are properly sealed, using a soapy water
solution.Never use a flame.
ElectricalConnection
The cooktops fitted with a tripolar electrical supply cord
are designed to be be used with alternating current
according to the indications on the rating plate located
under the cooktop.The earthing wire can be identified by
its yellow-green colour.
In the case of installation over a built-in electric oven,
the electrical connections for the cooktop and oven
should be independent, not only for safety purposes, but
also to facilitate removal of one or both in the future.
Electrical Connection for Gas Cooktop
Fit the supply cord with a standard plug for the demand
rate indicated on the rating plate or connect it directly to
theelectrical mains.In the latter case,a single pole switch
must be placed between the appliance and the mains,
with a minimum opening between the contacts of 3 mm in
compliance with current safety codes (the earthing wire
must not be interrupted by the switch).The power supply
cord must be positioned so that it does not reach a tem-
perature in excess of 50°C above room temperature at
any point.
Before actual connection make sure that:
•The fuse and electrical system can withstand the load
required by the appliance;
•That the electrical supply system is equiped with an
efficient earth hook-up according to the norms and
regulations prescribed by law;

20
•That the plug or switch are easily accessible.
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green &Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
Connect the Green &Yellow wire to terminal marked “E”
or or coloured Green or Green &Yellow.
Connect the Brown wire to the terminal marked “L” or
coloured Red.
Connect the Blue wire to the terminal marked “N” or
coloured Black.
Adapting the Cooktop for DifferentTypes of Gas
To adapt the cooktop to a different type of gas than that
for which it was designed, (see the sticker under the hob
oronthepackaging),theburner nozzles must be changed,
as follows:
•Remove the pan supports and slide the burners out of
the cooktop.
•Unscrew the nozzles using a 7mm socket wrench and
replace them with those for the new type of gas.(See
table 1, “Burner and Nozzle Specifications”).
•Reassemble the parts following the instructions in
reverse order.
•Oncompleting the operation,replacetheoldratinglabel
with the one showing the new type of gas; the sticker
is available from our Service Centres.
If the gas pressure is different than that prescribed, a
pressure regulator must be installed at the source, in
compliance with national standards governing the use of
piped gas regulators.
Regulation of Air Supply to the Burner
The burners do not need any primary air regulator.
MinimumRegulation
Minimum regulation:
•Turn the gas valve to minimum.
• Remove the knob and turn the regulator screw
(positioned either on the side of the top or inside the
shaft-Figs.A and B)clockwiseuntil the flame becomes
small but regular.
N.B.: In the case of liquid gas, the regulation screw must
be fully screwed in (clockwise).
•Make sure that, when the knob is turned rapidly high
to low, the flame does not go out.
•In the event of a malfunction on appliances with the
security device (thermocouple) when the gas supply
isset at minimum, increase the minimum supply levels
using the regulator screw in Fig.A - B.
Once the adjustment has been made, apply sealing wax,
or a suitable substitute, to the old seals on the by-pass.
Table1 (For Hungary) G 20 G 25.1 G 30
Burner Thermal power
kW Nozzle 1/100 (mm) Thermal power kW Nozzle 1/100 (mm) Thermal power kW Nozzle 1/100 (mm)
Reduced Fast (RR) 2,45 110 1,90 110 2,30 80
Semi Fast (Medium) (S) 1,60 96 1,25 96 1,50 64
Auxiliary (Small) (A) 0,90 71 0,65 71 0,90 50
Triple Crown (TC) 3,15 133 2,45 133 2,90 91
Semi-FishBurner (SP) 1,50 95 1,15 95 1,40 60
Supply pressures 25 mbar 25 mbar 30 mbar
At 15°C and 1013 mbar-dry gas
P.C.I. G20 35,9 MJ/M3P.C.I. G30 122,8 MJ/M3
P.C.I. G25.1 30,9 MJ/M3
Burners and Nozzle Specifications

21
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50,37 MJ/kg *** Butane P.C.S. = 49,47 MJ/kg Naturale P.C.S.= 37,78 MJ/m3
(1) Only for appliances with security device (ref. F).
PH 940M / PH 940MS
R
S
SA
PH 941M / PH 941MS
R
S
SA
PH 941MSTV
RR
A
S
TC
PH 930...
TC
S
TC
PH 941MSTB
TC
S
RR
A
PH 960MST
RR
SA
TC
SP
PH 940MST
TC
S
RR
A
This appliance conforms with the following European
EconomicCommunitydirectives:
- 73/23/EEC of 19/02/73 (LowVoltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent
modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
Table 1 Liquid gas Natural gas
Burner Diameter
(mm) Thermal power kW (p.c.s.*) By-pass 1/100
(mm)
Nozzle
1/100 Flow* g/h Nozzler 1/100 Flow* l/h
Nom. Red. (1) (mm) *** ** (mm)
Fast
(Large) (R) 100 3.00 0.7 41 39 86 218 214 116 286
Reduced Fast
(RR) 100 2.60 0.7 41 39 80 189 186 110 248
Semi Fast
(Medium) (S) 75 1.65 0.4 30 28 64 120 118 96 157
Auxiliary
(Small) (A) 55 1.00 0.4 30 28 50 73 71 71 95
Triple Crown (TC) 130 3.25 1.3 60 57 91 236 232 133 309
Semi-FishBurner
(SP) - 1.50 0.4 30 28 60 109 107 95 143
Supply pressures Nominal (mbar) Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25

viale Aristide Merloni, 47 - 60044 Fabriano
tel.[phone] - telex 560196 - fax [phone]
www.Merloni.com
Nuovo piano incasso 90 06/99 - 195016907.08 Xerox Business Services - Docutech
