Ariston BDR 190 NA User guide

33" Min.
35" Max.
underside of
countertop to floor
Wall area must
be free
of pipes and
wires
21 5/8"
Min. base depth

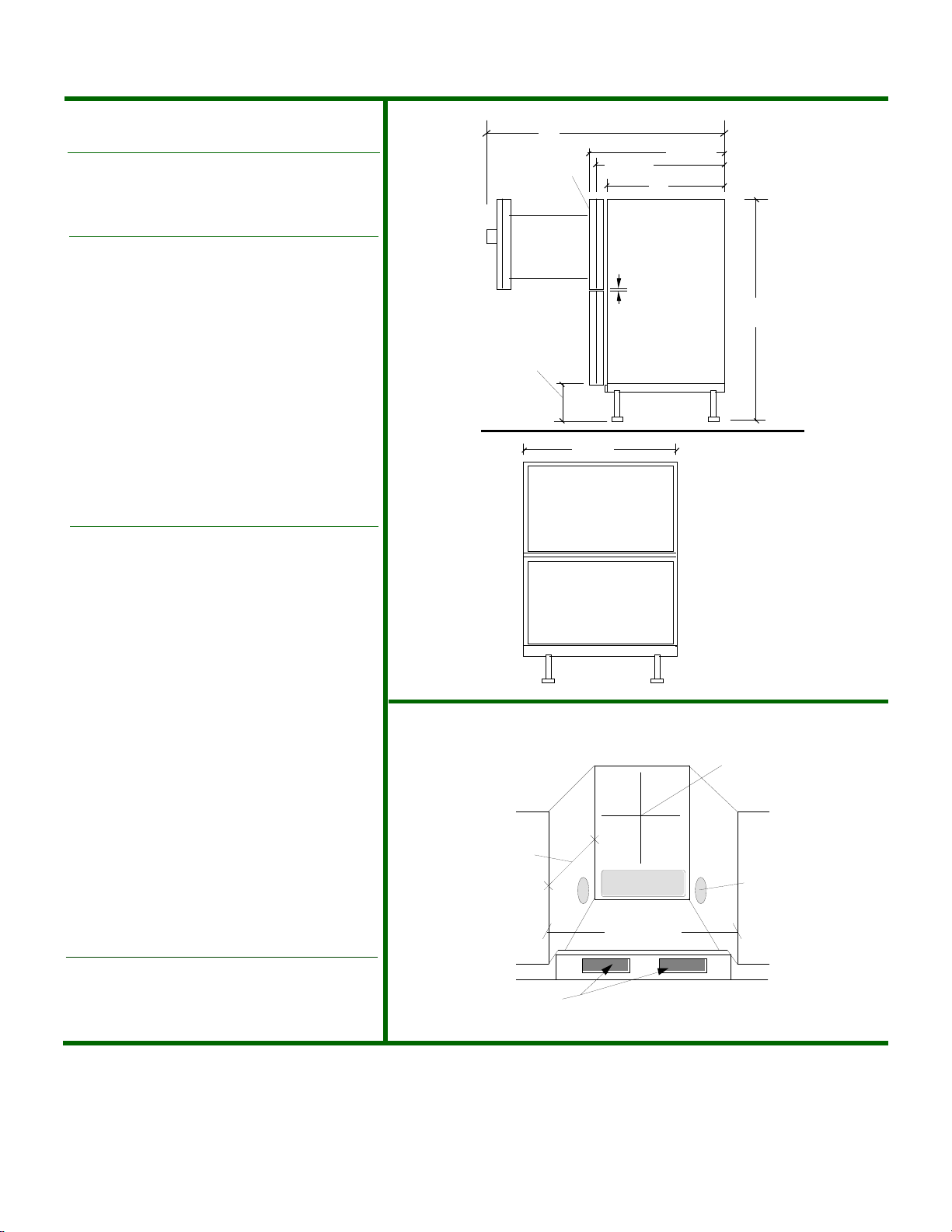

Rough-in Information
(Not to Scale)
35 7/16"
Cutout width
Power cord to enter
opening through the
shaded areas
Two 4.65 Sq. In. (30 sq cm) Vent Holes Required
35 3/8"
4 15/16" Min
6 15/16" Max
32 7/8" Min
34 7/8" Max
20"
21 9/16"
Side View
(not to scale)
Front View
(not to scale)
22 5/16"
3/4" Ariston
ZDR36IX
39"
1/4"
Overall width:
Depth including unit door and body:
Overall depth including
3/4" Ariston ZDR36IX :
Body Depth:
Overall depth when drawers are open:
Minimum unit height:
Maximum unit height:
Minimum toe height:
Maximum toe height:
Recommended cutout width:
Recommended cutout depth:
Recommended cutout height:
Minimum air circulation hole
on front of toe kick:
35 3/8"
21 9/16"
24 1/4"
20"
39"
32 7/8"
34 7/8"
4 15/16"
6 15/16"
35 7/16"
21 5/8"
33" - 35"
30 Sq. In.
• Electrical Requirements: 110/115 V, 60Htz.
• When recessed, Ariston products do not require
additional air space for top, sides or rear.
• 2" adjustable legs.
• Must be built-in.
• No drain required.
• When installed in a corner, allow for adjacent
door/drawer and handle thickness.
• Two 4.65 sq. in. (30 sq. cm.) vent holes are required in
custom toe kick (not supplied).
• Accepts custom panels with use of Ariston ZDR36IX
kit. The upper panel is 3/4" thick by 35 1/4" wide by 14"
high. The lower panel is 3/4" thick by 35 1/4" wide by a
minimum of14" high, see page 2. (1/4" gap between the
drawer panels is normal). Panels must not weigh more
than 10 pounds.
See page 2 for additional Information
