Armstrong TRI-PAK ts110 User manual

Installation Manual
TRI-PAK™ TS-110
CEILING SYSTEMS

Make all wiring connections prior to
AC connection and power up.
WARNING:
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
WARNING FOR YOUR PROTECTION
PLEASE READ THE FOLLOWING:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
TS-110 Installation Manual - Page i

TS-110 Installation Manual - Page ii
SECTION: PAGE:
1. Introduction ............................................................................................1
2. Block Diagram and Product Views ........................................................2
3. Truth Table and Factory Default Settings...............................................4
4. Installation Guide ...................................................................................5
5. Application Guides.................................................................................8
5A. Sound Masking .........................................................................8
5B. Paging:.....................................................................................10
5B.1. Via microphone (pre-amplified)......................................10
5B.2. With other telephone paging systems...........................10
5B.3. With an existing paging amplifier ..................................10
5B.4. Via TR-230 for telephone paging ..................................11
5C. Music .......................................................................................12
5D. System Extension ....................................................................12
5E. Connection to External Volume Control ..................................13
6. Technical Specifications........................................................................14
7. Troubleshooting Guide..........................................................................15
8. Glossary of Terms .................................................................................16
9. Warranty Information.............................................................................17
TABLE OF CONTENTS

TS-110 Installation Manual - Page 1
1.1 CHECK CONTENTS Read and verify the following list of TS-110 carton contents:
•(1) TS-110 electronics unit
•(1) Installation Manual
•(3) 3-pin terminal block plugs (for line inputs and output)
•(1) 2-pin terminal block plug (for AHJ)
•(1) 2-pin terminal block plug (for power)
•(1) Large 4-pin terminal block plug (for speaker output)
•(1) Low voltage AC power supply (18 V)
•(1) No. 6 – 32 x 3/8" round slotted/Phillips screw
•(1) J-type speed nut
Read the following electrical and mechanical requirements for your
i-ceilings system components.
Mains power 120 VAC, 60 Hz
Maximum Power Consumption 28 W
Fuse 2A slow blow fuse
Dimensions 2"(h) x 6"(w) x 8"(d)
Weight 2 Lbs.
Ambient Temperature < 86º F (30ºC)
Storage Temperature 0º - 50º C (32º-122º F)
Read all sections related to circuit description, installation guide and
panel descriptions to gain a complete understanding of all inputs, outputs
and switches prior to installation.
The following tools may be helpful for proper installation of this unit:
•Flat / Phillips blade screwdriver
•Wire strippers (16 AWG to 24 AWG)
•Multimeter
•SPL meter
SECTION 1: INTRODUCTION
The TRI-PAK™ TS-110 is a high quality one
channel digital audio system delivering any
combination of music, paging and sound mask-
ing applications as a single zone in commercial
buildings.
The TS-110 is a low-voltage system installed directly
into the chassis of an Armstrong ESSENTIALS™or
PRIVACY™speaker panel in the ceiling plane. An
Armstrong speaker with a TS-110 installed on-board
becomes a self-amplified unit that can drive several
other speakers. (CAUTION: All wiring connections
must be made before powering up the unit.)
The DSP-based unit delivers one 10 watt channel
to selectable outputs at 25 volt, 70 volt, or 100
volt. A built-in digital noise generator provides
masking signals at either –4 dB per octave or
NC40 via switch selection. Multiple line/music
level inputs are provided. Switch selectable
equalization for the Armstrong P-25 and E-5
speakers is also built in.
Multiple TS-110 units can be linked together using
the balanced line outputs.
1.2 CHECK MECHANICAL
AND ELECTRICAL
REQUIREMENTS
Electrical:
Mechanical:
1.3 FAMILIARIZE
YOURSELF WITH
THIS EQUIPMENT
1.4 USEFUL TOOLS

TS-110 Installation Manual - Page 2
SECTION 2: BLOCK DIAGRAM AND PRODUCT VIEWS
SIDE PANEL:
BLOCK DIAGRAM:
DIP Switch
Setup Options
Music/Line 1
Volume Control
Masking
Volume Control
Music/Line 2
Volume Control

TS-110 Installation Manual - Page 3
SECTION 2: BLOCK DIAGRAM AND PRODUCT VIEWS
Line
Output
1/2" and 3/4"
Knockouts for
Input/Output Cabling
DIP Switch
Setup Options
Masking Volume
Control
Music/Line 1
Volume Control
Mounting Tab
To Speaker
Speaker Output
(25V, 70V, 100V)
18 V AC
Power

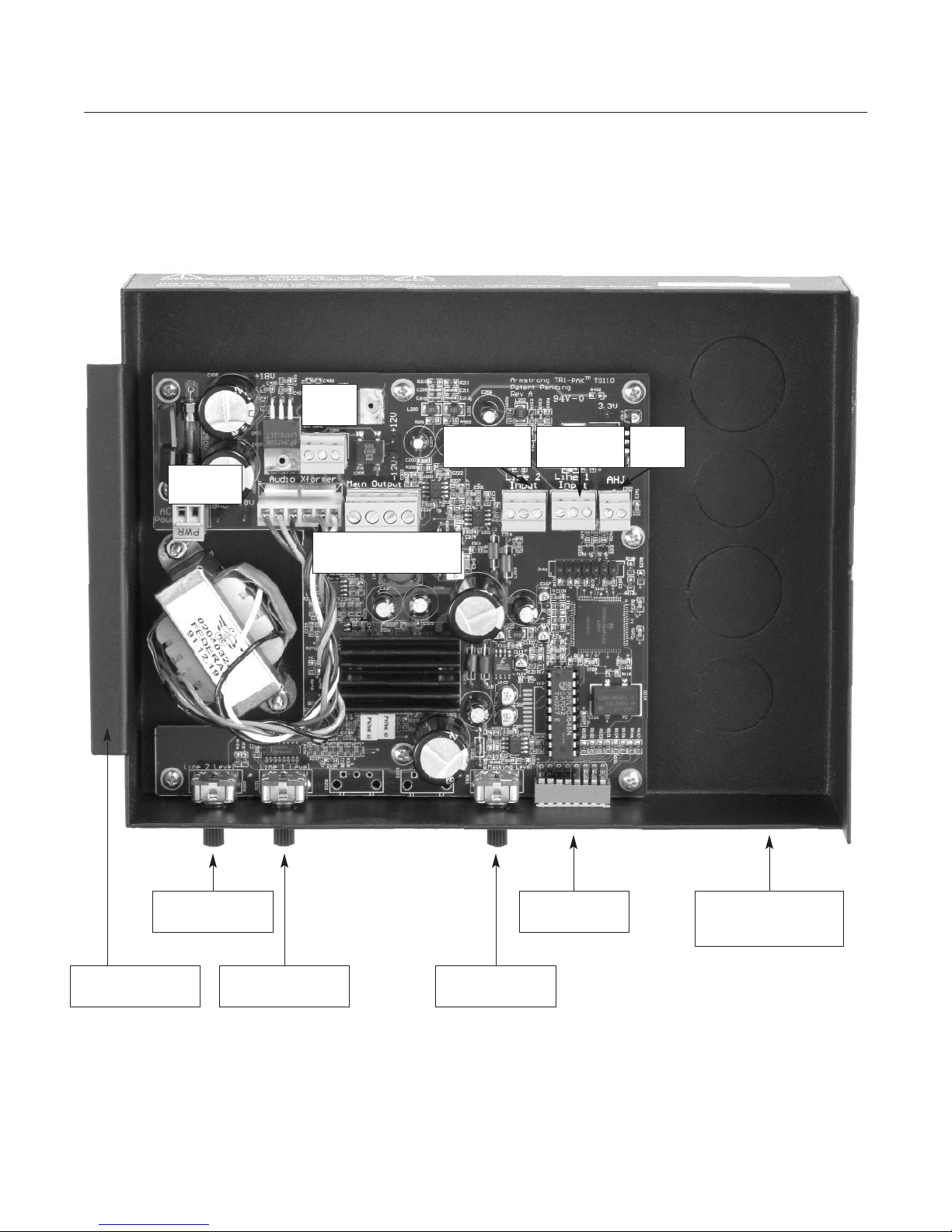

INTERNAL CONNECTIONS AREA:
All input/output connections will be made in this area. All connections will be contained in this
cover when it is installed properly on an Armstrong PRIVACY (P-25 model) or ESSENTIALS
(E-5 model) speaker.
Music/Line 1
Input
‘AHJ’
Input
Music/Line 2
Input
Music/Line 2
Volume Control

TS-110 Installation Manual - Page 4
SECTION 3: TRUTH TABLE AND FACTORY DEFAULT SETTINGS
SETUP OPTIONS:
Factory Default Settings: (DIP Switches 1-8 all down)
•–4 dB noise pre-filter
•Normal noise level
•Armstrong P-25 speaker equalization
•Normal space equalization
HOW TO SELECT OPTIONS USING THE DIP SWITCHES:
The setup options are selected via DIP switches which can be accessed with a small screwdriver. In
the truth table, “on” means “up,” and “off” means “down.”
Up
On
Down
Off

TS-110 Installation Manual - Page 5
SECTION 4: INSTALLATION GUIDE
The TS-110 is designed for installation on the Armstrong P-25 or E-5 model speaker panels.
The set-up procedure is the same for each option. Follow these steps:
Remove cover plate from speaker and discard.
Place all input and output cables through knockouts and secure with strain relief. Leave
at least 6"-10" length for ease of connection.
Place conductors into terminal block plugs (provided). (CAUTION: Do not connect more
than two wires per contact position.) Tighten securely and place into appropriate con-
nector location on the TS-110 unit (as shown on page 3).
Connect speaker output at 100V, 70V, or 25V to main speaker and daisy chain or home
run to additional speakers. (CAUTION: Make sure that the switch-selected
voltage on the speaker matches the selection made on the TS-110.)
Turn TS-110 unit over and place enclosure into speaker panel and secure into place.
Use the mounting tab to place unit into the bridge at the center of the speaker.
Secure the unit to the speaker frame at the outer edge of the speaker with the screw
and speed nut provided.
Select the setup options desired for your application via DIP switches 1-8. (See pages
8-13 for additional information on specific masking, paging and music applications.)
Turn down the three volume control knobs on the side panel of the TS-110 (full
counterclockwise).
Wire AC power to the power supply (provided) and plug into AC power outlet.
Turn up and adjust the volume of masking, paging and/or music for your application.
1
2
3
4
5
6
7
8
9
10
CONNECT TS-110
OUTPUT TO SPEAKER
REMOVE COVER PLATE
FROM SPEAKER
1
5

100 70 25 COM
SPEAKER OUTPUT
CONNECTOR
SPEAKER
CONNECTOR
DO NOT CONNECT MORE
THAN TWO WIRES PER
CONTACT POSITION
A
B
TO SPEAKER #2
TO SPEAKER #2
MASTER SPEAKER
OR
FROM TS-110 SPEAKER OUTPUT
Connection from the TS-110 master
speaker to the second PRIVACY
speaker can be made in several ways:
Connect from the speaker
output connector (100V, 70V,
or 25V) to speaker #2.
OR
Connect from the master
speaker connector to
speaker #2.
A
B
TS-110 Installation Manual - Page 6

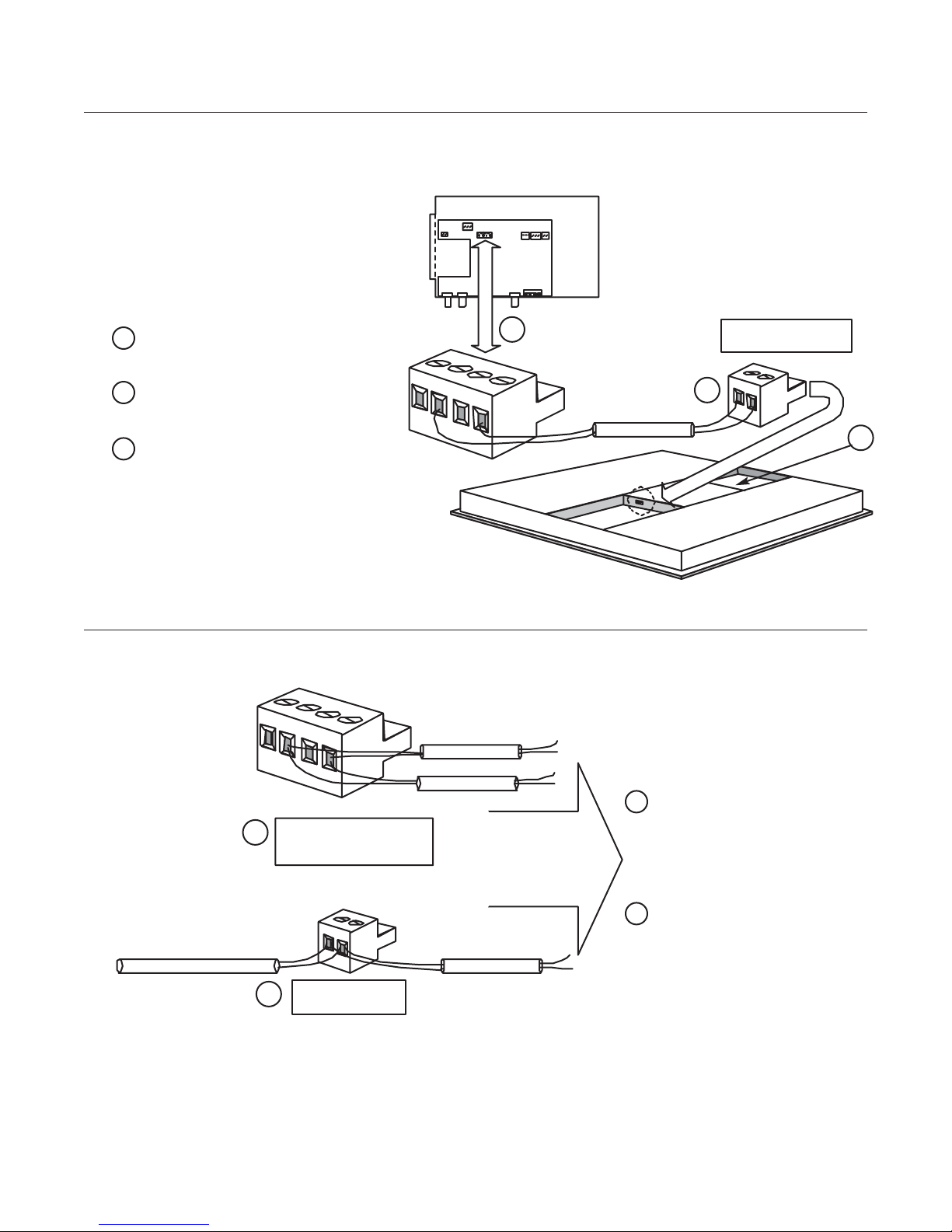

SECTION 4: INSTALLATION WIRING DIAGRAMS
A
B
100 70 25 COM
–
+
70V
COM
CONNECT TO
MASTER SPEAKER
TS-110
C
FIGURE 1: CONNECTION OF TS-110 SPEAKER OUTPUT TO MASTER PRIVACY SPEAKER
FIGURE 2: CONNECTION TO MULTIPLE PRIVACY SPEAKERS
Connect the TS-110 speaker output
(100V, 70V, or 25V) to the master speak-
er. The PRIVACY speaker requires
use of the 2-pin connector. Ensure
that the voltage matches the slide
switch selection of 70V or 25V (70V
shown). Select speaker tap setting.
Connect the 4-pin connector to the
speaker output on the TS-110.
Connect the 2-pin input connector
to the speaker.
Select speaker input voltage (70V or
25V) and tap setting.
A
B
C

TS-110 Installation Manual - Page 7
SECTION 4: INSTALLATION WIRING DIAGRAMS
FIGURE 3: CONNECTION OF TS-110 SPEAKER OUTPUT TO MASTER ESSENTIALS SPEAKER
FIGURE 4: TS-110 WIRING CONNECTIONS TO ESSENTIALS SPEAKERS
100 7025 COM
B
70V
COM
CONNECT TS-110 TO
MASTER SPEAKER
TS-110
C
A
100 70 25 COM
SPEAKER OUTPUT
CONNECTOR
DO NOT CONNECT MORE
THAN TWO WIRES PER
CONTACT POSITION
A
B
TO SPEAKER #2
TO SPEAKER #2
MASTER SPEAKER
MASTER SPEAKER
OR
FROM TS-110 SPEAKER OUTPUT
Connection from the TS-110 master
speaker to the second ESSENTIALS
speaker can be made in several ways:
Connect from the speaker
output connector (100V, 70V,
or 25V) to speaker #2.
OR
Connect from the master
speaker connector to
speaker #2 and any additional
speakers using wire nuts.
A
B
Connect the TS-110 speaker output
(100V, 70V, or 25V) to the master
speaker. The ESSENTIALS speaker
requires use of electrical wire nuts.
Ensure that the voltage matches the
slide switch selection of 70V or 25V
(70V shown). Select speaker tap setting.
Connect the 4-pin connector to the
speaker output on the TS-110.
Connect the speaker wires directly to
the 4-pin connector OR use wire nuts
and jumpers (as shown).
Select speaker input voltage (70V or
25V) and tap setting.
A
B
C

TS-110 Installation Manual - Page 8
SECTION 5A: SOUND MASKING APPLICATION GUIDE
The TS-110 provides sound masking via a built-in noise generator and includes a choice
of two pre-filtered noise signals: the industry recognized NC40 noise or a - 4 dB per octave
noise. Additionally, both speaker response EQs and space effect EQs are provided
to simplify the process of achieving speech privacy with a non-intrusive masking sound of
good tonal quality.
This unit can be used for either of the following masking applications:
1) One uncorrelated masking signal in a single architectural zone for open plan masking.
2) One uncorrelated masking signal in a single architectural zone for closed plan masking.
Caution: It is not appropriate to mix open and closed plan speakers for masking from the same
TS-110 unit because they are typically set at different levels and may be equalized differently.
FACTORY DEFAULT SETTINGS
The factory default settings are as folows:
•–4 dB noise pre-filter
•Normal noise level
•Armstrong P-25 speaker equlization
•Normal space equalization
OPEN PLAN SET-UP PROCEDURE
For an open plan application, the set-up process is as follows:
1) Turn the masking volume down on the side panel.
2) Set the desired masking signal with DIP switch position 1 where down is for the – 4 dB noise
signal and up is for the NC40 noise signal.
3) Set the speaker EQ for the P-25 on DIP switch position 3 by leaving it down in the default
position. (This setting provides an inverse P-25 frequency response thus making the system
flat relative to the speaker.)
4) Leave the space effects EQ at the default setting (normal) since an open plan space
probably has low space effects due to the sound at the listener being primarily direct sound
from the speakers.
5) Turn the masking volume up on the side panel. Using a sound level meter (SLM), measure
the sound in a cubicle or occupant seating area, adjusting the level until the masking is
approximately 48 dBA. Repeat this measurement in a few locations to ensure that the zone
is set properly.
6) You may choose to switch the space effect EQ to +1.5 to -1.5 or adjust the masking signal
to sound most pleasant or balanced to your ear. If either of these settings are chosen, you
will need to recheck the level in several occupant spaces and readjust the level to 48 dBA.

TS-110 Installation Manual - Page 9
SECTION 5A: SOUND MASKING APPLICATION GUIDE
CLOSED PLAN SET-UP PROCEDURE
For a closed plan application, it is usually recommended to have one P-25 model speaker
installed per room (unless it is a larger room, in which case as many as four P-25 speakers may
be used). The set-up process is as follows:
1) Turn the masking volume down on the side panel.
2) Set the desired masking signal with DIP switch position 1 where down is for the – 4 dB noise
signal and up is for the NC40 noise signal.
3) Set the speaker EQ for the P. 25 on DIP switch position 3 by leaving it down in the default
position. (This setting provides an inverse P-25 frequency response thus making the system
flat relative to the speaker.)
4) Set the space effect EQ with DIP switches 5-8, where the settings are listed in the
truth table on page 4. Choose the settings as follows:
• Normal: average sized room furnished in an average way (10x10x9ft, standard
acoustical ceiling (NRC .60), standard commercial grade carpet)
• + 3 dB: large room furnished with lots of sound treatment (20x20x9ft,
high performance ceiling (NRC .75), fiberglass wall panels (NRC .85) on 2 walls,
standard commercial grade carpet)
• +1.5 dB: large room furnished with some sound treatment (16x16x9ft,
standard acoustical ceiling (NRC .65), Mineral fiber wall panels (NRC .50) on 1 one
wall, standard commercial grade carpet)
• – 1.5 dB: small room furnished with little sound treatment (8x8x9ft,
standard acoustical ceiling (NRC .50), no wall treatment, standard commercial
grade carpet)
• – 3.0 dB: small room with no sound treatment (8x8x9ft, drywall surfaces, thin carpet)
5) Turn the masking volume up on the side panel. Using a sound level meter (SLM),
measure the sound at an occupant seating area, adjusting the level until the masking is
approximately 43 dBA.

TS-110 Installation Manual - Page 10
5B.1. VIA MICROPHONE (PRE-AMPLIFIED)
Connect microphone to a microphone preamplifier.
Connect the mic preamp to Line 1 or Line 2 input.
Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to
secondary speaker(s). Set voltage switch on speaker to match power selected for
TS-110 and make speaker tap setting selection.
Connect AC power to power supply (provided) and secure to outlet.
Adjust volume control for Line 1 or Line 2.
SECTION 5B: PAGING APPLICATION GUIDE
1
2
3
4
5
5B.2. WITH OTHER TELEPHONE PAGING SYSTEMS
Connect the telephone paging interface device to Line 1 or Line 2 input.
Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to secondary
speaker(s). Set voltage switch on speaker to match power selected for TS-110 and make
speaker tap setting selection.
Connect AC power to power supply (provided) and secure to outlet.
Adjust volume control for Line 1 or Line 2.
5B.3. WITH AN EXISTING PAGING AMPLIFIER
Connect the existing paging amplifier’s output (100V, 70V, or 25V) to an appropriate low
voltage interface device.
Connect this interface device to the Line 1 or Line 2 input.
Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to secondary speak-
er(s). Set voltage switch on speaker to match power selected for TS-110 and make speaker tap
setting selection.
Connect AC power to power supply (provided) and secure to outlet.
Adjust volume control for Line 1 or Line 2.
1
2
3
4
1
2
3
4
5

TS-110 Installation Manual - Page 11
SECTION 5B: PAGING APPLICATION GUIDE
5B.4. VIA TR-230 FOR TELEPHONE PAGING
Connect telephone system to Armstrong TR-230 phone system input section (See TR-230 manual).
Connect TR-230 Balanced Line Out to line input(s).
Connect speaker output (100V, 70V, or 25V) to main speaker, daisy chain to secondary
speaker(s), set switch on speaker to match power (100V, 70V, or 25V) and select speaker
tap setting.
Connect AC power to power supply (provided) and secure to outlet.
Adjust volume control for Line 1 or Line 2.
NOTE: The TR-230 Talkback function will not operate with the TS-110.
1
2
3
4
5
TO ADDITIONAL SPEAKER(S), NOT TO
EXCEED 10 WATTS PER TS-110 SYSTEM
MASTER ESSENTIALS/PRIVACY
SPEAKER WITH TS-110 UNIT
AC POWER
SUPPLY
18VAC
TELEPHONE
SYSTEM
AC
Power
Line 1
Input
- +
- +
- +
Line 2
Input
Speaker
Output
4
5
2
1
3
100 70 25 COM
✆

TS-110 Installation Manual - Page 12
SECTION 5C: MUSIC APPLICATION GUIDE
To use the TS-110 to drive background music, follow these steps:
Connect the music source to the Line 1 or Line 2 input.
Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to
secondary speaker(s). Set voltage switch on speaker to match power selected for
TS-110 and make speaker tap setting selection.
Connect AC power to power supply (provided) and secure to outlet.
Adjust volume control for Line 1 or Line 2.
Note: If background music equalization is desired, then it must be provided in the music
source or via the balanced line output.
FOR COMBINATIONS OF MASKING, MUSIC AND PAGING:
Follow the individual procedures for each application.
1
2
3
4
SECTION 5D: SYSTEM EXTENSION
The TS-110 system can be expanded by connecting multiple TS-110 units. Follow these steps:
From the first TS-110, connect from the line output connector.
Terminate the line output from the first TS-110 unit to the Line 1 or 2 input of the
second TS-110 unit.
Select the same power settings on each TS-110 and match them on the installed
speakers, set speaker tap settings, etc.
1
2
3

TS-110 Installation Manual - Page 13
SECTION 5E: CONNECTION TO EXTERNAL VOLUME CONTROL
100 70 25 COM
HI-LEVEL
VOLUME CONTROL
+ - + -
INPUT OUTPUT
P-25
SPEAKER
E-5
SPEAKER
OR
TS-110
POWER SUPPLY
BA
C
NOTE: High-level volume control will adjust volume of all output signals to all speakers
connected to a TS-110. Therefore, is not recommended for use with masking.
FOR PAGING AND MUSIC SYSTEMS:
Connect speaker output at 100V, 70V, or 25V to
input section of hi-level volume control
(70V to + / Com to -).
Connect hi-level volume control to speaker input of
master speaker (where TS-110 is mounted).
Connect additional speakers.
Note: A Privacy speaker will utilize a 2-pin
connector. An Essentials speaker will terminate
with electrical wire nut to wire leads.
A
B
C

TS-110 Installation Manual - Page 14
SECTION 6: TECHNICAL SPECIFICATIONS
PRODUCT APPROVALS
• UL Listed
• Plenum-rated when installed with the Armstrong P-25 or E-5 speaker under UL 2043
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FREQUENCY RESPONSE
Music/Line input....................................50 Hz to 18 kHz
ELECTRONIC NOISE FLOOR
Less than NC25 installed with P-25/E-5 speakers
LEVELS
Nominal operating level ....................0 dBu
Maximum line input levels ................+20 dBu
Balanced line output:
•Nominal output level ..................0 dBu
•Impedance..................................<100 Ω
•Maximum output level................+20 dBu
INPUT IMPEDANCES
Music/Line .............................................> 10k Ω
NOISE SOURCE
Peak to average ratio: 8 dB
POWER
10 W (1 channel); selectable 25 V, 70 V, or 100 V
FREQUENCY RESPONSE
Speaker output .....................................80 Hz to 20 kHz
Balanced line output.............................20 Hz to 20 kHz
DISTORTION
0.1% THD+N
D/A CONVERTER
24-bit Sigma Delta
MAXIMUM POWER CONSUMPTION
28 W

TS-110 Installation Manual - Page 15
SECTION 7: TROUBLESHOOTING GUIDE
Please follow these tips before calling Armstrong TechLine.
A. Review and follow all instructions in this manual.
B. Before terminating the speakers or speaker runs, verify the wire is clear of shorts, opens,
and cross-wires. Use appropriate equipment (i.e. a multimeter) to test.
C. If volume is too loud or too soft, check that speaker input/output voltages match.
D. If output sounds odd, check to be sure that the left and right input signals are not wired into +
and - inputs, respectively.
E. If you are still experiencing difficulty, please call TechLine at 1-877-ARMSTRONG
(1-877-276-7876).

TS-110 Installation Manual - Page 16
NOTES:

TS-110 Installation Manual - Page 17
SECTION 8: GLOSSARY OF TERMS
AHJ Authority Having Jurisdiction (normally the local Fire Department)
ASTM American Society for Testing and Materials
ASHRAE American Society of Heating, Refrigeration and Air-Conditioning
Engineers based in Atlanta GA.
AWG American Wire Gauge. The higher the number, the thinner the wire.
CE European Commission for Standardization (European Union)
CENTREX Business telephone service provided from telephone Central Office
dB / dBu / dBV dB is a logarithmic unit named for Alexander G. Bell. dBu and dBV
are measures of relative voltage level referenced to 0.775 rms for dBu
and 1V rms for dBV.
DSP Digital Signal Processor
DTMF Dual Tone Multi Frequency, commonly referred to as “Touch Tone”
DUCKING Lowering level of background music below that of an incoming page
E-5 Armstrong ESSENTIALS model speaker panel
EIA Electronic Industry Association (based in Washington DC)
FCC Federal Communications Commission
IEC International Electrotechnical Commission (based in Geneva, Switzerland)
P-25 Armstrong PRIVACY model speaker panel
PSTN Public Switched Telephone Network
RMS Root Mean Square
SPEECH PRIVACY Refers to the lack of speech intelligibility from adjacent talkers. Several levels
of speech privacy are defined in the ASTM standards covering a range from
Confidential privacy meaning speech sounds can be heard but not under-
stood, to Normal privacy meaning that speech can be occasionally heard
and understood but is generally non-intrusive, to Poor privacy wherein all
adjacent speech can be heard and understood. These levels can be related
to ranges of a “Privacy Index” (PI) representing each level of speech privacy.
TIA Telecommunications Industry Association
UL Underwriters Laboratories (based in Northbrook, Illinois)
VoIP Voice over Internet Protocol
