ARRI SRH-3 User manual

!!1
!
!
!
!
!
!
!
Remote Control!
SRH-3!
!
!
!
!
!
Date 01.09.2018!
!
!
!
USER MANUAL

!!2
!
!
!
Imprint!
Copyright © 2018 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
All rights reserved.
No parts of this document may be reproduced without prior written consent of Arnold & Richter Cine
Technik GmbH & Co. Betriebs KG. Specifications are subject to change without NOTE. Errors,
omissions, and modifications excepted.
ARRI, ALEXA, AMIRA, LDS and LENS DATA SYSTEM are trademarks or registered trademarks of
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
All other brands or products are trademarks or registered trademarks of their respective holders and
should be treated as such. Original version.
For further assistance:
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Türkenstr. 89
80799 München
Germany
www.arri.com!
!
!
!
Document revision history!
!
Version Order Nr Release Date !
1.0 K4.0019244 W05018 01.04.2018
2.0 01.09.2018 !
!
Scope!
This document describes the components and the setup and programming of the SRH-3 Remote
Control.
!
!
Disclaimer!
Before using the products described in this manual, be sure to read and understand all the respective
instructions.
Otherwise the customer must contact ARRI before using the product.
While ARRI endeavours to enhance the quality, reliability and safety of their products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize the risk of damage to property or injury (including death) to persons arising from defects in
the products, customers must incorporate sufficient safety measures in their work with the system and
heed the stated conditions of use.
ARRI or its subsidiaries do not assume any responsibility for losses incurred due to improper handling
or configuration of the TRINITY or other system components.
ARRI assumes no responsibility for any errors that may appear in this document. !
The information is subject to change without NOTICE.
For product specification changes after this manual was published, refer to the latest published ARRI
data sheets or release notes, etc., for the most up-to-date specifications.
Not all products and/or types are available in every country. Please check with an ARRI sales
representative for availability and additional information.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any
claim, representation, cause, action, or whatsoever, express or implied, whether in contract or not,
including negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. In
no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special,
direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost
savings, lost revenues or economic loss of any kind or for any claim by a third party, downtime, good-
will, damage to or replacement of equipment or property, any cost or recovery of any material or
goods associated with the assembly or use of our products, or any other damages or injury of the
persons and so on or under any other legal theory.
In the event that one or all of the foregoing clauses are not allowed by applicable law, the fullest
extent permissible clauses by applicable law are validated. !
!
Imprint

!!3
!
!
!
Table of Contents!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
1
For your safety
4
2
Functions
5
3
Connectors
6
3
Emergency Shut OFF Switch
9
4
Home Screen
10
5
Factory pre assigned controls
12
6
Main Menu
13
7
General Setup
15
7
PID
16
7
PID Quick Setup
18
7
PID Drop
19
7
PID Autotune
20
8
Controls
21
9
Offset
25
10
Speed & Ratio
27
11
Endstops
28
12
Follow Mode / Pan Lock
30
13
True Horizon
32
14
Shot Preset
33
15
Status
34
16
Library
36
17
Settings
37
18
Wireless
39
19
Service
42
20
Info
44
21
FIZ
46
22
User Profiles
50
23
Accessories
52
24
Assignable controllers and functions
53
25
Pinout
54
Table of Contents

!!4
!
!
!
1 For your safety!
!
!
!
!
!
!
!
!
!
!
!
All directions are given from a camera operator's point of view. For example, camera-right
side refers to the right side of the camera when standing behind the camera and operating
it in a normal fashion.
The appendix at the back of the manual contains useful reference material including
specifications, connector pin-out diagram.
Before use, please ensure that all users comprehensively read, understand, and follow the !
instructions in this document. !
!
1.1 Risk Levels and Alert Symbols!
!
Safety warnings, safety alert symbols, and signal words in these instructions indicate
different risk levels: !
!
!
!
DANGER indicates an imminent hazardous situation which, if not avoided, !
will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided,
may result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
NOTICE
NOTICE explains practices not related to physical injury. No safety alert
symbol appears with this signal word.
NOTE
Provides additional information to clarify or simplify a procedure.
!DANGER
!Warning
!CAUTION
For your safety
The SRH-3 system and products should only be used by experienced and!
trained operators. This product is NOT designed for inexperienced users !
and should not and must not be used without proper training.!
!
ARRI recommends that all users of the SRH-3 system read the manual in!
its entirety prior to use.
!Warning

!!5
!
!
2 Functions!
!
2.1!
Functions on the top!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2.2
Functions on the rear!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2.3 !
Functions on the right and left side!
!
!
!
!
!
!
!
!
Emergency
Shut OFF !
Switch
Mini!
USB
Antenna
RC!
Data
FF
Can!
Bus
12V!
Pwr!
Out
RS!
12V!
Pwr!
Out
12V!
Pwr!
Out
FS!
Can!
Bus
12V!
Pwr
In
Main
Pwr
On/Off
LBUS In
ARRI
Mounting!
Rosettes
Assignable Knob K7
Joystick
Touch Panel
Emergency Shut !
OFF Switch
Cover !
(optional module)
Assignable Button B1
Accessory!
mounting frame
Cover !
(optional module)
Assignable Button B2
Assignable Knob K8
Buttons!
B5 / B6
Assignable Knobs!
K1 / K2 / K3
Assignable Knobs!
K4 / K5 / K6
Cover !
(optional module)
Antenna
Buttons!
B3 / B4
Functions

!!6
!
!
!

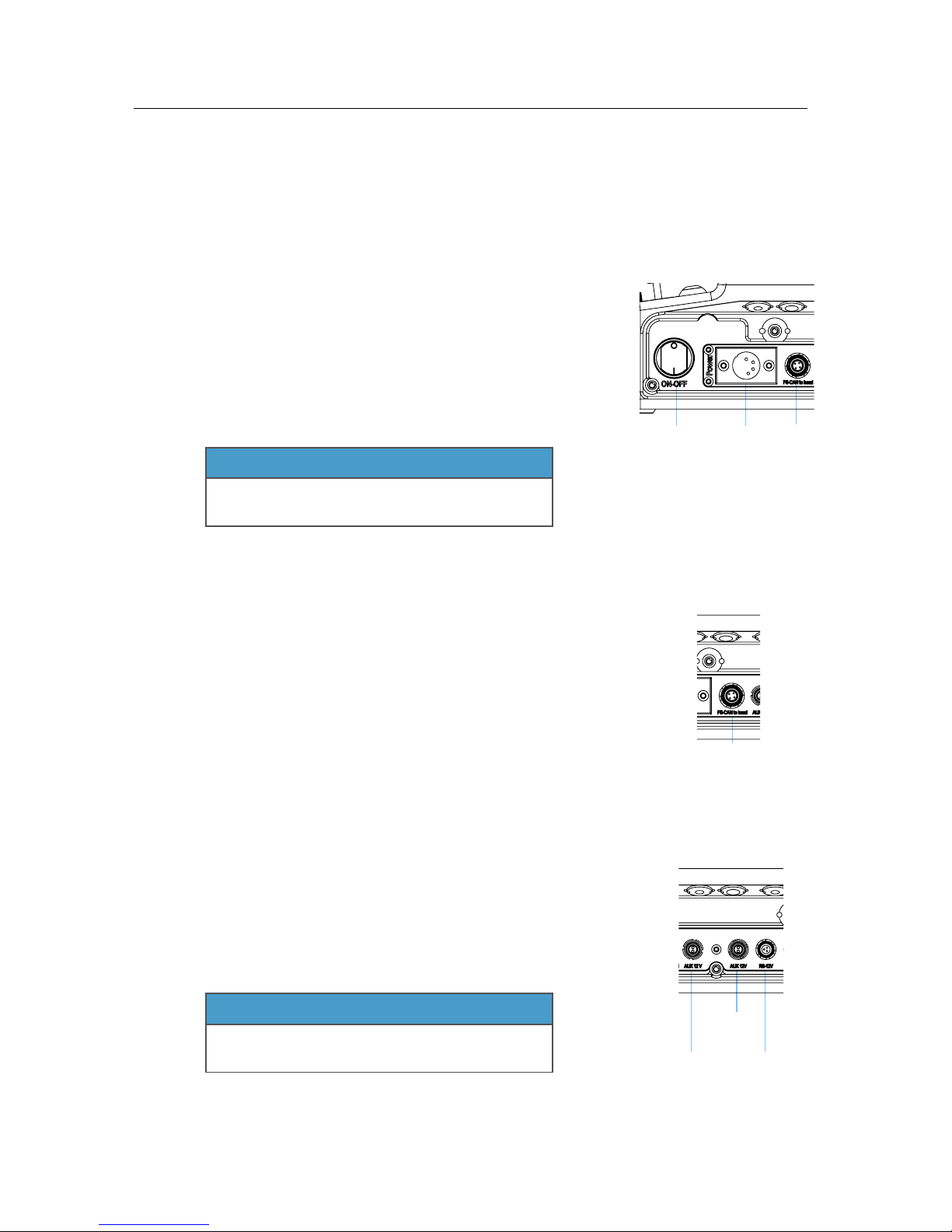

3 Connectors
!
!
3.1 !
Powering the SRH-3 Control Panel!
!
You can use any 14.4 Volt min. 30W power supply!
or 14.4 Volt battery to power the SRH-3 Control Panel.!
!
Any 4pin XLR conformed power cable can be used.!
!
When using the ARRI SRH-3 Power Supply, the control
panel will be powered through the FS-CAN Bus connector.!
!
NOTE
If the Remote Head does not react to the control panel, !
when the main power switch is on check that the !
SHUT OFF Switch is pulled out.
!
!
!
!
!
!
!
!
3.2 !
Hardwiring the SRH-3 Stabilized Remote Head!
!
The SRH-3 can be hardwired with the Remote Panel using !
the FS-CAN BUS connector.!
!
NOTE
Maximum cable length is 250 meter / 820 feet.
!
!
!
!
3.3 !
Powering Monitors and Accessories!
!
The SRH-3 Control Panel offers one ARRI RS and two !
Lemo 0B 2pin power out sockets.!
!
NOTE
The ARRI RS does not support the !
classic camera On/Off trigger signal.!
!
!
!
!
!
!
!
12V!
Pwr
In
Main
Pwr
On/Off
FS!
CAN!
Bus
FS!
CAN!
Bus
12V!
Pwr!
Out
RS!
12V!
Pwr!
Out
12V!
Pwr!
Out
Connectors
NOTICE
Ensure that the power cable in use follows the !
required pin out as per diagram in the appendix
NOTICE
Ensure that the power cable in use follows the !
required pin out as per diagram in the appendix

!!7
!
!
3.3 !
RC Data!
!
The RC Data port is used to connect the PLC Veracity Wheels.!
!
!
!
!
!
!
!
!
!
3.4 !
FF CAN BUS!
!
Interface for future products and interfaces using a fast CAN Bus.!
!
!
!
!
!
3.5 !
MINI USB In!
!
The SRH-3 Control Panel can be updated !
and serviced through the Mini USB socket.!
!
!
!
3.6 !
Antenna!
!
This is the connector for the SRH-3 antenna only.!
!
!
!
!
!
!
!
!
!
RC!
Data
FF
Can!
Bus
Mini!
USB
Antenna
Connectors
NOTICE
Check with the PLC website that your wheels have the
correct firmware.
NOTICE
Never use the Remote Control Panel without an
antenna mounted.!
Otherwise you will risk damaging the radio amplifier.

!!8
!
3.7 !
LBUS In!
!
The SRH-3 Control Panel offers two LBUS In sockets.!
Here you can mount up to two ARRI Master Grips or Grips or other supported LBUS
products.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
NOTE
When using two ARRI Master Grips or other supported LBUS controllers,
like the DRW-1, connect one controller directly to the second controller first.
Then connect the two daisy chained controller to one of the LBUS In sockets.
!
Connectors
LBUS In
ARRI
Mounting!
Rosettes
LBUS
LBUS
LBUS
LBUS

!!9
!
3.8 !
Emergency Shut OFF Switch!
!
The SRH-3 Control Panel offers an Emergency Shut OFF switch.
Use the Emergency Shut OFF switch to switch off the motors of the remote !
head anytime.
Camera power will remain on and only the motor power will be disconnected.
If the Emergency Shut Off switch had been used, this message will appear
in the control screen.!
!
NOTE
If the Remote Head does not react to the control panel, even the main power
switch is on, check that the Emergency Shut Off Switch is pulled out.!
NOTE!
To release the Emergency Shut Off Switch turn the red knob to the left.
!
Emergency Shut OFF Switch
FIZ
B6
B5
B3
True
Horizon
B4

!!10
!
!
4 Home Screen
!
!
!
!
!
!
!
!
!
!
!
4.1 !
Functions!
!
Profile!
Indicates which User Profile is currently selected to operate the system.
Shortcut: Touching Profile will open a new window. (see page 49)!
!
Axis & Direction Indicator!
Indicates the selected controller and the selected direction.!
Shortcut: Touching Dir. will open a new window. (see page 22)
!
Assigned Control Device (Joystick1 H & V)!
Indicates which control device is assigned to which axis.
In this case the Tilt and Pan axes are controlled by the built in Joystick.
Shortcut: Touching Profile will open a new window. (see page 22)
Speed (K1, K2, K3)
Here you can adjust the maximum speed of the individual axis.!
(see page 26)
!
Ramp Start / Stop (K4, K5, K6)
Indicates the ramp value, or how smooth the axis movement starts and stops.
(see page 22)
!
Default Position Button!
This function will move the head back to its predefined starting position.!
In this case this function is assigned to button B3.
NOTE !
The pan and tilt axes will return to zero position and roll will remain where previously set.
If the roll axis is assigned to a Joystick or wheels then it will return to zero.!
True Horizon B4
Sets the Roll axis back to the physical Zero position, when the controller is in speed mode!
(see page 31)
Controls On/Off!
Switches on/off all controllers including the joystick, the wheels, knobs and buttons.!
Home Screen
Assigned !
Control Device
Selected User Profile
Selected Menu
Axis Indicator
Ramp Start
Speed
Ramp Stop
Default Position
FIZ Home Screen
Control!
Status
Endstop!
Status
Follow!
Status
Power Status !
Head
Power Status !
Panel
Directions
PID Menu
Main Menu Access
Radio
Signal
High !
Dynamic !
Status

!!11
!
!
!
Endstop On/Off!
Switches and indicates if Endstop settings are on/off.!
!
Follow On/Off
Switches and indicates if the Follow Mode is on/off.
!
Head!
Indicates that the head menu is the active menu on the screen.!
!
!
!
FIZ!
When selected a touchscreen menu opens to setup the !
controllers for Focus, Iris and Zoom.!
!
!
PID Quick Menu!
When selected a touchscreen menu opens to allow !
changes to increase/decrease PID and motor power settings.!
!
!
!
!
Main Menu
Selecting Menu will return the display to the Main Menu !
and selection screen. !
!
!
!
!
!
5 Factory pre assigned controls!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Knob K7 / Assignable
Button B1 / Assignable
Button B3 /
Default Position
Button B4 /
True Horizon
Knob K1 / Pan Speed
Knob K2 / Tilt Speed
Knob K3 / Roll Speed
Knob K3 / Roll Angle
Button B2 / Assignable
Tilt
Pan
Button B5 /
Endstops On/Off
Button B6 / Follow On/Off
Knob K4 / Pan Ramp In/Out
Knob K5 / Tilt Ramp In/Out
Knob K6 / Roll Ramp In/Out
Home Screen

!!12
!
!
!
5.1!
Functions
You can assign controls or functions to matching knobs, buttons, joysticks
or other external controllers.
The control assigned to each parameter is displayed on the Home Screen.!
Functions can be assignment to controls on the unit in the controls page in !
the Main Menu.!
K1 - K6 !
The display will indicate that a Knob is in use !
and the function it has been assigned to control.
By example the Ramp Start is controlled by !
Knob K3 which is located here. !
!
!
B1 - B6 !
The display will indicate that a Button is in use and the
function it has been assigned to control.
By example B3 will move the head back to its pre
defined default position.The button B3 is located here.!
!
Joystick !
Indicates that the built in Joystick (1)
is assigned for use with Tilt and Pan.!
!
!
TS!
Indicates that the function is assigned to the touchscreen.!
!
Assigning Controls
Select one of the available controllers and confirm
by touching Assign.
J1H = Joystick 1horizontal / Pan axis
Unassigning Controls
To unassign a selected controller, touch Unassign.
NOTE:
After a function was unassigned, the function
will be only available through the touchscreen.
!
Submenu!
Selecting any menu field with three points, !
will open a submenu for that function."
B3
Function / Control Assignment

!!13
!
!
!
6 Main Menu Overview
Selecting Menu on the Home Screen will display the Main Menu page on the display.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
6.1!
Head
!
Selecting Head will open a new touchscreen display to control the motors and PID
settings for each axis.
Sensitivity, Speed, Ramp and Deadband of each control can be set in this menu.!
!
Controls!
Selecting Controls will open a new touchscreen display menu. The Controls menu !
will adjust the Joystick, Zoom, Focus and Wheels control where applicable.!
!
Endstops!
Selecting Endstops will open a new touchscreen display menu. The Endstops menu !
will allow the operator to assign end positions for each axis and enable or disable them
individually. !
NOTE !
Note that the main Endstop on/off button on the Home screen will turn on/off !
all Endstops enabled.!
!
Follow!
Selecting Follow will open a new touchscreen display menu. The Follow menu will control
the speed, Deadband and ramp of the optional follow mode for each axis. In normal remote
head operation the follow mode will be turned off.
Shot Preset
Future feature!
!
Status!
Selecting Status will open a new touchscreen display menu. The Status menu will display
the status of controller expanders, wireless status, and status of individual connections.
(LBUS, FF-CAN Bus, wireless connection)
!
Library!
Future feature
!
Settings
Selecting Settings will open a new touchscreen display menu. The Settings menu will
display the adjustable control panel and wheel brightness and invert the controller display.!
!
Service
Selecting Service will open a new touchscreen display menu. !
The Service menu will allow the operator to restore the SRH-3 to Factory defaults and
calibrate joystick and other controllers.
Main Menu
Selected Profile
Head Adjustments
Controls!
Adjustment
System Adjustments
Service
Status
Info
FIZ
Endstops
Follow

!!14
!
!
!
Info!
Selecting Info will open a new touchscreen display menu.
The Info menu will display the serial number, hardware version, software version and
firmware version of the RH3.
The LBUS and expander selection will provide additional information when activated.!
!
FIZ
Selecting FIZ will open a new touchscreen display menu. !
The FIZ menu uses the LBUS connector to control supported LBUS devices.!
!
Back
Will bring you back to the previous menu window.!
!
Home!
Will bring you back to the Home Screen (page 10)!
!
!
!
Main Menu
Selected Profile
Head Adjustments
Controls!
Adjustment
System Adjustments
Service
Status
Info
FIZ
Endstops
Follow

!!15
!
!
7 General Setup
!
7.1 !
Mounting Position
NOTE!
Every time the Head will be switched on this!
screen will be shown in the RCP.!
!
!
!
!
7.2 !
Head Menu!
!
Selecting Head will open a new touchscreen display to control the motors and
PID settings for each axis.
!
!
!
General Setup
Standing
(normal)
Hanging
(underslung)
NOTICE
Before using the SRH-3, the mounting
position of the head needs to be set in
the remote control.
Motors!
On/Off
PID
Pan Axis
Tilt Axis
Roll Axis
Selected Profile
Back to the !
Home Screen
Back to the !
previous screen
Back to !
Factory
Preset
Store your!
adjustments
Cancelation
Motor !
Mode
NOTICE
You need to tell the RCP the current
mounting position of the head.

!!16
!
!
Motors On/Off
!
These toggle switches allows to switch
On/Off the motors for each axis individually.
!
!
!
Motor Mode!
In the Motor Mode column the motors can be adjusted from !
speed to angle measurement.!
NOTE
If you use a Joystick or the ARRI DRW-1 wheels the Motor !
Mode should be set on Speed. !
If you use PLC Wheels or rotary Knob, you need to switch !
head mode to Angle.
!
PID Main Menu
!
Selecting PID in the Head Menu will open a new
touchscreen display menu.
The PID window will allow the individual control of PID
settings and motor power for each axis and save them
as settings to the selected profile.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Head Menu
Switching off individual motor axis means that the camera is no longer held in position !
and may suddenly move. Make sure someone is taking care of the camera.
!CAUTION
Position
Integral
Pan Axis
Tilt Axis
Roll Axis
Selected Profile
Back to the !
Home Screen
Back to the !
previous screen
Back to !
Factory
Preset
Store your!
adjustments
Cancelation
Derivative
Motor!
Power
Drop !
Compen!
sation
Autotune
Touching Save can turn off all motors for a short moment. Thus, the camera might not be held
in its position for a short moment even for axes whose motor mode is on. !
Make sure someone is taking care of the camera before Save is being pressed.
!CAUTION

!!17
!
!
!
7.3
PID
!
Proportional – Integral – Derivative controller (PID controller)!
!
!
!
!
Proportional – Integral – Derivative controller (PID controller)!
A PID controller continuously calculates an error value e (t) as the difference between a !
desired setpoint (SP) and a measured process variable (PV) and applies a correction !
based on proportional, integral, and derivative terms (denoted P, I, and D respectively) !
which give the controller its name.!
!
Term Pis proportional to the current value of the SP − PV error e(t). For example, if the !
error is large and positive, the control output will be proportionately large and positive, !
taking into account the gain factor "K". Using proportional control alone in a process with !
compensation such as temperature control, will result in an error between the setpoint and !
the actual process value, because it requires an error to generate the proportional !
response. If there is no error, there is no corrective response.!
Term Iaccounts for past values of the SP − PV error and integrates them over time to !
produce the I term. For example, if there is a residual SP − PV error after the application of !
proportional control, the integral term seeks to eliminate the residual error by adding a !
control effect due to the historic cumulative value of the error. When the error is eliminated, !
the integral term will cease to grow. This will result in the proportional effect diminishing as !
the error decreases, but this is compensated for by the growing integral effect.
Term D is a best estimate of the future trend of the SP − PV error, based on its current rate !
of change. It is sometimes called "anticipatory control", as it is effectively seeking to reduce !
the effect of the SP − PV error by exerting a control influence generated by the rate of error !
change. The more rapid the change, the greater the controlling or dampening effect. !
!
P
= Position
= Target Position
= Actual Position
Amount of power
needed to move !
the camera
I
= Time
= Target Position
= Actual Position
Low value slow !
High value fast
= Actual Position
D
= Power Limit
= Target Position
Cruise control"
for the power
PID

!!18
!
7.4!
PID Quick Setup!
NOTE Start with a solid camera setup
1.0 Set Ramp to ZERO on the Joystick (Pan & Tilt) (K4, K5, K6)
2.0 Physical testing of the head motor power:
2.1 Touch the Tilt axis and try move the camera
down and check if the camera slipping. !
!
2.2 If the tilt axis is slipping, you need to
increase motor power for the tilt axis.
2.3 Use the resulting Tilt value as !
starting value for the Pan axis.!
2.4 Press Save
3.0 Adjusting the PID values:
NOTE First you will need a camera picture
3.1 Select a point in the set.
3.2 Use the joystick to pan and stop the head !
at the selected point in the set.
4.0 Check if the camera: !
4.1 stops at the selected point!
4.2 or if the camera is over driving the point!
4.3 or if the camera is bouncing left and right
5.0 If the camera is over driving or bouncing,
you need to work on the Pand Dvalue !
of the Pan axis.
Adjust the Pand Dvalues by steps of five !
up or down.
5.1 If the head is still bouncing because a too soft damper
in between the Head and Crane, increase the Ramp
on the Joystick to slow down the mass before the targeted
end position.
5.2 Same procedure for Tilt
Conclusion:!
It is important to understand that the entire system, such as camera setup, the attachment
of the SRH-3 head to the crane and the overall quality of the crane itself must be
considered.
!
For example:!
If a too soft Iso Damper is used and the whole system becomes too elastic and therefore it
the head may begin to shake. But if a suitable Iso Damper with the right dimensions and
hardness is used, the maximum performance of the SRH-3 can be used.
!
PID

!!19
!
!
!
!
If there is mechanical play between the components in the shock absorber, !
vibrations of the overall system may occur.
!
In order to use the maximum power of the SRH-3, it must be ensured that all !
involved components are optimally designed for the task.
If you want to read a truly detailed description of Stabilization as it applies to Film & TV,
we strongly recommend the following :
http://www.pv-labs.com/wp-content/uploads/2014/12/Stabilization-Steering-and-Gimbal-Technology.pdf
!
!
7.5
Drop!
Permanently compensates of the Pan and Tilt for the !
changing lever and weight distribution of the camera, !
when the camera is facing down.!
!
!
!
!
If the camera is tilted downwards on the tilt axis, the overall !
length of the camera will be shortened, as well as the weight !
distribution.!
The compressed weight distribution can lead to !
overcompensation of the Pan axis.!
The Drop function will help to prevent this.!
!
The motor power of the Pan axis is regulated down in !
proportion to the tilt angle.
Depending of the length and weight of the camera, the !
proportional compensation value can be adjusted from !
0% to 100%.
7.6
Top Down
When extreme camera angles will be reached,
such as 90° tilt down, the entire head and crane
set up may start to vibrate
A higher Drop compensation will be needed.
NOTE
Ensure that the camera setup is rigid.!
The top support bracket will also help to
reduce unwanted vibrations.
Drop
65
90°
0°

!!20
!
7.7
Autotune (Beta)
The SRH-3 offers Autotune which will help to find the needed PID values. !
Autotune tries to calibrate strength and torque of the motors automatically.
NOTE
Autotune can only be used with camera setups heavier than 8 Kg / 17.3 lbs.
If the camera setup is below 8 Kg / 17.3 lbs, use the default values and set Power to 100.
Touching Auto will open a new menu.
7.8
Autotune procedure
This menu allows you to autotune each axis on its own,
or all three axes the same time.
Touching All PID Tune for example, will open
this screen.
NOTE
During autotune calibration, the head moves in all
single axes, which can cause vibration and possibly noise.
This is completely normal and there is no need to worry.
When the autotune has been completed, the PID menu
will show up again and will present the actual PID values.
Here you can accept the autotune PID values,
by pressing Save.
Or you Discard the autotune PID values, because they
do not reach your needs.
"
Autotune (Beta)
NOTICE
This is a Beta Version!
With reference to the BETA END-USER LICENSE AGREEMENT, you must be
aware that currently the expected performance may not be fully achieved.
