Arrow Storage Products BWG54 Use and care manual

709181016
Model No. BW54-A BWG54
BWW54 YL54
697.68711 BW54BQ BWGE54
Owner's Manual & Assembly Instructions
BI01
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
5' x 4' 57" x 45 7/8" 59 1/2" 48" 70 3/4" 54 1/4" 43 1/8" 69 1/2" 22 1/4" 65"
1,4 m x 1,1 m 144,8 cm x 116,5 cm 151,1 cm 121,9 cm 179,7 cm 137,8 cm 109,5 cm 176,5 cm 56,5 cm 165,1 cm
Storage Area: 16 Sq. Ft. 93 Cu. Ft.
1,5 m22,6 m3
BUILDING DIMENSIONS * Size rounded o to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
[email protected]
Do not return to dealer, they are not
equipped to handle your requests.

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the combined use
of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of
securing your building to the ground (Available at your local dealer, Arrow's website
arrowsheds.com or call Arrow's Customer Service department 1-800-851-1085) or you
may construct a base and anchoring system of your choice. Your assembly instructions
provide information on a few methods commonly used to secure and level a storage
building.

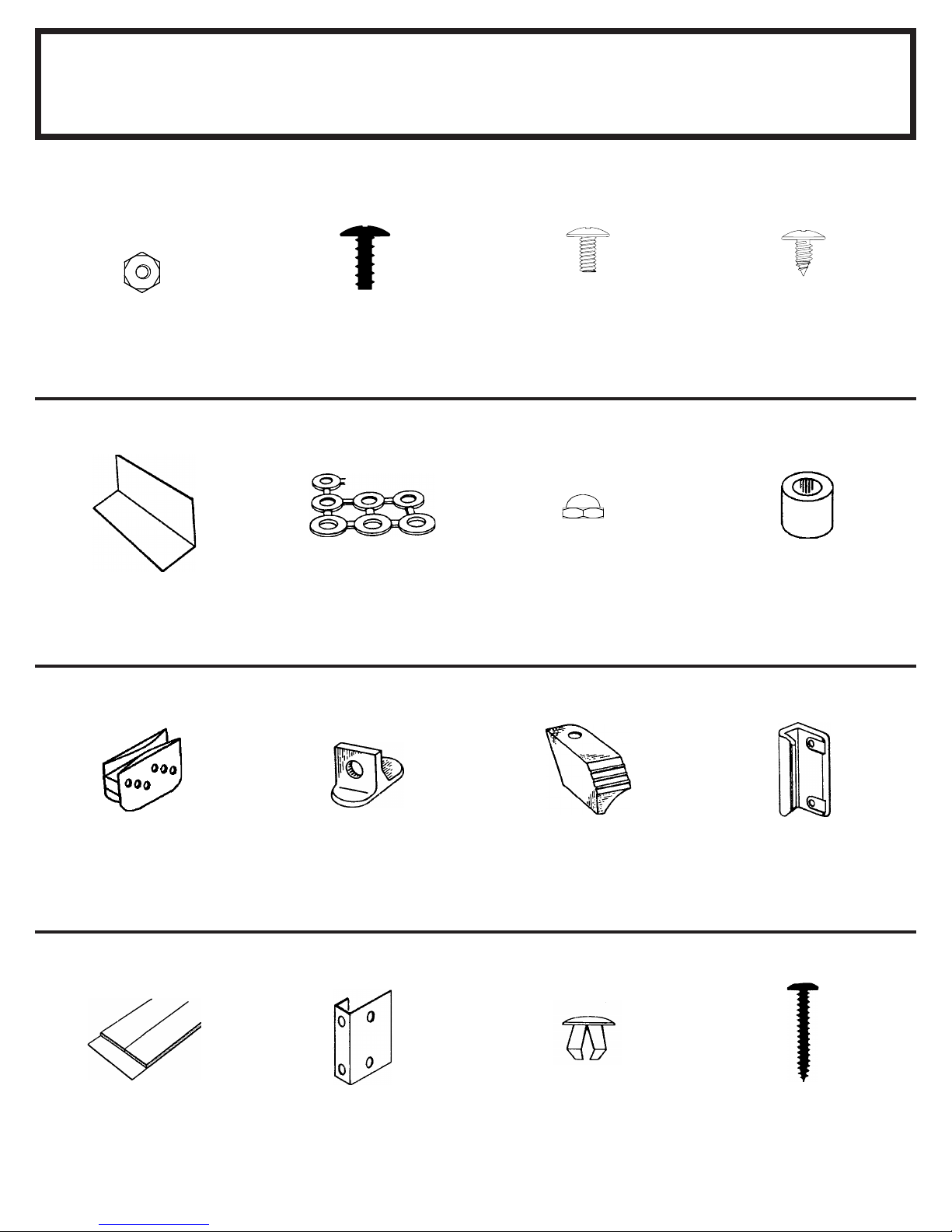

Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you nd that a part is missing, include the model number of your building and contact:
Arrow Shed, LLC Customer Service Department
1101 North 4th Street Breese, Illinois 62230
•Separate contents of the carton by the part number while reviewing parts list. The rst few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A03
1-800-851-1085 or [e-mail]

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your
building.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if
parts are missing because any building left
partially assembled may be seriously damaged
by light winds. Call 1-800-851-1085 or assist@
arrowsheds.com
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction dicult and unsafe.
SAFETY FIRST....
A05
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection against
heavy snow accumulation. Contact Arrow as outlined on the Ordering Accessories page
to place an order.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather inltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash o inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Keep this Owner's Manual and Assembly Instructions for future reference.
CARE & MAINTENANCE....
A06
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.

ACCESSORIES....
A07
* Some drilling required to t buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-B
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the oor. Fits all
Arrow buildings.*
SHELF UNITS
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
t all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 lbs.
(113 kg) evenly distributed.
Some drilling required to t buildings without mid-wall bracing.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which t over the oor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus ve heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new oor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as base for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.
BEFORE AFTER

We recommend that you purchase accessory items from your local storage building dealer whenever possible;
however, because the full line of accessories is not always available from all dealers, Arrow is oering them
to you on a direct basis.
There are two ways to order Arrow Storage Building Accessories:
SPECIAL NOTE:
If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no
one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.
ORDERING ACCESSORIES....
A08 02/13
Option 1
Accessories can be purchased
through
arrowsheds.com
Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.

No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is
recommended as an eective method of properly securing your building after assembly is complete.
OPTION 1: Directly on ground (earth)
Assemble your building directly on level ground (grass, dirt, rock, sand, etc.). If you choose this option Arrow has a simple kit available to
provide a oor inside the shed to keep stored items o the ground. This kit can be used to support a plywood oor (wood not included)
or be lled with sand/rock to provide a solid surface. (Order No. FB5465)
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
57"
144,8 cm
45 7/8"
116,5 cm
The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
BI09
Note: Finished Slab dimensions, with lumber removed.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond oor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roong cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
16"/24"
40,6 cm/61,0 cm
9
57"
144,8 cm
45 7/8"
116,5 cm
We recommend that you purchase accessory items from your local storage building dealer whenever possible;
however, because the full line of accessories is not always available from all dealers, Arrow is oering them
to you on a direct basis.
There are two ways to order Arrow Storage Building Accessories:
SPECIAL NOTE:
If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no
one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.
ORDERING ACCESSORIES....
A08 02/13
Option 1
Accessories can be purchased
through
arrowsheds.com
Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.

It is important that the entire oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
A10
Arrow Anchoring Kit: (Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Arrow Anchoring Kit: (Model No. AK4 or 60298)
Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and
installation instruction.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.
10

Remove from bag of screws
and save for the last step
66775
Plug (1)
(Packed with Screws)
7972
Door Handle Lock Bracket
(1)
66382
Lower Door Guide (2)
66183
Roof Trim Cap
(2 right & 2 left)
66082
Corner Cap (2)
66260
Handle (1)
66646
Washer (137)
(4 sheets of 40)
65109
#8-32 Acorn Nut (3)
(Packed with Screws)
66098
Plastic Spacer (2)
(Packed with Screws)
65004
#8Ax5/16" (8 mm)
Screw (121)
65923
#8-32x3/8" (10 mm)
Bolt (31)
65900A
#10Bx1/2" (13 mm)
Black Screw (4)
(Packed with Screws)
65103
#8-32 Hex Nut (31)
Hardware
BI11
67236
Adhesive Pad (2)
65914
#6Ax 7/8" (22 mm) Screw (2)
(Packed with Screws)
66769
Door Slide (2)
11

Parts List
BI12
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 3719 Door Handle Brace 1
2 6300 Vertical Door Brace 1
3 6627 Wall Panel 1
4 6633 Corner Panel 2
5 7044 Corner Panel 2
6 10500 Horizontal Door Brace 2
7 10473 Door 1
8 7461 Rear Wall Angle 1
9 7464 Right Roof Panel 1
10 7465 Left Roof Panel 1
11 7532 Right Gable 1
12 7533 Left Gable 1
13 7534 Roof Trim 2
14 7660 Roof Beam 1
15 7661 Header 1
16 9698 Door Jamb 1
17 9918 Rear Wall Channel 1
18 9919 Side Wall Channel 2
19 8971 Side Floor Frame 2
20 8972 Rear Floor Frame 1
21 9370 Door Jamb 1
22 9456 Front Wall Panel 1
23 9457 Door Track 1
24 9458 Front Floor Frame 1
12

Assembly by Key No.
BI13
13

STEP
3
STEP
2
STEP
1
7661
9457
Long Leg
on Top
Short Leg
on Bottom
66769

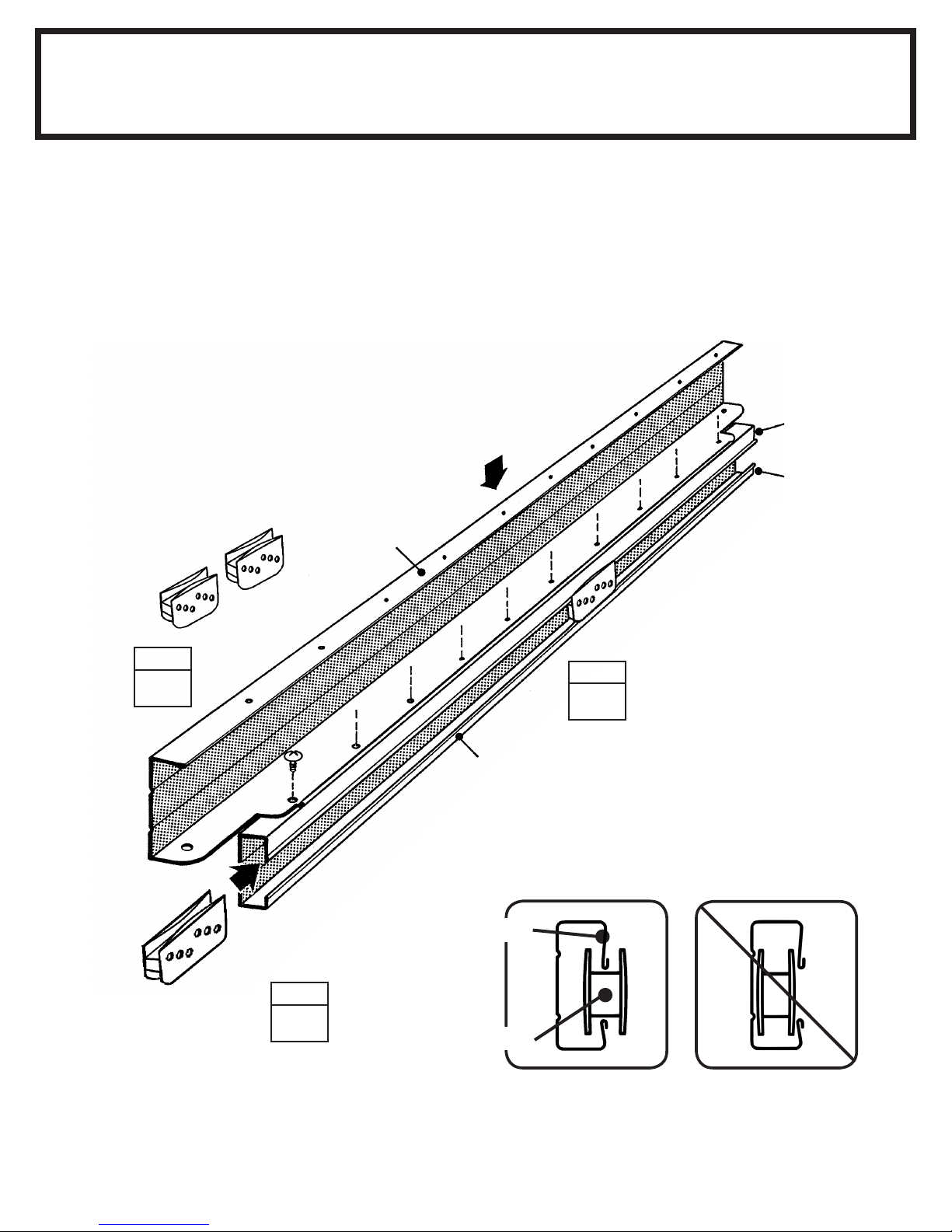

The door track/header assembly
supports the sliding door and
reinforces the front wall. It is made
up of two pieces.
1 Using the door track, with small
holes on top, join the header, short
leg on top, as shown using screws.
2 Position door slides onto the legs,
from the end of door track, as shown
in the end view.
3 Set this piece aside for later use.
Step 1
BI14
 Parts Needed For 
Door Track/Header Assembly
 9457 Door Track (1)
 7661 Header (1)
14
CORRECT INCORRECT
Long Leg on top.
Door Slide
END VIEW

1 Assemble the four corners of the
oor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from the bottom
with nuts on top.
2 Measure the oor frame diagonally.
When the diagonal measurements
are equal, the oor frame is square.
NOTE
If using a wood platform or
concrete slab do not fasten the
oor frames to your base at this
time. You will anchor the
building after it is erected.
Step 2
BI15
 Parts Needed For 
Floor Frame
 9458 Front Floor Frame (1)
 8972 Rear Floor Frame (1)
 8971 Side Floor Frame (2)
The oor frame must be square and
level or holes will not align.
RIGHT
REAR
8972
8971
9458
STEP
2
STEP
1
FRONT
When Diagonal Measurements
are Equal the Floor Frame
is Square
8971
8972
RIGHT
FRONT
8971
9458
8971
Level
15

1 Position rear corner panels at the
corners of the oor frame as shown.
The widest part of each corner panel
must be placed along side of the
building. Fasten corner panels to the
oor frame using four screws.
Support the corner panel with a step
ladder until overlap is fastened.
2 Attach the front corner panels
to the front corners, as shown. The
crimped rib should go under the rib of
the adjacent panel. Fasten overlapping
rib using 2 screws and a bolt with nut.
NOTE
Be careful to install the correct
panel in each position as shown.
3 Double-check the part numbers
of the corner wall panels, before
proceeding.
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
NOTE
Each screw and bolt in the wall
requires a washer.
 Parts Needed For 
Corners
Step 3  7044 Corner Wall Panel (2)
 6633 Corner Wall Panel (2)
The oor frame must be square
and level or holes will not align.
FRONT
STEP
TOP VIEW
7044
SIDE
REAR
Narrow
Side
6633 6633
SIDE
WideSide
1
STEP
2
7044
7044
6633
6633
Panels rest on
frame as shown
Crimped Rib
Underneath
Washer
STEP
3
BI16
7044
CORRECT INCORRECT
16

 7461 Rear Wall Angle (1)
 9918 Rear Wall Channel (1)
 9919 Side Wall Channel (2)
 Parts Needed For 
Frames
Step 4
The main frame pieces give rigidity to
the side and rear walls and provide
a surface for attaching the gables
which support the roof.
1 Fasten the rear wall angle across
the top of the rear wall using screws.
2 Fasten the rear wall channel
across the middle of the rear wall
using screws.
3 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in rear
corners with bolts and nuts.
STEP
7461
3
9918
9919
2
STEP
1
Wall Angle
Must Face
Inside
Building
BI17
STEP
9919
FRONT
17

 9456 Front Wall Panel (1)
 Door Track Assembly (1)
 9698 Door Jamb (1)
 9370 Door Jamb (1)
 6627 Wall Panel (1)
 Parts Needed For 
Panels/Track/Jambs
Step 5

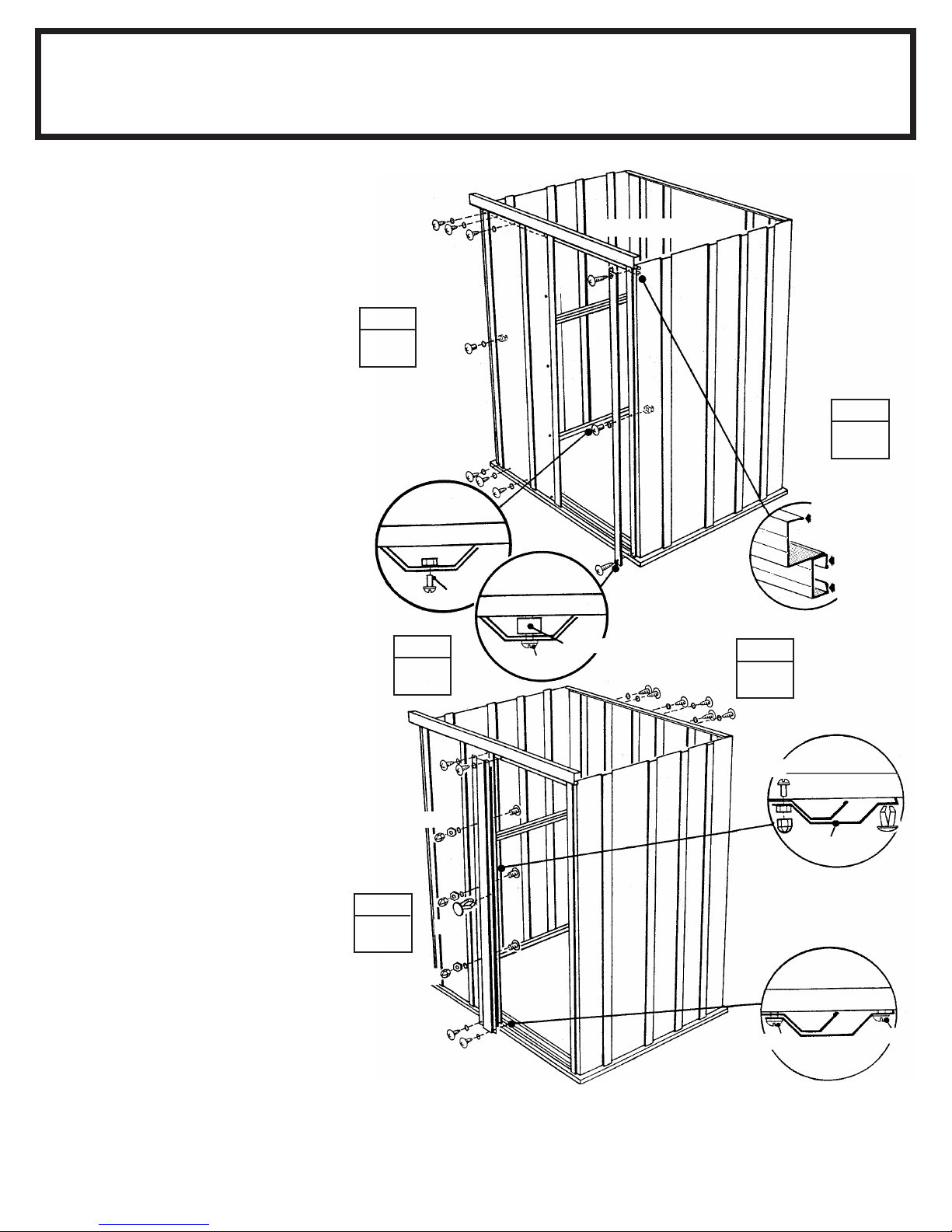

Each wall panel has a crimped rib on
one side. The crimped rib should go
under the rib of the adjacent panel.
The door jambs reinforce the door
opening and provide an attractive
trim.
1 Fasten the front wall panel to the
left front corner, as shown. Fasten
overlapping rib as before.
2 Fasten the door track/header
assembly across the top of the front
wall panel using screws. See the
gure.
3 Fasten the center of the right door
jamb to the right corner panel with a
bolt and nut. Fasten the top of the
jamb to the door track with a 7/8" (22
mm) screw and a plastic spacer, as
shown. Do the same for the bottom.
4 Fasten a left door jamb to the
front panel with three bolts, nuts and
acorn nuts, as shown. Push a plug
into hole at center of jamb, closest
to door opening. Fasten the top of
the jamb to the door track with two
screws. Do the same for the bottom
into frame.
5 Fasten wall panel to the rear of
building, as before.
STEP
9456
3
9370
2
STEP
1
Plastic Spacer
BI18
STEP
9698
Opening
Facing in
Short Leg
on Bottom
7/8" (22 mm)
Screw
Top View
TOP VIEW
Door Track
Bolt Door Track
7/8" (22 mm)
Screw
Spacer
TOP VIEW
Door Track
6627
STEP
5
STEP
4
Hex Nut
Acorn Nut
Screw
Screw Screw
TOP VIEW
Door Track
Bolt
Plug
3 Bolts
Short Leg
on Top
18

 7532 Right Gable (1)
 7533 Left Gable (1)
 7660 Roof Beam (1)
 Parts Needed For 
Gables/Roof Beam
Step 6
1 Lift and fasten a right and left
gable, overlapping header in front,
to the right and left hand wall with
screws. Join gables to header in the
front corners, using a bolt and nut.
2 Bend tab at each end of roof beam
upward. Position beam across width
of building, down on the ledge of
gables at center hole location.
7533
7660
1
BI19
STEP
2
STEP
7532
19

 7464 Right Roof Panel (1)
 7465 Left Roof Panel (1)
 Parts Needed For 
Roof Assembly
Step 7
Installing the roof panels is best done
with a step ladder. Begin installing
roof panels at the right side of the
building. Each screw and bolt in the
roof requires a washer.
NOTE
Measure the building diagonally
again and make adjustments to
make sure the building is square.
This will make the roof panels t
better, and holes will align.
1 Locate the roof panels by their
numbers and place them on the
ground alongside the building in their
proper positions.
2 Position a right roof panel at the
right side and fasten to the gable and
header using screws and bolts as
shown. Do not fasten the lower end
of the panels to the rear wall angle
until both panels are in place.
Note: Tab of roof beam is fastened
between roof panel and gable using
the center hole.
3 Install the left roof panel on the
left side in the position shown above.
Fasten at overlap with a bolt.
4 Fasten the lower end of the panels
to the rear wall angle using screws.
1
BI20
STEP
2
STEP
7465 Left Roof Panel
3
STEP
7464 Right Roof Panel
4
STEP
Bolt
FRONT
Washer
Nut
Gable
20
