Arrow Storage Products COMMANDER CHD1010-A Instructions for use

Customer Service:
1-800-851-1085 or
[email protected]
BASE BUILDING DIMENSIONS
Each Module adds an additional 57 1/2” (146,1 cm) in length, 47.2 Sq. Ft. (4,4 m2)
additional storage area, and 324 Cu. Ft. (9,2 m3) additional storage volume.
01AP
719960515
Size rounded off to the nearest foot
†For proper base construction see page 5
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
10’ x 10’ 101 Sq. Ft. 697 Cu. Ft. 123 1/4” 128 3/4” 92 1/2” 118 1/4” 123 1/2” 91 1/4” 98 1/4” 72 3/4”
3,0 m x 3,1 m 9,4 m219,7 m3313,1 cm 327,0 cm 235,0 cm 300,4 cm 313,7 cm 231,8 cm 249,6 cm 184,8 cm
†
10x10
Base Size
122 1/4” x 127 1/2”
310,5 cm x 323,9 cm
Additional
per Module
122 1/4” x 57 1/2”
310,5 cm x 146,1 cm
All Sizes
Model No. CHD1010-A
MHD1010-A
Gloves must be worn
at all times to reduce
risk of injury!
* See Inside for Detailed Safety Information.
Owner’s Manual
& Assembly Guide
www.arrowsheds.com
COMMANDER™SERIES
MOUNTAINEER
™SERIES

2

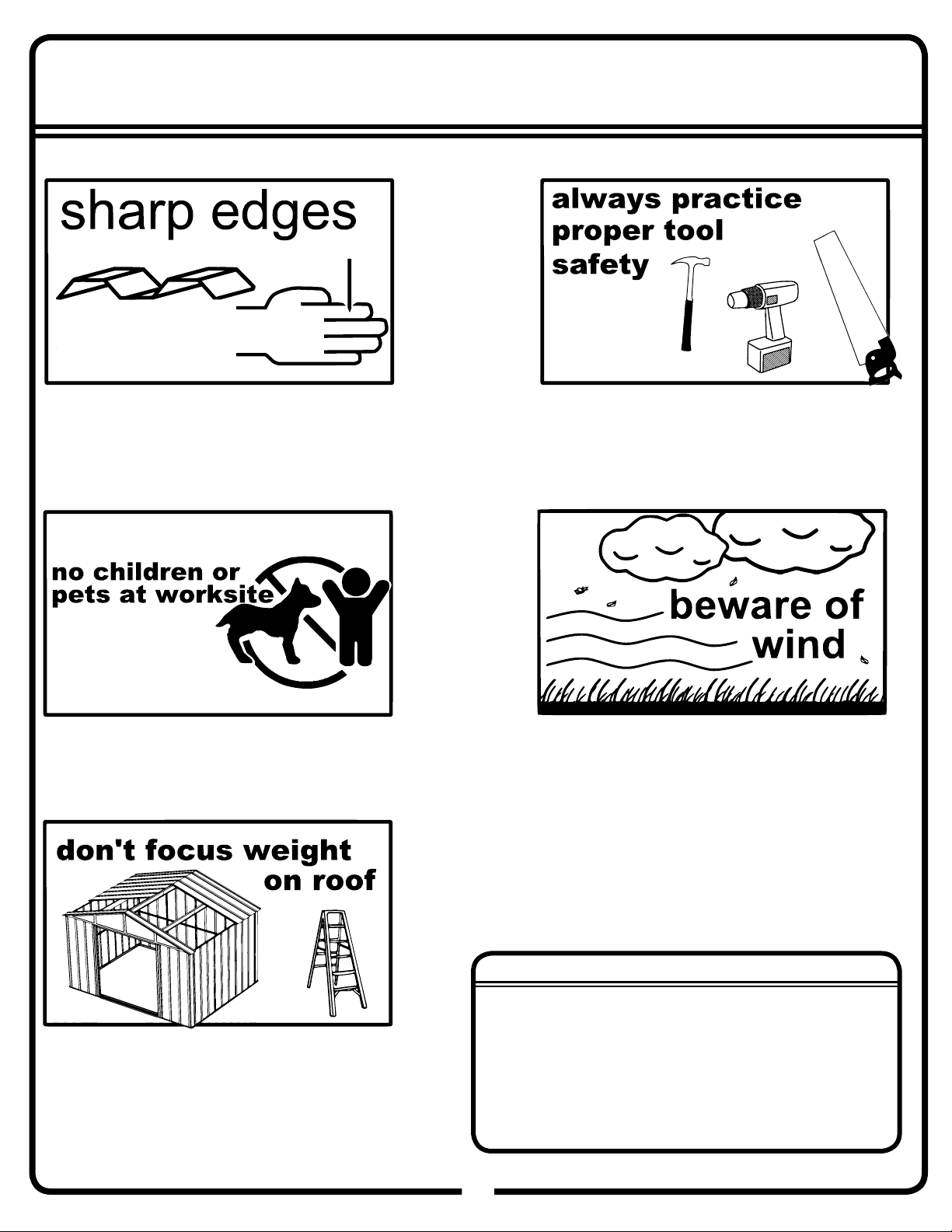

SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts
indicated in the parts lists, as well as all hardware
(page 6-11). Any building left partially assembled
may be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• If you need to take a break from assembly, place
sandbags or other weights on the fl oor frame to
temporarily anchor it.
02H

3

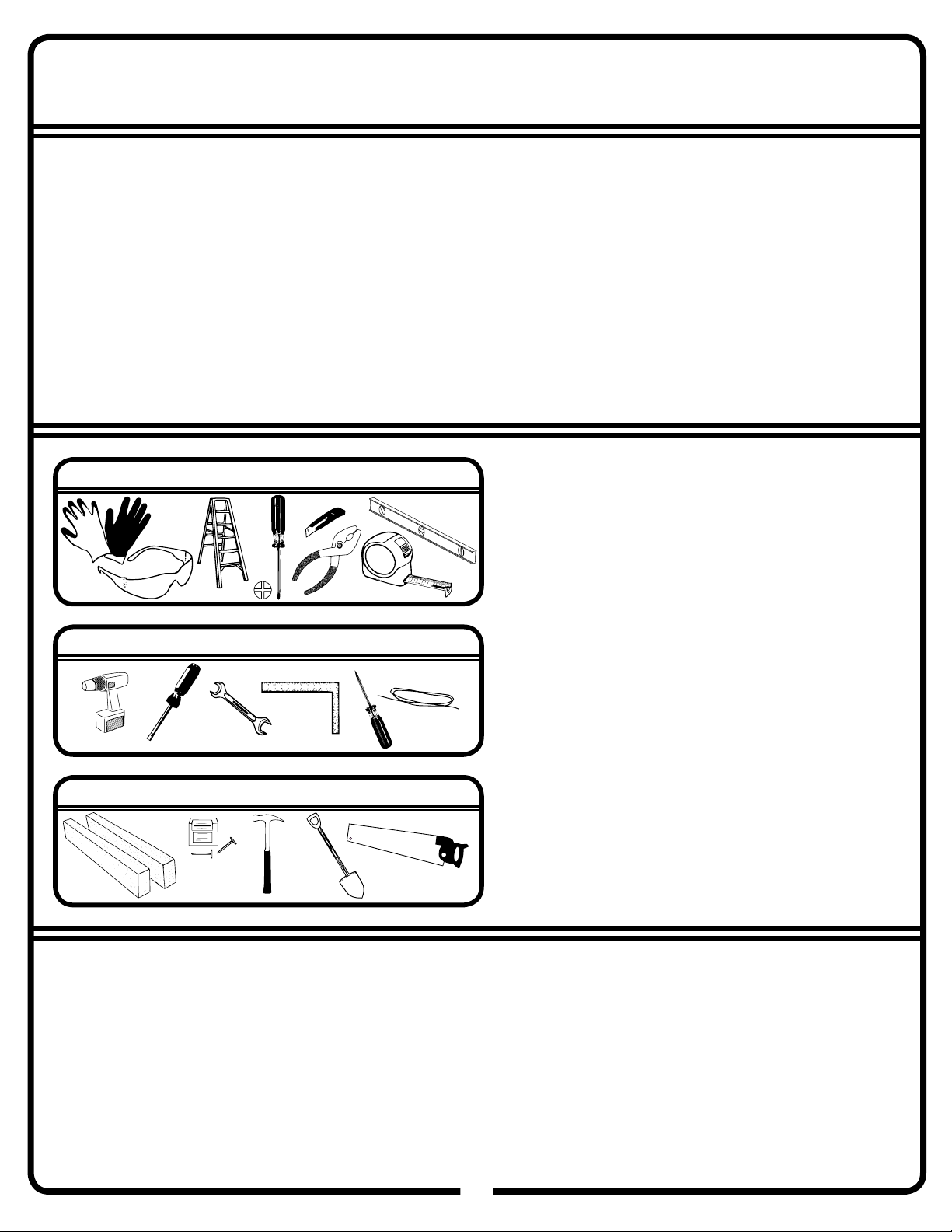

ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.
Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
• Work Gloves
• Safety Glasses
• Step Ladder
• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
• Utility Knife or Scissors
• Pliers
• Carpenter’s Level
• Tape Measure
• Power Drill (Cordless, Variable Speed)
• Nut Driver or Wrench
• Square
• String (for squaring the frame)
• Awl (to align holes)
• Lumber and/or Concrete
• Hammer and Nails
• Spade or Shovel
• Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS
03A

4
BEFORE YOU BEGIN... 04AP

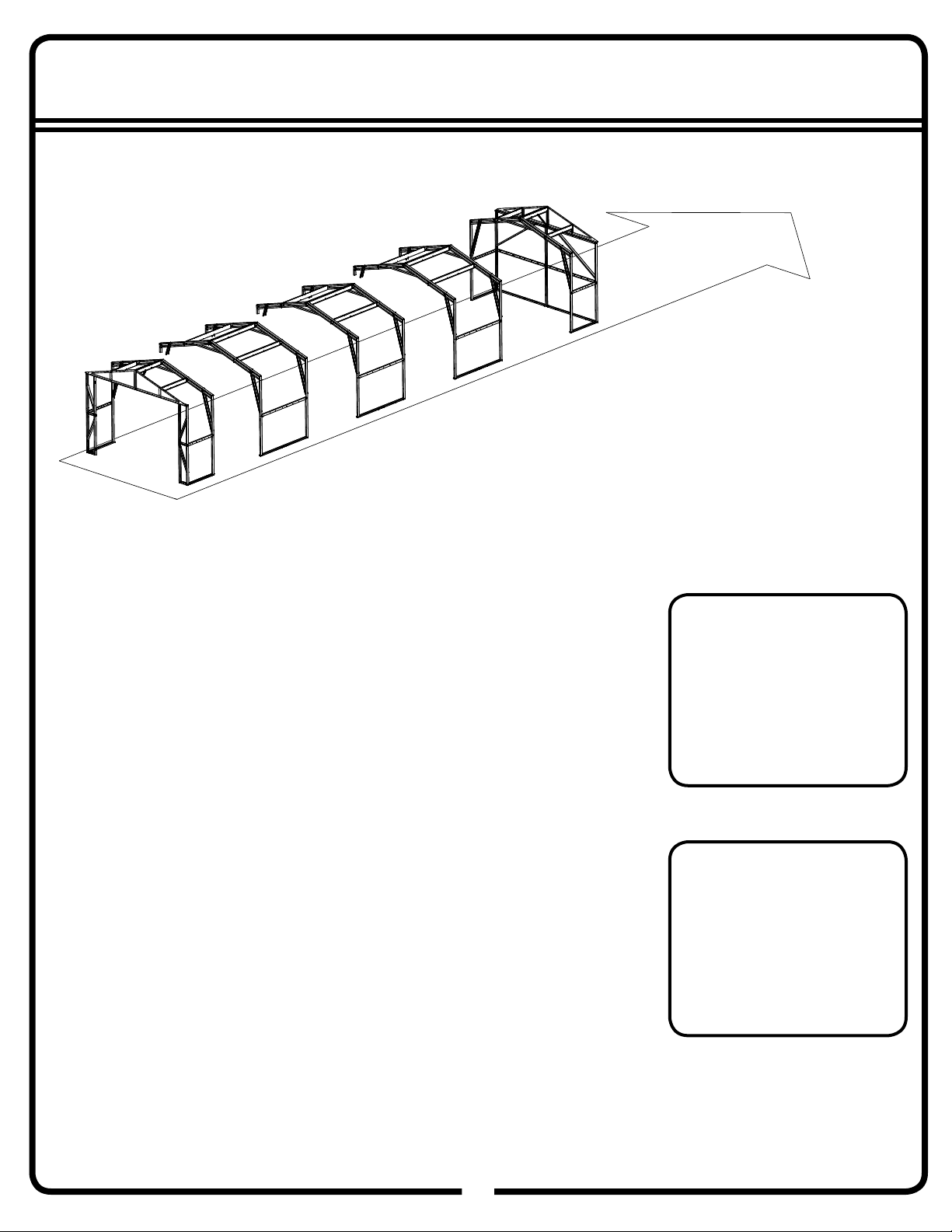

Your Commander™ / Mountaineer™ Shed has a Modular Design.
This means your shed can be
extended to virtually any length with
the addition of Extension Modules. Extension
Modules can be installed when you fi rst construct your
building, or they can be added to it later.
How your building was shipped.
How you assemble your building will depend upon how many
Extension Modules you have purchased. See below to see
how many Modules are included in your building.
Nominal
Size
Extension
Modules
10’x10’ 0
10’x15’ 1
10’x20’ 2
10’x25’ 3
10’x30’ 4
Now that you have received your building you need to take inventory of
what you have to ensure nothing is missing.
Depending on the size building you purchased, your building arrived
in two or more cartons. Locate the carton label; you should have
one carton labeled C1GA-A and one labeled C2GA-A. Also, if you
purchased a building 15’ (4,6 m) in length or longer, you should have at
least one carton labeled GA5M-A.
C1GA-A -
C2GA-A -
GA5M-A -
Nominal
Size
Extension
Modules
3,0 m x 3,1 m 0
3,0 m x 4,6 m 1
3,0 m x 6,1 m 2
3,0 m x 7,5 m 3
3,0 m x 9,0 m 4

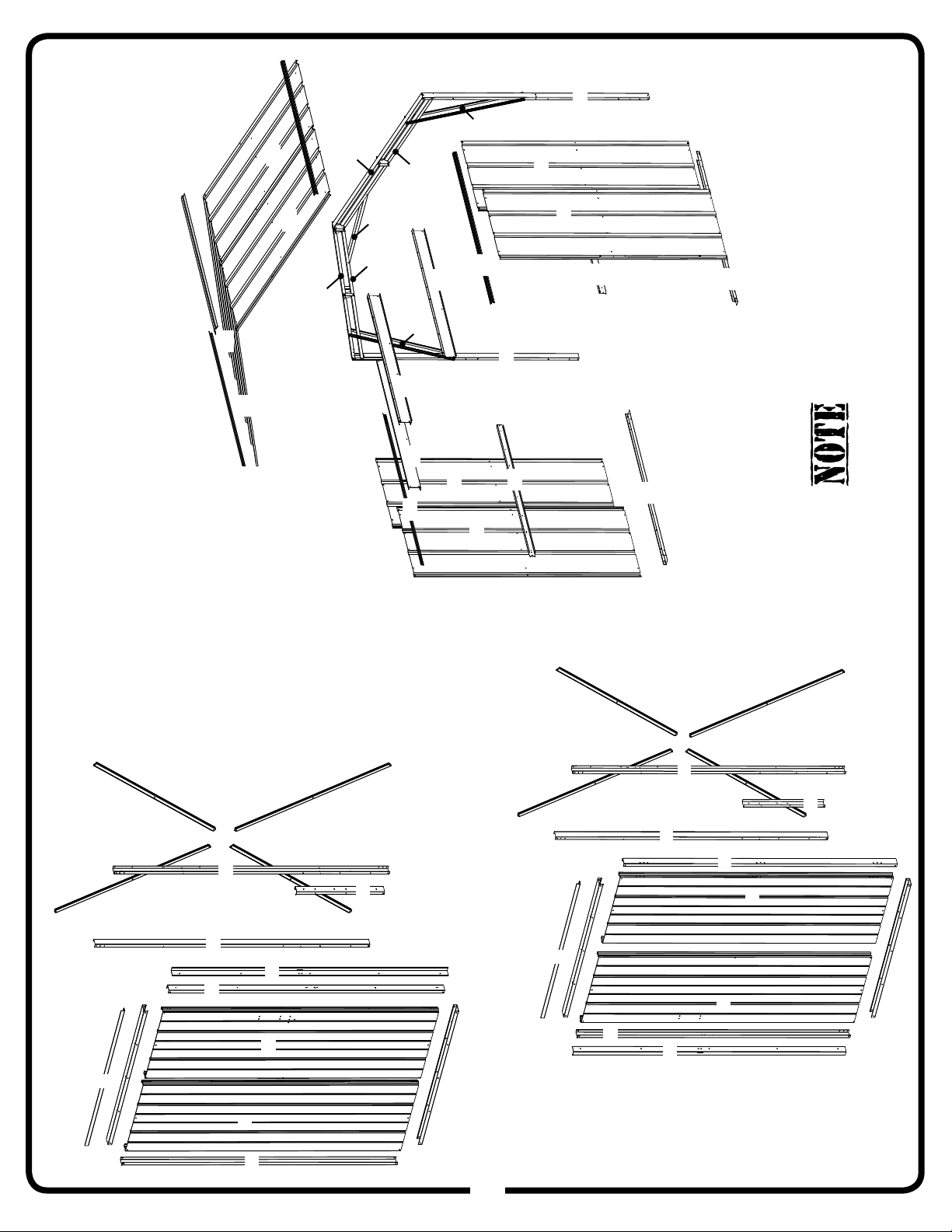

Please note: Most illustrations in this assembly manual depict a 10’x10’
(3,0 m x 3,1 m) building. A 10’x10’ (3,0 m x 3,1 m) building contains a
front and rear wall section and one truss section (see page 9). Each
additional Extension Module simply adds one more truss section to the
building (see page 11). Every truss section is identical to every other
truss section and the instructions clearly indicate how to assemble any
length building. Read all instructions carefully.
This carton contains the painted parts needed to erect
a 10’ (3,1 m) building. You should have one C1GA-A
carton.
This carton contains the un-painted parts needed
to erect a 10’ (3,1 m) building. You should have one
C2GA-A carton.
This carton contains the Extension Module. Review
the chart to the right to determine how many GA5M-A
cartons you should have received.

5

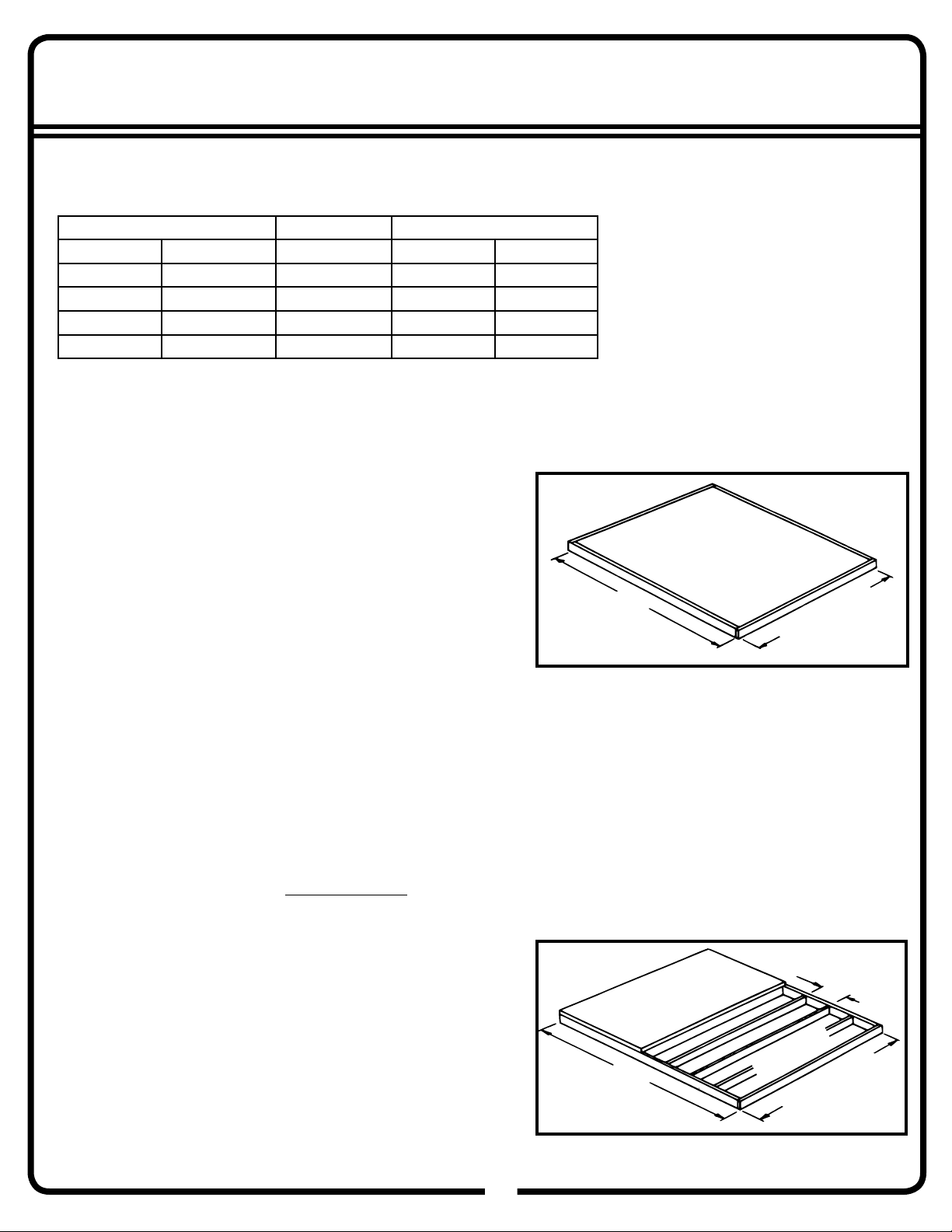

CONSTRUCTING A BASE...
OPTION 1: Concrete Slab
The slab should be at least 4” (10,2 cm) thick. It must be level
and fl at to provide good support for the frame.
The following are the recommended materials for your base.
• 1 x 4’s (19 mm x 89 mm) (will be removed once the concrete cures)
• Concrete • Sheet of 6 mil plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6” (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4” (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4” (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for curing time.
OPTION 2: Wood Platform
These are the recommended materials for your base:
• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage
building your warranty will be voided.
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
122 1/4"
310,5 cm
L
05H
Note: Finished Slab dimensions, with lumber removed.
Platform/Slab will extend 2” (5 cm) beyond fl oor frame on
all four sides. Seal this 2” (5 cm) of wood with a roofi ng
cement (not included), or bevel concrete when pouring
for good water drainage.
FRONT
Before you assemble your building, you must construct a base.
The length of your base, shown as “L” in the diagrams below, will depend on the length of your building. See below.
Nominal Size # of Modules Length “L”
10’x10’ 3,0 m x 3,1 m 0 127 1/2” 323,9 cm
10’x15’ 3,0 m x 4,6 m 1 185” 469,9 cm
10’x20’ 3,0 m x 6,1 m 2 242 1/2” 616,0 cm
10’x25’ 3,0 m x 7,5 m 3 300” 762,0 cm
10’x30’ 3,0 m x 9,0 m 4 357 1/2” 908,1 cm
For each additional module beyond the
lengths listed, increase the length of
your base by 57 1/2” (146,1 cm).
IMPORTANT: When deciding on a base
for your building you must take into
consideration use and permit requirements.
A concrete base is best for most purposes,
but a wood platform may be suitable for light
use. Before beginning construction, check
local building codes regarding footings,
location and other requirements.
16"/24"
40,6 cm/61,0 cm
L
122 1/4"
310,5 cm
FRONT
REAR
REAR

6

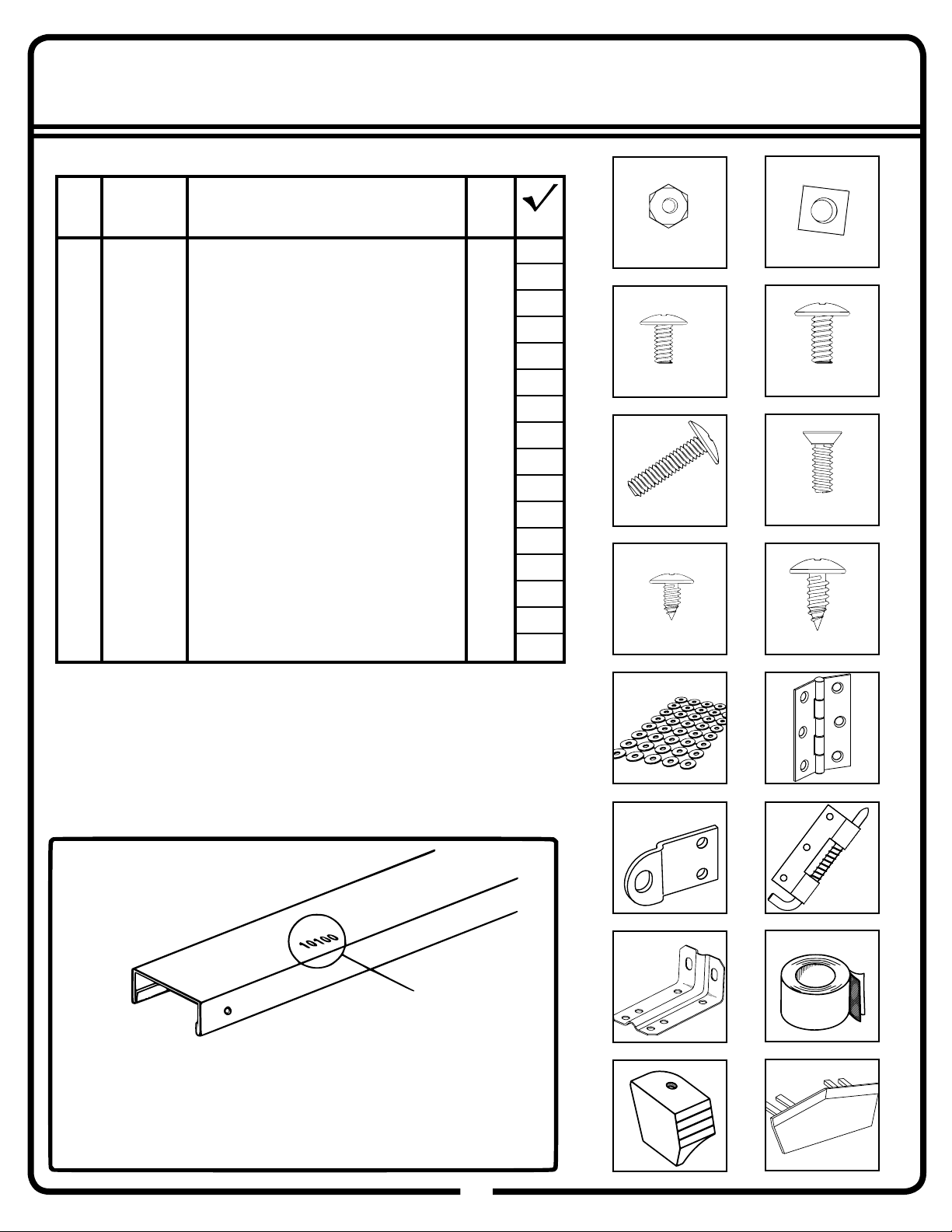

HARDWARE - C1GA-A
06AP
Confi rm that all hardware and parts are present
before attempting to assemble your building.
For missing or damaged parts, contact Customer
Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.

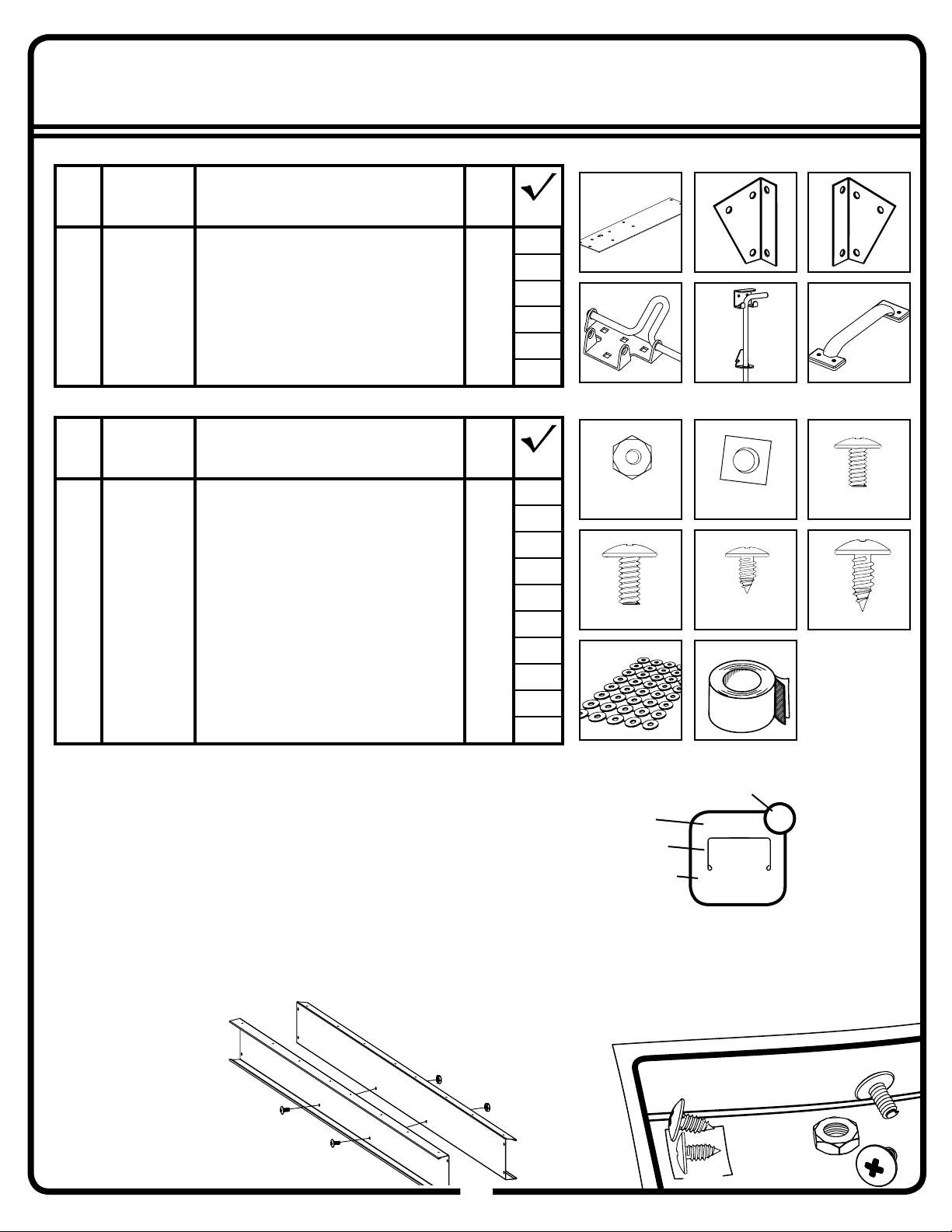

Key Part Part Qty.
No. No. Description List
56
10
11
12
34
8
9
13 14
7
12
11/32 Hex.
1 65103 Hex Nut (#8-32) 220
2 65106 Square Nut (#10-32) 36
3 65923 Small Bolt (#8-32 x 3/8) (10 mm) 184
4 65943 Large Bolt (#10-32 x 7/16) (11 mm) 30
5 66625 Long Bolt (#10-32 x 3/4) (19 mm) 2
6 66783 Flat Head Screw (#8-32 x 1/2) (13 mm) 36
7 65004 Small Screw (#8AB x 5/16) (8 mm) 336
8 66611 Large Screw (#10AB x 1/2) (13 mm) 317
9 66646 Washer Sheet 11
10 66609 Hinge 6
11 66778 Lock Eyelet 1
12 66781 Spring Latch 1
13 6228 Track Support 4
14 67545B Weather Stripping 1
15 66183L/R Roof Trim Cap 4
16 67468 Peak Cap (Arrow Logo) 2
C1GA-A Hardware
15 16
#2 Phillips
LS
#2 Phillips
SB
#2 Phillips
SS
#2 Phillips
LNB
#2 Phillips
FS
#2 Phillips
LB
#10-32

7
Key Part Part Qty.
No. No. Description List
1
7
4
10
13
2
8
5
11
14
3
9
6
12
07AP
1 10651 Latch Plate *3
2 7003 Shear Plate LT *8
3 7004 Shear Plate RT *8
4 66779 Slide Bolt *1
5 66780 Cane Bolt *2
6 66782 Door Handle *2
HARDWARE - C2GA-A / GA5M-A
Key Part Part Qty.
No. No. Description List
2 7003 Shear Plate LT *4
3 7004 Shear Plate RT *4
7 65103 Hex Nut (#8-32) 56
8 65106 Square Nut (#10-32) 8
9 65923 Small Bolt (#8-32 x 3/8) (10 mm) 56
10 65943 Large Bolt (#10-32 x 7/16) (11 mm) 8
11 65004 Small Screw (#8AB x 5/16) (8 mm) 174
12 66611 Large Screw (#10AB x 1/2) (13 mm) 82
13 66646 Washer Sheet 6
14 67293B Weather Stripping 1
C2GA-A Hardware *Packed loose in carton
GA5M-A Hardware
11/32 Hex. #2 Phillips
#2 Phillips#2 Phillips #2 Phillips
Various fasteners are used throughout the construction
of your building. In each step you will see the
abbreviations listed below used in the illustrations to
help you identify which fastener to use.
Some Tips for Assembly:
The fasteners used in each step are shown
actual size at the top of each page. If you are
unsure which fastener to use, hold it up to the
picture and use the one that matches.
SB - Small Bolt
SS - Small Screw
LB - Large Bolt
LS - Large Screw
FS - Flat Head Screw
LNB - Long Bolt
At the top of each page you will see one or more Part
Cues like the one to the right. These Part Cues are
designed to help you quickly identify the parts needed
for each step.
10629
Rear Frame
4
Part No.
Quantity Needed
End View
Part Name
SB
SS LS
SB
SB
QTY 18
LB
#10-32

08AP
8

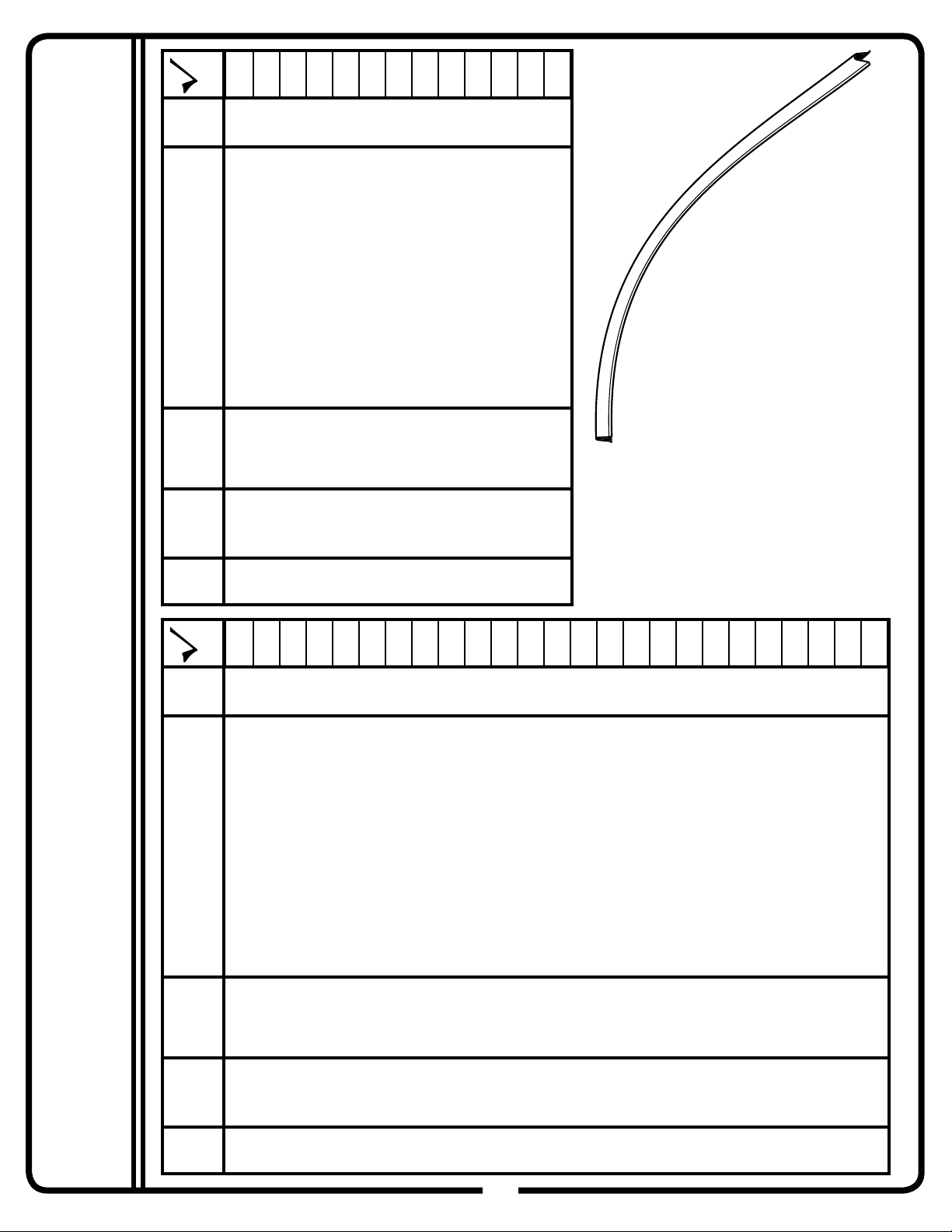

Key Carton Part Part Qty. No. No. No. Description List
1 C1GA-A 7743 Roof Panel 8 2 C1GA-A 7822 Wall Panel 12 3 C1GA-A 8576 Right Gable 2 4 C1GA-A 8577 Left Gable 2 5 C1GA-A 8578 Right Roof End Panel 2 6 C1GA-A 8579 Left Roof End Panel 2 7 C1GA-A 10618 Front Wall Panel 2 8 C1GA-A 10619 Corner Panel 4 9 C1GA-A 10620 Right Roof Trim 2
10 C1GA-A 10621 Front and Rear Ridge Cap 2
11 C1GA-A 10622 Right Door Jamb 1
12 C1GA-A 80017 Left Roof Trim 2
13 C1GA-A 80037 Left Door Jamb 1
14 C2GA-A 6635 Roof Beam Bracket 4
15 C2GA-A 9009 Gable Brace 2
16 C2GA-A 9204 Roof Beam Brace 2
17 C2GA-A 10625 Side Wall Angle 4
18 C2GA-A 10627 Front Wall Channel 6
19 C2GA-A 10628 Front Wall Diagonal 4
20 C2GA-A 10629 Rear Frame 4
21 C2GA-A 10630 Rear Wall Channel 2
22 C2GA-A 10631 Rear Wall Diagonal 2
23 C2GA-A 10632 Side Frame 4
24 C2GA-A 10886 Front and Rear Side Wall Channel 4
25 C2GA-A 10887 Mid Side Wall Channel 2
Key Carton Part Part Qty. No. No. No. Description List
26 C2GA-A 10878 Long Fascia 1
27 C2GA-A 10879 Short Fascia 1
28 C2GA-A 10640 Wall Post 5
29 C2GA-A 10881 Truss Post 4
30 C2GA-A 10882 Truss Post Insert 4
31 C2GA-A 10883 Upper Chord Truss 4
32 C2GA-A 10884 Lower Chord Truss 4
33 C2GA-A 10885 Truss Splice 2
34 C2GA-A 10646 Knee Brace 8
35 C2GA-A 10649 Front and Rear Roof Beam 8
36 C2GA-A 10650 Mid Roof Beam 4
37 C2GA-A 10652 Wall Post (Hinge) 2 38 C2GA-A 10880 Front Frame 2

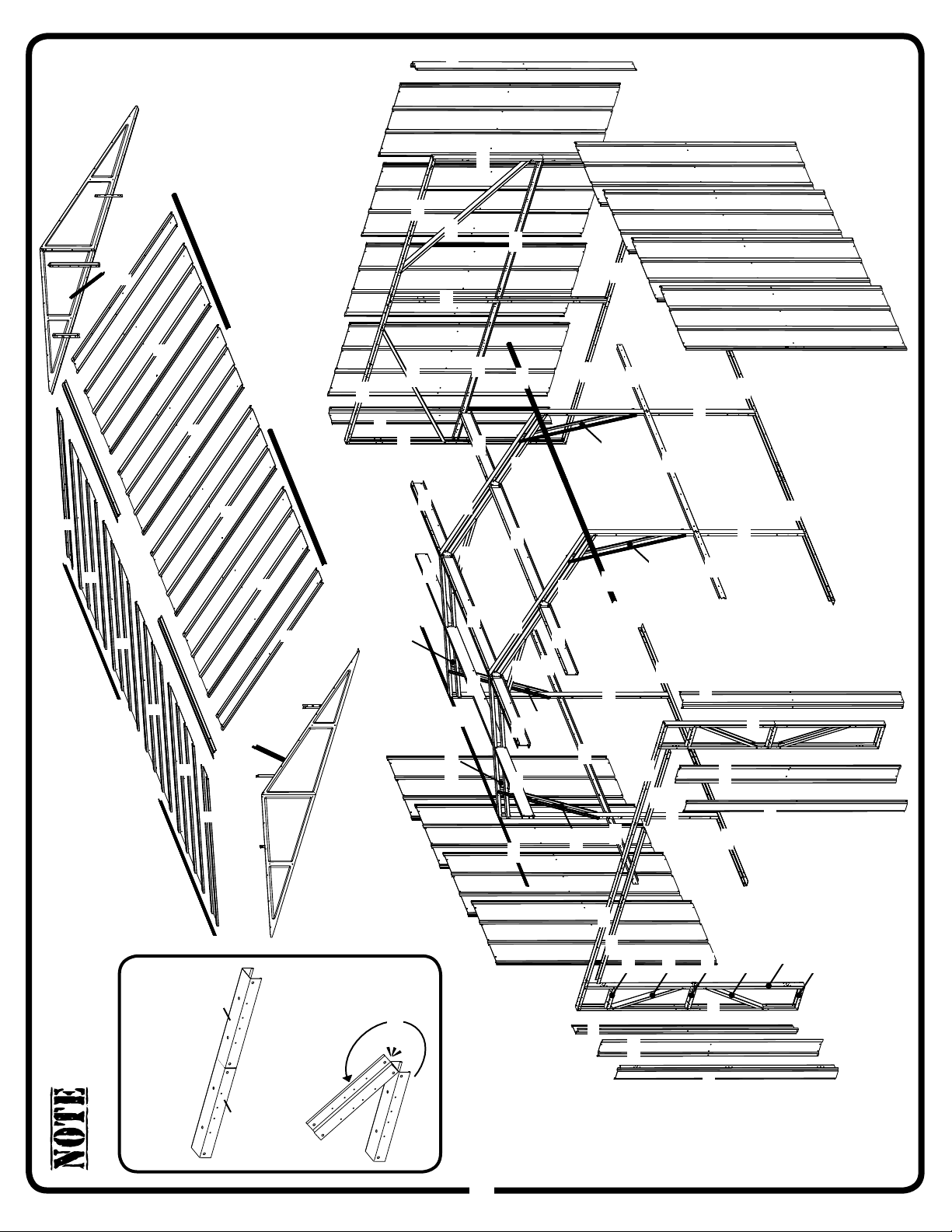

PARTS LIST - MAIN BUILDING
Green Plastic Edge Trim is also included in carton C1GA-A and must be used when assembling your building.
Length: 65 3/4” (167,0 cm)
QTY: 4

09H
9
Part No. 30 (Truss Post Insert) fi ts inside Part No. 29 (Truss Post) and is not shown below.
SNAP
10627
10627
Part 10627 Front Wall Channel (No. 18) may be joined in pairs. Bend to separate.
14
14
14
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
4
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
17
17 17
17
20
20
20
20
8
8
21
21
22
22
23
23
23
23
24
24
24
24
25
25
26
27
33
33
35 35
35
35
35
35
36
36
36
38
38
13
12
12
18 19 18 19 18
37
28
28
28
28
28
29
29
29
29
34
34
34
34
31
32
32
31
31/32
31/32
14
15
15
16
16

10AP
10
Key Carton Part Part Qty. No. No. No. Description List
1 C1GA-A 10623 Door Panel (Hinge) 2
2 C1GA-A 10624 Right Door Panel 1
3 C1GA-A 80051 Left Door Panel 1
4 C1GA-A 10635 Horizontal Door Brace 4
5 C1GA-A 10678 Vertical Door Brace (Latch) 2
6 C1GA-A 10637 Vertical Door Brace (Hinge) 2
7 C1GA-A 10647 Top Door Trim 2
8 C1GA-A 10648 Door Astragal 2
9 C2GA-A 10626 Door Diagonal Brace 8
10 C2GA-A 10636 Vertical Door Brace 4
11 C2GA-A 10675 Cane Bolt Bracket 2
PARTS LIST - DOORS &MODULE
Key Carton Part Part Qty. No. No. No. Description List
12 GA5M-A 7822 Wall Panel 4 13 GA5M-A 7743 Roof Panel 4 14 GA5M-A 6015 Roof Trim 2 15 GA5M-A 10680 Mid Ridge Cap 1 16 GA5M-A 10625 Side Wall Angle 2 17 GA5M-A 10632 Side Frame 2 18 GA5M-A 10887 Mid Side Wall Channel 2 19 GA5M-A 10650 Mid Roof Beam 4 20 GA5M-A 10881 Truss Post 2 21 GA5M-A 10882 Truss Post Insert 2 22 GA5M-A 10883 Upper Chord Truss 2 23 GA5M-A 10884 Lower Chord Truss 2 24 GA5M-A 10885 Truss Splice 1 25 GA5M-A 10646 Knee Brace 4
DOORS EXTENSION MODULE

11H
11
Extension Module
Part No. 21 (Truss Post Insert) fi ts inside Part No. 20 (Truss Post) and is not shown above.
14
12
12
12
12
13
13
13
13
14
16
16
17
17
18
18
19
19
19
20
20
22
22
23
24
23
25
25
15
Left Door
1
9
9
9
9
4
4
10
6
7
8
11
5
3
10
Right Door 9
5
1
2
9
9
9
4
4
10
10
6
7
8
11

12
10881
10882
10881
10882

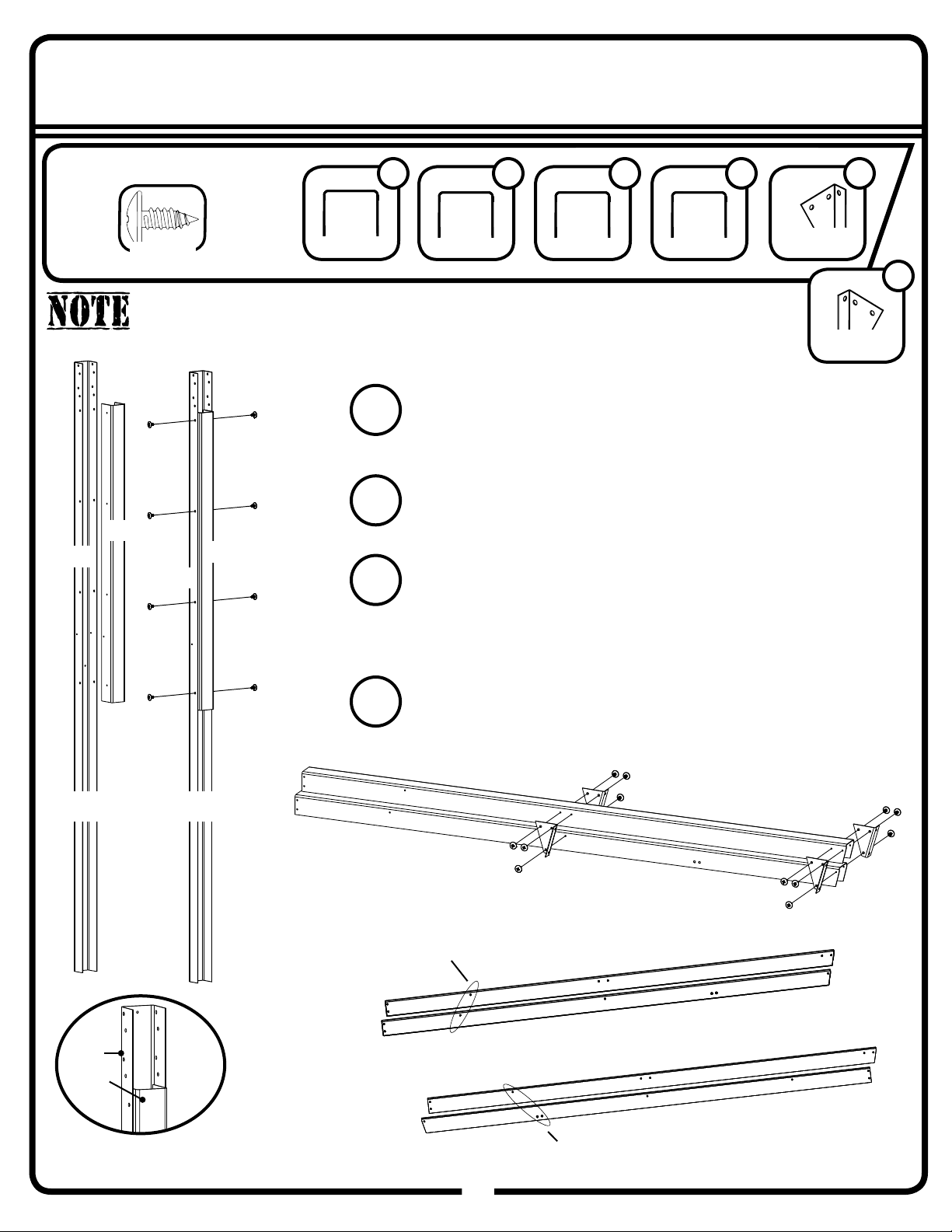

Step 1: Trusses 12AP
You will need for this page:
Washers are to be used on painted parts only. Washers
are not necessary on unpainted parts and there are
not enough to use on every Screw and Bolt.
Build two Assemblies.
Align the Truss Post and Truss Post Insert and
join as shown. Insert Large Screws along both
sides of the Truss Post where holes align.
1
2
Repeat instruction 1 to build a second Truss Post
Assembly. Set aside for use on next page.
With the Upper and Lower Chord Trusses
positioned as shown below, attach Shear Plates
where indicated below. Attach Shear Plates using
Large Screws to Upper Chord fi rst, then to the
Lower Chord.
3
4
Repeat instruction 3 to build a second Chord Truss
Assembly. Set aside for use on next page.
Truss Post Insert fi ts INSIDE
Truss Post as shown.
7003
Left Shear
Plate
4
7004
Right Shear
Plate
4
10881
10882
10883
10884
7003
7003
7004
7004
Build two Assemblies.
(QTY: 40)
LS
Holes must align in this direction.
CORRECT
INCORRECT
Not this direction
10881
Truss Post
210882
Truss
Post Insert
210883
Upper
Chord Truss
210884
Lower
Chord Truss
2

13
Next, insert the Upper/Lower Chord Truss Assembly
into the Truss Post Assembly as shown. Secure with
Large Screws. Do not tighten at this time. Repeat for
other side.
5
6
Attach Truss Splice to Truss using Large Bolts and
Nuts as shown below, but do not tighten at this time.
Temporarily secure the peak of the Truss using two
(2) Small Bolts and Nuts as shown.
13AP
Repeat for Additional Trusses
You will need for this page:
Assemblies from previous page:
• Truss Post Assembly (2)
• Chord Truss Assembly (2)
Nominal Size # of Modules # of Trusses
10’x10’ 3,0 m x 3,1 m 0 2
10’x15’ 3,0 m x 4,6 m 1 3
10’x20’ 3,0 m x 6,1 m 2 4
10’x25’ 3,0 m x 7,5m 3 5
10’x30’ 3,0 m x 9,0 m 4 6
The number of Trusses you will
need to construct your building
will depend on the size of your building. All
buildings require at least two Trusses. See the
chart to the right to determine the number of
Trusses needed for your building.
7
Attach Knee Braces
to Truss using Large
Screws as shown. Do
not tighten at this time. With
the Truss assembled, check
that the width of the Truss is
118 1/4” (300,4 cm) across the
top and bottom of the Truss.
If so, tighten all fasteners.
Repeat steps to build additional
Trusses.
Number of Trusses Needed
10881 10882
10883
10884
LS
LS
(QTY: 28)
LS
(QTY: 2)
SB
10885
Truss Splice
1
10646
Knee Brace
4
10885
118 1/4”
300,4 cm
LS
LS
LS
LS
LS
LS
LS
LS
SB
LB
LB
LB
LB
10885
10884
LB LB
10646
10646
(QTY: 8)
LB
Step 1: Continued

14
14H
You will need for this page:
(QTY: 15)
(QTY: 8)
10629
Rear Frame
410630
Rear Wall
Channel
210631
Rear Wall
Diagonal
210640
Wall Post
3

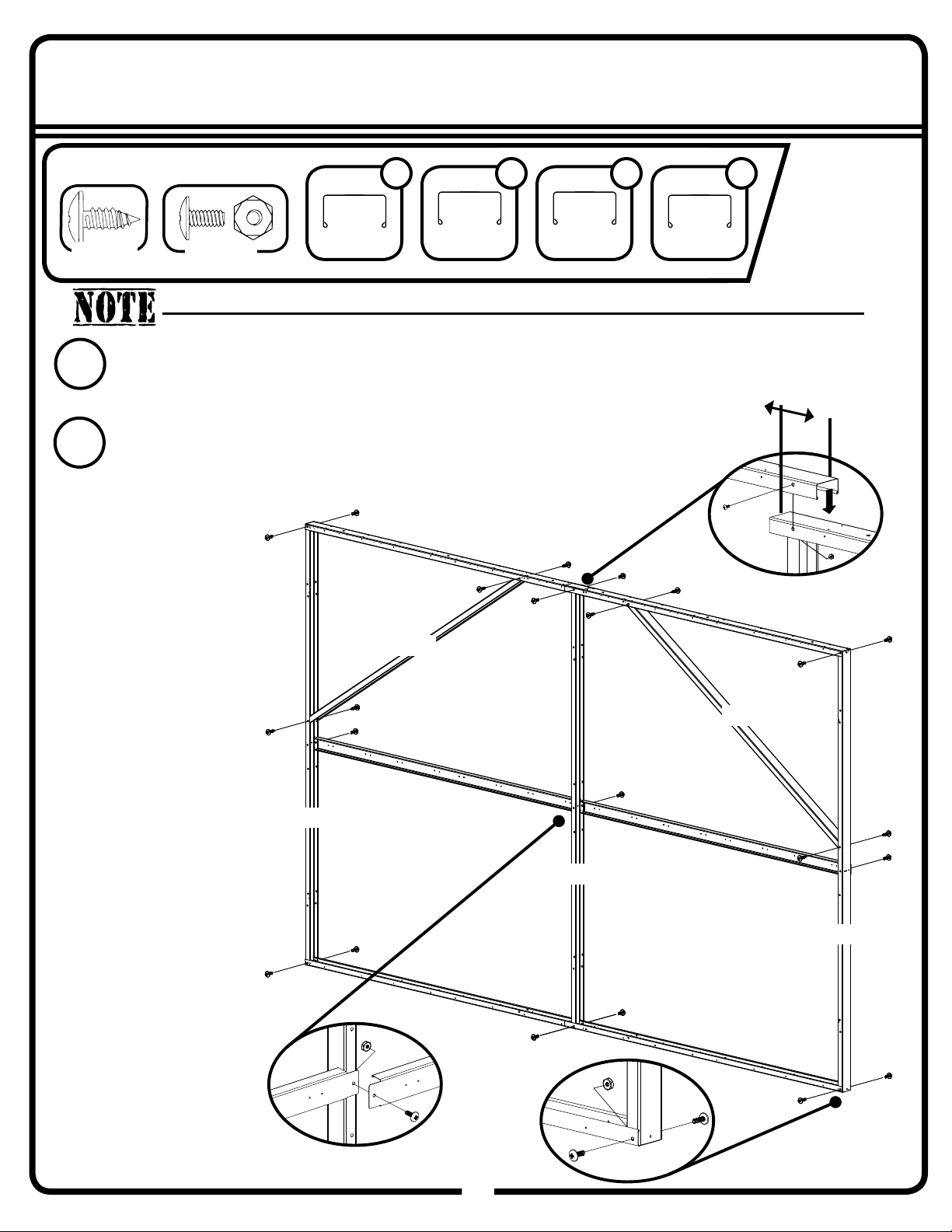

Lay out the parts and position them as shown. Overlap the Rear Frames by
4” (10,2 cm) and connect them to the Wall Post in the center of the Rear
Wall using Small Bolts and Nuts as shown. Do not tighten at this time.
1
2
Attach other two Wall Posts at the sides of the Rear Wall using Small
Bolts and Nuts as shown. Attach both Rear Wall Channels using Small
Bolts and Nuts. Slide the Rear Wall Diagonals into the Frame and secure
with Large Screws.
LS SB
overlap length:
4” (10,2 cm)
10631
10629
10629
10629
10629
10630
10630
10631
10640
10640
10640
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
SB
LS
LS
LS
LS
LS
LS
LS
LS
INSIDE
OUTSIDE
If you purchased a Door Kit, skip this page and move on to page 16.
Step 2: Rear Wall

15
15H
You will need for this page:
7822
Wall Panel
2

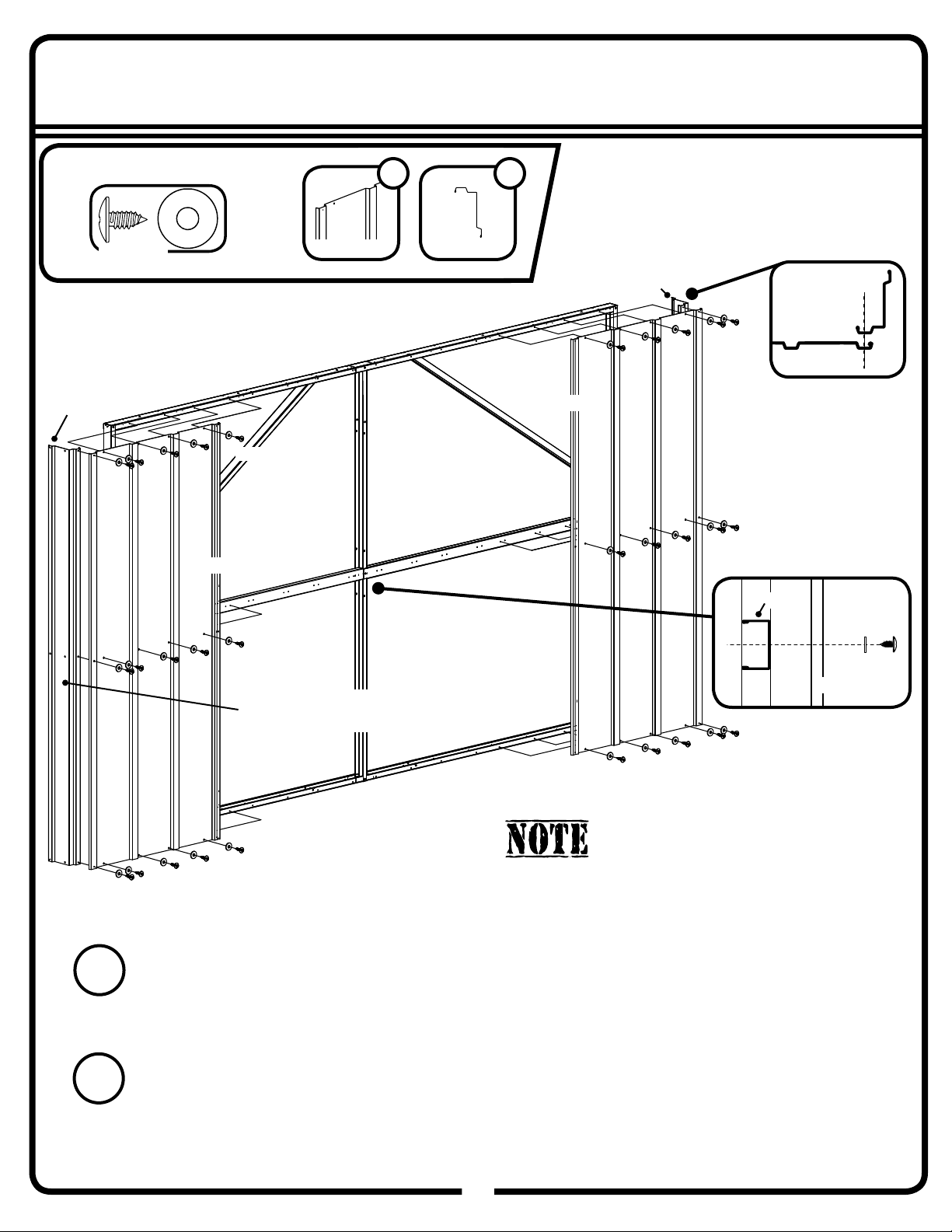

Using Small Screws, attach a Wall Panel and Corner Panel
to each corner of the Rear Wall as shown. The Corner Panel
should only be secured to the Wall Panel where the Panels
overlap. Do not secure the Corner Panel to the Rear Wall
itself, this will be done in Step 5.
3
Carefully set the Rear Wall Assembly aside for use in Step 5.
4
Place Washers on all Bolts and
Screws used on painted parts. This
will help to prevent leaks and corrosion.
LEAVE HOLES OPEN
ALONG SIDE OF WALL
(QTY: 30)
10619
Corner Panel
2
10619
7822
7822
10630
7822
7822
10619
10619
SS
INSIDE
OUTSIDE
SS
SS
SS
SS
SS
SS
Step 2: Continued

16

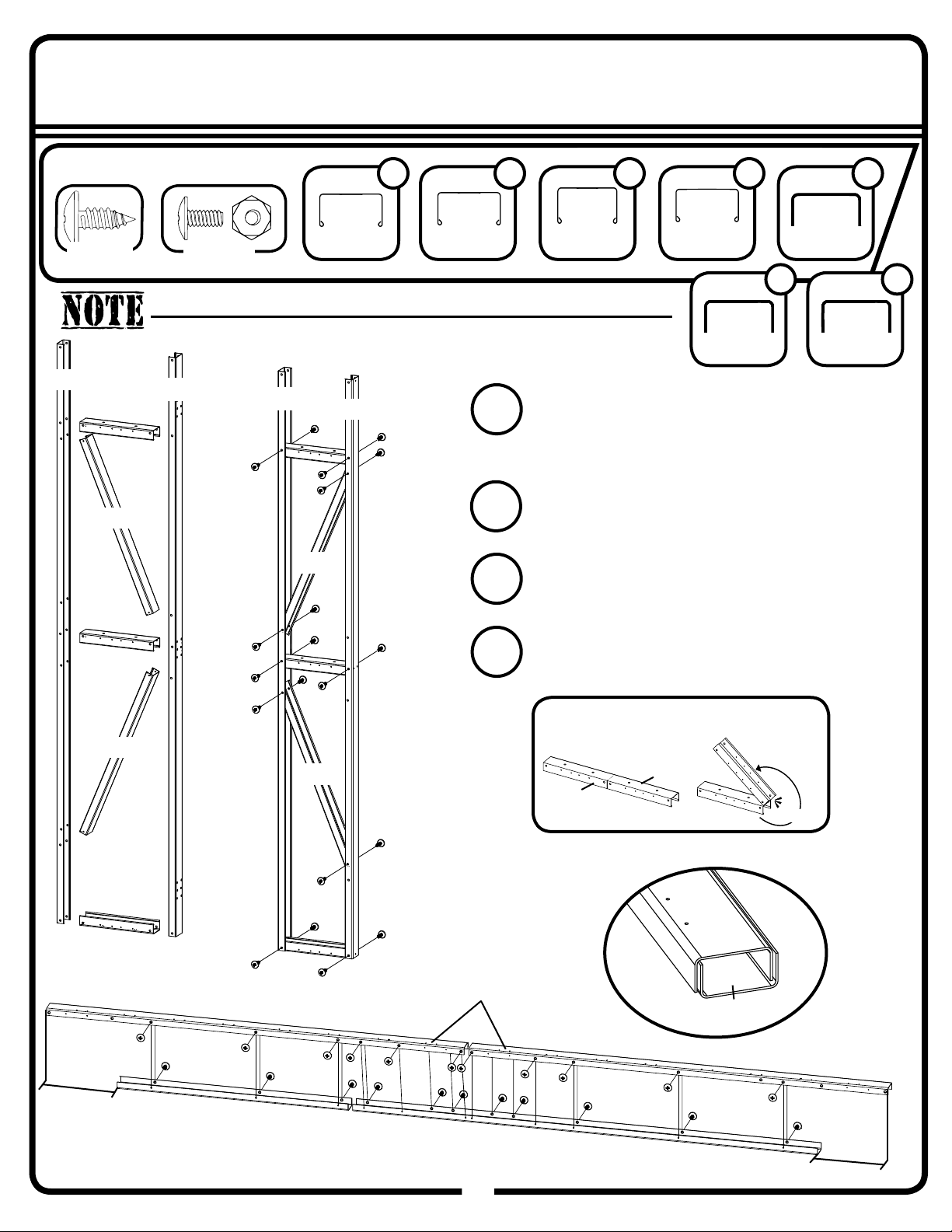

10880
10880
10878
10879
LS
LS
10”
25,4 cm
10”
25,4 cm
10880
10878
10879
Front
16AP
You will need for this page:
(QTY: 24)
(QTY: 38)
Insert Front Wall Diagonals into the Front
Wall Assembly as shown and secure with
Large Screws.
3
10640
Wall Post
210652
Wall Post
(Hinge)
210627
Front Wall
Channel
6
Left Front Wall Assembly
10628
Front Wall
Diagonal
4
Lay out the parts and position them as
shown. Double check that holes align as
shown. If holes do not align, the Wall Post
(Hinge) is most likely upside-down.
1
2
Insert the Front Wall Channels into the
Wall Post and Wall Post (Hinge) as shown
and secure with Small Bolts and Nuts.
Assemble two (2) Front Frames together
with the Long and Short Fascias as shown
below and secure using Large Screws.
4
Right Front Wall Assembly
10640
10640
10652
10652
10627
10627
10627
10628
10628
10628
10628
LS
SB
LS
LS
LS
SB
SB
SB
SB
SB
LS
SB
SB
SB SB
SB SB
LS
LS
LS
LS SB
Door Header Assembly
SNAP
10627
10627
Part 10627 Front Wall Channel may
be joined in pairs. Bend to separate.
If you purchased a Door Kit, build two Front Walls.
FRONT
10880
Front Frame
2
10879
Short Fascia
1
10878
Long Fascia
1
Step 3: Front Wall
Front Frame faces
outside of building.
Align top holes
Overlap View

17
You will need for this page:
17AP
Using Small Screws, attach a Front Wall
Panel and Corner Panel to each corner
of the Front Wall as shown. The Corner
Panel should only be secured to the Front Wall
Panel where the Panels overlap. Do not secure the
Corner Panel to the Front Wall itself, this will be
done in Step 6. Also, leave the holes closest to the
Door open in the Front Wall Panel. These will be
used to attach the Door Jambs in Step 6.
6

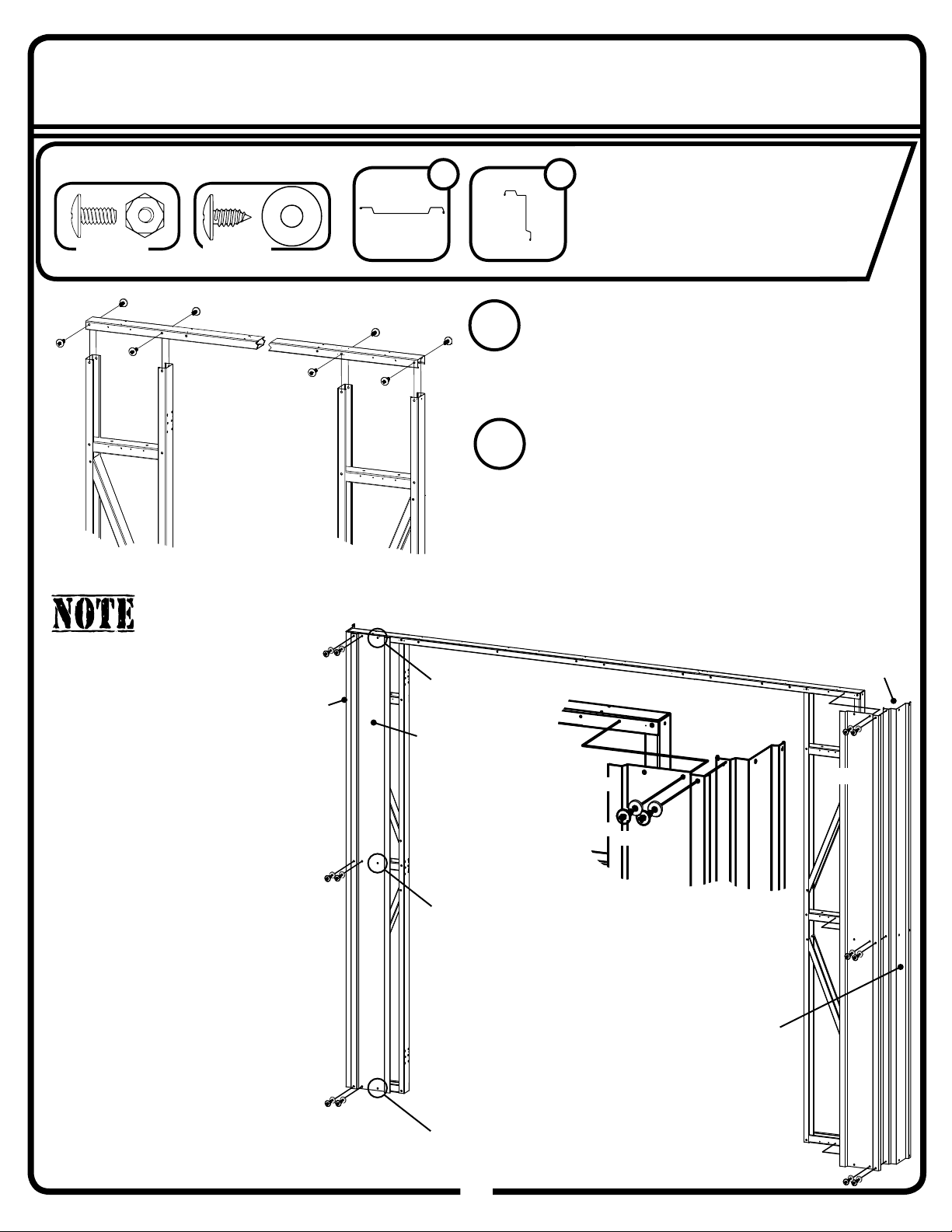

Slide the Door Header Assembly down
onto the Front Wall Assemblies as shown
and secure with Small Bolts and Nuts. Once
these pieces are joined, take care when moving
them as the Door Header may bend.
5
(QTY: 8) (QTY: 12)
Assemblies from previous page:
• Left Front Wall Assembly
• Right Front Wall Assembly
• Door Header Assembly
IMPORTANT: A minimum
of two people should be
used at all times when
handling or maneuvering
the Front Wall Assembly.
When installing the Front
Wall Assembly in the build-
ing, two people should hold
the Assembly in place until
it is secure. Failure to do so
could result in bending the
Front Frame and Fascia
pieces.
10618
Front Wall
Panel
210619
Corner Panel
2
Left Front Wall Assembly Right Front Wall Assembly
SB SB
SB
SB
SB SB
SB SB
SB SS
LEAVE HOLE OPEN
LEAVE HOLE OPEN
LEAVE HOLE OPEN
LEAVE HOLES OPEN
ALONG SIDE OF WALL
10618
10618
10618
10619
10619
10619
SS
SS
SS
SS SS
Confi rm Front Frame of
Door Header Assembly is
facing outside of building.
Step 3: Continued

18
18AP
You will need for this page:
(QTY: 4)
(QTY: 8)
Assemblies from Step 1:
• Truss Assemblies (2)
10632
Side Frame
410887
Side Wall
Channel
2

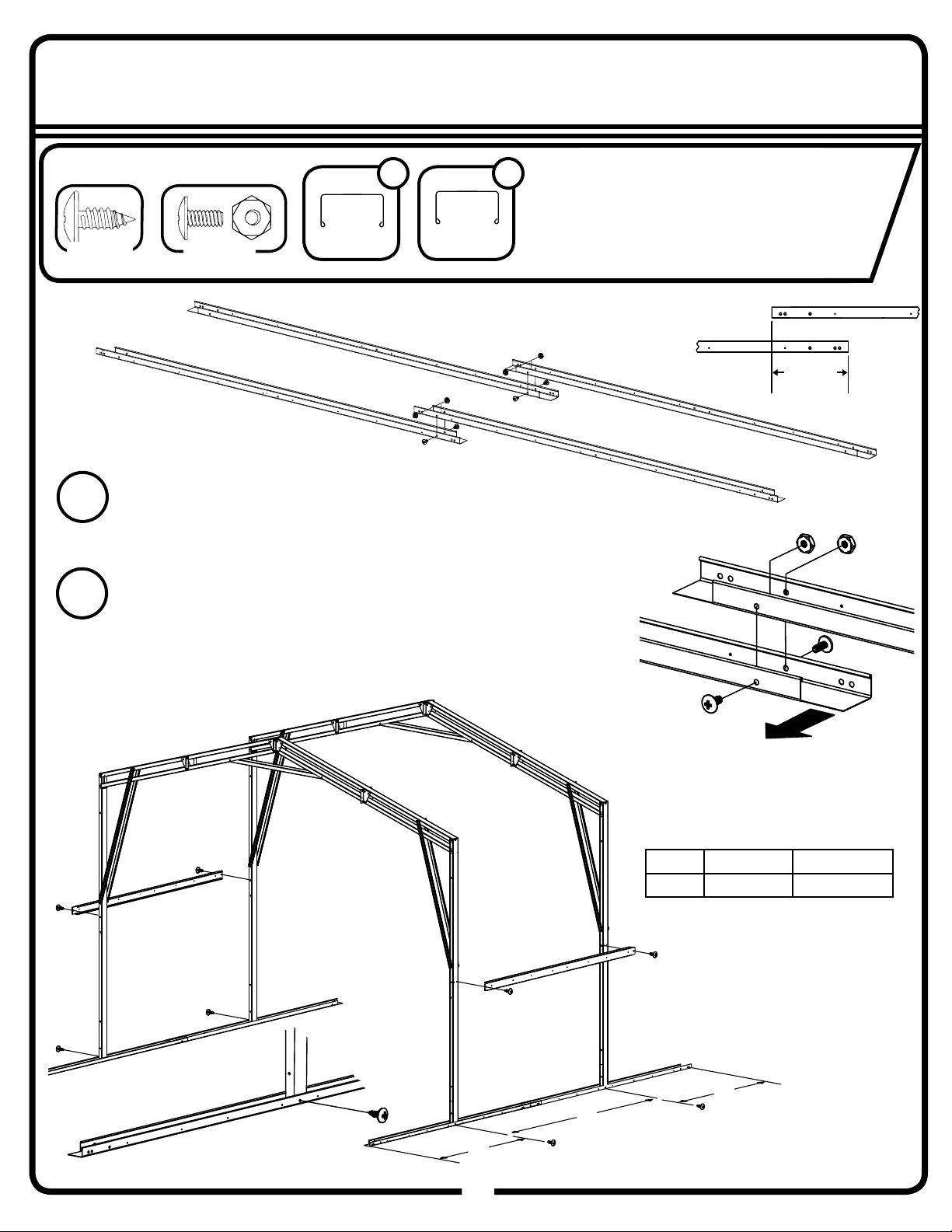

Assemble two sets of Side Frames by
overlapping them by 8 1/4” (21,0 cm) and
inserting two Small Bolts and Nuts as shown
above. These will form the left and right Floor Frames.
1
2
32 7/8” (83,5 cm) from the edge of each Floor
Frame, erect a Truss Assembly and secure
using a Large Screw on each side. Once two
Truss Assemblies are in place, connect them with a
Mid Side Wall Channel and secure with Large Screws.
Support Trusses until Mid Side Wall Channels are in
place.
8 1/4”
21,0 cm
Overlap Length
A
A
B
Notched side of Frame must
face inside building.
A32 7/8” 83,5 cm
B57 1/2” 146,1 cm
Truss Spacing
10632
10632
10632
10632
10632
10632
10887
10887
SB
SB
SB
SB
LS
LS
LS
LS
LS
LS
LS
10632
LS SB
Step 4: Truss Installation

19
4
10650
19H
4

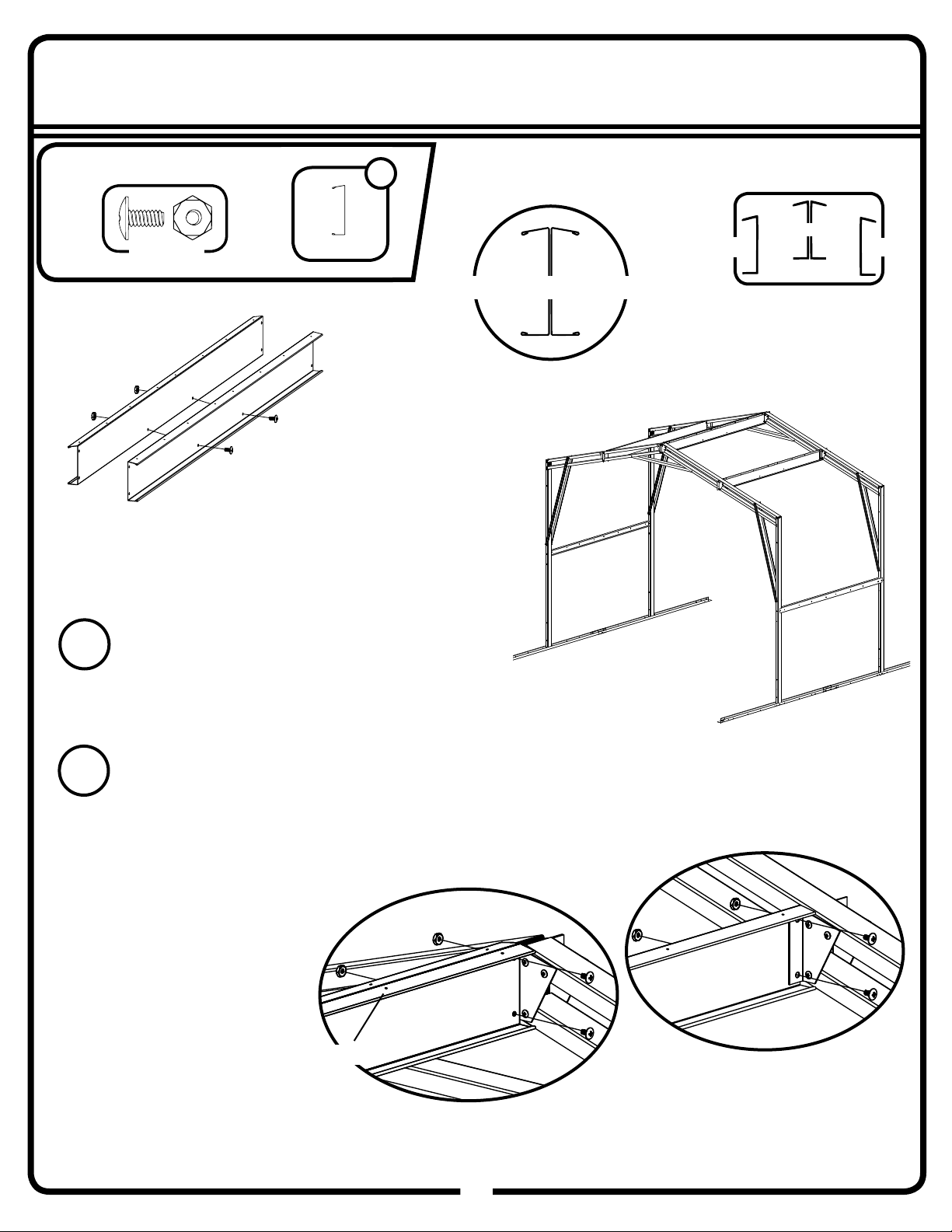

Install the Main Roof Beam and secure with two
Small Bolts and Nuts at each end. Next, install
the outer Roof Beams in the same manner.
Remove Bolts holding Truss peaks together (from
Step 1-6). Next, place two Middle Roof Beams
back-to-back and secure with two Small Bolts and
Nuts as shown above. This is the Main Roof Beam.
3
Side of Beams with small holes must face up.
End View of Double Beam
10650
10650
10650
10650
10650
Small holes in tops of beams.
SB
Main Roof Beam
Main
Outer
Outer
Main
Outer Outer
You will need for this page:
(QTY: 14 ) Roof Beam
Step 4: Continued

20
20AP
You will need for this page:
(QTY: 18+)
(QTY: 6+)
Assemblies from Step 1:
• All remaining Truss
Assemblies
10632
Side Frame
2+ 10887
Side Wall
Channel
2+
6

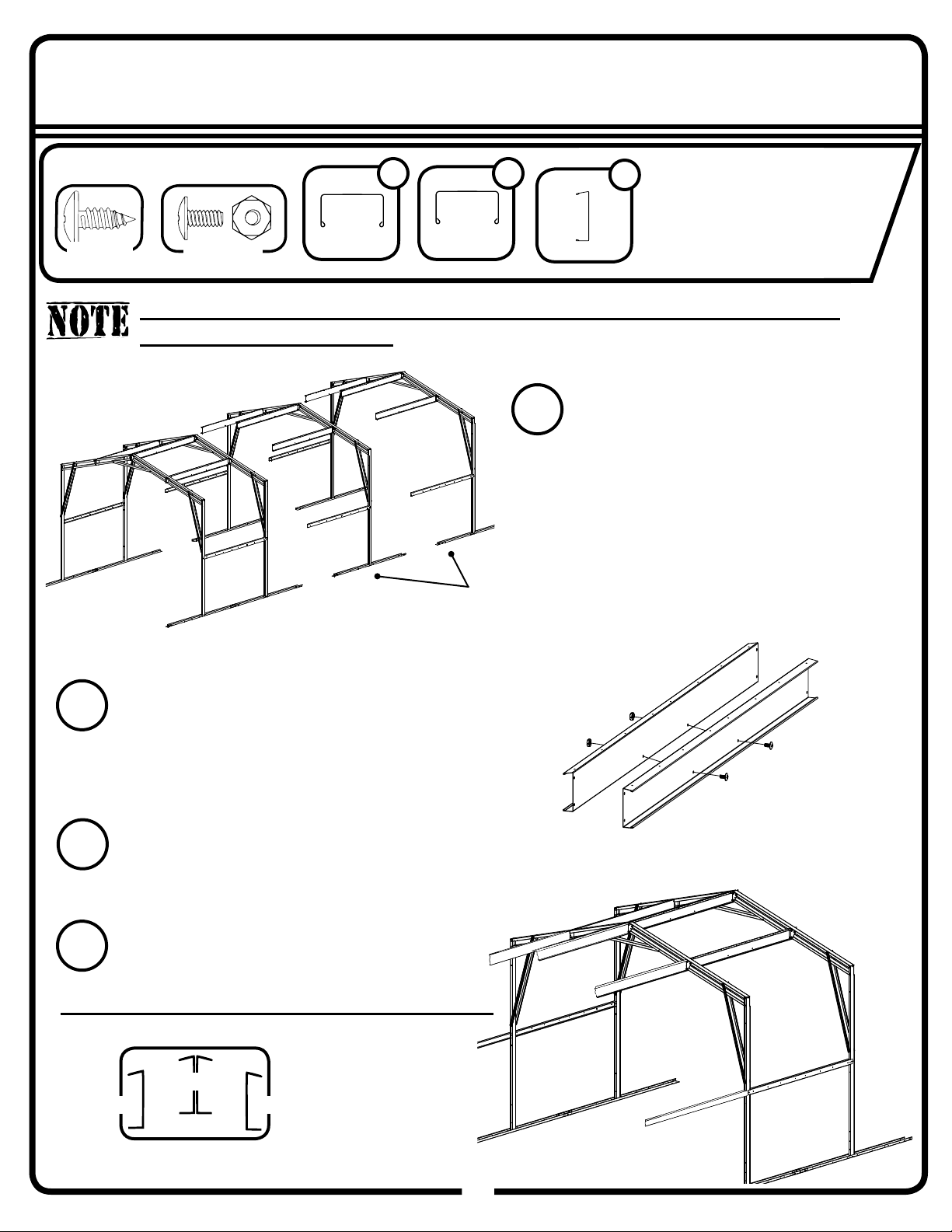

57 1/2” (146,1 cm) behind the previous Truss,
erect a Truss Assembly and secure using a Large
Screw on each side. Once two Truss Assemblies
are in place, connect them with a Mid Side Wall Channel
and secure with Large Screws. Support Trusses until Mid
Side Wall Channels are in place.
LS SB
5
All Truss Sections are assembled in the
same manner as the Truss Section just
erected. Install one additional Side Frame
per side for each additional Module. Overlap Side
Frames by 8 1/4” (21,0 cm). Refer to page 13 to
see how many Trusses should be included in your
building.
One Side Frame per side is added for
each additional Extension Module.
10650
10650
10650
10887
10887
10632
10632
Install the Main Roof Beam and secure with two
Small Bolts and Nuts at each end. Next, install
the outer Roof Beams in the same manner.
8
Remove Bolts holding Truss peaks together (from
Step 1-6). Next, place two Middle Roof Beams
back-to-back and secure with two Small Bolts
and Nuts as shown. This is the Main Roof Beam.
7
If you are erecting a 10’x10’ (3,0 m x 3,1 m) building, skip this page
and move on to page 21.
10650
10650
Main Roof Beam
Side of Beams with small holes must face up.
Outer
Outer
Outer
Main
Outer
Main
Repeat until all Trusses have been installed.
Roof Beam
4+
10650
Step 4: Continued for Extension Modules
