Arrow Storage Products AR1012 C1 Instructions for use

www.arrowsheds.com
Customer Service:
1-800-851-1085 or
[email protected]
BUILDING DIMENSIONS
10’ x 12’
Nominal Size
Gloves must be worn
at all times to reduce
risk of injury!
Size rounded off to the nearest foot
* See Inside for Detailed Safety Information.
Owner’s Manual
& Assembly Guide
01DO
715801217
†
Base
Size
121” x 143 1/4”
307,3 cm x 363,9 cm

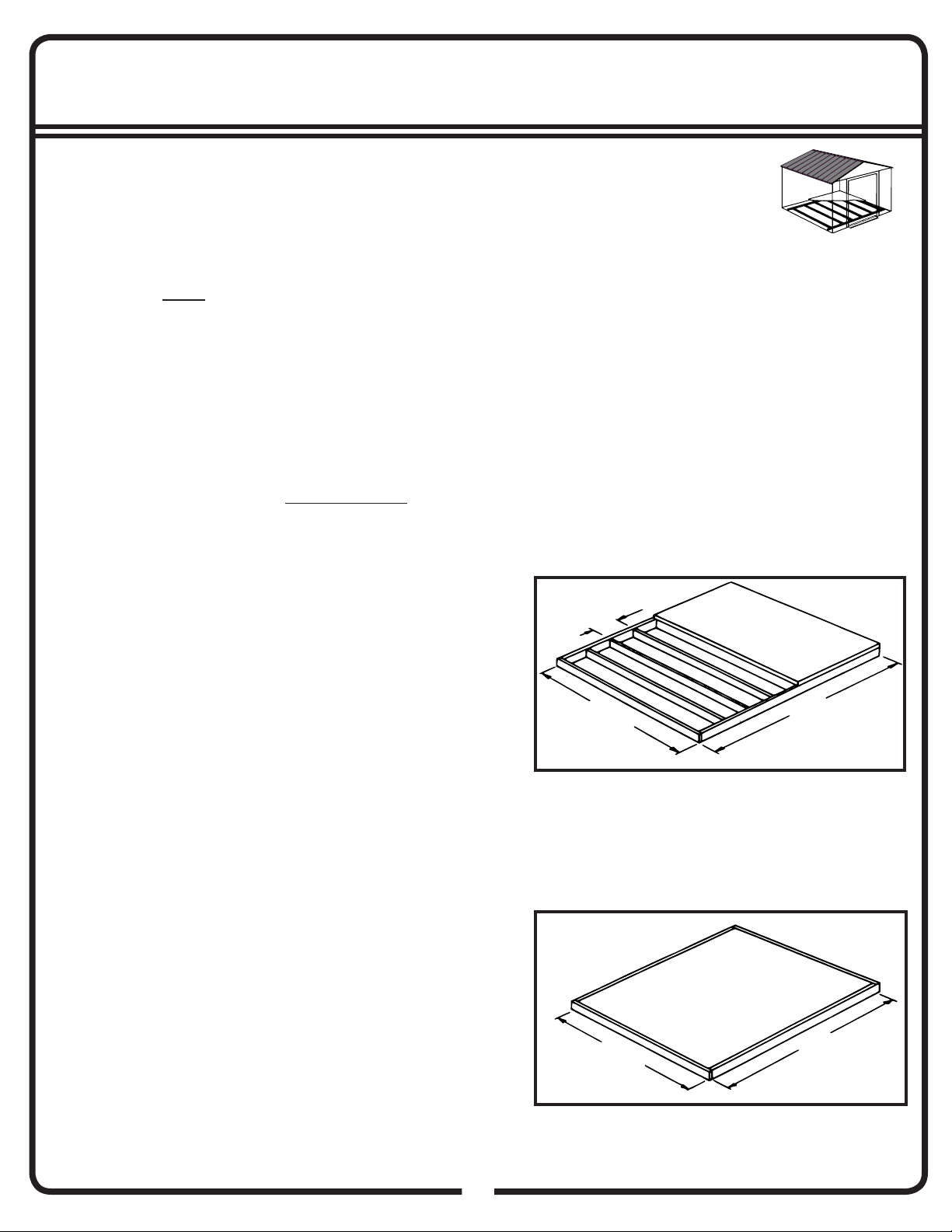

For proper base construction see page 12
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
10’ x 12’ 115 Sq. Ft. 686 Cu. Ft. 123 1/4” 145 3/4” 81 3/8” 118 1/4” 140 1/2” 80 1/8” 55 1/2” 60”
3,0 m x 3,6 m 10,7 m219,4 m3313,1 cm 370,2 cm 206,7 cm 300,4 cm 356,9 cm 203,5 cm 141,0 cm 152,4 cm
†
AR1012FB C1
Model No. AR1012 C1
LW1012 A1
AR1012H4 C1
LW1012

2
SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts indicated
in the parts lists (page 8) as well as all hardware
(page 7). Any building left partially assembled may
be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• You must also have a temporary anchoring system in
place in case you need to take a break from assembly.
See page 4 for more info.
02A

3
ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.

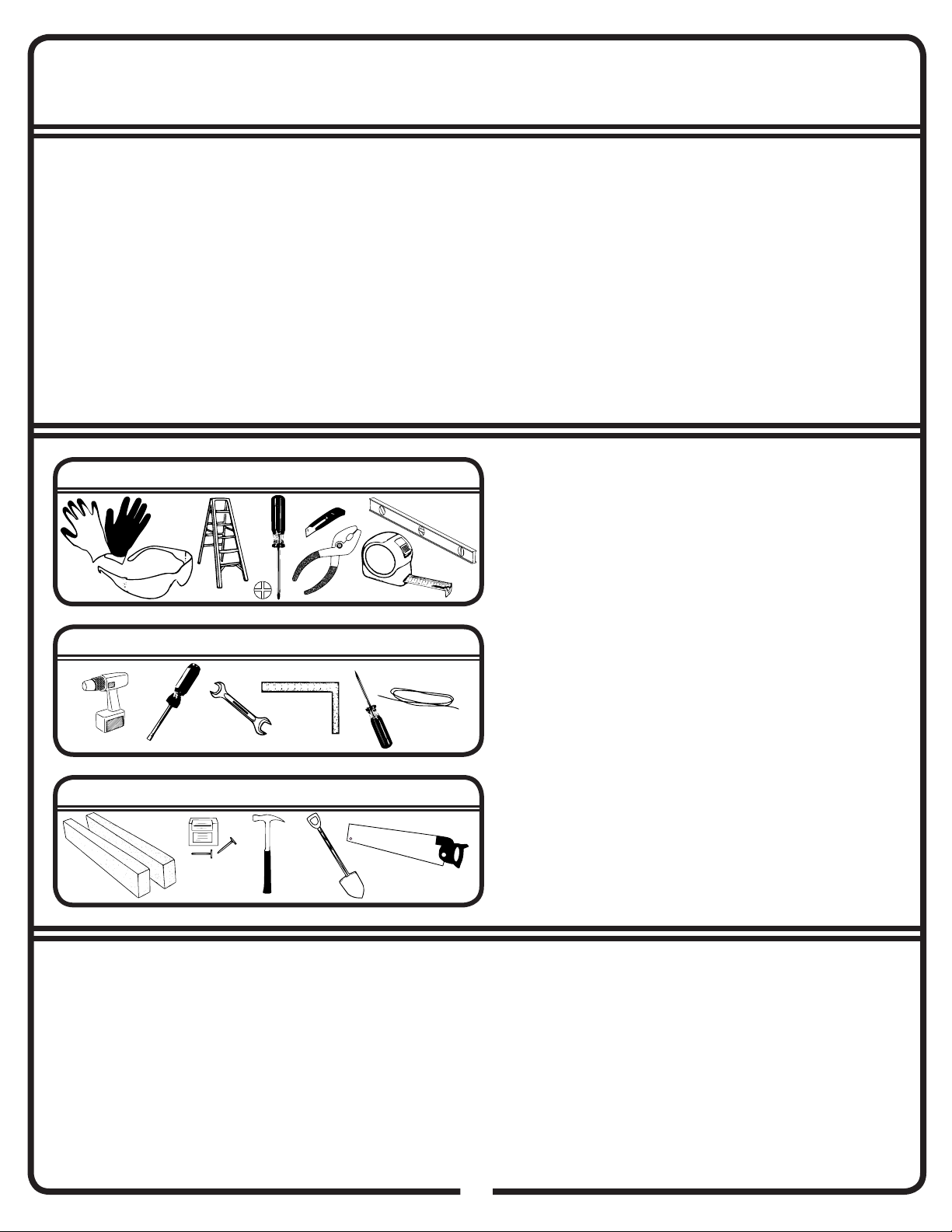

Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
• Work Gloves
• Safety Glasses
• Step Ladder
• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
• Utility Knife or Scissors
• Pliers
• Carpenter’s Level
• Tape Measure
• Power Drill (Cordless, Variable Speed)
• Nut Driver or Wrench
• Square
• String (for squaring the frame)
• Awl (to align holes)
• Lumber and/or Concrete
• Hammer and Nails
• Spade or Shovel
• Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS
03A

4
FREQUENTLY ASKED QUESTIONS
Q. How long will it take to assemble the building?
A. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace
at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and
assume two or more people working on the assembly. Generally, you should plan on at least one day working with
someone who can assist you; again, after constructing the base. Refer to the clock icons on each product page
on the website for specifi c time estimates.
Q. How do I decide where to put my shed?
A. The key to a successful assembly is to make sure the shed will be square and level when built. The shed can
be assembled directly onto level ground (grass or dirt). If you have location options, choose one that is already
fl at, with good drainage to control moisture. If you don’t have a fl at, well-drained area, you need to prepare the
space. Level the area using cinder blocks, concrete, crushed gravel or other sturdy materials. Once level with good
drainage, construct your base. Using a carpenter’s level, make sure your base is level and free of bumps or ridges
to provide good support for your building.
Q. What if I can’t fi nish my building in one session?
A. If weather conditions change so that it becomes windy or rainy, it is recommended that you stop assembly
until conditions improve. This is for your safety and for protection of the shed panels. However, do not leave
your unfi nished construction without fi rst temporarily anchoring the corners of the shed to your base and placing
weights, such as patio blocks or sandbags, on the fl oor frame. Failure to anchor the building if you leave it while
partially assembled could result in irreparable damage or personal injury if the building collapses.
Note: Most instruction manuals provide a warning note at the beginning of the installation step for corner panels,
stating that the remainder of the building assembly requires multiple hours and more than one person. Do not
continue beyond this point if you do not have enough time or help to complete the assembly that day. A partially
assembled building can be severely damaged by even light winds.
Q. Do I need to anchor my building?
A. Yes! Fully assembled buildings should be anchored using a permanent anchoring system. If you need to leave
your building before it is completely assembled, you will need to temporarily anchor the corners of the shed to your
base, and place weights, such as patio blocks or sandbags, on top of the fl oor frame.
Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction
without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, on the fl oor frame.
Q. How do I temporarily anchor my building before it’s fully assembled?
A. An incomplete building must be anchored before breaking for any period of time to prevent possible damage.
•If the building is on a wood base, secure the frame with wood screws in the corners
•If the building is on a concrete base, temporarily anchor the frame in the corners
•Use patio blocks or sandbags on top of the fl oor frame as weights
•Secure the fl oor frame to the ground with ground augers or rope the frame in the corners to the ground
04A

5
Q. What kind of base do I use?
A. You can:
•Use an Arrow Base Kit
•Pour a concrete slab
•Build a wood deck/fl oor (use exterior-grade plywood)
•Use patio blocks
•Build on crushed gravel, dirt or grass
Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor,
an Arrow fl oor frame kit on top of your deck/fl oor assembles in minutes and provides a fl oor frame suitable for a
5/8” exterior-grade plywood fl oor (not included). A continuous unbroken plastic vapor barrier with a thickness of 6
mil. between the ground and the building’s base is also recommended.
Q. How should I measure for my base?
A. Shed dimensions are provided in “nominal” size. Nominal sizes are roof-edge measurements rounded to the
nearest foot and are not the measurements to use for constructing the shed base. So, carefully check the exact,
recommended base size in the specifi cations for your shed model.
Q. How do I align the holes in the wall panels with the holes in the fl oor frame?
A. Make sure that the shed is level and square, with the correct fl oor frame size, and that the corner panels are
installed correctly. Line up the large hole in the panel with the small holes in the fl oor frame. An awl can be used to
help align the holes.
Q. How do I align the holes in the roof panels with the holes in the roof beam and side wall angles?
A. Your building must be level and square in order for the holes to align. It must be square at both the top and
bottom. Check that the building is square by measuring diagonally. The two diagonal measurements will be equal.
If your building is out of square, carefully rock and push the shed until it is square. Also, try loosening the roof
beams to give more play and fl exibility. Non-alignment can also occur if your building is not level. You can raise
corners and shim under them to make it level. Check that the panels are installed in the proper location. The
building should not be permanently anchored until the complete unit is assembled; otherwise, you will not be able
to make adjustments for squareness during assembly. Do not attach the bottom of the roof panels to the side wall
angles until all the roof panels are up.
Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction
without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, on the fl oor frame.
Q. How do I ensure that the sliding doors on the building will hang level?
A. Make sure that the door track has been correctly installed, with the long leg on top and the short leg on the
bottom. Check that the door slides are straddling the upper and lower legs of the door track assembly, putting the
door slide only halfway in the track. Also, the rounded end of the door slide should be at the bottom and the square
end at the top.
Q. What kind of customer support is available?
A. Our instruction manuals contain step-by-step assembly illustrations and guide you from preparation through
assembly to care and maintenance of your fi nished building. Each part is marked with a factory number for easy
identifi cation. In addition, our assembly animation (located under the Customer Support menu on the website)
provides helpful tips. But if you need to reach someone at Arrow, you can contact Arrow Customer Service, toll free,
at 1-800-851-1085 (press 1) or via e-mail at [email protected]. Have your model number and instruction
manual with you when you call.
05A

6
Q. What if the rear wall angle and channels are too large to fi t inside of the rear wall panels?
A. Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the
assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels
to stand erect and not lean inward. Caution: Be careful to not scratch the panels on the way up.
Q. The wide rib always overlaps the crimped rib. Is there ever an exception?
A. This sequence is to be followed through the assembly process. However, this will typically happen once on the
rear and once on each side wall (vertical wall units only) where there will be either two crimped ribs overlapping or
two wide ribs overlapping. This may give it a tighter fi t, but it will work.
Q. Can the building be painted?
A. The buildings can be painted with an exterior-grade paint designed for use on steel. Contact your local paint
supplier for recommendations.
Q. I heard that rust might be an issue with steel; is it?
A. While steel can rust, with proper care this should not be an issue. For a long-lasting fi nish, periodically clean
the exterior surface and apply spray-on car wax. Touch up scratches as soon as you notice them by immediately
cleaning the area with a wire brush or emery paper, washing it and applying touch-up paint. This will minimize rust
and maintain your shed’s attractive appearance for years.
Q. How do I take care of dents in my shed?
A. Proper selection of shed size, including a suffi cient door-opening width, and proper placement of your shed
should minimize the possibility of damage. If a dent does occur, carefully push the dent out from the opposite side.
If the paint has been scratched or removed, touch up the area as soon as you notice it. Immediately clean the area
with a wire brush or emery paper, wash it and apply touch-up paint. This will minimize rust and maintain your shed’s
attractive appearance for years.
Still have questions? Visit us online at www.arrowsheds.com to view lots of helpful tips and information
regarding all of our available products. You can also contact our Customer Service team at 1-800-851-1085
(press 1), or via e-mail at [email protected].
06A
At the top of each page you will see one or more Part
Cues like the one to the left. These Part Cues are
designed to help you quickly identify the parts needed
for each step.
##### 5
Part No. Quantity Needed
End View
Part Name Part Name
Confi rm that all hardware and parts are
present before attempting to assemble
your building.
Customer Service:
1-800-851-1085 or
[email protected]
For missing or damaged parts contact
Customer Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.

7

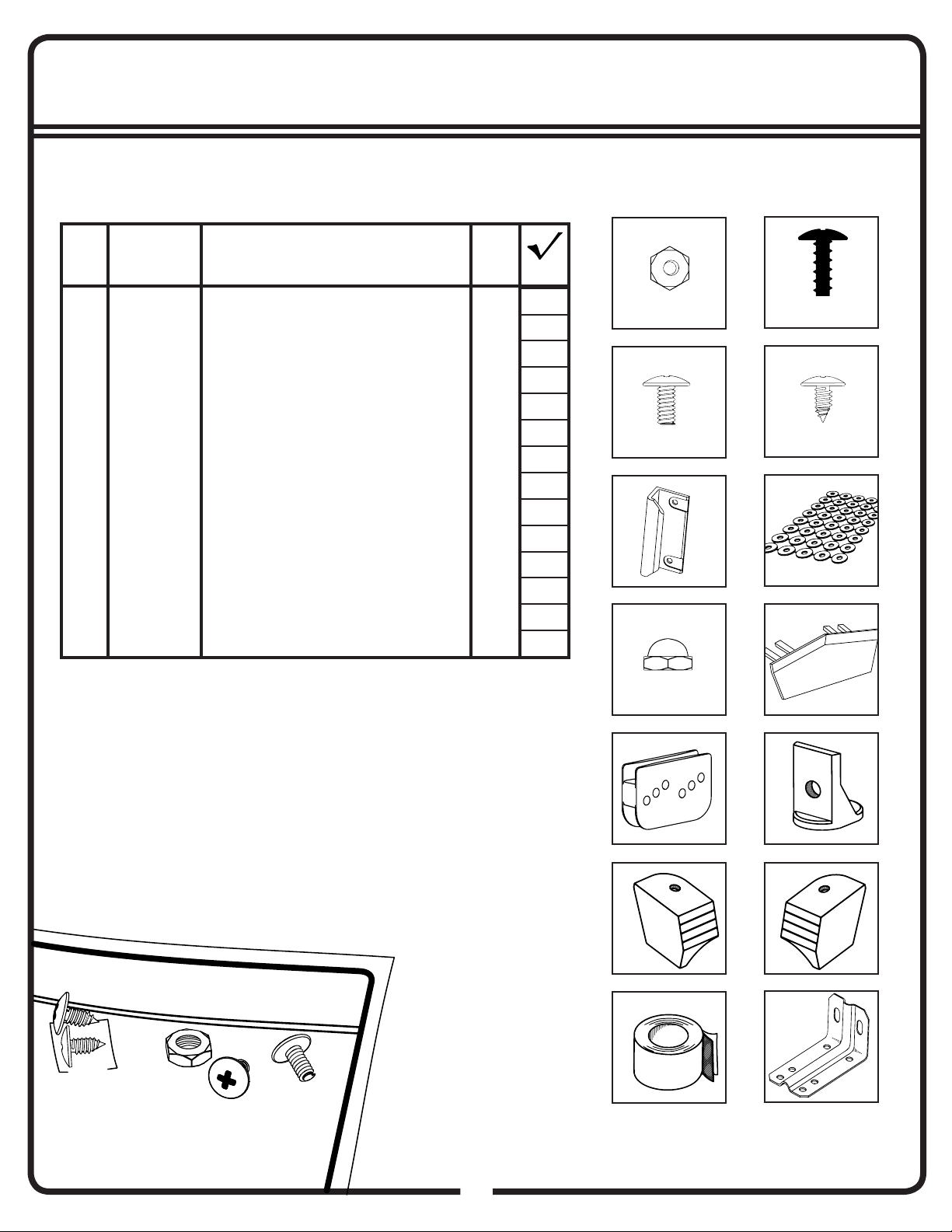

HARDWARE LIST...
Key Part Part Qty.
No. No. Description List
56
10
11
12
34
8
9
13 14
7
12
Hardware Views by Key No.
11/32 Hex.
#2 Phillips #2 Phillips
07BJ
1 65103 Hex Nut (#8-32) 186
2 65900A Black Screw (#10B x 1/2) (13 mm) 8
3 65923 Bolt (#8-32 x 3/8) (10 mm) 186
4 65004 Screw (#8AB x 5/16) (8 mm) 416
5 66045 Door Handle 2
6 66646 Washer Sheet 12
7 65109 Acorn Nut 4
8 67468 Peak Cap 2
9 66769 Door Slide 4
10 66382 Lower Door Guide 4
11 66183L Left Roof Trim Cap 2
12 66183R Right Roof Trim Cap 2
13 67545 Weather Stripping 1
14 6228 Track Support 2
#2 Phillips
5/16 Hex.
The fasteners used in each step are shown
actual size at the top of each page. If you
are unsure which fastener to use, hold it up
to the picture and use the one that matches.
QTY 18

6
PARTS LIST...
8
Key Part Part Qty.
No. No. Description List Selected End Views by Key No.
14
20
15
26
16 17
24
32
29
27
28
19
8
22
123
13
33
30
23
31
08BJ
18
21
25
1 8576 Right Gable 2
2 8577 Left Gable 2
3 10497 Horizontal Door Brace 4
4 7743 Roof Panel 6
5 9086 Right Roof Panel 2
6 9087 Left Roof Panel 2
7 10475 Right and Left Doors 2
8 9369 Door Jamb 2
9 9373 Front Wall Panel 2
10 6515 Wall Panel 10
11 6514 Corner Panel 4
12 3719 Door Handle Brace 2
13 6278 Vertical Door Brace 2
14 6403 Door Track Splice 1
15 6014 Side Roof Trim 2
16 6015 Side Roof Trim 4
17 6868 Ridge Cap 1
18 6869 Ridge Cap 2
19 9366 Door Track 2
20 5986 Rear Wall Angle 2
21 10389 Rear Wall Channel 2
22 9365 Front Wall Channel 2
23 6635 Roof Beam Bracket 4
24 10397 Roof Beam 8
25 10390 Side Wall Channel 4
26 10394 Side Wall Angle 4
27 10392 Side Floor Frame 4
28 8936 Rear Floor Frame 2
29 9367 Front Floor Frame 2
30 9009 Gable Brace 2
31 9204 Roof Beam Brace 2
32 8934 Ramp 1
33 69835 Edge Trim (Green) 4

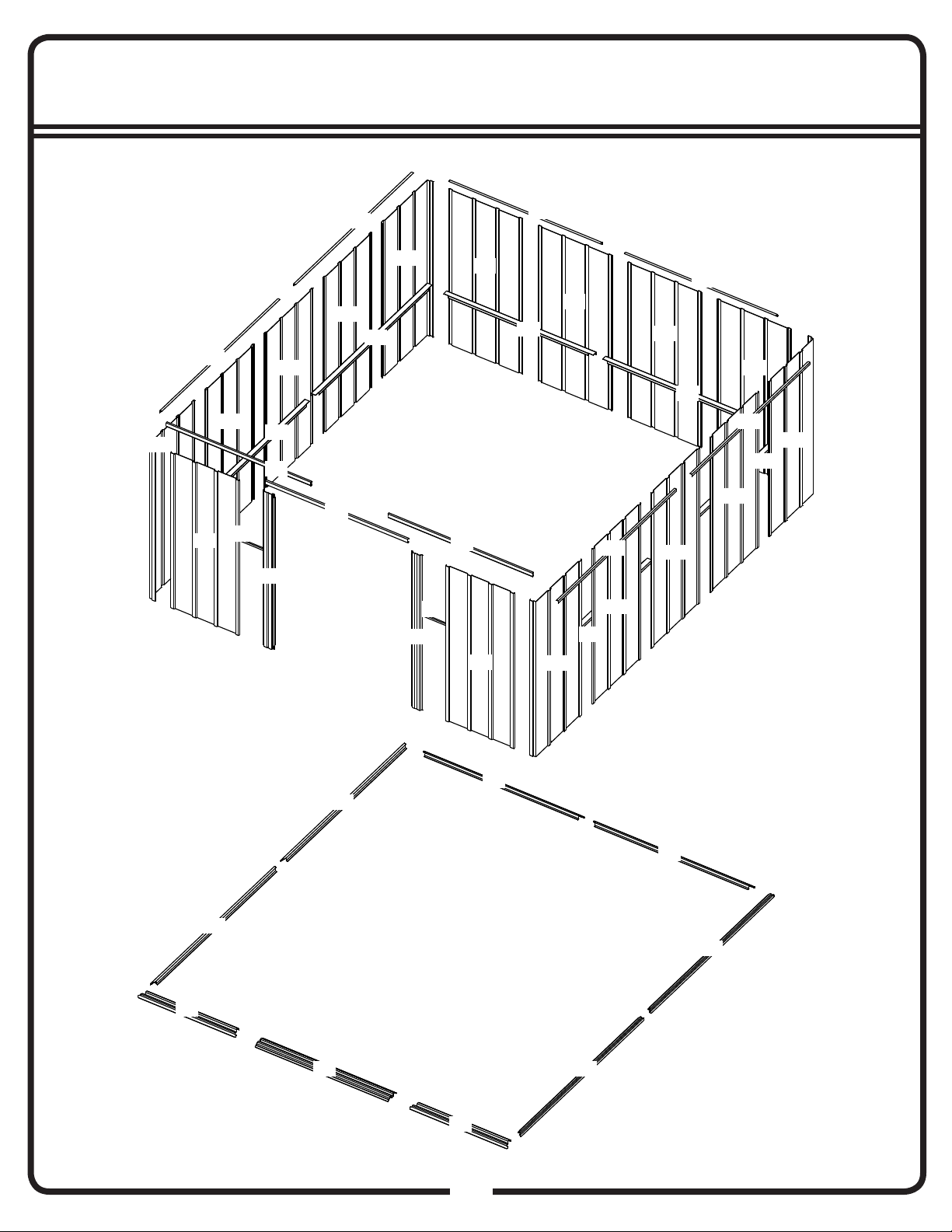

ASSEMBLY BY KEY NO.
9
09BJ
27
Walls
Floor
27
27
27
28
28
29
29
32
10
10
10
10
10
10
10
10
10
10
11
11
11
11
9
9
8
8
22
22
14
19
19
26
26
26
26
20
20
25
25
25
25
21
21

3
Doors
7
3
7
13
13
12
12
3
3
ASSEMBLY BY KEY NO.
10
10BJ
Roof
30
30
33
33
24
24
24
24
24 24
24
24
4
4
4
4
5
5
6
6
4
4
18
18
17
16
16
16
16
15
15
1
1
2
233
33
31
31
23
23
23
23

11

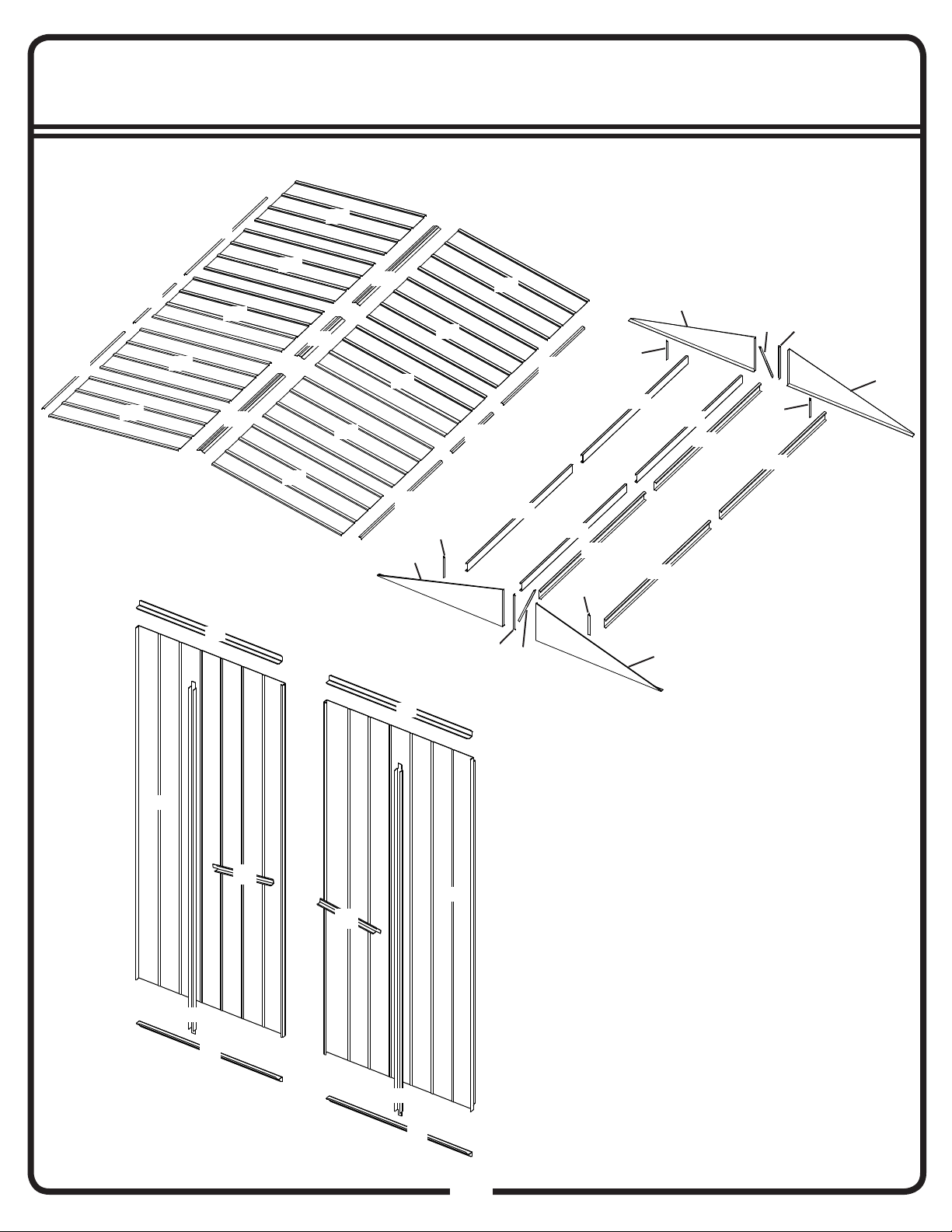

ASSEMBLY OVERVIEW
Build the Floor Frame Install Corners, Wall Angles, and Door
Track
Install Wall Panels, Wall Channels, and
Door Jambs
Attach Gables and Roof Beams
Install Roof Panels, Ridge Cap, Side
Trim, and Corner Cap
Install Doors
11BJ
Shed is now complete.

12
No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is
recommended as an effective method of properly securing your building after assembly is complete.
OPTION 1: Directly on ground (earth)
Assemble your building directly on level ground (grass, dirt, rock, sand, etc.). If you choose this option Arrow has a simple kit available
to provide a fl oor inside the shed to keep stored items off the ground. This kit can be used to support a plywood fl oor (wood not
included) or be fi lled with sand/rock to provide a solid surface. (Order No. FB1014-A or 68387-A)
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage
building your warranty will be voided.
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level
and fl at to provide good support for the frame.
The following are the recommended materials for your base.
• 1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
• Concrete • Sheet of 6 mil plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
CONSTRUCTING A BASE...
FRONT
(DOOR)
FRONT
(DOOR)
Note: Finished Slab dimensions, with lumber removed.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond
fl oor frame on all four sides. Seal this 9/16" (1,4 cm)
of wood with a roofi ng cement (not included), or bevel
this 9/16" (1,4 cm) of concrete when pouring, for good
water drainage.
121”
307,3 cm
16"/24"
40,6 cm/61,0 cm
143 1/4”
363,9 cm
121”
307,3 cm
143 1/4”
363,9 cm
12AW

13
You will need for this page:
(QTY: 8)
Washers are to be used on painted parts only.
Washers are not necessary on unpainted parts
and there are not enough to use on every screw
and bolt.
10392
Side Floor
Frame
4
Bolts thru Bottom.
Bolts thru Top.
Step 1: Floor Frames
Overlap two (2) Side Floor Frames as shown
and secure with four (4) bolts. Two (2) bolts
must enter from bottom.
1
2
Assemble a second Side Floor Frame
Assembly by repeating part 1. Check that the
fi nished length of the Assemblies is 141 5/8”
(359,7 cm). Set aside for use in Step 5.
10392
10392
BUILD TWO (2) FRAMES
13AW

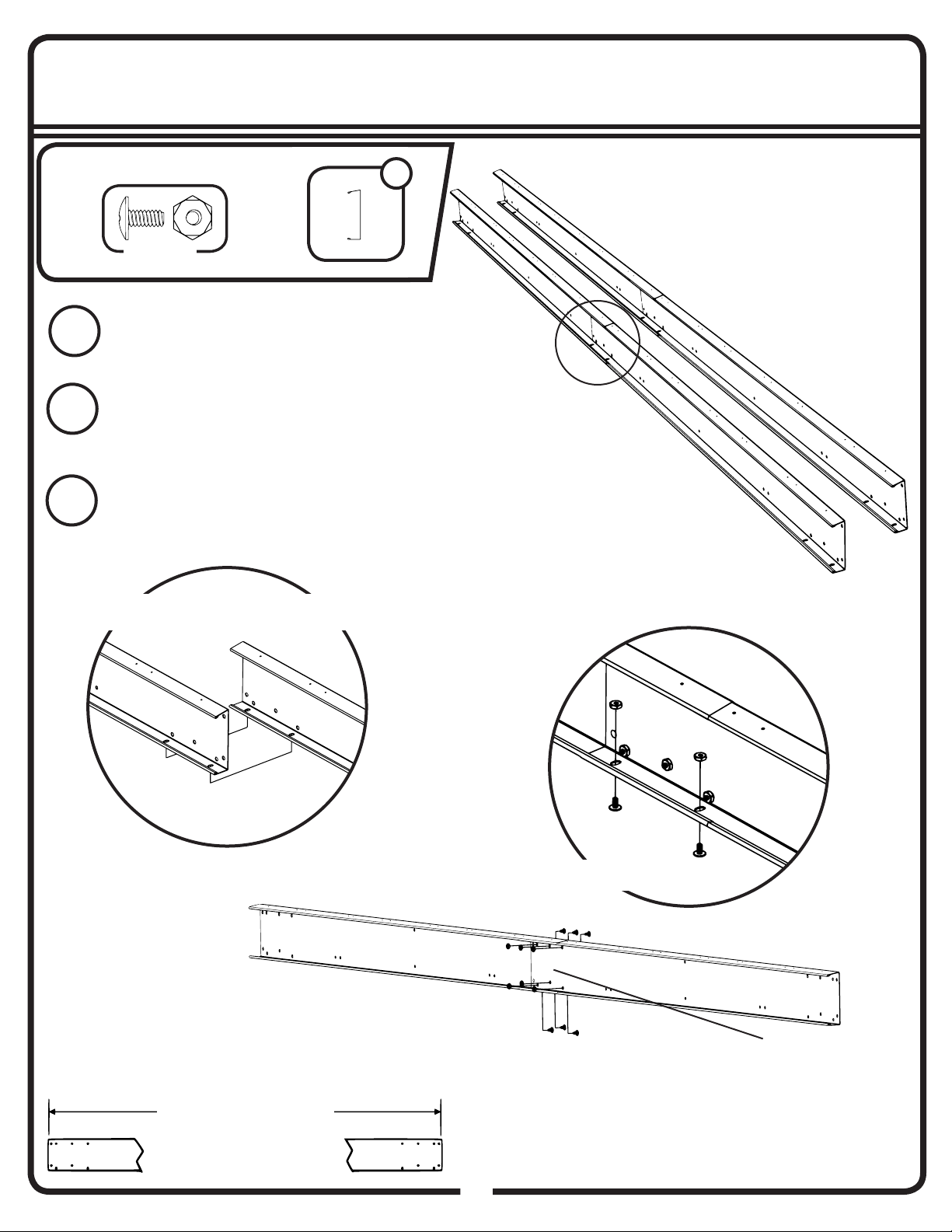

Finished Length
141 5/8” 359,7 cm
11 7/8” 30,2 cm
Overlap Length

14
8936
8936
Assemble the Rear Floor Frames.
Finished Length
119 3/8” 303,2 cm
(QTY: 5)
8936
Rear Floor
Frame
2
Bolts thru Bottom.
Bolts thru Top.
You will need for this page:
Step 1: Continued
Overlap two (2) Rear Floor Frames as shown
and secure with fi ve (5) bolts. Two (2) bolts
must enter from bottom.
3
4
Check that the fi nished length of the Assembly
is 119 3/8” (303,2 cm). Set aside for use in
Step 5.
11 7/8” 30,2 cm
Overlap Length
14A

15
9367
8934
9367
Finished Length
119 3/8” 303,2 cm
CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
FRONT
You will need for this page:
Step 1: Continued
Four (4) Screws per side.
FRONT
Drain holes must face outside the building.
Overlap the Ramp and two (2) Front Floor
Frames so that four (4) holes align at each end
as shown. Insert four (4) screws in each end.
5
6
Confi rm that the drain holes are facing outside
the building. Check that the fi nished length of
the Assembly is 119 3/8” (303,2 cm). Set aside
for use in Step 5.
8934
Ramp
1
9367
Front Floor
Frame
2
7 3/8” 18,7 cm
Overlap Length
(QTY: 8)
15A

16
5986
5986
Finished Length
118 1/8” 300,0 cm
Slide parts together until fi ve (5) holes align.
Place bolt thru center hole only.

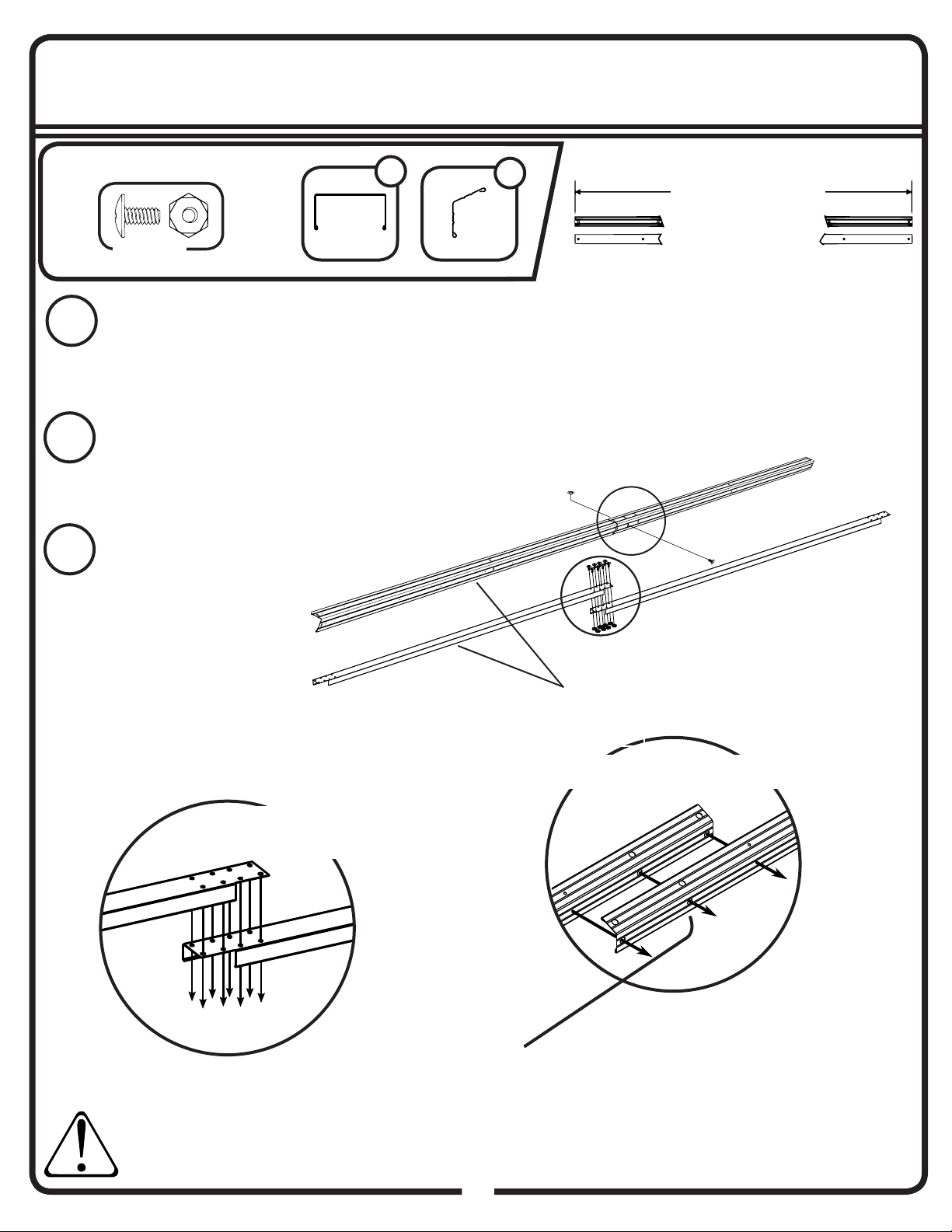

Slide parts together
until eight (8) holes align.
5986
Rear Angle
2
(QTY: 9)
You will need for this page:
Step 2: Wall Frames
Overlap two (2) Rear Wall Channels so that
eight (8) holes align as shown. Insert a bolt and
nut through each hole. Check that the fi nished
length of the Assembly is 118 1/8” ( 300,0 cm) set
aside for use in Step 10.
1
2
Overlap two (2) Rear Wall Angles so that fi ve
(5) holes align as shown. Insert a bolt and nut
through the center hole. Check that the fi nished
length of the Assembly is 118 1/8” ( 300,0 cm) set
aside for use in Step 7.
16AW
5986
10389
10389
10389
10389
Rear Channel
2

17
Slide parts together until three (3) holes align.
10390
10390
10394
10394
BUILD TWO (2)
OF EACH
CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
Finished Length
140 3/8” 356,6 cm
Place bolt and nut thru center hole only.
You will need for this page:
Step 2: Continued
Overlap two (2) Side Wall Channels so that
eight (8) holes align as shown. Insert a bolt
and nut through each hole. Check that the
fi nished length of the Assembly is 140 3/8” (356,6 cm)
set aside for use in Step 10.
3
4
Overlap two (2) Side Wall Angles so that three
(3) holes align as shown. Insert a bolt and nut
through the center hole. Check that the fi nished
length of the Assembly is 140 3/8” (356,6 cm) set
aside for use in Step 7.
5
Repeat Parts 1 & 2 to build a second set of
each assembly.
(QTY: 18)
17AZ
10394
10390
Side Channel
4
Slide parts together
until eight (8) holes align.
10390
10394
Side Angle
4

18
Insert six (6) bolts into holes.
Six (6) holes align.

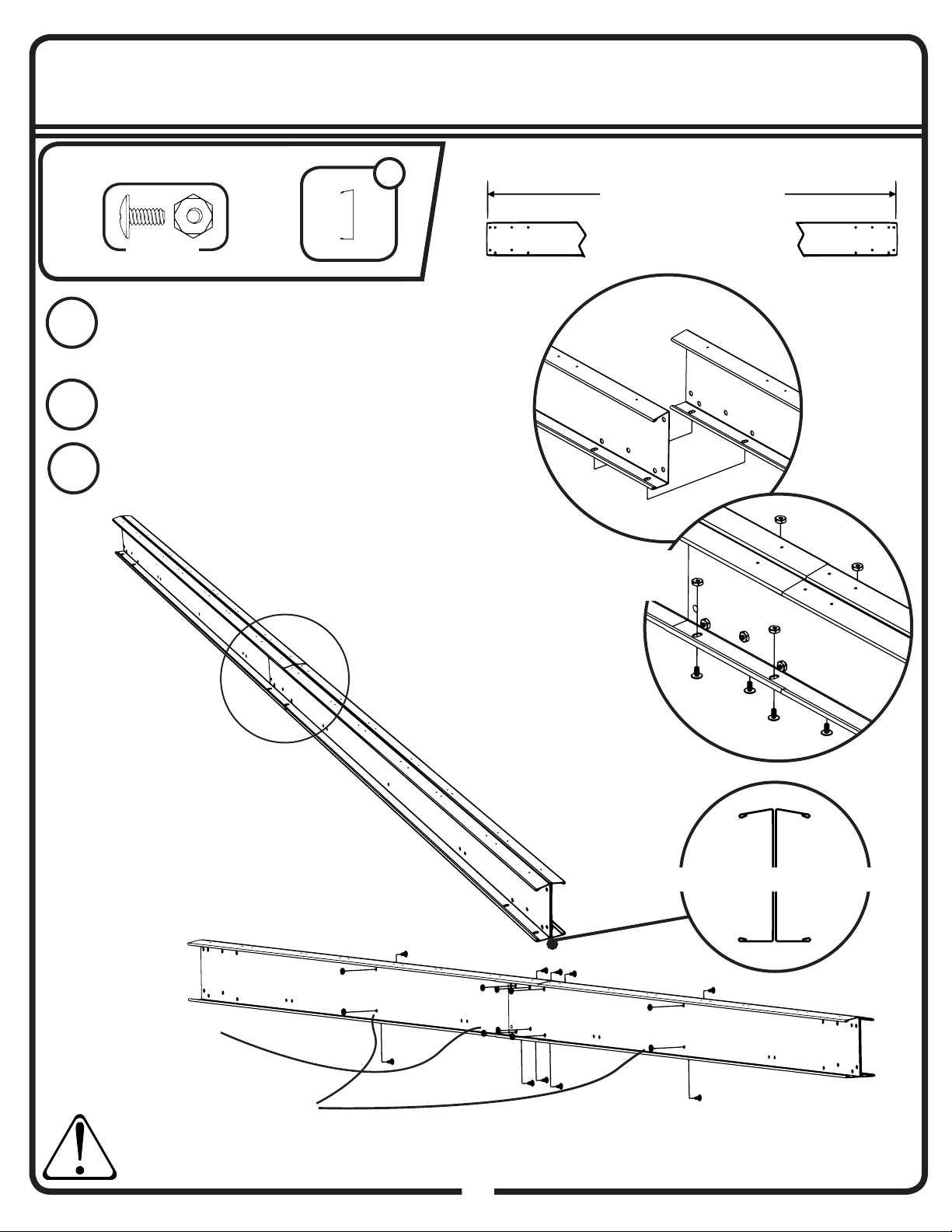

10397
10397
(QTY: 16)
Slide parts together until the bottom slots align.
Insert bolts into slots from bottom.
Roof Beam
4
10397
BUILD TWO (2) BEAMS
You will need for this page:
Finished Length
142 3/8” 361,6 cm
Step 3: Roof Beams
Overlap two (2) Roof Beams so that the bottom
slots align as shown. Insert six (6) bolts and
nuts as shown below.
1
3
Repeat parts 1 & 2 to build a second Roof
Beam Assembly.
2
Insert two (2) bolts and nuts into slots on bottom
of the Beam as shown. Check that the fi nished
length of the Assembly is 142 3/8” (361,6 cm).
Set aside for use in Step 12.
18BJ

19
Six (6) holes align.
Two (2) holes align.
Finished Length
142 3/8” 361,6 cm
CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
End View of Double Beam
BUILD ONE (1) BEAM
10397
10397
10397
10397
You will need for this page:
Step 3: Continued
Overlap two (2) Roof Beams so that bottom slots
align but DO NOT INSERT BOLTS. Next, overlap
two (2) more Roof Beams to form a second Roof
Beam Assembly. DO NOT INSERT BOLTS .
4
Insert four (4) bolts and nuts into slots from bottom.
Check that the fi nished length of the Assembly is
142 3/8” (361,6 cm). Set aside for use in Step 12.
6
5
Place both Roof Beam Assemblies back-to-
back to form a Double Beam. Insert ten (10)
bolts and nuts as shown below.
Place two (2) bolts thru slots
on each side of the Beam.
(QTY: 14) Roof Beam
4
10397
19BJ

20

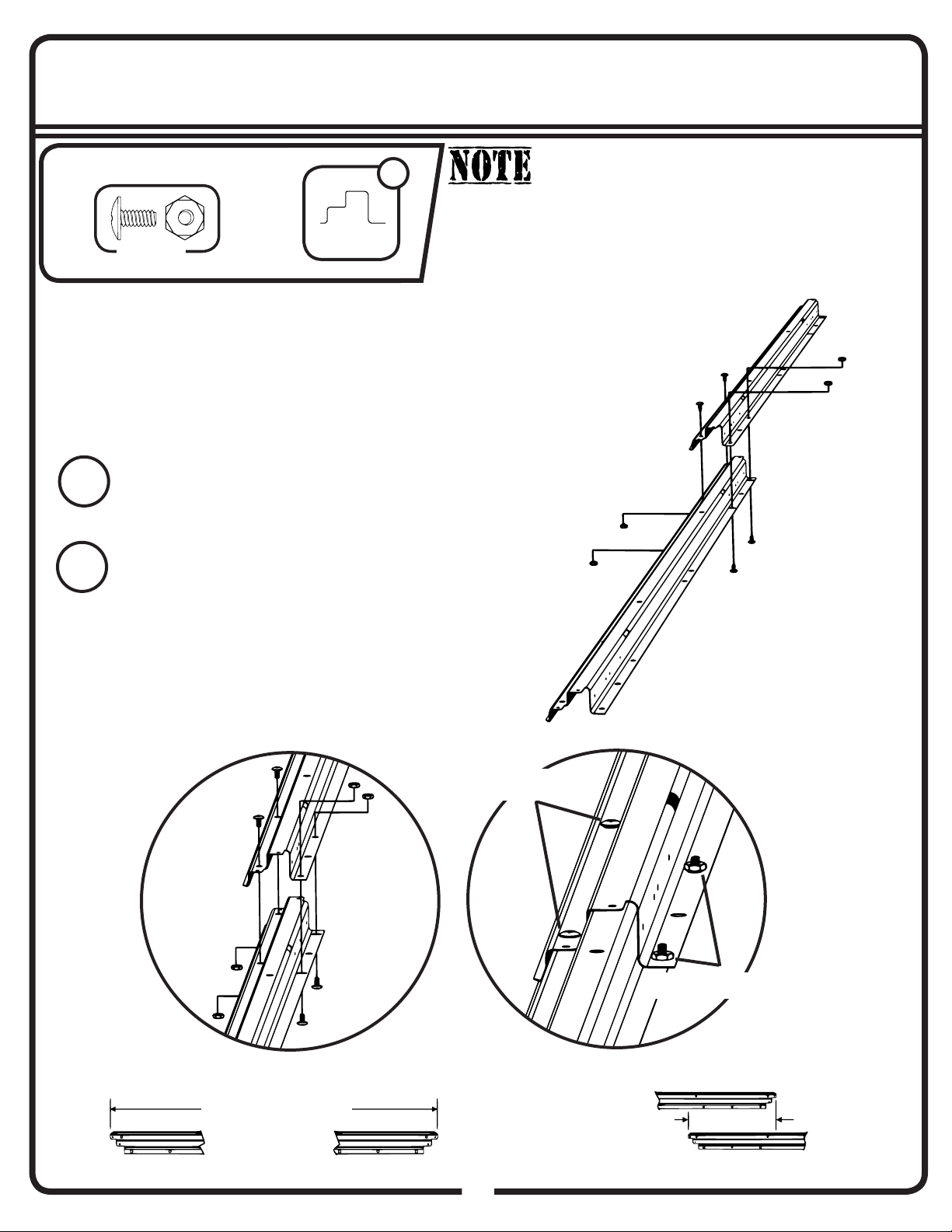

You will need for this page:
Track Splice
(Painted)
1
6403
Door Slide
4
Door Track
2
9366
Step 4: Door Track
(QTY: 4)
20A
Finished Length
118 1/8” 300,0 cm CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
Slide all four (4) Door Slides into Track.
Insert screws into bottom side only. The Gables will
fasten to the Door Track using the holes on the top side.
To remove or install Door Slides:
• Remove Doors from Slides and set aside.
• Using pliers, bend down a corner of the Door Track.
• Remove or install Door Slides.
• Carefully bend the corner back into position.
Slides should be installed in Door Track prior to installation. However, if this step is overlooked
or if the Slides need to be removed for maintenance, the following procedure may be used.
2
Position the Door Slides in the Door Track.
Check that the fi nished length is 118 1/8” (300,0
cm). Set aside for use in Step 7.
Align two (2) Door Tracks with the four (4)
holes in the bottom of the Door Track Splice
and insert four (4) screws.
1
The bottom side of the Door Tracks and the Door
Track Splice has only four (4) holes. The top side
has many holes. Fasten bottom side only.
6403
Painted Part
9366
9366
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
