Arrow YS410-A Use and care manual

* Size rounded off to the nearest foot
BUILDING DIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
707741209
Owner's Manual & Assembly Instructions
BS1
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
4' x 10' 50 1/2" x 116 3/4" 49" 116" 82" 47 3/4" 114" 81 1/4" 38 1/2" 60 1/4"
1,2 m x 2,9 m 128,3 cm x 296,5 cm 124,5 cm 294,6 cm 208,3 cm 121,3 cm 289,6 cm 206,4 cm 97,8 cm 153,0 cm
Model No. YS410-A 697.68602
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085
Do not return to dealer, they are not
equipped to handle your requests.
Storage Area: 38 Sq. Ft. 227 Cu. Ft.
3,5 m26,4 m3

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the combined use of
an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of
securing your building to the ground (Available by mail order or at your local dealer) or
you may construct a base and anchoring system of your choice. Your assembly
instructions provide information on a few methods commonly used to secure and level
a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
1101 North 4th Street Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4

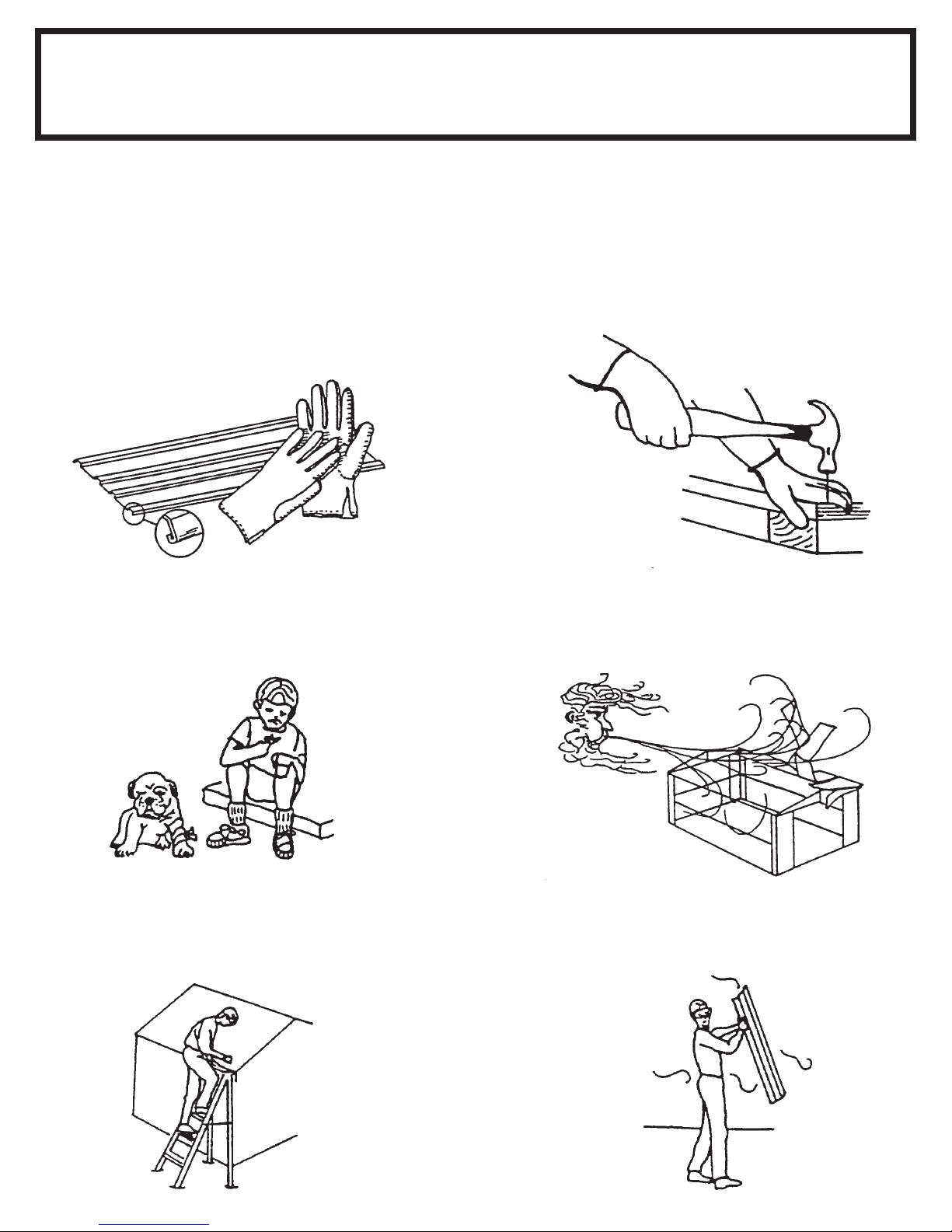

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose
screws, bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

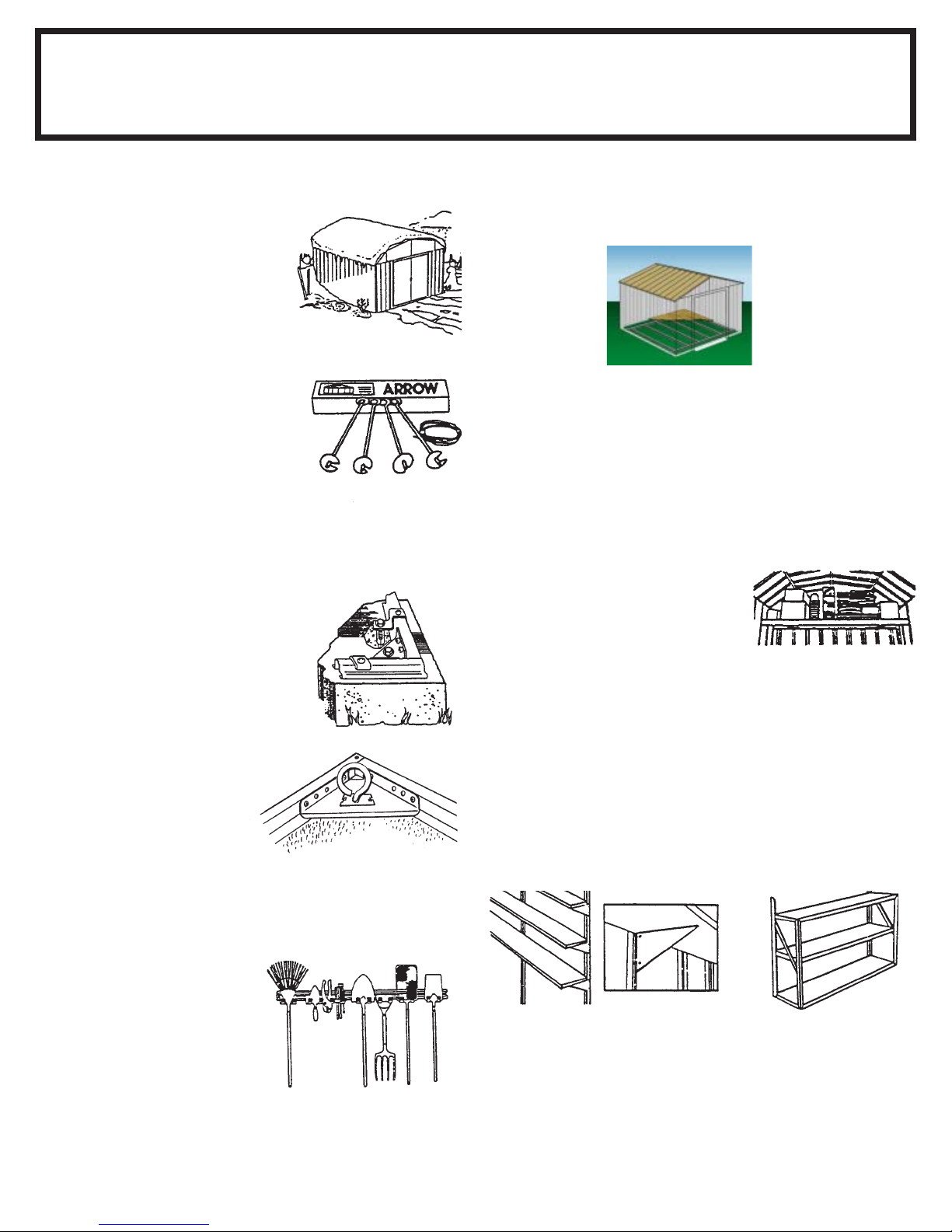

ACCESSORIES....
A6 WEB
6
* Some drilling required to fit buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrow buildings.*
SHELF UNITS
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
fit all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 lbs.
(113 kg) evenly distributed.
Some drilling required to fit buildings without mid-wall bracing.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof by 50%.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as base for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY

The Base For Your Building
9
FRONT
(DOOR)
FRONT
(DOOR)
Base
BS09
Note: Finished Slab dimensions, with lumber removed.
116 3/4"
296,5 cm
50 1/2"
128,3 cm
50 1/2"
128,3 cm
OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB47410)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one
of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
●2 x 4's (38 mm x 89 mm) Pressure Treated Lumber ●5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your base.
●1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond floor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roofing cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
16"/24"
40,6 cm/61,0 cm
116 3/4"
296,5 cm

It is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
BR10
ArrowAnchoringKit:(Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
10
AnchoringintoWood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
AnchoringintoConcrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.

11
67293
Foil Tape (1)
66057
Trim Cap (1)
66462
Hasp (1)
66684
Spring Latch (2)
66016
Facia Cap
(1 Right and 1 Left)
66463
Swivel Staple (1)
66714
#6-32x7/16" (11 mm)
Flat Hd Bolt (16)
(Packed with Screws)
66646
Washer (278)
(8 sheets of 40)
66645
#6-32x3/4" (19 mm)
Flat Hd Bolt (7)
(Packed with Screws)
66022
Gray Foam Tape (1)
65004
#8Ax5/16" (8 mm)
Screw (302)
65923
#8-32x3/8" (10 mm)
Bolt (66)
65941
#6-32 Hex Nut (23)
(Packed with Screws)
65103
#8-32 Hex Nut (66)
Hardware
BS11
66604
Hinge (4)
67545
Foil Tape (1)

Parts List
BS12
12
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 8060 Right Gable 1
2 8061 Left Gable 1
3 8062 Rear Header 1
4 9793 Corner Post 4
5 8066 Roof Frame 4
6 8067 Siding Stud - Short 5
7 8068 Siding Stud - Long 4
8 8075 Rear Siding - 6 Board 2
9 8076 Right Roof Trim 1
10 8077 Left Roof Trim 1
11 8078 Right Wall Trim 1
12 8079 Left Wall Trim 1
13 9796 Ramp 1
14 9792 Door Stop 1
15 9788 Right Door 1
16 9787 Left Door 1
17 9789 Left Door Jamb 1
18 9791 Front Header 1
19 8431 Side Siding - 6 Board 12
20 8432 Top Siding - 5 Board 2
21 8433 Siding Stud - Short 1
22 8434 Siding Stud - Long 1
23 8435 Roof Frame 1
24 8437 Side Eave Frame 2
25 8438 Side Peak Frame 2
26 8439 Peak Trim 2
27 8440 Bottom Siding Trim 1
28 8441 Top Siding Trim 1
29 8442 Rear Siding Trim 1
30 9794 Horizontal Door Brace 4
31 8976 Side Floor Frame 4
32 9795 Floor Frame 2
33 67729 Foam Board 2
34 9790 Right Door Jamb 1
35 6481 Gusset 4

13

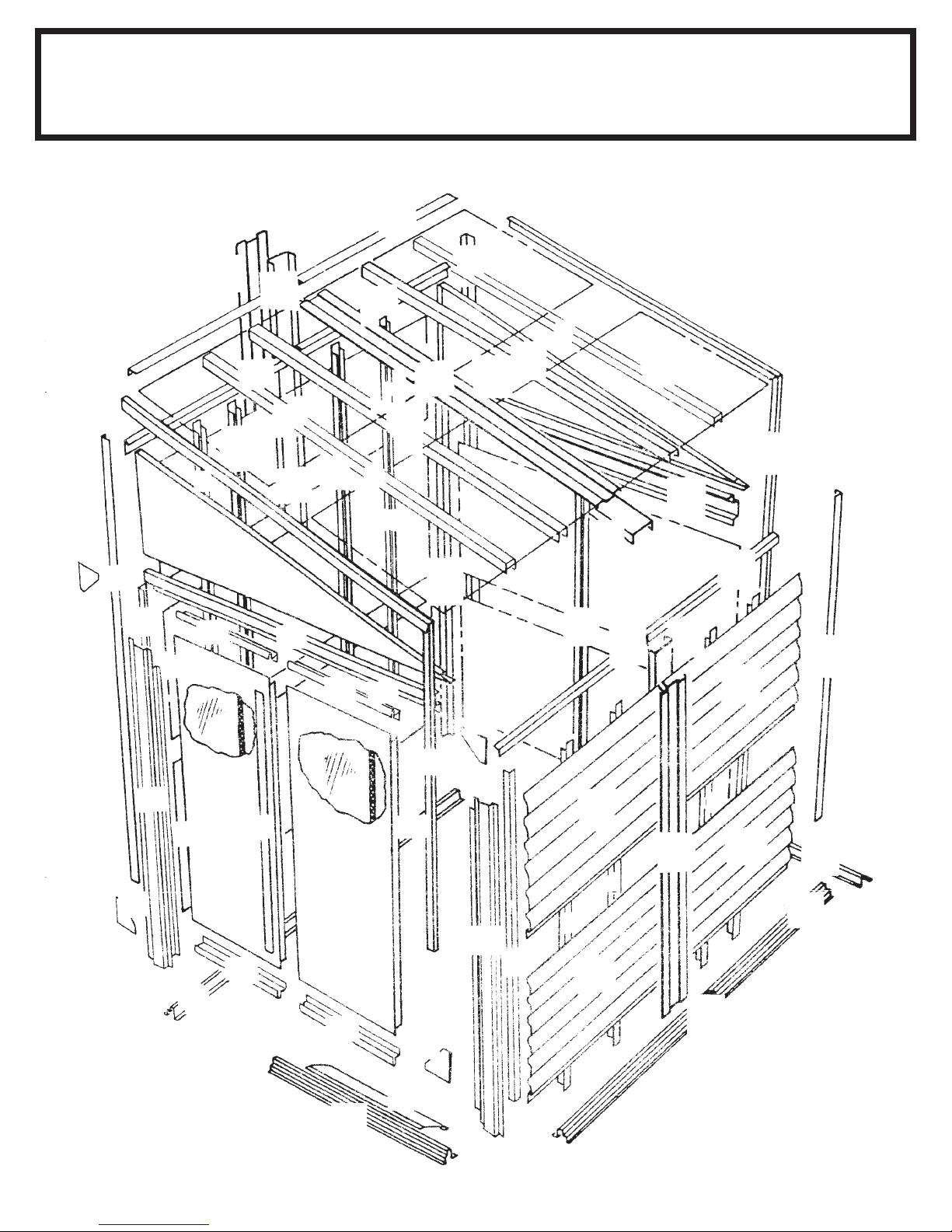

Assembly by Key No.
BS13
25
22
29
25
26
11
26
5
19
19
5
1
28
7
20
20
19
19
7
7
2
75
3
4
9
4
4
12
35
35
34
4
19
19
19
19
27
6
6
6
6
6
24
24
8
35
8
10
31
31
31
32
31
30
30
32
33
33
16
15
14
19
17
35
13
19
30
30 19
18 21
23
5

1 Position hinges on sides of right
and left door panels as shown and
fasten with 7/16" (11 mm) flat head
bolts outside and #6 hex nuts inside.
2 Slide foam board into door pan-
els, foil facing outward, equally
spaced on both sides. See caution.
3 Cover ends of door panel with
horizontal door brace. Edge of door
panel slides into brace. Fasten
braces to doors using two screws.
4 Using an awl, ice pick or nail, push
holes through foam board at the hasp
and staple holes. Attach hasp to
right door and swivel staple to left
door using 3/4" (19 mm) flat head
bolts and #6 hex nuts. Tighten nuts
through foam board using needle
nose pliers until they are against in-
side of door panel. Cover holes in
foam board panel with a piece of foil
tape.
5 Set the doors aside for later use.
Step 1
BR14
●Parts Needed For ●
DoorAssembly
14
STEP
1
9794
STEP
4
●●
●●
●9794 Horizontal Door Brace (4)
●●
●●
●9788 Right Door (1)
●●
●●
●9787 Left Door (1)
●●
●●
●67729 Foam Board (2)
Hinge Hinge
7/16" (11 mm)
Flat Head Bolt
#6-32x3/4" (19 mm) Flat Head Bolt
END VIEW
Hasp
#6 Hex Nut
Foil Tape
67729
Hasp
9788
CAUTION:
SHARP EDGE
9794
Foil Side
STEP
2
STEP
3
Screw
#6-32x3/4" (19 mm)
Flat Head Bolt
#6 Hex Nut
Foil Tape
Swivel Staple
END VIEW
Swivel Staple
9794
Foil Side
Hinge
Screw
67729
Hinge
7/16" (11 mm)
Flat Head Bolt
9787
9794

●●
●●
●9796 Ramp (1)
●●
●●
●9795 Floor Frame (2)
●●
●●
●8976 Side Floor Frame (4)
●Parts Needed For ●
Floor Frame Assembly

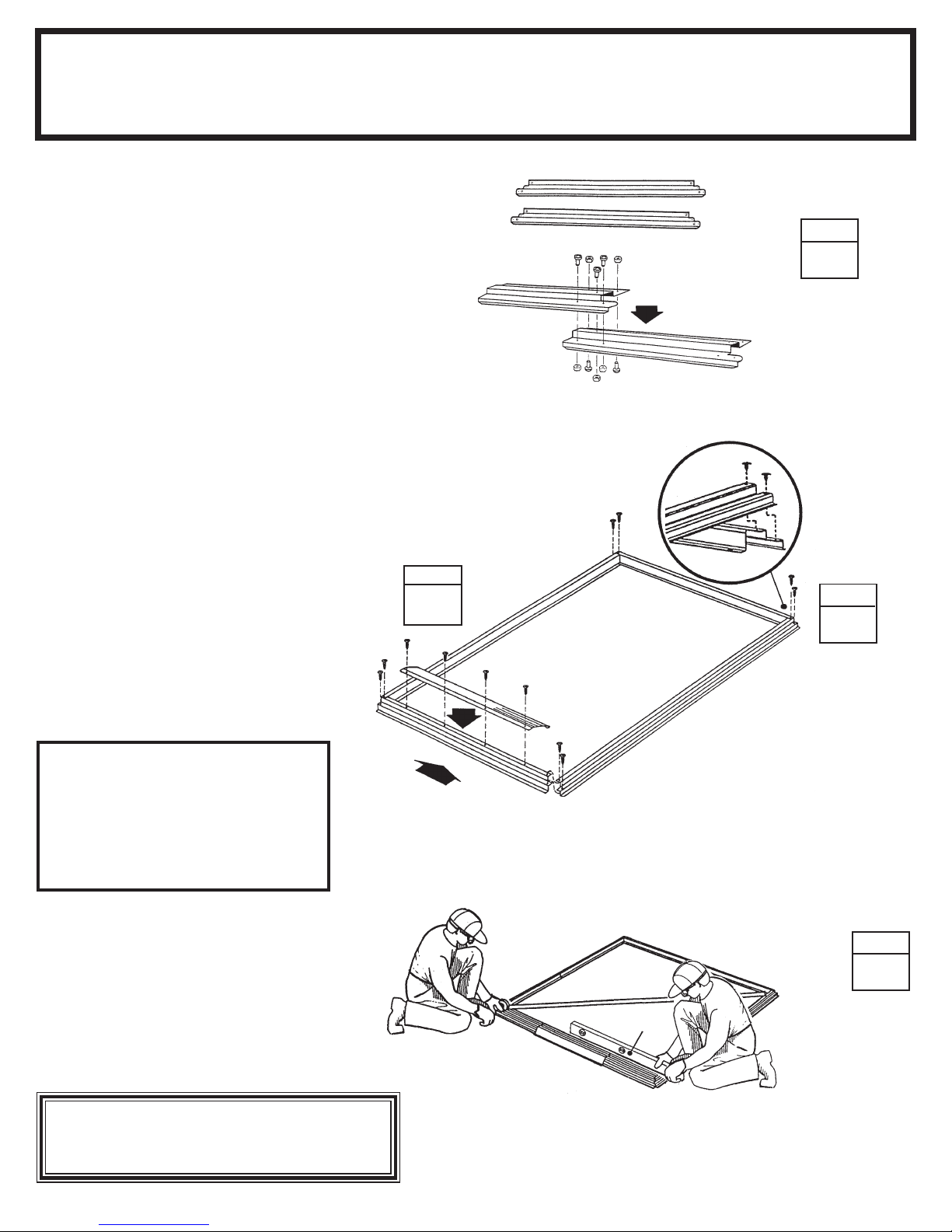

Step 2
BS15
The floor frame must be square
and level or holes will not align.
15
3 Assemble the four corners of the
floor frame using two screws at each
corner as shown.
4 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
8976
Level
STEP
4
When Diagonal Measurements
are Equal the Floor Frame
is Square.
1
Side Floor Frame
115 1/8" (292,4 cm)
8976 8976
1 Overlap the side floor frames as
shown. The holes in these pieces
will align when the pieces are posi-
tioned with correct amount of over-
lap. See the illustration below for the
proper overall length of the side floor
frames. Join the frames by inserting
five bolts and nuts in each frame set
as shown.
2 Center the ramp on top of the floor
frame. Note that the door can be
installed on either end. Join the
frames by inserting four screws. 8976
RIGHT
REAR
9795
2
STEP
STEP
3
9796
FRONT
9795
8976

16
Step 3
BR16
●Parts Needed For ●
Corner Posts/Rear Siding ●●
●●
●9793 Corner Post (2)
●●
●●
●8075 Rear Siding (1)
STEP
1 Fasten two corner posts to the
rear corners of the floor frame assem-
bly using four screws.
2 Position one rear siding, starting
at rear frame, between corner posts
and fasten with six screws. Always
use washers under the heads of
fasteners where they are shown!
Each siding panel has a bottom edge
and a flat edge. The bottom edge
always overlaps the flat edge. Keep
the flat edge up. Do not fasten flat
edge now.
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
STEP
1
Remove &
Replace
Rear Floor Frame
8075
2
9793
9793
FRONT
CORRECT INCORRECT

17
Step 4
BS17
●Parts Needed For ●
Corner Posts/Studs/Siding
●●
●●
●6481 Gusset (4)
●●
●●
●9793 Corner Post (2)
●●
●●
●8433 Siding Stud (1)
●●
●●
●8434 Siding Stud (1)
●●
●●
●8431 Side Siding (4)
STEP
1 Attach a gusset to each end of the
two corner posts using one screw.
2 Fasten one corner post assem-
bly to the front corner of the floor
frame assembly using two screws.
Lightly fasten tab end of siding stud
to side floor frame using two screws.
Caution! Once corner post and stud
are attached, fasten one side siding
to the corner post and stud with fas-
teners shown. Repeat on rear of unit.
Do not fasten flat edge now.
3 Fasten remaining corner post, sid-
ing stud and two side siding panels
as in previous step.
IMPORTANT
Always use 2nd set of holes from
end of siding panel when attach-
ing to corner post or stud.
Remove
& Replace
8431
STEP
1
Corner Post
9793
2
6481
6481
STEP
3
9793
6481
6481
Side Siding
Trim
(Installed later)
TOP VIEW
FRONT
Siding Stud
8431
8431
8431
8433
8434
NOTE
For left end door location, fasten
siding studs as shown. For right
end door location, reverse
location of siding studs.

18
Step 5
BS18
●Parts Needed For ●
Headers/Frames/Jambs
●●
●●
●9791 Front Header (1)
●●
●●
●8437 Side Eave Frame (2)
●●
●●
●8062 Rear Header (1)
●●
●●
●9789 Left Door Jamb (1)
●●
●●
●9790 Right Door Jamb (1)
STEP
1 Fasten side eave frames behind
top of corner post with a bolt and nut,
and over siding stud using a screw,
top leg facing inside building. Note:
For left end door location, fasten
side eave frames as shown.
For right end door location fasten
side eave frames on opposite side
of building.
2 Fasten front header behind top of
corner posts/gussets using one bolt
and nut on each end.
3 Fasten rear header across top of
corner posts using one bolt and nut
on each end. Note that side eave
frames overlaps front & rear headers.
4 Attach right & left door jambs to
the front header using bolts and nuts,
and to the corner posts and front floor
frame using screws.
STEP
1
Right Door Jamb
Front Header
9790
3
9791
8062
STEP
4
STEP
2
RearHeader
8437
Notched Edge
9789
Front
Front
Side Eave Frame
8437

19

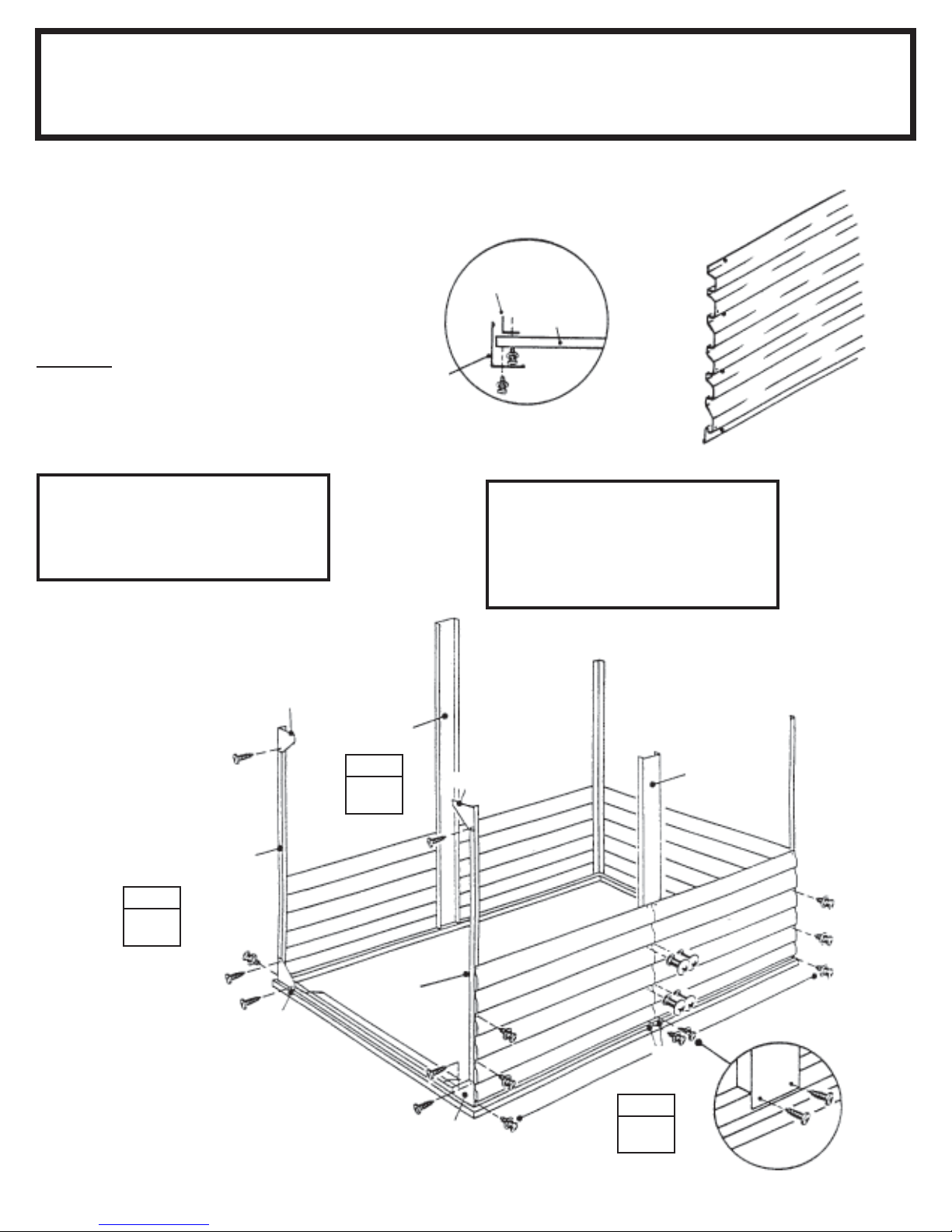

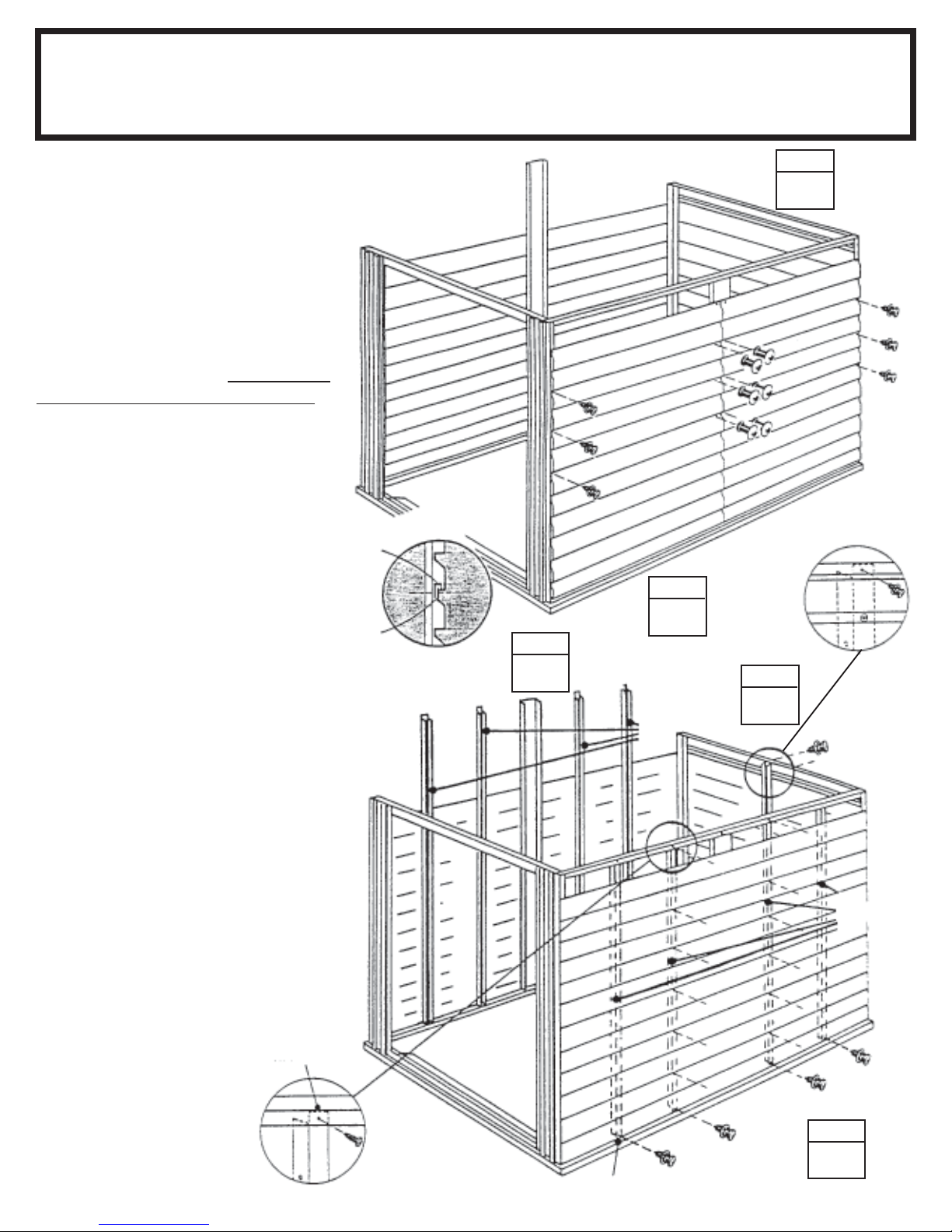

Step 6
BS19
●Parts Needed For ●
Side/Rear Siding/Studs
●●
●●
●8431 Side Siding (4)
●●
●●
●8075 Rear Siding (1)
●●
●●
●8067 Siding Stud (5)
●●
●●
●8068 Siding Stud (4)
1 Position the side siding (6 board)
to corner posts and stud, flat edge of
siding upward and bottom resting on
1st side siding. See figure. Always
follow this pattern. Fasten siding to
corner posts using screws and stud
using bolts and nuts. Do not fasten
flat edge now. Position 2nd side
siding on opposite side of building
and fasten as before. Always use
washers where they are shown!
2 Repeat procedure with rear sid-
ing panel. Fasten siding to rear
header to complete rear siding.
3 Position four short siding studs
between corner posts, behind side
eave frame, and fasten tab using a
screw. Rest bottom tab of stud be-
tween siding and floor frame and fas-
ten with a screw. Fasten siding to
studs, as shown.
4 Fasten one short siding stud to the
rear of building between the corner
posts in the same manner. Fasten
top tab behind rear header.
5 Position four long siding studs to
the left side of building in the same
manner using screws.
End
View
STEP
1
Large hole in tab
8067
8068
STEP
3
8067
Bottom
Edge
Be certain all Siding
overlaps are fastened
with a single screw
8431
STEP
5
8075
Flat
Edge
Small hole in tab
Side Eave Frame
STEP
4
STEP
2
Rear
Header
8431
8431
8431

20
Step 7
BS20
●Parts Needed For ●
Gables/Peak/Roof Frames
●●
●●
●8061 Left Gable (1)
●●
●●
●8060 Right Gable (1)
●●
●●
●8438 Side Peak Frame (2)
●●
●●
●8066 Roof Frame (4)
●●
●●
●8435 Roof Frame (1)
STEP
1 Lift and fasten a left gable on top
of header, with lower leg under side
eave frame at corner, using screws.
Repeat Step 1 with right gable for
the opposite side of building.
2 Fasten side peak frames to the
inside top corners of gables using
two screws, top shorter leg facing
inside building. Fasten opposite ends
over siding stud at the lower hole
using a bolt and nut. Fasten top tab of
the siding studs to the lower hole in
side peak frame using screws.
3 Position roof frames under side
peak and eave frames. Be sure the
end of frame with the shortest space
between the 1st and 2nd hole is posi-
tioned at the lower side eave frames,
and fasten using screws.
4 Position roof frame in the same
manner at the middle of building and
fasten using four bolts and nuts.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.
STEP
1
Short space
between 1st
and 2nd hole
Position of
Side Peak Frame
8435
3
8060
8438
STEP
2
Side Peak Frame
Fasten at Lower Hole
8061
Right End
Door Location
8066
Fasten lower hole of
Side Peak Frame
Gable Fits Under
Side Eave Frame
8060
8061
STEP
4
8438
