Arrow 697.68221 Use and care manual

* Size rounded off to the nearest foot
BUILDINGDIMENSIONS
CAUTION:SOMEPARTSHAVESHARPEDGES.CARE
MUSTBETAKENWHENHANDLINGTHEVARIOUSPIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETYINFORMATION PROVIDEDIN THISMANUAL
BEFOREBEGINNINGCONSTRUCTION.WEARGLOVES
WHENHANDLINGMETALPARTS.
715521208
Model No. 697.68221
Owner's Manual &Assembly Instructions
WR01
Exterior Dimensions Interior Dimensions Door
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height Width Height
10' x 11' 121" x 131 3/8" 106 628 123 1/4" 133 7/8" 81 3/8" 118 1/4" 128 5/8" 80 1/8" 55 1/2" 60"
3,0m x 3,4m 307cm x 334cm 9,8m217,8m3313cm 340cm 207cm 300cm 327cm 204cm 141cm 152cm

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation andAnchoring:Your storage building must be anchored to prevent wind
damage. A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring
Kit as an effective method of securing your building to the ground (Available by mail order
or at your local dealer) or you may construct a foundation and anchoring system of your
choice. Your assembly instructions provide information on a few methods commonly used
to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need.
Foundation Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

ACCESSORIES....
A6 WEB
6
* Some drilling required to fit buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20-30cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrow buildings.*
SHELF UNITS
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
10' Long, 250 lb. (113kg) load+
Fits all Arrow 10' wide buildings.
16 lbs. (7kg)
AT101
Model No. Fits ShippingWeight
ATTIC KIT / WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organize space and create more
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg) evenly distributed.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof by 50%.
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9', use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
8

The Foundation For Your Building
9
FRONT
(DOOR)
FRONT
(DOOR)
Foundation
WR09
Note: Finished Slab dimensions, with lumber removed.

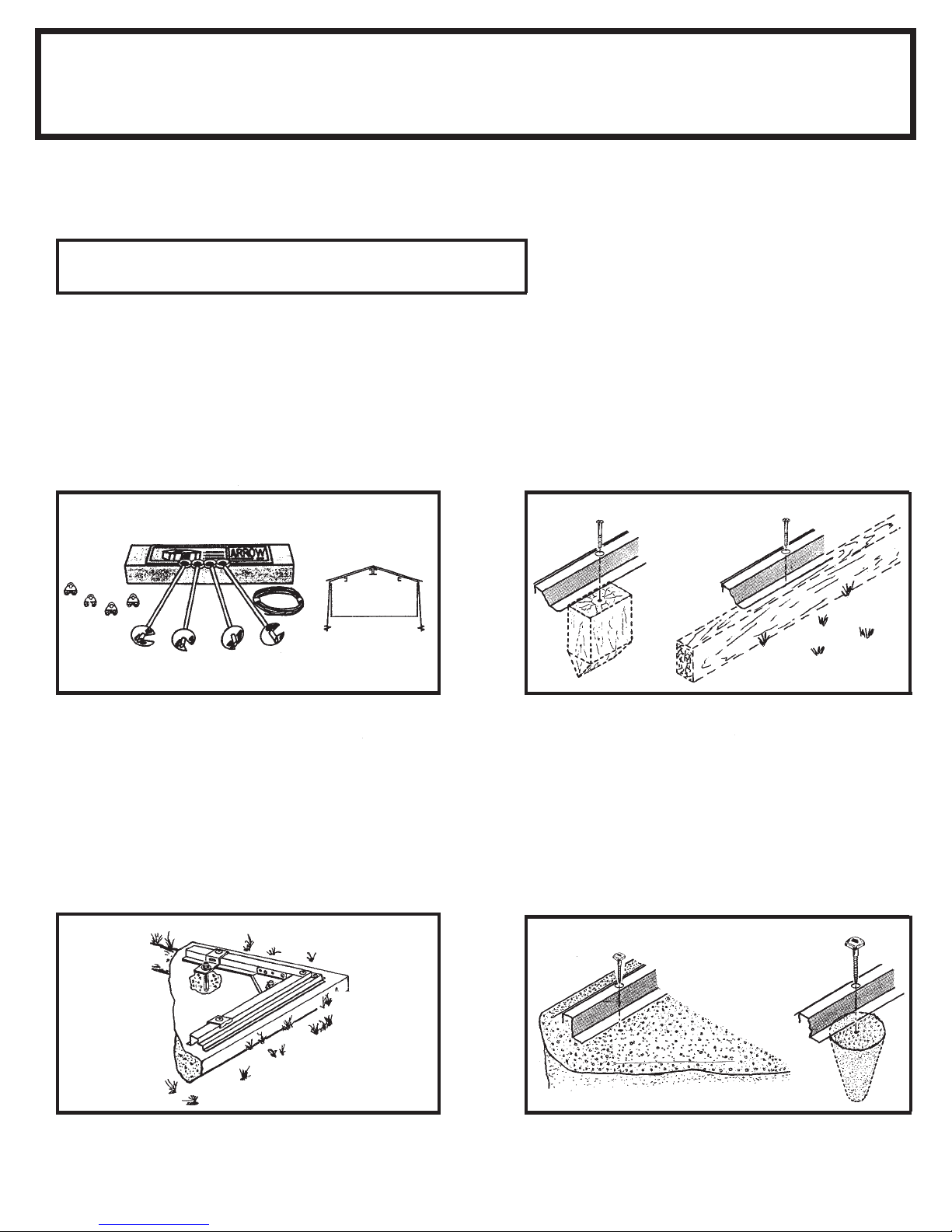

OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB1014-A or 68387-A)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground .
This kit should be used with one of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1.an ARROWFLOORFRAMEKITand 2.an ARROWANCHORINGKITas an effective method of securing the building to the ground.
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own foundation, be sure to select the appropriate materials.
These are the recommended materials for your foundation:
●2 x 4's (5cm x 10cm) Pressure Treated Lumber ●5/8" (1,5cm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the foundation follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6cm/61cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
●1 x 4's (2,5cm x 10cm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
Prepare the Site/Construct a Foundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (2,5cm x 10cm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4cm) beyond floor
frame on all four sides. Seal this 9/16" of wood with a
roofing cement (not included), or bevel this 9/16" of
concrete when pouring, for good water drainage.
121"
3,1m
16"/24"
40,6cm/61cm
1313/8"
3,3m
121"
3,1m
1313/8"
3,3m

It is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
A10
ArrowAnchoringKit:(Model No. AK100 or 68383)
Recommended for use with the concretefoundation.
Contains:Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
AnchoringintoConcrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.
ArrowAnchoringKit:(Model No. AK4 or 60298)
Recommended for use with anysuggested base.
Contains:4 Anchors with Cable, Clamps and
installation instruction.
AnchoringintoWood/Post:
Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holes provided in the frames for proper anchoring.
10
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.

11

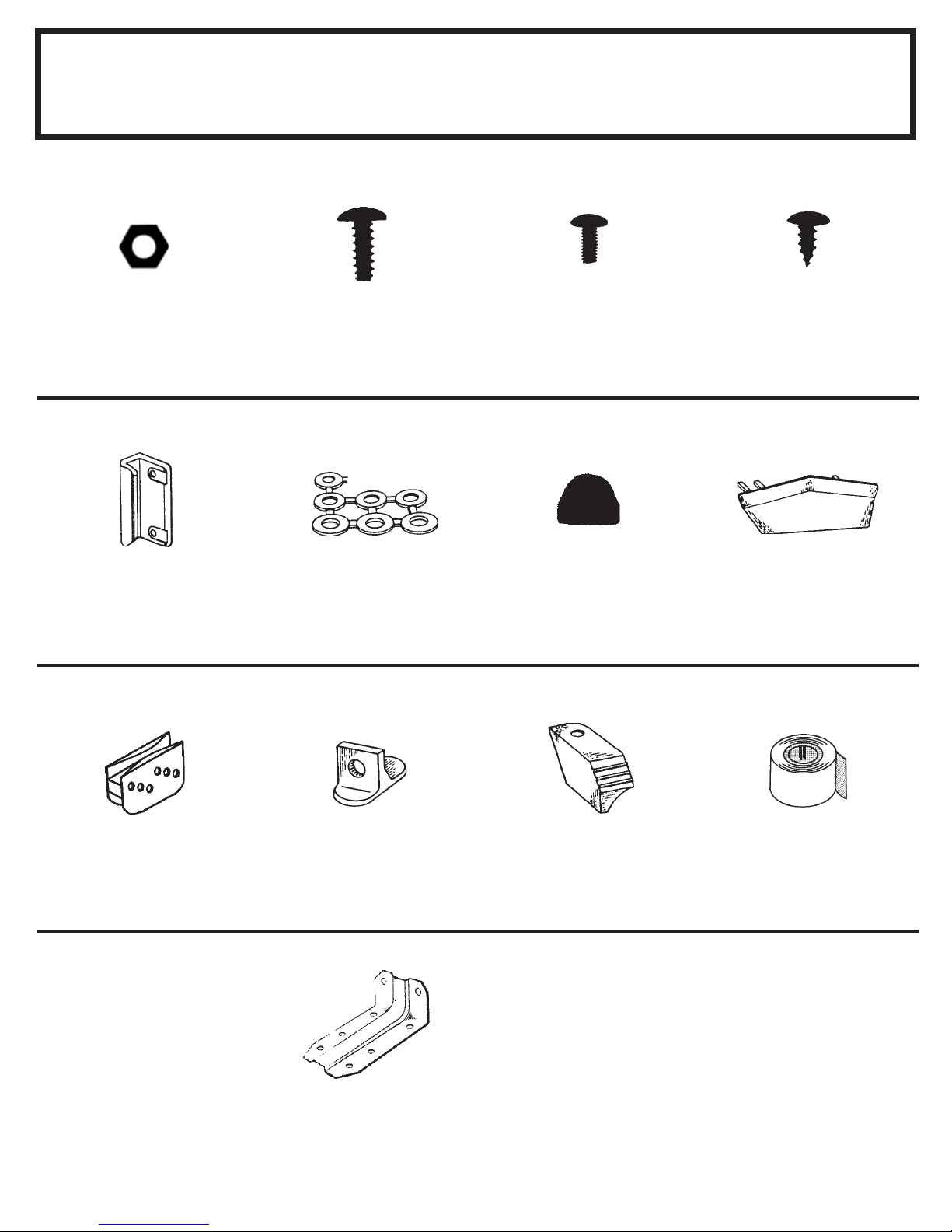

Remove from bag of screws
and save for the last step
67545
Weather Stripping (1)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer(429)
(11sheetsof40)
65109
#8-32AcornNut(4)
(Packed with Screws)
67468
Peak Cap (2)
(ArrowLogo)
65004
#8Ax5/16"Screw(410)
65923
#8-32x3/8"Bolt(184)
65900A
#10Bx1/2" Black Screw (8)
(Packed with Screws)
65103
#8-32HexNut(184)
Hardware
WR11
6228
TrackSupport(2)
66769
Door Slide (4)

Parts List
WR12
12
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 8576 Right Gable 2
2 8577 Left Gable 2
3 10497 Horizontal Door Brace 4
4 7571 Roof Panel 6
5 10520 Right Roof Panel 2
6 10519 Left Roof Panel 2
7 10475 Right Door 1
8 10475 Left Door 1
9 9369 Door Jamb 2
10 9373 Front Wall Panel 2
11 6515 Wall Panel 4
12 7333 Corner Panel 4
13 3719 Door Handle Brace 2
14 6278 Vertical Door Brace 2
15 6403 Door Track Splice 1
16 8811 Side Roof Trim 2
17 8743 Side Roof Trim 4
18 8814 Ridge Cap 1
19 8742 Ridge Cap 2
20 9366 Door Track 2
21 5986 Rear Wall Angle 2
22 10389 Rear Wall Channel 2
23 9365 Front Wall Channel 2
24 6635 Roof Beam Bracket 4
25 10522 Roof Beam 8
26 10524 Side Wall Channel 4
27 10525 Side Wall Angle 4
28 10523 Side Floor Frame 4
29 8936 Rear Floor Frame 2
30 9367 Front Floor Frame 2
31 9009 Gable Brace 2
32 9204 Roof Beam Brace 2
33 8934 Ramp 1
34 7332 Wall Panel 6
35 69835 Edge Trim 4

13
Assembly by Key No.
WR13

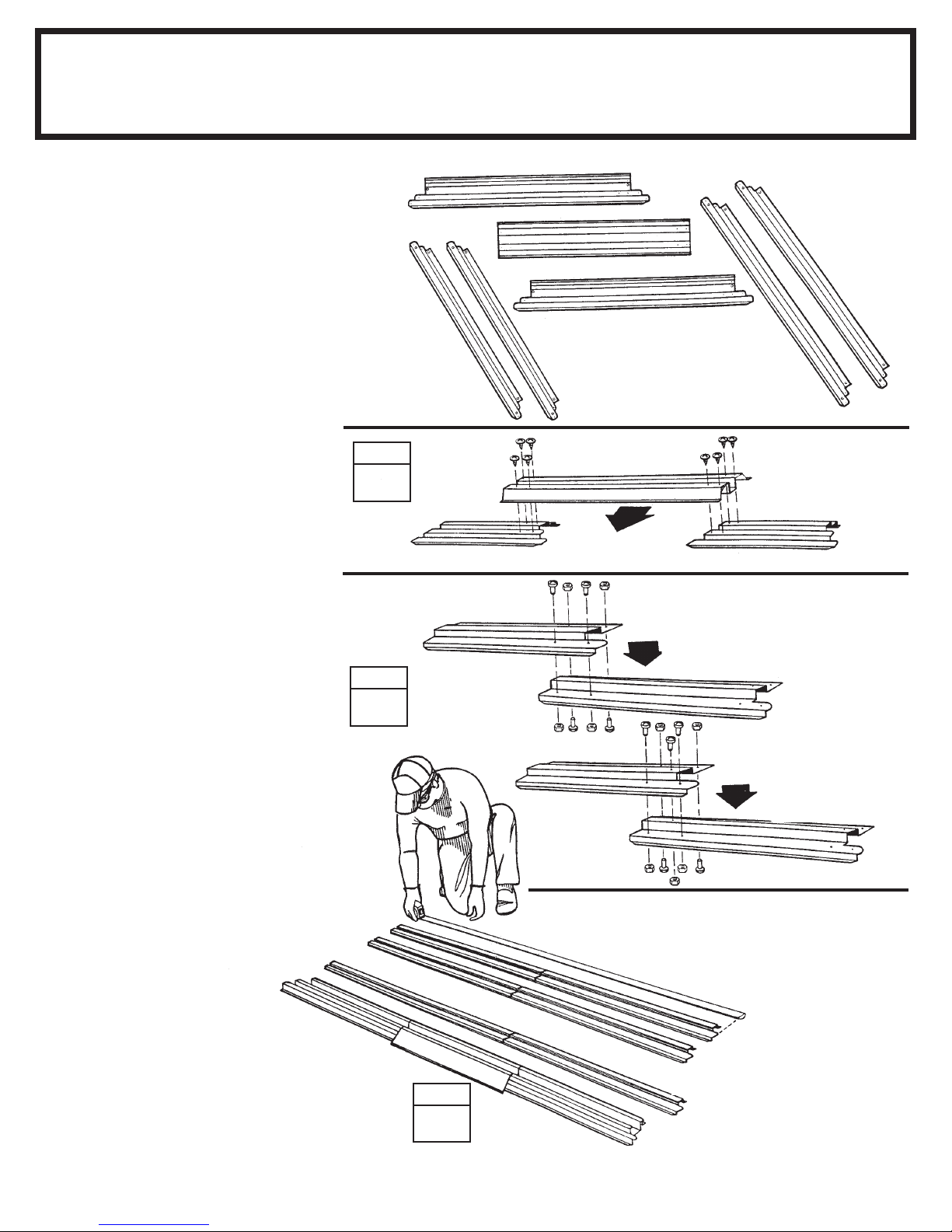

The front floor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made up
of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:
1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front floor frames. Join the frames by
inserting eight screws.
2Overlap the sidefloorframesand
the rearfloorframesas shown. The
holes in these pieces will align when
the pieces are positioned with cor-
rect amount of overlap. See the illus-
trations below for the proper overall
length of the side and rear floor frames.
Join the frames by inserting four/five
bolts into each frame set as shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
WR14
●Parts Needed For ●
Floor Frame Assemblies
●●
●●
●8934 Ramp (1)
●●
●●
●9367 Front Floor Frame (2)
●●
●●
●8936 Rear Floor Frame (2)
●●
●●
●10523 Side Floor Frame (4)
14
9367
STEP
18934
9367
DRAIN HOLES FACE
OUTSIDE
Front Floor
Frame Assembly
119 3/8" 3,0m
8936
10523
9367
8934
9367
10523
10523
Side Floor Frame 129 3/4" 3,3m
8936 8936
Rear Floor Frame 119 3/8"
3,0m
STEP
2
STEP
3
129 3/4" 3,3m
129 3/4" 3,3m
119 3/8" 3,0m
Front & Rear
119 3/8" 3,0m
Sides

Step 2
WR15
15
●Parts Needed For ●
FrameAssemblies
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts as shown.
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with eight bolts as shown.

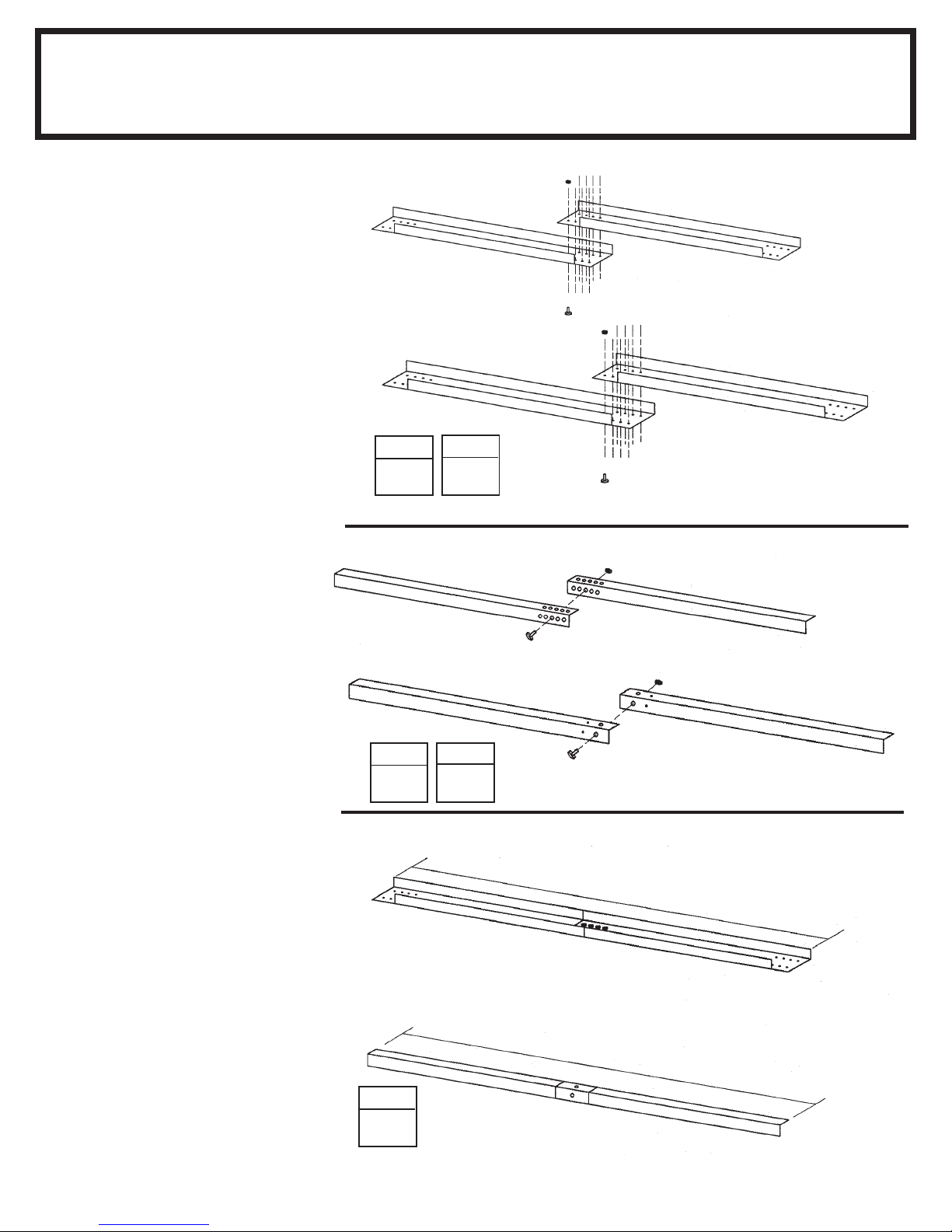

3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt in
the center hole.
4 Make two side wall angles by
overlapping the side wall angle
pieces as shown. Fasten each set
together with one bolt as shown.
5Set the assemblies aside. You will
use them later.
●●
●●
●5986 Rear Wall Angle (2)
●●
●●
●10389 Rear Wall Channel (2)
●●
●●
●10524 Side Wall Channel (4)
●●
●●
● 10525 Side Wall Angle (4)
STEP
1
STEP
2
10389
10524 Side Wall Channels
128 1/2" 3,3m
Rear Wall Angle
118 1/8" 3,0m
5986
5986
10525 Side Wall Angles
128 1/2" 3,3m
STEP
34
Rear Wall Angle 118 1/8" 3,0m
Side Wall Angles 128 1/2" 3,3m (2 Assemblies)
STEP
5
STEP
Rear Wall Channel
118 1/8" 3,0m
10524
10389
10525
Rear Wall Channel 118 1/8" 3,0m
Side Wall Channels 128 1/2" 3,3m (2 Assemblies)

16
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.

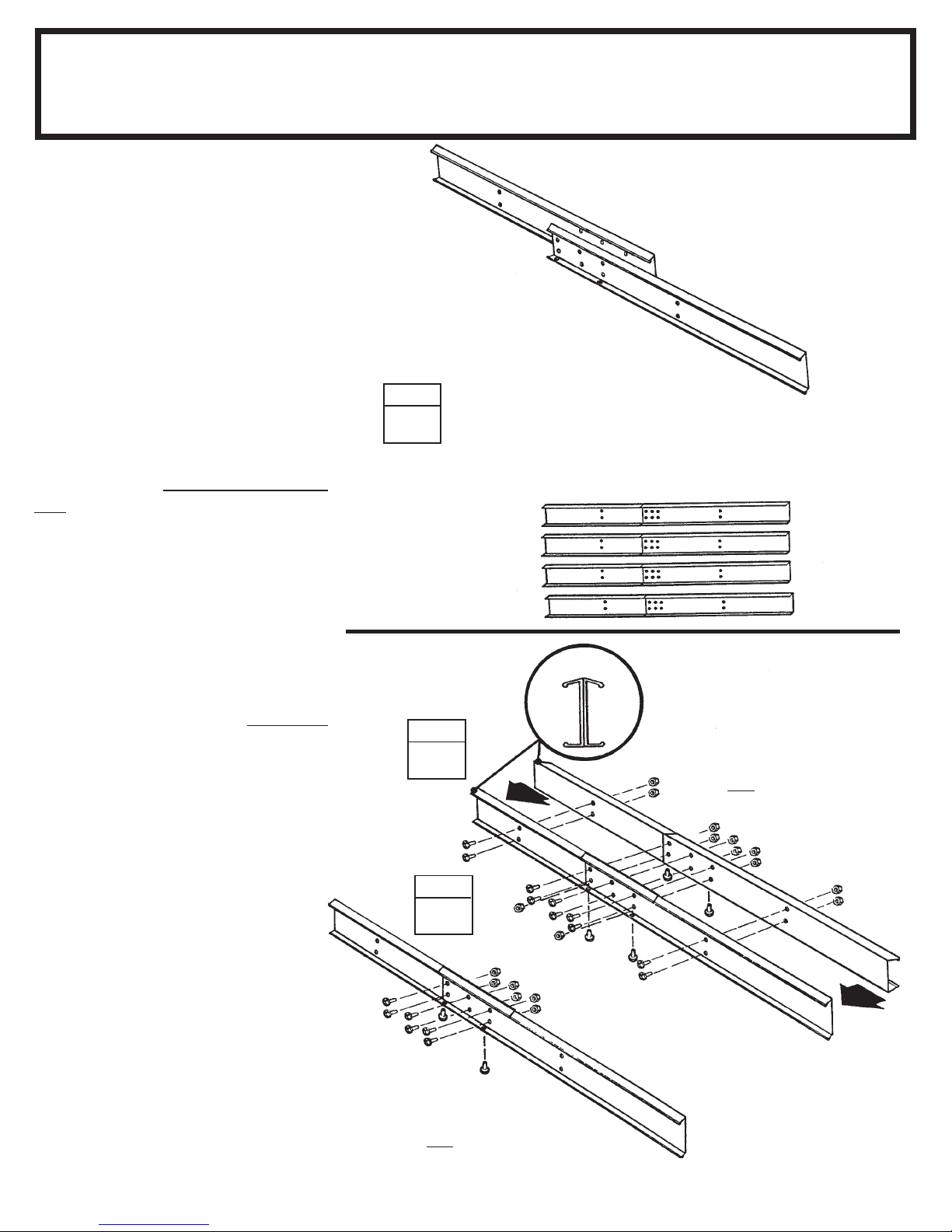

1 Place one end of a roof beam
inside another roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Set these pieces aside for later
assembly.
Step 3
WR16
●Parts Needed For ●
Roof BeamAssemblies ●●
●●
●10522 Roof Beam (8)
10522
STEP
1
10522
Assembled
130 1/2" 3,3m
Build oneDoubled Main Roof
Beam Assembly for Peak in Roof
End
View
130 1/2"
3,3m
Build two Single Beam
Assemblies
STEP
2
STEP
3
130 1/2"
3,3m

17
NOTE:
Door Track Splice (painted part)
Step 4
A17
●Parts Needed For ●
Door Track Assembly ●●
●●
●6403 Door Track Splice (1)
●●
●●
●9366Door Track (2)
66769
STEP
3
118 1/8" 3m
STEP
4
END VIEW
STEP
1
9366
STEP
2
6403
9366
Long Leg
on Top
ShortLeg
onBottom
9366
9366
6403
66769
118 1/8" 3m
118 1/8" 3m

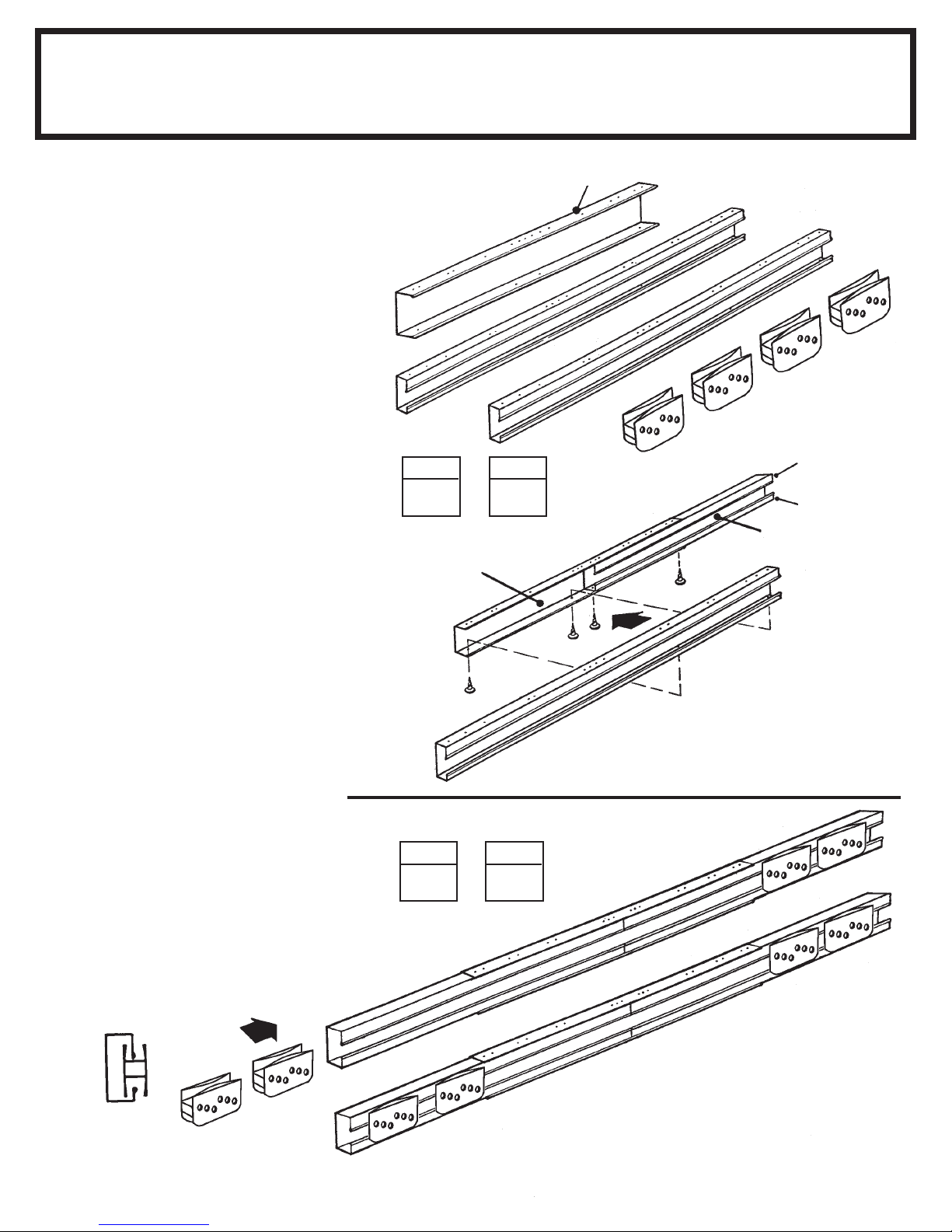

The door track assembly supports
the sliding doors and reinforces the
front wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2Insert four screws fromtheunder-
side only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall in
a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.

●●
●●
●FrontFloor Assembly (1)
●●
●●
●Side Floor Assembly (2)
●●
●●
●Rear Floor Assembly (1)
●Parts Needed For ●
Floor Frame
Step 5
WR18
The floor frame must be square
and level or holes will not align.
18
1 Place the floor frame pieces that
you assembled earlier on the foun-
dation. Assemble the four corners of
the floor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Frame Kit you need to
install it at this time.
STEP
1
10523
RIGHT
REAR
8936
Level
10523
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT

1 Position a corner panel at the
corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the floor frame
with four screw.
Support the corner panel with a step
ladder until a wall panel is attached.
2Attach the frontwallpanelsto the
front corner panels, as shown. A small
gap will exist between front wall panel
and ramp.
3 Attach the wall panels to the rear
corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown
●●
●●
●6515 Wall Panel (2)
●●
●●
●9373 Front Wall Panel (2)
●●
●●
●7333 Corner Panel (4)
Step 6
WR19
●Parts Needed For ●
Corners
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall re-
quires a washer.
4Double-check the part numbers of
the wall panels, before proceeding.
The floor frame must be square
and level or holes will not align.
19
STEP
1
6515
9373 9373
7333
7333
REAR
FRONT
9373
Panels rest on
frame as shown
7333
SIDE TOP VIEW
Narrow
Side
7333
6515
Wide Side
STEP
3
STEP
2
STEP
47333
7333
9373
6515
6515
7333
Washer
Crimped Rib
Underneath
7333
SIDE

●●
●●
●Rear Wall Channel Assembly (1)
●●
●●
●Side Wall Channel Assembly (2)
●Parts Needed For ●
Mid Frames
Step 7
WR20
20
The mid frame pieces give rigidity to
the side and rear walls.
1 Fasten the rear wall channel
across the middle of the rear wall
using screws.
2 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the figure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step. STEP
1
10524
10389
FRONT
2
STEP
