TiiTENT TB300 User manual

Pole: 7001 Aluminum Alloy
Material: Tear-resistant 75D Polyester with silicone treatment on the surface
Water pressure resistant: 3000mm
Minor pole
11mm 11-section
X 2
Main pole
13mm 12-section
X 2

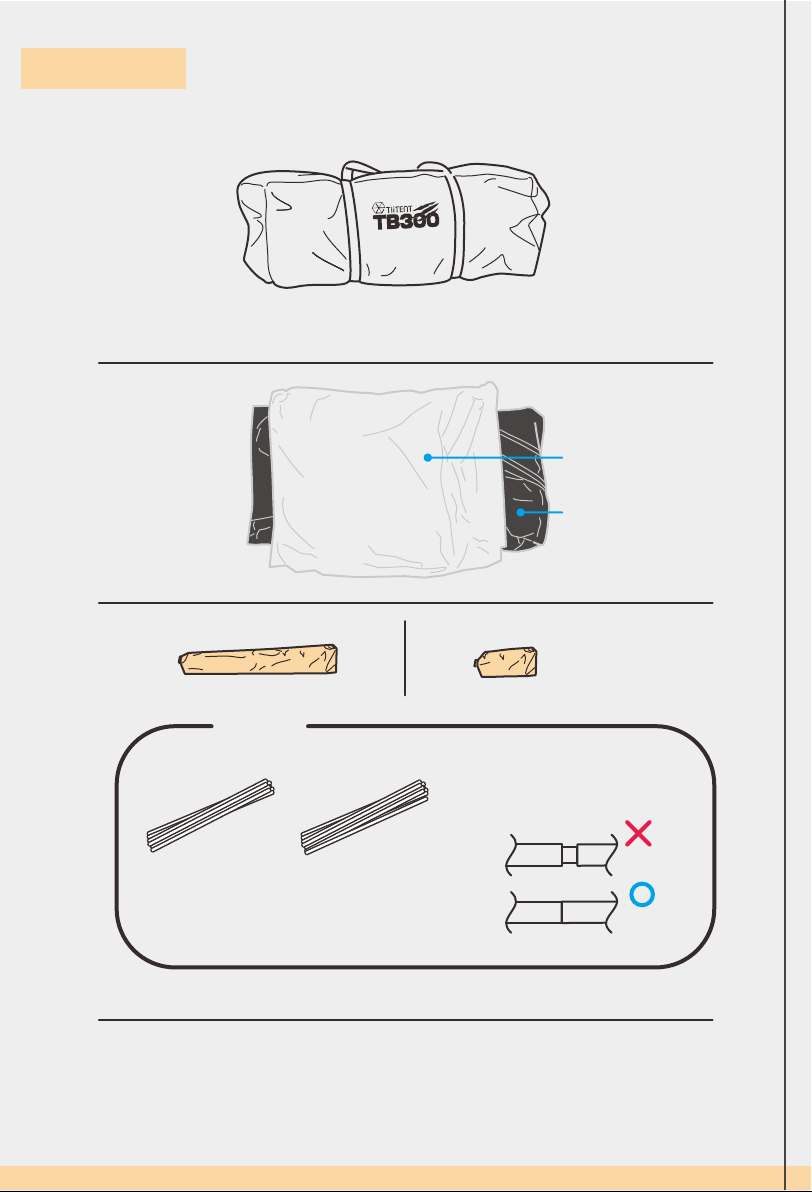

1. Content
All TB300 contents are in one carry-on bag.
Outertent
Innertent
Pole Bag
Peg Bag
Topreventbreakage,makesure
thatthepolejointsarefirmly
connectedbeforeproceeding.

2. Dimension
400400400
150150150 100100100 150150150
300300300
225225225
280280280
220220220
195195195
150150150
250250250
170
cm
Inner tent and outer tent ratio diagram
The top of the inner tent's front door
on both sides has red elastic cords.
Outer tent size
Inner tent size
Door
T window
A window W window

3. Set up the tent

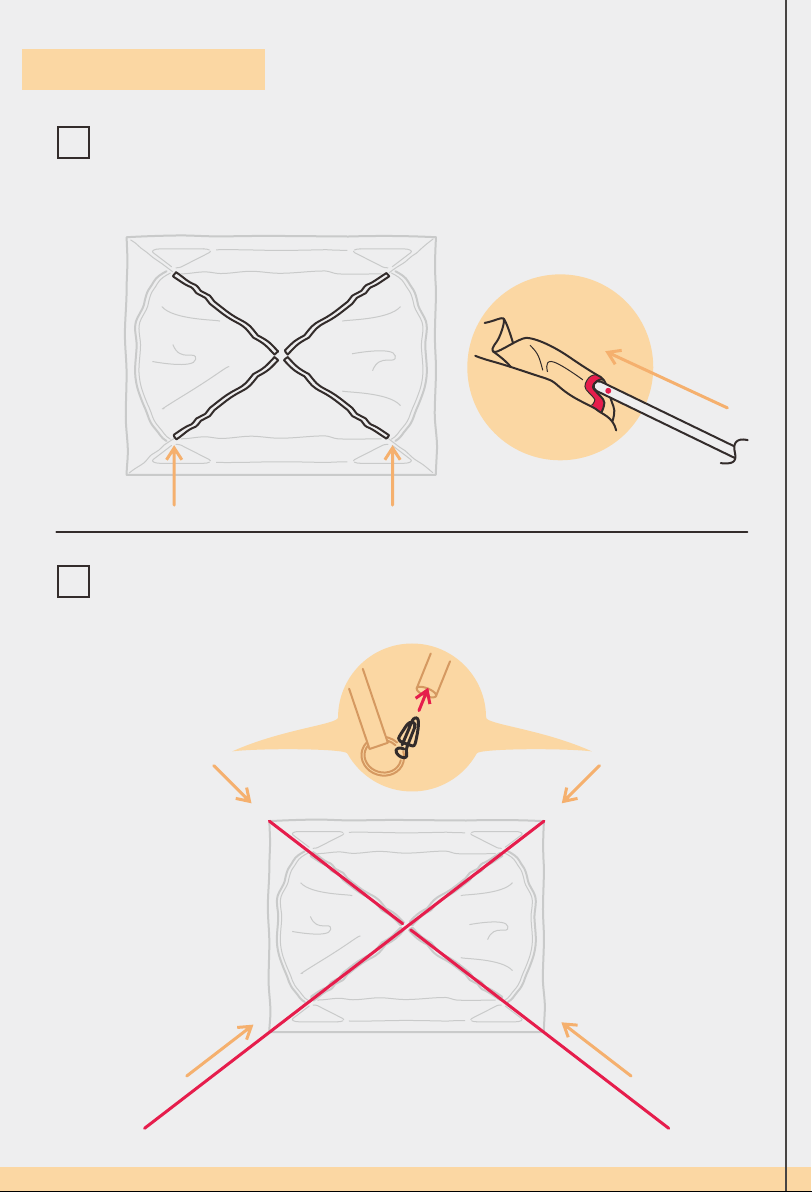

Spread out the outer tent and lay it flat, find the X-shaped pole sleeve (red
mark), and then insert the main pole (red mark) into the sleeve.
After both main poles are inserted into the pole sleeves, secure each end
with the corresponding fork buckle and pole clip.
１
２
４３
２１

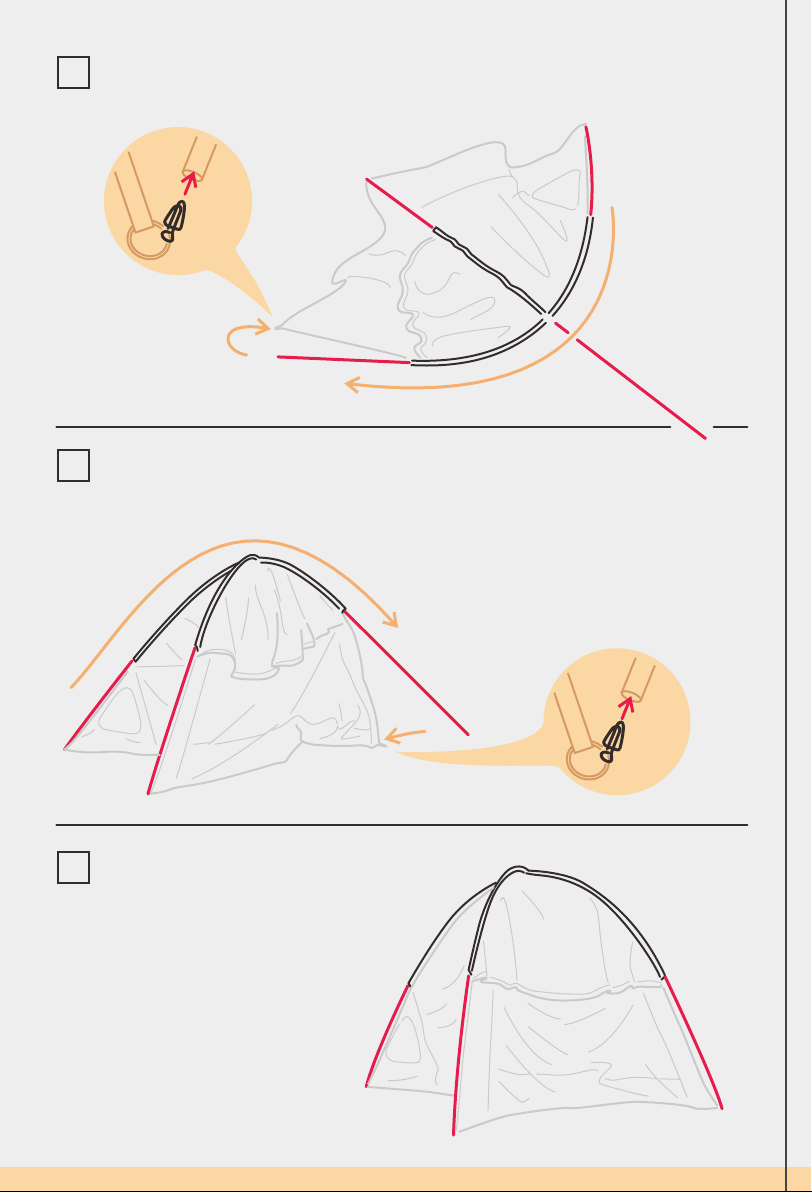

Next, arch one of the main poles and secure the other end of the main pole.
３
Finally, arch the other main pole. At this time, the outer tent will stand up at the
same time. Then slowly make fine adjustments, and finally secure the pole and
the fork buckle.
４
After the 2 main poles are assembled,
the outer tent is now in a freestanding
state. Slightly tidy up its appearance.
５
１
２
１
２

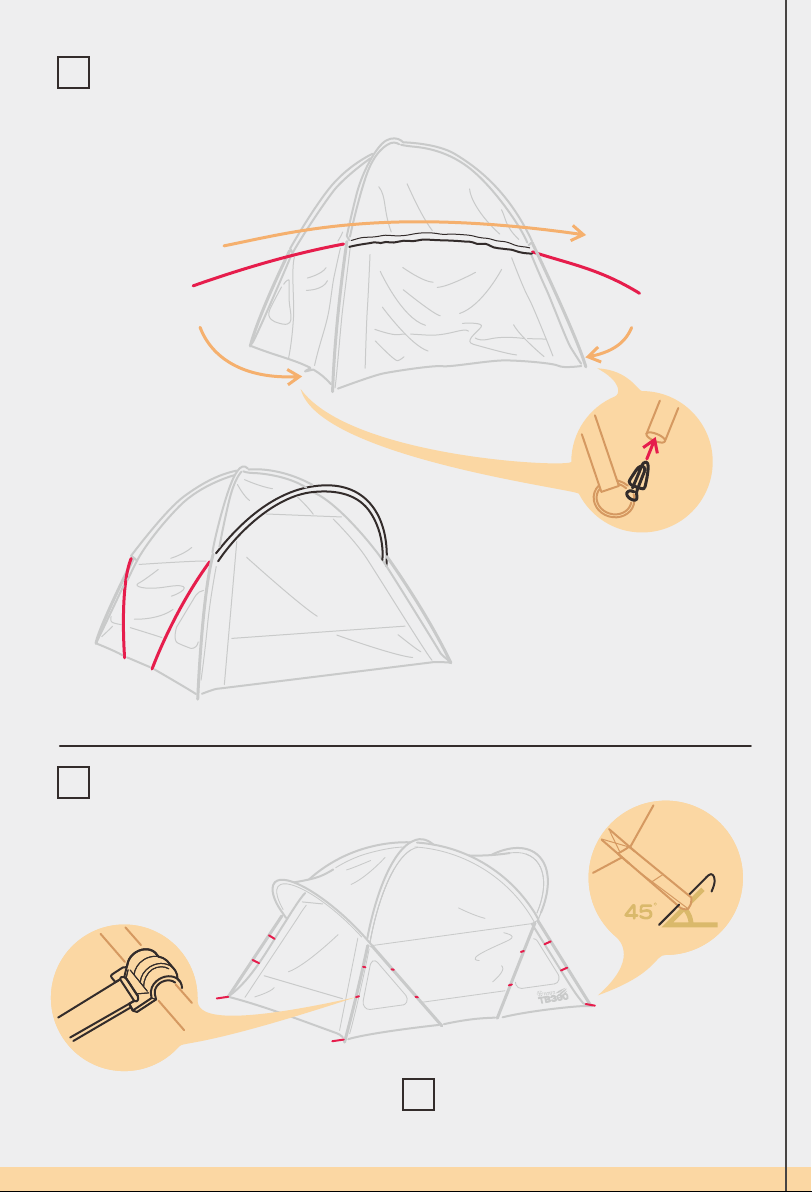

Pass the minor pole through the sleeve of the wing, and then connect both
sides of the minor pole with the fork buckle.
６
１
２３
Then, handle the pole on
the opposite side in the
same manner.
7
8
Secure all pole clips on the poles.
Use pegs to secure the four corners.

First wrap a strap around the intersection of the poles, then stake down the
wind ropes.
9
The W window top has three
wind ropes, all staked down.
10
Each pole sleeve has two wind ropes, a total of eight places, all staked down.
11

The side with the red elastic cord is the direction of the front door of the
inner tent.
12
13 TB300 uses a symmetrical design and does not distinguish between front
and back. After selecting the direction of the front door, first hang the red
elastic cord, then fix the other hanging points on the back door, and finally
fix the bottom hooks on the metal ring of the fork buckle to complete the
installation.

4.Space
Whether it's the tent door, T window, W window, or A window,
they can all be opened to increase ventilation.
Hatchback models can directly
position the rear of the car near
the tent door and use it as a
tailgate tent.
As the tent door is wider, it's
recommended to roll up the
door panel and screen door
separately for easier storage.
door panel
screen door
After using the inner tent, there is still a vestibule space available for use.
The inner tent space is sufficient to accommodate four adults.

5.Pack away the tent
Spread out the outer tent, lift it at four points,
and pull outwards at the midpoint on both
sides (where the triangle is indicated).
１
After lifting it, level it out and place it on the ground.
２
１
１
２
Fold both sides inward.
３
１
2
