Art's-Way Manufacturing CATTLEMAXX 6105 User manual

O P E R A T O R ’ S M A N U A L
Art’s-Way Manufacturing Co., Inc.
Model 6105 & 6105 CATTLEMAXX
Grinder Mixer
Operator’s Manual
560500
Issued 07-20
6105
6105
CATTLEMAXX

This symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED. The message that follows the symbol contains
important information about your safety. Carefully read the
message. Make sure you fully understand the causes of possible
injury or death.
IF THIS MACHINE IS USED BY AN EMPLOYEE, IS LOANED, OR IS RENTED, MAKE
SURE THAT THE OPERATOR UNDERSTANDS THE TWO INSTRUCTIONS BELOW.
BEFORE THE OPERATOR STARTS THE ENGINE:
1. GIVE INSTRUCTIONS TO THE OPERATOR ABOUT SAFE AND CORRECT USE OF
THE MACHINE.
2. MAKE SURE THE OPERATOR READS AND UNDERSTANDS THE OPERATOR’S
MANUAL FOR THIS MACHINE.
IMPROPER OPERATION OF THIS MACHINE CAN CAUSE INJURY OR
DEATH.
BEFORE STARTING THE ENGINE, DO THE FOLLOWING:
1.READ THE OPERATOR’S MANUAL.
2.READ ALL SAFETY DECALS ON THE MACHINE.
3.CLEAR THE AREA OF OTHER PERSONS.
LEARN AND PRACTICE SAFE USE OF MACHINE CONTROLS IN A SAFE
AND CLEAR AREA BEFORE YOU OPERATE THIS MACHINE ON A JOB
SITE.
It is your responsibility to observe pertinent laws and regulations and to follow
manufacturer’s instructions on machine operation and maintenance.
See your Authorized Art’s-Way Manufacturing Co., Inc. dealer or
Art’s-Way Manufacturing Co., Inc. for additional operator’s manuals,
illustrated parts catalogs, and service manuals.
WARNING

TO THE OWNER 1
TO THE OWNER
Congratulations on the purchase of your new Art’s-Way 6105 Grinder Mixer. You have selected a top quality
machine that is designed and built with pride to ensure you have many years of efficient and reliable service.
Many people have worked on the design, production, and delivery of this 6105 Grinder Mixer. The information
in this Manual is based on the knowledge, study, and experience through years of specializing in the
manufacturing of farm machinery. This Manual is designed to provide you with important information regarding
safety, maintenance, and machine operation so you can and will get the best possible performance from your
6105 Grinder Mixer.
Even if you are an experienced operator of this or similar equipment, we ask that you read this manual before
operating the 6105 Grinder Mixer. The way you operate, adjust, and maintain this unit will have much to do
with its successful performance. Any further questions you may have about this product of Art’s-Way equipment
should be directed to your local Art’s-Way dealer or to Art’s-Way Manufacturing Co., Inc., Armstrong, Iowa,
50514, [phone].
SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE
Art’s-Way Manufacturing Co., Inc. is continually making product improvements. In doing so, we reserve the
right to make changes and/or add improvements to our products without obligation for the equipment previously
sold.
Modifications to this 6105 Grinder Mixer may affect the performance, function, and safety of its operation.
Therefore, no modifications are to be made without the written permission of Art’s-Way Manufacturing Co., Inc.
Any modification made without the written permission of Art’s-Way Mfg. Co. shall void the warranty of this
product.
In the interest of continued safe operation of this 6105 Grinder Mixer, pay particular attention to the safety alert
symbol(s) throughout this Manual.
ART’S-WAY MANUFACTURING CO., INC.STATEMENT OF PRODUCT LIABILITY
Art’s-Way Manufacturing Co., Inc. recognizes its responsibility to provide customers with a safe and efficient
product. Art’s-Way Manufacturing Co., attempts to design and manufacture its products in accordance with all
accepted engineering practices effective at the date of design. This statement should not be interpreted to mean
that our products will protect against the user’s own carelessness or failure to follow common safety practices
nor will Art’s-Way Manufacturing Co., be liable for any such act. In addition, Art’s-Way Manufacturing Co.
assumes no liability for any altered product or any modified product by users or anyone other than an authorized
dealer.
IMPORTANT WARRANTY INFORMATION
The warranty for this 6105 Grinder Mixer appears on page 3 of this Manual. In order to establish proper warranty
registration, the Warranty Registration must be completed and returned to the factory. Failure to comply with
this requirement may result in reduced warranty allowances.
LIMITATIONS OF THIS MANUAL
This Manual contains operating instructions for your 6105 Grinder Mixer only. Any mention of other machinery
in this manual other than the 6105 Grinder Mixer is for reference only. This manual does not replace nor is it to
be used for any machinery that may be attached to or used in conjunction with the 6105 Grinder Mixer.

2Parts & Service
PARTS & SERVICE
As the purchaser of your new 6105 Grinder Mixer, it is very important to consider the following factors:
A. Original Quality
B. Availability of Service Parts
C. Availability of Adequate Service Facilities
Art’s-Way Manufacturing Co., Inc. has an excellent dealership network ready to answer any questions you may
have about your 6105 Grinder Mixer. Parts for your machine may be ordered through our dealers. When placing
a parts order, please have the model and serial number ready. This will allow the dealer to fill your order as
quickly as possible.
For your convenience, we have provided this space for you to record your model number, serial number, and
the date of purchase, as well as your dealer’s name and address.
Owner’s Name:
Owner’s Address:
Purchase Date:
Dealership Name:
Dealership Address:
Dealership Phone No.:

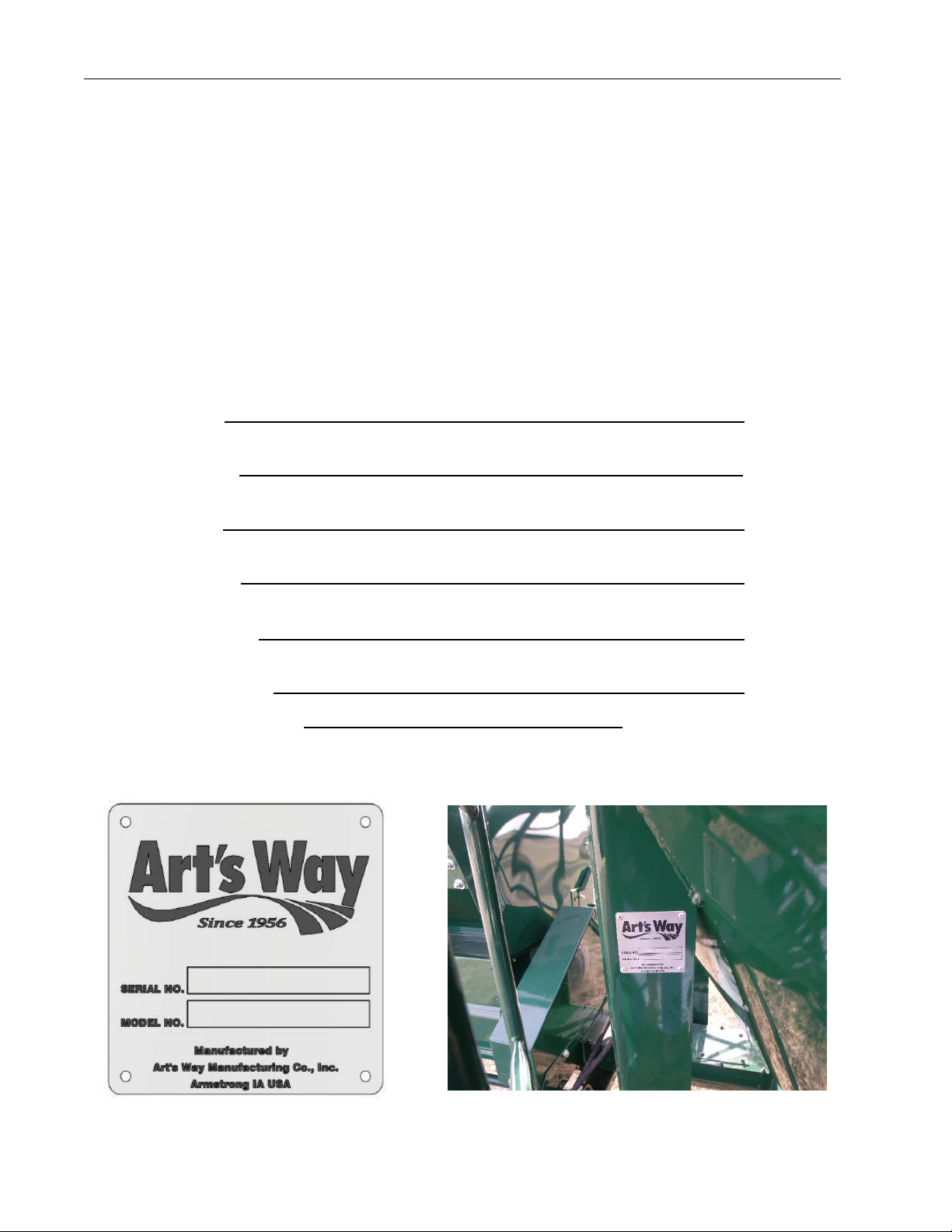

6105 Grinder Mixer Serial Number Location
The placard containing the serial and model number is located on the
front left-hand side of the 6105 grinder mixer. Enter the serial and
model number of your 6105 grinder mixer within the space provided.
Figure 1 - Serial Number Placard Location.
Left front tank support.
Figure 2 - Serial Number Placard.

TABLE OF CONTENTS 3
TABLE OF CONTENTS
TO THE OWNER..........................................................1
SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE
WITHOUT NOTICE........................................................1
ART’S-WAY MANUFACTURING CO., INC.STATEMENT OF
PRODUCT LIABILITY .....................................................1
IMPORTANT WARRANTY INFORMATION...........................1
LIMITATIONS OF THIS MANUAL .....................................1
PARTS & SERVICE......................................................2
TABLE OF CONTENTS ...............................................3
SAFETY FIRST.............................................................6
NOTICES OF DANGER,WARNING,AND CAUTION............6
SAFETY GUIDELINES.................................................7
BEFORE OPERATING ...................................................7
DURING OPERATION....................................................7
MAINTENANCE SAFETY ................................................7
HYDRAULIC SAFETY .................................................... 8
TRANSPORTATION SAFETY...........................................8
STORAGE SAFETY.......................................................8
TIRE SAFETY ..............................................................8
ASSEMBLY SAFETY......................................................8
SAFETY DECALS......................................................10
DECAL LOCATIONS &IDENTIFICATION.......................... 10
INTRODUCTION.........................................................14
PREPAIRING THE GRINDER MIXER FOR
OPERATION...............................................................16
TIRES.......................................................................17
GUARDS,DOORS,AND SHIELDS.................................17
BOLTS AND NUTS .....................................................17
PREPARING THE TRACTOR......................................... 18
TRACTOR HITCH ....................................................... 18
ATTACHING TO THE TRACTOR.................................... 18
HAMMERMILL ............................................................ 19
BEFORE GRINDING....................................................19
DETACHING FROM THE TRACTOR ...............................19
OPERATION OF GRINDER MIXER...........................21
TRACTOR PTO ENGAGEMENT ....................................21
HAMMERMILL CLUTCH PIN.......................................... 21
FEED GATE .............................................................. 21
HAY RETARD BOLTS.................................................. 21
HAMMERMILL SCREENS ............................................. 22
CHANGING SCREENS.................................................23
PROCESSING HAY ..................................................... 24
PROCESSING WITHOUT MIXING ..................................24
ADDING CONCENTRATE OR SUPPLEMENT.................... 24
FILLING THE MIXER TANK .......................................... 26
SPRING LOADED TANK LID ......................................... 26
UNLOADING AUGER POSITIONING ............................... 27
UNLOADING AUGER ENGAGEMENT..............................27
UNLOADING CLUTCH DRIVE........................................ 28
FOLDING AUGER EXTENSION......................................28
UNLOADING AUGER HOOD .........................................29
AUGER FEED OPERATION .......................................... 29
GRINDER MIXER ADJUSTMENTS ...........................32
DRIVE CHAIN ADJUSTMENTS ...................................... 32
MAIN DRIVE CHAIN.................................................... 32
MAIN DRIVE BELTS ....................................................32
HAMMERMILL DOOR...................................................33
MANUAL UNLOADING AUGER SWING CRANK ADJUSTMENT
FOR SPROCKET ENGAGEMENT....................................34
MANUAL UNLOADING AUGER SWING BRAKE ADJUSTMENT
................................................................................34
MANUAL LIFT ADJUSTMENT ........................................34
LIFT ASSIST SPRING ADJUSTMENT ..............................34
DISCHARGE AUGER LIFT CYLINDER ADJUSTMENT .........34
HYDRAULIC SWING ADJUSTMENT ................................36
SWIVEL STOP............................................................36
SWIVEL STOP ADJUSTMENT........................................37
OPEN AND CLOSED HYDRAULICS ................................37
CONVERTING TO CLOSED CENTER HYDRAULICS...........37
POSITIONING THE UNLOADING AUGER TO THE OPPOSITE
SIDE OF THE MACHINE ..............................................37
WHEEL BEARINGS .....................................................38
LUBRICATION........................................................... 39
PTODRIVELINE ........................................................39
HAMMERMILL SHAFT BEARINGS ..................................39
HAMMERMILL ENGAGING PIN ......................................39
DRIVE SHAFT BEARINGS ............................................41
CHAINS.....................................................................41
GEARBOX .................................................................42
LOWER VERTICAL MIXING AUGER................................42
UPPER VERTICAL MIXING AUGER ................................42
UNLOADING AUGER CLUTCH.......................................42
SWIVEL CLAMP..........................................................42
ELBOW.....................................................................43
HYDRAULIC LIFT ........................................................43
RING AND WORM GEAR (MECHANICAL).......................43
WHEELS ...................................................................44
SERVICE.................................................................... 45
TORQUE SPECIFICATIONS...........................................45
SHEAR BOLTS ...........................................................45
SPROCKET AND CHAIN ALIGNMENT .............................45
REPLACEMENT OF WORN OR DAMAGED HAMMERS ......46
REVERSING THE HAMMERS ........................................46
MAIN DRIVE BELT REPLACEMENT................................46
TROUBLESHOOTING GUIDE................................... 48
ATTACHMENTS........................................................ 50
ELECTRIC ACTUATOR OPTION.....................................50
Preparing the Tractor.........................................50
Preparing the Grinder Mixer...............................50
ELECTRONIC SCALE ATTACHMENT ..............................51
ADJUSTABLE SCALE ARM ATTACHMENT .......................51
DISCHARGE UNLOADING AUGER EXTENSIONS ..............51
SCREENS..................................................................51
HYDRAULIC ROLL FEED..............................................51
ROLL FEED ADJUSTMENT ...........................................52
SPECIFICATIONS ..................................................... 54
TANK AND FRAME ......................................................54
DISCHARGE AUGER ...................................................54
AUGER FEEDER.........................................................54
MIXING AUGER..........................................................54
SUPPLEMENT HOPPER ...............................................54
HAMMERMILLS...........................................................54
SAFETY DECALS...................................................... 55

4Parts & Service
DECAL LOCATIONS &IDENTIFICATION ..........................55
INTRODUCTION.........................................................58
PREPARING THE CATTLEMAX FOR
OPERATION...............................................................60
TIRES.......................................................................60
SHIELDS...................................................................60
BOLTS AND NUTS......................................................60
PREPARING THE TRACTOR.........................................61
TRACTOR HITCH........................................................61
ATTACHING TO THE TRACTOR ....................................61
ROLLERMILL .............................................................62
BEFORE PROCESSING................................................62
DETACHING FROM THE TRACTOR ...............................62
OPERATION OF CATTLEMAXX................................64
TRACTOR PTO ENGAGEMENT ....................................64
PROCESSING ............................................................64
ROLLERMILL .............................................................64
DRIVELINE PROTECTION.............................................65
HOPPER MAGNETS....................................................65
GRAIN CONTROL GATE ..............................................65
ROLL GAP ................................................................65
ROLLERMILL ROLLS ...................................................66
ROLL SELECTION ......................................................67
ROLL SPEED DIFFERENTIAL........................................67
ROLL SCRAPERS.......................................................67
PROCESSING WITHOUT MIXING ..................................67
ADDING CONCENTRATE OR SUPPLEMENT....................67
FILLING THE MIXER TANK...........................................68
SPRING LOADED TANK LID .........................................70
UNLOADING AUGER POSITIONING................................70
Manual Crank ....................................................71
Tractor Hydraulic Lift and Swing........................71
UNLOADING AUGER ENGAGEMENT..............................71
UNLOADING CLUTCH DRIVE........................................71
FOLDING AUGER EXTENSION......................................72
UNLOADING AUGER HOOD .........................................73
AUGER FEED OPERATION...........................................74
GRINDER MIXER ADJUSTMENTS............................77
DRIVE CHAIN ADJUSTMENTS ......................................77
MAIN DRIVE CHAIN....................................................77
ROLL SPEED DIFFERENTIAL........................................77
ROLL GAP ................................................................77
ROLL PARALLELISM ...................................................78
ROLL SCRAPERS.......................................................78
MANUAL UNLOADING AUGER SWING CRANK ADJUSTMENT
FOR SPROCKET ENGAGEMENT ...................................79
MANUAL UNLOADING AUGER SWING BRAKE ADJUSTMENT
................................................................................79
MANUAL LIFT ADJUSTMENT.........................................79
HYDRAULIC SWING DRIVE ADJUSTMENT.......................79
HYDRAULIC SWING SPEED ADJUSTMENT......................80
LIFT ASSIST SPRING ADJUSTMENT ..............................80
POSITIONING THE UNLOADING AUGER TO OPPOSITE SIDE
OF MACHINE .............................................................81
SWIVEL STOP ADJUSTMENT........................................81
OPEN AND CLOSED HYDRAULICS ................................81
CONVERTING TO CLOSED CENTER HYDRAULICS...........82
WHEEL BEARINGS .....................................................82
LUBRICATION...........................................................83
PTO DRIVELINE ........................................................83
GRAIN CONTROL GATE ..............................................83
ROLL BEARINGS ........................................................83
ECCENTRIC BEARING HOUSINGS .................................83
AGITATOR SHAFT BEARINGS.......................................84
ROLLERMILL BELT DRIVE............................................84
HOPPER MAGNETS ....................................................84
CHAINS.....................................................................84
GEARBOX .................................................................85
LOWER VERTICAL MIXING AUGER................................85
UPPER VERTICAL MIXING AUGER ................................85
TANK VENT ...............................................................85
UNLOADING AUGER CLUTCH.......................................85
SWIVEL CLAMP..........................................................86
ELBOW .....................................................................86
RING AND WORM GEAR (MECHANICAL).......................86
WHEELS ...................................................................87
SERVICE....................................................................88
TORQUE SPECIFICATIONS...........................................88
SHEAR BOLTS ...........................................................88
SPROCKET AND CHAIN ALIGNMENT .............................88
REPLACEMENT ROLLS................................................89
ROLL REPLACEMENT..................................................89
TROUBLESHOOTING GUIDE...................................90
ATTACHMENTS ........................................................92
ELECTRONIC SCALE ATTACHMENT...............................92
ADJUSTABLE SCALE ARM ATTACHMENT .......................92
DISCHARGE UNLOADING AUGER EXTENSIONS ..............92
SPECIFICATIONS...................................................... 93
ART’S-WAY MANUFACTURING CO., INC.
TECHNICAL MANUALS............................................94

TABLE OF CONTENTS 5

6SAFETY FIRST
SAFETY FIRST
“A careful operator is the best insurance against an accident”
(National Safety Council)
Most accidents can be prevented if the operator:
•Fully understands how the machine functions
•Can anticipate situations which may produce problems
•Can make necessary corrections before problems develop
THIS SYMBOL MEANS
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The American Society of Agricultural Engineers has adopted the Universal Safety Alert Symbol as a way to
identify areas of potential danger if the equipment is not operated correctly. (See Figure 3.) Please be alert
whenever you see this symbol in the manuals or on your Grinder Mixer.
Art’s-Way Manufacturing Co., Inc. strives to make our equipment as safe as possible. The Art’s-Way 6105
Grinder Mixer conforms to applicable safety standards at the time of manufacturing. A safety conscious
equipment operator makes an effective accident-prevention program complete.
Safety features and instructions for the Grinder Mixer are detailed in the section of this Operator’s Manual. It is
the responsibility of the owner to ensure that all operators read and understand the manual before they are
allowed to operate the Grinder Mixer. (Occupational Safety and Health Administration (OSHA) regulations
1928.57.)
NOTICES OF DANGER,WARNING,AND CAUTION
Signal Words: Note the use of signal words DANGER, WARNING, and CAUTION on the Grinder Mixer and in
this manual. The appropriate signal word for each has been selected using the following guidelines:
DANGER: IMMEDIATE AND SPECIFIC HAZARD WHICH WILL
RESULT IN SEVERE PERSONAL INJURY OR DEATH IF PROPER
PRECAUTIONS ARE NOT TAKEN.
WARNING: SPECIFIC HAZARD OR UNSAFE PRACTICE COULD
RESULT IN SEVERE PERSONAL INJURY OR DEATH IF PROPER
PRECAUTIONS ARE NOT TAKEN.
CAUTION: A REMINDER OF GOOD SAFETY PRACTICES.
PERSONAL INJURY COULD RESULT IF PROPER PROCEDURES
ARE NOT FOLLOWED.
Figure 3 - Universal Safety Alert Symbol.

SAFETY GUIDELINES 5
SAFETY GUIDELINES
Remember:
“The Best Operator is a Safe Operator”
CAUTION: READ AND UNDERSTAND
THE OPERATOR’S MANUAL AND ALL
THE SAFETY DECALS BEFORE
OPERATING THE GRINDER MIXER.
REVIEW ALL SAFETY INSTRUCTIONS
WITH ALL OPERATORS ANNUALLY.
BEFORE OPERATING
•Do not wear loose fitting clothing as it may catch
in moving parts.
•Make sure to install and/or secure all guards,
doors and shields, including the tractor power
take-off (PTO) master shield, before starting or
operating the Grinder Mixer.
•Be sure that the correct implement driveline parts
are used and that they are properly secured.
•Install the safety chain when attaching the
Grinder Mixer to the tractor.
•Clear the area of bystanders, especially children,
when making repairs, adjustments or performing
maintenance on the Grinder Mixer.
•Do not allow riders.
•Put all tractor and machine controls in “neutral”
and disengage the PTO before starting. Follow
the starting instructions according to your tractor
Manual.
•Operate the Grinder Mixer only while seated on
the tractor seat.
•Make sure the unit is adequately supported with
safety blocks or safety stands when changing
tires or performing maintenance.
CAUTION: KEEP WELL CLEAR OF
MOVING PARTS. BE SURE TO SHUT
OFF THE TRACTOR AND SET THE
PARKING BRAKE. REMOVE THE
TRACTOR KEY WHILE MAKING ANY
ADJUSTMENTS. WAIT FOR ALL
MOVEMENT TO STOP BEFORE
APPROACHING THE MACHINE.
DURING OPERATION
•Keep hands, feet, hair, and clothing away from
moving parts.
•Keep all guards, doors and shields in place and
in good working condition.
•Keep all bystanders, especially children, away
from the grinder mixer while in operation.
•Do not allow riders while the grinder mixer is in
operation.
•Do not attempt to unclog, clean, or adjust the
grinder mixer while it is running.
•Stay away from overhead power lines.
Electrocution can occur even without direct
contact.
•Keep all hydraulic lines, fittings, and couplers
tight and free of leaks. (Refer to - Hydraulic
Safety.)
•Use caution when ascending or descending on
the grinder mixer. Wet shoes or boots are
slippery.
MAINTENANCE SAFETY
•Follow all operating, maintenance and safety
instructions found in this Manual.
•Before servicing, adjusting, repairing or
unclogging the machine, always make sure the
tractor engine is stopped, the parking brake is set,
and all the moving parts have stopped.
•Use sufficient tools, jacks, and hoists that have
the capacity for the job.
•Use support blocks or safety stands when
changing tires or performing maintenance.
•Follow good shop practices of keeping the
service area clean and dry and use adequate light
for the job at hand.
•Before applying pressure to the hydraulic system,
make sure all lines, fittings and couplers are
tightly secured and in good condition.
•Make sure all guards, doors and shields are in
place and properly secured when performing
maintenance.

8SAFETY GUIDELINES
HYDRAULIC SAFETY
•Make sure components in the hydraulic system
are kept clean and in good working condition.
•Relieve pressure from the hydraulic system
before servicing or disconnecting from the tractor.
•Keep all hydraulic lines, fittings, and couplers
tightly secured and free of leaks.
•Replace any worn, cut, abraded, flattened or
crimpled hoses.
•Do not make any temporary repairs to the
hydraulic lines, fittings or hoses using tape,
clamps, or cement. The hydraulic system
operates under extremely high pressure and
temporary repairs may fail suddenly and create a
hazardous and or dangerous situation.
•Wear proper hand and eye protection when
searching for a high-pressure hydraulic leak. Use
a piece of wood or cardboard as a backstop
instead of hands to identify and isolate a leak. If
injured by a concentrated high-pressure stream
of hydraulic fluid, seek medical attention
immediately. Serious infection or toxic reaction
can develop if hydraulic fluid penetrates the
surface of the skin.
•Before applying pressure to the system, make
sure all components are tight and that the
hydraulic lines, hoses, and couplings are not
damaged.
TRANSPORTATION SAFETY
•Make sure the grinder mixer complies with all
local regulations regarding the transportation of
equipment on public roads and highways.
•Make sure the Slow Moving Vehicle (SMV)
emblem and all lights and reflectors required by
local highway and transportation authorities are
properly in place, clean, and clearly visible to
traffic.
•Do not allow riders on any machinery during
transport.
•Make sure the grinder mixer is securely attached
to the tractor and install a safety chain to the
grinder mixer.
•Make sure the tractor brake pedals are latched
together.
•Do not exceed 20 mph (32 km/h) when
transporting the grinder mixer. Always reduce
speed on rough roads and surfaces, or when
going down inclines.
•Use caution when turning and always use the turn
signals on the tractor to indicate your turning
intentions to the other traffic.
•The weight of the trailed machine should NEVER
exceed the weight of the towing vehicle.
•Check all clearances carefully whenever the
machine is towed.
•Lower the elevator into the transport position
before transporting the harvester on the highway.
•Stay away from overhead obstructions and power
lines during transport. Electrocution can occur
even without direct contact.
STORAGE SAFETY
•Store the grinder mixer in an area away from
human activity.
•Do not permit children to play on or around the
stored machine at any time.
•Make sure that the grinder mixer is stored in an
area with a firm and level base to prevent the
machine from tipping or sinking into the ground.
•Block the wheels to prevent the machine from
rolling.
TIRE SAFETY
•Have only a qualified tire dealer or tire repair
service perform tire repairs.
•Do not attempt to install a tire on a wheel or rim
unless you have the proper equipment and
experience to do the job.
•Follow proper procedures when installing a tire on
a wheel or rim to prevent an explosion that could
result in serious injury.
•Do not substitute tires with a lesser road rating
and/or capacity for the original equipment tires.
CAUTION: FAILURE TO FOLLOW
PROPER PROCEDURES WHEN
INSTALLING A TIRE ON A WHEEL OR
RIM CAN PRODUCE AN EXPLOSION
THAT MAY RESULT IN SERIOUS
INJURY OR DEATH. DO NOT ATTEMPT
TO INSTALL A TIRE UNLESS YOU HAVE
THE PROPER EQUIPMENT AND
EXPERIENCE TO PERFORM THE JOB.
REPLACEMENT, REPAIR, AND/OR
MAINTENANCE SHOULD BE DONE BY
A QUALIFIED TIRE DEALER OR
QUALIFIED REPAIR SERVICE.
ASSEMBLY SAFETY
•Use adequate manpower to perform assembly
procedures safely.
•Assemble the grinder mixer in an area with
sufficient space to maneuver the largest

SAFETY GUIDELINES 9
components and allow easy access to all sides of
the machine.
•Use only forklifts, lift cranes, jacks and tools with
sufficient capacity for the loads.
•Do not allow spectators, especially children, in
the working area.
Remember:
“The Best Operator is a Safe Operator”

10 INTRODUCTION
SAFETY DECALS
DECAL LOCATIONS &IDENTIFICATION
The different types of safety decals for your 6105 Grinder Mixer are illustrated on the following pages. Please
familiarize yourself with the appearance of each decal, the warning it describes, and the area where it is located
on the grinder mixer. (See Figure 4 and Figure 5)
Safety awareness is the responsibility of each operator of the grinder mixer. Keep safety decals and signs clean
and legible and be sure replacement parts display the current safety decals and signs as well.
Remember: Always replace missing, damaged or illegible safety decals. New decals and signs are
available from an authorized dealer.
Figure 4 - Safety Decal Locations.

INTRODUCTION 11
ITEM
PART NO.
QTY
DESCRIPTION
1
363000
1
DECAL, DANGER ROTATING MECHANISM
2
467430
2
DECAL, DANGER SHIELD MISSING
3
384030
1
DECAL, DANGER 540 RPM PTO
4
268860
1
DECAL, DANGER ROTATING DRIVELINE
5
383990
1
DECAL, DANGER AUGER FEEDER HAZARD
6
384000
1
DECAL, DANGER ELECTROCUTION HAZARD
7
368350
1
DECAL, WARNING MOVING FLYWHEEL HAZARD
8
467450
4
DECAL, WARNING MOVING PART HAZARD
9
368040
1
DECAL, CAUTION SAFETY INSTRUCTIONS
10
377280
4
DECAL, CAUTION DO NOT OPEN
11
383970
1
DECAL, CAUTION HITCH INSTRUCTIONS
12
476450
2
TAPE, RED RETRO-REFLECTIVE
13
476460
1
TAPE, YELLOW RETRO-REFLECTIVE
NOTE: Keep all decals clean and free of dirt for maximum visibility. Replace all individual decals that are no
longer legible. Read and obey all safety decals and be familiar with their meaning.

12 INTRODUCTION
Figure 5a - Safety Decals.

INTRODUCTION 13

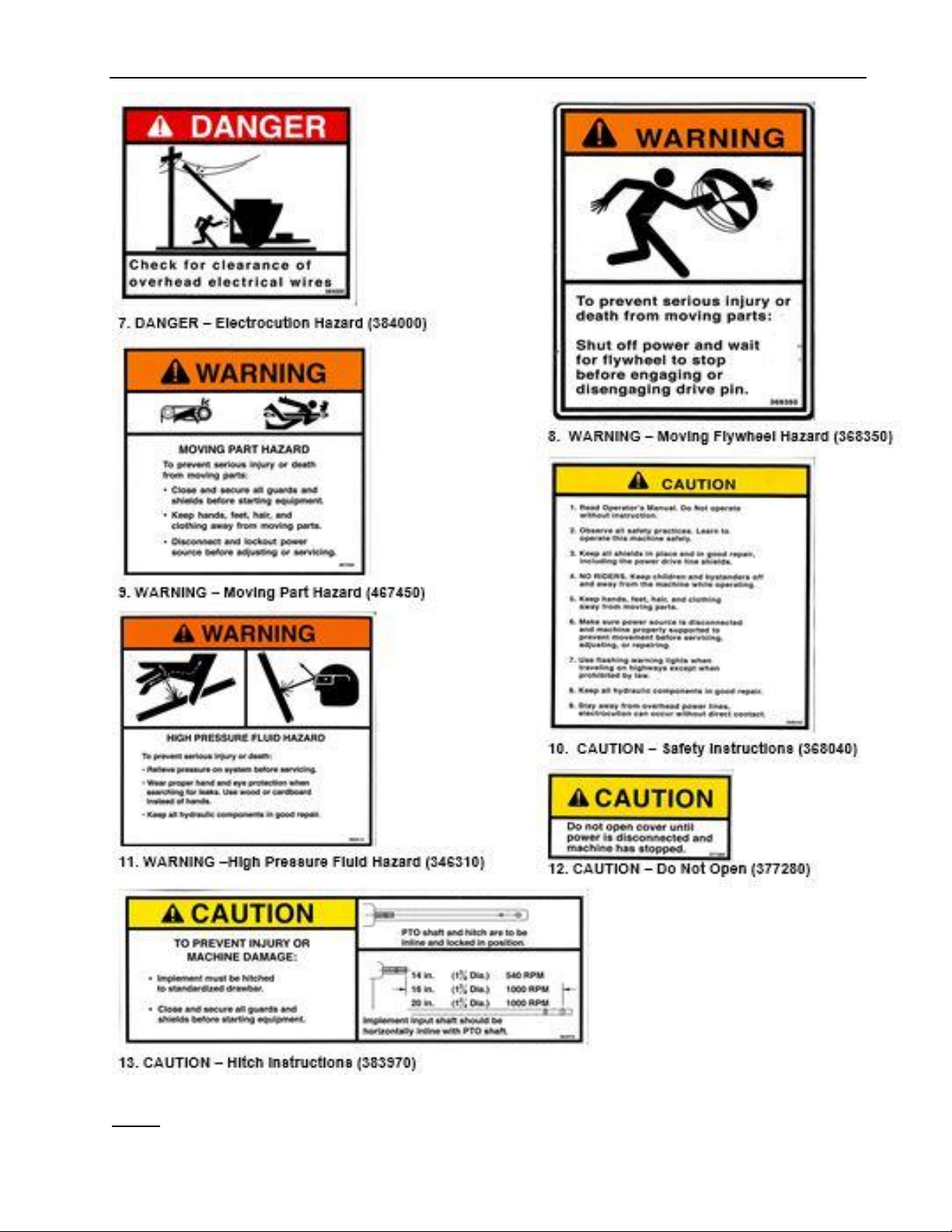

Figure 5b –Safety Decals
NOTE: Keep all decals clean and free of dirt for maximum visibility. Replace all individual decals that are no
longer legible. Read and obey all safety decals and be familiar with their meaning.

14 INTRODUCTION
INTRODUCTION

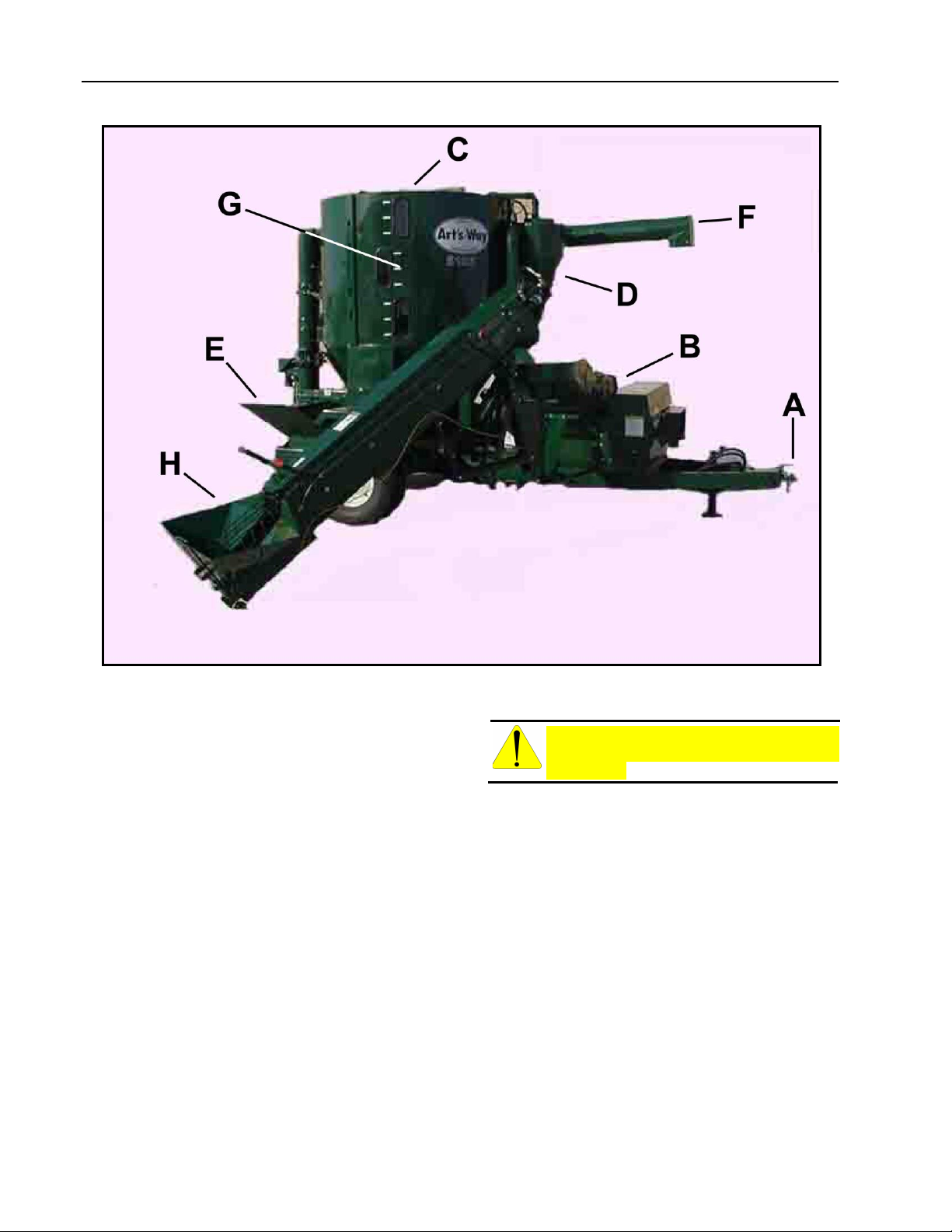

Figure 6 - Model 6105 With Auger Feeder (A –PTO Driveline; B –Hammermill; C –Mixing Tank; D –Dust
Collector; E –Supplement Hopper; F –Unloading Auger; G –Viewing Windows; H –Auger Feeder).
This manual has been prepared to make you
familiar with the proper operation, adjustment,
lubrication and service of your grinder mixer. Take
time to be careful and better understand the
efficient operation and care of your machine.
Whenever the terms “Left” and “Right” are used, it
should be understood to mean standing behind the
machine and facing the direction of forward travel.
Some pictorials are used to show guards, doors
and shields removed for easy identification.
Make sure that all guards, doors and shields are
in place before operating the machine. They are
for your protection.
The Art’s-Way 6105 Grinder Mixer is driven by a
PTO driveline of 40 hp to 150 hp tractors. (Figure 6,
Detail A) When using tractors over 150 hp, limit
input. It is available only with a 540 RPM drive.
Hammermill respective speed should be
maintained as the hammermill cylinder operates
best at 2800 to 3000 RPM. (Figure 6, Detail B)
Hammermill cylinder must not exceed 3000 PRM.
CAUTION: NEVER OPERATE A 540 RPM
PROCESSOR WITH A 1000 RPM
TRACTOR.
Before operating your grinder mixer, select and
install the screen size desired. Sizes are available
from 1/8 to 2 inch openings. For screen selection
guidelines, refer to OPERATION OF GRINDER
MIXER - Hammermill Screens.
All types of grain can be ground with the
hammermill. Hay can be ground with a minimum of
1/3 mixer of grain. Material is fed into the
hammermill where it is ground until it can pass
through the screen size selected. From the
hammermill, the material is augered into the mixing
tank. (Figure 6, Detail C) A suction fan takes air
pressure out of the hammermill housing and
delivers feed fines into the dust collector. (Figure 6,
Detail D) The fines are separated and then dropped
into the mill to mixer auger.

INTRODUCTION 15
If supplement is to be added to the ration, a hopper
with a sack cutter is located at the right rear of the
mixing tank. (Figure 6, Detail E (Not Shown) –
Supplement Auger) The best mixing will result if the
supplement is added before grinding.
The ground feed is mixed continuously until the
tractor PTO is disengaged.
The unloading auger pivots at the rear center of the
mixing tank and can swing 316 degrees on the
grinder mixer in a horizontal arc. (Figure 6, Detail F)
It can also swing in a vertical arc to the limit of the
lift cylinder. The unloading auger tube can be
positioned either to the right or to the left side of the
tank for transport. For procedure instructions, refer
to GRINDER MIXER ADJUSTMENTS - Positioning
The Unloading Auger To The Opposite Side Of The
Machine. Unloading rates up to 30 bushels per
minute can be obtained depending upon position of
the discharge and the type of material processed.
Three viewing windows are located at the front right
corner of the mixing tank to observe the feed level
during grinding and mixing. One viewing window is
located in the back of the tank for added viewing of
feed level. (Figure 6, Detail G.) A ladder is located
at the front left corner of the mixing tank along with
a handle on top of the tank to gain access to the
spring-loaded mixing tank lid.
CAUTION: DO NOT OPEN SPRING-
LOADED MIXING TANK LID WHILE PTO
IS ENGAGED AND TRACTOR IS
RUNNING.
Many convenient features are standard equipment
on the Art’s Way 6105 grinder mixer including:
105 bu. –6105
1. 10.00 x 15 tires.
2. Magnet in the hammermill throat.
3. Hydraulic or mechanical positioning of
discharge auger. This includes a hydraulic
cylinder or mechanical crank for lift and
hydraulic motor or mechanical crank for swing.
4. Positioner to enable the hopper on the auger
feeder to be moved in or out 6 inches to
properly position in front of the augers. (Figure
6, Detail H)
5. Fenders.
6. Screen rack.
7. Tongue jack.
8. Discharge auger hood with spring loaded relief
door.
9. 540 RPM PTO
10. 72 Hammers.
Below is a list of optional attachments available:
1. Auger feeder (hydraulic). (See Figure 7.)
Figure 7 - Model 6105 With Auger Feeder.
2. Electronic scale, with digital readout.
3. Positioning arm for electronic scale box.
4. Horn, light, or horn and light for electronic scale.
5. Unloading auger extensions; 3 ft. or 6 ft. folding
or bolt-ons.
6. Hydraulic roll feed in mill throat hammermills.
7. Highway transport light kit.
8. Electric activated discharge.
9. Hydraulic Discharge (Tractor Operated)
designated with an H behind model number
(i.e. 6105H).

16 PREPAIRING THE GRINDER MIXER FOR OPERATION
PREPAIRING THE GRINDER MIXER FOR OPERATION
Remove the shipping banding or wire from the
auger feeder (if equipped), rear discharge cover
and the unloading tube to saddle at the side of the
tank.
IMPORTANT: Remove the bag from the
supplement hopper. Place the screen hook in the
hammermill door pin. (See Figure 8)
Install the PTO driveline storage bracket under the
front hitch with 1/2 inch x 1-1/2 inch bolt and lock
nut. (See Figure 9) Maintain tension with the lock
nut to allow movement with 15 lbs. pull.
If equipped with auger feeder, remove the transport
locking plate. Refer to OPERATION OF GRINDER
MIXER - Auger Feed Operation.
Figure 8 - Screen Hook Storage.
Figure 9 - PTO Driveline Storage Bracket.
Install any option that was ordered with the grinder
mixer and shipped as loose equipment. See
package instructions with the specific options for
installation.
Install the implement end of the PTO driveline by
fastening it to the input jackshaft with the 5/16 inch
x 3-1/2 inch clevis pin and cotter pin provided.
Spread the cotter pin and make sure the proper
PTO is used. The 6105 is supplied with 540 RPM
only.
CAUTION: NEVER OPERATE A 540 RPM
GRINDER MIXER WITH A 1000 RPM
TRACTOR.
NOTE: Height of the unloading auger tube needs
to be checked. Move the saddle on the side of the
mixing tank so the tube will properly clear the tractor
and cab.
If equipped with a tractor hydraulic auger feeder or
roll feed, refer to OPERATION OF GRINDER
MIXER - Hydraulic Discharge (6105H Models
Only)
Connect two hydraulic discharge hoses to desired
hydraulic circuit on tractor. Hoses come installed
with Pioneer™ style male quick connectors from
factory (See Figure 31).
Slowly engage the hydraulic discharge with tractor.
UNLOADING HEIGHT OBTAINED ON LEVEL SURFACE. 105 Bu. (See Figure 33.)
Unloading Auger Configuration
Tube & Elbow
Combined Length
Discharge 45°
29 Inch Tube
Discharge 60°
29 Inch Tube
Standard –No Extensions
125 Inches
14 ft. 9 in.
16 ft. 8 in.
3 ft. Fold Around Auger Extension
161 Inches
17 ft. 0 in.
19 ft. 3 in.
6 ft. Fold Around Auger Extension
197 Inches
19 ft. 3 in.
22 ft. 0 in.

PREPAIRING THE GRINDER MIXER FOR OPERATION 17
Gradually increase speed to at least 2/3 throttle to
reduce the risk of bogging machine down or
potentially plugging an auger. Open the unloading
door slowly. The eccentric may be used to hold the
door open (See Figure 30).
When the tank is unloaded, reverse the procedure.
Always make sure that discharge is empty before
transporting mixer.

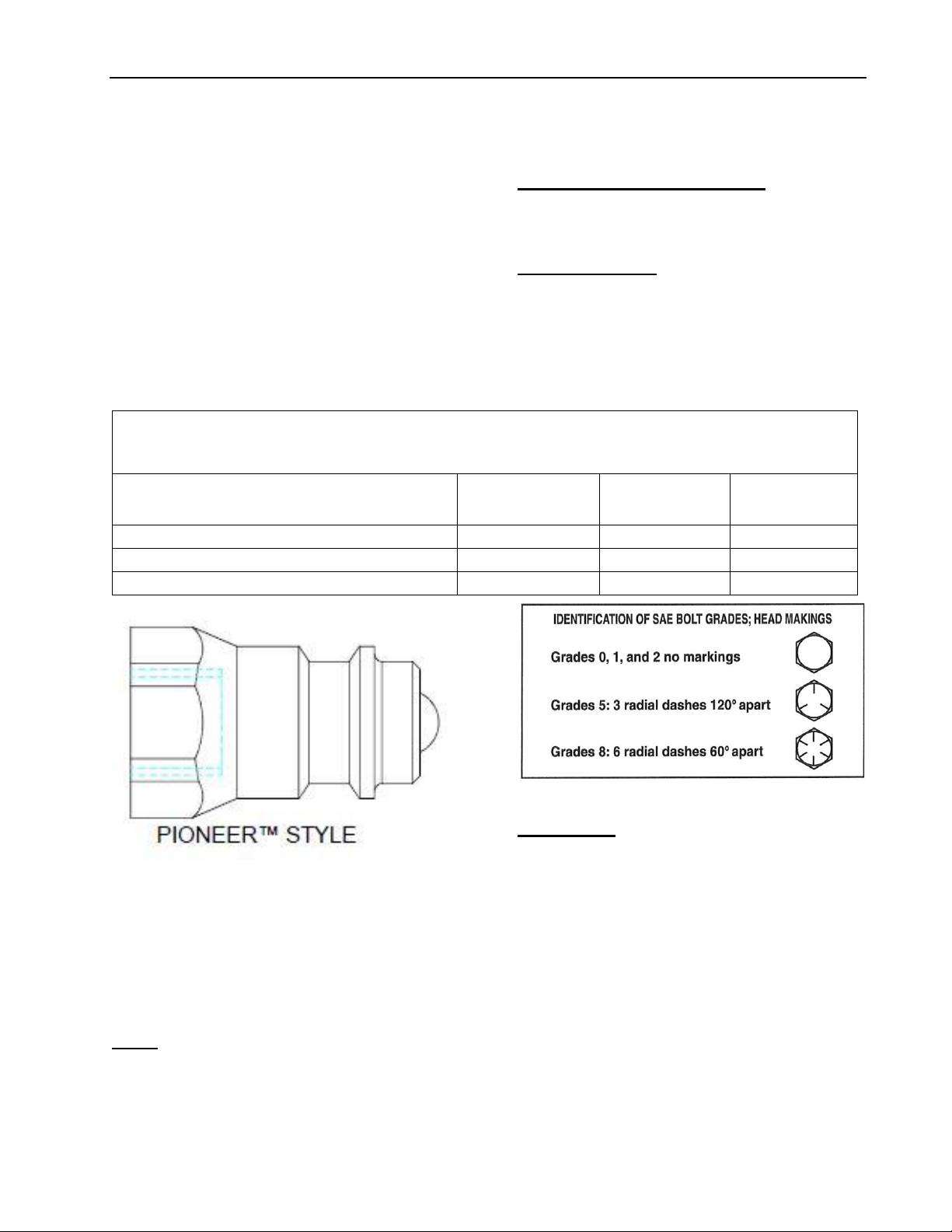

Figure 31 - Hydraulic Quick Connector
Folding Auger Extension,
Table 4 - Unloading Heights.
Unloading Auger Hood, and Auger Feed Operation
sections as well as the ATTACHMENTS section for
instructions.
TIRES
Keep tires properly inflated. Lack of pressure can
result in torn valve stems, fabric breaks and uneven
tread wear. Too much pressure can cause undue
strain on fabric, excessive tread wear and allows
the tire to cut in more on wet surfaces. Equal tire
pressure reduces grinder mixer sway when towing.
Recommended tire inflation pressure is as follows:
10.00 x 15
8 –PR tires –40 psi
GUARDS,DOORS,AND SHIELDS
Make sure that all of the guards, doors, and shields
are in place and functioning.
BOLTS AND NUTS
Cap screws, except for shear bolts, used on the
grinder mixer are Grade 5 and if replaced, cap
screws of equal or greater strength should be used.
Grade 5 cap screws are identified by three radial
dashes on the hex head. Refer to the SAE bolt
identification guide. (See Figure 10)
Figure 10 - SAE Bolt Identification.
IMPORTANT: Shear bolts must be replaced with
bolts of the same grade
Before operation of the grinder mixer, make sure all
bolts and nuts are properly tightened. Make sure all
cotter pins are spread and not damaged. After
operation of the grinder mixer for several hours,
make sure all bolts are set to proper torque. Refer
to the torque guide. (See Table 1)
UNLOADING HEIGHT OBTAINED ON LEVEL SURFACE. 105 Bu. (See Figure 33.)
Unloading Auger Configuration
Tube & Elbow
Combined Length
Discharge 45°
29 Inch Tube
Discharge 60°
29 Inch Tube
Standard –No Extensions
125 Inches
14 ft. 9 in.
16 ft. 8 in.
3 ft. Fold Around Auger Extension
161 Inches
17 ft. 0 in.
19 ft. 3 in.
6 ft. Fold Around Auger Extension
197 Inches
19 ft. 3 in.
22 ft. 0 in.

18 PREPAIRING THE GINDER MIXER FOR OPERATION
Size
Clamp
Load
Plain
GR 5
Plated
GR 5
1/4 –20 (.250)
2,025
8 ft. lbs.
76 in. lbs.
5/16 –18 (.3125)
3,338
17 ft. lbs
13 ft. lbs.
3/8 –16 (.375)
4,950
31 ft. lbs.
23 ft. lbs.
7/16 –14 (.4375)
6,788
50 ft. lbs.
37 ft. lbs.
1/2 –13 (.500)
9,075
76 ft. lbs.
57 ft. lbs.
9/16 –12 (.5625)
11,625
109 ft. lbs.
82 ft. lbs.
5/8 –11 (.625)
14,400
150 ft. lbs.
112 ft. lbs.
3/4 - 10 (.750)
21,300
266 ft. lbs.
200 ft. lbs.
7/8 –9 (.875)
29,475
430 ft. lbs.
322 ft. lbs.
1 –8 (1.00)
38,625
644 ft. lbs.
483 ft. lbs.
1-1/8 –7 (1.125)
42,375
794 ft. lbs.
596 ft. lbs.
Table 1 - Torque Specification Guide For Grade 5
Bolts.
Lubricate the grinder mixer at regular intervals as
instructed in the lubrication sections. (Refer to
LUBRICATION section.)
PREPARING THE TRACTOR
The tractor must be equipped with a 540 RPM PTO
to match the grinder mixer as described in the
previous section. Make sure the grinder mixer and
the tractor are equipped and set for the proper
RPM.
CAUTION: NEVER OPERATE A 540 RPM
GRINDER MIXER WITH A 1000 RPM
TRACTOR PTO.
TRACTOR HITCH
The hitch for the grinder mixer is designed to attach
to any SAE –ASAE standardized tractor drawbar.
Adjust the drawbar so it is 13 to 17 inches above
the ground. (See Figure 11) Extend or shorten the
tractor drawbar so the horizontal distance from the
end of the tractor PTO shaft to the center of the
hitch pin hole is 14 inches for 540 RPM drives.
Lock the drawbar in its crossbar, parallel with the
centerline of the PTO. Place locking pins on each
side of the drawbar. If the tractor has an offset
drawbar, the offset should be down for PTO work.
IMPORTANT: An improperly located hitch point
may cause damage to the universal joints (U-
Joints) of the PTO driveline.
Figure 11 - Hitch Point Locations
ATTACHING TO THE TRACTOR
NOTE: Height of the unloading auger tube needs to
be checked. Move the saddle on the side of the
mixing tank so the tube will properly clear the tractor
and cab.
Carefully back the tractor up to the hitch. Use the
crank of the jack to raise or lower the grinder mixer
hitch into position to engage the tractor drawbar.
Fasten the grinder mixer hitch to the drawbar with a
hitch pin that cannot bounce out. Raise the jack and
lock into the transport position. (See Figure 12)
Attach the safety chain from the grinder mixer to the
tractor. (See Figure 13)
CAUTION: ALWAYS FOLLOW STATE
AND LOCAL REGULATIONS
REGARDING A SAFETY CHAIN WHEN
TOWING FARM EQUIPMENT ON
PUBLIC HIGHWAYS.
Figure 12 - Jack In Transport Position
