Artcoustic Multi Sound Bar SL User manual

Multi-channel Cinema Sound Bar
Owners Manual
www. artcoustic.com

Multi Sound Bar
Features:
- Symmetrically Controlled Beamwidth
-Configured as mono or stereo left, centre and 
right speaker
-Very low distortion
-Very low power consumption
- Wide frequency response 60Hz to 40kHz
-Fast, easy and simple installation
- Suitable for a wide range of application, from 
HiFi Systems, Home Cinemas, Screening Rooms
and smaller commercial applications
- Ultra-slim aesthetically pleasing cabinet design,
designed to complement the latest LED and
projection screen designs
Multi Sound Bar Overview:
This multi-channel cinema sound bar shares many
characteristics with the other models in the SL
range. Maintaining Artcoustic’s clean contemporary
design, the Multi Sound Bar has been designed to
be mounted underneath all modern flat screen
monitors. The Multi Sound Bar is perfect for the
most demanding of applications. Partner it with
an Artcoustic Subwoofer for a truly full range,
dynamic performance.
Wired as a single mono configuration, the Multi
Sound Bar is a highly sensitive speaker and is
therefore capable of reproducing very high sound
pressure levels from modest (20watt+) amplifiers.
The Multi Sound Bar can be installed as a multi
channel L, C, R. Speaker or as a single mono centre
channel speaker
Multi-channel Cinema Sound Bar
Components Overview:
High Frequency driver:
Dual Ring Radiator diaphragm with highly linear suspension
and low loss surrounds for high clarity and clean transient
response. Copper caps for better HF extension and lower
distortion and wave-guide center plug, copper-clad
aluwire
Woofer:
Extra long excursion and Aluminum Short Circuiting Ring,
4-layer voice coil, anodized aluminum for improved heat
dissipation, combined with Distortion Reduced Motor
Crossover:
6 dB/octave low pass and 12 dB/octave high pass filter

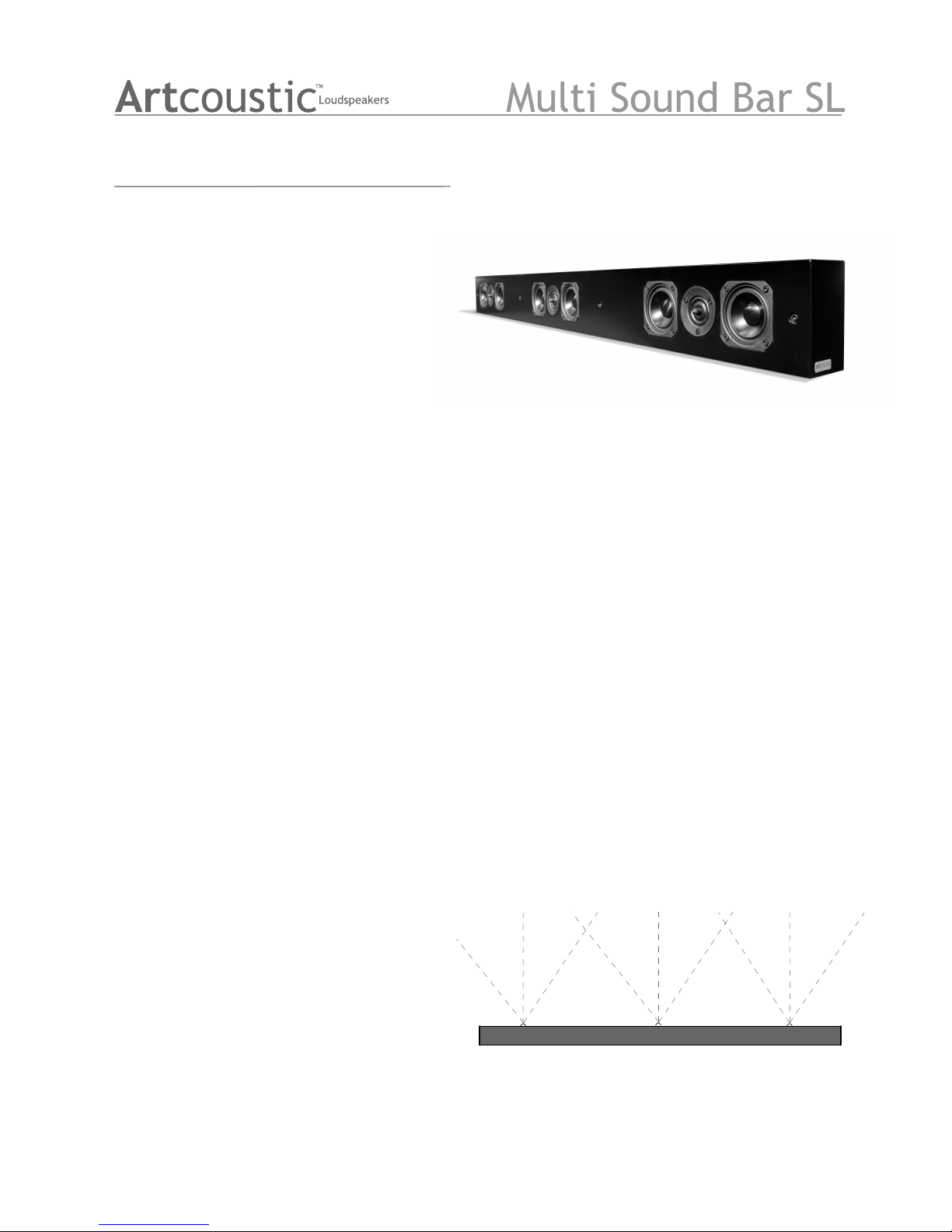

Top view, Controlled Directivity:
Symmetric minimum phase driver
configuration for optimal polar response
Multi-channel Cinema Sound Bar

Specification Multi Sound Bar 1032 SL
Transducer:
LF-MF 6 x 3 inch cone, Symmetric Phase Aligned
HF 3 x 1 inch Dual Ring Radiator, Symmetric
Phase Aligned
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single or Bi Amped Gold Plated Push Terminals
Optional multi channel or Mono configuration
Performance:
Operating Range 65 Hz (-3dB) to 40 kHz
Nominal Beamwidth Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL) LF/MF-HF (Mono) 99 dB
(Stereo) 87 dB
Input Impedance Nominal Minimum (Mono) 4 ohms (Stereo) 12 ohms
Recommended High Pass Filter =>80 Hz, 24 dB/octave
Maximum Power Handling 80 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak
LF/MF-HF (Mono)115dB (Stereo) 104dB
Weight 8 kg
Dimensions H: 120 W: 1039 D: 67 mm
Finish:
Silk Paint, Black, White and RAL colours
Grille options: Match System fabrics
Specification Multi Sound Bar 1676 SL
Transducer:
LF-MF 8 x 3 inch cone, Symmetric Phase Aligned
HF 3 x 1 inch Dual Ring Radiator, Symmetric
Phase Aligned
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single or Bi Amped Gold Plated Push Terminals
Optional multi channel or Mono configuration
Performance:
Operating Range 65 Hz (-3dB) to 40 kHz
Nominal Beamwidth Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL) LF/MF-HF (Mono) 99 dB
(Stereo) 87 dB
Input Impedance Nominal Minimum (Mono) 4 ohms (Stereo) 12 ohms
Recommended High Pass Filter =>80 Hz, 24 dB/octave
Maximum Power Handling 80 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak
LF/MF-HF (Mono)115dB (Stereo) 104dB
Weight 12 kg
Dimensions H: 120 W: 1676 D: 67 mm
Finish:
Silk Paint, Black, White and RAL colours
Grille options: Match System fabrics
Specification Multi Sound Bar 1224 SL
Transducer:
LF-MF 6 x 3 inch cone, Symmetric Phase Aligned
HF 3 x 1 inch Dual Ring Radiator, Symmetric
Phase Aligned
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single or Bi Amped Gold Plated Push Terminals
Optional multi channel or Mono configuration
Performance:
Operating Range 65 Hz (-3dB) to 40 kHz
Nominal Beamwidth Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL) LF/MF-HF (Mono) 99 dB
(Stereo) 87 dB
Input Impedance Nominal Minimum (Mono) 4 ohms (Stereo) 12 ohms
Recommended High Pass Filter =>80 Hz, 24 dB/octave
Maximum Power Handling 80 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak
LF/MF-HF (Mono)115dB (Stereo) 104dB
Weight 9 kg
Dimensions H: 120 W: 1224 D: 67 mm
Finish:
Silk Paint, Black, White and RAL colours
Grille options: Match System fabrics
Specification Multi Sound Bar 1449 SL
Transducer:
LF-MF 6 x 3 inch cone, Symmetric Phase Aligned
HF 3 x 1 inch Dual Ring Radiator, Symmetric
Phase Aligned
Crossover:
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection:
Single or Bi Amped Gold Plated Push Terminals
Optional multi channel or Mono configuration
Performance:
Operating Range 65 Hz (-3dB) to 40 kHz
Nominal Beamwidth Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL) LF/MF-HF (Mono) 99 dB
(Stereo) 87 dB
Input Impedance Nominal Minimum (Mono) 4 ohms (Stereo) 12 ohms
Recommended High Pass Filter =>80 Hz, 24 dB/octave
Maximum Power Handling 80 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak
LF/MF-HF (Mono)115dB (Stereo) 104dB
Weight 11 kg
Dimensions H: 120 W: 1449 D: 67 mm
Finish:
Silk Paint, Black, White and RAL colours
Grille options: Match System fabrics

Grille magnet mount
280
163
280
430430
23088
320
165.72
320
76 67
1032
120
1676
120
76 67 67
76
1224
120
++
-
-
++
-
-
++
-
-
+
-
+
-
+
-
Grille magnet mount
Grille magnet mount
Horizontal keyhole
mounting
Speaker depth
including grille
Speaker depth
including grille
Speaker depth
including grille
Multi Sound Bar 1032 SL
Multi Sound Bar 1230 SL
Multi Sound Bar 1676 SL
Multi Sound Bar Wiring
++
-
-
Single speaker (Mono)
configuration 4 ohms
++
-
-
Multi channel
configuration 12 ohms
++
-
-
IMPORTANT!
Remove the channel
bridge when wired as a
stereo speaker
+
-
+
-
LR Centre
168 510.50
320320
1449
120
67
76
Grille magnet mount
Speaker depth
including grille
Multi Sound Bar 1449 SL
++
-
-
+
-
