Artel Digilink dlc300 User manual

WWW.ARTEL.COM

MAnuAL

3G-SDI Multi-Rate Digital Video

Optical Transmitter/Receiver/

Repeater

Installation and Operations

Manual

DIGILINK DLC300

FUNCTION MODULE

DLC300 Function Module Installation and Operations Manual iii

Document Number: AR200-008120-C00_M

Released: December, 2016

DLC300 Function Module

3G-SDI Multi-Rate Digital Video

Optical Transmitter/Receiver/Repeater

Installation and Operations Manual

iv DLC300 Function Module Installation and Operations Manual

DLC300 Function Module Installation and Operations Manual v

This manual is produced and copyrighted by Artel Video Systems Corporation. Any use or reproduction of the

contents of this manual without the prior written consent of Artel Video Systems Corporation is strictly

prohibited.

NOTICE

All title and copyrights to this document are owned by Artel Video Systems Corporation. No part of the

contents of this document may be reproduced or transmitted in any form or by any means without the written

permission of Artel Video Systems Corporation.

Artel Video Systems Corporation shall not be liable for errors contained herein. ArtelVideo Systems

Corporation shall not be liable for any damages whatsoever, including, without limitation, damages for loss of

business prots, business interruption, loss of business information, or other pecuniary loss arising out of the

use of this documentation even if Artel Video Systems Corporation has been made aware of the possibility of

such damages.

Information contained in this document is subject to change without notice. While every eort is made to

ensure that the information is accurate as of the publication date, users are reminded to update their use of

this document with documents published by Artel Video Systems Corporation subsequent to this date.

Updates may be available at www.artel.com or by contacting ArtelVideo Systems Corporation.

Third-party product information is for informational purposes only, and constitutes neither an endorsement

nor a recommendation. Artel Video Systems Corporation assumes no responsibility with regard to the

performance of the third-party products.

Printed in U.S.A.

Artel Video Systems Corporation

5B Lyberty Way

Westford, MA 01886

(978) 263-5775

www.artel.com

vi DLC300 Function Module Installation and Operations Manual

Revision history for the DLC300 Function Module Installation and Operations Manual.

Revision History

Revision Document Number Date Reason for Change

A AR200-008120-C00_K January, 2012 Initial release.

B AR200-008120-C00_L February, 2016 Update Artel logo.

C AR200-008120-C00_M December, 2016 Updated images and copy.

DLC300 Function Module Installation and Operations Manual vii

Table of Contents

About This Manual

Audience........................................................................................................................................... ix

Related Documentation ................................................................................................................ ix

Symbols and Conventions.............................................................................................................. x

Artel Customer Service ................................................................................................................... x

DLC300 Function Module

Information About the DLC300 .....................................................................................................1

DLC300 Laser Warnings ..................................................................................................................2

DLC300 Module Functional Description......................................................................................3

Signal Paths...................................................................................................................................................4

Electrical Input.............................................................................................................................................4

Electrical Outputs .......................................................................................................................................4

Optical Input and Output.........................................................................................................................5

DLC300 Module Overview..............................................................................................................5

Conguring the DLC300 Module Operation ...............................................................................7

Setting the SW4 Mode Select Switch...................................................................................................9

Setting the Conguration DIP Switches..............................................................................................9

Setting the SW1 Conguration DIP Switch ............................................................................10

Setting the SW2 Conguration DIP Switch ............................................................................11

Setting the SW3 Conguration DIP Switch ............................................................................11

Installing the DLC300 Module and SFPs ....................................................................................13

Cabling the DLC300 Module ........................................................................................................14

Cabling the Electrical Connections....................................................................................................15

Cabling the Optical Connections .......................................................................................................15

Monitoring the DLC300 Module Operations.............................................................................16

Understanding the Front Panel Status LEDs...................................................................................16

Using the Monitor Jack .......................................................................................................................... 19

Understanding the Rear Panel Status LEDs ....................................................................................20

Removing the SFPs and DLC300 Module...................................................................................21

Removing the SFP....................................................................................................................................21

Removing the DLC300 Module...........................................................................................................21

Index

viii DLC300 Function Module Installation and Operations Manual

DLC300 Function Module Installation and Operations Manual ix

About This Manual

This manual provides instructions for installing, conguring, and operating the DLC300 function module.

Audience

This manual is intended for the following trained and qualied service personnel who are responsible for

installing and operating the DLC300:

• System installer

• Hardware technician

• System operator

Related Documentation

The following documentation contains material related to the DLC300 function module:

Document Provides . . .

DLC300 Data Sheet Product operating and environmental specications, and regulatory

conformance information.

DLC300 Quick Start Product conguration information and descriptions of the front panel

status LED operations.

DigiLink Media Transport Platform Chassis

Installation and Operations Manual

Overview and installation instructions for the DigiLink media transport

platform chassis options, including the following:

• DL4360x chassis—Installation of this 12-slot chassis, power

supplies, switch module, and function modules.

• DL4300 chassis—Installation of this 12-slot chassis, power

supplies, and function modules.

• DL4000 chassis—Installation of this 4-slot chassis, power supplies,

and function modules.

DigiLink Media Transport Platform Datasheet Overview of the DigiLink media transport platform chassis options.

DL Manager Setup and Operations Manual Overview and operating instructions for the DL Manager element

management system.

Note: To obtain the latest versions of this guide and the documents listed in this section, go to www.

artel.com.

xDLC300 Function Module Installation and Operations Manual

Symbols and Conventions

This manual uses the following symbols and conventions.

Caution

A caution means that a specic action you take or fail to take could cause harm to the equipment or

to the data transmission.

Warning

A warning describes an action you take or fail to take that could result in death, serious physical injury, or

destruction of property.

Note: Important related information, reminders, and recommendations.

Italics—used for emphasis, for indicating the rst occurrence of a new term, and for book titles

1. Numbered list—where the order of the items is important

• Bulleted list—where the items are of equal importance and their order is unimportant

Artel Customer Service

You can reach Customer Service by e-mail at customer[email protected] or by telephone:

In the US call (800) 225-0228, then select 1 for technical support.

Outside the US call (978) 263-5775, then select 1 for technical support.

When requesting assistance, please be ready to provide the following information:

• Your name and telephone number

• Product model and serial number

• Brief description of the problem

• List of symptoms

• Steps you have already taken to try to resolve the problem

If the product is damaged

If any portion of the unit is damaged, forward an immediate request to the delivering carrier to perform an

inspection of the product and to prepare a damage report. Save the container and all packing materials until

the contents are veried.

Concurrently, report the nature and extent of the damage to Artel Customer Service so that action can be

initiated to either repair or replace the damaged items.

Do not return any items to Artel until you obtain instructions from Customer Service.

Report the problem or deciency to Customer Service along with the model number and serial number. Upon

receipt of this information, Artel will provide service instructions, or a Return Authorization Number and

shipping information.

DLC300 Function Module Installation and Operations Manual 1

Information About the DLC300

DLC300 Function Module

3G-SDI Multi-Rate Digital Video

Optical Transmitter/Receiver/Repeater

Information About the DLC300

This manual introduces the DLC300 function module, which is a multi-functional digital video ber transport

module that can optically transport all digital formats from 19.39Mb/sATSC to 3G-SDI (SMPTE 424M) using

specialized video or standard multi-rate SFP transceivers. You can congure the DLC300 as a receiver,

transmitter, or repeater.

The DLC300 can transmit and receive external signals using the following built-in options:

• BNC connectors and Small Form Factor Pluggable (SFP) ports for connecting to external devices

• Backplane connector for connecting to other function modules in the DL4000 chassis

For transmitting and receiving optical signals, the DLC300 can use dual SFP optics available in WDM, CWDM,

or DWDM optical wavelengths. You can congure the DLC300 to use one or both SFPs. When dual SFPs are

used for redundancy, the DLC300 can automatically switch over to the secondary SFP when the input signal to

the primary SFP is lost.The DLC300 can also switch back to the input on the primary SFP if the signal on this

SFP returns.

The DLC300 can add SMPTE EG-34 style dithering to allow transmission over DWDM networks of video that

may contain pathological bit sequences. For more information about the DLC300 signal processing options,

see the“Setting the SW3 Conguration DIP Switch”section on page 11.

The DLC300 also supports conversion of 19.39Mb/sATSC (SMPTE 310M) to 270Mb/s DVB-ASI.

Provisioning and monitoring is accomplished using DIP switches, LEDs, front panel monitor jack, or Artel’s DL

Manager, which is an element management system (for more information, see the DL Manager Setup and

Operations Manual).The DLC300 also has a set of major and minor alarms that indicate problems related to its

on-board power supplies, optics, temperature, and the input signals.

2DLC300 Function Module Installation and Operations Manual

DLC300 Function Module

DLC300 Laser Warnings

The SFP module used in the DLC300 has a transmitter that contains a Class 1 laser. You must adhere to the

standard safety practices for handling a Class 1 laser product, including the following warning.

Warning

Never stare directly into a ber optic connector.

Although the light used in most ber optic transmissions is not visible to the naked eye, potentially

harmful levels of radiation may be present at the optical output ports and unconnected transmit ber

ends.

Failure to observe this warning could result in personal injury.

DLC300 Function Module Installation and Operations Manual 3

DLC300 Module Functional Description

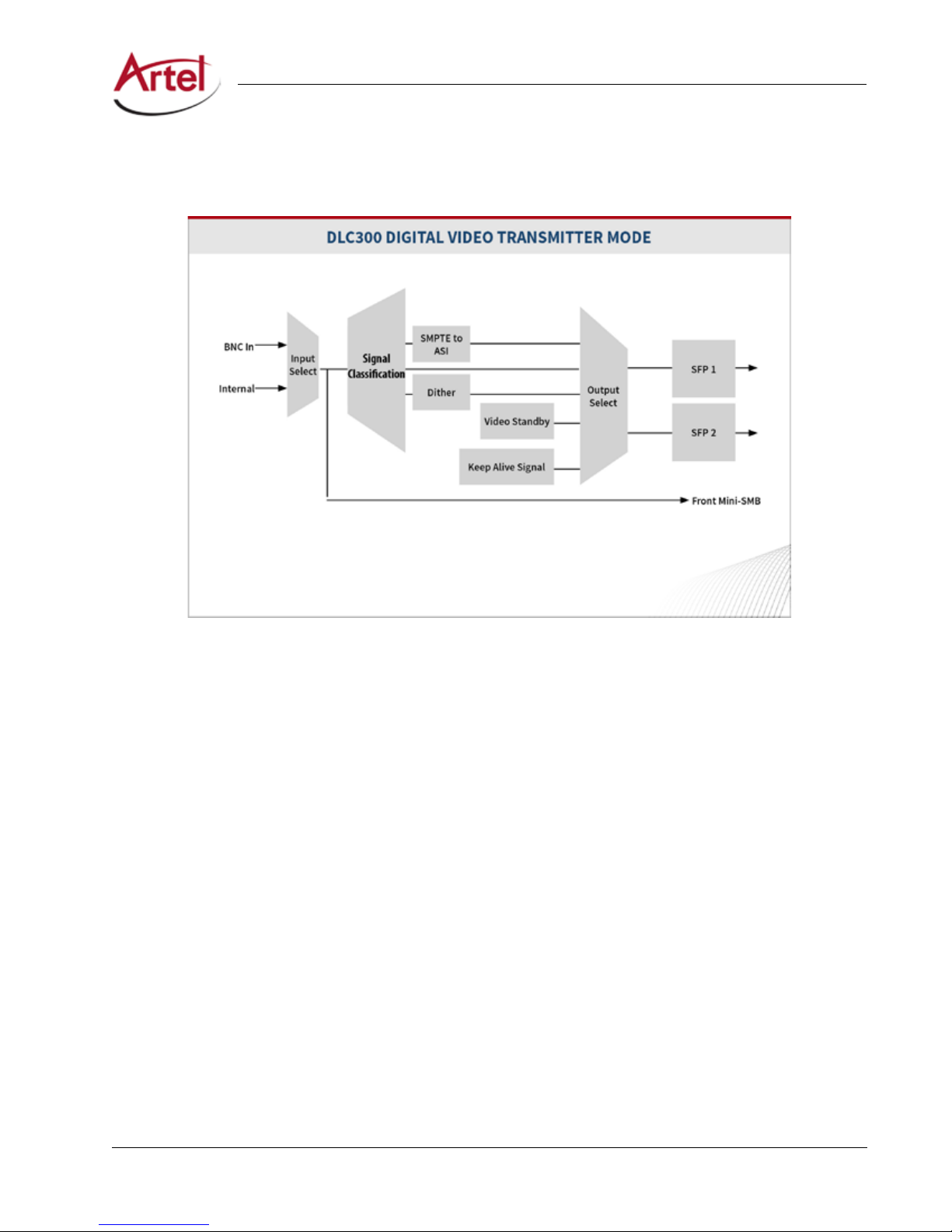

Figure 1 shows the functional block diagram for the DLC300.

Figure 1. DLC300 Module Functional Block Diagram

The video formats that the DLC300 supports include the following:

• 1.485Gb/s and 1.485/1.001Gb/s—HD-SDI (SMPTE 292M)

• 2.97Gb/s and 2.97/1.001Gb/s—3G-SDI (SMPTE 424M)

• 270Mb/s:

– SD-SDI (SMPTE 259M-C, ITU 656)

– SDTI (SMPTE 305M)

– DVB-ASI

• 19.39Mb/s—ATSC (SMPTE 310M)

This section contains the following topics:

• Signal Paths (page 4)

• Electrical Input (page 4)

• Electrical Outputs (page 4)

• Optical Input and Output (page 5)

4DLC300 Function Module Installation and Operations Manual

DLC300 Function Module

Signal Paths

The primary signal path of the DLC300 is determined by the mode in which it operates, which are as follows:

• Transmitter mode—Electrical input to optical transmit

• Receiver mode—Optical receive to electrical transmit

• Repeater mode—Optical receive to optical transmit

Both hardware and software provide exibility in routing, such as allowing the selection of input and output

paths.

The DLC300 allows you to select one the following transmitter sources:

• Electrical input BNC (transmitter mode)

• One of the other DL4000 chassis slots (transmitter mode)

• Optical receiver output (repeater mode)

The receive path is connected to the electrical outputs and is also made available to the function modules

located in the remaining chassis slots.

The monitor output is determined by the operating mode of the DLC300. When the DLC300 is operating in

either receive or repeater mode, the monitor displays the received signal.When the DLC300 is operating in

transmitter mode, the monitor displays the transmitted signal.

Electrical Input

The electrical input is a precision 75Ohm BNC and includes an automatic cable equalizer. This input passes

through a multi-rate reclocker that detects the signal rate but is format transparent.

When no input signal is connected and the DLC300 is in transmitter or repeater mode, the DLC300 transmits a

standby signal to the optical receiver to maintain the optical link between modules. The DLC300 can transmit

either an SDI video or a PRBS143 non-video standby signal.

Note: For optimal performance, follow the recommendations stated in the DLC300 data sheet for full

cable lengths and cable types.

Electrical Outputs

The electrical output is a precision 75Ohm BNC with a multirate cable driver.

The mini 75Ohm SMB monitor jack (MON) located on the front panel also provides an electrical output (see

the“Signal Paths”section on page 4)

Receive electrical output is provided on the output BNC through a multirate driver directly connected to the

receive path reclocker. The electrical output signal is also made available to the function modules located in

the remaining DL4000 chassis slots.

Note: For optimal performance, follow the recommendations stated in the DLC300 data sheet for full

cable lengths and cable types.

DLC300 Function Module Installation and Operations Manual 5

DLC300 Module Overview

Optical Input and Output

The optical interfaces are provided by two SFP sockets; a primary SFP (PRI) and a secondary SFP (SEC). Each

SFP uses LC/PC connectors. Optical performance is dependant the quality of your optical ber and ber

interconnects, and on the selected SFP, which must be specically qualied by Artel. Consult Artel for available

SFP options.

DLC300 Module Overview

Figure 2 provides a view of the major components of the DLC300.

Figure 2. DLC300 Module Major Components

Table 1 describes the components called out in Figure 2.

Table 1. DLC300 Elements

Item DLC300 Element for details, see...

1Rear panel BNC connectors for the following electrical

connections:

• IN—Video in

• OUT—Video out or loop-through out

Cabling the DLC300 Module (page

14)

6DLC300 Function Module Installation and Operations Manual

DLC300 Function Module

Table 1. DLC300 Elements

Item DLC300 Element for details, see...

2Two SFP sockets and status LEDs (ACT and STAT) for the

following primary and secondary optical connections:

• TX—Transmit

• RX—Receive

Cabling the DLC300 Module (page 14)

and

Understanding the Rear Panel Status LEDs

(page 20)

3Rear panel alarm indicator LED (OK). Understanding the Rear Panel Status LEDs

(page 20)

4Conguration DIP switches:

• SW1—Video rate lockout

• SW2—Input signal source and standby signal format

• SW3—Video processing, alarm and optical reversion

control

Setting the Conguration DIP Switches

(page 9)

5Mode select switch SW4. Determines operating mode;

transmit, receive, or repeat.

Setting the SW4 Mode Select Switch (page

6Front panel module and TX/RX status LEDs:

• OK—Alarm indicator

• EMS—Element Management System indicator

• TX—Transmit signal indicators; one for the primary

(PRI) and one for the secondary (SEC) SFP

• RX—Receive signal indicators; one for the primary (PRI)

and one for the secondary (SEC) SFP

Understanding the Front Panel Status LEDs

(page 16)

7Front panel signal rate LEDs:

• 3G—3G-SDI signal indicator (2.97Gb/s and

2.97/1.001Gb/s)

• HD—High denition signal indicator (1.485Gb/s and

1.485/1.001Gb/s)

• SD—SD-SDI signal indicator

• ASI—DVB-ASI signal indicator

• ATSC—ATSC signal indicator

Understanding the Front Panel Status LEDs

(page 16)

8Front panel monitor mini 75Ohm SMB output jack. Using the Monitor Jack (page 19)

9Backplane connector—Provides power to the module,

allows the module to share signals with other function

modules, and is used for alarm and management signals.

N/A

(Continued)

DLC300 Function Module Installation and Operations Manual 7

Conguring the DLC300 Module Operation

This section describes how to congure the DLC300 mode of operation and the function of the transmit and

receive signal connections. You congure the DLC300 to operate one of the following modes:

• Transmitter mode—The optical transmitters are enabled and the optical receivers are disabled. The

DLC300 operates as an electrical-to-optical transmitter.

This mode supports the following I/O connections:

– Input—A single electrical input is accepted from either the digital video IN BNC connector or one

of the four backplane connectors.

– Output—The optical output is available at both SFP transmitters. The electrical output is available

on the BNC OUT connector and the monitor jack. The monitor jack output signal is undithered

when the dithering DIP switch is enabled.

The DLC300 auto-congures for one or two SFPs. When operating with just one SFP, you can use either the

primary or secondary SFP socket. When no electrical input is detected, the DLC300 transmits a switch-

selectable standby signal; either SDI video or a PRBS143 non-video standby signal.

The DLC300 detects the incoming bit rate and its processing feature includes SDI EG-34 dithering. When

you congure the DLC300 to process the input signal, it adds dithering to SDI.The dithering processing

makes the DLC300 optical output compatible with DWDM networks for any of the applied signals.

• Receiver mode—The optical receivers are enabled and the optical transmitters are disabled. The

DLC300 operates as an optical-to-electrical receiver.

This mode supports the following I/O connections:

– Input—An optical input is accepted from one or both SFP receivers.

– Output—The electrical output is available at the output BNC (OUT), the four backplane

connectors, and the monitor jack.

• Repeater mode—The optical receivers and transmitters are both enabled. The DLC300 operates as

an optical-to-optical repeater.

This mode supports the following I/O connections:

– Input—An optical input is accepted from one or both SFP receivers.

– Output—The optical output, which has been reclocked to assure the optimal performance in

long-haul applications, is available at both SFP transmitters.The electrical output is available at

the output BNC (OUT), the four backplane connectors, and the monitor jack.

The switches that control the functionality of the DLC300 are the SW1, SW2, and SW3 conguration DIP

switches and the SW4 mode select switch (see Figure 2).

Dual SFP optics provide optical redundancy and work in transmitter, receiver, and repeater modes. They can

also serve as an additional output source for fanout purposes in transmitter and repeater modes.The DLC300

switches over to the secondary SFP when the input signal to the primary SFP is lost. If you enable the optical

reversion feature, the optical input selector reverts to the input signal on the primary SFP receiver if the signal

on this SFP returns.The default reversion time is set to one minute, which means that

8DLC300 Function Module Installation and Operations Manual

DLC300 Function Module

the DLC300 does not revert back to the primary SFP signal until it has returned for one minute.You can modify

the length of the reversion time using DL Manager (see the DL Manager Setup and Operations Manual). The

optical reversion feature is disabled by default. For information about enabling this feature, see the“Setting

the SW3 Conguration DIP Switch”section on page 11.

Default Conguration Settings

Artel ships the DLC300 congured as follows:

• Transmitter mode selected

• All signal types allowed

• Electrical input set to BNC

• Standby signal set to Artel non-video standby signal

• SDI Standby set to 525 line (SD-SDI), 59.94 fps (HD/3G)

• Forced bypass is disabled (when forced bypass is enabled, all signal classication, dithering, and

reclocking is bypassed)

• SDI processing set to no EG-34 dithering

• ATSC to ASI conversion is disabled

• SFP alarms are enabled

• Optical reversion is disabled

• Video loss alarm is disabled

• EMS override is enabled (EMS can change the DLC300 conguration)

Note: You congure the DLC300 while the module is out of the chassis because the mode select

switch and the conguration DIP switches are mounted to the top of the module PCB.

This section contains the following topics:

• Setting the SW4 Mode Select Switch (page 9)

• Setting the Conguration DIP Switches (page 9)

DLC300 Function Module Installation and Operations Manual 9

Conguring the DLC300 Module Operation

Setting the SW4 Mode Select Switch

The SW4 mode select switch (see Figure 3) determines the operating mode for your DLC300.

Figure 3. DLC300 SW4 Mode Select Switch

Table 2 describes the operating mode options and the signal types that are present depending on the

operating mode.

Table 2. SW4 Mode Select Switch

Mode

I/O Transmit (TX) Receive (RX) Repeat (RPT)

Electrical In BNC IN or backplane from

another module (user selected).

Not used. Not used.

Optical In Not used. Primary or secondary

SFP (automatically

selected).

Primary or secondary

SFP (automatically

selected).

Electrical Out BNC OUT Same as Electrical In. Same as Optical In.1Same as Optical In.1

Backplane to

other modules

Same as Electrical In.1Same as Optical In.1Same as Optical In.1

Monitor Same as Electrical In. 2Same as Optical In.1Same as Optical In.1

Optical Out Same as Electrical In.1Not used. Same as Optical In.

1. Subject to EG-34 dithering as congured by the EG-34 dithering DIP switch (see “Setting the SW3 Conguration

DIP Switch” section on page 11).

2. When ATSC-to-ASI conversion is enabled, the monitor output is the ASI version of the signal (see “Setting the SW3

Conguration DIP Switch” section on page 11).

Setting the Conguration DIP Switches

The SW1, SW2, and SW3 conguration DIP switches (see Figure 4) determine the functionality of the DLC300

as follows:

• SW1—Controls the video rate and forced bypass function settings.

• SW2—Controls the input source (BNC IN or backplane connector) for transmitter mode and

operation of the standby video pattern generator.

• SW3—Controls the following functions: SDI dithering, ATSC to ASI video conversion, SFP alarms,

optical reversion, video loss alarm, and EMS enable setting.

10 DLC300 Function Module Installation and Operations Manual

DLC300 Function Module

Figure 4. Conguration DIP Switches

Setting the SW1 Conguration DIP Switch

Table 3 describes the SW1 conguration DIP switch conguration options for setting the video rate.The

factory-set conguration settings are shown in bold type.

Table 3. SW1 Conguration DIP Switch:Video Rate

Function Selected Operation

Position

S1 S2 S3 S4 S5 S6 S7 S8

3G-SDI Enabled: Signal type accepted. ON
