ARTEX A3-06-2824-1 User manual

A3-06-2824-1 Handheld Programmer
Operations Manual
Y1-03-0272-1 Rev. C
Artex Products / ACR Electronics, Inc.
5757 Ravenswood Road, Fort Lauderdale, FL 33312
Phone [phone], Fax [phone]
www.acrartex.com

Y1-03-0272-1 Rev. B A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential
PROPRIETARY INFORMATION
This document contains proprietary information and such information may not be disclosed to others for
any purpose, nor used for manufacturing purposes without written permission from ACR Electronics, Inc.
Information in this manual is subject to change without notice. ACR Electronics, Inc. makes no warranty,
expressed or implied, with regard to this manual, including but not limited to any implied warranties of
merchantability, fitness for a particular purpose, and non-infringement. In addition, ACR Electronics, Inc.
makes no warranty with regard to the documentation or data contained herein. ACR Electronics, Inc. is
not liable in the event of incidentals, special, consequential, or any other damages in connection with or
arising from furnishing, performance, or use of this manual.
Reproduction of this publication or any portion thereof by any means is prohibited. For further information
contact Sales, ACR Electronics, Inc., 5757 Ravenswood Rd, Fort Lauderdale, FL 33312.
Telephone [phone].
COPYRIGHT NOTICE
Meazura, Meazura Compatible, MEZ1500and MZIOare all trademarks of ACEECA
International, Ltd.
Avionic Toolsis a trademark of Avionic Tools, LLC, 88 South Edgewood Rd., Bedminster, NJ
07921.
Palm, Palm/Garnet OS, HotSync, Palm Poweredlogo, and PalmPrintare registered
trademarks of PalmSource, Inc., or its affiliates; and Palm Poweredis a trademark of Palm
Trademark Holding Company, LLC. Other brands may be trademarks of their respective owners.

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential
Revision History
REVISION
CHANGE
DATE
A
RELEASE
01/06/2014
B
ECO #15605 CORRECT CROSS-REFERENCE ON PAGE 33
FOR INFORMATION ON PRINTING LABELS AND
REPORTS.
07/14/2014
C
ECO #16926
8/14/2018

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential
TABLE OF CONTENTS
1. INTRODUCTION.................................................................................................................4
1.1 APPLICATION.......................................................................................................................4
1.2 DIFFERENCES ......................................................................................................................4
1.3 FEATURES...........................................................................................................................5
1.4 FUNCTIONALITY ...................................................................................................................5
2. HARDWARE........................................................................................................................7
2.1 OVERVIEW ..........................................................................................................................7
2.1.1 Connections..........................................................................................................7
2.2 BATTERY ............................................................................................................................8
2.2.1 Warnings..............................................................................................................8
2.2.2 Storage ................................................................................................................8
2.2.3 Installation ...........................................................................................................9
2.2.4 Charging ............................................................................................................10
2.2.5 Recycle and Disposal Methods ............................................................................. 11
2.3 UNIT INITIALIZATION .......................................................................................................... 11
3. PALM™ DESKTOP SOFTWARE ..........................................................................................12
3.1 HOT SYNC ........................................................................................................................ 12
4. ARTEX PROGRAMMING SOFTWARE ................................................................................14
4.1 OVERVIEW ........................................................................................................................ 14
4.2SELECTING PREFERENCES ..................................................................................................... 14
4.3PROGRAMMER DATABASE......................................................................................................15
4.4EMERGENCY LOCATOR TRANSMITTER (ELT) PROGRAMMING.......................................................... 15
4.5COUNTRY CODE DATABASE ...................................................................................................19
4.6PROTOCOLS ...................................................................................................................... 19
4.6.1 Aviation User / Tail Number (Short)...................................................................... 20
4.6.2 Serial User / ELT / COSPAS (Short) ...................................................................... 21
4.6.3 Serial User / Aircraft 24-Bit Addr (Short) ............................................................... 21
4.6.4 Serial User / Aircraft 24-Bit Addr/Ntl (Short) ......................................................... 22
4.6.5 Serial User / Aircraft Operator Designator (Short).................................................. 23
4.6.6 Serial User / Aircraft 24-Bit Loc (Long) **ELT 345/ELT 1000/ELT 3000 only** ........23
4.6.7 Serial User /ELT/Cospas Loc (Long) **ELT 345/ELT 1000/ELT 3000 only**............. 23
4.6.8 Serial User / Aircraft Operator Loc (Long) **ELT 345/ELT 1000/ELT 3000 only**.... 23
4.6.9 Aviation User / Tail Number / Location (Long)....................................................... 23
4.6.10 Std Location / Aircraft 24-Bit Address (Long) ........................................................ 26
4.6.11 Std Location / ELT Serial (Long)........................................................................... 26
4.6.12 National Location / ELT Serial (Long).................................................................... 27
4.7PROGRAMMING A DIFFERENT COUNTRY CODE FOR USE WITH A SPECIFIC 24-BIT ADDRESS ...................27
4.8PROGRAMMING CONCLUSION ................................................................................................. 27
5. PROGRAMMING VERIFICATION......................................................................................29
5.1 ELT TESTING PRECAUTIONS ................................................................................................... 29

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential
5.2 ELT READER FUNCTION (SARCALC) .......................................................................................... 29
5.3 MESSAGE DISPLAY ............................................................................................................... 31
5.4 READER DATABASE ..............................................................................................................32
5.5 ELT READER PREFERENCES .................................................................................................... 32
5.6 SARCALC DESKTOP............................................................................................................... 34
5.7 PRINTING MESSAGES............................................................................................................ 34
6. LABELING REQUIREMENTS .............................................................................................36
7. CIVIL AVIATION AUTHORITY REGISTRATION REQUIREMENTS.....................................37
8. SPECIFICATIONS AND CALIBRATION .............................................................................38
8.1 MEAZURAMEZ1500 SPECIFICATIONS .................................................................................... 38
8.2 HANDHELD PROGRAMMER MODULE SPECIFICATIONS:................................................................... 38
8.3 CALIBRATION.....................................................................................................................38
9. COMPONENTS AND OPTIONAL EQUIPMENT ...................................................................39
9.1 SYSTEM COMPONENT PART NUMBERS ...................................................................................... 39
9.2 OPTIONAL EQUIPMENT.........................................................................................................39
10. TROUBLESHOOTING........................................................................................................40
10.1 TROUBLE SHOOTING GUIDE ..................................................................................................40
10.2 TECHNICAL ASSISTANCE .......................................................................................................40
11. WARRANTY INFORMATION.............................................................................................41

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 4
1. Introduction
The Handheld Programmer and beacon reader module, installed in an Aceeca Meazura
MEZ1500 unit using Palm/Garnet OS, is designed to program any Artex 406 MHz
Emergency Locator Transmitter, as well as decode and display the encoded 406 MHz
message. When used as a reader, the programmer can be connected directly to the ELT
or monitored “over the air” using the whip antenna, if allowed by local and/or national
regulations. The reader will decode any 406 MHz aviation protocol for ELTs.
All instructions contained herein refer to Artex ELTs only. Familiarity with Palmdevices
and/or the Palm/Garnet OSsoftware is highly recommended. The words “Meazura
MEZ1500” are used throughout this document to describe the base Palmunit.
NOTE: The Artex Handheld Programmer does not program or decode Personal Locator
Beacons (PLBs) or Emergency Position-Indicating Radio Beacons (EPIRBs).
NOTE: When connecting directly to an ELT, to prevent damage to the test unit,
be sure to use the attenuator supplied as optional equipment.
(Reference subsection 11.2)
1.1 Application
The Handheld Programmer performs the functions of the Artex A3-06-2825 ELT Test
Set, with the added capability of programming ELTs. In all instances where existing
and/or previous Artex documentation makes reference to a 453-0131 Test Set, SARSAT
Beacon Test Set, 453-1000, 453-2000 or A3-06-2825 ELT Test Set, the Artex Handheld
Programmer P/N A3-06-2824-1 may be used as a direct substitute.
Follow the general directions for testing the 406 MHz signal, as directed in the
applicable Artex ELT manual, using the operational instructions for the Handheld
Programmer as outlined in this manual. Screen views depicted in ELT manuals for the
previous testers (453-0131 or 453-1000) differ significantly from the Handheld
Programmer. Refer to the screen views shown in this manual and the actual display on
the Handheld Programmer when using documentation that refers to the 453-0131, 453-
1000 or A3-06-2825 tester.
NOTE: The Handheld Programmer uses entirely new and distinct software and will not
interface with the previous Artex Programming Software.
NOTE: This manual does not describe other functions of the Meazura
MEZ1500/Palmplatform or other Palmbased applications that may be used.
Contact Aceeca at www.aceeca.com for details and user guides.
1.2 Differences
The primary differences between the Sartech test set (ARG 5410 or Artex P/N 453-0131)
and the Handheld Programmer are:
•Ability to program the ELT, not just read it (except for P/N A3-06-2825)
•Ease of use

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 5
•Rapid signal acquisition and processing
•Display of all ELT 406 MHz message information on one screen
•Position data (when present) displayed in degrees, minutes, seconds
•Use of in-line attenuation not required
•Rechargeable long life battery
•Does not require periodic calibration
The primary differences between the previous Artex Programming Software (510-0406)
with Level Shifter (500-0232) and the Artex software used in the Handheld Programmer
are:
•Ease of use
•Portability
•Support of additional programming protocols
•Retention of programming information
•Rechargeable long life battery
NOTE: The Artex Handheld Programmer does not interface with the previous Artex
Programming Software (510-0406) or Level Shifter (500-0232).
1.3 Features
The A3-06-2824-1 Handheld Programmer (Figure 1) has the following features and
capabilities:
•Ability to program all Artex 406 MHz ELTs with supported protocols
•All 406 MHz aircraft protocols decoded
•International Protection (IP) 67 standard rating
•Ruggedized case
•Internal database of received messages and programming
•Desktop application for database storage and review
•Long life rechargeable battery
•Built-in Radio Frequency (RF) attenuator
1.4 Functionality
The heart of the Handheld Programmer is the MeazuraMEZ1500 manufactured by
Aceeca International, Ltd of Christchurch, NZ. The MeazuraMEZ1500 uses the
Palm/Garnet OSoperating system.
Artex has customized operation of the MeazuraMEZ1500 by utilizing the MZIO
interface inside the MeazuraMEZ1500 unit. The “off-the-shelf” MeazuraMEZ1500
combined with a custom module containing the Artex programming hardware interface
comprises the Artex Handheld Programmer.

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 6
CAUTION: AS DELIVERED BY ARTEX, THE MZIOINTERFACE IS NOT
ACCESSIBLE BY THE USER WITHOUT VOIDING THE ARTEX
WARRANTY.
NOTE: Aceeca International, Ltd refers to the MeazuraMEZ1500 as an RDA, which
stands for “Rugged Digital Assistant”. This terminology is encountered on the
Aceeca web site and in their literature.
Additional operating information can be found in the Aceeca documents MEZ1500 Quick
Reference User Guide and MEZ1500 HotSync Configuration Guide available free for
download from Aceeca at www.aceeca.com

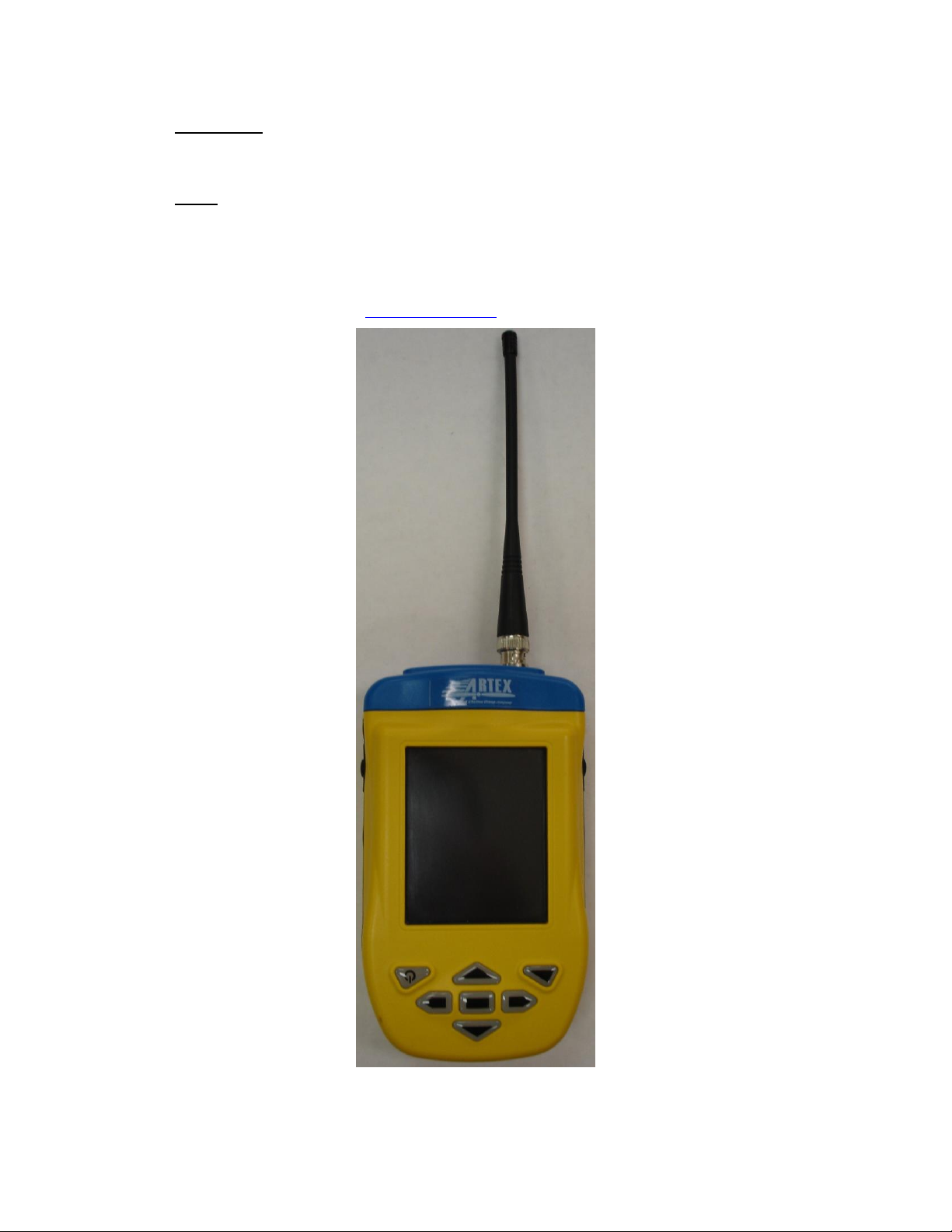

Figure 1: A3-06-2824-1 Handheld Programmer

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 7
2. Hardware
The Handheld Programmer allows communication with any Artex 406 MHz ELT. It inverts
and raises the data signal from the ELT to an RS-232 signal level. This enables the ELT to
“talk”to the Handheld Programmer for programming and diagnostic purposes.
2.1 Overview
The following subsections provide an overview of the Handheld Programmer hardware.
2.1.1Connections
The Handheld Programmer is fitted with two connectors (Figure 2):
•A quick connect/disconnect circular connector for connecting the programming
cables. This connector is push-on/pull-off type.
CAUTION:DO NOT TWIST THE CONNECTOR.
The built-in lock/release mechanism securely locks the mated connectors, while
allowing quick disconnection by simply pulling on the plug release collar. Molded-
in grooves prevent hand slippage when pulling on the connector.
Three cables are supplied with the Handheld Programmer to facilitate connection
to current Artex 406 MHz ELT models. The cables are:
▪611-0112 –For ME406 Series and ELT 345/1000
•The ELT reader portion of the Handheld Programmer uses a Bayonet Neill-
Concelman (BNC) connector to allow connection of a 110-418 antenna or a direct-
connect coax cable. See 9.2 Optional Equipment.

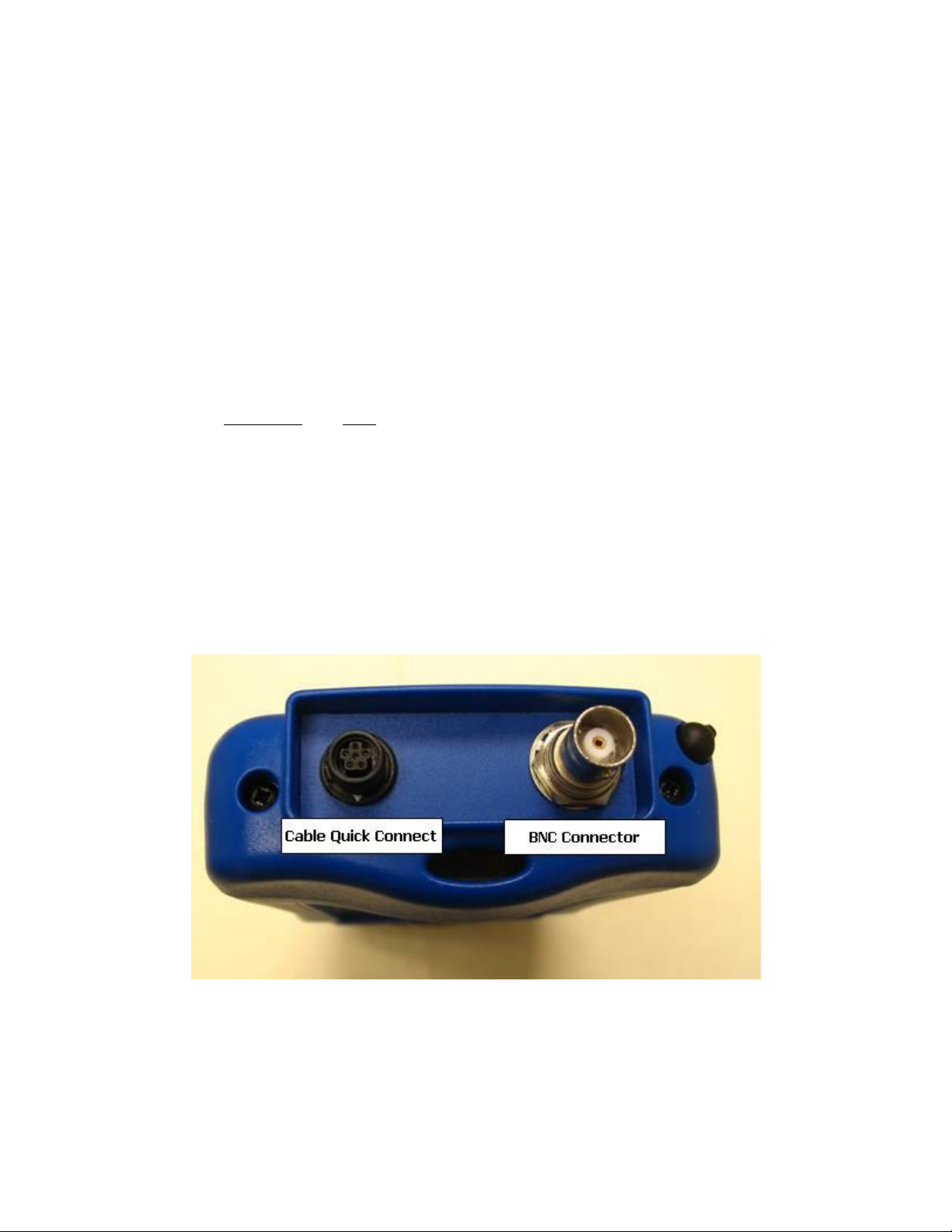

Figure 2: Handheld Programmer Connectors (for reference only) Controls

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 8

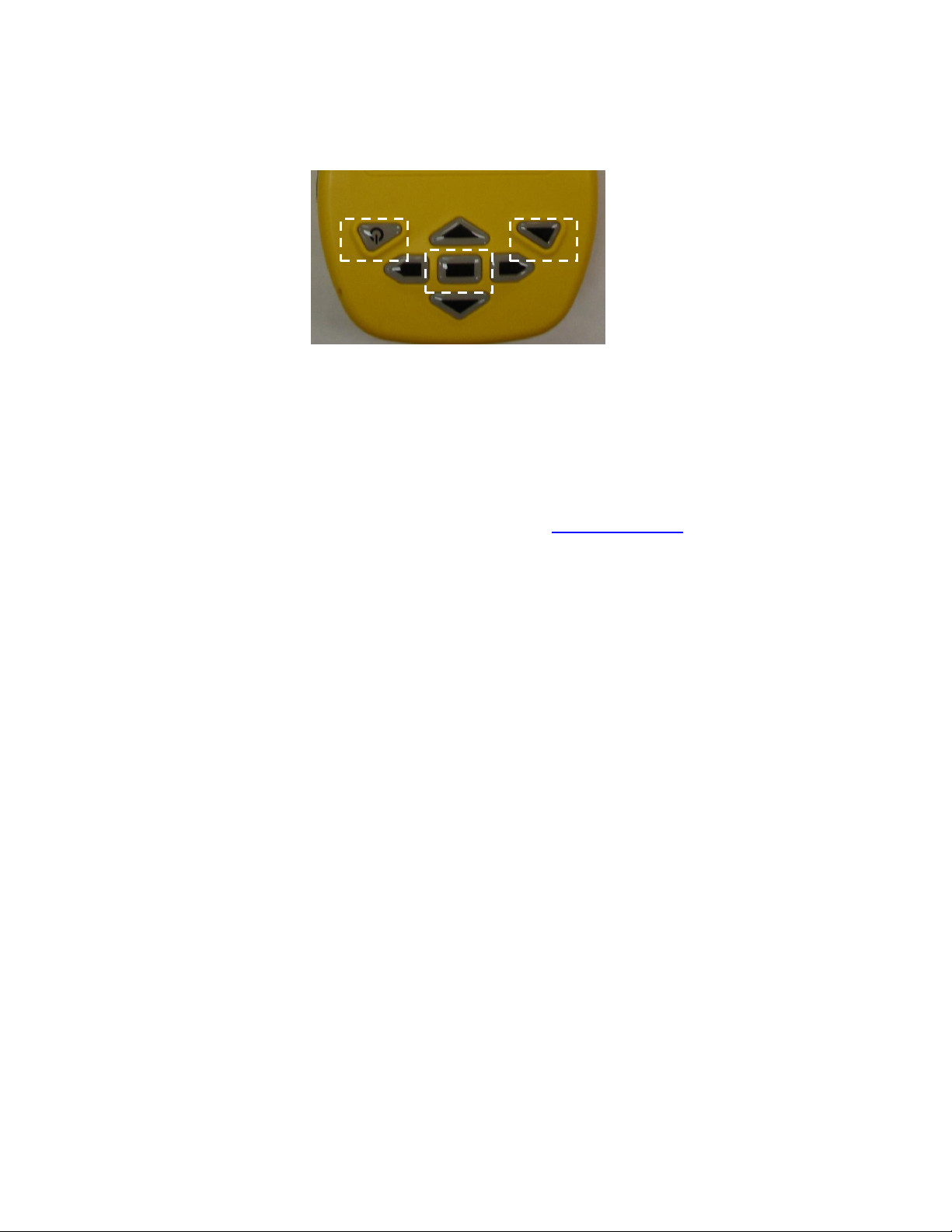

The MeazuraMEZ1500 is controlled with the buttons shown in Figure 3.
Figure 3: Controls
•The Power button is used to turn the unit off and on and, when pressed with the
Backlight button, for reset functions described later in this manual.
•Center button usage is discussed in detail later in the manual. The Arrow keys are
used for vertical and horizontal scrolling.
•Operation of Palm/Garnet OS®functions are described in greater detail in the
Aceeca MeazuraMEZ1500 “User’s Guide” (www.aceeca.com).
2.2 Battery
The Meazura™ MEZ1500 comes with a custom, rechargeable Lithium Ion battery pack
that can only be purchased from Aceeca or Artex.
2.2.1 Warnings
•Do not heat or throw the battery into a fire.
•Do not use or store the battery close to fire or where the ambient temperature
may be over 60°C.
•Do not put the battery in your pocket or in a bag together with metal objects. Do
not store the battery with such objects.
•Do not short circuit the (+) and (-) terminals with a metal object.
•Do not pierce the battery with a sharp object.
•Do not hit with a hammer, step on, throw, drop, or allow the battery to undergo
any strong shock.
•Do not disassemble or modify the battery.
•Do not solder the battery directly to the terminals.
•Do not use a battery that is severely scarred or deformed.
2.2.2 Storage
Unlike NiCad (Nickel Cadmium) batteries or NiMH (Nickel-metal Hydride) batteries,
lithium-ion batteries should be charged early and often. Never use battery
maintenance software to maintain your battery as this can reduce the life of your
battery. Li-ion batteries should be kept cool. They should not be subjected to freezing
temperatures. Aging will occur much faster at high temperatures and will reduce the
POWER
BLACKLIGHT
CENTER
BUTTON

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 9
life of your battery.
Purchase a Li-Ion battery pack only when you need a replacement, to ensure you
receive a fresh battery pack.
•Stop using the battery if it exhibits abnormal heat, odor, color, deformation or is in
an abnormal condition.
•Keep away from fire immediately when leakage or foul odor is detected.
•If liquid leaks onto your skin or clothing, immediately wash your skin with clean
water for 15 minutes.
•If liquid leaking from the battery gets into your eyes; do not rub your eyes.
Immediately wash out your eyes with clean water for 15 minutes and consult a
doctor.
•Before using the battery, be sure to thoroughly read the user's manual and
cautions on handling.
•For information on installing and removing the battery from equipment, thoroughly
read the user's manual for the specific equipment.
•Batteries have life cycles, so if the time that the battery is powering the equipment
becomes much shorter than usual, the battery life is at an end. Replace the
battery with a new one.
•Immediately remove a battery whose life cycle has expired from the equipment.
•When the battery is discarded, make it non-conducting by applying vinyl tape to
the (+) and (-) terminals. The battery must either be discarded as specified by
local regulations or put it in the recycling box of a store that is cooperating in the
recycling of rechargeable batteries.
•When not using the battery for an extended period, remove it from the equipment
and store it in a place with a low humidity and low temperature.
2.2.3 Installation
(Reference Figure 4)
1. Place the battery pack with the top end in first.
2. Push down on the bottom end of the battery ensuring that it is firmly in place.
3. Push the clip firmly towards the bottom of the test set until it clicks into place.
4. Charge the battery in accordance with Subsection 2.2.4.

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 10
Back Side View
2.2.4 Charging
The lithium-ion battery can provide between 300-500 charge/discharge cycles. The
lithium-ion battery is different from most other rechargeable batteries as charging
from a partially charged battery keeps the battery in great condition. Other batteries
prefer to be fully discharged each time before recharging. Fully discharging the
lithium-ion battery should be avoided wherever possible.
For most users, charging the battery at the end of each day would be the ideal
choice. The lithium-ion battery pack typically lasts about 2-3 years, but potentially
longer if cared for correctly.
When charging the battery, use a dedicated charger and follow the specified
conditions.
•Do not use or charge the battery close to fire or inside a car in which the
temperature may exceed 60° C.
•Stop charging the battery if charging is not completed within the specified time.
•Thoroughly read this manual before charging the battery.
•The battery can be charged within a 0° C to 45° C temperature range.
•Use the battery only in the specified equipment.
•Do not charge the battery in a place where static electricity is generated, or let
the battery touch something that is statically charged.
Charge the battery as follows:
1. Connect the charger cable to the communications cable (Figure 4).
2. Connect the communications cable to the unit (Figure 4).
3. Charge for a minimum of 2 hours, but no more than 3 hours.
CAUTION: DO NOT OVERCHARGE.
STYLUS
COMMUNICATIONS
CONNECTOR
BATTERY
CLIP
BATTERY
PACK

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 11

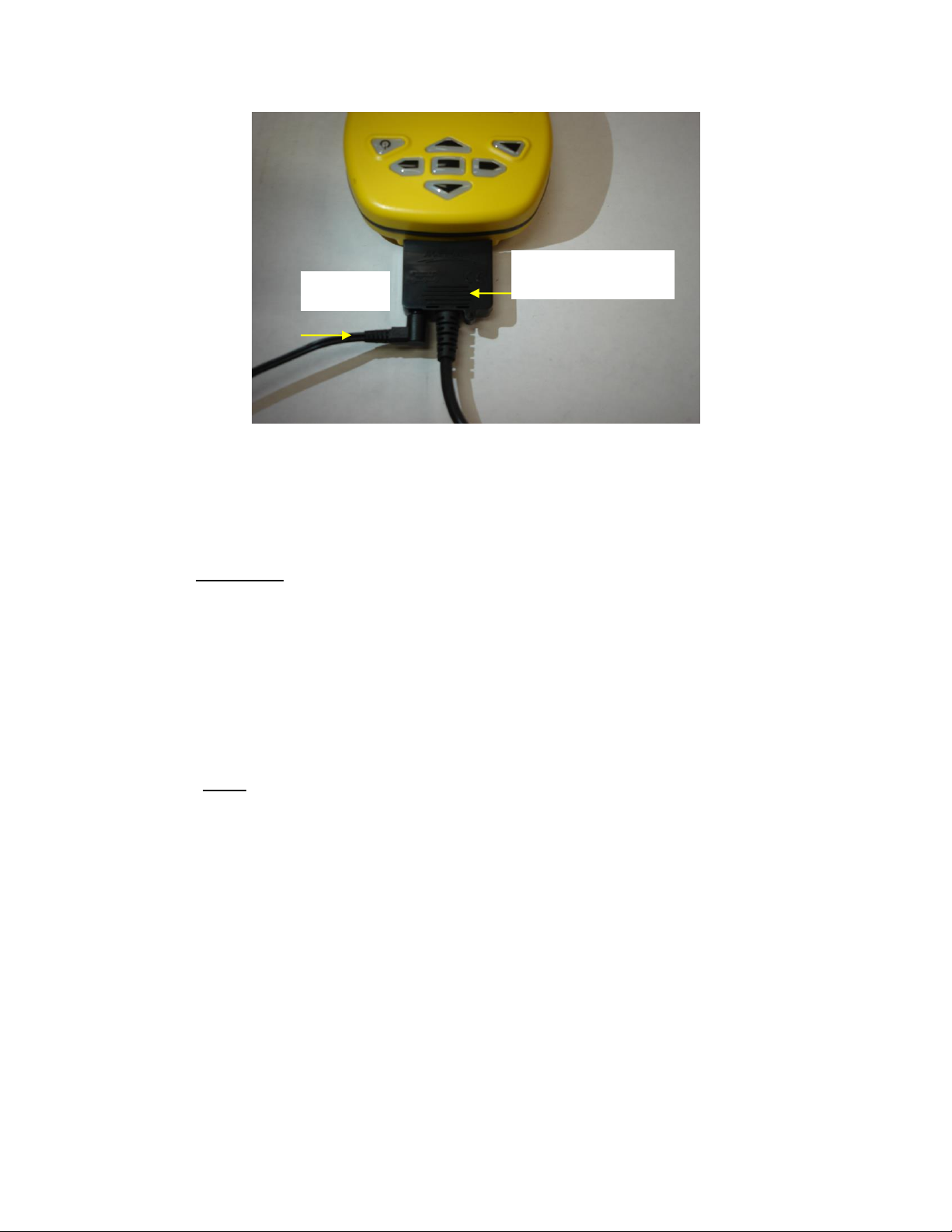

Figure 4: Charging Connection
2.2.5 Recycle and Disposal Methods
Lithium ion batteries, like all rechargeable batteries, are recyclable and should be
recycled.
CAUTION: IF A BATTERY IS DAMAGED, OR IF IT NO LONGER HOLDS A CHARGE,
DISPOSE OF IT PROMPTLY AND PROPERLY. DO NOT DISPOSE OF IT
ALONG WITH GENERAL WASTE. CALL YOUR LOCAL WASTE DISPOSAL
AGENCY OR ENVIRONMENTAL AGENCY FOR ADVICE ON BATTERY
DISPOSAL.
2.3 Unit Initialization
1. Turn the unit on by pressing the power button.
2. Follow the on-screen instructions for initialization and setting the date and time.
NOTE: The initialization routine is very important to ensure proper function of the
stylus.
3. Refer to the MeazuraMEZ1500 User’s Guide for greater details on initialization.
CHARGER
CABLE
COMMUNICATIONS
CONNECTOR

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 12
3. Palm™ Desktop Software
To obtain the Palm™Desktop Software, follow these instructions:
1. Open desktop browser and go to www.aceeca.com.
2. Select options in the following order:
3. Unzip file folder SFW_WINX32_PALM-DESKTOP_V4.1_20110322.ZIP.
•Support
•Downloads
•Desktop Software
•Palm/Garnet Desktop for Windows PC
•Download Now
4. Open file folder Palm Desktop Installation.
5. Double click setup.exe and follow prompts.
•Install Shield Wizard will open. Select Next.
•Read the SOFTWARE LICENSE AGREEMENT.
•Select Existing User or Create New User.
•When asked about Connections, select USB.
•Select Install, then Finish.
6. Open Palm Desktop.
NOTE: The Palm desktop software works most amiably if a single Meazura™(Palm)
device is associated with a single computer. It is possible to use more than one
Meazura™device with the same computer, but attention must be given to
selection of appropriate user names when transferring data to and from
different units.
The Palm™software identifies the User Name when the Palm™Desktop application is
installed on a PC. Only one User Name can be used with the Artex applications.
3.1 Hot Sync
Once installed and configured, the Palm™ Desktop software allows installation of
additional software applications, as well as performing the hot sync function to transfer
data to and from the Handheld Programmer (MeazuraMEZ1500). ACR/ARTEX provides
a USB cable (452-0103) to connect to a PC.
The hot sync function is accessed by tapping the HotSync icon on the main Meazura
screen as shown in Figure 5. The hot sync operation is described in greater detail in the
Aceeca “HotSync Guide” available free for download at www.aceeca.com.

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 13
1. Connect tester to PC using Sync Cable. Windows may not recognize the device and
will require a driver.
2. Open desktop browser and go to www.aceeca.com.
3. Select options in the following order:
•Support
•Downloads
•Drivers
•64 bit USB Windows Driver for Palm/Garnet OS or 32 bit USB
Windows Driver for Palm/Garnet OS.
•Download Now
4. Unzip file folder DVR_WINX64_USB_GN4_GN5_20110322.ZIP.
•Follow instructions found in 64 bit USB Driver Installation Guide
20110607.
5. Ensure Palm Desktop is open.
6. Select the Hotsync icon on tester. Select Hotsync icon on second screen.
7. The tester will make a series of beeps.
•Select USER on PC, then OK.
•Hotsync is now complete.
Figure 5: Hot Sync Icon

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 14
4. Artex Programming Software
The following subsections describe the functionality and operation of the Artex
programming software.
4.1 Overview
The Artex software is a custom package designed to simplify reading and programming
data to and from Artex ELTs. The Artex software builds a custom 406 MHz hex message
for the user from simple data input provided by the user. This data is then programmed
into the ELT. The Artex software allows the user to print the 406 MHz hex message and
its decoded breakdown for record keeping.
When shipped, the “Artex” and “Sarcalc” software will need to be loaded from the
website after training is completed and the agreement signed.
To open the Artex software:

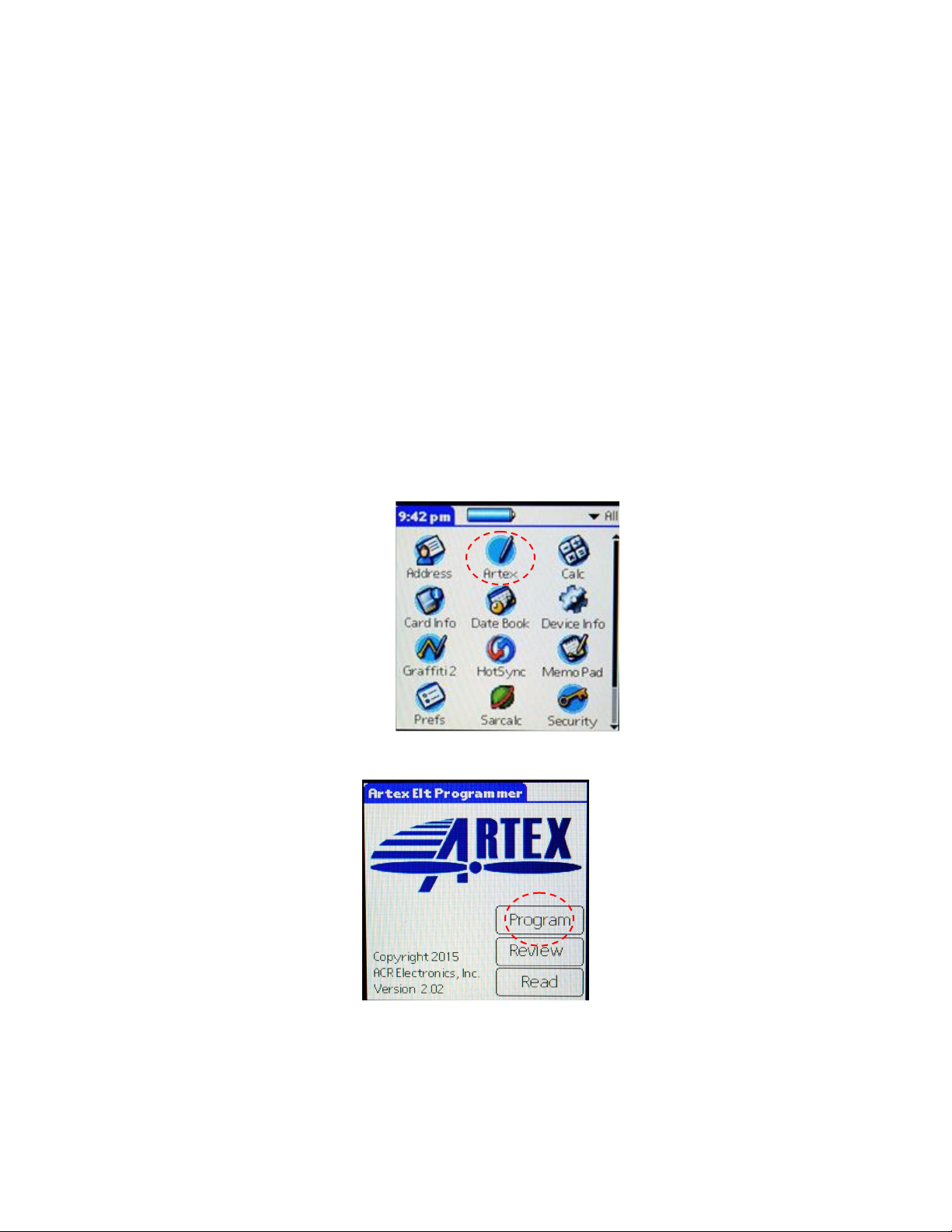

1. Tap the “Artex” icon on the home screen.
2. The Artex main screen is shown in Figure 6.
Figure 6: Artex Software Main Screen
4.2 Selecting Preferences
The Artex software has several preferences that may be selected prior to use.
1. Tap the upper left-hand corner of the Artex main screen (Artex ELT Programmer
header) to get the Screens drop-down menu.

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 15

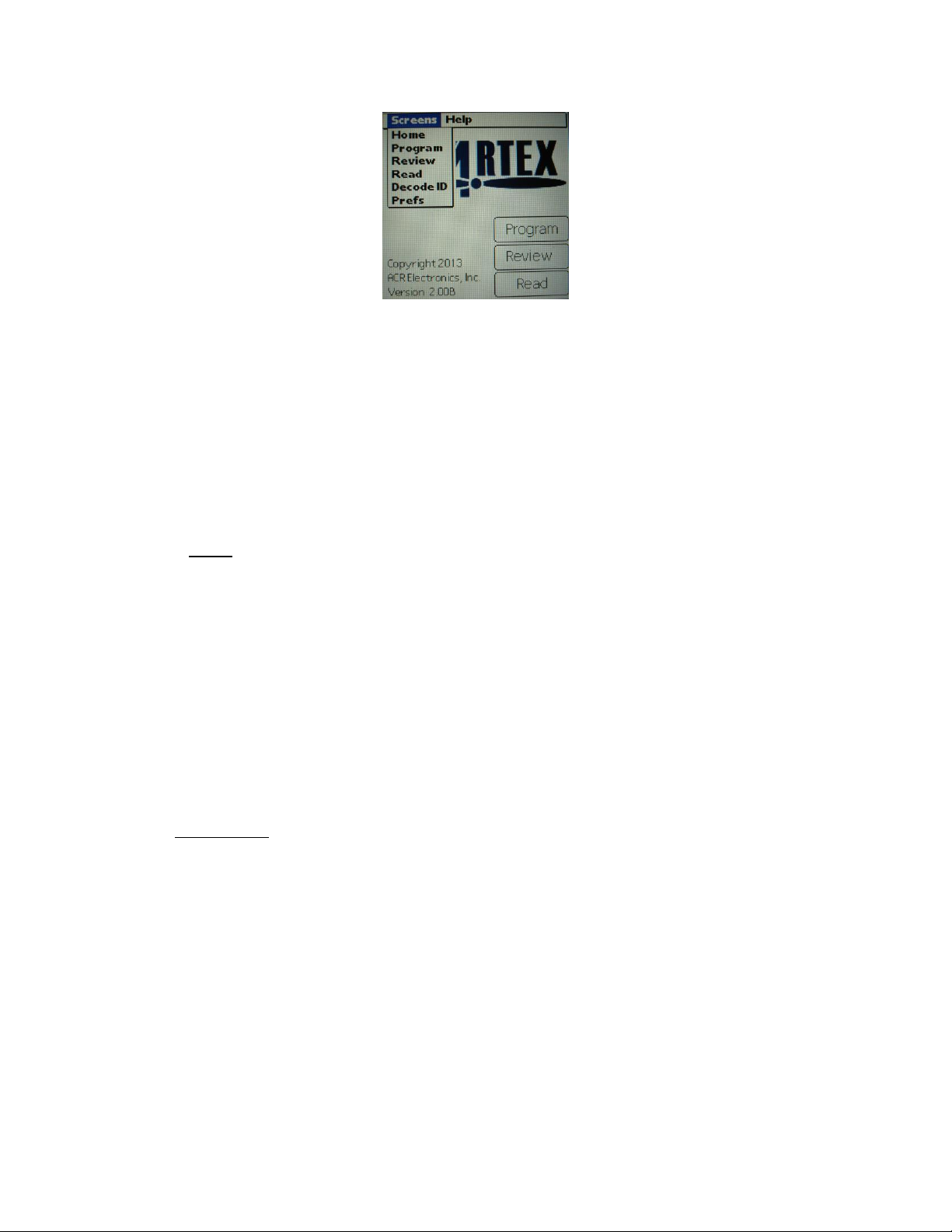

Figure 7: Screens Drop-Down Menu
2. Tap “Prefs” on the drop-down menu and select the following preferences, as
applicable:
•24-Bit Address Format –Select either Octal or Hex
•Clear Database –Erases all saved programming messages
3. Tap “Done” when finished to return to main menu.
4.3 Programmer Database
The Handheld Programmer retains up to 1000 records of programmed ELTs.
NOTE: The programming operation must be successfully completed in order for the
record to be stored in the database.
•The database may be deleted at any time by accessing the “Prefs” drop-down
menu and selecting “Clear Database” (Subsection 4.2).
•Stored records may be viewed by tapping “Review” on the main screen (Subsection
4.1).
•Stored records may also be programmed into an ELT following the instructions
given herein.
•The stored programming may also be viewed using Sarcalc Desktop V3.01 See
Subsection 5.2 for a detailed description of this function.
4.4 ELT Programming
IMPORTANT: When working with any ELT, keep a 121.5 MHz receiver nearby, on, and
at adequate volume. This is necessary to catch and deactivate an ELT that may
accidentally be left on.
The ELT being programmed must properly perform all operations described in this set of
instructions. An ELT that fails any portion must be rejected and repaired.
1. For ME406, set the baud rate to 9600 ELT.
2. For an ELT 345/1000, programming will remain the same as ME406, except that
there are two baud rates to choose from:
•9600 for default or A/B protocol (aviation out)
•4800 for National Marine Electronics Association (NMEA) Protocol
•The ME406 can be programmed without a battery installed. The ELT 345/1000

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 16
must have a battery installed. If a 406 MHz burst takes place during
programming, there is a possibility that the programming will fail.
3. Plug the programming cable into the ELT
4. Connect the cable to the Handheld Programmer.
Table 1 provides data for programming ELTs with certain protocol types. This
information is not used in all protocol types; hence, programming software may not ask
for this information.
The Artex Programming Software divides the Models based on baud rates into the
following families:
•9600 baud ELT
•ELT 345/1000
To program, select “Artex” from the Main Screen and then “Program” from the Artex
Software Main Screen.
Artex Main Screen
ELT 1000 will Display Baud Rates

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 17

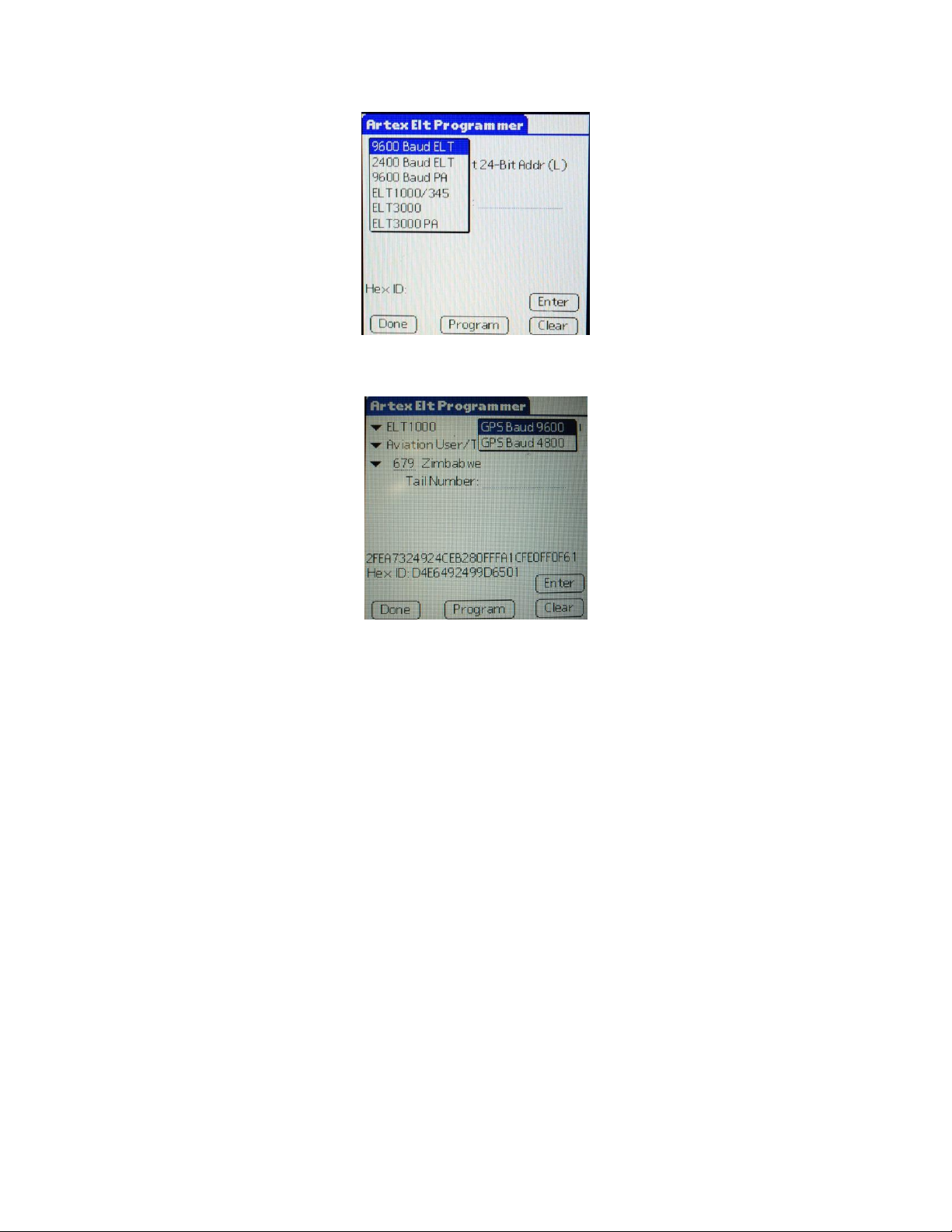

Baud Rate Screen Drop-Down Menu
ELT 1000 Baud Rate Screen Drop-Down Menu
Refer to Table 1 as instructed to complete programming sequences. For Table 1,
protocols are defined as follows:
Std Location = Aircraft 24 Bit Address (Long) and ELT Serial (Long)
Aviation User = Tail Number (Short)
Serial User = Aircraft 24 Bit Address (Short), Aircraft 24 Bit / National (Short), ELT /
COSPAS (Short) and Aircraft Operator (Short)
National Location = ELT Serial (Long)
User Location = Aviation User / Tail Number / Location (Long)

Y1-03-0272-1 Rev. C A3-06-2824-1 Handheld Programmer Operations Manual
Company Confidential Page 18
Table 1: ELT DataTable 1Table 2
ELT Part
Number
Description
Baud
Rate
COSPAS-
SARSAT #
Programmed
Serial #
Supported Protocols
Model #
Sequence
# Range
Production
# Range
ME406 SERIES
453-6603
ME406
9600
See
Note 2
See
Note 2
Aviation User
Serial User
8
0-16383
0-9
453-6604
ME406HM
9600
See
Note 2
See
Note 2
Aviation User
Serial User
8
0-16383
0-9
453-6611
ME406P
9600
See
Note 2
See
Note 2
Aviation User
Serial User
8
0-16383
0-9
ELT Series
A3-06-
2880
ELT 345
4800
9600
267
Same as
label (8-
digit)
Std Location
Aviation User
Serial User
User Location
National Location
10
0-16383
0-9
A3-06-
2749-1
ELT 1000
4800
9600
251
Same as
label (8-
digit)
Std Location
Aviation User
Serial User
User Location
National Location
9
0-16383
0-9
NOTE 1: When entering data into the programming software, most fields not filled with the
maximum allowable number of characters will fill the unused portion with zeros to the
left of the data entered. Exceptions to this are noted in the appropriate subsections
below.
NOTE 2: The COSPAS-SARSAT 15-digit ELT Identifier allows manufacturers 16,383 possible
serial numbers. Artex has reached that limit with the ME Series and ELT 345/1000.
For ELTs that pass serial number 16,383 and move on to a 3-digit prefix, different
COSPAS-SARSAT numbers will be assigned to that ELT. See Table 2.
Table 2: ELT Serial Number Continuations
ELT Series
COSPAS-
SARSAT #
Manufacturing Serial #
ELT Programmed Serial #
ME
152
00001 to 16383
00001 to 16383
188
188-00001 to 188-16383
00001 to 16383
197
197-00001 to 197-16383
00001 to 16383
242
242-00001 to 242-16383
00001 to 16383
345
267
267-00001 to 267-16383
00001 to 16383
TBD
TBD-00001 to TBD-16383
00001 to 16383
1000
251
251-00001 to 251-16383
00001 to 16383
TBD
TBD-00001 to TBD-16383
00001 to 16383
