Arthrex AR-8305 User manual

Synergy Resection
User’s Guide
The Arthrex Synergy Resection User’s Guide provides safety
operation information for all components of the Arthrex Synergy
Resection console (Model AR-8305), including the accessories. All
operating personnel must read this User’s Guide thoroughly prior
to using this system and follow all safety warnings, cautions, and
notes.
0086
Arthrex, Inc.
Naples, FL 34108-1945 USA
Toll Free: 1-[phone]
www.arthrex.com
Arthrex GmbH
Erwin-Hielscher-Strasse 9
81249 München, Germany
Tel: [phone]
www.arthrex.de
DFU-0213-7 Revision 0 08/2019
© 2019 Arthrex, Inc. All rights reserved.
AR-8305

This page intentionally left blank

DFU-0213-7 Rev. 0 Page i
Table of Content
1.0 GENERAL WARNINGS AND SAFETY NOTICES - READ THIS FIRST ...... 1
1.1 Important Symbols and Conventions................................................................................ 1
1.2 Symbol Definitions............................................................................................................. 4
1.3 Shipping, Unpacking, and Warranty Information.............................................................. 6
2.0 PRODUCT DESCRIPTION .................................................................................. 7
2.1 Product Description and Intended Use ............................................................................. 7
2.2 Product Features ............................................................................................................... 8
2.2.1 AR-8305Console - Front View................................................................................................. 8
2.2.2 AR-8305 Console - Rear View ................................................................................................. 9
2.2.3 AR-8305 Display Messages..................................................................................................... 9
2.3 Applied Parts and Accessory Features ............................................................................ 13
2.3.1 Standard Footswitch (AR-8310)............................................................................................ 13
3.0 TECHNICAL SPECIFICATIONS........................................................................14
3.1 Console ............................................................................................................................ 14
3.2 Standard Footswitch........................................................................................................ 14
3.3 Ambient Conditions for Operation.................................................................................. 14
3.4 Ambient Conditions for Storage (in shipping packaging)................................................ 14
3.5 Safety, EMC, and Regulatory Requirements ................................................................... 15
4.0 SETUP....................................................................................................................16
4.1 How to Set Up the Console.............................................................................................. 16
4.2 AC Power Safety Considerations ..................................................................................... 16
4.3 Replacing the Fuses ......................................................................................................... 17
4.4 Electromagnetic Compatibility ........................................................................................ 17
4.5 Basic Setup Procedure for the AR-8305 Console ............................................................ 18
4.6 Setting up a Footswitch ................................................................................................... 19
4.7 Setting up the Shaver Handpieces................................................................................... 19
4.8 Setting up Other Accessory Handpieces.......................................................................... 19
4.9 Shutdown Procedure....................................................................................................... 19
5.0 OPERATION AND FREQUENTLY USED FUNCTIONS ...............................20
5.1 Main Screen..................................................................................................................... 20
5.2 Settings Menu Main Screen............................................................................................. 21
5.3 Language Selection Screen .............................................................................................. 23
5.4 Oscillation Mode Selection Screen.................................................................................. 24

DFU-0213-7 Rev. 0 Page ii
5.5 Footswitch Override Screen ............................................................................................ 25
5.6 Reset Defaults Screen...................................................................................................... 26
5.7 Information Screen.......................................................................................................... 27
5.8 Buttons ............................................................................................................................ 28
5.8.1 Buttons - Main Screen .......................................................................................................... 28
5.9 Speed Test Mode............................................................................................................. 30
5.10 Speed Adjustment ........................................................................................................... 30
5.11 Oscillation Mode Adjustment.......................................................................................... 30
5.12 Accessory Handpiece Speed Limits and Deltas ............................................................... 31
5.12.1 Drill Speeds........................................................................................................................... 31
5.12.2 Console Speed Controls........................................................................................................ 31
5.13 Attachment Motor Control.............................................................................................. 32
5.13.1 Definition of Direction .......................................................................................................... 32
5.13.2 Forward, Reverse and Oscillation Modes............................................................................. 32
5.13.3 Cruise Control....................................................................................................................... 32
5.13.4 Toggle Function .................................................................................................................... 33
5.14 Footswitches.................................................................................................................... 35
5.14.1 Standard Footswitch............................................................................................................. 35
5.14.2 Gas Pedal Footswitch ........................................................................................................... 35
5.14.3 Multi-Function Footswitches................................................................................................ 35
5.15 Accessory Handpieces ..................................................................................................... 35
6.0 CLEANING AND DISINFECTING.....................................................................36
6.1 Console AR-8305.............................................................................................................. 36
6.2 Footswitches.................................................................................................................... 36
6.3 Accessory Cable ............................................................................................................... 37
6.4 Accessory Handpieces ..................................................................................................... 37
7.0 STERILIZATION .................................................................................................39
8.0 TRANSMISSIBLE SPONGIFORM ENCEPHALOPATHY (TSE) AGENTS 40
9.0 MAINTENANCE...................................................................................................41
9.1 Life Expectancy ................................................................................................................ 41
9.2 Periodic Maintenance...................................................................................................... 41
10.0 TECHNICAL SUPPORT......................................................................................42
10.1 How to Display the Software Version.............................................................................. 42
10.2 Additional Technical Information.................................................................................... 42
11.0 TROUBLESHOOTING........................................................................................43
11.1 Troubleshooting Interference with Other Devices.......................................................... 44

DFU-0213-7 Rev. 0 Page iii
12.0 REPAIR POLICY..................................................................................................45
13.0 END OF LIFE, ENVIRONMENTAL DIRECTIVES .........................................45
14.0 ELECTROMAGNETIC EMISSIONS..................................................................46
List of Figures

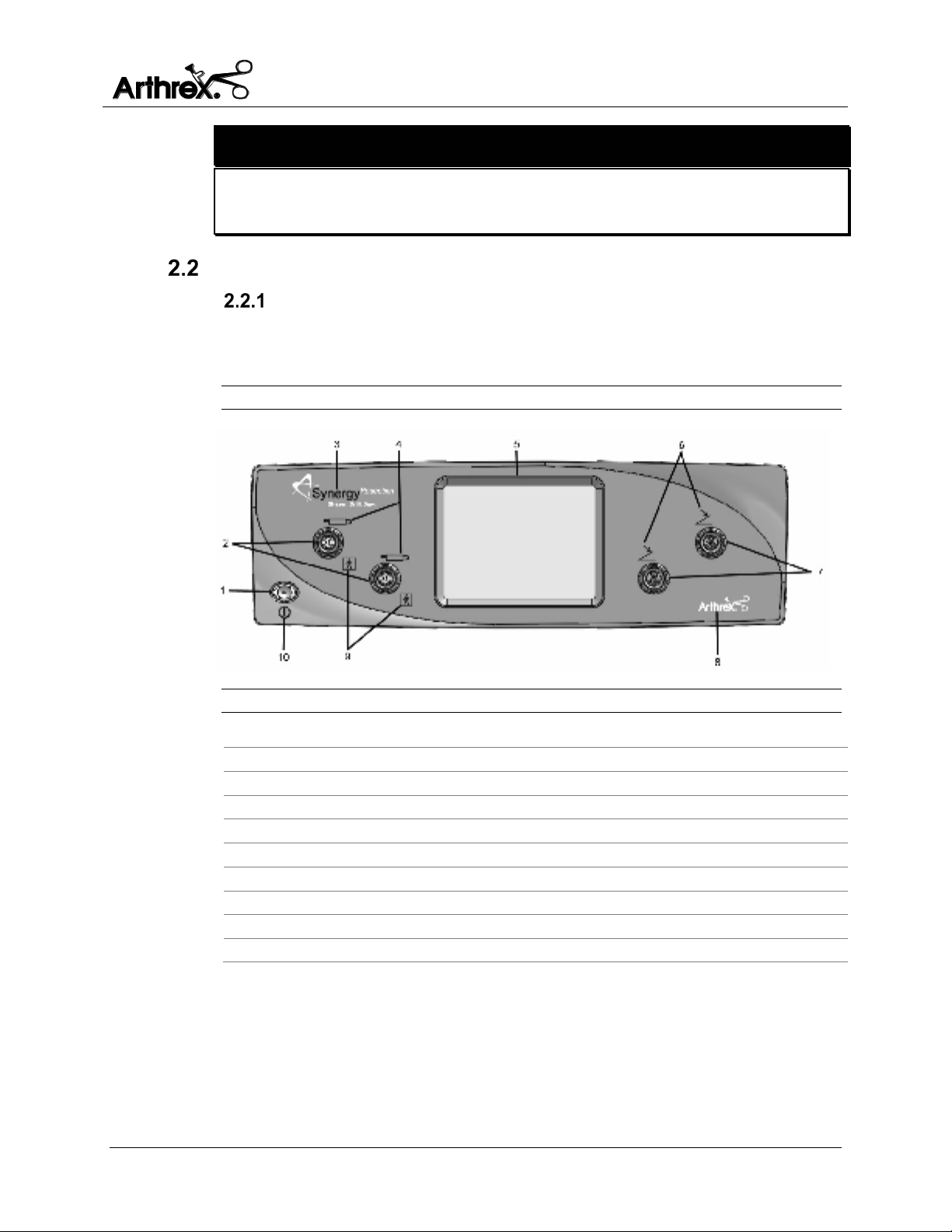

Figure 1 Front Panel of Console........................................................................................................8
Figure 2 Rear Panel of Console .........................................................................................................9
Figure 3 Standard Footswitch - Description..................................................................................13
Figure 4 Main Screen Display - One Tool Attached..................................................................... 20
Figure 5 Main Screen Display - Two Tools Attached ..................................................................20
Figure 6 Settings Menu Display - Operation.................................................................................21
Figure 7 Language Selection Display - Operation........................................................................ 23
Figure 8 Oscillation Mode Selection Screen - Operation.............................................................24
Figure 9 Footswitch Override Selection Screen - Operation.......................................................25
Figure 10 Reset Defaults Screen - Operation................................................................................... 26
Figure 11 Information Screen - Operation....................................................................................... 27
Figure 12 Single Handpiece Screen Oscillation Mode Location................................................... 28
Figure 13 Two Handpiece Buttons - Operation..............................................................................29

DFU-0213-7 Rev. 0 Page iv
List of Tables
Table 1 Front Panel Elements .......................................................................................................... 8
Table 2 Rear Panel Elements............................................................................................................ 9
Table 3AR-8305 Display Messages ..............................................................................................10
Table 4 *TOOL FAILURE* Error Code Definitions .................................................................... 12
Table 5 Elements of the Standard Footswitch ............................................................................. 13
Table 6 AR-8305 Console Specifications ......................................................................................14
Table 7 Standard Footswitch Specifications ................................................................................14
Table 8 AR-8305 Ambient Conditions for Operation.................................................................14
Table 9 AR-8305 Ambient Conditions for Storage......................................................................14
Table 10 Safety, EMC, and Regulatory Requirements .................................................................15
Table 11 Main Screen Display Elements ........................................................................................20
Table 12 Settings Menu Display - Operation.................................................................................22
Table 13 Language Menu Display - Operation .............................................................................23
Table 14 Oscillation Mode Display - Operation............................................................................ 24
Table 15 Footswitch Override Display - Operation...................................................................... 25
Table 16 Reset Defaults Display - Operation................................................................................. 26
Table 17 Information Screen Display - Operation ........................................................................27
Table 18 Oscillation Mode - Operation ..........................................................................................28
Table 19 Two Handpiece Buttons - Operation..............................................................................29
Table 20 Accessory Handpiece Speed Limits and Delta..............................................................31
Table 21 Handpiece Accuracy .........................................................................................................31
Table 22 Toggle Function .................................................................................................................34
Table 23 Troubleshooting: Faults, their Causes and Solutions ................................................... 43
Table 24 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions ................46
Table 25 System Cables ....................................................................................................................46
Table 26 Guidance and Manufacturer's Statement - Electromagnetic Immunity ....................47
Table 27 Guidance and Manufacturer's Statement – Recommend Separation Distance
between portable and mobile RF communications equipment and the
Model AR-8305 ..................................................................................................................49

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 1 of 50
1.0 General Warnings and Safety Notices - Read This First
Important Symbols and Conventions
It is imperative that the symbols and conventions listed below be clearly
understood. The Synergy Resection User’s Guide identifies critical, important, and
useful information using these symbols and conventions.
Users of this device are encouraged to contact their Arthrex representatives if
they require a more comprehensive surgical technique.
WARNING!
The WARNING! is the most important safety symbol. It identifies critical
information that must be followed precisely to avoid injury or death.
1. Use this device only for purposes described in the User’s Guide, under the
supervision of a trained and licensed physician.
2. No modifications of the console (AR-8305) or accessories are allowed.
3. Use this device only under the supervision of a trained and licensed
physician. This device should not be used by untrained personnel or used for
indications other than those described in this User’s Guide.
4. Do not open or attempt to service this system, as this may void your
warranty. There are no user-serviceable parts inside. Removing the
cover may introduce an electric shock hazard by exposing you to
dangerous high voltages or other risks. If the system malfunctions,
return it for service immediately.
5. To avoid the RISK of electric shock, this equipment must only be connected
to a SUPPLY MAIN with protective earth ground.
6. Do not have device in direct contact with patient if high-frequency devices are
in use, or if the patient requires defibrillation.
7. DO NOT stack or place equipment adjacent to the AR-8305 console, if
possible. If such a configuration is necessary, carefully observe the
configuration in question to ensure that electromagnetic interference does not
degrade performance.
8. Use only Arthrex approved accessories. Other accessories may result in
increased emissions or decreased immunity of the system. Contact your
Arthrex representative for a complete list of accessories. DO NOT modify any
accessory. Failure to comply may result in patient and/or operating room staff
injury.
9. This equipment is NOT suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen rich or nitrous oxide environment.
10. Do not have device in direct contact with patient if high-frequency devices are
in use or if the patient requires defibrillation.
11. After autoclaving, the accessory devices are VERY HOT. Handle with care to
avoid burns.

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 2 of 50
The PRECAUTION! symbol identifies methods and procedures
that must be followed to avoid damaging the device or causing it
to malfunction.
1. DO NOT – under any condition or for any reason – open the console (AR-
8305) or any other shaver accessory.
2. Only use replacement power cords that meet medical grade standards
according to IEC 60320-1, Detachable Power Supply Cords or electrical
standards for the designated country where the AR-8305 is being used.
Contact your Arthrex representative for further information.
3. Avoid position console so that it is difficult to disconnect coupler or plug from
supply main.
4. Connecting an extension cord to the AR-8305 may result in a reduced level of
safety.
5. Always use fuses with the correct values to avoid allowing overcurrent to
enter the system.
6. An incorrect fuse may increase the risk of electrical shock or fire hazard.
7. This device has passed testing for EMI / RFI radiation and susceptibility and
EMC compatibility. This device may cause interference to other devices in the
near vicinity if not set up and used as Arthrex instructs.
8. Do not attach handpieces or footswitches during the Self Test or the
Programming Modes.
9. Only use footswitches developed by Arthrex specifically for the AR-8305
Synergy Resection console.
10. Only use shaver handpieces and cables that have been developed by
Arthrex specifically for the Synergy Resection console.
11. Only use handpieces and cables that have been developed by Arthrex
specifically for the Synergy Resection. The footswitch cable connects and
locks to the console to prevent accidental separation during use. To avoid
damage, disconnect the footswitch by pulling on the cable connector shell
(plug) only.
12. The accessory handpiece cable connects and locks to the console to prevent
accidental separation during use. To avoid damage, disconnect the
footswitch by pulling on the cable connector shell (plug) only.
13. Always comply with the instructions issued by the manufacturer of the
cleaning disinfectant regarding concentration, exposure times,
temperature and material compatibility.
14. NEVER clean the console with liquid cleaners. If there is dust, remove it with
dry compressed air.
15. Do NOT clean the device with abrasive cleaning or disinfectant
compounds, solvents, or other materials that could scratch or damage
the device.
16. The footswitch is NOT suitable to be cleaned and disinfected in a
thermo washer disinfector.
17. NEVER allow the console receptacles to have any contact with liquids. If
there is dust or moisture on the receptacles, remove it with dry compressed
air. ONLY dry connectors should be plugged into the console.

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 3 of 50
18. Refer to the Instructions for Use package insert for detailed shaver handpiece
(DFU-0154-XX) and Adapteur Power System II Accessory Attachments
(DFU- 0149-XX) cleaning and sterilization instructions included with each
handpiece. Additional copies of this insert can be obtained from the Arthrex
website at www.arthrex.com, or by contacting your local Arthrex
representative.
19. NEVER place the shaver handpiece in Cidex or other aldehyde disinfectant
solutions.
20. After sterilization in the autoclave, let the accessory device cool down slowly.
NEVER use cold water to cool the handpieces. This will damage the
electronic components and seals.
21. Liquid on the cable connector of the accessory device can damage the
device. Before connecting the cable, ensure the receptacles are clean and
dry.
22. Open the suction control completely to ensure proper circulation, if
applicable.
23. Open the chuck completely to ensure proper circulation, if applicable.
24. Remove all accessories, including shaver blades, drill bits and saw blades
before sterilizing a handpiece.
NOTE: This identifies information that can simplify the setup and
operation of this device.
1. Read this User’s Guide thoroughly before operating the device and save it for
future reference.
2. Extension cords must meet local electrical standard. Extension cords are not
recommended to be used with the AR-8305.
3. The AR-8305 console incorporates a universal AC input power supply. A
voltage selection switch is not required.
4. AR-8305 has been designed to accept EMC from other devices within the
limitations as described in section 14.0.
5. The setup for a footswitch is the same for all models. The console detects
which version is attached and allows the appropriate functions.
6. While operating the handpieces, the settings can be changed without risk of
damaging the motor or console.

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 4 of 50
Symbol Definitions
Safety Sign
Follow Operating
Instructions
Caution: Federal Law
Restricts this device to
sale by or on the order
of a Physician.
On / Off (push-push)
Type BF Equipment
Precaution of Warning
Notice
Fragile
Keep Dry This Side Up
Electrical Hazard,
Dangerous Voltages
are Present. Never
attempt to repair the
equipment. Only
Trained Service
Personnel may remove
the cover, or obtain
access to system
components.
Temperature Limits
for Storage and
Transport
Alternating Current
Pressure Limits for
Storage and Transport
Fuse
Humidity Limits for
Storage and Transport
Equipotential
[Equipment Potential]
Protective Earth
Ground [Functional]
WEEE [Waste
Electronics and
Electrical Equipment]
Symbol. Regarding
European Union End-
of-Life of Product.
RF Symbol. Non-
ionizing
Electromagnetic
Radiation

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 5 of 50
Manufacturer
Date of Manufacture;
year and month.
Handpiece connection
Foot Pedal connection
USB
Universal Serial Bus
[For use ONLY with
thumb drive]
RS-232 Serial Port [Arthrex
Integration]
Catalog number
The product meets the
essential requirements
of Medical Device
Directive 93/42/EEC
Serial number Non Sterile
Quantity
Do not use if package
is damaged
Consult Instructions
for Use
No user-serviceable
parts inside
Electrical hazard
Authorized
Representative in the
European Community

General Warnings and Safety Notices - Read This First
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 6 of 50
Shipping, Unpacking, and Warranty Information
Carefully unpack and inspect all components for shipping
damage. Any damage could compromise patient safety and
should be reported immediately to Arthrex or any authorized
Arthrex distributor. Warranty could be voided if shipping or first-
installation damage is not reported within 7 business days of receiving the
device. Refer also to our General Terms of Business.
The warranty is not valid if modifications are made to the product or repairs are
completed outside of Arthrex or an authorized Arthrex distributor. Arthrex will
answer any questions referring to the quality, reliability and/or shelf life of any
product identified in this User’s Guide.
This is not a warranty document. For all warranty information, including
disclaimers, exclusions, terms, conditions and related provisions, refer to the
“Arthrex U.S. Product Warranty” section of the Arthrex, Inc. website, found at
www.arthrex.com whose provisions are incorporated herein by reference.

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 7 of 50
2.0 Product Description
Product Description and Intended Use
The Arthrex AR-8305 Synergy Resection Shaver System is a motorized,
suction/cutting device used for the resection and aspiration of soft tissue,
cartilage and bone during arthroscopic surgical procedures.
The console is microprocessor controlled and features two fully functional
channels that allow optional simultaneous handpiece operation. Both channels
can be operated with a single foot switch or individually when a second foot
switch is attached to the console. The Synergy Resection has a maximum speed
of 8,000 revolutions per minute providing precise burr control during surgical
procedures.
The Synergy Resection console is designed for continuous operation. The
handpieces are individually protected by a resetting thermal fuse. In the event of
a motor overload fault (e.g., excess current) the fuse heats up and the device is
deactivated. When the fault is removed and the fuse cools down (typically about
30 seconds) operation resumes at the pre-failure settings.
The cable and all handpieces can be sterilized, so handpieces can be changed
during the surgical procedure without endangering surgical sterility.
The AR-8305 Synergy Resection Console and included Applied Parts and
Accessories:
•AR-8305 Console with power cord
•User’s Guide Optional
Applied Parts
•Footswitch Controlled (FC) Shaver Handpieces
•Handpiece Controlled (HC) Shaver Handpieces
•Drill Handpiece with key for Jacobs chuck
•Sagittal Saw Handpiece with wrench
•Small Joint Shaver
Other Optional Accessories:
•Accessory Handpiece Cable
•Gas Pedal Footswitch
•Corded Multi-Function Footswitch
•Wireless Multi-Function Footswitch
Save the packaging for later transport of the device.

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 8 of 50
WARNING!
Use this device only under the supervision of a trained and licensed physician.
This device should not be used by untrained personnel or used for indications
other than those described in this User’s Guide.
Product Features
AR-8305Console - Front View
Figure 1 shows the front panel of the AR-8305 console. Features and symbols are
identified in Table 1 below.
Figure 1 Front Panel of Console
Table 1 Front Panel Elements
1.
On / Off Power Switch
2.
Handpiece Connectors
3.
Synergy Product Logo
4.
Handpiece Symbols
5.
Touch Panel Visual Display
6.
Footswitch Symbols
7.
Footswitch Connectors
8.
Arthrex Logo
9.
Type BF Symbols (Electric Shock Protection)
10.
Power Switch IEC 60417-5010 symbol (On / Off)

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 9 of 50
AR-8305 Console - Rear View
Figure 2 shows the rear panel of the console. Features and symbols are identified
in Table 2 below.
Figure 2 Rear Panel of Console
Table 2 Rear Panel Elements
1. Main power input Plug
2. Equipotential Bonding Pin with Stamped Equipotential Bonding Symbol
3. Address
4. Fan
5. USB port (For use ONLY with thumb drive)
6. Serial ports for Arthrex integration
7. Serial number label
8. Model number label
9. Fuse holder for the Power Entry Module
10. Fuse label
AR-8305 Display Messages
The console's Touch Panel Visual Display (TPVD) [5] provides information about
the status of the AR-8305 settings in real time. A list of informational and error
messages is shown in Table 3 and 4 below. Messages that represent the active
motor states are displayed in green on the TPVD.

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 10 of 50
Table 3 AR-8305 Display Messages
Message
Explanation
**EEPROM Reset**
Temporarily displayed first time micro-
controller is programmed, or if internal memory
has faulted and is reset.
**Motor Fault**
Temporarily displayed when motor fault
condition occurs.
**Overload**
Temporarily displayed when motor over-
current condition occurs.
**Self Test Fail**
Console has failed a critical power on test.
*CRUISE NOT ALLOWED*
Temporarily displayed when cruise button
pressed with tool that doesn’t allow cruise
control.
*FS PEDAL STUCK*
Remove FS, Repower System
Either a footswitch pedal is being pressed or is
stuck while connecting to console.
Communication error results. Remove the
footswitch and repower the system to reset the
console.
*FWD or REV ONLY*
Temporarily displayed for tools that do not
support OSC mode.
*HP BUTTON STUCK*
Remove HP, Repower System
Either a handpiece button is being pressed or is
stuck while connecting to console.
Communication error results. Remove the
handpiece and repower the system to reset the
console.
*TOGGLE NOT ALLOWED*
Temporarily displayed when toggle button
pressed with tool that doesn’t allow oscillation
mode.
*TOOL FAILURE*
ERROR, XXX
(Where “XXX” is an error code
as defined in Table 4.)
Critical Tool Failure caused either by a faulty
sensor or an over current condition. Remove
and replace tool or repower console to reset.
*Unable to Install*
Handpiece is not recognized.
[CC]
1
Speed locked on cruise control.
CC
Cruise control enabled, about to lock.
AGG
Current mode: Aggressive oscillation mode
(stopped).
Communication Error
Internal data communication error.
Critical Error
Critical error, unit will shut down.
DFS
Digital Footswitch Connected.
Drill
Drill connected.

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 11 of 50
EFF
Current mode: Efficient oscillation mode
(stopped).
FC Shaver
Footswitch Controlling Shaver connected.
Fwd
Current mode: Forward (stopped).
Fwd
1
Current status: Motor is moving forward.
Gas Pedal Footswitch
Temporarily displayed when gas pedal
footswitch connected.
GFS
Gas Pedal Footswitch Connected.
HC Shaver
Handpiece Controlling Shaver connected.
No Footswitch
Temporarily displayed when footswitch
disconnected.
Osc
1
Current status: Motor is oscillating.
Power Failure
Power supply error.
Rev
Current mode: Reverse (stopped).
Rev
1
Current status: Motor is moving in reverse.
Run
1
Current status: Motor is running (for saw).
Safe Mode
Excessive HP communication errors have
occurred.
Sag Saw
Sagittal Saw connected.
SFS
Standard Footswitch Connected.
SJ Shaver
Small Joint Shaver connected.
Standard Footswitch
Temporarily displayed when standard
footswitch connected.
STD
Current mode: Standard oscillation mode (stopped).
1 Displayed in green, denoting an active tool.

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 12 of 50
Table 4 *TOOL FAILURE* Error Code Definitions
Message
Explanation
# $ @
Example: 022
Sensor 3 = Stuck Low
Sensor 2 = No Errors Found
Sensor 1 = No Errors Found
Represents Handpiece Sensor Failures
# = Sensor 3, $ = Sensor 2, @ = Sensor 1
0 = Stuck Low,
1 = Stuck High,
2 = No Errors Found.
H13
Multiple sensors shorted
H14
Multiple sensors stuck high/low
H15
Invalid Hall sensor states detected
C31
Over current 7.5A during retries
C32
Over current 5.0A during retries
C33
Over 5.0A for 6 seconds
C34
Over 7.0A for 3 seconds
C35
Over 7.5A for 1 second
C36
Over 8.0A for 250ms
C37
Over 8.1A in INT0
C38
Over 8.1A in A/D ISR
C39
Over 8.0A in FWD/REV ramp up
S51
Invalid Gear Ratio
S52
Over restart tries
S54
General system failure

Product Description
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 13 of 50
Applied Parts and Accessory Features
Standard Footswitch (AR-8310)
Figure 3 shows the Standard Footswitch. Features and symbols are identified in
Table 5 below.
Figure 3 Standard Footswitch - Description
Table 5 Elements of the Standard Footswitch
1.
Cable
2.
Speed Increase button
3.
Toggle button
4.
Forward pedal
5.
Oscillation pedal
6.
Reverse pedal

Technical Specifications
Synergy Resection User’s Guide
DFU-0213-7 Rev. 0 Page 14 of 50
3.0 Technical Specifications
Console
Table 6 AR-8305 Console Specifications
Width
40.64cm (16.00 inches)
Height
13.335cm (5.250 inches)
Depth
30.686cm (12.081 inches)
Weight
6.8kg (15 lbs.)
Water protection
IP22
Mains cable
10 A/250 V
Power entry module
IEC 320/C13
Fuse value
6.3 A, 250 V~, 2.0 cm (0.75 inches) Type T
AC input
100-240V~, 50/60Hz, 6.3A
Applied Part Type
BF
Cleaning, disinfecting and
sterilization
Refer to Sections 6.0 Cleaning and Disinfecting
and 7.0 Sterilization
Standard Footswitch
Table 7 Standard Footswitch Specifications
Functions
Reverse, Forward, Oscillation, Speed Increase,
and Toggle
Width
23.6 cm (9.3 inches)
Height
2.5 cm (1.0 inches)
Depth
20.8 cm (8.2 inches)
Weight
2.2 kg (5 lbs.)
Water protection
IP68
Cleaning, disinfecting, and
sterilization
Refer to Sections 6.0 Cleaning and Disinfecting
and Section 7.0 Sterilization
Ambient Conditions for Operation
Table 8 AR-8305 Ambient Conditions for Operation
Temperature
10° to 40°C (50° to 104°F)
Relative humidity
30 % to 75 %
Air Pressure
700 hPa to 1060 hPa (21 in. Hg to 31.3 in. Hg)
Ambient Conditions for Storage (in shipping packaging)
Table 9 AR-8305 Ambient Conditions for Storage
Temperature
-30° to 70°C (-22° to 158°F)
Relative humidity
10 % to 90 %, non-condensing
Air Pressure
500 hPa to 1060 hPa (15 in. Hg to 31.3 in. Hg)
