Artison RCC600-IWPBB User manual

TISON®
R C~L:JJ
INSTALLATION GUIDE
RCC600-IWPBB In Wall
Pre-Build Box

2

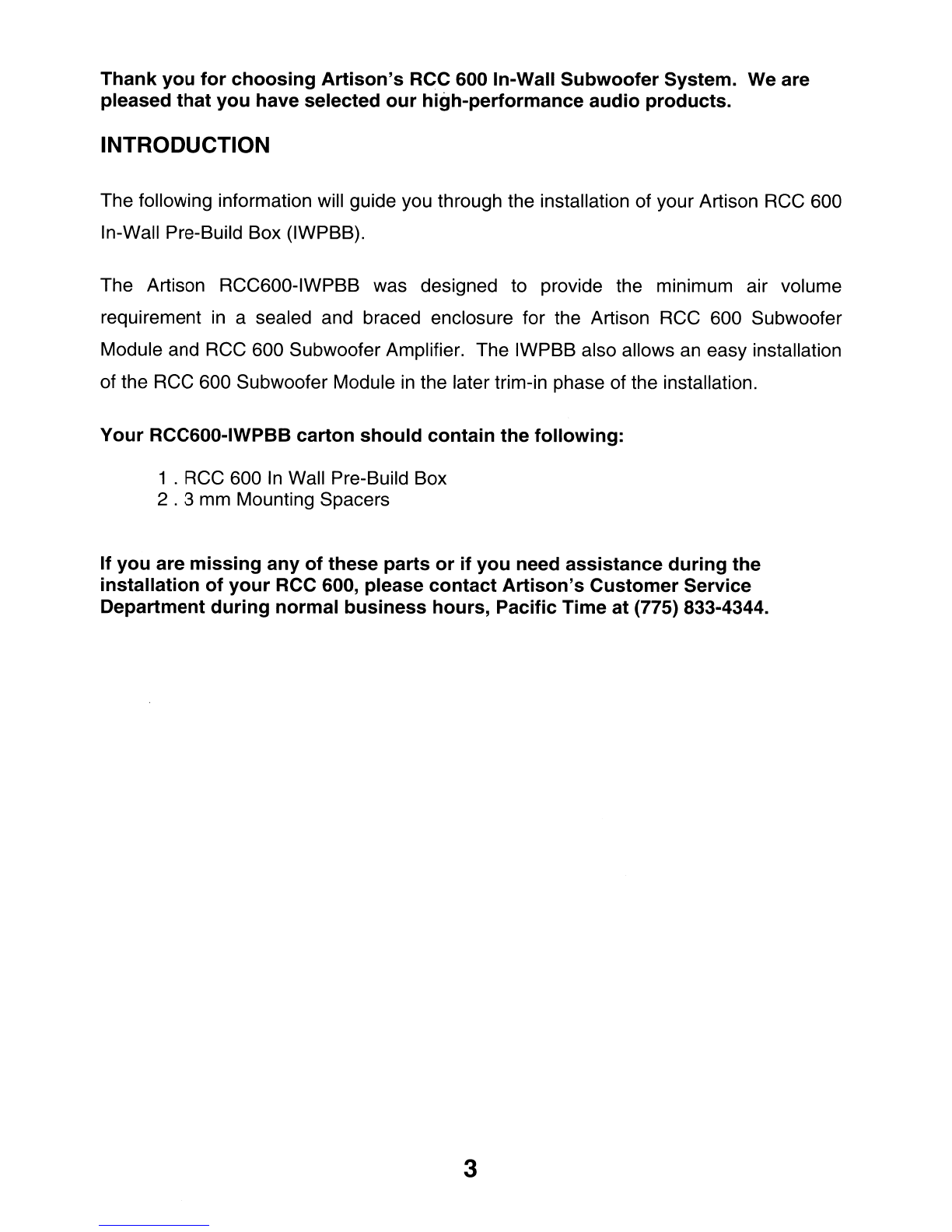

Thank you for choosing Artison's RCC 600 In-Wall Subwoofer System. We are
pleased that you have selected our high-performance audio products.
INTRODUCTION
The following information will guide you through the installation of your Artison RCC 600
In-Wall Pre-Build Box (IWPBB).
The Artison RCC600-IWPBB was designed to provide the minimum air volume
requirement
in asealed and braced enclosure for the Artison RCC 600 Subwoofer
Module and RCC 600 Subwoofer Amplifier. The IWPBB also allows
an easy installation
of the RCC 600 Subwoofer Module
in the later trim-in phase of the installation.
Your RCC600-IWPBB carton should contain the following:
1 . RCC 600 In Wall Pre-Build Box
2 . 3 mm Mounting Spacers
If you are missing any of these parts or if you need assistance during the
installation of your RCC 600, please contact Artison's Customer Service
Department during normal business hours, Pacific Time at [phone].
3

INSTALLING THE RCC 600 IN WALL PRE-BUILD BOX (RCC600-IWPBB)
1. The IWPBB was designed to fit into the bay of astud wall that is constructed of 2x4 studs
spaced at 16" On Center. Adeeper wall may be used but the stud spacing should still be 16"
On Center. Be
sure that no piping or electrical wires interfere with the placement of the
IWPBB.
2. The front face of the IWPBB was designed to mount flush with the finished drywall surface.
The IWPBB has two mounting flanges with pre-drilled mounting holes that run along the two
longer edges of the enclosure. These secure the IWPBB to the two studs that make up the
stud bay.
3. When mounting the IWPBB, fasten 1 %" drywall screws through the pre-drilled holes in the
mounting flanges to the two studs
on each side of the bay. This will ensure asafe and secure
installation.
4. The drywall thickness is critical to the mounting of the IWPBB.
a. If the construction calls for %" drywall, then the IWPBB should be mounted directly to the
studs. After the drywall
is hung, the edges of the IWPBB should be taped, mudded and
sanded flush with the drywall. The IWPBB can then be painted or finished as the rest of
the drywall
in the room. See Figure 1.
b.
If the construction calls for %" drywall, then use the two spacers supplied to fur the
IWPBB out from the stud wall. After the drywall
is hung, the edges of the IWPBB should
be taped, mudded and sanded flush with the drywall. The IWPBB can then be painted or
finished as the rest of the drywall
in the room. See Figure 2.
c. The
front edges of the IWPBB are chamfered to allow the mudding, taping and
sanding of all four edges flush with the drywall. See Figure 3.
5. The binding posts for the IWPBB are located at the top of the enclosure. They are connected
to an extension on the inside of the enclosure. Run and connect your speaker wire to these
binding posts before the drywall goes up and blocks access to them. Use
the binding posts
instead of drilling a hole in the IWPBB, this will maintain the seal of the enclosure.
4

,I
"
4
"
1,..- __
--~
~
-
--
---.:-
~-
FIGURE 1
FIGURE 3
5
~
~
I
"
~
,
.~
,
......
':::::-----
-
----
FIGURE 2

LIMITED WARRANTY
ALL INTERNET SALES ARE STRICTLY PROHIBITED
This warranty remains
in effect for five years from the date of purchase for speaker
products and one year for electronic products.
THIS WARRANTY PROTECTS THE ORIGINAL OWNER PROVIDING THAT THE
PRODUCT HAS BEEN PURCHASED FROM
AN AUTHORIZED ARTISON DEALER IN
THE UNITED STATES. THE ORIGINAL BILL OF SALE MUST BE PRESENTED
WHENEVER WARRANTY SERVICE IS REQUIRED. FOR WARRANTY SERVICE
OUTSIDE THE UNITED STATES, CONTACT THE AUTHORIZED ARTISON
DISTRIBUTOR
IN THE COUNTRY WHERE THE PRODUCT WAS PURCHASED.
Except as specified below, this warranty covers all defects
in material and workmanship.
The following are not covered: Damage caused by accident, misuse, abuse, product
modification or neglect, damage occurring during shipment, damage from failure to follow
instructions contained
in the Owners Manual, damage resulting from the performance of
repairs by someone not authorized by Artison, or any claims based on
misrepresentations by the seller. This warranty does not cover incidental or
consequential damages. It does not cover the cost of removing or reinstalling the unit.
THIS WARRANTY IS VOID IF THE SERIAL NUMBER HAS BEEN REMOVED OR
DEFACED, OR IS PURCHASED ON THE INTERNET, WORLD WIDE WEB,
MAIL
ORDER, 800, 888, 877 TELEPHONE NUMBERS OR THROUGH ACATALOG.
This warranty gives you specific legal rights. You may also have other rights, which vary
from state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations
on how long an implied warranty lasts, so the above
may not apply to you.
Please make note of the following information and retain for your record.
Product Name Model Number _
Store Name Purchase Price _
HOW TO OBTAIN SERVICE
Please call us at [phone], or write to: ARTISON (Attention: Customer Service
Department), 774 Mays Blvd., Suite 10-183, Incline Village, NV 89451.
We will promptly advise you of what action to take. We may direct you to an authorized Artison
Service Center or ask you to send your speaker to the factory for repair. You will need to present
the original bill of sale to establish the date of purchase. PLEASE DO NOT SHIP YOUR
ARTISON PRODUCT TO THE FACTORY FOR REPAIR WITHOUT PRIOR AUTHORIZATION.
PLEASE DO NOT RETURN PRODUCT TO THE ABOVE ADDRESS, IT IS NOT ASERVICE
LOCATION. You are responsible for transporting your product for repair and for payment of any
initial shipping charges. However, we will pay the return shipping charges if the repairs are
covered under warranty.
6

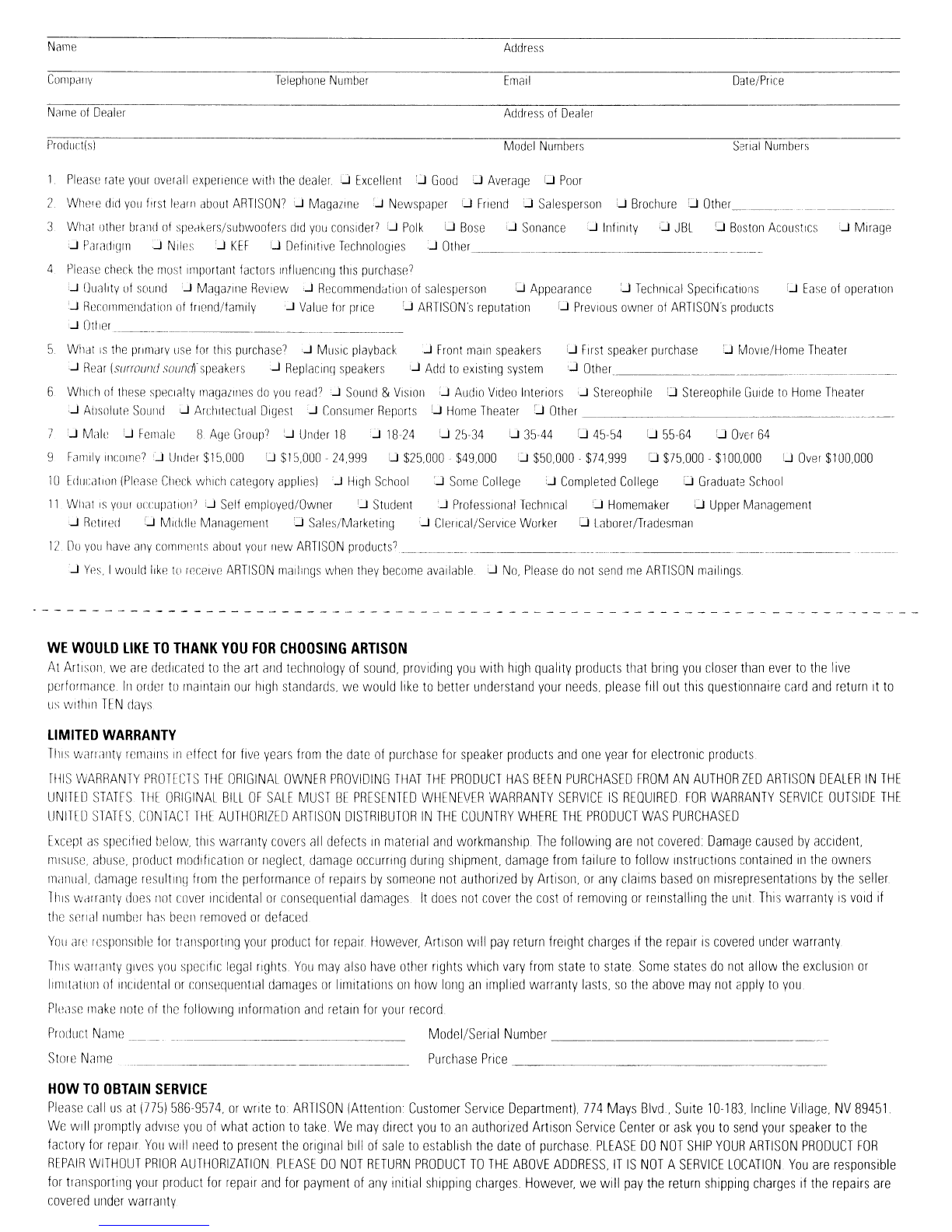

Nilme
CompilllV
Nilme of Dealer
Product(s!
relephone Number
Address
Emilr!
Address of Dealer
Modcl Numbers
Date/Price
Serial Numbers
1. Please rate your overall experience With the dealer U Excellem !.J Good U Average U Poor
2Wilele did you first leam about ARTISON? ;.J Magazine '.J Newspaper U Frrend U Salesperson
U Brochure U Other __ ~ _
o Boston Acoustics
------------------
3 Whel1 other bri1lld of speclkers/subwoofers did you consider? U Polk U Bose U Sonance UInfinity CJ JBL
.J PariJrilQln.J Nlles.J KEF I.J Definitive Technologies.J Other _
4
PleiJse check the most Important factors InfluenCing tillS purchase?
U [JUilllty uf sound '.J Magazine Revlew.J Recornrnenddtlon of salesperson U Appearance U Technical Speciflcatlolls i.J Ease of operation
U Recommendation of frlend/farnlly .J Value for prrce !.J ARTISON's reputation U PrevIous owner of ARTISON's products
.J Other
U Movie/Home Theater
5 What IS the prlmcHY use for thiS purchase? ,.J MusIc playback
.J Rear (surround suund!" speakers U Replaclnfj speakers
.J Front rnalll speakers
U Add to existing system
i.J First speaker purchase
'.J Other _
6
Which of these speCIAlty IllilgaLines do you read? :.J Sound & VIsion U AudiO Video Interrors '.J Stereophr!e U Stereophlle CiU!de to Horne Theater
:.J AhsDlute Sourld U Archltectual Digest .J Conslllner Reports U Home Theater U Other _
U Male I.J Female 8 Age Group? U Under 18.J 1824 U2534 U3544 U 45-54 U 55-64 U Over 64
9 Family Incollle? U lJllder $15,000 [J $15,000·24,999 U $25,000 $49,000 U $50,000 - $74,999 U $75,000 - $100,000 U Over $100,000
i.J Cornpleted College
i0 EillII:atlon IPlrase Chrck which cate~ory appllesl .J High School
11 What IS YOUI occupatloll? i.J Self employed/Owner '.J Student
'.J Retired U Middle Management [} Sales/Marketing
'[J Some College
i.J ProfeSSional Technical
.J Clerrcal/Service Worker
U Graduate School
U Homemaker i.J Upper Management
U Lahorer/Tradesman
12 Do you haVt~ any COmllll?lIts about yoor Ilew ARTISON products? _
.J YI~S. I would like to receive ARTISON mailings when they become available U No, Please do not send me ARTISON Inailings
WE WOULD LIKE TO THANK YOU FOR CHOOSING ARTIS ON
At Artlson. we are declicated 10 the art and technology of sound, prOViding you with high quality products that bllng you closer than ever to the live
pcrforrnililce III order to rnaintaln our high standards, we would like to better understand your needs. please fill out this questionnaire card and return It to
us wlthlll TEN clays
LIMITED WARRANTY
ThiS warlililty rcmalils In effect for five years from the date of purchase for speaker products and one year for electronic products
[HIS WARRANTY PROTECTS THE ORIGINAL OWNER PROVIDING THAT THE PRODUCT HAS BEEN PURCHASED FROM AN AUTHORIZED ARTISON DEALER IN THE
UNITED STATES THE ORIGINAL BILL OF SALE MUST BE PRESENTED WHENEVER WARRANTY SERVICE IS REQUIRED FOR WARRtlNTY SERVICE OUTSIDE THE
UNITED STATES. CONTACT THE AUTHORIZED ARTISON DISTRIBUTOR IN THE COUNTRY WHERE THE PRODUCT WAS PURCHASED
Except as speCified below, thiS warranty covers all defects In material and workmanship The following are not covered Damage caused by aCCIdent,
nllsuse, abuse, product modification or neglect. damage occurrrng during shipment, damage from failure to follow Instructions contained In the owners
lIliliwal, damage resulting from the perforrnance of repairs by someone not authorized by Artison, or any claims based on misrepresentations by the seller
1hls wrllranty does IlOt cover Incldelltal or consequential damages It does not cover the cost of removlllg or relilstaliing the unit This warranty is VOid If
the srilaillumbm has been removed or defaced
You are responSible for tl;:lIlsporling your product for repair However, Artisan will pay return freight charges If the repair is covered under warranty
TillS wall anty gives you speCIfic legal rights You may also have other lights which vary from state to state Some states do not allow the exclUSion or
Ilmlliltlull of IIlcldental or consequential damages or limitations on how long an implied warranty lasts, so the above may not apply to you
PII~ase make note of the follOWing Information and retain for your record
Product Name___ __ Model/Serial Number
Store Name Purchase Price _
HOW TO OBTAIN SERVICE
Please callus at 1775/5869574, or write to ARTISON (Attention Customer Service Department), 774 Mays Blvd, Suite 10-183, Incline Village, NV 89451
We Will promptly adVise you of what action to take We may direct you to an authorized Artisan Service Center or ask you to send your speaker to the
factory for repair You Will need to present the original bill of sale to establish the date of purchase PLEASE DO NOT SHIP YOUR ARTISON PRODUCT FOR
REPAIR WITHOUT PRIOR AUTHORIZATION PLEASE DO NOT RETURN PRODUCT TO THE ABOVE ADDRESS, IT IS NOT A SERVICE LOCATION You are responsible
for transporting your product for repair and for payment of any initial shipping charges. However, we Will pay the return shipping charges If the repairs are
covered under warranty

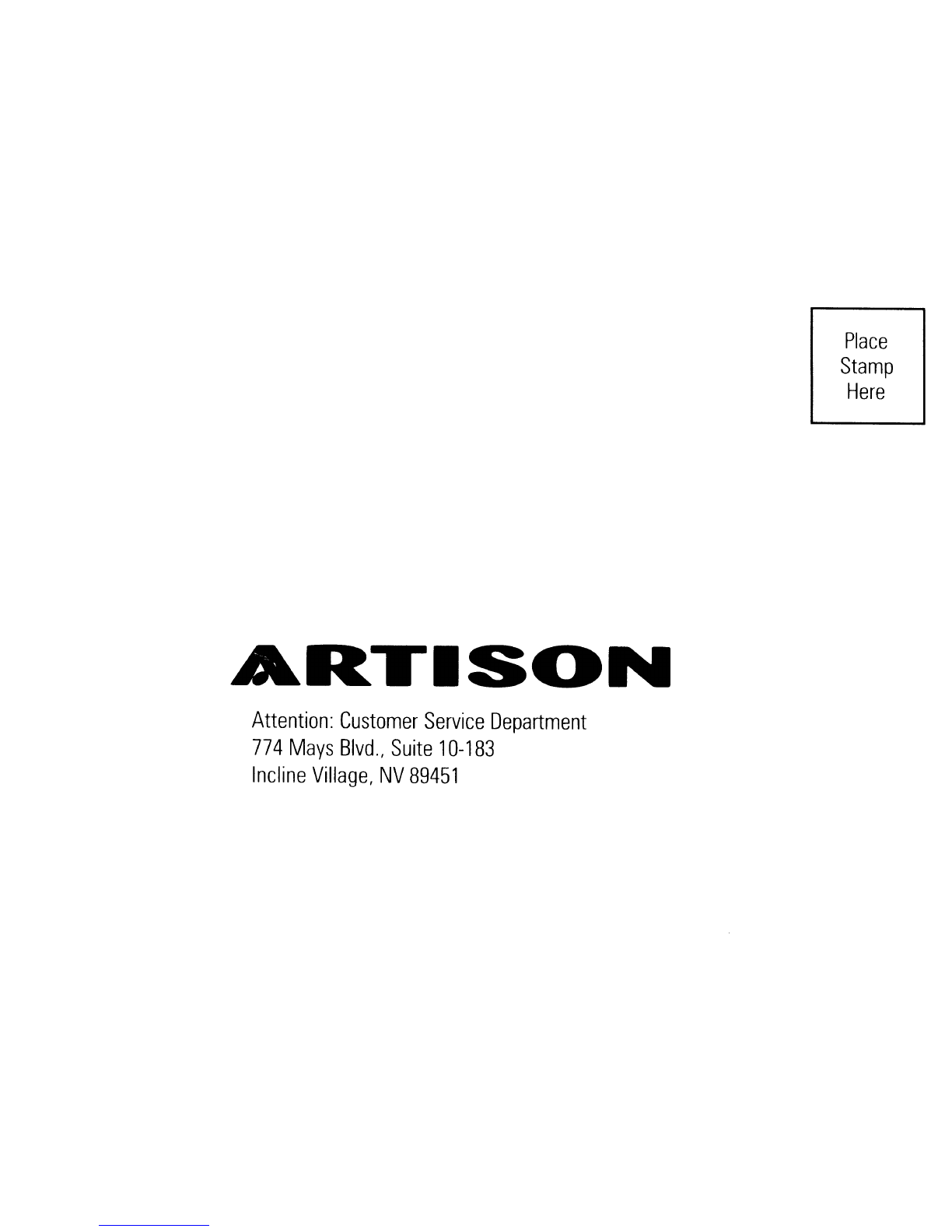

ARTISON
