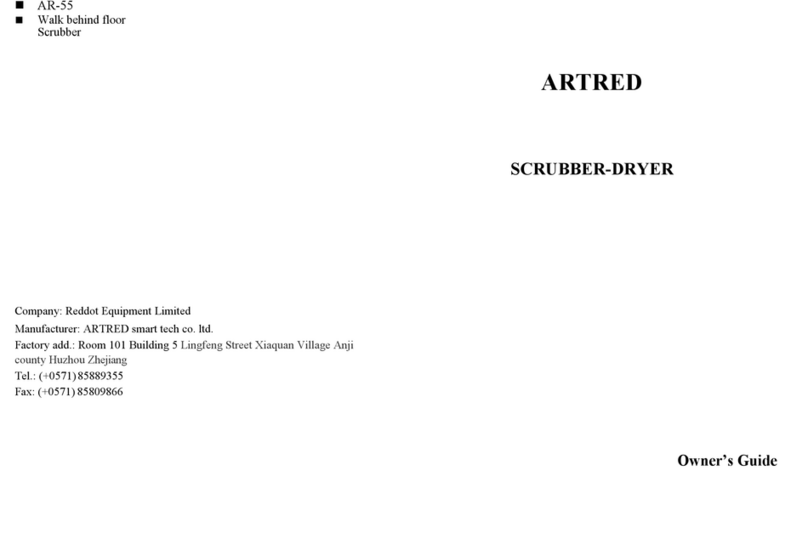

ARTRED AR50 User manual

-1-
Contents
1.0 Operational Safety Guidance.....................................................2
2.0 Functions and matters needing attention..............................6
3.0 Notes for First Use........................................................................ 7
3.1Battery Charging and Maintenance.........................................8
4.0 Daily operation and maintenance........................................... 10

-2-
1.0 Operational Safety Guidance
Read this user guide carefully before operating the machine. General safety guidelines
for mechanical preparation, operation, and maintenance are detailed in this book and
must be observed in accordance with accident prevention regulations. If an accident is
caused by not following these rules, the manufacturer will not be responsible!
This guide is also one of the important accessories of machinery. It should ensure that
the operator can read or listen to professional explanations before using it. It should be
placed in a place that can be read frequently.
Safety precautions
Failure to comply with this Directive may endanger persons or cause serious
damage to property!
If you try to operate or repair the machine without reading this instruction, it may
cause harm to you or others, or damage the machine or other property. Operators
must undergo systematic training before they use the machine.
In order to avoid fire, the machine is only suitable for cleaning non-explosion-proof
commercial ground.
Operating incomplete or unassembled machines may cause harm to you or others,
as well as damage to machines or other property. Do not operate the machine
until it is fully assembled. Before the user operates the machine, please check the
integrity of the machine carefully.
Maintenance of the machine should be carried out by professionally trained
personnel.Inspection of the machine should first disconnect the power connector,
in order to avoid accidental expansion of the fault.
When reconnecting batteries, we must pay attention to the polarity of the
connection wires and batteries. We must never make a mistake. After the
connection is completed, we should check again and again, and make sure that
there is no mistake before connecting the battery connector to the machine.

-3-
This machine is powered by DC power supply. It is absolutely impossible to make a
wrong polarity connection of batteries. Once connected with the machine, it will
cause damage to all electrical parts of the machine.
Batteries of different specifications and brands have matching chargers. It is
possible to damage batteries or even cause battery burst by using unmatched
chargers casually. We must attach great importance to it.
Maintenance of machines must be carried out by specialists in the special
maintenance department. If the machines are repaired and disassembled without
authorization, life injury and damage may occur to the machines. The machine has
been debugged before leaving the factory. After maintenance and disassembly, it is
necessary to ensure that all fasteners are not loosened. The adjusting parts are
adjusted according to the requirements and locked.
The electrical components of the machine may be short-circuited in the
presence of water or in the humid environment. Ensure the drying of electrical
components, wipe the machine clean after use and park in a dry environment.
The charging area should be kept ventilated. The charger should use three-
core power cord and power supply with grounding wire. In order to prevent
electric shock accident to the maximum extent, please install leakage
circuit breaker.
No items are allowed on the battery!
Please do not inject water into the air intake of the water-absorbing motor
when cleaning the machine!
Failure to pay attention to the labels and instructions on the machine will
result in injury. Be sure to read all the labels on the machine before
operating.
The machine can't run on rough ground and slopes, and the operator can't
sit on the machine.

-4-
Avoid contact with the rotating parts of the machine with hands, feet and
loose clothes.
Careful and slow movement should be taken when the machine is operating
near the edge. The space between the anti-collision wheel and the wall
should be paid attention to, so as to avoid the machine moving from small
obstacles, such as ground power outlet, threshold, ground wire foot and so
on.
Use of water or detergent will make wet surface, these places are easy to
cause operators or others to slip, when operating, please place warning
signs around.
The machine is very heavy, please pay attention to
safety in transportation; when carrying the machine, if
there are batteries, first unload the batteries, and then
must carry the metal frame at the bottom of the
machine, do not focus on the plastic water tank!!!
Particular attention
When turning over the sewage tank, please be
sure to empty the water in the sewage tank!!!
It is forbidden to start the floor washer and charger in the case of
combustible gas or liquid.
It is forbidden to store and park floor washers in flammable gases
and liquids.

-5-
2.0 Functions and matters needing attention
Functions
Anrunto-B50 floor scrubber is suitable for cleaning flat ground. It uses two 15-inch brush
discs or needle holders to clean the ground. The dirty water washed is sucked into the sewage
tank by the suction pick behind the machine. It can complete the cleaning work only by walking
the machine on the ground once.
Matters needing attention
1. This equipment is an efficient hard ground cleaner with cleaning and water absorption
functions, but it does not have the function of cleaning the ground. The ground debris
should be cleaned before use, so as to avoid winding and blocking the machine and affect
its normal work.
2. This equipment is suitable for cleaning on smooth hard ground. If there are cracks in
floor tile or rough stone ground, it can clean dirt, but it can not absorb water completely
like smooth ground.
3. This equipment is specially designed for use on flat ground. Do not run or work on
slopes to avoid danger.
4. The equipment shall be stored and parked horizontally, and non-professionals shall be
prohibited from operating the equipment.
5. Do not start and install the equipment in flammable, explosive and chemical
environment.
6. This equipment is powered by battery. The acid in battery can burn skin and eyes.
Operators should wear protective clothing and glasses when inspecting battery to prevent
accidents.
7. It is strictly forbidden to place any metal articles on the battery in order to avoid
damaging the battery.
8. It is strictly forbidden to burn around when charging. If the charger matches the battery,
the battery will be damaged by using the mismatched charger, which may cause the
battery to burst in serious cases.
9. Operators should not wear slippers or barefoot when operating this equipment.
10. Do not put your hands and feet in the rotating brush disc.
11. All kinds of operation safety labels on the equipment should be kept clear and intact.
12. Electrical operation parts should avoid the infiltration of water and other liquids, and

-6-
wet cloth should be used to wipe all parts of the equipment.
13. The maintenance and repair of this equipment must be carried out by professional
personnel.
3.0 Notes for First Use
For the first use of new machine, please follow the below
procedures:
1.Carefully open the package to prevent damage to the machine in the
process of opening. Carefully remove the machine from the packing box
and check whether the random parts are complete.
2.After carefully reading this "Instructions for Use" and keeping in mind
the essentials of operation and matters needing attention, the following
should be done:(The machine can be operated only on the basis of full
understanding.)
3.Connect the suction pick-up with the suction pick-up rack, tighten the
two fixed handles after adjusting the position, and connect the suction
pipe mouth with the joint on the machine.
4.Remove the brush disc and choose the appropriate brush disc or
cleaning pad according to your ground condition for installation.
5.Water is injected into the water tank.
6.Install the brush disc and put down the suction pickle and brush disc.
7.Start the suction motor, brush disc motor and solenoid valve.
8.Pull the valve switch handle to adjust the appropriate water output.
9.Open the advance switch and step on the throttle to clean.
10. After cleaning, first close the brush disc motor, then close the water
absorption motor.
11. Rise the brush disc and suction pickle to drain the sewage. If you
have finished the day's work, please clean and maintain the machine as

-7-
required.
12. Move the machine to the parking place.
3.1Battery Charging and Maintenance
Safety regulations for handling acid batteries
Park the scrubber securely before carrying out any work on the batteries.
Maintenance personnel : Batteries may only be charged, serviced or replaced by trained
personnel .The present operator manual and the manufacturer ’s instructions concerning
batteries and charging stations must be observed when carrying out the work.
Fire protection :
Smoking and naked flames must be avoided when working with batteries.
Wherever a scrubber is parked for charging there shall be no inflammable material or operating
fluids capable of creating sparks within 2 meters around the scrubber.
The area must be well ventilated.
Fire protection equipment must be provided.
Protection against electric shock:
Battery has high voltage and energy.
Do not bring short circuit.
Do not approach tools to the two poles of the battery，which can cause the sparkle.
Charging the battery
To charge the battery, the scrubber must be parked in a closed and properly ventilated room.
When charging, the tops of the battery cells must be exposed to provide sufficient ventilation.
Do not place any metal objects on the battery.
Before charging, check all cables and plug connections for visible signs of damage.
Before start and finish charging to make sure power is turn OFF.
It is essential to follow the safety regulations of the battery and charging station manufacturers.
Charging step:
1.Place the charger and the machine in a well-ventilated place.
2.Turn off the power of the machine.
3.Insert the DC output terminal of the charger into the charging port of the machine.Must be
sure the charger terminal engaged with charging port completely.
4.Plug the AC power cord of the charger into a well-grounded power outlet.
5.When charging is completed, first unplug the ice dragon connected to the AC power supply,
and then unplug the output end of the charger from the machine.
Warning:
1. Move the machine to the place with good ventilation for charging. fire or explosion hazard. The
battery releases hydrogen. Please be away from spark or open fire. The battery cabin must be kept
open when charging.
2. Stop and place the machine on the level ground and turn the key to the close position.
3. Before charging, check the electrolyte level in each battery unit.
For safety: Please wear protective gloves and eye protectors when treating the battery
and battery wiring when repairing the machine. Avoid contacting the battery liquid acid.
When charging, please open the side of the waste water tank to facilitate ventilation.
4. Plug the AC (alternating current) power cord of the charger to the power socket with sound
grounding.
5. Plug the DC (direct current) power cord of the charger to the battery charging socket behind the
waste water tank.

-8-
In order to protect the environment, please try to reduce the amount of
detergent! Please use neutral low foam detergent! When using detergent,
defoamers should be used at the same time to eliminate sewage tank foam and
prolong the service life of water absorption motor.
4.0 Daily operation and maintenance
Preparation work:
1) Choose appropriate detergent and detergent concentration according to the
contaminated state of the ground;
Generally speaking, only two cups of cleaning liquid from a disposable water
cup are needed.
The disposable water cup is shown in the right picture.

-9-
2）In the past, cleaner was added to the nozzle, and then clean water was
added to the water tank.
If you take water from tap with water pipe, you can insert the water pipe directly
into the water filling hole on the side of the machine, but you should pay
attention to the water level, so as not to overflow the cleaning liquid!
Starting working:
1.In areas to be cleaned, the ground should be cleaned first to remove larger
debris and dust. Make sure there is no soil, stone, paper scraps and other
debris on the ground before cleaning, which is of great benefit to you to
improve work efficiency and protect the machine.
2.Start the power switch lock, light the power indicator, check the battery power,
confirm that the power is sufficient, before cleaning operations can be carried
out; if the power is insufficient, the battery must be charged;
3.Put forward and backward switch into forward gear.
4.Start brush disc motor, water absorption motor and button switch
sequentially.
5.Adjust the flow of clean water (detergent) according to the situation of
washing land, move up and down the adjusting handle to control the flow of
water; it can clean the ground and reduce the loss of clean water
(detergent).
6.Start switch, brush disc motor, solenoid valve open, machine start to work.
Note: The adjustment of absorbent tape will directly affect the water
absorption effect of pickup. It is necessary to keep the uniform adhesion
between the pickup tape and the ground. When the tape is worn out, the
proper position between the pickup tape and the ground can be maintained by
adjusting the universal wheel knob of the pickup tape.
7.Because of the uneven ground, sometimes even after cleaning, if there is still
water, the brush disc can be raised, start the water-absorbing motor, promote
the washing machine, in the water area, repeated, repeated absorption.
There are deep grooves on the ground, which will affect the water
absorption efficiency of the machine and can only be treatedseparately.
8.Problems of Adjustment Squeegee: When you feel that the suction motor

-10
-
1
is suddenly abnormal during use, and the squeegee does not absorb water or
the sound of the squeegee is normal, the squeegee cannot absorb water, you
should stop the operation immediately for inspection;
①The water level has risen to the highest position (floating up cut off the wind
path),you will discharge sewage;
Method: Pull the sewage pipe out of the pipe clip, open the pipe cover, drain
the sewage into the sewer, and wash the sewage tank. (right picture)
②If the water level in the dirty water tank is not high and
there is no excess foam, please check the connection
between the suction hose and the hose, which is likely to
be clogged with debris here, and it will return to norma
after being cleared.
③If the water level in the dirty water tank is not high, but
there is a lot of foam, this means that it is possible for
your cleaning fluid to add too much or the cleaning fluid
you use is a high foam cleaning liquid.
④If the above three conditions are not, please pull out the suction pipe on
the suction pickup, open the motor of the suction machine, and use your
hand to try whether the suction of the air intake is normal, if the suction is
too small, check whether the suction connecting pipe is blocked.
9.Method of Replacing Brush Disk：
Loading brush：Place the brush tray to be placed under the brush cover (if
using the dial, please put the brush on the dial and then put it), and put down
the brush pedal so that the brush head and the brush holder are basically
opposite. At this time, press the control panel to brush the motor start button.
As the motor rotates, the brush disk will be automatically installed. You can
then start the operation or manually install it. For the unskilled staff, it is
recommended to install it manually.
②Unloading brush:After you finish your work, first raise the brush disc, close
the brush disc switch, the motor stops turning the brush disc by hand, and then
the brush disc can be removed.
10. Battery replacement method:
①Cut off all button switches and open the sewage tank.
②Release the clamp on the battery, remove the battery connection, and
replace the battery separately.

- 10 -
3
11.Maintain Squeegee：
Squeegee is an important part of floor washer. In the process of absorbing
water, because of the friction between adhesive tape and ground, it will wear
out. When the effect of absorbing water is not good, the following checks
should be made.
①Whether there is foreign matter in the rubber scraper;
( Prepare a towel and wipe the strip at any time)
②Whether there any debris blocking at the suction and hose connection；
( Remove the connection nozzle or remove the suction to clear the
blockage )
③Whether the angle between the scraper and the ground is suitable, it can be
adjusted by the squeegee universal wheel.
④Check the wear of the edge of the scraper. If the wear is severe and the
adjustment cannot be restored, the scraper strip can be used in reverse. If the
other side is worn, only the new strip can be replaced.
Normally configured is a common strip. If you are using it in a
heavily oily environment, please purchase a special strip for oil
resistance.
12. Work after the end of daily operation:
①Wipe the outside of the cleaning machine with dry and wet cloth.
The sewage in the sewage tank is emptied and cleaned.
Rise the brush disc and squeegee, and park the floor washer in a flat, dry
and ventilated environment without flammable gas, liquid or chemicals.
④If it stops using for a long time, it should be charged regularly to protect the
service life of the battery, open the cover, air-dry, and cover the floor washer
with dust-proof cloth for storage.
2
