Artusi CACC604 User manual

CACC604
CACC704
OPERATION MANUAL
APPLIANCES
FOR LIVING

Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI
and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance
has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read
this section you will be able to choose the most appropriate settings for your appliance when cooking different
types of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from
using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF
THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at
your disposal.
Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not
be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED
IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
“Conforms with the WEEE Regulations.”

Your safety is important to us. Please read
this information before using your cooktop.
Disconnect the appliance from the mains
electricity supply before carrying out any
work or maintenance on it.
Connection to a good earth wiring system
is essential and mandatory.
Alterations to the domestic wiring system
must only be made by a qualified
electrician.
Failure to follow this advice may result in
electrical shock or death.
Take care - panel edges are sharp.
Failure to use caution could result in injury
or cuts.
Safety Warnings
Installation
Electrical Shock Hazard
Cut Hazard
Important safety instructions
Read these instructions carefully before
installing or using this appliance.
No combustible material or products
should be placed on this appliance at any
time.
2

Please make this information available to
the person responsible for installing the
appliance as it could reduce your
installation costs.
In order to avoid a hazard, this appliance
must be installed according to these
instructions for installation.
This appliance is to be properly installed
and earthed only by a suitably qualified
person.
This appliance should be connected to a
circuit which incorporates an isolating
switch providing full disconnection from
the power supply.
Failure to install the appliance correctly
could invalidate any warranty or liability
claims.
Do not cook on a broken or cracked
Operation and maintenance
Electrical Shock Hazard
cooktop. If the cooktop surface should
break or crack, switch the appliance off
immediately at the mains power supply
(wall switch) and contact a qualified
technician.
Switch the cooktop off at the wall before
cleaning or maintenance.
Failure to follow this advice may result in
electrical shock or death.
3

This appliance complies with
electromagnetic safety standards.
However, persons with cardiac
pacemakers or other electrical implants
(such as insulin pumps) must consult with
their doctor or implant manufacturer
before using this appliance to make sure
that their implants will not be affected by
the electromagnetic field.
Failure to follow this advice may result in
death.
During use, accessible parts of this
appliance will become hot enough to cause
burns.
Do not let your body, clothing or any item
other than suitable cookware contact the
Ceramic glass until the surface is cool.
Health Hazard
Hot Surface Hazard
Metallic objects such as knives, forks,
spoons and lids should not be placed on
the hob surface since they can get hot
Keep children away.
Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang
other cooking zones that are on. Keep
handles out of reach of children.
Failure to follow this advice could result in
burns and scalds.
4

Cut Hazard
The razor-sharp blade of a cooktop scraper
is exposed when the safety cover is
retracted. Use with extreme care and
always store safely and out of reach of
children.
Failure to use caution could result in injury
or cuts.
Important safety instructions
Never leave the appliance unattended
when in use. Boilover causes smoking and
greasy spillovers that may ignite.
Never use your appliance as a work or
storage surface.
Never leave any objects or utensils on the
appliance.
Do not place or leave any magnetisable
objects (e.g. credit cards, memory cards)
or electronic devices (e.g. computers, MP3
players) near the appliance, as they may
be affected by its electromagnetic field.
Never use your appliance for warming or
heating the room.
After use, always turn off the cooking
zones and the cooktop as described in this
manual (i.e. by using the touch controls).
5
Do not rely on the pan detection feature to
turn off the cooking zones when you
remove the pans.

Do not allow children to play with the
appliance or sit, stand, or climb on it.
Do not store items of interest to children in
cabinets above the appliance. Children
climbing on the cooktop could be seriously
injured.
Do not leave children alone or unattended
in the area where the appliance is in use.
Children or persons with a disability which
limits their ability to use the appliance
should have a responsible and competent
person to instruct them in its use. The
instructor should be satisfied that they can
use the appliance without danger to
themselves or their surroundings.
Do not repair or replace any part of the
appliance unless specifically recommended
in the manual. All other servicing should be
done by a qualified technician.
Do not use a steam cleaner to clean your
cooktop.
Do not place or drop heavy objects on your
cooktop.
Do not stand on your cooktop.
Do not use pans with jagged edges or drag
pans across the Ceramic glass surface as
this can scratch the glass.
6

Do not use scourers or any other harsh
abrasive cleaning agents to clean your
cooktop, as these can scratch the Ceramic
glass.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
This appliance is intended to be used in
household and similar applications such as:
-staff kitchen areas in shops, offices and
other working environments; -farm houses;
-by clients in hotels, motels and other
residential type environments; -bed and
breakfast type environments.
WARNING: The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements.
Children less than 8 years of age shall be
kept away unless continuously supervised.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
7

Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision
WARNING: Unattended cooking on a hob
with fat or oil can be dangerous and may
result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire
blanket.
WARNING: Danger of fire: do not store
items on the cooking surfaces.
Warning: If the surface is cracked, switch
off the appliance to avoid the possibility of
electric shock, for hob surfaces of
glass-ceramic or similar material which
protect live parts
A steam cleaner is not to be used.
The appliance is not intended to be
operated by means of an external timer or
separate remote-control system.
8

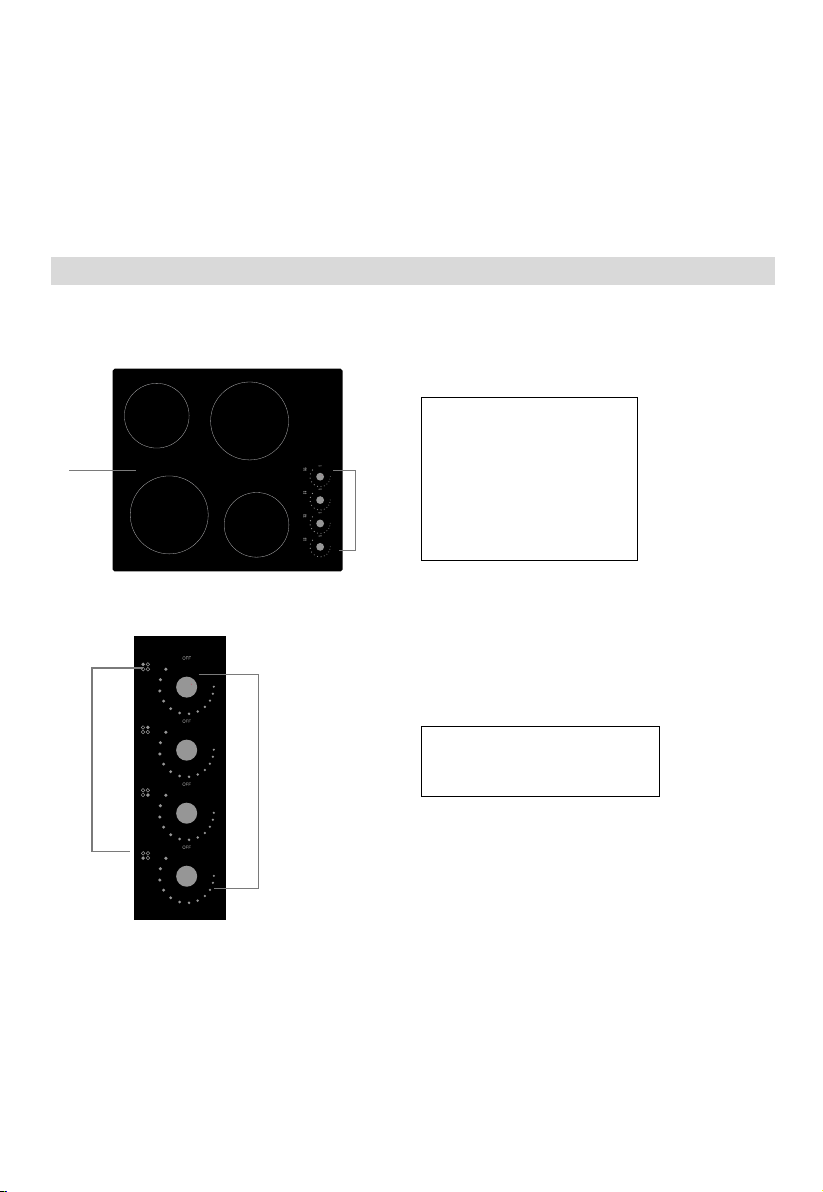

Top View
Control Panel
Product Information
The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of
resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice
for modern families.
The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and
reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
1. Max. 1200 W zone
2. Max. 1800 W zone
3. Max. 1200 W zone
4. Max. 1800W zone
5. Glass plate
6. Control panel
1. Hot hob warning indicators
2. Power regulating controls
Congratulations
on the purchase of your new Ceramic
Hob.
We recommend that you spend some time to read this Instruction /
Installation Manual in order to fully understand how to install correctly and
operate it. For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction
/ Installation Manual for future reference.
Product Introduction
9
12
3
4
5
6
1
2

Working Principle
This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the
power regulation with the mechanical controls.
Before using your New Ceramic Hob
Read this guide, taking special note of the ‘Safety Warnings’ section.
Remove any protective film that may still be on your ceramic hob.
Technical Specification
Cooking Hob
Cooking Zones
4 Zones
Supply Voltage
220-240V~ 50/60Hz
Installed Electric Power
5500-6600W
Product Size D×W×H(mm)
590X520X55
Building-in Dimensions A×B (mm)
560X490
Weight and Dimensions are approximate. Because we continually strive to improve our products we may
change specifications and designs without prior notice.
Operation of Product
Choosing the right Cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the
cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
10
4 Zones
220-240V~ 50/60Hz
560X490
700X520X55
5500-6600W
CACC604 CACC704

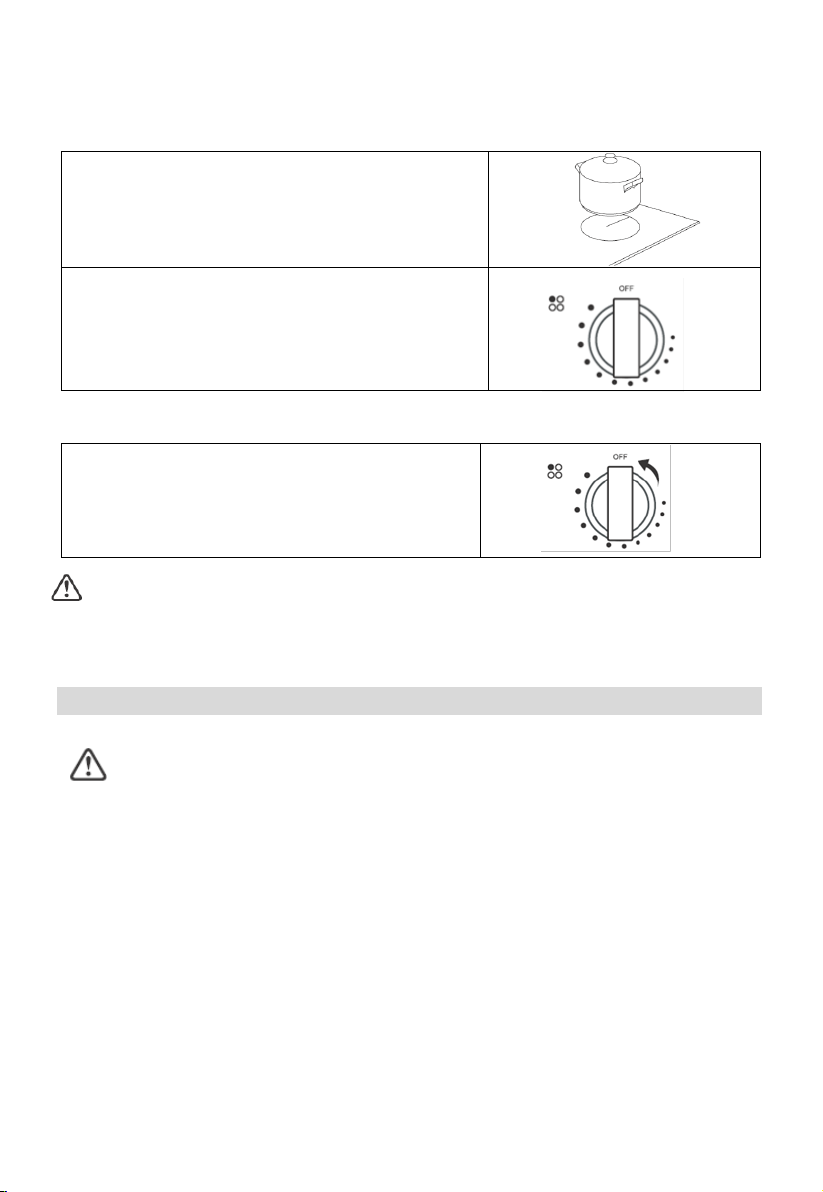

How to use
Start cooking
Place a suitable pan on the cooking zone that you wish to use.
• Make sure the bottom of the pan and the surface of the
cooking zone are clean and dry.
Adjust the power regulating control to the desired level to turn
on the control
Finish cooking
Turn the cooking zone off by turning the power regulating
control to “OFF“ to turn off the control
Beware of hot surfaces
When the glass plate is hot, the hot hob warning indicator will light. Don’t touch the glass plate until the
indicator goes out. It can also be used as an energy saving function if you want to heat further pans, use
the hotplate that is still hot.
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly if you’re using
PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this
presents a serious fire risk.
Cooking Tips
When food comes to the boil, reduce the temperature setting.
Using a lid will reduce cooking times and save energy by retaining the heat.
Minimize the amount of liquid or fat to reduce cooking times.
Start cooking on a high setting and reduce the setting when the food has heated through.
Simmering, cooking rice
Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising occasionally to
the surface of the cooking liquid. It is the key to delicious soups and tender stews because the
flavours develop without overcooking the food. You should also cook egg-based and flour thickened
11

sauces below boiling point.
Some tasks, including cooking rice by the absorption method, may require a setting higher than the
lowest setting to ensure the food is cooked properly in the time recommended.
Searing steak
To cook juicy flavorsome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the
meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the
steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak
to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender
before serving.
For stir-frying
1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities,
cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting,
return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Care and Cleaning
What?
How?
Important!
Everyday soiling on glass
(fingerprints, marks,
stains left by food or
non-sugary spillovers on
the glass)
1. Switch the power to the cooktop
off.
2. Apply a cooktop cleaner while
the glass is still warm (but not
hot!)
3. Rinse and wipe dry with a clean
cloth or paper towel.
4. Switch the power to the cooktop
back on.
• When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking
zone may still be hot! Take extreme
care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to check
if your cleaner or scourer is suitable.
• Never leave cleaning residue on the
cooktop: the glass may become
stained.
12

Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately with a
fish slice, palette knife or razor
blade scraper suitable for Ceramic
glass cooktops, but beware of hot
cooking zone surfaces:
1. Switch the power to the cooktop
off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the
soiling or spill to a cool area of
the cooktop.
3. Clean the soiling or spill up with
a dish cloth or paper towel.
4. Follow steps 2 to 4 for ‘Everyday
soiling on glass’ above.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Hints and Tips
Problem
Possible causes
What to do
The cooktop
cannot
Be turned on.
No power.
Make sure the ceramic hob is connected to the
power supply and that it is switched on.
Check whether there is a power outage in your
home or area. If you’ve checked everything and
the problem persists, call a qualified technician.
The glass is
being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth bases. See
‘Choosing the right cookware’.
See ‘Care and cleaning’.
Installation
Selection of installation equipment
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
A
X
X
X
B
L
HD
W
X
13

L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
590
520
55
51
560+4
+1
490+4
+1
50 mini

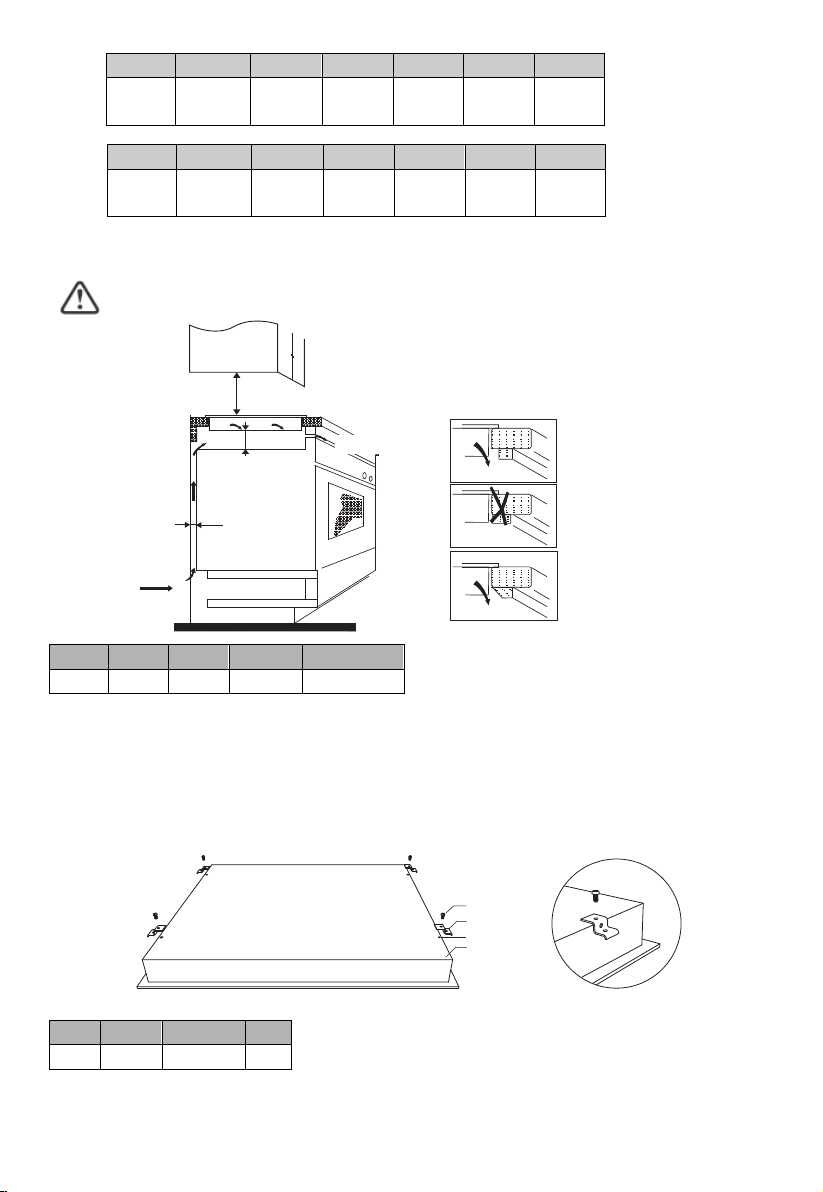

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 5mm
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the
controls protruding from the hob.
Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after
installation.
A
B
C
D
screw
bracket
Screw hole
base
Adjust the bracket position to suit for different work surface’s thickness.
A
B
C
D
A
B
C
E
D
14
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
0
520
55
51
560+4
+1
490+4
+1
50 mini
70
CACC604
CACC704

Cautions
1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals
at your service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its
reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
Connecting the hob to the mains power supply
The power supply should be connected in compliance with the relevant standard, or a single-pole circuit
breaker. The method of connection is shown below.
HOB
BLACKET
TABLE
A
HOB
BLACKET
TABLE
B
L1 L2 N1/N2
220-240 V~
Blue
Brown
Grey
Yellow
/
Green
Black
L1 L2 N1
220-240 V~
220-240 V~
N2
L1 L2 N1
220-240 V~
N2
Blue
Brown
Grey
Yellow
/
Green
Black
Blue
Brown
Grey
Yellow
/
Green
Black
15

1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the
proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be
installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with
safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.
DISPOSAL: Do not
dispose this product
as unsorted municipal
waste. Collection of
such waste separately
for special treatment is
necessary.
This appliance is labeled in compliance with European directive 2012/19/EU for Waste
Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed
of correctly, you will help prevent any possible damage to the environment and to
human health, which might otherwise be caused if it were disposed of in the
wrong way.
The symbol on the product indicates that it may not be treated as normal household
waste. It should be taken to a collection point for the recycling of electrical and electronic
goods.
This appliance requires specialist waste disposal. For further information regarding the
treatment, recover and recycling of this product please contact your local council, your
household waste disposal service, or the shop where you purchased it.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
16

Warranty Card
Worldwide Appliances Pty Limited
A.B.N. 45868077422
Oce:
48-50 Moore Street, Leichhardt N.S.W 2040
Post:
Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 694 583
WARRANTY REGISTRATION
Your ongoing satisfaction with your artusi
product is important to us. We ask that you
complete the enclosed Warranty Registration
Card and return it to us so that we have a record
of the artusi product purchased by you.
PRIVACY
Worldwide Appliances respects your
privacy and is committed to handling your
personal information in accordance with the
National Privacy Principles and the Privacy
Act 1988 (Cth). A copy of the Worldwide
Appliances Privacy Policy is available at
www.artusi.com.au. Worldwide Appliances will
not disclose any personal information set out
in the Warranty Registration Card (“Personal
Information”) without your consent unless
required by:
1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services
to artusi or assist artusi in providing services
(including repair and warranty services) to
customers. Our purpose in collecting the
Personal Information is
to keep a record of the artusi product purchased
by you, in order to provide a better warranty
service to you in the unlikely event that there is
a problem with your artusi product. Worldwide
Appliances may contact you at any one or more
of the address, email address or telephone
numbers set out in the Warranty Registration
Card. Please contact artusi on 1300 694
583 should you not wish to be contacted by
Worldwide Appliances.
WARRANTY
1. Warranty
Worldwide Appliances warrants that each artusi
product will remain, for a period of either 12
months or 24 months of warranty. All Warranties
are valid from the original date of purchase, And
warranty claims must be accompanied by the
proof of purchase.
24 months warranty products:
All Built-in Appliances – Limited to Ovens,
Gas, Induction and Electric Cooktops, and All
Rangehoods
Freestanding Cookers - Gas and Electric Models
(900mm Width)
artusi.com.au
Dishwashers - Freestanding, Fully Integrated,
Semi Integrated and built-in
12 months warranty products:
Freestanding Cookers - Gas and Electric Models
in 50cm, 54cm and 60cm Widths
Portable Appliances* – Benchtop Models and
Portable Gas Models
2. What is not Covered by the Warranty.
The Warranty does not apply if an artusi product
is defective by a factor other than a defect arising
in the manufacture of the artusi product, including
but not limited to:
(a) damage through misuse (including failure
to maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the artusi product
was not sold or designed;
(c) use or installation which is not in accordance
with any specied instructions for use or
installation;
(d) use or operation after a defect has occurred or
been discovered;
(e) damage through freight, transportation or
handling in transit (other than when Worldwide
Appliances is responsible);
(f) damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental
factors outside the control or Worldwide
Appliances;
(g) repair, modication or tampering by the
purchaser or any person other than Worldwide
Appliances, an employee of Worldwide
Appliances or an authorised artusi service
contractor*;
(h) use of parts, components or accessories
which have not been supplied or specically
approved by artusi.
(i) damage to surface coatings caused by cleaning
or maintenance using products not recommended
in the artusi product handbook provided to the
purchaser upon purchase of the artusi product;
(j) damage to the base of an electric oven due to
items having been placed on the base of the oven
cavity or covering the base, such as aluminium
foil (this impedes the transfer of heat from the
element to the oven cavity and can result in
irreparable damage); or
(k) damages, dents or other cosmetic
imperfections not aecting the performance of the
artusi in respect of an artusi product purchased
as a “factory second” or from display
The Warranty does not extend to light globes
used in artusi products.
3. Domestic Use
Each artusi product is made for domestic use.
This Warranty may not extend to artusi products
used for commercial purposes.
Continued over...

4
Please complete and send to ARTUSI at: REPLY PAID 83617
LEICHHARDT NSW 2040
Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)
MODEL NUMBER SERIAL NUMBER
(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4
WARRANTY REGISTRATION CARD
01052013
01032014
4. Time for Claim under the Warranty
You must make any claim under this Warranty
within twenty eight (28) days after the occurrence
of an event which gives rise to a claim pursuant
to the Warranty, by booking a service call on the
telephone number below.
5. Proof of Purchase
Customers must retain proof of purchase in order
to be eligible to make a warranty claim in respect
of an artusi product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under
this Warranty unless Worldwide Appliances
determines the expenses are reasonable, in which
case the customer must claim those expenses
by providing written evidence of each expense
to Worldwide Appliances at the address on the
Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not aect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application
of the consumer guarantees set out in the Act or
any other equivalent or corresponding legislation
in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction;
or
(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or
consequential loss of any kind (including, without
limitation, loss of use of the artusi product) and
(other than expressly provided for in these terms
and conditions) subject to all terms,
conditions and warranties implied by custom, the
general law, the Act or other statute.
(d) The liability of Worldwide Appliances to you
for a breach of any express or non-excludable
implied term, condition or warranty is limited at
the option of Worldwide Appliances to:
(i) replacing or repairing the defective part of the
artusi product;
(ii) paying the cost of replacing or repairing the
defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi
product.
(e) Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund
for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
8. Defects
Any part of an artusi product deemed to be
defective and replaced by Worldwide Appliances
is the property of Worldwide Appliances.
Worldwide Appliances reserves the right to
inspect and test artusi products in order to
determine the extent of any defect and the
validity of a claim under the Warranty.
*To locate your closest artusi authorised service
agent please contact us on 1300 652 100 or visit
www.artusi.com.au
ALL SERVICE CALLS MUST BE BOOKED
THROUGH AN AUTHORISED DEALER OR
WARRANTY DEPARTMENT ON 1300 652 100
OR stokesaps.com.au/artusi-service
01032014
Warranty Card continued artusi.com.au
Warranty Card tear off
