Artusi ADW5607 User manual

ADW5607
OPERATION MANUAL
APPLIANCES
FOR LIVING

Congratulations, you are now the proud owner of an ARTUSI cooking appliance.
Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the
full range of features your ARTUSI appliance has to offer and serves as an
introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance
consists of. Once you have read this section you will be able to choose the
most appropriate settings for your appliance when cooking different types of
food.
We ask you to read the instructions in this booklet very carefully as this
will allow you to get the best results from using your appliance. KEEP THE
DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD
AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the
product and, keep it permanently at your disposal.
Note: This user manual is prepared for more than one model. Some of the
features specified in this Manual may not be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products
marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED
SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE”
“Conforms with the WEEE Regulations.”

This Operation Manual is supplied together with the "Installation Manual".
The model mentioned this manual may not be sold on every market, and may vary at any time.
The models and specifications of the products sold in your country must be known dearly.
Important note!
These operation instructions must be properly kept.Model No.: ADW5607B & ADW5607X
Version No.:20211104

Realize your high-style life precisely, and endow the special
concept to every type of product of the same family.
Outstanding cleaning effect.
Perfect high-temperature
and clean washing. The
dishwasher is good at
eliminating the animal fat
that is hard to clear. The oil
stains are cleared easily with
the special dish washing
powder and the powerful
water flow of high spray
height after the fat is melted
with high-temperature water.
of the product. For the safe use of the product, the safety precautions and other
Enjoy washing
Enjoy high-quality life
All-round spray system
3600complete
removal of dirt.
BLDC motor, low power
consumption, high
hydraulic force, and
capable of removing
all the dirt.
General dish rack design.
Designed for different
dishes.
More applicable to the
demands of different
users, and more
convenient to arrange
the dishes.
Fashion appearance Match
with the kitchen style freely
The dishwasher appearance
is featured by the modern
and fashion shape and the
decent color.
instructions in this manual must be read carefully before operating the product.
Drawer-type design.
Drawer-type structure design, facilitating the installation and maintenance.
Owing to the drawer-type design, this product has the more reasonable
installation space, is more convenient to install, and is easy and convenient to
repair and maintenance as a whole.
Please read this manual carefully in order to help the safe and comfortable use

1

1
Catalog
Safety and Warning ......................................................... ......... ..... 2
Dish Maintenance............................................................................ ....5
Packing List....................................................................................... ...6

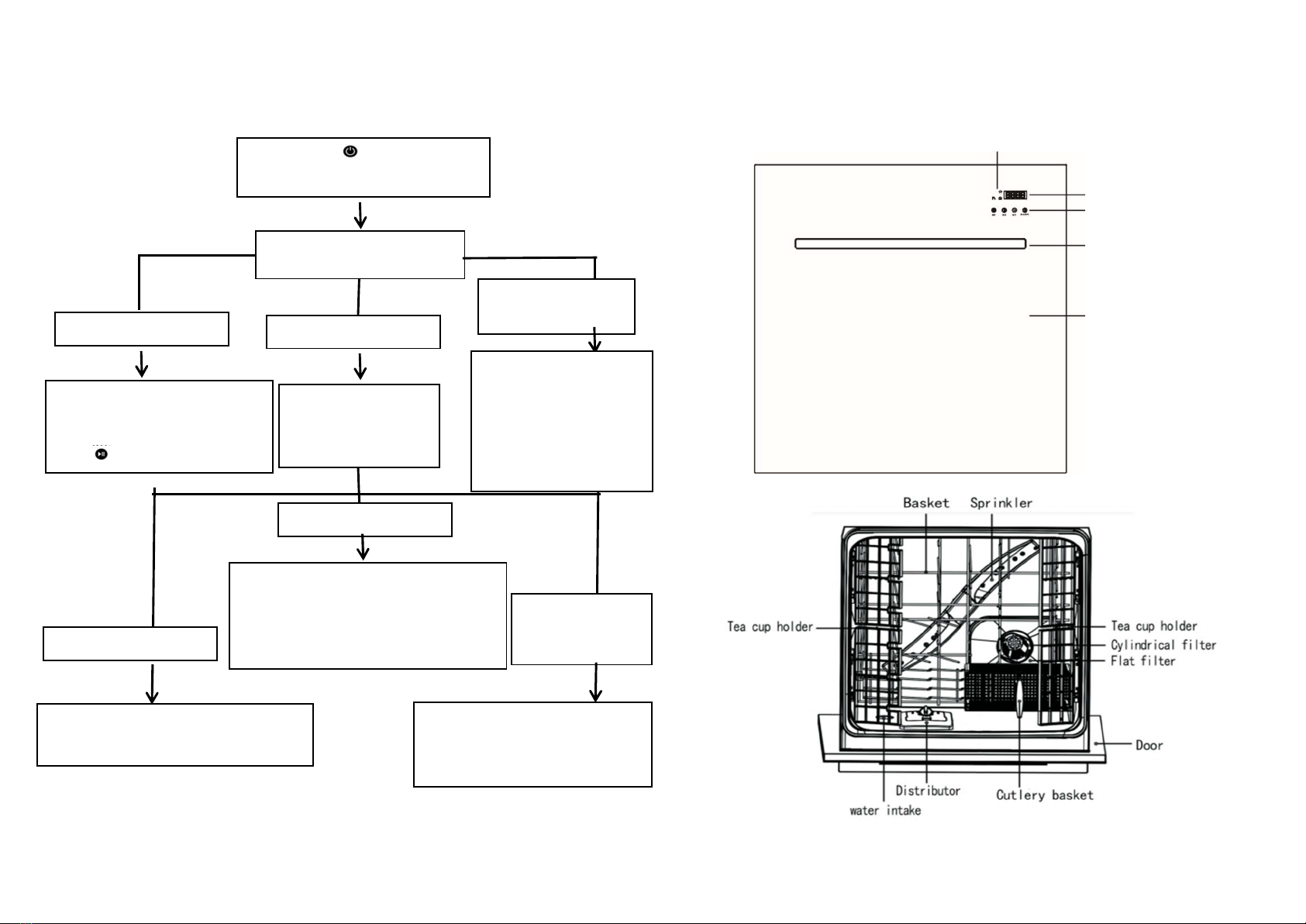

Part name.............................................................................................. 7

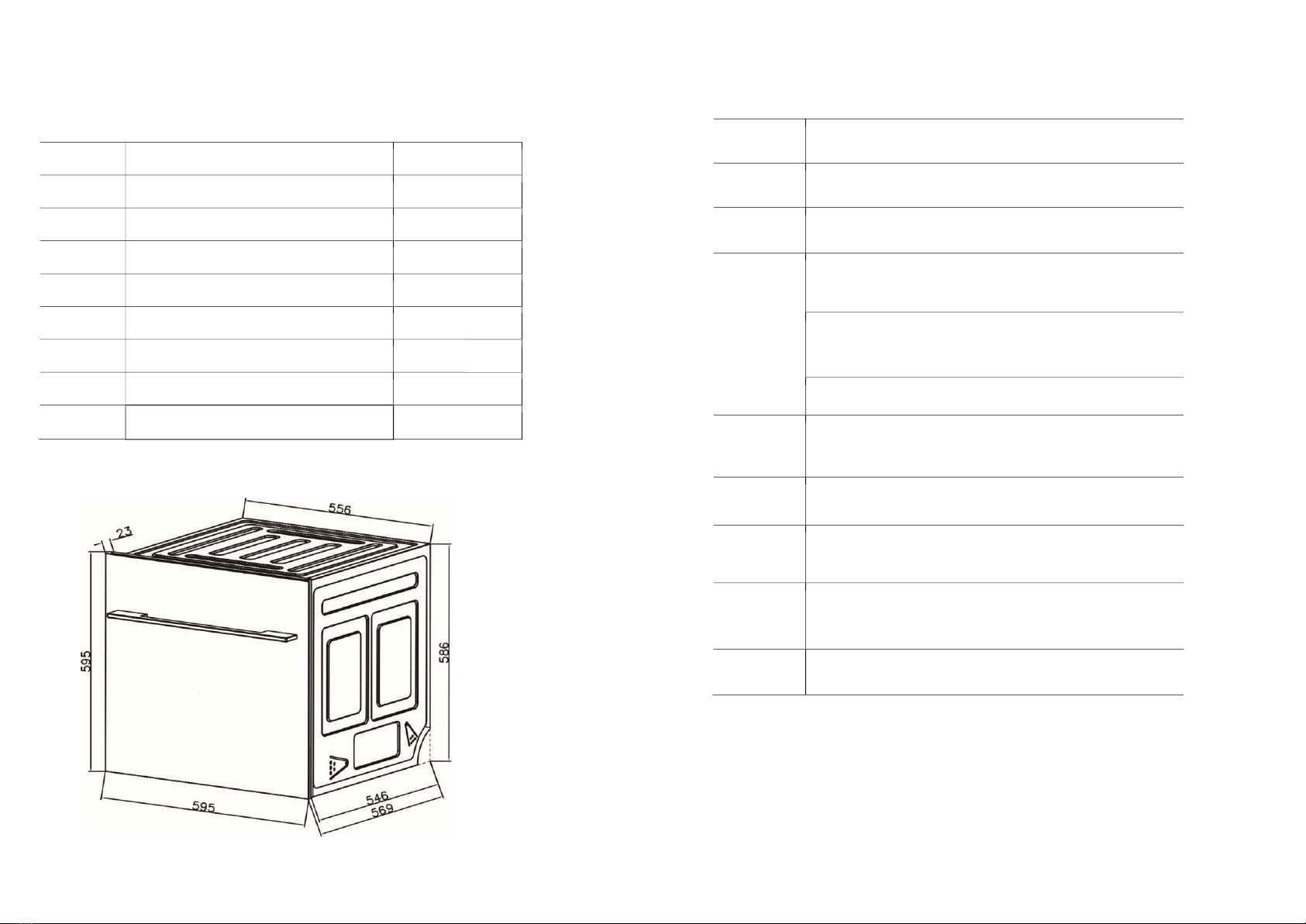

Product Specifications........................................................................ 9
Installation Precautions ...................................................................1 0

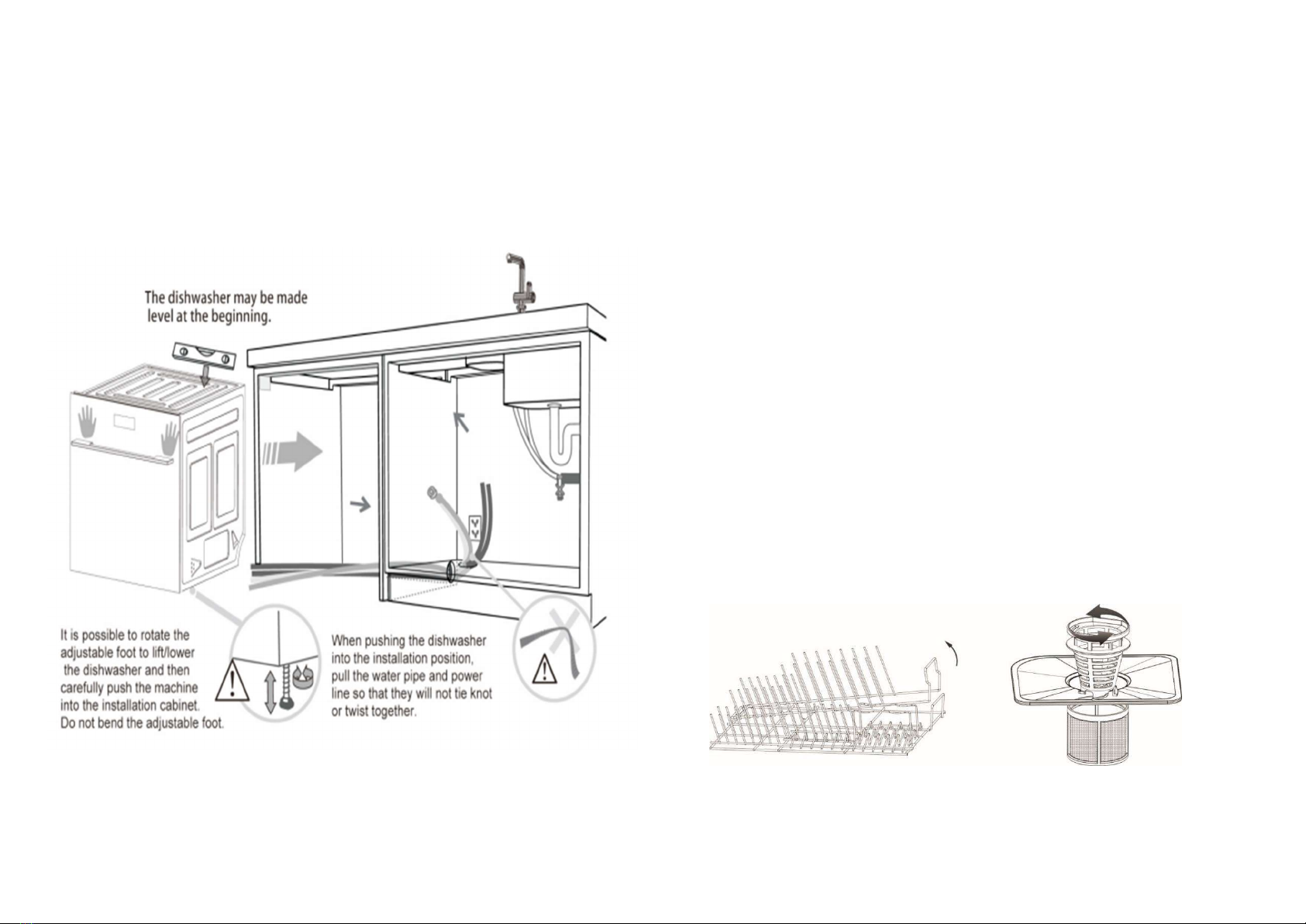

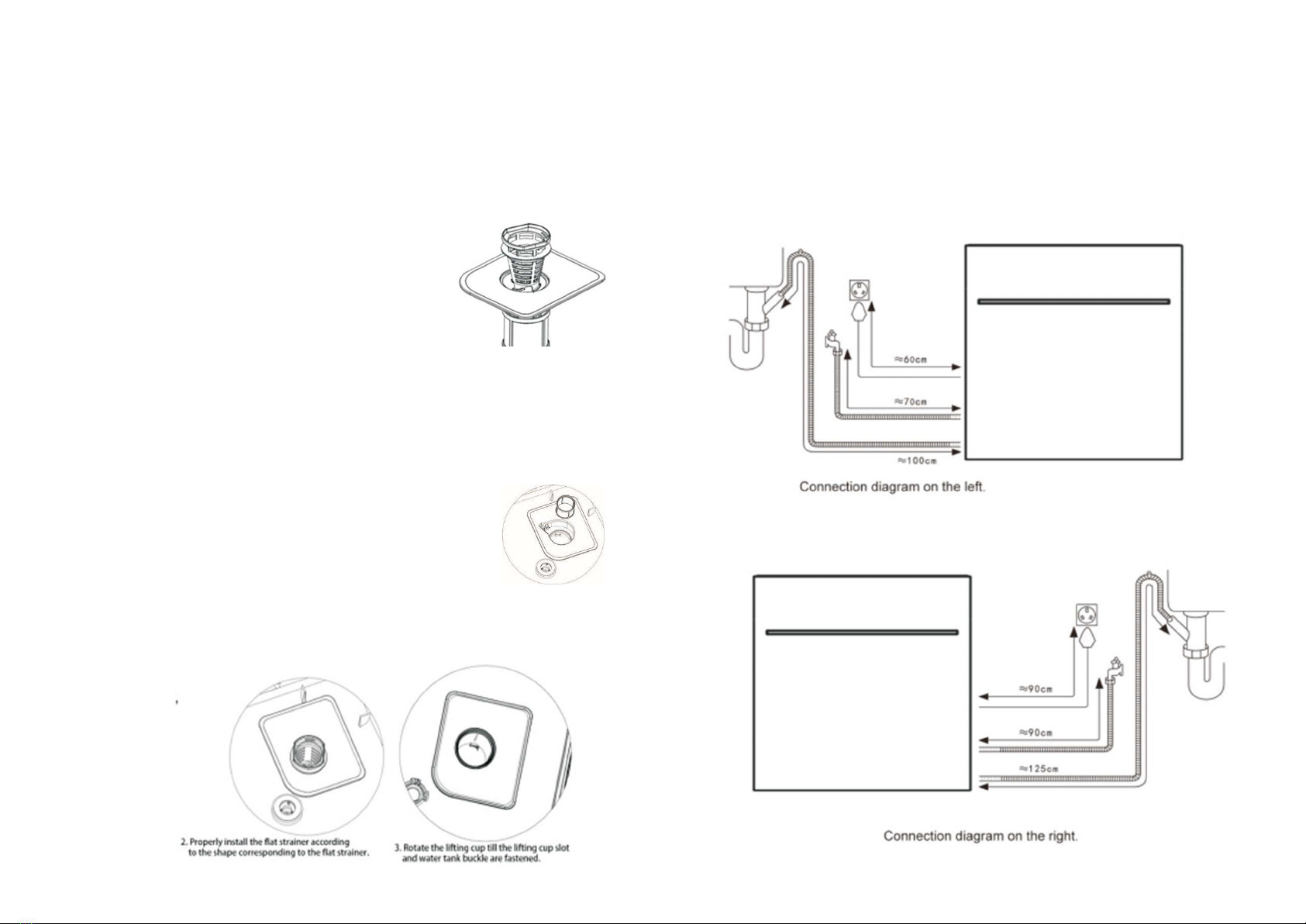

Installation Guidelines................................................................11-15
Instructions...........................................................................................16
Cutlery basket..................................................................................... 19
Basket and Cup holder................................................................20-21
Place the dishes in the drawer.........................................................22
Water hardness is introduced..................................................................23
Washing procedure is introduced....................................................24
Adding of Washing Agent.........................................................................25
Adding of Rinse aid..............................................................................29
Cleaning and Maintenance................................................................30
Troubleshooting....................................................................................34
Occurrence of Failure...........................................................................36
Failure Diagnosis....................................................................................38
Data of Washing Program....................................................................40
Technical Data.........................................................................................41
Repair and Service....................................................................... 42、43

2 43
Important safety instructions
The well-designed dishwasher can operate safely during the normal use.
The following operating methods must be kept in mind during the use of dishwasher.
 Important safety instructions
Warning!- During the use of dishwasher, the basic precautions, including but not limited to the
following principles, must be observed:
 Read this manual completely before operating the dishwasher.
 Abide by the instructions in this manual, and minimize the fire or explosion risks in order to avoid
property damage or personal injury.
 The dishwasher is just used for the purpose for which this user guide and quick guidance is
intended.
 The dishwasher just applies to home use and following similar situations:
-Kitchens of shops, office areas or other work environment; Farm houses;Guests living in the hotels,
motels or other living environment.
 Knives and other utensils with sharp points must be loaded in the basket with their points down or
placed in a horizontal position.
 The household dishwasher shall just use the suggested washing agent and rinse aid which must be
placed out of reach of any child. Every time after washing, it is required to check if the washing
agent feeder is drained completely.
 To place the dishes in the dishwasher, it is forbidden to scratch the inner cover of dishwasher with
the sharp dishes, and the handles of sharp handles must be kept upward in order to avoid hand
cutting. During and after washing, the strainer (at the bottom of drawer) must not be touched by
hand in order to avoid hand bum.
 The dishwasher must not be operated before all the control panels are closed.
 The control button must not be modified without permission.
 It is forbidden to use the dishwasher for other purposes, or seat or on the drawer or dish rack of
the dishwasher.
 The door should not be left in the open position since this could present a tripping hazard.
 The foldable cup tray is used to carry tea cups, glass cups and kitchenware. When the foldable cup
tray is placed in the dishwasher, it is forbidden to lean on the tray, or use the tray to support the
body weight.
 In order to reduce the personal injury risk, the children are forbidden to play in or above the
dishwasher.
 The dishwasher door must be dismantled before the old dishwasher is disassembled or
abandoned.
 Some washing agents of dishwasher are strongly basic. The unexpected swallowing of washing
agent may be very hazardous. Skins and eyes shall be protected from washing agent. When the
dishwasher is opened, the children must be far away from the dishwasher. Every time after
washing, it is required to check if the washing agent feeder is drained completely.
 The maximum number of place settings to be washed: 7 sets of.
 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
 After installation, Appliance can be unplug easily.
 Correct Disposal of this product:This marking indicates that this product should not
be disposed with other household wastes throughout the El-J. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe
recycling.
Instructions to the user
For the product over the warranty period, the after-sales service personnel can offer
the paid service, and the charge (over-warranty charge) includes the costs of both
labour and parts. Every payment made by the user is charged according to the uniform
after-sales charging standard offered by the repairer, and invoiced by the repairer;
otherwise, the user can reject the payment.

42 3
Repair and Service
Warranty instructions of dishwasher
Dear users,
Thanks for your using the dishwasher. The Company will offer the following service in
accordance with the relevant provisions of the Law of the People's Republic of China on
Safeguarding the Consumer Rights and Interests and the State Bureau of Quality and
Technical Supervision and on the basis of the warranty instructions and Invoice:
 One-year free warranty service is offered for whole machine.
 Three-year free warranty service is offered for main components (including main control panel or
program controller, heater, washing pump and water drain pump).
 The following cases are outside with the free service scope, for which the paid repair and full-life
service can be offered:
[A].The warranty certificate and invoice cannot be offered;
[B]. The invoice is altered;
[C]. The damage is caused by accident or improper use;
[D]. The damage is caused by the repair unapproved by the Company;
[E].The machine is over the valid period of warranty service, and can be reused after repair.
 3-month warranty service is offered for the machine for public use installed in such place as
institution, shop, school and hotel, and one-year warranty service is offered for main components.
 The valid period of warranty service starts from the date when the invoice is issued, deducting the
time occupied by repair and the waiting time for any part that is unavailable.
 Within the valid period of warranty service, the consumer can repair, replace or return
the machine on the basis of invoice and warranty certificate.
 In case of any performance failure within 7 days after the machine is sold, the consumer can
return, replace or repair the machine.
In case of any performance failure within 15 days after the machine is sold, the
consumer can replace or repair the machine.

 Before operating the dishwasher, it is necessary to install the dishwasher in accordance with
the installation manual. If your dishwasher is not provided with installation manual, please
call the after-sales service phone. Our after-sales personnel will offer the assistance.
 The installation and repair of dishwasher must be performed by the professional technicians.
 The power wire that is damaged shall be replaced by the professional technicians.
 The dishwasher must be fastened with screws in the cabinet. The dishwasher that is not
fastened may shake, whidl may result into dishwasher damage or personal injury.
 If the dishwasher is damaged or fails, any component is dismantled, any part is missing or
damaged, or any power wire or plug is damaged, the dishwasher must not be used any
more.
 Never store gasoline or other flammable gas or fluid in any dishwasher accessory.
 The dishwasher shall be conneded to the power source with suitable rated voltage and
earthing protection in order to prevent the circuit from overloading.
 The power wire must be fastened at the designated place in order to prevent the power wire
from damage or canying any load due to treading or stumbling.
 The dishwasher must not be installed or stored in the place or outdoors at temperature
below 00 .
 The dishwasher must not be conneded to the power source with power extension wire or
portable power socket (such as multi-hole socket).
 The dishwasher must be provided with earthing protection. In case of failure or damage, the
earthing protection provides a current leaking patch with minimum resistance so that the
electric shock risk is reduced obviously. The plug must be inserted into the reliably earthed
socket that is installed according to the local laws and regulations. Waming- The electric
shock may be caused if the equipment earthing wire is not connected properly. If you doubt
the reliable earthing of dishwasher, please contact the experienced electrician or after-sales
service personnel for site test. The power plug of dishwasher must not be modified without
permission. If the plug does not match the socket, please contact the experienced electrician
to install the suitable socket.
 If the dishwasher is installed as a permanently connected equipment: Earthing instructions-
The dishwasher must be connected to the permanent metal earthing wire or the ear-thing
wire must be connected to the equipment earthing terminal or connector on the dishwasher
through the electric wire.
 When installing, the power cord socket must be installed \There the power cord is easily
accessible.
 There is an air outlet under the door of the dishwasher, so the bottom of the door should
not be blocked by the carpet.
Important safety instructions
Installation

4 41
 Important installation instructions
 Before the dishwasher is cleaned or repaired, the power plug of dishwasher must be unplugged.
 To power off the dishwasher, the power plug must be disconnected in order to avoid damage.
It is forbidden to pull the power wire or the connection between the power wire and the socket.
 Unless specially stipulated in this user guide, it is forbidden to repair or replay any part of
dishwasher, or try to repair the dishwasher. When necessary, please contact the after-sales service
department for repair, or refer to the section "Repair and Service" for relevant information.
 The floor around the dishwasher shall be kept clean and dry in order to avoid hazard due to
slipping.
 The flammable materials must not be stored around or under the dishwasher, such as lint, paper,
duster clothes or chemicals.
 Operating precautions
 The drawer must not be opened when the dishwasher is operating.
 The dishwasher can be used only when the motor, strainer, filter and spray arm are installed in
place. Please read the pictures in the section "User's Maintenance Instructions" to know those
components.
 To place the dishes in the dishwasher, much care shall be taken to avoid dosing failure of
top cover because the dishes support the top cover. The dishes placed in the dishwasher
must not be higher than the drawer, or be pressed forcefully for fear of damage.
 This appliance can be used by children aged from 8 years and above and persons with
reduced physical,sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
 The cleaning and maintenance must not be performed by the unsupervised children.
 The children are prohibited to play in the dishwasher, seat on the dishwasher, or play in
the abandoned dishwasher.
 If the cleaning agent of dishwasher is used, it is suggested to add the dish washing
powder and apply one washing program immediately after cleaning in order to prevent
the washing agent from damaging the dishwasher.
 The dishwasher is intended for ordinary household dishes, and must not be used to
clean the dishes polluted with gasoline, paint, rust, corrosive or acid or basic chemical.
 If the dishwasher is not used in a long period, the power source and water faucet of
dishwasher shall be turned off.
 The dishwasher must not be used to clean the plastic dishes except for those marked
with "Dishwasher allowed" or other equivalent sign. For the plastic dishes without such
sign, please refer to the manufacturer's suggestions.
Technical Data
 Technical Data
Power source 220-240V～ ,50Hz
Power Max. power : 1850W
Water consumption 8.4L
Outline dimension 595x569x595 (wide* deep* high) mm
Weight (net) About 30Kg
Drying mode By blower
Installation

Data of Washing Program
To know the selecting method of program, please refer to "Quick Guidance".
The time of washing program is given in the following table:
Auto Heavy Daily Eco Short
Prewashing
20min
Main washing
58 OC
Main washing
55 OC
Main washing
45 OC
Main washing
40 OC
Main washing
45OC
Prewashing
18min
Main washing
55 OC
Cold rinsing
7min
Cold rinsing
7min Rinsing 7min Cold rinsing
8min
Main
washing
60
OC
Cold rinsing
7min
Cold rinsing
9min
Cold rinsing
7min
Hot rinsing
500C
Cold rinsing
5min
Hot rinsing
65OC
Hot rinsing
65OC
Hot rinsing
50OC
Drying stage
Cold rinsing
3min Drying stage Drying stage Drying stage
Hot rinsing
55OC
Drying
stage
Notice:
The washing time depends on many factors such as water temperature, ambient condition,
quantity of dishes, and if the drawer is opened during washing. The washing time shown on
the electronic screen is the approximate value calculated as per the water temperature 20 0 C.
Dish maintenance
 Dish maintenance
40 5
Most of modem chinaware can be cleaned with dishwasher. However, the chinaware
with patterns, golden edges and hand drawings are more sensitive to the washing of
When the adhesive dishes are washed with dishwasher, some adhesives must be
softened or dissolved. In case of any doubt about this, please wash the them by hands.
be prone to hand washing for such glassware.
Plastic dishes
dishwasher.In case of any doubt about this, please wash the them by hands.
Adhesive dishes
Glass
Most of glassware can be cleaned with dishwasher. However, crystal, carved and
antique glassware may be etched, and become not transparent. Therefore, you may
Some plastic dishes may be distorted or discolored in case of contact with hot water.
Before cleaning the plastic dishes, the manufacturer's instructions shall be read. The
plastic dishes that can be cleaned with dishwasher shall be placed at the bottom of
dishwasher so that they will not be turned over, filled with water or fall in the course
of washing.
Ornaments
The iron and cast iron dishes may become rusty, and leave stains on other dishes.Similarly,
copper, tin-lead alloy and brass dishes may have stains on their surfaces.
Wooden dishes
When the dishwasher is used to clean the dishes, the mixture of high-temperature water
and dish washing powder may damage the dishes. Please keep in mind that if you have
any doubt about dish cleaning with dishwasher, please read the manual supplied by the
product manufacturer, or wash the dishes by hands.
Knives, forks and silver dishes
The use of dish washing powder may reduce the surface gloss of aluminum dishes. The
gloss change degree depends on the product quality.
Other metal dishes
The wooden dishes are sensitive to heat and water, and the frequent washing
with dishwasher may affect the quality of dishes adversely. In case of any doubt about
this, please wash the wooden dishes by hands.
Glassware
All the knives, forks and silver dishes shall be cleaned immediately after use in order to
prevent any food from drying on their surface; in such case, the washing program is all
owed. The sliver dishes must not contact the stainless steel dishes; otherwise, stains ma
y appear on their surfaces. The sliver dishes must be taken out from the dishwasher and
wiped dry immediately after the washing program finishes.
Aluminum dishes

6 39
Packing List
Please check the accessories in the box according to the List
Product size specifications
NO. Packing content Quantity
1 Machine 1 set
2 Basket components 1 set
3 Cutlery basket 1 set
4 Water inlet pipe 1 set
5 Manual 1 set
6 Warranty Card 1 set
7 Certificate of conformity 1 set
8 Mounting screws 1 set
Display Possible failure cause
E02 The water inflow is abnormal, unstable or low.
E04
NTC test value is not symmetric (during Class B test)
The temperature rise of heater is abnormal (Class B heater
switch relay fails)
The temperature is over the upper limit
E05
No temperature rise; the system cannot detect the
temperature rise after the heater starts.
E06 Overflow switch
E07 Display board and motherboard communication failure
E08 Main board and sub board communication failure
E10
Any other failure that cannot be corrected automatically
E01 Roof lifting motor failure

Fault Diagnosis
Start
Part Name
Check and record the error code
according to the failure table
If "E01" code is shown
If "E04" code is
shown
If "E02" code is shown
Ensure that the water source is
connected and the water pressure
is table, press the power key to
eliminate the noise, and press the
key " " to continue washing
Roof lifting motor
failuer
Check or replace the
motor
The current program is
cancelled,
and a failure warning is
given. The
machine will be tested
again after
it restarts. If normal, the
machine
can operate normally; if
Press the key " " to eliminate the
beeping sound
If "E05" code is shown
If "E l0" code is
shown
If "E06" code is shown
The current program is cancelled,
and a failure warning is given. The
Machine cannot start any washing
program.the system can become normal
only after the on-line test program is applied
again and the test results are acceptable.
Overflow warning the system enters the
failure mode, and the water drain pump
starts.
Replace the electric control panel and
the motor heat pump,
Check if X3 wiring is connected
reversely or is in open circuit.
Display
Touch Button
Handle
Glass Panel
Indicator icon
38 7

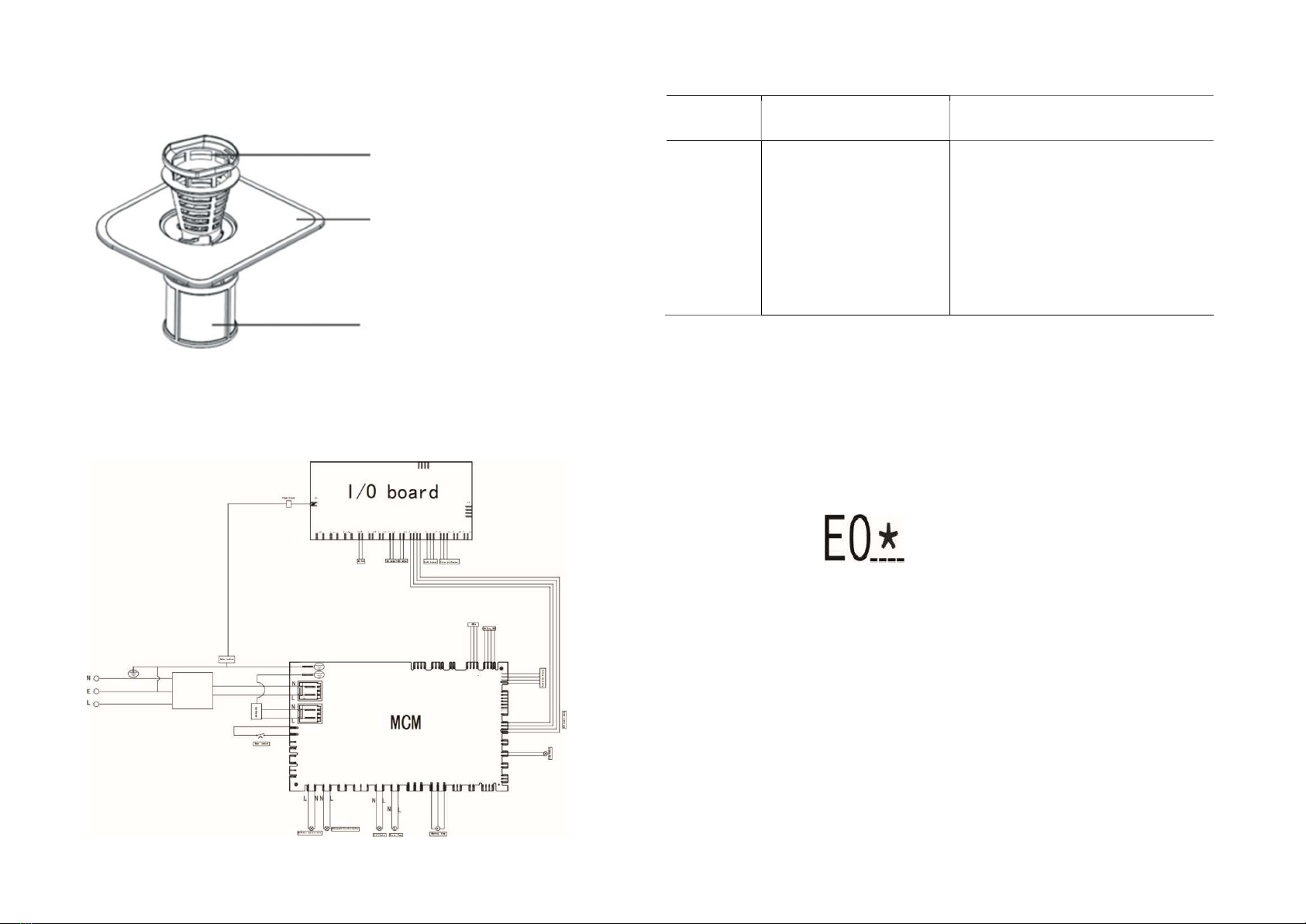

Part Name
Cylindrical filter
Flat filter
Microfilter
Electrical schematic diagram
How to know the occurrence of failure?
With the auto diagnosis function, the dishwasher can warn
the user of the failure through the continuous beeping sound.
Both the washing program panel in the drawer and
the screen show the error code.
What measure shall be taken in case of failure?
Diagnose the failure in accordance with the flow chart below. Partial failures may be
eliminated (together with others); however, it is necessary to contact the after-sales
service center to arrange the repair. Please refer to the section "Troubleshooting" for
the contact information.
Failure Possible cause Solution
The motor
noise is very
loud
There is no water around
the motor.
Such case often happens upon initial
use of dishwasher or reuse of
dishwasher that has been out of
service for a long period. 3 cups of
water shall be filled into the
dishwasher before the washing
program starts.
8 37

Troubleshooting Product Specifications
Failure Possible cause Solution
The drawer
cannot be
opened (no
beeping or
water sound)
The child lock function is
activated.
Disable the child lock. Press the
key” " till no symbol is
shown on the screen.
Drawer-close auto lock
option
Press any key, and start the
dishwasher within 30s
Power failure in
the course of
washing
Power failure in your
home or community
After power restoration, continue the
dish washing from the step when the
washing program interrupts.
With continuous
beeping, the error
code is shown on
the screen
A failure occurs. Refer to the section "Occurrence of
Failure"
The machine makes
intermittent
beeping
The dishwasher is paused. Turn on the dishwasher, and press
the key " ” to continue the
dish washing.
The dishwasher
cannot start
The power supply is not
turned on Turn on the power supply
The drawer is not closed
properly Ensure that the drawer is closed properly
The key lock or child lock
function is activated Disable the key lock or child lock, and press the key " " till no
symbol is shown on the screen, or
the indicator lamp goes out.
No key is pressed Press the key '
The
dishwasher
makes noise
after washing.
This is normal. In the
drying program, the
noise will continue from
completion of washing to
end of drying.
No need to pay attention. The noise
will stop automatically when the set
time expires, or the drawer is opened.
Sometimes, the noise may continue
after the drawer is closed.
The dishwasher
makes noise after
the dishwasher is
closed (before a
new washing
program starts).
This is normal. After
washing, the noise
caused by drying may
continue till the drawer
is closed and the set
time expires.
No need to pay attention. The noise
will disappear when the set time
expires.
Product name Drawer dishwasher
Rated Voltage 220-240V~
Voltage Range 50Hz
Rated Power 1850W
Rated Volume 87L
Laundry guide Spray type
Drying method After—temperature drying
Inlet water pressure O. 04-1. 0Mpa
Capacity 7 sets
Display LED
Control Touch control
Installation BuiIt-in
Product Size (W*H*D) 595*595*569 mm
Package (W*H*D) 660*660*660 mm
36 9

Installation Precautions
Important safety instructions!
•Only qualified personnel mastering basic mechanical and electrical knowledge may install the
dishwasher.
•The instruction book must kept by the customer.
•The installation must be made as required by local building codes and electrical codes.
•At the end of dishwasher, the installation personnel must perform a final inspection.
•Remove all packaging materials of the dishwasher.
•The dishwasher is only for indoor use.
•Make sure all water pipe connectors are closed. The plumber must ensure that the installation comply
with all laws and regulations.
•When installing the dishwasher, consideration must be made that it is possible to take it out for
maintenance in future.
•The switching power supply socket must be outside the installation cabinet for dishwasher so as to facilitate simple
insertion and extraction after installation.
•Be careful when installing or taking out the dishwasher; do not damage the power line or water pipe.
•Incorrect installation of the dishwasher may make the warranty or claim right invalid.
•Where the dishwasher is installed in motor home, ship or similar mobile facility, the customer must at
his own cost drive the said mobile facility to the maintenance center or pay the travel cost incurred by
the maintenance technician for arriving at the installation site for maintenance.
Properly keep these instructions
Warning!
Electric shock hazard
Before installing the dishwasher, take off household fuse or open the circuit breaker. The
dishwasher must be grounded. In event of fault or failure, the ground protection may provide
current with one discharge path of the minimum resistance, reducing the risk of electric shock.
The dishwasher is equipped with one conductor, which has equipment grounding wire and
grounding plug. The plug must be inserted into a proper socket which is installed and suitable
for grounding as per local laws and regulations. Warning - improper equipment grounding wire
may lead to electric shock. If you doubt whether the dishwasher is correctly grounded, please
contact senior electrician or service representative for check.
Never modify the power plug of dishwasher; in case the plug is not matched with socket, ask
senior electrician for installing proper socket. Never use extension cord, adapter or multi-pin
socket.
Otherwise, electric shock and even death may take place.
Warning
Danger of cutting
Be careful - the front edge of shell is very sharp.
It may cause personal injury or occasional cut when you are not careful
enough.
Failure Possible cause Solution
Water
leaking
The drain pipe is not
correctly connected to
the drain hole. Reinstall the drain pipe onto the drain hole.
Water supply and drain
pipes are not
connected correctly.
Ensure that the water supply and drain
pipes are connected securely.
Other water leaking
Turn off the power source and water faucet of
dishwasher, and contact the after-
sales service
department of Haier for repair. Refer to the
section "Cleaning and Maintenance" for more
information.
10 35

34 11
Troubleshooting Product Installation Guidelines
670mm (Standard floor cabinet)
55mm (Cabinet plate)
Failure Possible cause Solution
Fail to wash
clean
The washing program and the
dish capacity are not suitable.
Refer to the "Quick Guidance" and select the
suitable program; or, the dirt is dry and affixed
onto the dishes so the dishes have to be
soaked for a period.
The spray arm does not rotate. Ensure that the rotation of spray arm is not
obstructed by other object.
The drawer is filled too fully or
the dishes are not arranged
properly.
Refer to the section about dish arrangement.
The strainer/ installation of
strainer is wrong.
Refer to the section "Cleaning and Maintenance".
The washing agent is added
into the wrong feeder.
The washing agent must be added into the large
feeder box. Refer to the section "Adding of
Washing Agent'.
The dishes are placed in the
dishwasher before the food
residues and oil stains on the
dishes are removed
Remove the food residues and oil stains on the
dishes before the dishes are placed in the
dishwasher.
The washing agent is inapplicable.
Add the correct washing agent to
wash the dishes.
Refer to the examples of correct and wrong adding
of washing agent given in the section "Adding of
Washing Agent'.
The washing agent is insufficient.
Refer to the section "Adding of Washing Agent', or
observe the suggestions of washing agent
manufacturer.
The spray arm is clogged. Clean the spray arm.
The strainer or filter is clogged Clean the strainer and filter.
There are
bubbles The dosage of washing agent is wrong.
Refer to the section "Introduction to Program", or
observe the suggestions of washing agent
manufacturer.
There is too much egg white
on the dishes. Increase the dosage of washing agent.
The rinse aid setting is too high. Decrease the dosage setting of rinse aid.
The rinse aid feeder box is not
closed tightly.
Ensure that the rinse aid feeder is closed tightly,
and refer to the section "Adding of Rinse Aid".

Installation Guide lines
Water inlet connection to dishwasher:
Connection method of drain pipe:
 The outlet end of the drain pipe can be inserted into the upright sewer,Or connect to the turning
joint of the sink sink. The drainage pipe must be fastened with a clamp and the screws must be
tightened.
 When connecting the drain pipe, pay attention that the highest part of the drain pipe cannot
exceed the highest height of the dishwasher.
 In order to prevent the backflow of sewage, the outlet of the drainage pipe cannot be immersed
in water, and the drainage pipe is not bent and concaved.
 It is best to install the dishwasher near the drain pipe. The length of the dishwasher drain pipe is
about 1.5 meters. If it is far away, users need to purchase adapters and drain pipes by themselves,
but the total length should not exceed 4 meters, otherwise it will affect washing.
The drain nozzle must not be immersed in water.
 Cleaning of spray arm
1. Power off the dishwasher, or unplug the power wire plug.
2. Lift up the glass cup bracket from the bracket iron wires (if the bracket is folded), lift up all the
tea cup trays, and ensure that they are vertical and close to the drawer top.
3. Remove the dish rack carefully: lift up the rear part of lower rack, and during this course,
notice to prevent the front end of rack from colliding with the feeder box or rinse aid box.
4. Take out the spray arm, and remove all the residues in the spray arm.
Wash the spray arm With clean water, and then wipe it dry with wet cloth.
5. Insert the spray arm onto the support.
6. Properly install the lower dish rack, and notice to first install the front end of lower dish rack
in place.
7. Push in the drawer, and power on the dishwasher.
Notice: The broken glass or tea cup debris in the drawer must be removed completely and
carefully for fear of damaging the dishwasher
Spray
12 33

Installation steps
of strainer:
1.place the fine filter
in the water tank.
Removal and cleaning of strainer and filter
3. Lift up and remove the filter. It is normal if there is water under the filter.
4. As shown on the picture, rotate the filter cap and handle, and lift up the filter
cap at the filter cap notch to separate the cap from the handle.
Notice: Never try to separate the filter cap from the handler from both
sides at the same moment; otherwise, the filter may be damaged.
5. First rinse the strainer with hot soapy water, and then wash it with clean water.
6. Take out the handle carefully. Remove all the dirt from one side,
rinse the handle with soap water, then wash it with clean water, and
next wipe it clean with wet cloth.
7. Arrange the filter cap carefully in place, and ensure that the
filter cap is clamped at the fixed position.
8. Re-fasten the filter:
A. Combine the filter cap with the handle.
B. Rotate the filter cap till the lifting cup on the handle is
aligned with the fine filter mesh, and next rotate it clockwise to
clamp them tightly.
C. Rotate the lifting cup till the lifting cup slot and water tank
buckle are fastened.
D. Rotate the filter till the clamping sound of slot is heard and the
filter cannot be rotated anymore; now, the installation of filter
completes.
9. No matter whether the whole lower dish rack (which has
been removed) or the moveable bracket is installed, ensure
that they are refitted correctly. (As described above, the moveable
bracket shall be clamped onto the fixing buckle of lower rack).
10. Install the bracket door.
Place the bracket door on the lower dish rack,
and then install the knife barrel.
Installation Guidelines
Notes on water and electricity connection of dishwasher:
I. The water inlet and drain pipes can be placed on the left or right side according to the installation needs.
2. Choose a place near the water inlet or drain line, and also near a power source with a reliable ground.
3.Connection diagram on the right.
Rotate the lifting cup till the lifting cup
slot and water tank buckle are fastened
32 13

Installation Guidelines
Pass the water pipe through the cabinet shelf.
Cleaning of strainer and filter
 Important note!
 If the cleaning or anti-scaling agent of dishwasher is used, one washing program shall be
applied after washing to prevent the cleaning agent from damaging the dishwasher.
 When the dishwasher is used, the strainer, filter and spray arm must be installed in
place.
 To use the dishwasher, it is suggested to fasten the rack at the correct position by the
right hand.
1. Push in the foldable rack on the dish barrel, and then lift it up so that the flat filter and other
components under the foldable rack can be removed for cleaning without taking out the whole
barrel (counterclockwise rotate the lifting cup, and when the flat filter becomes loose, take out
the flat filter), facilitating the operation.
2. After cleaning, refit the filtration system: first place the fine filter in the water cup, then install
the flat filter, and next refit the lifting cup and clockwise screw down the lifting cup; at last, refit
the foldable rack on the dish barrel.
Rotate leftward or rightward
14 31
Removal and cleaning of flat filter and fine filter
