Artusi ADW5000X User manual

ADW5000X

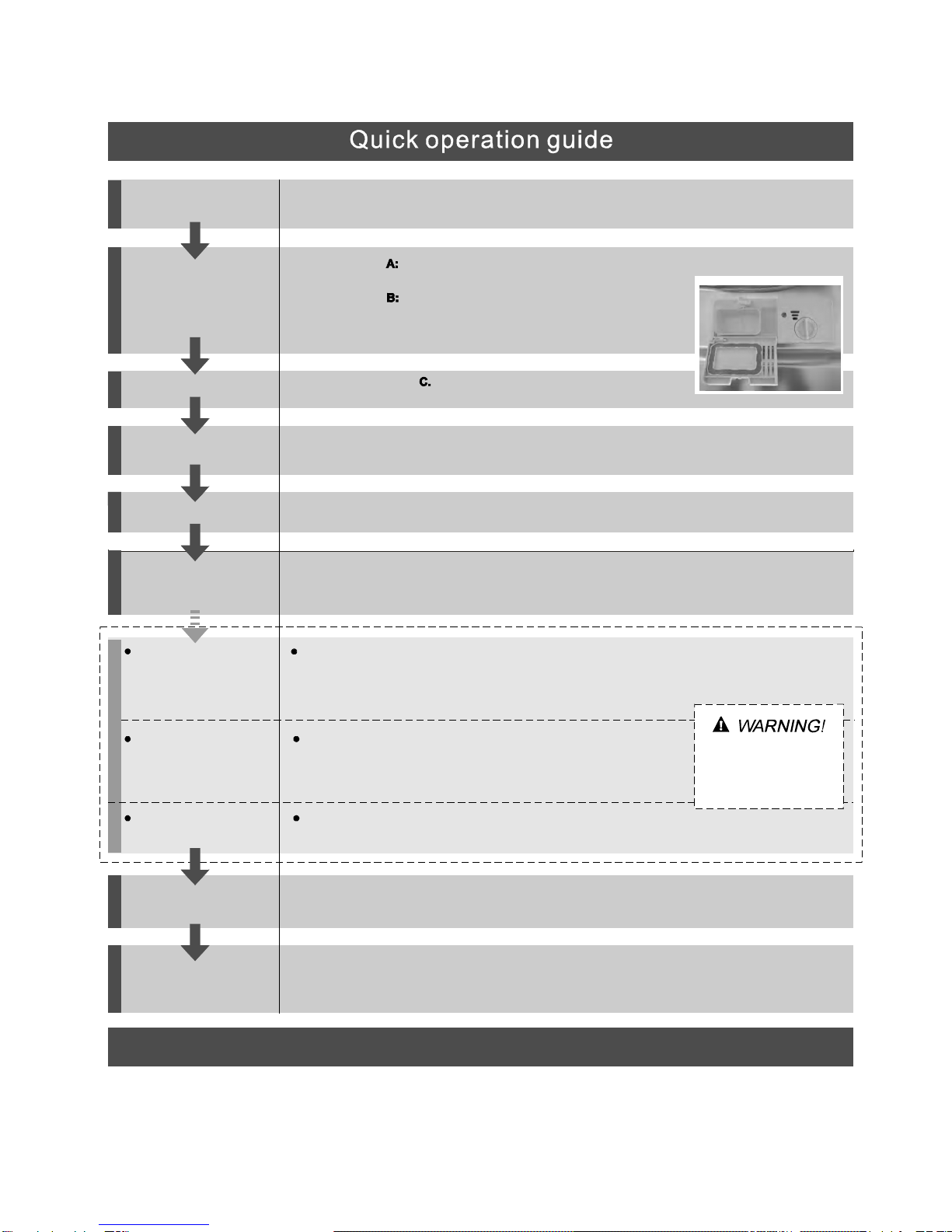

Compartment
Fill main-wash detergent.
Compartment
Fill pre-wash detergent.
(Follow the user instructions!)
Mechanical indicator
Check the rinse aid level
Load the baskets
Select a programme
Close the door, turn on the water tap and press the Start/Reset button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better. Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
Electric indicator on control panel (if provided).
For detailed operating method read the corresponding content onthe instruction manual.
1. Arunning cycle can only be modified if it hasbeen running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Reset button for more than 3 seconds to cancel the running programme.
3. Select a new programme.
4. Restart the dishwasher.
ABC

To review the section on troubleshooting Tips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to anysubsequentowner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development andupdating of the product, may
make modifications without giving prior notice.
Keep it to refer to it ata later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
Dishwasher Features.................................... ...2
Attention before or after loading the Dishwasher
Baskets..........................................................6
FilteringSystem.............................................11

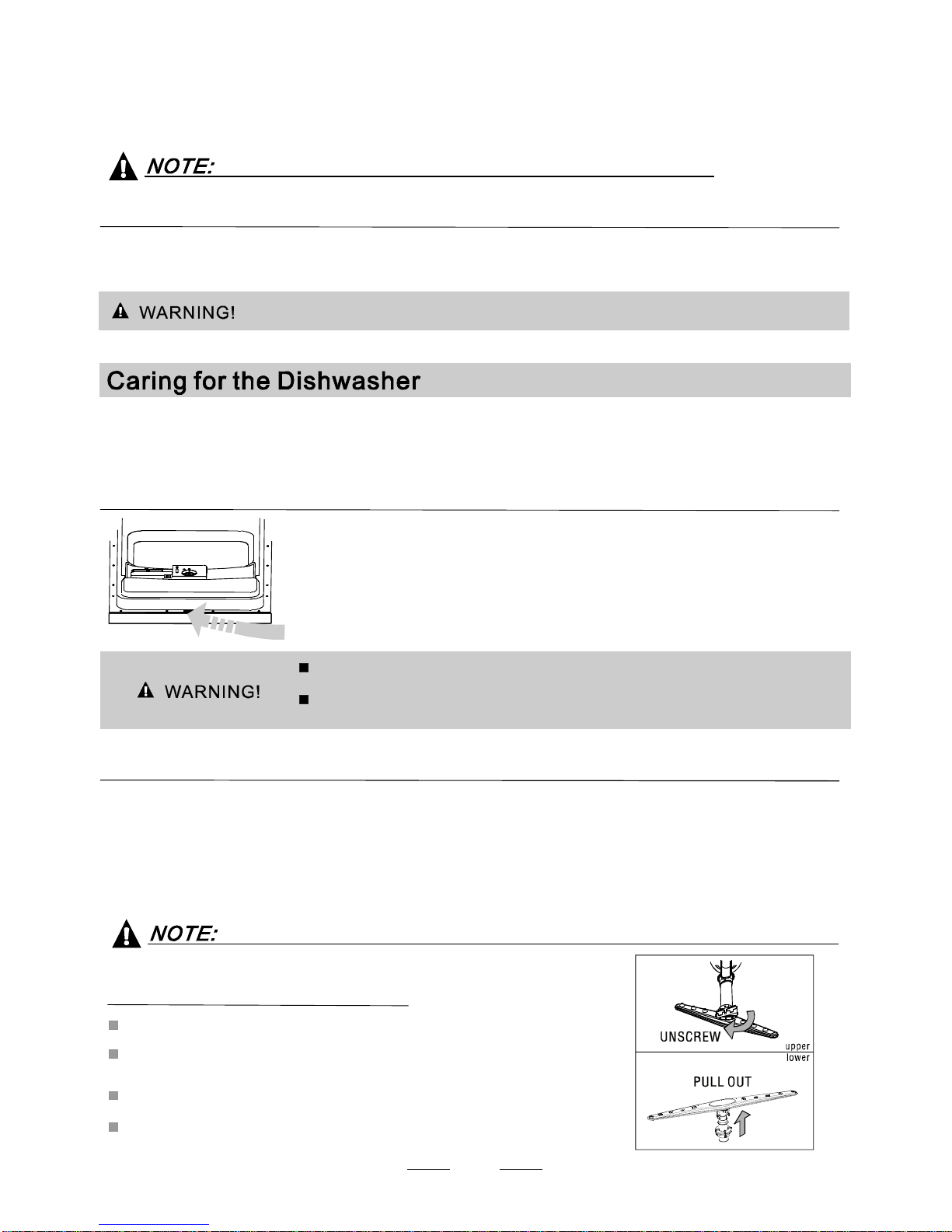

Caring for the Dishwasher..................... .........12.
A Fill theRinseAid Dispenser............. .. ..3、..... ...
B FunctionofDetergent .........................4、........
Loading the upper ................ ..............7Basket ...
Loading the Lower ...................... .........7Basket ..
Cutlery Basket................................................8
WashCycleTable...........................................9
Turning on theAppliance................................10
Change the Programme.............. ................10....
At the End of the Wash Cycle...........................10
PositioningtheAppliance................... ..........13..

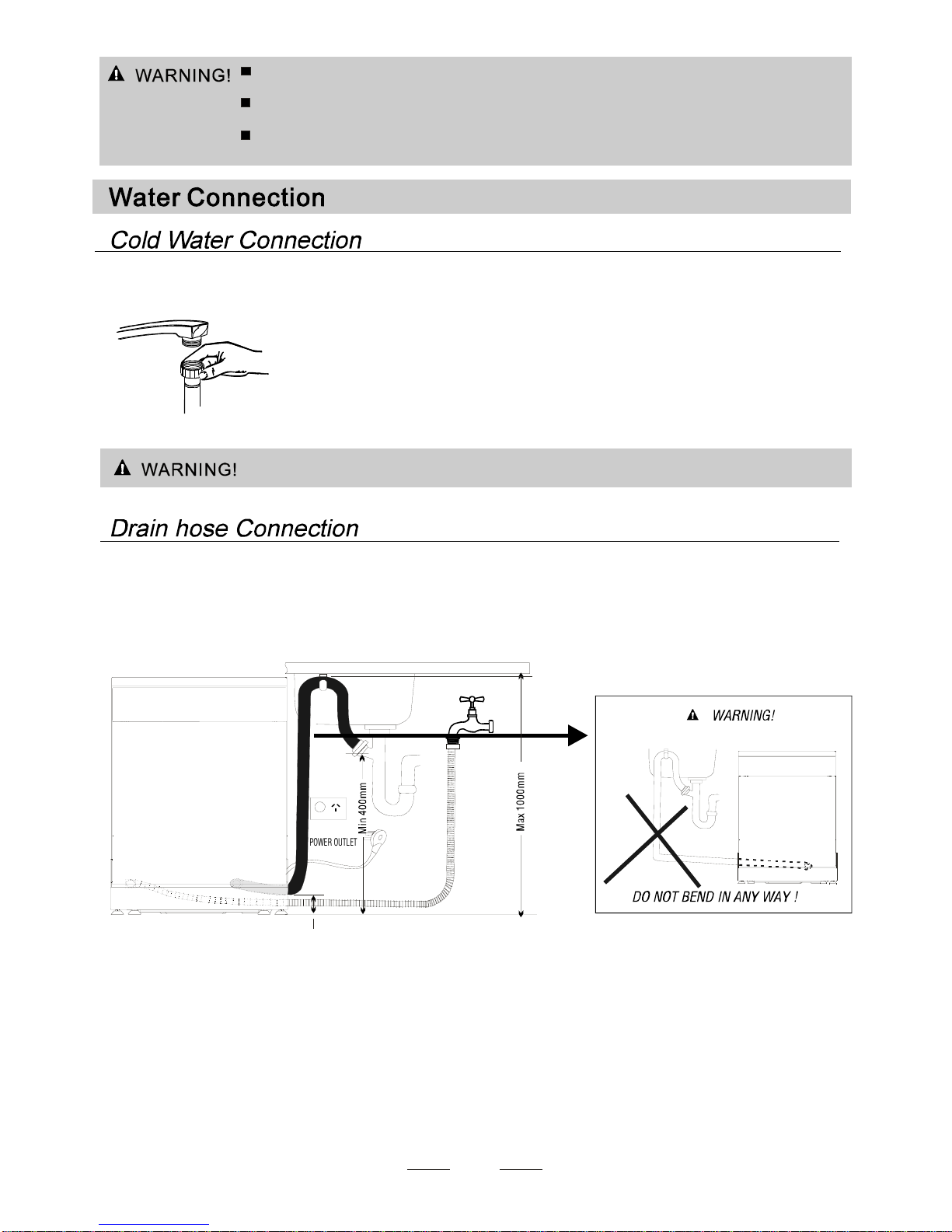

Water Connection.................................. .......14.
About Power Connection........................ .......13.
Start of dishwasher................................ ......15..
Before calling forservice........................... .....16.
Errorcodes.................................... ..............17.
Technical information.............................. .....18..
ControlPanel...................................................2
This appliance is intended to be used in household and
similar applications such as:
staffkitchenareas inshops, officesand otherworking
environments;
farm houses;
by clients in hotels, motels and other residential type
environments;
bed and breakfast type environments.
–
–
–
–

1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation,the powersupply mustnot
be excessively ordangerouslybentorflattened.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locatesharp itemsso that theyarenot likely
todamagethedoorseal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from cominginto contact
withthe heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartmentwhen
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that oldhose-sets
should not be reused.
The maximumnumber of place settings tobe
washed is 12.
The maximumpermissibleinletwater pressureis
1Mpa.
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should besupervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.

10 11

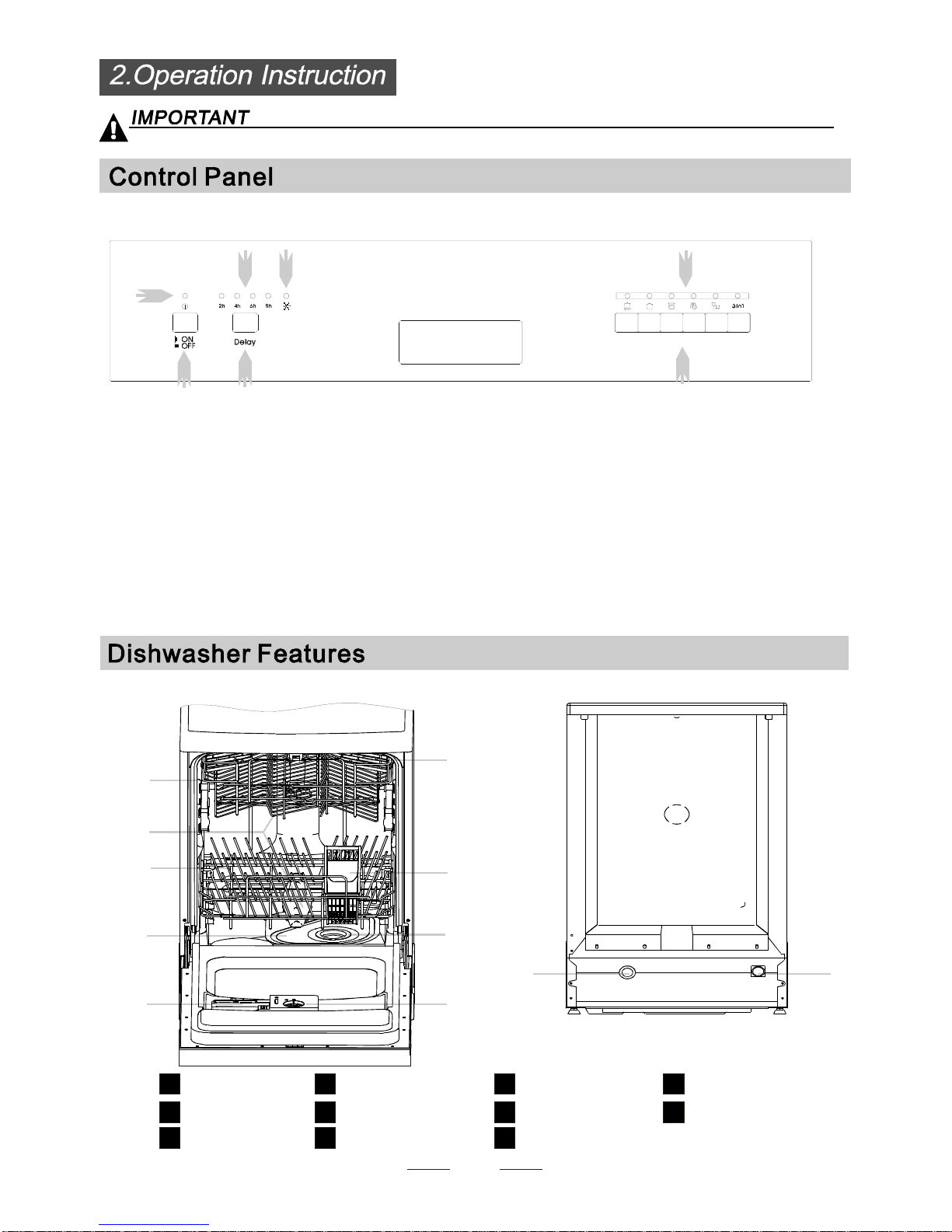

Back View
Front view
2
beforeusingit for the first time.
To get the best performance fromyour dishwasher,read all operating instructions
MainFilter
Detergent Dispenser
Cup Shelf
CutleryBasket
CoarseFilter
Rinse Aid Dispenser
Inlet pipe connector
Drain pipe connector
Lower Basket
SprayArms
Upper Basket
15
6
7
8
9
10
11
3
24
5 Program Button: To select washing program
when pressthebutton.
6 Delayed Start Button: Press this button to set the
delayed hours for washing.There are4 choices.
2 Power Light :To be on when the ON/OFF Button is
Pressed down.
3 RinseAid Warning Light :To be on when the
rinseaiddispenserneedstobe refilled.
1 ON/OFF Button: To turn on/off the power supply.
4 Program indicator light.
1
2
34
6
7
7 Delay indicator: different indicator means different delay
time.
5
1
2
3
4
5
6
7
8
9
In ten. Heav y Normal Rins e Rapid 3 in 1

Before using your dishwasher for the first time:
3

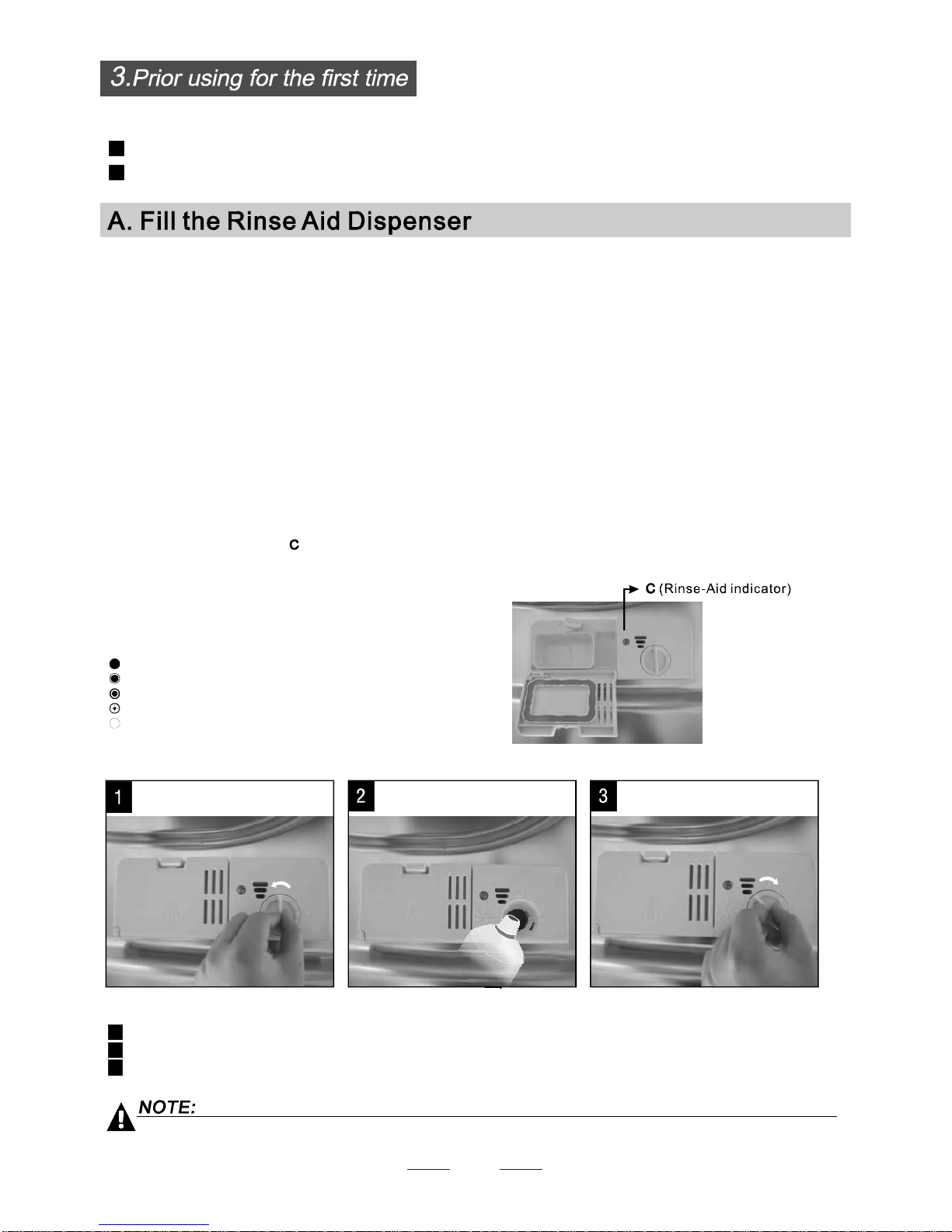

A. Fill the rinse aid dispenser

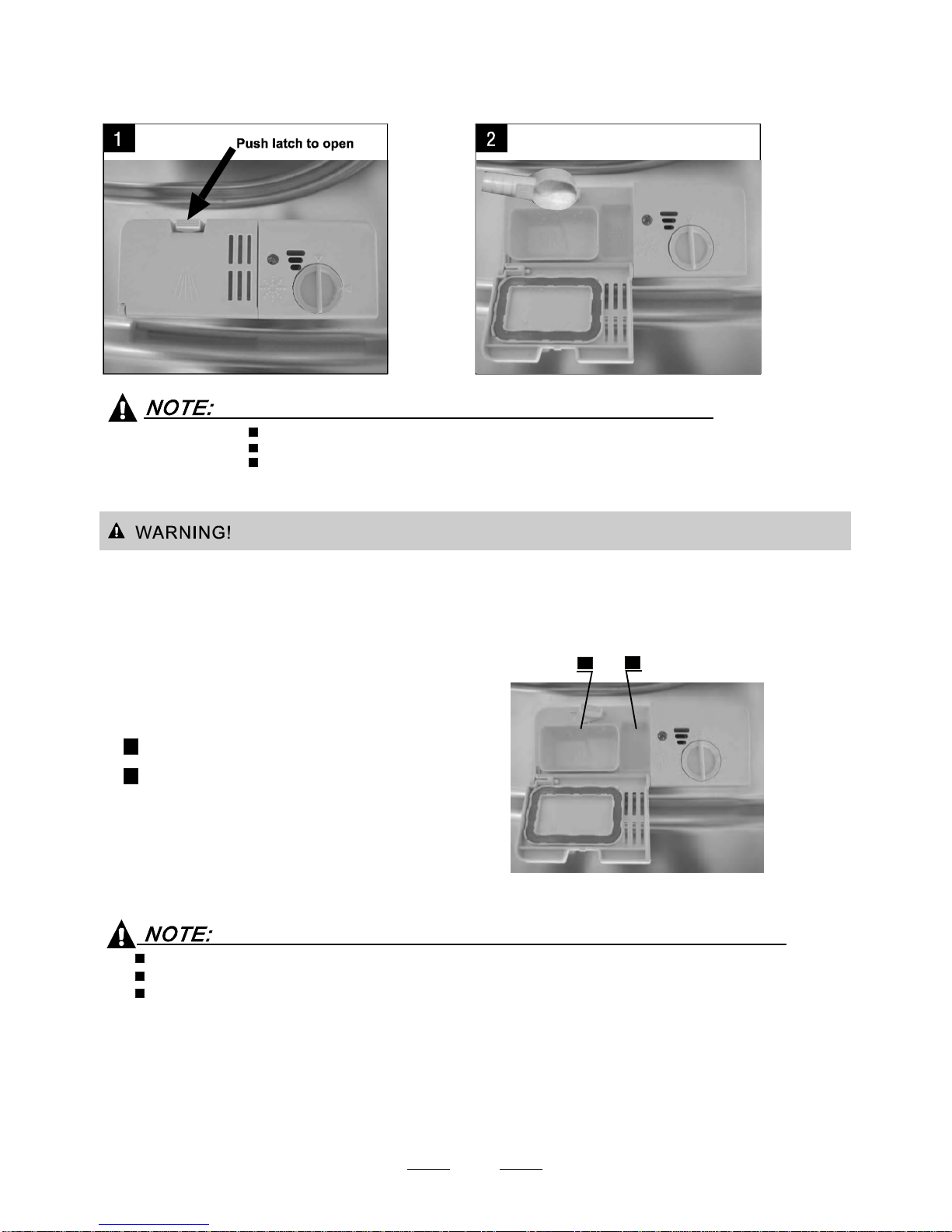

B. Fill indetergent
The rinse aid isreleasedduring the final rinse to prevent water from forming droplets onyour dishes, which can leave
spots andstreaks. It also improvesdrying by allowing water to roll off the dishes. Your dishwasher is designed to
useliquid rinseaids. The rinse aiddispenser islocated inside thedoor next tothe detergent dispenser. To fill the
dispenser, open the capand pourthe rinse aidintothe dispenseruntil thelevel indicatorturnscompletelyblack.
The volume of the rinseaid container is about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelast rinse, ensuring thorough rinsing, and spotand streak free drying.
Attention!
Only use branded rinseaid for dishwasher. Never fill the rinse aid dispenser withanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser,being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
As the rinse aid diminishes, the size of the black dot
ontherinse aidlevel indicator changes,as illustratedbelow.
Full
3/4full
1/2full
1/ 4full- Should refillto eliminate spotting
Empty
When to Refill the RinseAid Dispenser
during the nextwash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilt while during filling with anabsorbent cloth to avoidexcessive foaming
Ifthere is no rinse-aid warning light in the control panel, youcan estimatethe amount from the colour
ofthe optical level indicator located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
therinseaidlevelfall1/4full.
""

4
Adjusting RinseAid Dispenser

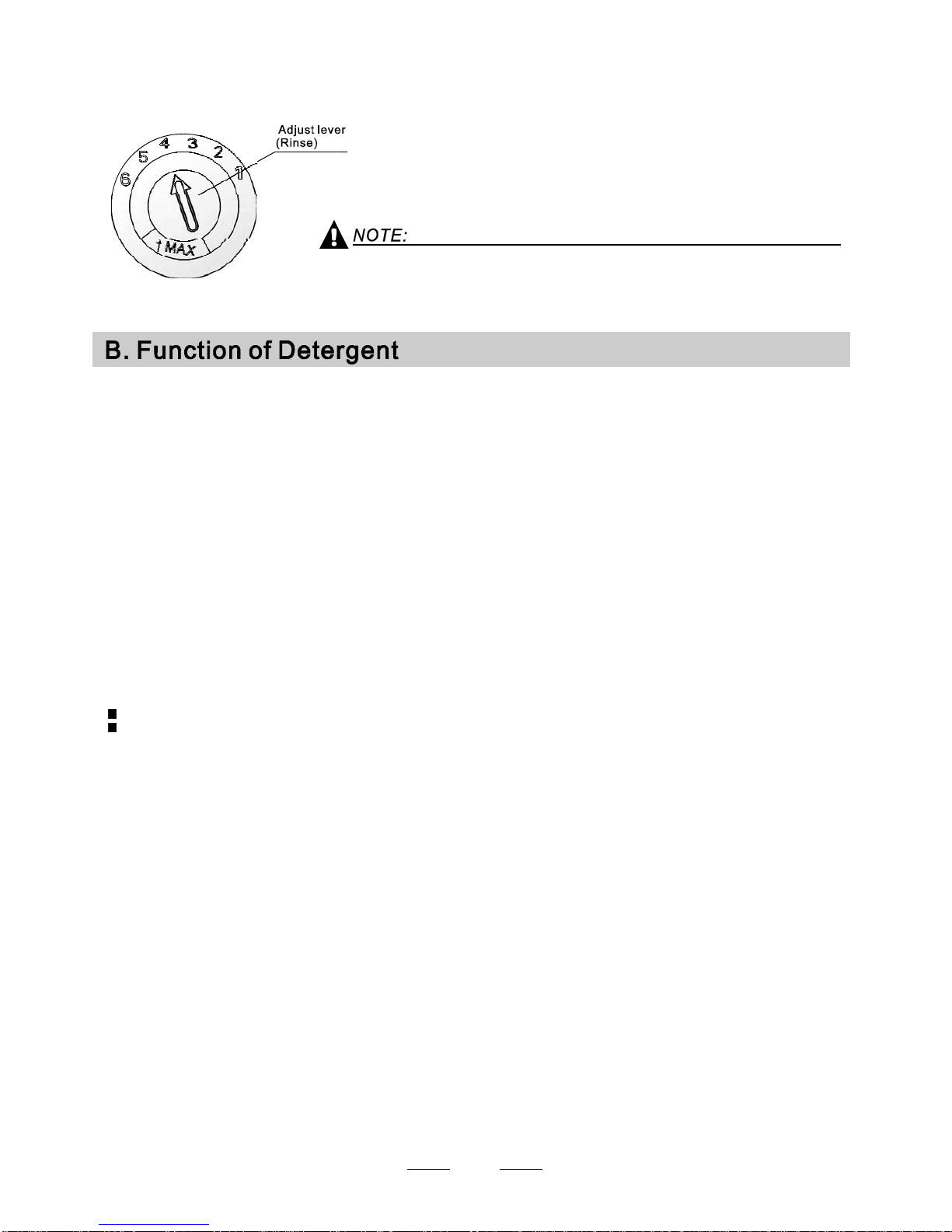

The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing thedispenser lid and rotating the dial to "5". If the
dishes still are not drying properlyor are show spots, adjustthe dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory valueis "4".)
Increase the dose if thereare drops of waterorlimespotsonthe dishesafter washing.
Reduce it ifthere are sticky whitish stains on your dishes or abluish film on glassware or
knife blades.
Detergents with its chemical ingredients arenecessary to remove dirt,crush dirt and transport it out of the dishwasher.
Mostof the commercialqualitydetergents are suitablefor this purpose.
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
Based ontheir chemicalcomposition, detergentscan besplit in two basic types:
The use of normal washingprograms in combinationwith concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programsin whichconcentrated detergents are used canachievethe same
results that canotherwise onlybe achievedusing intensive programs.
“”
“”
“”
Detergent tabletsofdifferent brandsdissolve at differentspeeds. For this reasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs whenusingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispensermust be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher.Generally, only one tablespoon of detergent is needed for
anormal washload. Moreheavily soileditems need more detergent.Alwaysaddthe
detergentjustbefore starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkaline detergents with causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener functionof
phosphate is not given. In this case we recommend to fill salt in the salt containereven when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strongand coloured spots will not
be removed completely. Inthiscase please choosea program with a higher temperature.
°

Amount ofDetergent toUse
Proper Use of Detergent
Use only detergent specifically made for the usein dishwashers. Keep your detergentfresh and dry.
Don'tput powdereddetergentinto the dispenseruntilyou'reready towash dishes.
Dishwasher detergent is corrosive! Take care to keepit out of reach of children.
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfordishwasher.
If the lid is closed: press release button.The lid will spring open.
5
Pleaseobservethemanufacturer's recommendations onthe detergent packaging.
Pleaseaware, thataccording tothe levelsoiling and the specific hardness of water differencesarepossible.
You find informationabout the amountofdetergent for thesingle programme onthispage.
detergent dosein the pre-washdetergent chamber.This detergentwill takeeffectduringthe pre-washphase.
If the dishes are heavily soiled, place an additional
Close the lid and press until it locks in place.
Recommendationsas statedonthedetergent packaging.
Please observe the manufacturers dosing and storage
approximately 5g of detergent
The place of pre-wash cycle detergent placed ,
B
MIN means approximately20g of detergent. “”
Theplace of main wash cycle detergent placed ,
A
illustrated on the right:
The marking indicates the dosing levels , as
Fill the detergent dispenser with detergent.
Fill in Detergent
AB

Cutlery with wooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsyntheticfibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishes and items of cutlery mustnot lie inside oneanother, or cover each other.
To avoid damage to glasses, theymust not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold moredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are apotential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Usea mild detergent thatis describedas 'kind to dishes'.If necessary, seek further
information fromthedetergent manufacturers.
Forparticular items,select aprogramwithas low a temperature aspossible.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible
after the program has ended.
Consider buyingutensilswhich are identified asdishwasher-proof.
(For best performance of the dishwasher, follow theseloading guidelines.
Features and appearance of baskets and cutlery basketsmay vary from your model.)
Scrape off any largeamounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
6

7
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cupsand saucers, aswell as plates,small bowls and shallow pans (as long as theyare
not too dirty).
Position the dishes and cookware so that they will not be moved by the spray of water.
Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and items that are the most difficult to clean into thelower basket
such as: pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferableto place servingdishes and lidson the side of the racksin order toavoid blocking therotation of the
top spray arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be remindedthat:
The Bottom Basket features folding spikes sothat larger ormore pots and pans can be loaded.
4
5
6
7
1
2
3
4
1
3
3
2
4
44
55
7
66
1
1
1

8
Cutlery should beplaced in thecutlery basket withthe handles atthe bottom. If the rack has side baskets, the
spoons should beloaded separately intothe appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
Folding Spikes of Lower Basket
For better stacking of potsand pans,
the spikes can be folded down as
show in thepicture right.
Cutlery BasketCutlery Basket
Adjusting the Upper Basket
The height ofthe upper basketcan be adjustedin order to create more space for large utensils
both for the upper/lower basket. The height of the upper basket can be adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placedon the shelfso that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.
For personal safetyand a topquality cleaning, place the silverware in the basket
making sure that:
For personal safetyand a topquality cleaning, place the silverware in the basket
making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the handles-down.Silverware is placed with the handles-down.
But place knives and other potentially dangerous utensils are placed handles-up.But place knives and other potentially dangerous utensils are placed handles-up.
4
2
1
5
3
4
35
2
55
4444
41
2
3
2
3
2
3
2
3
2
1
1
1
1
1
5553
5554
444244
21
2
3
2
3
2
3
2
3
3555
1
1
1
1
1
3

9
We recommend you open the door slightly 50mm to assist indrying ofthedishes afterevery wash.
*AS/NZS 2007.1: This programme is the test cycle. The information for comparability test
inaccordancewithAS/NZS 2007.1 , asfollows:
Capacity: 12 setting
Position Upper basket: upper wheels on rails
Rinse aid setting:6
Meaning: need to fill rinse into the Rinse-Aid Dispenser.
()
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
Fornormallysoiledloads,
such as plates, glasses,
bowls and normally
soiledpans.
Fortheheaviestsoiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting withdried food
on them for a while.
Ashorter wash for lightly
soiledloadsthat donot
need drying.
For dishes that need to be
rinsed and dried only.
Pre-wash(50 )
Pre-wash
Wash (65 )
Rinse
Rinse
Rinse (55 )
Drying
℃
℃
℃
Pre-wash(50 )
Wash (50 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Wash (55 )
Rinse
Rinse
Rinse (50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
5/25 g.
5/25 g.
5/25 g.
20g.
160
110
130
30
80
15
12
23
8
Wash(40 )℃
Rinse (70 )
Drying ℃
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
Pre-wash 50
Wash(50 )
Rinse
Rinse 70
Drying
（℃）
℃
（℃）
3in1
1Pcs
160 15
12
1.3
0.82
1.5
0.5
1.0
1.3
(*AS/NZS 2007.1)
3in1
Intensive
Heavy
Normal
Rinse
Rapid

It is dangerous to open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button,shut offthe water supply and open the door of the dishwasher.
Wait for afew minutes before unloading thedishwasher toavoidhandling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
The buzzer of the dishwasher moos for 8 seconds, only in this case the programme has ended.
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one.This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
the machine will keep on working after 10 seconds.
off the main power and watersupply before calling a service.
If youopen the door during washing, the machine will pause. When you close the door ,
.
If all thelights beginto glimmer, thatindicates themachine isout of order, please turn
.
10
1 Draw out the lower and upperbasket, load thedishes and push them back.
It is commended toload the lower basketfirst, then the upper one (see the section entitled
Loadingthe Dishwasher ).
2 Pourin the detergent (see the sectionentitled Salt, Detergent and RinseAid ).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the
socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door , and select the desired programme bypressing the corresponding button, then the
dishwasher willstart towork in 3 second.
“”
“”
Premise:
You can modify the washing program, When the dishwasher just runs for a short time.
Otherwise, the detergent mayhave already been released, and the appliance may have
already drained the wash water. If this is thecase, the detergentdispenser must be
refilled (see the section entitled " Loadingthe Detergent " ).
ntitled" Starting a washcycle.. . " ).
1
2Press the button of desired program more than 3 seconds until it's Indicator is on , after
10 seconds the machine will keep working. E
Aforgotten dish can be added at any time before the detergent cup opens.
Load the forgotten dishes.
Close the door, the dishwasher will start running again
after 10 seconds.
After the spray arms stop working, you can open the door
completely.
2
Open the door a little to stop the washing.
13
4
The program lights show the state of thedishwasher:
a) All program lights off---------------stand by
b) One of the program lights on----------pause
c) One of the program lights blinking----- run

The filter preventslarger remnants of food or other objects from getting inside the pump.
Theresidues may blockthefilter, in this case they mustbe removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilterarepulverizedby a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that couldblock
the drain aretrappedin the coarse filter. To removetheitems
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soiland food residuesin the sumpareaand
preventsit from beingredepositon the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filter assembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove thelarger food particlestrapped in the filter aftereach wash cycle by rinsing the semicircular filterand
cup under runningwater. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performancelevel of the appliance
and damage dishesand utensils.
11
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never usesharp objects, scouring pads orharsh cleaners on any part of the dishwasher.
ProtectAgainst Freezing
1.Cutoff the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater fromthe inlet pipe and watervalve. (Use apan to catch thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter.Every fter washing cycles,
please operate as follows time a
：
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher,positioning it in itsseat and pressing downwards.
The entire filter assembly shouldbe cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and theperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door,you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
12
If your dishwasher cannot work because of the ice, please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
To remove the spray arms, screw off the nut clockwise to
takeoutthe washer on top of the sprayarmandremovethe
arm.
Wash the arms in soapy and warm water and use a soft
brush to clean the jets.
Replacethemafter rinsing them thoroughly.

Itisrecommend thatyourun a washcycle with the
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition. Ifabsolutelynecessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the seals.
Periodic cleaning with a damp sponge willpreventthis
from occurring.
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electricalsocket which isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate fortheplug, replace the socket, ratherthan usinga adaptors orthelike as
they couldcause overheating andburns.
Please look at the rating label to knowthe rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinetsor walls.The dishwasher is equippedwith water supply and drain hoses that can
be positioned either tothe rightor the left sides to facilitate proper installation.
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not beinclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odours are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, usea clothdampened withwaterana little
vinegar, or a cleaning product madespecifically for
dishwashers.
After EveryWash
Remove the Plug
No SolventsorAbrasive Cleaning Moving theAppliance
Seals
When not in Use for aLongTime
13

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Connect thecold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage theappliance.
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to
avoid bendingor crimping. Use the special plasticsupportthatcomes withthe appliance.Thefree end ofthe hose
must be at a height between 40 and 100cm and must not be immersed inwater.
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Please close the hydrantafterusing.
14
FRONT VIEW
Inlet pipe connector Drain pipe connector
POWEROUTLET
SINK
DISHWASHER
Min 100mm

15
The followingthingsshould be checked before starting the dishwasher.
Syphon Connection
The waste connection must be at a height of between 50 cm (minimum) and 100 cm (maximum)
from the bottom of the dish.The water drain hose should be fixed by a hose clip.
The content of this manual is very helpful to the users.
Afterinstallation, please make sure tokeep this manual.
ExtensionHose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effectof the dishwasher could be reduced.
1
The dishwasher is leveland fixed properly
2 The inlet valve is open
3 There is a leakage at theconnections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 Allpackingmaterials andprintingsshouldbe taken out fromthe dishwasher
Water Outlet
Connect the waterdrain hose. The drain hose must be correctly fittedto avoid water leaks.
Ensure that the waterinlet hose isnot kinked or squashed.
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. Itwillbe necessary todrainexcesswater fromhosesinto abowlorsuitable
container that is held outside and lower than the sink.
How to Drain Excess Water From Hoses

Fuse blown, or the
circuit breaker triggered Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
Spilled rinse-aid Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
Aspayarmis
knocking against
an item in a basket
r
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Interrupt the programme, and rearrange the items
which are obstructing the sp ay arm.r
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used Make sure that the detergent is the one without colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check coarse the filter
(see section titled )" Cleaning The Filter "
Check thekitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate.Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.
16
The items should be corrosion resistant.

The dishes were not
loaded correctly. See notes in " Loading the Dishwasher Baskets ".
Select a more intensive programme.
See" Wash Cycle Table ."
Use more detergent, or change your detergent.
Rearrange the items so that the sp ay can rotate freely.r
Clean and/or fit the filter combination correctly.
Clean the sp ay arm jets. See "Cleaning the Spray
Arms". r
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of sp ay arms.r
The filter combination
inthebaseofwash
cabinet is not clean or
is not correctly fitted.
This may cause
the sp ay arm jets
to get blocked.
r
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
When some malfunctions come on, the appliance will display error codes to warn you:
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
17
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
Longer inlet time.
Faucets is not opened, or water intake is restricted,
or water pressure is too low.
Some element of dishwasher leaks . Overflow.
