Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI
and welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance
has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read
this section you will be able to choose the most appropriate settings for your appliance when cooking different types
of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from
using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF
THIS BOOKLET AND POST IT TO: REPLY PAID 83617
LEICHHARDT NSW 2040
Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at
your disposal.
Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not
be available on your appliance.
All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY
USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE”
“Conforms with the WEEE Regulations.”
Instruction Manual | 3
Important
nain
The Manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that the Manufacturer reserves the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse
of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have
had supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified personnel.
EU Declarations of Conformity
This appliance has been manufactured to the strictest standards
and complies with all applicable legislation, including Electrical
safety (LVD) 2014/35/EU and Electromagnetic interference (EMC)
2014/30/EU. Parts intended to come into contact with food conform
to 1935/2004/EC.
Appliance Model
Serial Number
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of
as urban waste. The refrigeration system contains insulating gases
and refrigerants, which require specialised waste disposal. The
valuable materials contained in this appliance can be recycled.
It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Before disposing of an old appliance, remove the door seals, latch
or bolt lock to avoid the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both
energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a
crossed-out wheeled dustbin.
Instruction Manual |
Instruction Manual | 5
Important
aeanae
ncin
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This is a household appliance, which is produced in accordance
with the national standard. It is intended for food storage only,
not for storage of blood, medicine and biological products.
To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
To prevent risk of electromagnetic interference or other
accidents, do not place a microwave oven on top of the
refrigerator or use any electric appliance inside the refrigerator.
Do not allow children to play with or near the appliance.
The internal surfaces of the fridge compartment may be very cold
when the appliance is running. Avoid touching, if possible, the
surfaces especially when hands are wet.
Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
This appliance is designed to be used in ambient temperatures
between 1˚C and 43˚C. Use outside of this range may cause
the appliance to fail.
This refrigeration appliance is intended for use as a built-in
appliance.
6 | Instruction Manual
Before first use
You must allow the fridge to settle for at least twenty four hours
prior to switching the power on.
It is recommended that you clean the interior of the appliance prior
to first use, using a solution of bicarbonate of soda and warm water
and then thoroughly drying the interior.
The fridge may have an odour to it at first use. This will disappear
as the appliance cools.
When first switching the appliance on it is advisable to set the
fridge to setting 3 and leav the fridge to settle for 24 hours
before adjusting the temperature to the preferred setting.
Please note:
The appliance will work continuously until it comes down to the
correct temperature.
If the appliance is switched off, you should allow five minutes
before switching it on again to prevent unnecessary damage to the
compressor.
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This fridge cools your food by making the inside back of the
cavity cold. It is normal for frost to build up on this surface; it then
dissipates and drains through a small drain at the bottom, where it
evaporates harmlessly. The presence of frosting at the back is not a
malfunction of the fridge.
The presence of frosting within the icebox of the appliance is not a
malfunction of the icebox.
Instruction Manual | 7
enealseeie
•
Never put liquids in the refrigerator uncovered
•
Never put hot foods in the refrigerator. Warm food should
be allowed to cool to room temperature before being put
into the refrigerator
•
Nothing should rest against the rear wall of the refrigerator
•
Make sure food is clean and any extra water is wiped awaybefore
putting into the fridge
•
Wrap or cover food before putting into the fridge. This willhelp
prevent the loss of moisture, keep food fresh and avoid
unpleasant odours
•
Sort foods prior to storing. Any foods to be used soon should be
stored at the front of the shelf to prevent deterioration caused
by the door being open for prolonged periods
•
Do not overfill the fridge. There should be sufficient space
between the foods to allow the cool air to circulate
•
Thawing frozen foods in the fridge compartment will help tokeep
the temperature low and save energy
8 | Instruction Manual
enealseeeeece
•
The freezer compartment is designed to store only frozen food.
•
Never put hot or warm foods in the freezer, allow them to
cool fully before putting them into the freezer
•
Follow the instructions on the food packaging for storage of
frozen food. If no information is provided, foods should not
be stored for more than three months after the purchase date
•
Store food in small packages (ideally less than 0.5kg). This
reduces the freezing time and improves the quality of the food
after thawing
•
Wrap food before putting into the freezer. To stop the
wrapping sticking together, ensure it is dry
•
Label the food before freezing with information including type
of food and dates of storage and expiry
•
Once food is thawed, it must not be refrozen unless it has been
completely cooked. Only defrost as much food as is required, to
prevent wastage
•
Bottled or canned drinks should not be stored in the freezer
compartment as they could explode
•
The maximum amount of fresh food that can be frozen within a
24 hour period is approximately 2kg
•
Do not attempt to freeze more than the maximum amount
Note: If the appliance does not have a freezer compartment (
)
it is not suitable for freezing foodstuffs.
Instruction Manual | 9
Storage and use
The fridge is for short term food storage. Although the
temperature can be maintained between 0-10˚C, extended
periods of food storage is not recommended.
As the cold air circulates within the fridge, the temperature can
vary between the different sections. As such, foods should be
stored in different sections according to type.
1.
Butter and eggs
2.
Food in jars and bottles
3.
Drinks, e.g. milk
4.
Frozen food
5.
Yoghurts and cheese
6.
Fresh meat and fish
7.
Fruit and vegetables
The fridge shelves can be moved according to the storage
requirements within the fridge section. To move the shelf, lift up
the front section and then pull it outwards. To replace, slide the
shelf back into the slot, and lower the front section.
When storing root vegetables with leaves, such as carrots or
turnips, their leaves should be removed. This prevents the leaves
from absorbing nutrients from within the vegetables. The crisper
cover shelf is split to allow easy access to the crispers.
Fig.1
3
4
5
6
7 7
1
2
10 | Instruction Manual
Controls
Temperature control
The temperature controls for this fridge are simple and easy to
use. To change the temperature simply press the adjust button on
the right hand side of the unit to cycle through settings
1
to 5. The
warmest setting being
1
and the coldest being 5.
After changing the temperature setting, the time taken to achieve
the new temperature will depend on how big the change is
from the previous setting.
Switching on and off
When the fridge is connected to a power supply the lights
below the setting numbers will illuminate, indicating which setting is
currently being used.
To switch the appliance on and off simply press and hold the
power button on the left hand side of the unit for approximately
5 seconds
Fig. 2
Adjust
Power
1 2 3 4 5
Instruction Manual |
11
Care and cleaning
Always disconnect the appliance
from the power supply before any
cleaning or maintenance.
The fridge and crisper sections
should be cleaned using a solution
of bicarbonate of soda and lukewarm
water. Do not use abrasive products or
detergents. After washing, rinse and
dry thoroughly.
Clean the shelves, drawers and
balconies separately by hand with a
mild solution of washing up liquid and water. Do not put them
in the dishwasher.
The water drain hole at the back of the fridge compartment and
the evaporating tray should be cleaned periodically to prevent the
defrosted water from collecting inside the fridge compartment. The
cleaning rod can be used to clean the drain hole. Always ensure
that the drainage channel, visible at the rear of the appliance,
is kept clear of debris. If you notice that the drain hole/ channel
is iced over, use warm (not boiling) water to remove the ice
blockage.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours.

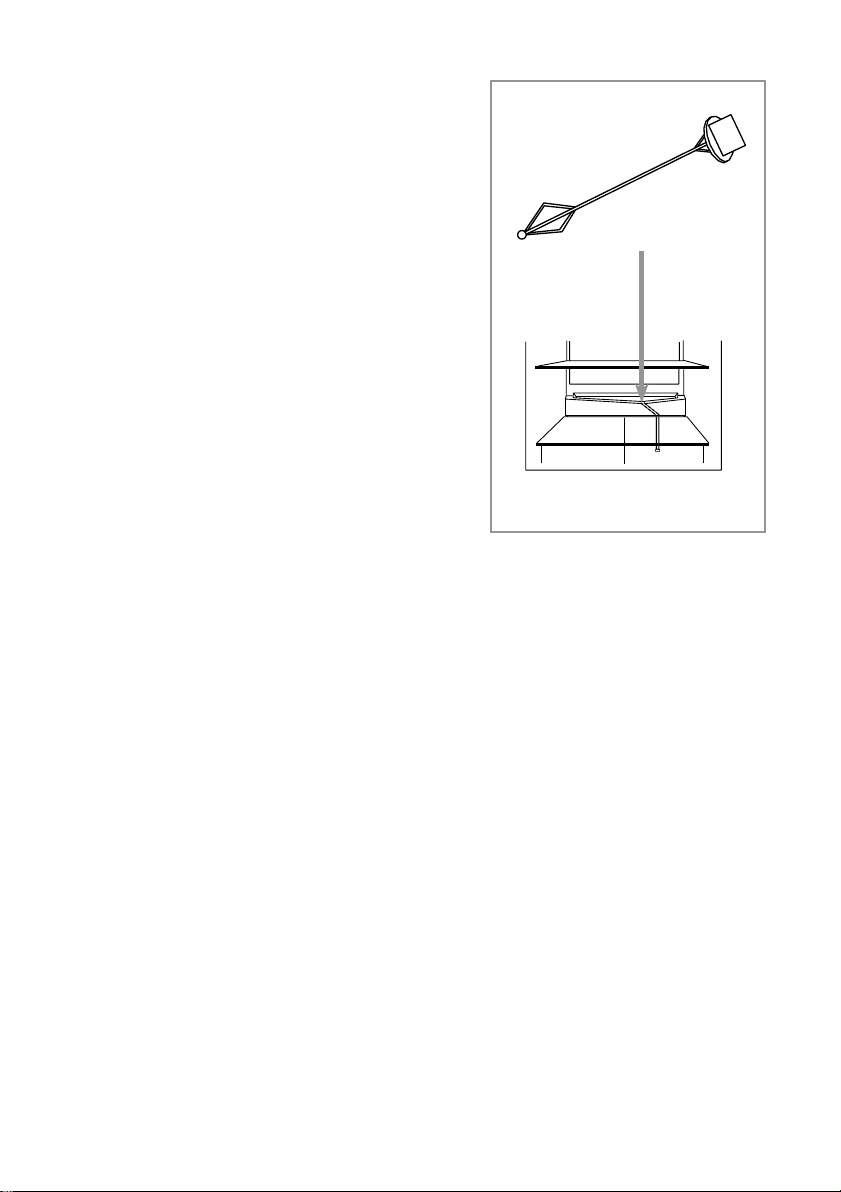

Cleaning Rod
Water Outlet
Fig. 3
12 | Instruction Manual
Defrosting the fridge
The fridge is self-defrosting. Any water created will run out of the
fridge through the channel at the back of the fridge.
It is important to keep the channel clear at all times using the
cleaning tool supplied.
The defrosted water is collected in the evaporating tray at the back
of the appliance and dissipated by evaporation.
If you notice a heavy build up of ice, refer to the
troubleshooting section on ice on page 13.
Defrosting the icebox
An excessive build-up of ice or frost in your icebox will lead to
decreased efficiency and potentially increase your energy bills.
We recommend defrosting the icebox at least once a year or
whenever the ice build-up inside is thicker than ¼ of an inch.
The safest way to defrost your icebox is by switching the appliance
off and leaving the doors open until all of the ice has melted
away. Ensure you place old towels on the floor at the base of the
appliance to catch any water that runs from the appliance. We
advise against the use of newspapers to catch the water as the ink
can run and ruin floors or units.
Removing chunks of the ice/frost as it is defrosting will speed up
the process. Do not use any sharp objects or implements, hair
driers or heat guns as these can cause irreversible damage.
Instruction Manual | 13
Troubleshooting
If you have any problems with your appliance, you should check
the troubleshooting ••••••prior to calling the Customer Care to
prevent unnecessary service calls and potential cost. Contact
details are on the back cover of this manual
If the appliance is not working, check the following:
•
There is power to the appliance
•
The house fuses are intact and the fuse in the plug has not
blown
•
The on/off switch is not set to off
•
The plug socket is functioning •••••••••. To check this, plug
anotherelectrical appliance in to see if the socket is faulty
If the appliance is working, but not very well, check the
following:
•
The appliance is not overloaded
•
The thermostat is set to an appropriate temperature
•
The doors are closing properly
•
The cooling system at the rear of the appliance is clean and free
of dust, and not touching the rear wall
•
There is enough ventilation at the side•rear walls•• • • •
••••••••••
•
The lower vents are neither blocked nor dirty
If the appliance is noisy, check the following:
•
The appliance is level and stable
•
The side and rear walls are clear, and there is nothing resting on
the appliance
•
Note: The cooling gas in the refrigerator may make a slight
bubbling or gurgling noise, even when the compressor is not
running
14 | Instruction Manual
If there is water in the lower part of the refrigerator
compartment, check the following:
•
The drain hole in the channel at the back of the is
•
There are no items touching the rear wall of the appliance
If ice has formed on the back wall of the fridge:
•
It is normal for some ice droplets to form on the back wall of the
fridge. This does not
constitute a fault with the appliance
•
Check that there is some resistance when opening the door of
the appliance. If it opens at the slightest touch it may mean that
the door seal needs to be replaced
•
Check the door seal for any kinks, debris or damage. If you
notice any, and are unable to resolve the issue yourself, contact
the Customer Care so that the seal can be replaced
If excessive ice has formed in the icebox:
•
This may mean that warm air is entering the fridge/icebox. Carry
out the above door seal checks for the fridge door and icebox
door. If you have reversed the icebox door hinge side, ensure it
is closing properly
Instruction Manual | 15
Installation and ventilation
This appliance must never be installed close to heat sources,
e.g. heating elements, cookers or in damp places.
•
To ensure the appliance is level, you should use the height
adjustable feet at the front of the appliance
•
The ventilation system at the bottom of the appliance must not
be blocked
•

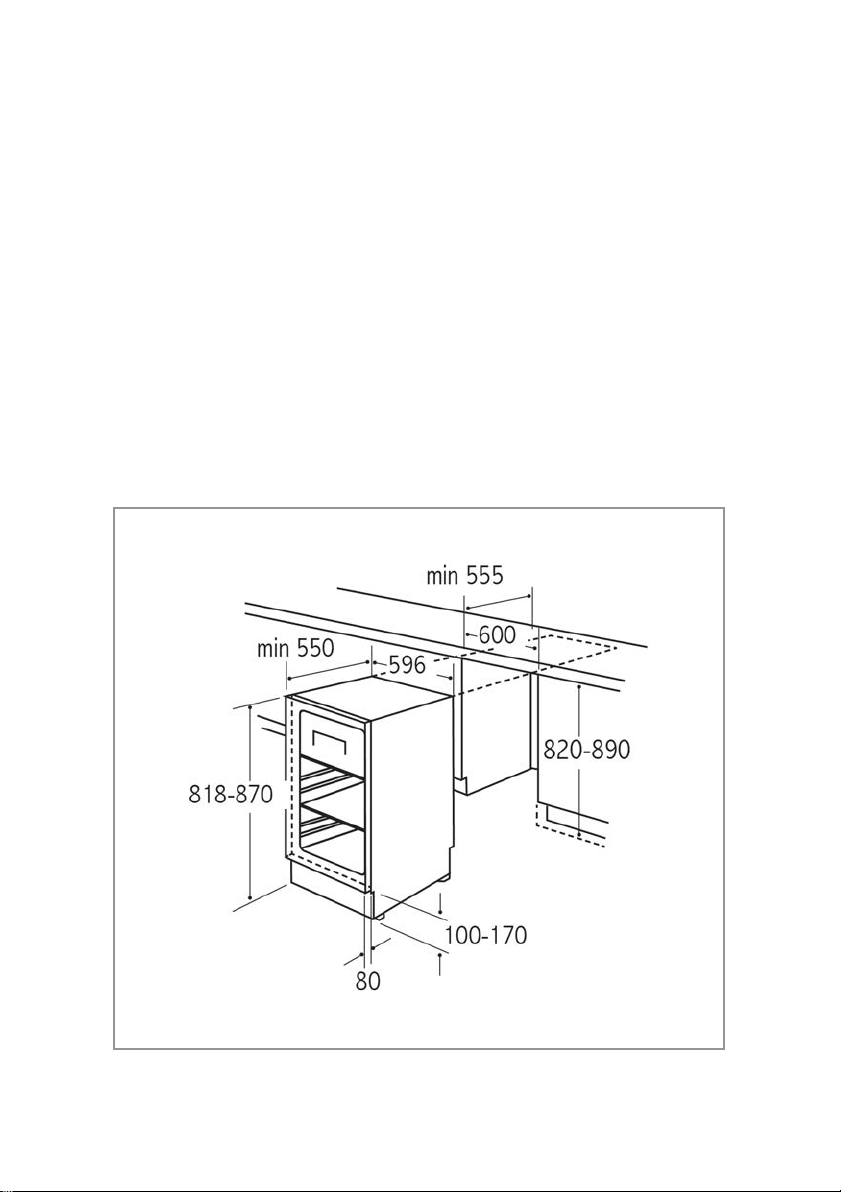

Fig. 4 shows the installation requirements for your appliance. All
measurements are in millimetres. Failure to install the appliance
correctly can lead to increased running costs, premature failure
and may invalidate the warranty provided with the appliance
Fig. 4
16 | Instruction Manual
Mounting the fascia doors

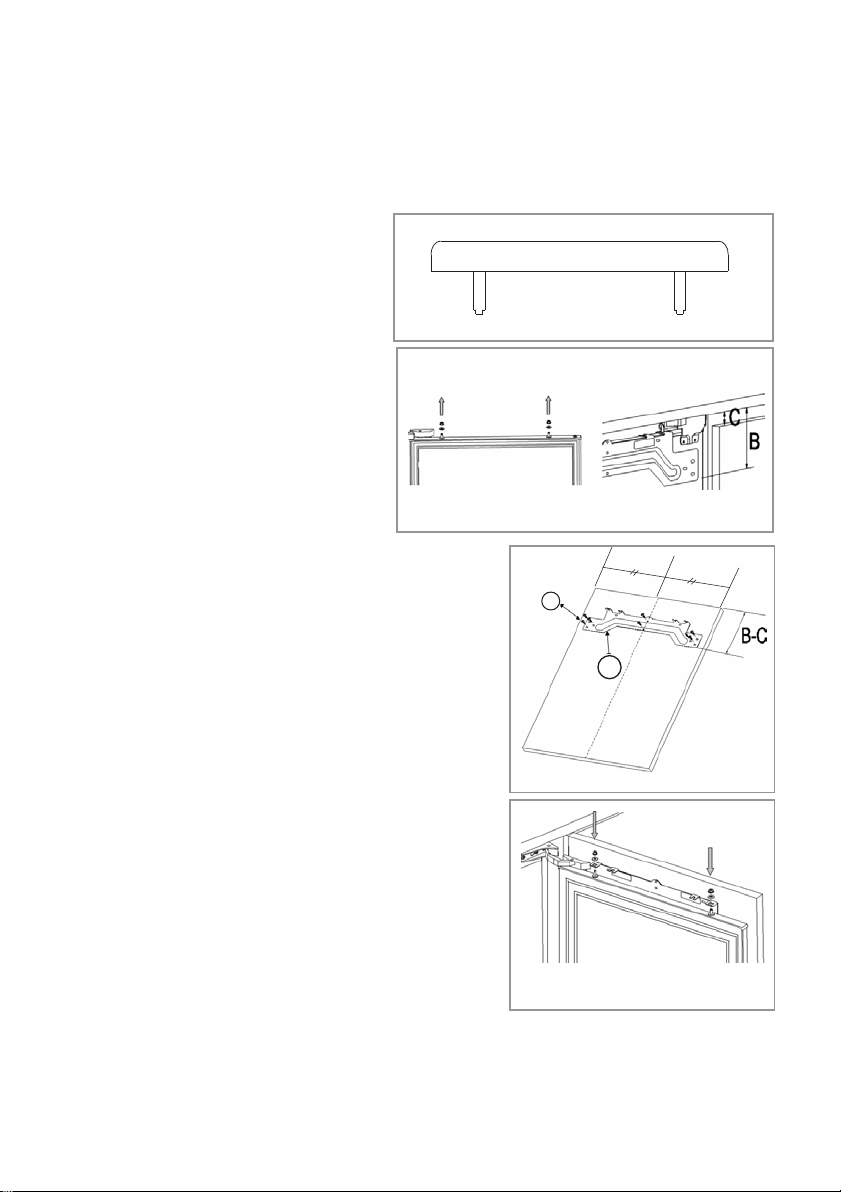

Fig. 6 - Fitting the decor door bracket
Remove the white decorative cover (Fig. 5) by lifting it upwards.
Obtain the below measurements:
Dimension B = Measure
from the underside surface
of kitchen unit to the
bottom of fixing bracket.
Dimension C =
Measure
from the underside surface
of kitchen unit to the top
of next unit door.
Unscrew and remove the
Fig. 5
1
2
Fig. 7
nuts and washers from the
top of the appliance door to remove
the bracket.
Fig. 7 - Fitting the decor door bracket
Subtract C from B and put the
fixing bracket (2) in place using this
measurement for vertical position
andplacetothecentrefor horizontal
position. Secure the fixing bracket (2)
using screws(1).
Fig. 8 - Fitting the decor door
Place the decor door onto the
appliance door by inserting adjustment
bolts into the slots on the
fixing
bracket.
Fig. 8
Instruction Manual | 17
Fitting the decor door base fixings
With the appliance door open, locate the metal decor door base
fixing brackets and screw the fixings to the decor door. You may
need to remove and re-fit these brackets depending upon the
decor door used.
Fitting the decorative cover
Re-fit the decorative cover, that you removed in the first step, on
to the decor door fixing bracket. Check that the whole door
assembly operates smoothly and that the door seal of the
refrigerator is still creating a seal.
3
Fig. 9 - Aligning the decor door
Close the door and check the
alignment with the other unit doors.
Adjust the decor door by screwing or
unscrewing the adjustment bolts3
for vertical adjustment and by the
helpof the slots on the fixing bracket
for other directions. Lock the screws
into place
Fig.
18 | Instruction Manual
Reversing the fridge door
We recommend you seek the help of another individual to support
the doors whilst performing this operation.
Open the door
2
Carefully prise off the white cover
caps for the side that you wish to
switch the hinges to
3
Loosen the screws that hold the
hinges to the fridge cabinet and
remove the door
Remove the screws that securethe
hinge to the door
Place the door somewhere
safe where it will not cause or
receive damage

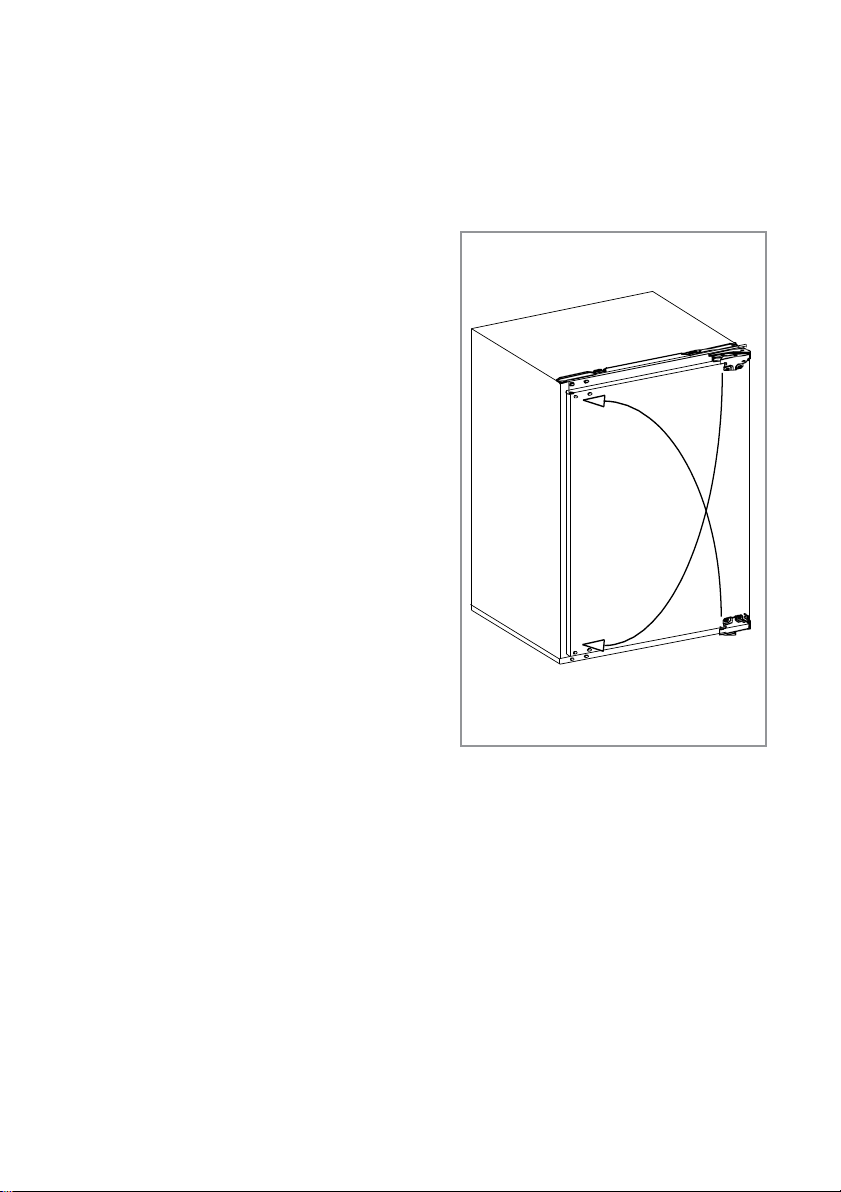

Relocate the hinges to their
opposing corners as shown inFig.
10
Refit the door to the hinges.
Do not turn the door upside
down
Insert the cover caps (3) on the
opposite side in the exposed
holes
Ensure that the door seal is
correct, as per page 19
Fig. 10
Instruction Manual | 19
Fig.11 Cover caps
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been
reversed. With the door closed, use a hair dryer to expand the seal
and fill the gap between the door and the body of the appliance.
Take care not to use the hair dryer too close to the appliance, which
could damage the seal. A distance of approximately 10cm should be
adequate. When completed, allow the seal and door to cool before
touching them. Once done, the seal will remain in position.
Reversing the cebox door
Remove the lower hinge piece (circled in Fig.
11)
by removing the
two screws holding it in place. The door will begin to drop once
this has been removed so take care. Place the door somewhere
safe and remove the lower
hinge piece. Carefully take
out the white cover caps from
the opposite side.
Place these in the old hinge
position holes. Remove the
door latch strike plate (Fig. 12)
and mirror its position on the
opposite side. Re-fit the door
in the new position, ensuring that
the upper hinge pivot on the
door goes into the recess in the
top of the fridge. Latch the
door over the strike plate and
fit the lower hinge piece
in its new position. Test that the
icebox door functions properly
and make any necessary
adjustments.
Fig.12
Table of contents
Other Artusi Refrigerator manuals
