AS MOTOR Ride-on Allmaher AS 940 Sherpa 4WD+ User manual

Operating Instructions
Ride-on Allmäher®
AS 940 Sherpa 4WD + AS 940 Sherpa 4WD XL
From serial number: 021914110001, Sherpa 4WD XL: 026414110001
Issued: 13 February 2015, V23.0
EN-Translation of the Original Operating Instructions

2
Preface
Please fill in all data referring to your device.
When ordering spare parts, provide your deal-
er with the device and engine number.
Serial number:
Pleases adhere the sticker from the warranty
card here.
Engine number:
Date of purchase:
Address of dealer:
Dear customer:
Congratulations on your purchase. You have
acquired a reliable quality product by “AS-
Motor Germany”.
This product has been manufactured according
to modern manufacturing methods and com-
prehensive quality assurance measures. Only
when you are satisfied with your device, we
have attained our goal.
Read these operating instructions carefully and
attentively so that your device operates
smoothly and you and others are safe from any
hazards. If you have questions concerning
your device, please contact your dealer or call
our customer service (tele-
phone [phone]). For international
AS partners, please see:
www.as-motor.de/worldwide.
“AS-Motor Germany” wishes you much joy with
your new device.
Intended use
The device is intended for cutting and mulching
grass or similar vegetation in agriculture, for-
estry, and landscape conservation.
Only use attachments and cutting tools author-
ised by “AS-Motor Germany”.
Any use exceeding this purpose is inadmissi-
ble. The manufacturer is not responsible for
any damage resulting from this. Observe the
required maintenance and repair measures.
The user of the device is responsible for acci-
dents or damage to other persons or their
property!
The device must not be used:
–To cut hard objects, rocks, rubble, or pieces
of wood.
–To trim bushes, hedges, and shrubbery.
–To cut plants on rooftops.
–To clean (vacuum) footpaths.
–As shredder for shredding tree and hedge
cuttings.
–As drive unit for work tools and any type of
tool sets that are not authorised by “AS-
Motor Germany”.
The device is not licensed for driving on public
roads.

3
Contents
2
Preface.....................................................
2
Intended use............................................
2
dummy Inhalts verzeichnis
4
Explanation of the symbols ....................
4
Symbols in the instructions ....................
4
Symbols on the device...........................
4
Safety instructions ..................................
5
Get informed!.........................................
5
User restrictions and hours of operation.
5
Safe handling of fuel..............................
5
Check the device prior to use.................
6
Use caution during operation .................
6
Prior to mowing......................................
6
Use caution when mowing.....................
7
Caution when using accessories............
8
When work is completed........................
8
Use caution during maintenance and
repair.....................................................
9
Device description...................................
10
Control elements.....................................
11
Front area..............................................
11
Control lever at seat...............................
11
Drive/idle mode......................................
12
Rollbar...................................................
13
Transport .................................................
13
Transport on pallets...............................
13
Transport of ready-to-use device ...........
13
Assembly .................................................
14
Scope of delivery...................................
14
Unpacking..............................................
14
Mounting................................................
14
Information on mowing...........................
15
Prior to starting........................................
15
Checking the oil level.............................
15
Fuel .......................................................
15
Tanking up.............................................
15
Adjusting the seating position.................
15
Adjusting the seat suspension................
16
Putting up the rollbar..............................
16
Transport rack........................................
16
Starting.....................................................
16
Safety switches......................................
16
Starting the engine.................................
16
Engaging the blade................................
17
Oil pressure switch.................................
17
Towing......................................................
17
Driving......................................................
17
Brakes (devices with foot brake) ............
18
Driving ...................................................
18
Reversing...............................................
18
Differential lock ......................................
18
Switching off and parking.......................
18
Maintenance and cleaning ......................
19
Preparations ..........................................
21
Cleaning the device ...............................
21
General inspection.................................
21
Checking the parking brake....................
21
Check the foot brake (if existing)............
21
Checking the blade................................
22
Maintaining the engine...........................
23
Opening the engine cover......................
23
Checking the engine oil level..................
23
Checking the spark plug.........................
24
Maintaining the air filter..........................
24
Checking and charging the battery.........
24
Hydrostat transmission...........................
24
Storage.....................................................
25
Storing the device..................................
25
Longer storage.......................................
25
Restarting..............................................
25
Spare parts...............................................
26
Wear parts................................................
26
Tyres.........................................................
26
Disposal ...................................................
26
Warranty...................................................
26
Troubleshooting ......................................
27
Technical data..........................................
31
Accessories .............................................
33
Declaration of conformity........................
34
Marketing
36

4
dummy Inhalts verzeichnis

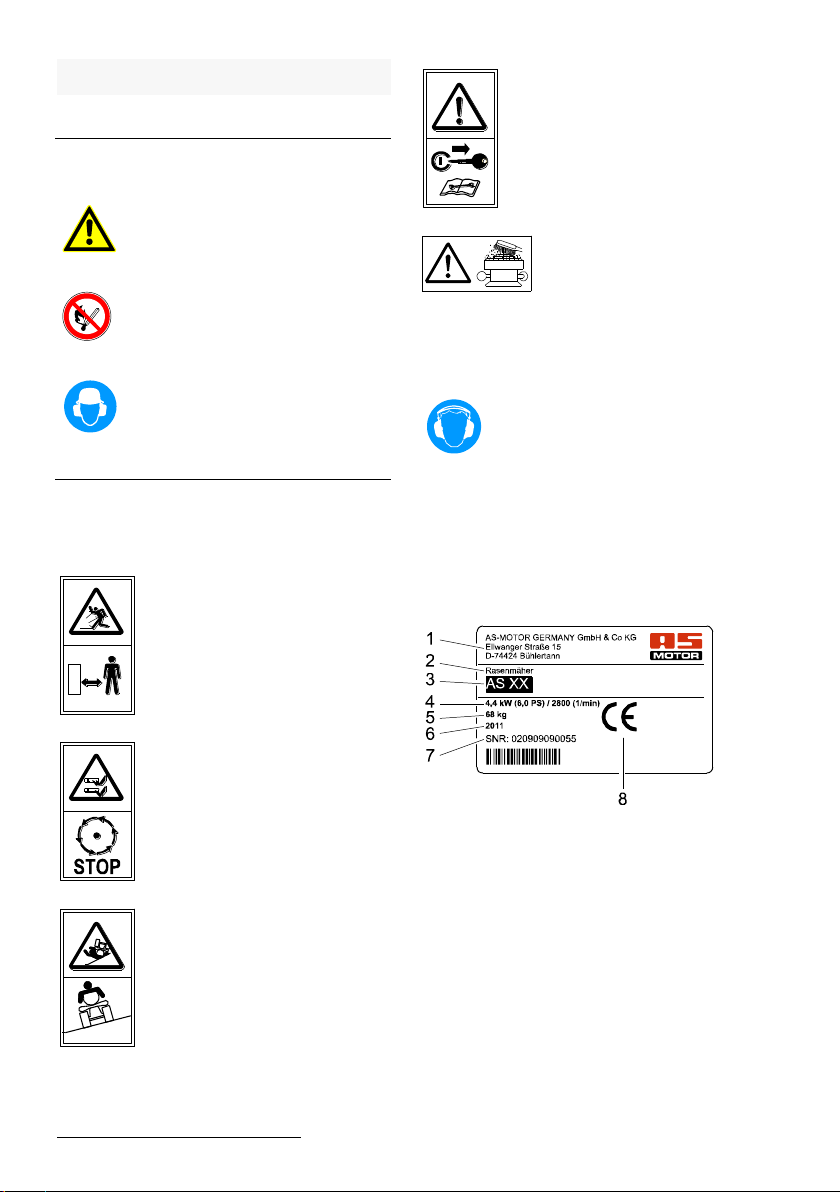

Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following
symbols are used to denote special dangers.
Warning.
These symbols denote special
dangers.
Prohibition sign.
These symbols denote inadmis-
sible procedures.
Directive sign.
These symbols denote required
protective measures.
Symbols on the device
The following symbols are placed on the de-
vice to inform you must be careful and atten-
tive when using the device:
Risk of injury!
Make sure that no one is within
the danger zone of the device.
Objects may be ejected.
The quickly rotating blade can
cause life threatening injuries or
immense property damage! Be
especially careful to keep your
hands and feet away from the
blade when the device is put into
operation.
MAX. 23°
Risk of tipping!
When positioned sideways to the
slope, the device is stable up to
23° (in accordance with the
standard measuring method).
Prior to any repair and mainte-
nance work, remove the ignition
key.
Clean the ventilation grid!
The cooling air of the
motor is sucked in through
the ventilation grid of the
engine cover. Always keep
the entire surface open
and free!
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Type plate
The type plate on the device provides you
with information on the device type and the
technical data.
1
Name and address of the manufacturer
2
Device designation
3
Type designation
4
Rates power output in kW / engine speed
5
Weight
6
Year of manufacture
7
Serial number
8
CE marking

5
Safety instructions
Get informed!
For your safety, read these operating instruc-
tions with care. Familiarize yourself with the
control elements and the proper use of the
device. Share these operating instructions with
other users of the device.
Before you use the device for the first time, let
the dealer instruct you regarding safe use.
Get familiar with the device in a wide, open
and flat terrain first.
User restrictions and hours of
operation
Never allow children or persons who are not
familiar with the operating instructions to use
the device. Persons under 18 years of age
may operate the device only under proper
supervision. Local regulations determine the
minimum age of the operator und the operating
times.
Unsuitable for operation of the device are
persons who
–are under the influence of alcohol, drugs or
reaction retarding medicines.
–have physical and mental/emotional impair-
ments.
–are tired or sick.
People fitted with pace makers
are not allowed to touch any
current carrying parts of the
ignition system.
Safe handling of fuel
Danger!
Fuel is toxic and highly inflamma-
ble.
Danger of fire and explosion!
Keep the fuel away from ignition
sources and do not smoke while
handling the device.
Do not inhale fuel vapours; they are
dangerous to your health.
Use gloves and avoid skin
contact with the fuel.
Fuel up outdoors only when the engine is cool
and not running. Use a filler or funnel.
Do not spill any fuel and do not let the fuel get
into the canalisation or ground water.
If you spilled fuel, do not start the device until
the fuel vapours have evaporated (wipe dry).
Move the device away from the area where the
fuel was spilled.
Always close the tank cap securely and do not
open it while the engine is running or the de-
vice is still hot.
Drain the fuel tank only when outdoors. Use a
suitable container or run the tank empty.
Keep the fuel away from children and store it in
a suitable container in a dark, cool, and dry
location.
Never park the device with fuel in the tank
inside a building where fuel vapours could
come in contact with open fire or sparks.
Immediately replace a damaged fuel tank or
tank cap (authorised dealership).
First aid
When swallowing fuel or inhaling fuel vapours,
do not force vomiting and immediately consult
a doctor.

6
In case of skin contact, immediately wash with
water and soap. Change your soiled clothing
as soon as you can.
Measures in case of a fire
In case of a fire, use foam, dry powder extin-
guisher, or carbon dioxide (CO2). Never douse
with water!
Check the device prior to use
Prior to use, check by visual inspection blade,
protection skirt, ejection rubber, drive and
fastening parts for proper condition and firm
seating.
Never use the device if covers, impact protec-
tion, ejection rubber, or protective skirt are
defective or not installed.
Do not remove, change or override any safety
devices or control elements.
Observe the maintenance instructions and
replace damaged or worn parts immediately.
Check the blade brake for proper function by
switching off the blade clutch. The blade must
come to a standstill from full speed within less
than 5 seconds.
Check the parking brake for proper function
(see Maintenance).
Use caution during operation
Do not start the engine
–if fuel was spilled.
–in closed or poorly ventilated rooms (danger
of poisoning!).
–if there are other persons nearby.
After every stop and before you shut down the
engine, actuate the parking brake. This pre-
vents the device from accidentally rolling away.
Do not touch the exhaust, the engine, and the
gearbox. They become very hot during opera-
tion and you can get burned. Resulting unin-
tentional movements constitute an additional
injury hazard.
Switch off the blade and wait until the blade
comes to a standstill,
–when you drive on surfaces other than
grass.
Switch off the engine and wait until the blade
comes to a standstill and remove the ignition
key,
–before you transport the device.
–if you step away from the device, even for
just a short time.
–before you clean or check the device or
before you carry out work on the device.
–before you unblock or unclog the discharge
area.
Prior to mowing
Personal protective measures
While mowing, always wear
sturdy footwear with good grip,
long trousers, and gloves. Do
not mow in open sandals or
bare feet.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Wear safety glasses and head-
gear.
Ask your specialised dealer about suitable
protective equipment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter
of the lawn. Remove rocks, pieces of wood,
bones, wires, and other objects that could be
picked up and thrown out by the device.

7
Use caution when mowing
Risk of injury
Stay within shouting distance to other people
who can help you in case of an emergency.
Danger!
Risk of injury caused by thrown out
objects.
Never mow while persons, children,
pets, or property are in the vicinity.
The area in front of and to the right of the
device is especially dangerous.
Keep your hands and feet away from the
rotating parts.
Only mow during daylight or with adequate
artificial lighting. Never mow in the event of
uncertain weather conditions and risk of light-
ning.
Be especially carefully when mowing on soft
ground, nearby landfills, ditches and dikes.
Do not transport any person on the device.
Be extremely cautious when moving in re-
verse.
Pay attention to traffic when working close to
roads.
When using the device over a longer period of
time, vibrations can cause disturbances in the
blood supply of the hands. A generally accept-
ed usage time cannot be determined. Use
gloves.
Take breaks on time.
Have an authorised service centre check the
device immediately
–if the blade hit an object.
–if the device starts to vibrate unusually
severely.
Caution when mowing slopes
Danger!
If the device, while in use, stops in
steep terrain or the engine cuts out,
the device can roll away.
Immediately actuate the parking
brake to prevent the device from
rolling away.
Observe the information regarding the oil
pressure switch in chapter Starting.
max. 23°
When mowing slopes, there
is a risk of slipping and
tilting!
–Do not mow excessively steep slopes. For
safety reasons, use the device only on less
than 23° slopes.
–Use a clinometer if you are not familiar with
the slope (see accessories).
–Never unlock the drive at the slope because
the device can roll away.
–Always mow up- and downhill, never in
horizontal direction.
–Always move upwards first. If you are un-
successful at moving upwards first, you must
not mow the slope. Never move downwards
if you were not successful at moving up-
wards.
–Be extremely cautious when changing the
direction.
–Do not turn on a slope.
–Only mow when you are familiar with the
terrain and the terrain is clear of obstacles.
–Pay attention to bumps, holes, and other
visible hazards.
–Do not mow close to danger zones (e.g.
walls, steep declines, etc.).
–Prior to entering the slope, always actuate
the differential lock. Move on slopes only
when the differential lock is actuated.
–Always keep the speed low when moving on
slopes.
–Do not start abruptly and do not brake ab-
ruptly.

8
–Hold the steering wheel tightly so that the
device does not swerve.
Only park the device on flat surfaces.
The drive has good braking efficiency which
can only provide sufficient grip on a non-slip
surface.
If the mower starts to slide you can regain
control by actuating the brake. Uncontrolled
handling is due to:
–poor tire grip.
–speeding.
–abrupt braking.
–an inappropriate task for the device.
–poor knowledge of the area.
–slope angles that are too steep.
Risk of tilting
If the wheels facing uphill encounter obstacles
such as roots, branches, rocks, bumps, etc.,
the mower can tilt or slide.
When loading the transport rack, there is an
increased tipping hazard. Observe the notices
regarding the transport rack.
Keep in mind that all attachments and extra
loads increase the tilting hazard.
Risk of slipping
When the ground is wet or loose, use extreme
caution to prevent the mower from slipping.
Use extreme caution when moving downhill.
On cut plant material, no matter if wet or dry,
the risk of slipping is high.
Mowing surfaces with fire hazard
–Carry a sufficient amount of suitable extin-
guishing agent.
–If side inclination is too great, fuel may leak
from the carburetor or the tank. This poses a
fire hazard!
–Observe the mowed surface also after mov-
ing is completed to ensure that no fire will
start.
To avoid risk of fire, keep the following compo-
nents free of dirt, grass, hay, leaking oil,
grease, etc:
–Engine
–Silencer (manifold, guard, clearances)
–Battery
–Area around the fuel tank
Caution when using accessories
Be careful when pulling loads:
–Only use tow-bars authorized by
“AS-Motor Germany”.
–Observe the maximum load carrying capaci-
ty (Technical data).
–Observe the safety instructions in the oper-
ating instructions of the tow-bar.
–Only transport loads that you can handle
safely.
–Only drive on slopes up to 10°.
–Do not take tight corners.
–Be extremely cautious when moving in
reverse.
When work is completed
After mowing, always close the fuel valve and
the tank ventilation.
Prior to leaving the device, wait until the engine
comes to a standstill and pull off the ignition
key.
After switching it off, let the device cool down
for at least 20 minutes before you store it in a
dry, closed, sufficiently ventilated room.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.

9
Use caution during maintenance
and repair
Only carry out maintenance work as described
in these operating instructions. Have an au-
thorised service centre carry out all other work.
Only use the knives and spare parts authorized
by “AS-Motor Germany”. Unauthorized knives
and spare parts can cause severe injuries.
Prior to all maintenance work, wait until the
engine comes to a standstill and pull off the
spark plug connector.
We explicitly point out that, in accordance with
the Product Liability Act, we are not liable for
damages that were caused by our devices if
–worn or damaged parts were not repaired or
replaced on time.
–these damages were caused by improper
repair.
–when changing a part, our original parts or
parts authorised by use were not used.
–the repair work was not carried out by an
authorised service station.
The same applies for spare parts and accesso-
ries.

10

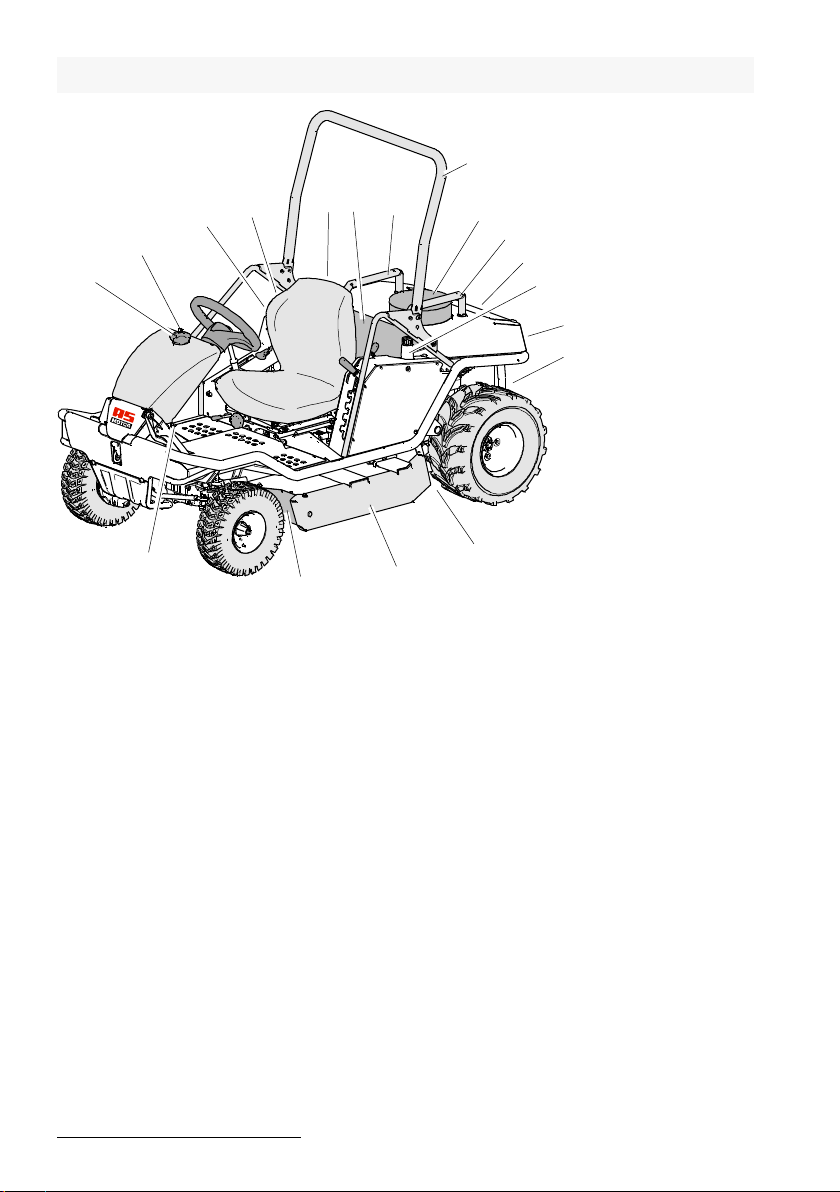

Device description
1
234567
8
9
10
11
14
15
6
16
7
12
13
1
Tank cap
2
Tank ventilation
3
Type plate
4
On-board supply socket
5
Protection skirt
6
Transport rack
7
Rollbar
8
Type plate
9
Ventilation grid
10
Silencer grid
11
Oil surge tank
12
Gearbox fan
13
Unlocking device drive
14
Ejection rubber
15
Side plates impact protection
16
Fuel valve

11

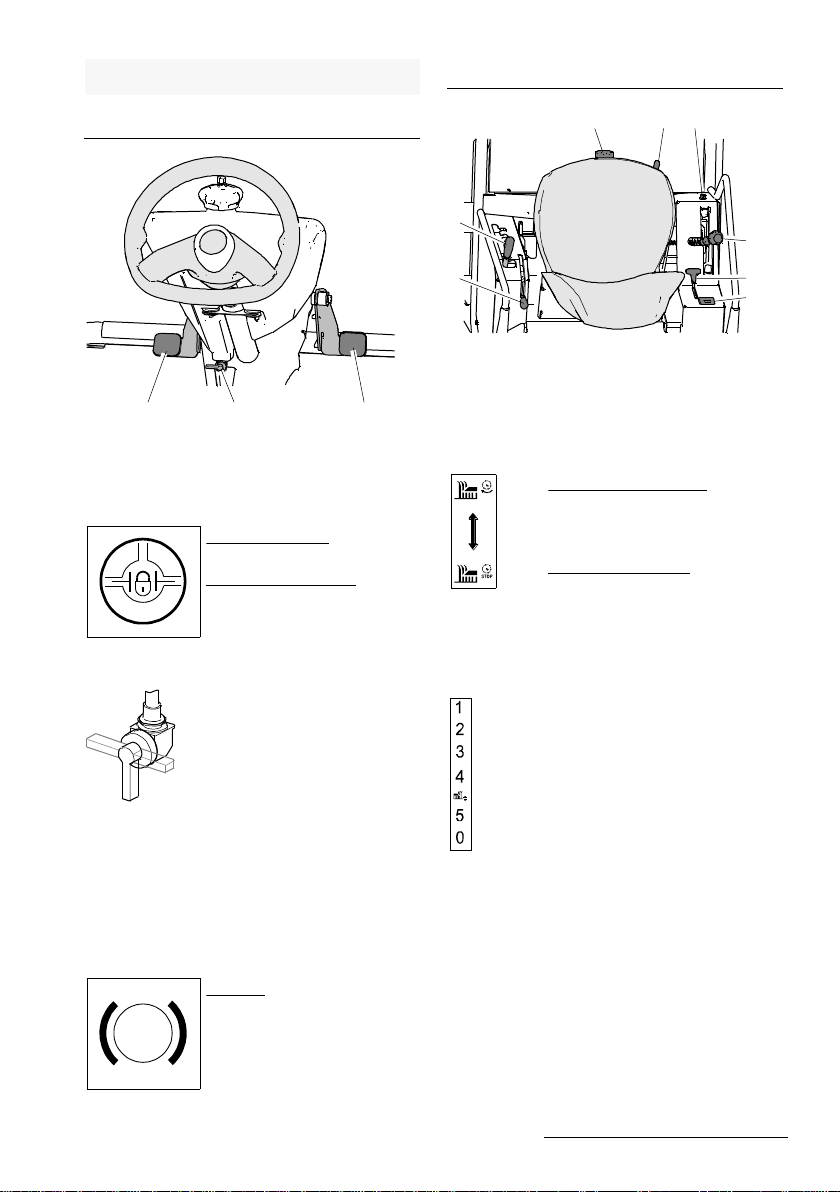

Control elements
Front area
1 32
Differential lock (1)
With the left foot pedal, actuate the differential
lock.
Pedal is actuated:
Differential lock is on
Pedal is not actuated:
Differential lock is off
Fuel valve (2 )
23
1
1: Reserve
2: Open
3: Closed
Foot brake/parking brake (3)
By stepping on the right foot pedal, the park-
ing brake is actuated. Use the actuation via
foot pedal only in exceptional circumstances
because the mower stops abruptly.
Braking:
Release the drive lever and
press down the right foot
pedal (3).
Control lever at seat
7
1
2
3 4
5
6
8
Blade clutch lever (1)
The blade clutch lever is a protective device.
When you declutch the blade, the blade
comes to a standstill within 5 seconds.
Declutching the blade:
Set the accelerator lever to
MIN. Guide the blade clutch
lever backwards.
Clutching the blade:
Slowly pull forward the lever.
Cutting height adjustment (2)
The cutting height for the lawn
can be set to five positions.
The top position is the transport
position.
Sitting position
Press the lever (3) to the right, move the seat
to the desired position, and engage it.

12
Seat suspension (7)
The seat suspension can be adjusted to the
driver’s weight.
Heavier drivers: Turn clock-
wise.
Lighter weight drivers: Turn
anti-clockwise.
Ignition lock (4)
The ignition lock has three positions.
OFF: Ignition off.
The key can be removed.
ON: Ignition on.
START: Electric starter on.
Drive lever with parking brake (5 )
The drive lever is needed to drive forward and
in reverse as well as to stop the mower. The
further you move the lever in one or the other
direction, the faster the device moves.
In the neutral position, the parking brake is
actuated.
Moving forward
Stopping (neutral posi-
tion/parking brake)
Moving in reverse
Accelerator lever with choke (6)
Via the accelerator lever, you change the
engine speed and control the engine perfor-
mance. When you want to start the device
when the engine is cold, move the accelerator
lever to choke position (choke is closed).
MAX: Full throttle position
MIN: Idling speed. Pull the
accelerator all the way up
Choke: Choke is closed (only
for cold engine start). Press
the accelerator all the way
down.
Operating hours counter (8)
The operating hours are counted as soon as
the engine is running.
Display:
–When engine is running: engine speed
–When engine is off: operating hours
Drive/idle mode
Warning!
Hot silencer grid.
Do not touch the silencer grid (3)
when you are pushing the device.
The grid gets very hot during opera-
tion and you can get burned.
Caution!
Engine startup with unlocked drive
can destroy the hydraulic drive.
Never start the engine when the
drive is unlocked.

13

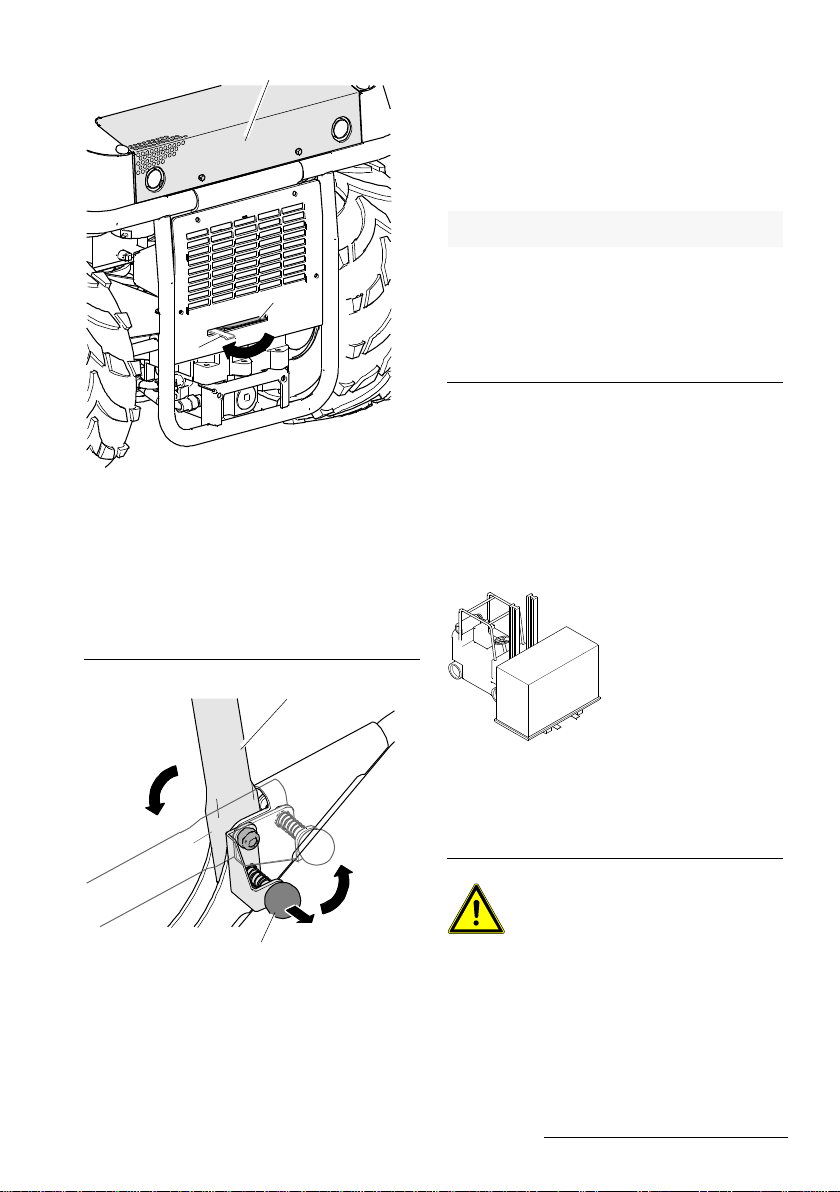

2
1
3
To push a mower without engine drive, unlock
the drive at the rear of the device and release
the parking brake. In this condition, the mower
can only be braked with the parking brake.
1: Locked
2: Unlocked (idling)
Rollbar
1
2
Putting down the rollbar
1. Pull out the lever (1).
2. Put down the rollbar (2).
3. Swivel the lever forwards and engage the
lever.
Putting up the rollbar
1. Pull out the lever (1).
2. Put up the rollbar (2).
3. Swivel the lever down and engage the
lever.
leerer Absatz
Transport
Transport the device on a freight vehicle or a
trailer which is designed for a carrying capacity
of at least as great as the empty weight of the
device.
Transport on pallets
For transport over short distances, use a fork
lift or a lift truck.
For longer distances, load the device with a
fork lift onto a freight vehicle or trailer.
The user must be authorised to operate a fork
lift. When the machine is lifted, all persons
must step away from the working area of the
fork lift.
Notice! Drive the fork lift completely under the
longitudinal beams of the wooden pallets.
Transport of ready-to-use device
Warning!
Risk of injury due to the heavy
weight of the device. The device
can fall over and fall down and
cause severe injuries.
Observe the following notices.
Prior to transport, let the device cool down for
at least 20 minutes. Close the fuel valve.

14
Loading
Use suitable ramps for loading that
–can carry the empty weight of the de-
vice + 100 kg.
–are wider than the device.
–have a slip-free surface.
1. Put the device in front of the ramps and
make sure that the ramps
–are as wide as the wheel gauge of the
device.
–are tightly secured to the platform.
–are not steeper than 15°.
2. Carefully drive the device via the ramps
onto the platform.
3. Secure the device against rolling, sliding,
tilting, and fuel leakage.
4. Secure the device with belts to the frame
elements that can hold the weight.
Caution! To prevent damages to the de-
vice, we recommend to fasten the straps
exactly as shown in the illustration. Do not
overtighten the straps.
Unloading the device
1. Undo the transport fastenings.
2. Drive the device carefully down the ramps
of the platform.
leerer Absatz
Assembly
Scope of delivery
The device is delivered in a carton on a pallet.
The scope of delivery includes:
–The device.
–These operating instructions.
–Warranty card.
–Tool bag with small items.
–Steering wheel.
–Ignition key.
–Operating instructions of the engine manu-
facturer.
Unpacking
1. Remove the carton.
2. Check the air pressure of the tires (see
Technical data).
Mounting
Mount the steering wheel:
1. Insert the screw (1) through the steering
wheel and the steering column.
2. Tighten the central fixing screw (3).

15
3. Screw the nut (2) onto the screw (1).
4. Fit the cap (4).
leerer Absatz
Information on mowing
Prior to mowing, check your device for com-
pleteness, proper functioning, and cleanliness.
A dirty ventilation grid causes overheating of
the engine, this can damage the engine. A dirty
protective grid at the silencer poses a fire
hazard.
Frequent engagement and disengagement of
the clutch increases wear of the blade drive
belt and the blade brake. Especially in case of
high grass, clutch engagement leads to over-
load.
To keep the area well maintained, mow fre-
quently and keep the grass short.
Only mow with a sharp and undamaged blade.
Have the blade sharpened and balanced
regularly (by authorised service centre).
Do not mow when the grass is wet or when it is
raining. The turf may be damaged and there is
a danger of slipping!
Turn the device around only in already mown
sections. Do not leave the device unattended
while the engine is running
Set the cutting height so that the blade does
not touch the ground even in case of terrain
unevenness.
Always set the blade to transport position when
you do not mow.
For mowing, always turn the accelerator lever
to full throttle to achieve the best mowing
performance.
To avoid blockage during the ejection of grass,
we recommend, for flat terrain, to proceed
according to the mowing patterns. Mulch is
shredded into much smaller pieces when you
mow the terrain once again in the opposite
direction.
leerer Absatz
Prior to starting
Checking the oil level
Caution! Before mowing, always check the
engine oil level and the oil level in the hydro-
stat (see Maintenance).
Fuel
As fuel, use unleaded petrol (see operating
instructions of the engine manufacturer).
You can use E10 petrol. Do not store E10
petrol longer than 30 days.
Tanking up
Danger!
Fuel is ignited by hot engine parts.
Prior to filling up, switch off the
engine and wait for at least
20 minutes until the engine has
cooled down. Observe the safety
instructions regarding the fuel!
Filling in the fuel:
1. For filling, use a canister with a filler spout
or use as funnel.
2. Open the canister carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
3. Open the tank cap carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
4. Fill the fuel tank.
5. Screw the tank cap on tightly.
Adjusting the seating position
Adjust the seat in the longitudinal direction until
your feet are positioned on the inclined support
plates and you sit comfortably.

16
Adjusting the seat suspension
To provide the ultimate seating comfort, spring
deflection should be fully utilized, if possible.
Adjust the handwheel so that the seat does not
contact the floor during normal operation.
Putting up the rollbar
For safety reasons, always use the device with
the rollbar put up and locked. If the device falls
over, the rollbar prevents the device from
flipping over.
Only when driving on an even terrain, you can
use the device with the rollbar put down.
Transport rack
Danger!
During the loading process, there is
an increased risk of tilting.
Do not drive up or down steep
slopes when the transport rack is
loaded. Observe the permissible
loading limits.
The device has a transport rack above the
motor cover.
Caution! Load the transport rack so that the
ventilation grid underneath it remains uncov-
ered. Otherwise there is the danger that the
motor overheats and is damaged.
Loading limits
Maximum load:
5 kg
Maximum height:
18 cm
Maximum width:
45 cm
Maximum length:
30 cm
Starting
Danger!
During startup, there is a risk of
injury caused by the rotating blade.
Make sure that no one is within the
danger zone of the blade.
Safety switches
The device is equipped with safety switches.
To start the engine, the following requirements
must be met:
–A driver sits in the driver seat.
–The blade clutch is switched off.
–The lever for cutting height adjustment is in
transport position.
–The drive lever is in neutral position.
If the engine is running and the driver leaves
the seat, the engine is shut off.
If the engine was shut down due to a safety
switch, turn the ignition key to position “Ignition
off”. By this, you will avoid discharging the
battery.
Starting the engine
Start the device only when it is positioned on
even and firm terrain.
1. Open the fuel valve.
2. Open the tank ventilation.
3. Sit down on the driver seat.
4. Turn off the blade clutch.
5. Move the lever for the cutting height ad-
justment to transport position.
6. Move the drive lever to neutral position.
7. When the engine is cold:
Move the accelerator lever to cold start po-
sition (choke).
When the engine is warm:
Move the accelerator lever to middle posi-
tion.
8. Turn the ignition key to starting position.
9. Once the engine has started, release the
ignition key.

17
10.Only for cold start:
Move the accelerator lever to middle posi-
tion.
11.For mowing, set the accelerator lever to the
maximum speed.
If the engine does not start after 5 seconds,
release the key. Wait for approx. 15 seconds
before trying to start the device again.
Engaging the blade
Only engage the blade when it turns freely and
does not come into contact with objects or the
floor.
Do not engage the blade in uncut grass be-
cause the blade drive otherwise becomes
overloaded, can be damaged, or can wear
prematurely.
1. Start the engine.
2. Move the lever for the cutting height ad-
justment to the highest cutting position.
3. Pull the blade clutch lever slowly forward -
the blade starts up.
4. Set the desired cutting height.
If you set the cutting height to transport posi-
tion during mowing, the blade is automatically
disengaged.
Disengaging the blade when running over
paths:
1. Quickly pull the blade clutch lever rear-
wards.
Oil pressure switch
Danger!
If the engine shuts down while you
are mowing, the device can roll
away.
Immediately actuate the parking
brake to prevent the device from
rolling away.
The oil pressure switch ensures that the en-
gine is not damaged when the device is used
in steep terrain.
The oil pressure switch switches off the engine
when damage to the engine may occur due to
lack of oil pressure. This may occur when:
–Oil level is too low.
–The device is in too steep a sloping position
while in steep terrain.
How steep the gradient for the oil pressure
switch to switch off the engine may be de-
pends on the engine type, direction of inclina-
tion, and the oil level.
In order to restart the engine, let the device roll
to terrain that is less steep while in idle state.
In every case, check the oil level.
leerer Absatz
Towing
Danger!
The device can roll away without
the drive.
Never unlock the drive in steep
terrain without securing the device
against rolling away.
If the engine cannot be started again, the
device must be towed.
1. While using the brakes, let the device roll to
terrain that is less steep.
2. Secure the device against rolling away or
sliding.
3. Secure the device with a cable winch that
has got enough load capacity.
4. For towing unlock the drive and release the
parking brake.
leerer Absatz
Driving
Danger!
Mowing on a slope is dangerous.
There is a risk of tilting and slipping.
Observe the safety instruction for
mowing on slopes.
In case of a hazardous situation, switch off the
drive and declutch the blade.

18
Brakes (devices with foot brake)
Warning!
The brake does not work if you
continue to hold the drive lever
while braking.
Release the drive lever when you
actuate the foot brake.
To stop, move the drive lever slowly to neutral
position.
The parking brake acts on the rear wheels.
When the foot brake is actuated, the drive
lever swivels all the way to neutral posi-
tion/parking brake.
Use the actuation via foot pedal only in excep-
tional circumstances because the mower stops
abruptly.
leerer Absatz
Driving
1. Start the engine.
2. Release the parking brake.
3. Slowly move the drive lever to the desired
driving direction. The further the lever is
moved away from the neutral position, the
faster the mower moves.
4. To stop, move the drive lever slowly to
neutral position or step on the foot brake.
Reversing
Danger!
Danger of injury when reversing.
Make sure that your path is clear of
obstacles and that no other persons
stand behind your device.
Always reverse slowly. Be especially cautious
when the blade is engaged.
1. Release the parking brake.
2. Slowly move the drive lever to the rear. The
move you move the lever away from the
neutral position, the faster the mower
moves.
3. In order to stop, move the drive lever slowly
to neutral position.
Differential lock
The differential lock connects the two rear
wheels rigidly to each other. This improves
traction. Actuate the differential lock when a
wheel slips.
Always actuate the differential lock when
moving downhill. This improves the driving
stability of the device. The risk of sliding or
swerving of the rear is reduced and safe brak-
ing is possible.
Driving in curves while the differential lock is
actuated is only possible with limitations.
To avoid excessive wear,
–actuate the differential lock only when the
device is stopped, if possible.
–always step on the pedal all the way.
–release the differential lock when it is no
longer absolutely needed.
leerer Absatz
Switching off and parking
Warning!
Risk of injury in case of unauthor-
ised use.
Always remove the ignition key
when you do not use the device.
1. Move the drive lever slowly to neutral
position.
2. Turn the accelerator lever to idle speed.
3. Switch off the blade clutch.
4. Move the lever for the cutting height ad-
justment to transport position.
5. Actuate the parking brake.
6. Turn the ignition key to “ignition off”.
7. Wait until the engine comes to a standstill
before you step away from the device.
8. Remove the ignition key.
9. Close the fuel valve.
10. Close the tank ventilation.

19
Maintenance and cleaning
Regular maintenance keeps your device ready
for use.
If you do not observe the maintenance notices,
faults may occur that are not covered by the
warranty. Operational safety is endangered as
well.
Contact your authorised service centre for
checkup if you detect problems during mainte-
nance.
Component
Action
Maintenance
interval
A
B
Device
Check for safe working condition (basic inspection).
■
▲
Clean.
■
Customer service.
▲
Fuel
Check fuel level.
■
Is the tank cap closed?
■
Tank,fuel valve,
and fuel line
Check parts for leaks and check for good condition.
■
▲
Ventilation grid
Clean.
■
▲
Engine cooling
Clean.
▲
Spark plug
Check/replace.
▲
Air filter
Maintain.
■
■▲
Blade and fas-
tening components
Check for wear and damage. See chapter Checking the
blade.
■
▲
Change.
▲
Clean the screw-on point of the knife blade.
■
Blade brake
Does the blade function safely and does the blade come to
a standstill within 5 seconds?
□
▲
Drive lever
Does the device stop when the lever is in neutral position
(parking brake)?
□
▲
Devices with foot brake: Does the lever move to neutral
position when the foot brake is actuated?
□
▲
V-belt
Are the belts tensioned correctly, without fissures, and in
good condition?
▲

20
Bowden cables
Check for proper function and ease of movement.
■
▲
Acceleration lever
Check for proper function.
□
▲
Chassis and im-
pact protection
Check for rust and fissures and check the welding seams.
■
▲
Are all protective devices and covers in place, fastened
correctly and properly functioning?
■
▲
Label
Condition of the labels.
■
▲
Engine
See operating instructions of the engine manufacturer.
■
▲
Check oil level (see operating instructions of the engine
manufacturer).
■
▲
Oil change.
▲
Oil filter change
▲
Parking brake
Check.
■
▲
Check the foot
brake
Check the foot brake
□
▲
Flammable materi-
al
Remove easily flammable debris buildup from the engine
and the device.
■
▲
Steering
Check the clearance.
■
▲
Tyres
Check tyres and, if necessary, the tyre pressure.
■
▲
Safety switches
Check the switches at the driver seat, cutting height ad-
justment, and drive for proper function.
■
▲
Ignition lock
Check for proper function.
□
▲
Hydrostatic trans-
mission
Check oil level.
■
▲
Repair leaks.
▲
Oil change after 50 h and every 200 h thereafter.
▲
Battery
Check the charging conditions.
▲
A
B
■
□
▲
Before and after each use.
Annually or every 50 h.
By the user when the engine is not running.
By the user when the engine is running.
By the authorised service centre.
