Operator's Manual
Allmäher®
AS 21 4T B&S + AS 21 4T Comfort
From serial number: AS 21 4T B&S: 021111030151, AS 21 4T Comfort: 027315100001
Issued: 08 May 2017, V14.0
en-Translation of the Original Operator's Manual

2
dummy
Notes on the operating
manual
Dear customer,
Congratulations on your purchase. You have
acquired a reliable quality product by “AS-Mo-
tor Germany”.
This product has been manufactured according
to modern manufacturing methods and com-
prehensive quality assurance measures. Only
when you are satisfied with your device, we
have attained our goal.
These operating instructions contain important
information to help you avoid hazards and to
increase the reliability and the life span of the
device.
Read the operating instructions
before using the device. Share
these operating instructions and
the operating instructions of the
engine with other users of the
device.
Contact
If you have questions concerning your device,
please contact you dealer or call our customer
service ([phone]).
For international AS partners, please see:
www.as‑motor.de.
Device data
Please fill in all data referring to your device.
When ordering spare parts, provide your
dealer with the serial and engine numbers.
Serial number (see manufacturer’s certificate
or type plate):
Engine number:
Date of purchase:
Address of dealer:
Intended use
The device is intended only for cutting grass or
similar vegetation in well-maintained grounds
in agriculture, forestry and preservation of the
countryside that are cut at least once a year.
Woody growth must not be older than maxim-
ally one year.
Only use attachments and cutting tools autho-
rised by “AS-Motor Germany”.
Any other use exceeding this purpose is inad-
missible.
Observe the instructions chapter Maintenance
and cleaning. Otherwise, operational safety is
endangered.
The user of the device is responsible for acci-
dents or damage that can happen to other per-
sons or their property!
The device must not be used:
– To cut hard objects, rocks, rubble, or pieces
of wood.
– To trim bushes, hedges, and shrubbery.
– To cut plants in flower pots or planters or on
rooftops.
– To clean (vacuum) footpaths.
– As shredder for shredding tree and hedge
cuttings.
– As drive unit for work tools and any type of
tool sets that are not authorised by
“AS-Motor Germany”.

3
Contents
Notes on the operating manual............. 2
Contact .................................................... 2
Device data.............................................. 2
Intended use............................................ 2
Explanation of the symbols................... 4
Symbols in the instructions...................... 4
Symbols on the device............................ 4
Type overview......................................... 5
Safety instructions ................................. 6
Get informed!........................................... 6
User restrictions and hours of operation.. 6
Safe handling of fuel................................ 6
Check the device prior to use.................. 7

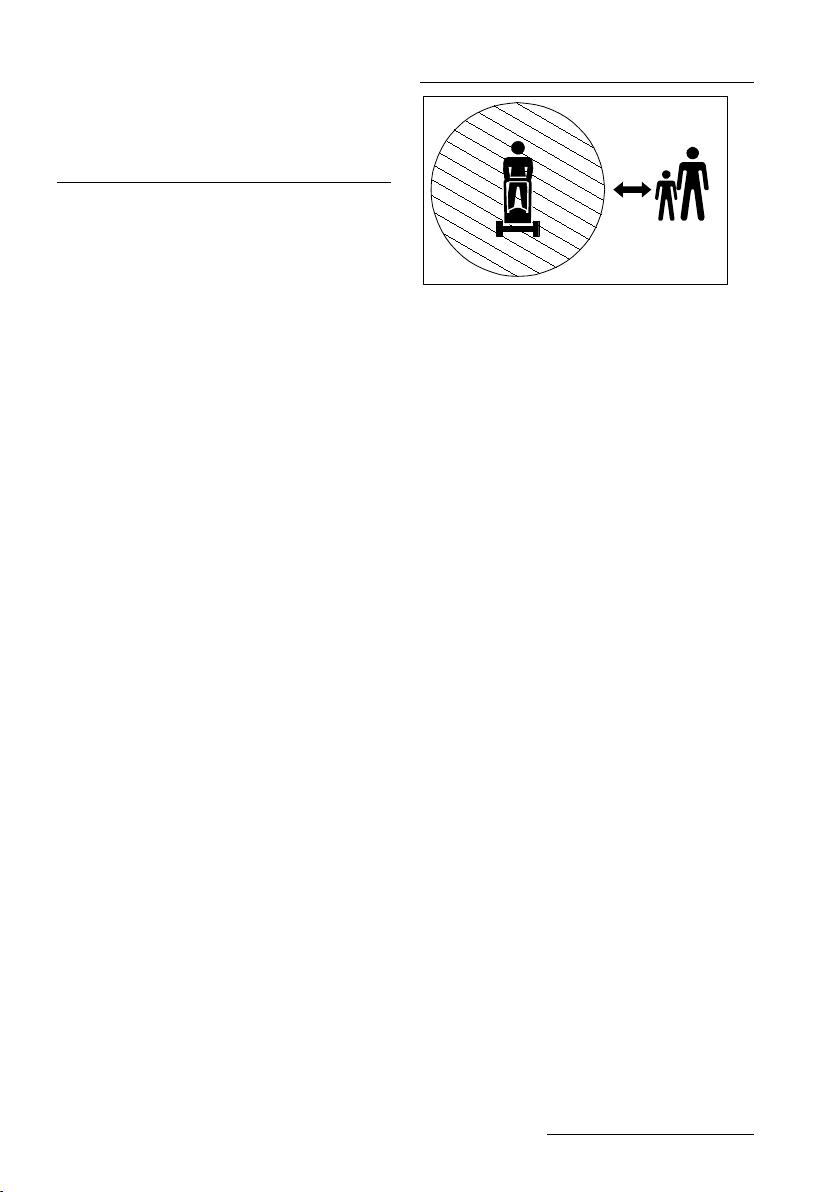

Danger area............................................. 7
Use caution during operation................... 8

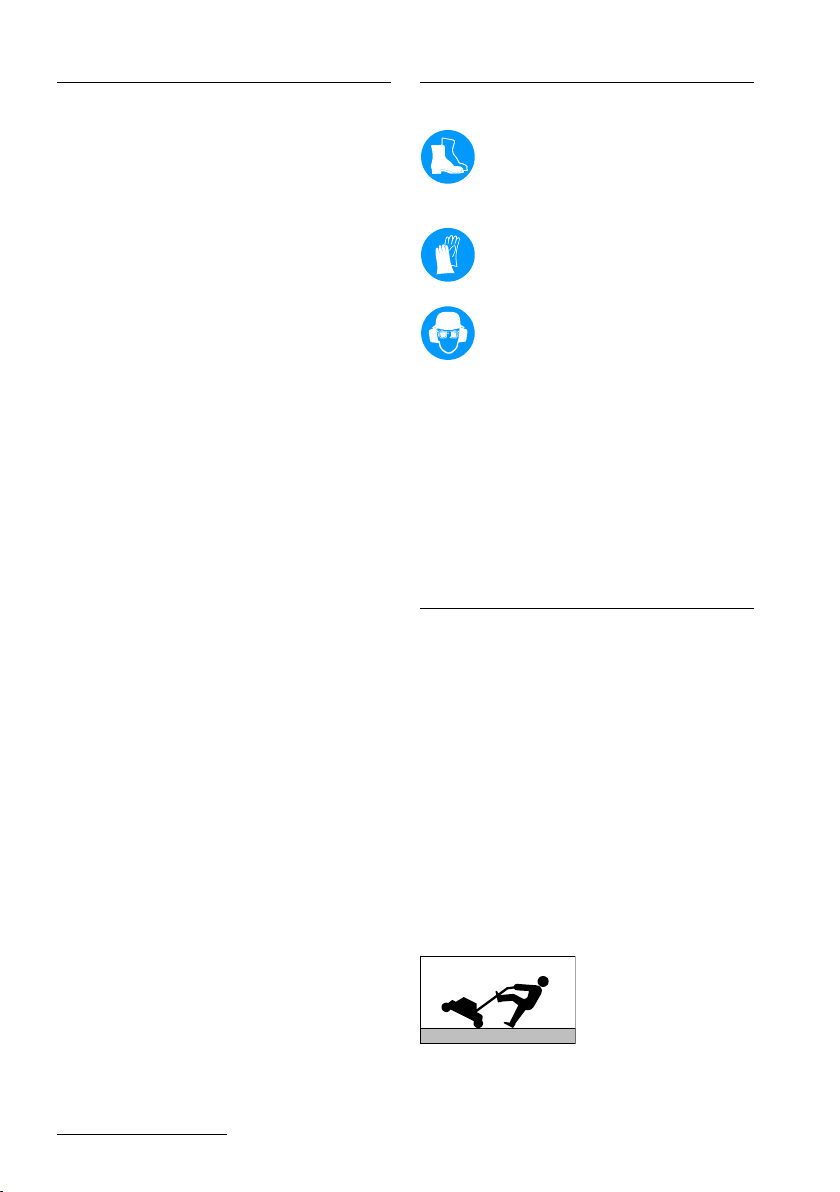

Prior to mowing........................................ 8
Use caution when mowing....................... 8
Caution when mowing slopes.................. 9
When work is completed......................... 10
Use caution during maintenance and re-
pair........................................................... 10

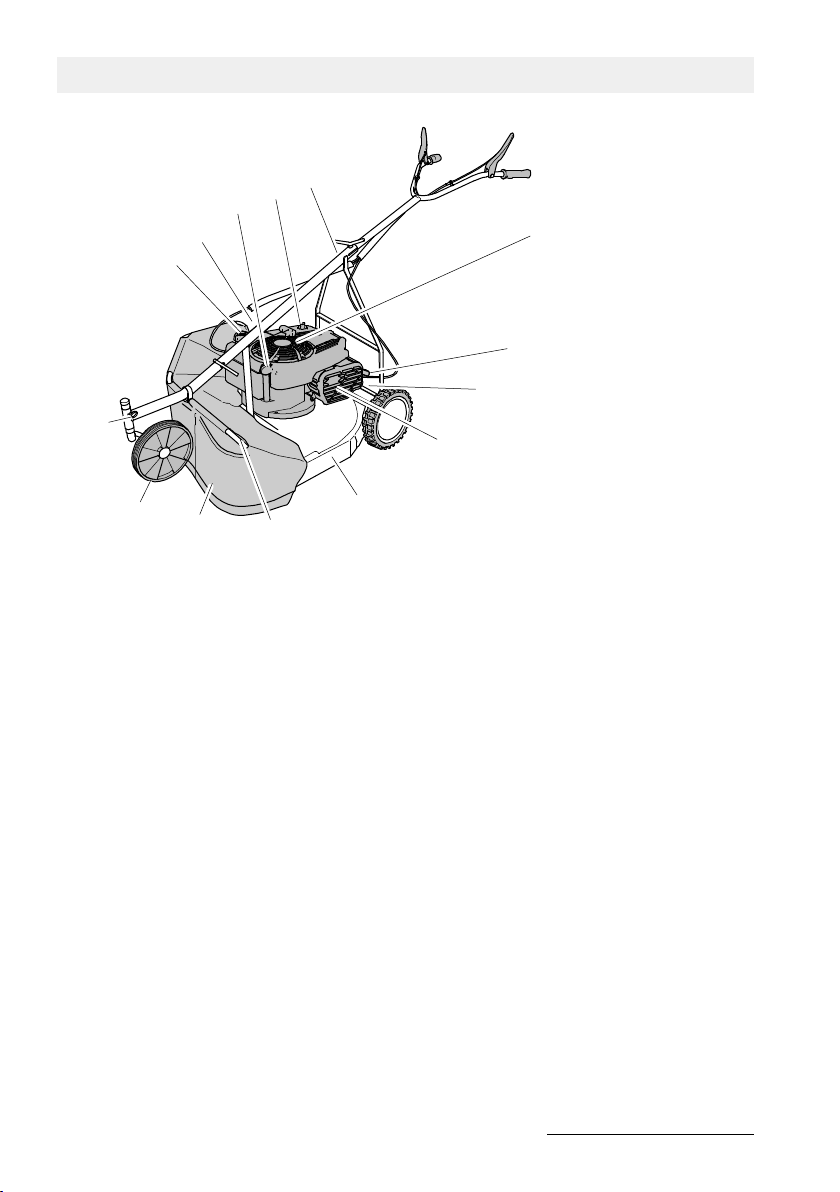

Device description AS 214TB&S......... 11
Device description AS 214TComfort... 12
Control elements .................................... 13
Information on mowing.......................... 14
Prior to starting....................................... 14
Fuel.......................................................... 14
Tanking up............................................... 14
Checking the engine oil level................... 14
Adjusting cutting height........................... 14
Cutting height at the rear wheels............. 15

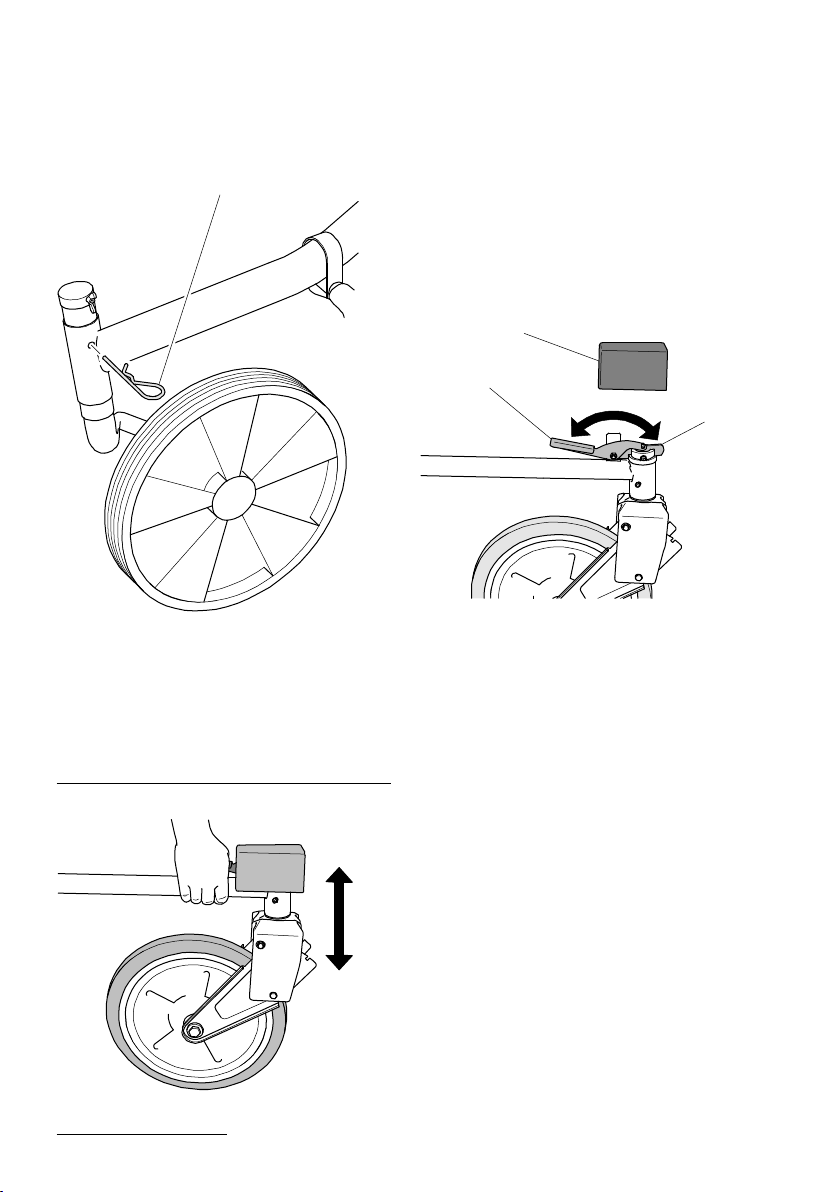

Steerable front wheel AS214TB&S...... 15
Steerable front wheel AS214TComfort. 16
Attaching the starter grip......................... 17
Starting.................................................... 17
Starting the device................................... 17
Driving ..................................................... 17
Driving..................................................... 17
Turning.................................................... 17
Switching off and parking...................... 18
Transport................................................. 18
Maintenance and cleaning..................... 19
Preparations............................................ 20
Cleaning the device................................. 20
General inspection................................... 20
Grease lubrication................................... 21
Maintaining the engine............................ 21
Checking the engine oil level................... 21
Checking the spark plugs........................ 21
Maintaining the air filter........................... 21
Checking the drive................................... 22
Checking the blade.................................. 22
Blade change........................................... 23
Checking engine brake............................ 23
Scope of delivery.................................... 23
Assembly AS214TB&S........................ 23
Unpacking................................................ 23
Guide bar and handlebar......................... 23
Protection skirt and steerable front
wheel....................................................... 24
Assembly AS214TComfort.................. 25
Unpacking................................................ 25
Guide bar and handlebar......................... 25
Protection skirt and steerable front
wheel....................................................... 25
Storage .................................................... 27
Storing the device.................................... 27
Longer storage........................................ 27
Restarting................................................ 27
Spare parts.............................................. 27
Wear parts............................................... 27
Disposal................................................... 27
Warranty.................................................. 28
Troubleshooting ..................................... 29
Accessories............................................. 31
Changing the speed................................ 31
Technical data......................................... 32
Declaration of conformity...................... 33

4
dummy Inhaltsverzeichnis
Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following
symbols are used to denote special dangers.
Warning.
These symbols denote special
dangers.
Prohibition sign.
These symbols denote inad-
missible procedures.
Directive sign.
These symbols denote required
protective measures.
Symbols on the device
The following symbols are placed on the
device to inform you must be careful and at-
tentive when using the device:
Working with the device requires
extreme cautiousness.
Read the operating instructions
before you use the device.
Min. 50 m.
Risk of injury!
Make sure that no one is within
the danger zone of the device.
Objects may be ejected. The
danger zone extends for at least
50 metres.
The quickly rotating blade can
cause life threatening injuries or
immense property damage! Be
especially careful to keep your
hands and feet away from the
blade when the device is put
into operation.
Prior to any repair and mainten-
ance work, pull off the spark
plug connector.
Clean the ventilation grid!
The cooling air of the mo-
tor is sucked in through
the ventilation grid of the
engine cover. Always
keep the entire surface
open and free!
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Do not clean the device with wa-
ter spray or high-pressure
cleaner!
Type plate
The type plate on the device provides you
with information on the device type and the
technical data.
1 Name and address of the manufacturer
2 Device designation
3 Type designation
4 Rates power output in kW / engine speed
5 Weight
6 Year of manufacture
7 Serial number
8 CE marking

5
Type overview
In this operating manual, the following device
types are described.
Depending on their equipment, the corres-
ponding descriptions of this operating manual
apply.
Type-dependent
equipment
AS 21 4T
B&S
AS 21 4T
Comfort
Lateral adjustment
handlebar
- X
Height adjustment
of handlebar
- X
Tank ventilation - X

6
Safety instructions
Get informed!
For your safety, read these operating instruc-
tions carefully. Familiarize yourself with the
control elements and the proper use of the
device. Share these operating instructions with
other users of the device.
Have skilled personnel who were trained by
AS-Motor show you the safe handling of the
device before you work with it for the first time.
Get familiar with the device in a wide, open
and flat terrain first.
User restrictions and hours of
operation
Never allow children or persons who are not
familiar with the operating instructions to use
the device. Persons under 18 years of age
may operate the device only under proper su-
pervision. Local regulations determine the min-
imum age of the operator und the operating
times.
Unsuitable for operation of the device are per-
sons who
– are under the influence of alcohol, drugs or
reaction retarding medicines.
– have physical and mental/emotional impair-
ments.
– are tired or sick.
People fitted with pace makers
are not allowed to touch any cur-
rent carrying parts of the ignition
system.
Safe handling of fuel
Fuel is toxic and highly flammable. There is a
burn and explosion hazard!
Keep fuel away from ignition sources and do
not smoke during handling.
Do not inhale fuel vapours, they are dangerous
to your health.
Use gloves and avoid skin con-
tact with the fuel.
Always refuel outdoors when the engine is cold
and standing still. When doing so, always use
a filler spout or a funnel.
Do not spill any fuel or do not let fuel enter
canalisation or drain away.
When fuel has overflown, do not start the
device until the fuel vapours have evaporated
(wipe dry). Move the device away from the
spilled fuel.
Always close the tank cap tightly and do not
open it while the engine is running or the
device is still hot.
Empty the fuel only when outdoors. Use the
approved container for this or run the fuel tank
empty.
Store the fuel away from children and keep it in
a suitable container in a dark, cool and dry
place.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.
Immediately replace the fuel tank or tank cap if
they are damaged (authorised service centre).
First aid
When swallowing fuel or inhaling fuel vapours,
do not force vomiting and immediately consult
a doctor.
In case of skin contact, immediately wash with
water and soap. Change your soiled clothing
as soon as you can.

7
Measures in case of a fire
In case of a fire, use foam, dry powder extin-
guisher, or carbon dioxide (CO2). Never douse
with water!
Check the device prior to use
Prior to use, check the blade, protection skirt,
drive and fastening parts, cables and cable
connections for proper working condition and
firm seating by visual inspection.
Never use the device with defective or missing
covers or protection skirt or protection bow.
Do not remove, change or override any safety
devices or control elements.
Observe the maintenance instructions and re-
place damaged or worn parts immediately.
Have an authorised service centre check your
device if the blade does not stop within
7seconds.
Danger area
Fig.1:
The danger zone extends for at least
50 metres.
Within the danger area of the device, there is a
risk of injury.
The rotating knife can cause injuries and ob-
jects can be thrown out. The area in front of
and to the right of the device is especially dan-
gerous.
On slopes, the device can topple over and
slide towards persons or run them over.
Make sure
– that nobody else is in the area that will be
mowed.
– that people are never positioned in the direc-
tion of travel in front of the device.
– that nobody is positioned on the slope below
the device.
– that you have a complete overview of the
danger area at all times.
– that you keep your hands and feet away
from the rotating parts.

8
Use caution during operation
Danger of injury during motor start
Do not start the engine
– if fuel was spilled.
– in closed or poorly ventilated rooms (danger
of poisoning!).
– if there are other persons nearby.
Start the device only when your feet are at a
safe distance to the blade.
When the engine is started, do not tilt the
device.
Risk of injury when the motor is running
Switch off the engine and wait until the blade
stops
– before you tilt or transport the device.
– before you step away from the device, even
for just a short time.
– when you drive on surfaces other than
grass.
– before you adjust the cutting height.
– before you refuel.
Switch off the engine and wait until the blade
comes to a standstill, and pull off the spark
plug connector
– before you clean or check the device or be-
fore you carry out work on the device.
– before you unblock or unclog the discharge
area.
Risk of burns
Do not touch the engine or the silencer. These
parts become very hot during operation and
you can get burned. If a jumpy movement oc-
curs, the risk of additional injuries can result.
Prior to mowing
Personal protective measures
During mowing, always wear
safety shoes with good grip and
long trousers. Do not mow with
open sandals or while shoeless.
Wear safety gloves to protect
yourself against injuries and vi-
brations.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Wear safety glasses and
headgear.
Ask your specialised dealer about suitable pro-
tective equipment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter
of the lawn. Remove rocks, pieces of wood,
bones, wires, and other objects that could be
picked up and thrown out by the device.
Use caution when mowing
Risk of injury
Risk of injury caused by ejected objects. Never
mow when persons, children, pets or material
assets are in the danger area.
Keep your hands and feet away from the rotat-
ing parts. Keep a distance to the ejection area
while working with the device.
Make sure that help can be provided in case of
an emergency.
Only mow during daylight or with adequate arti-
ficial lighting. Never mow in the event of uncer-
tain weather conditions and risk of lightning.
Be especially carefully when mowing on soft
ground, nearby landfills, ditches and dikes.
Fig.2:
Avoid mowing damp grass, there is a sliding
risk!

9
Be extremely cautious when turning the device
round or pulling it toward you and when mov-
ing in reverse.
Always walk slowly!
Never lift or carry the device when the engine
is running.
Pay attention to traffic when working close to
roads.
Vibrations
When the device is used over a longer period
of time, vibrations can cause disturbances in
the blood supply of the hands. A generally ac-
cepted usage time cannot be determined.
– Use gloves.
– Take breaks on time.
Have an authorised service centre check the
device
– when the blade has hit an object.
– if the device starts to vibrate unusually
severely.
Mowing surfaces with fire hazard
– Carry a sufficient amount of suitable extin-
guishing agent.
– If side inclination is too great, fuel may leak
from the carburetor or the tank. This poses a
fire hazard!
– Observe the mowed surface also after mov-
ing is completed to ensure that no fire will
start.
To avoid risk of fire, keep the following com-
ponents free of dirt, grass, hay, leaking oil,
grease, etc.:
– Engine
– Silencer (manifold, guard, clearances)
– Area around the fuel tank
Caution when mowing slopes
Fig.3:
Risk of injury during mowing downhill due to
tipping over or sliding.
– Mow on steep terrain only when safe opera-
tion can be guaranteed.
– Do not mow excessively steep slopes.
– Take suitable precautions on steep slopes,
e.g. by using step irons.
– Always mow crossways to the slope, never
upwards or downwards.
– Always make sure that you step safely, use
non-slip safety shoes.
– Be extremely cautious when changing the
direction.
– Mow only when the ground is dry and has a
good grip.
– Mow only when the steerable front wheel is
locked.
When facing downhill, the device can roll
away. Park the device on level ground only
and secure it against rolling away.
Devices fitted with a four stroke engines may
only be operated on less than 20° slopes. Oth-
erwise, the four stroke engine can by damaged
due to insufficient oil lubrication.
If the device tilts or slips
– If you attempt to stop a device that is tilting
or slipping, severe injuries can result. If tilt-
ing or sliding cannot be stopped in the be-
ginning without endangering anyone, do not
continue to try to stop the device.
– Remove leaking fluids (oil, fuel, battery acid)
from the device and the floor. Deposit of
contaminated soil environment friendly ac-
cording to the local regulation.
– Undetectable damage may have occurred to
the device. In case of malfunctions, there is
a risk of injury. Have an authorised service
centre check the device.

10
When work is completed
After each mowing, close the fuel valve and
the tank ventilation.
Prior to leaving the device, wait until the motor
comes to a standstill and pull off the spark plug
connector.
After switching it off, let the device cool down
for at least 20 minutes before you store it in a
dry, closed, sufficiently ventilated room.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.
Use caution during maintenance
and repair
Only carry out work as described in these op-
erating instructions. Have an authorised ser-
vice centre perform all other work.
Only use the blades and spare parts author-
ised by “AS-Motor Germany”. Unauthorised
blades and spare parts can cause severe injur-
ies.
Prior to all maintenance work, wait until the en-
gine comes to a standstill and pull off the spark
plug connector.
We explicitly point out that, in accordance with
the Product Liability Act, we are not liable for
damages that were caused by our devices if
– worn or damaged parts were not repaired or
replaced on time.
– these damages were caused by improper
repair.
– when changing a part, our original parts or
parts authorised by us were not used.
– the repair work was not carried out by an au-
thorised service station.
The same applies for spare parts and
accessories.

11
Device description AS 214TB&S
5
1
2
3
10
7
6
11
8
9
4
12
13
14
1Steerable front wheel
2Interlock steerable front wheel
3Silencer
4Oil filler
5Starter grip
6Ventilation grid
7Tank filler spout
8Spark plug connector
9Type plate
10 Air filter
11 Fuel valve
12 Protection bow
13 Protection skirt
14 Cover

12
Device description AS 214TComfort
1
2
3
5
6
13
9
8
7
15
10
11
12
17
18
4
16 14
1Steerable front wheel
2Interlock steerable front wheel
3Cutting height adjustment
4Air filter
5Starter grip
6Lever for lateral adjustment of handle-
bar
7Tie rod height of bar
8Tank ventilation
9Tank filler spout
10 Fuel valve
11 Spark plug connector
12 Type plate
13 Silencer
14 Cover
15 Ventilation grid
16 Oil filler
17 Protection bow
18 Protection skirt

13
Control elements
AS214T B&S
B
A
AS214TComfort
C
AB
D
Fig.5:
Drive lever(A )
With the drive lever, you switch the drive on
and off.
I
0
Drive on (I):
Press the lever towards
the handlebar and con-
tinue to hold.
Drive off (0):
Release the lever.
Engine brake lever(B)
The engine brake lever is a protection device.
When you release the lever, the engine shuts
down immediately, the blade comes to a
standstill within 7seconds.
M
I
0
Blade/engine on (I):
Press the lever towards the
handlebar and continue to
hold.
Blade/engine off (0):
Release the lever.
Fuel valve
2
1
1: Closed
2: Open
Lever for lateral adjustment of
handlebar(C)
(only AS 21 4T Comfort)
1. Release the eccentric tension lever.
2. Attention: Do not crush the Bowden cables
when pivoting the handlebar.
Swivel the handlebar to the side to the de-
sired position.
3. Clamp the handlebar with the eccentric ten-
sion lever.
Lever for height adjustment of
handlebar(D)
(only AS 21 4T Comfort)
1. Pull the tie rod(D) (only AS 21 4T Comfort)
backwards and move the guide bar to a po-
sition that is comfortable to you.
For your device, a retrofit service and parking
brake are available. It is actuated by pulling the
hand lever located at the handlebar and acts
on the rear wheels.
At your request, your dealer will be happy to in-
stall the brake.

14
Information on mowing
Prior to mowing, check your device for com-
pleteness, proper functioning, and cleanliness.
A dirty ventilation grid causes overheating of
the engine, this can damage the engine. A dirty
protective grid at the silencer poses a fire haz-
ard.
To keep the area well maintained, mow fre-
quently and keep the grass short.
Only mow with a sharp and undamaged blade.
Have the blade sharpened and balanced regu-
larly (by authorised service centre).
Do not mow when the grass is wet or when it is
raining. The turf may be damaged and there is
a danger of slipping!
Turn the device around only in already mown
sections. Do not leave the device unattended
while the engine is running.
To avoid blockage during the ejection of grass,
we recommend, for flat terrain, to proceed ac-
cording to the mowing patterns. Mulch is
shredded into much smaller pieces when you
mow the terrain once again in the opposite dir-
ection.
If the grass is extremely high, mow twice at dif-
ferent cutting height settings.
Prior to starting
Fuel
As fuel, use unleaded petrol (see operating in-
structions of the engine manufacturer).
You can use E10 petrol. Do not store E10 pet-
rol longer than 30 days.
Tanking up
Danger!
Fuel is ignited by hot engine parts.
Prior to filling up, switch off the en-
gine and wait for at least 20minutes
until the engine has cooled down.
Observe the safety instructions re-
garding the fuel!
Filling up with fuel
1. For filling, use a canister with filler spout or
a funnel.
2. Open the canister carefully so that existing
excess pressure is slowly reduced.
3. Open the tank cap carefully so that existing
excess pressure is slowly reduced and no
fuel sprays out.
4. Fill the fuel tank.
5. Tightly close the tank cap again.
Checking the engine oil level
Attention! Prior to each use, check the engine
oil level (see operating instructions of the en-
gine manufacturer).
To ensure sufficient oil supply for the four
stroke engine and to avoid resulting engine
damage, the device may only be used on
slopes up to 20°.
Adjusting cutting height
Adjust the cutting height setting only when the
engine is switched off.
Set the cutting height so that the blade does
not touch the ground even in case of terrain
unevenness. If the cutting height is set too
high, objects can be ejected and the “clean cut
appearance” can be destroyed.
The rear wheel height setting determines the
coarse setting of the cutting height. The height
of the steerable front wheel determines the fine
setting of the cutting height.

15
Cutting height at the rear wheels
The rear wheels can be mounted in two differ-
ent levels.
1. Switch off the engine and wait until the
blade has come to a standstill.
2. Remove the wheel cap from the rear
wheel.
1
3. Slacken the wheel bolt(1).
4. Pull out the wheel together with the cover
plate.
4
2
3 5
5. Screw it back in in position (2) or(3).
(2) = low cutting height
(3) = higher cutting height.
6. Tighten the rear wheel to a torque of
40+5Nm.
7. Put the wheel cap back on.
8. Carry out the same procedure at the other
rear wheel.
Notice: To increase speed, a pinion with
13teeth is available as accessory. If this pinion
is installed, the wheel bolt must be screwed in
the other bore holes(4)/(5).
Steerable front wheel
AS214TB&S
Cutting height at steerable front wheel
1 2 3 4 5
4
Fig.6:
1. Remove the wing nut(3), wing screw(1),
and spring cotter(5).
2. Take off the cap(2).
3. Switch over one or both of the spacer
rings(4).
4. Put the cap back on.
5. Screw down wing nut and wing screw.
6. Re-insert the spring cotter.

16
Locking steerable front wheel
On flat terrain, it is more comfortable to leave
the front wheel free to pivot. If you mow in hori-
zontal direction, it is necessary to always lock
the wheel.
1
Fig.7:
Releasing the steerable front wheel
1. Pull out the spring cotter (1).
Locking the steerable front wheel
1. Insert the spring cotter (1).
Steerable front wheel
AS214TComfort
Cutting height at steerable front wheel
Fig.8:
1. Reach with your hand below the guide bar
of the steerable front wheel and press with
the ball of your thumb the lever of the cut-
ting height adjustment downwards.
2. Lift or lower the guide bar to the desired
position.
3. Release the lever.
Locking steerable front wheel
On flat terrain, it is more comfortable to leave
the front wheel free to pivot. If you mow in hori-
zontal direction, it is necessary to always lock
the wheel.
1
3
2
Fig.9:
Releasing steerable front wheel
1. Lift off the cover (1) of the steering tube.
2. Pull the lock bar (2) of the steerable front
wheel interlock backwards next to the hand
lever (3).
3. Push the cover (1) back on.
Locking steerable front wheel
1. Align the steerable front wheel parallel to
the bar.
2. Lift off the cover (1) of the steering tube.
3. Pull the lock bar (2) of the steerable front
wheel interlock forward.
4. Push the cover (1) back on.

17
Attaching the starter grip
AS 214TB&S
1
AS214TComfort
1
1. Pull the starter grip slowly to the rear and
attach it onto the starter grip holder (1)
provided for it.
Starting
Danger!
During startup, there is a risk of in-
jury caused by the rotating blade.
Make sure that no one is within the
danger zone of the blade. Do not tip
the device over to one side during
startup.
Danger!
If after startup the carburetor does
not close properly, fuel will overflow
and a fire hazard occurs.
Close the fuel valve and contact an
authorised service centre.
Starting the device
1. Place the device on even terrain, not in
high grass.
2. Pull the starter grip slowly to the rear and
attach it onto the starter grip holder.
3. Open the fuel valve and the tank ventilation
(if existing).
4. Plug in the plug connector.
5. Actuate and hold the engine brake bar.
6. Pull the starter grip slowly out until you feel
resistance and then pull out quickly – en-
gine starts to run.
7. Slowly bring the starter grip back and at-
tach it onto the starter grip holder.
Driving
Danger!
Risk of injury caused by tripping or
sliding while moving the mower
backwards and turning it round.
Make sure that the area is clear of
objects and watch for safe footing.
Driving
In case of a dangerous situation, switch off the
blade by releasing the engine brake lever.
Drive on:
1. Press the drive lever towards the handlebar
– device is running.
Drive off:
1. Release the drive lever.
Turning
Turn the device round only where the grass
has been mowed already.
Turning round on an even surface:
1. Switch off the drive.
2. Turn the device to the desired side.
3. Switch the drive back on.
Turning round on a sloping area:
1. Keep the drive switched on.
2. Turn the device upslope.
3. Hold back the handlebar and the inner
wheel.

18
The drive prevents sliding and supports the
turn manoeuvre.
Switching off and parking
Caution!
On a slope, the device can roll
away.
Put the device on even ground only
or secure it against rolling away.
1. Release the drive lever.
2. Release the engine brake lever.
3. Wait for the engine to stop completely be-
fore you step away from the device.
4. Close the fuel valve and the tank ventilation
(if existing).
5. Pull off the plug connector.

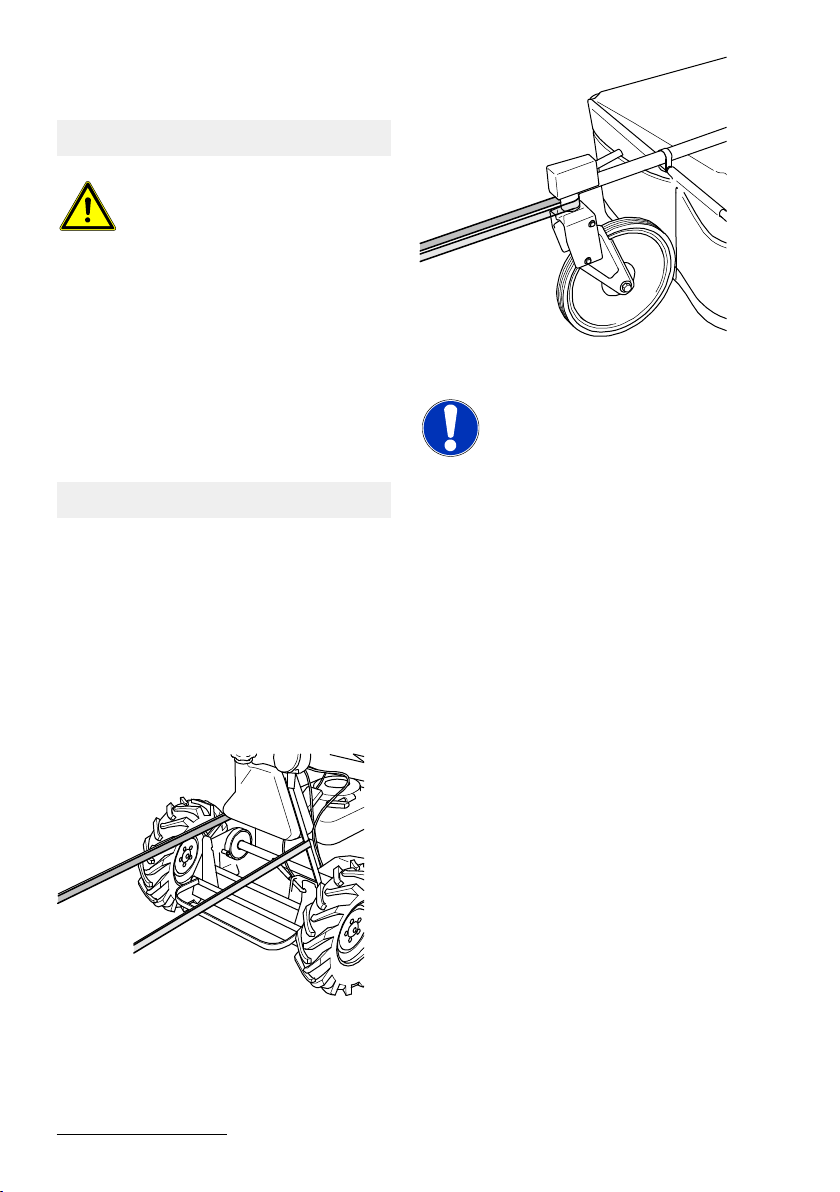

Transport
Switch off the engine and wait until the blade
comes to a stop before you lift the device. It
takes two persons to safely lift the device.
Prior to transport, let the device cool down for
at least 20 minutes. Close the fuel valve.
For transport, you can take off the handlebar
and the steerable front wheel.
During transport on vehicles, secure the device
against rolling, sliding, tilting, and fuel leakage.
Fig.10:
Fig.11:
Use straps that support the weight of the
device to secure the device.
Notice!
Risk of damage due to incorrect
fastening of straps.
Fasten the straps only at the points
shown in the figure.
Do not overtighten the straps.

19
Maintenance and cleaning
Improper maintenance can make the device unsafe for operation and result in accidents. Regular
maintenance keeps you device ready for use.
Service the device according to the following maintenance instructions.
Contact an authorised service centre if problems during maintenance occur or if you determine de-
ficiencies during one of the following inspections.
Component Action Maintenance
interval
A B
Device Check for safe working condition (basic inspection). ■ ▲
Clean. ■
Customer service. ▲
Fuel Check fuel level. ■
Is the tank cap closed? ■
Tank, fuel valve,
and fuel line
Check parts for leaks and check for good condition. ■ ▲
Carburetor Does the carburetor close again after starting? ■ ▲
Ventilation grid Clean. ■ ▲
Engine cooling Clean. ▲
Spark plug Check/replace. ▲
Air filter Maintain. ■ ■▲
Blade and fasten-
ing components
Check for wear and damage. See chapter Checking the
blade.
■ ▲
Change. ▲
Motor brake Does the blade stop within 7 seconds? □ ▲
Release the drive
lever
Does the device stop when the lever is in zero position? □ ▲
Drive Check. ■ ▲
V-belt Are the belts tensioned correctly, without fissures, and in
good condition?
▲
Bowden cables Check for proper function and ease of movement. ■ ▲
Chassis and impact
protection
Check for rust and fissures and check the welding seams. ■ ▲
Are all protective devices and covers in place, fastened
correctly and properly functioning?
■ ▲
Label Condition of the labels. ■ ▲

20
Engine For reliable information, see the operating manual of the
engine manufacturer.
■ ▲
Check oil level (see operating instructions
of the engine manufacturer).
■ ▲
Oil change. ▲
Flammable material Remove easily flammable debris buildup from the engine
and the device.
■ ▲
Tyres Check tyres and, if necessary, the tyre pressure. ■ ▲
Lubrication See chapter grease lubrication. ■ ▲■
A
B
■
□
▲
Before and after each use.
Annually or every 50 h.
By the user when the engine is not running.
By the user when the engine is running.
By the authorised service centre.
Preparations
Prior to all maintenance and cleaning tasks:
1. Let the device cool down for at least 20
minutes.
2. Pull off the plug connector.
3. Close the fuel valve and the tank ventilation
(if existing).
4. For work on the bottom side of the device,
flip the device to the silencer side.
Cleaning the device
Fig.12:
Depending on use, clean the device thor-
oughly, especially the bottom and the blade.
Grass cuttings and dirt that are stuck interfere
with the grass ejection and impair the cutting
quality. To sufficiently cool the engine, keep
the engine cover, ventilation grid and engine
clean.
Fire hazard! Take particular care that the com-
ponents at the silencer are clean.
For cleaning, use a hand brush. Remove stub-
born dirt with a wooden or plastic spatula.
Clean the outside housing parts with a cloth.
Do not clean the device with water spray or
high-pressure cleaner! Do not use any ag-
gressive cleaning agents.
General inspection
To ensure proper working order of the device,
regularly check all nuts, bolts, screws, fuel line
connections, air filters, etc. for firm seating.
Check the ignition cable and the spark plug
connectors for damages.
Immediately replace damaged or worn parts,
especially covers, protection skirt, silencers or
fuel tank (authorized service centre).
Check all parts that that contain fluids for leaks
and proper condition. These can be: Fuel tank,
fuel valve, fuel lines, carburetor, engine, gears,
battery, hydraulic system.
