Operator's Manual
Allmäher®
AS 63 2T + AS 63 4T B&S + AS 63 4T Honda
From serial number:
Issued:
AS 63 2T: 027015120001, AS 63 4T B&S: 026915120001,
AS 63 4T Honda: 027516090001
04 November 2016, V2.0
en-Translation of the Original Operator's Manual

2
dummy
Notes on the operating
manual
Dear customer,
Congratulations on your purchase. You have
acquired a reliable quality product by “AS-Mo-
tor Germany”.
This product has been manufactured according
to modern manufacturing methods and com-
prehensive quality assurance measures. Only
when you are satisfied with your device, we
have attained our goal.
These operating instructions contain important
information to help you avoid hazards and to
increase the reliability and the life span of the
device.
Read the operating instructions
before using the device. Share
these operating instructions and
the operating instructions of the
engine with other users of the
device.
Contact
If you have questions concerning your device,
please contact you dealer or call our customer
service ([phone]).
For international AS partners, please see:
www.as‑motor.de.
Device data
Please fill in all data referring to your device.
When ordering spare parts, provide your
dealer with the serial and engine numbers.
Serial number (see manufacturer’s certificate
or type plate):
Engine number:
Date of purchase:
Address of dealer:
Intended use
The device is intended only for cutting grass or
similar vegetation in well-maintained grounds
in agriculture, forestry and preservation of the
countryside that are cut at least once a year.
Woody growth must not be older than maxim-
ally one year.
Only use attachments and cutting tools autho-
rised by “AS-Motor Germany”.
Any other use exceeding this purpose is inad-
missible.
Observe the instructions chapter Maintenance
and cleaning. Otherwise, operational safety is
endangered.
The user of the device is responsible for acci-
dents or damage that can happen to other per-
sons or their property!
The device must not be used:
– To cut hard objects, rocks, rubble, or pieces
of wood.
– To trim bushes, hedges, and shrubbery.
– To cut plants in flower pots or planters or on
rooftops.
– To clean (vacuum) footpaths.
– As shredder for shredding tree and hedge
cuttings.
– As drive unit for work tools and any type of
tool sets that are not authorised by
“AS-Motor Germany”.

3
Contents
Notes on the operating manual............. 2
Contact .................................................... 2
Device data.............................................. 2
Intended use............................................ 2
Explanation of the symbols................... 5
Symbols in the instructions...................... 5
Symbols on the device............................ 5
Type overview......................................... 6
Safety instructions ................................. 7
Get informed!........................................... 7
User restrictions and hours of operation.. 7
Safe handling of fuel................................ 7
Check the device prior to use.................. 8
Danger area............................................. 8
Use caution during operation................... 9
Prior to mowing........................................ 9
Use caution when mowing....................... 10
Caution when mowing slopes.................. 10
When work is completed......................... 11
Use caution during maintenance and re-
pair........................................................... 11
Device description.................................. 12
Control elements .................................... 13
Operating elements only for 2-stroke
devices.................................................... 14
Information on mowing.......................... 15
Prior to starting....................................... 15
Fuel used (2-stroke devices)................... 15
Fuel used (4-stroke devices)................... 16
Check engine oil level (4-stroke devices) 16
Tanking up............................................... 16
Adjusting cutting height........................... 16
Locking steerable front wheel.................. 17
Starting.................................................... 18
Starting the device (2-stroke device)....... 18
Starting the device (4-stroke device
without choke)......................................... 18
Starting the device (4-stroke device with
choke)...................................................... 18
Engaging the blade.................................. 18
Driving ..................................................... 19
Driving..................................................... 19
Turning.................................................... 19
Pushing.................................................... 19
Switching off and parking...................... 19
Transport ................................................ 20
Transport position 1................................. 20
Transport position 2................................. 20
Loading.................................................... 21
Unloading the device............................... 21
Maintenance and cleaning..................... 22
Preparations............................................ 24
Cleaning position..................................... 24
Cleaning the device................................. 24
General inspection................................... 24
Transmission........................................... 24
Checking the drive................................... 25
Checking the parking brake..................... 25
Grease lubrication................................... 25
Checking the blade.................................. 26
Checking the blade clutch....................... 26
Maintenance specifically for 2-stroke
device....................................................... 27
Maintaining the engine............................ 27
Checking the spark plugs........................ 27
Maintaining the air filter........................... 27
Maintenance specifically for 4-stroke
device....................................................... 28
Maintaining the engine............................ 28
Checking the engine oil level................... 28
Checking the spark plugs........................ 28
Maintaining the air filter........................... 28
Assembly................................................. 29
Scope of delivery..................................... 29
Unpacking................................................ 29
Unfolding the device................................ 29
Storage .................................................... 30
Storing the device.................................... 30
Longer storage........................................ 30
Restarting................................................ 30
Spare parts.............................................. 30
Wear parts............................................... 30
Disposal................................................... 30
Warranty.................................................. 31

4
Troubleshooting ..................................... 32
Accessories............................................. 35
Mixing ratios fuel.................................... 36
Technical data AS 63 2T......................... 37
Technical data 4-stroke devices............ 38
Declaration of conformity...................... 39

5
dummy Inhaltsverzeichnis
Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following
symbols are used to denote special dangers.
Warning.
These symbols denote special
dangers.
Prohibition sign.
These symbols denote inad-
missible procedures.
Directive sign.
These symbols denote required
protective measures.
Symbols on the device
The following symbols are placed on the
device to inform you must be careful and at-
tentive when using the device:
Working with the device requires
extreme cautiousness.
Read the operating instructions
before you use the device.
Risk of injury!
Make sure that no one is within
the danger zone of the device.
Objects may be ejected.
The quickly rotating blade can
cause life threatening injuries or
immense property damage! Be
especially careful to keep your
hands and feet away from the
blade when the device is put
into operation.
Prior to any repair and mainten-
ance work, pull off the spark
plug connector.
Clean the ventilation grid!
The cooling air of the mo-
tor is sucked in through
the ventilation grid of the
engine cover. Always
keep the entire surface
open and free!
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Hot surface. Do not touch the
engine or the silencer. They be-
come very hot during operation
and you can get burned.
Do not clean the device with wa-
ter spray or high-pressure
cleaner!

6

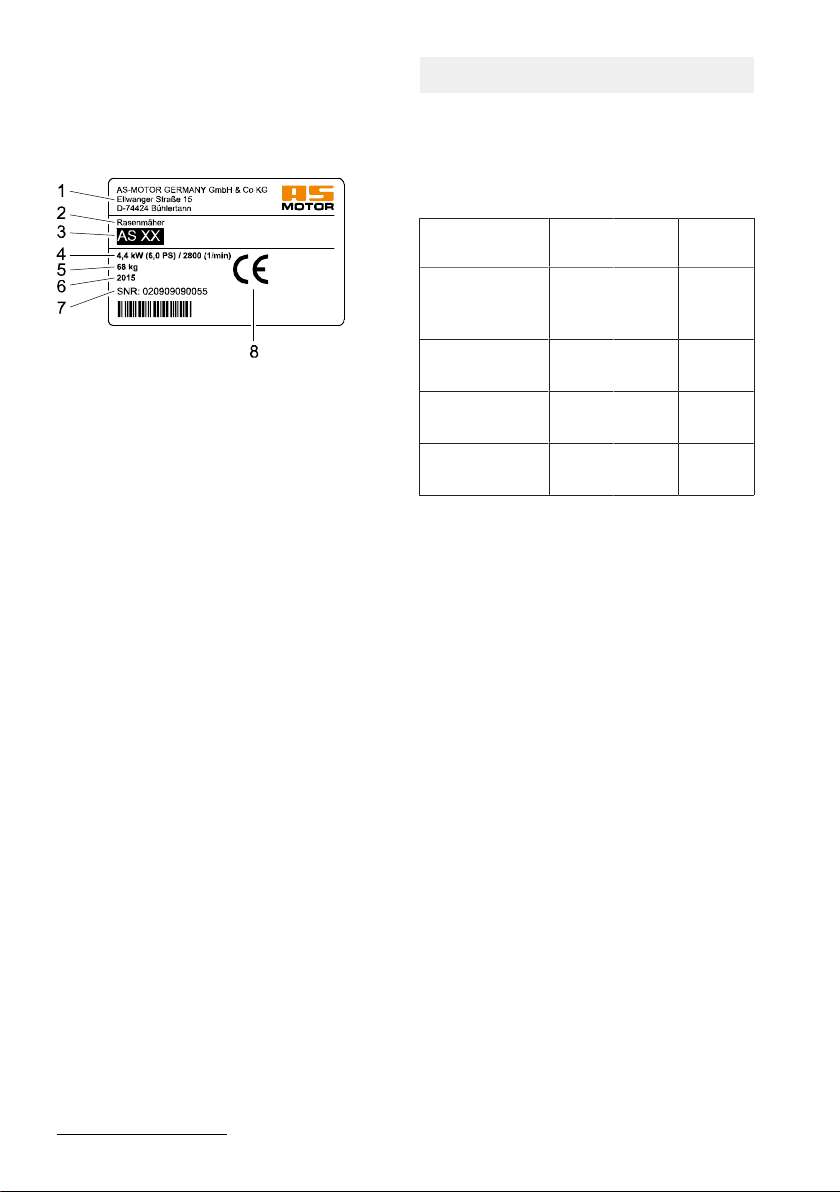

Type plate
The type plate on the device provides you
with information on the device type and the
technical data.
1 Name and address of the manufacturer
2 Device designation
3 Type designation
4 Rates power output in kW / engine speed
5 Weight
6 Year of manufacture
7 Serial number
8 CE marking
Type overview
In this operating manual, the following device
types are described.
Depending on their equipment, the corres-
ponding descriptions of this operating manual
apply.
Equipment 632T 634T
B&S
63 4T
Honda
Accelerator
lever without
choke
X X -
Accelerator
lever with choke
- - X
Choke and
tickler
X - -
Number of fuel
valves
1 1 2

7
Safety instructions
Get informed!
For your safety, read these operating instruc-
tions carefully. Familiarize yourself with the
control elements and the proper use of the
device. Share these operating instructions with
other users of the device.
Have skilled personnel who were trained by
AS-Motor show you the safe handling of the
device before you work with it for the first time.
Get familiar with the device in a wide, open
and flat terrain first.
User restrictions and hours of
operation
Never allow children or persons who are not
familiar with the operating instructions to use
the device. Persons under 18 years of age
may operate the device only under proper su-
pervision. Local regulations determine the min-
imum age of the operator und the operating
times.
Unsuitable for operation of the device are per-
sons who
– are under the influence of alcohol, drugs or
reaction retarding medicines.
– have physical and mental/emotional impair-
ments.
– are tired or sick.
People fitted with pace makers
are not allowed to touch any cur-
rent carrying parts of the ignition
system.
Safe handling of fuel
Fuel is toxic and highly flammable. There is a
burn and explosion hazard!
Keep fuel away from ignition sources and do
not smoke during handling.
Do not inhale fuel vapours, they are dangerous
to your health.
Use gloves and avoid skin con-
tact with the fuel.
Always refuel outdoors when the engine is cold
and standing still. When doing so, always use
a filler spout or a funnel.
Do not spill any fuel or do not let fuel enter
canalisation or drain away.
When fuel has overflown, do not start the
device until the fuel vapours have evaporated
(wipe dry). Move the device away from the
spilled fuel.
Always close the tank cap tightly and do not
open it while the engine is running or the
device is still hot.
Empty the fuel only when outdoors. Use the
approved container for this or run the fuel tank
empty.
Store the fuel away from children and keep it in
a suitable container in a dark, cool and dry
place.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.
Immediately replace the fuel tank or tank cap if
they are damaged (authorised service centre).
First aid
When swallowing fuel or inhaling fuel vapours,
do not force vomiting and immediately consult
a doctor.
In case of skin contact, immediately wash with
water and soap. Change your soiled clothing
as soon as you can.

8
Measures in case of a fire
In case of a fire, use foam, dry powder extin-
guisher, or carbon dioxide (CO2). Never douse
with water!
Check the device prior to use
Prior to use, check the blade, protection skirt,
drive and fastening parts, cables and cable
connections for proper working condition and
firm seating by visual inspection.
Never use the device with defective or missing
covers or protection skirt or protection bow.
Do not remove, change or override any safety
devices or control elements.
Observe the maintenance instructions and re-
place damaged or worn parts immediately.
Have an authorised service centre check your
device if the blade does not stop within
7seconds.
Danger area
Fig.1:
Within the danger area of the device, there is a
risk of injury.
The rotating knife can cause injuries and ob-
jects can be thrown out. The area in front of
and to the right of the device is especially dan-
gerous.
On slopes, the device can topple over and
slide towards persons or run them over.
Make sure
– that nobody else is in the area that will be
mowed.
– that people are never positioned in the direc-
tion of travel in front of the device.
– that nobody is positioned on the slope below
the device.
– that you have a complete overview of the
danger area at all times.
– that you keep your hands and feet away
from the rotating parts.

9
Use caution during operation
Danger of injury during motor start
Do not start the engine
– if fuel was spilled.
– in closed or poorly ventilated rooms (danger
of poisoning!).
– if there are other persons nearby.
Only start the device when your feet are at a
safe distance to the blade.
When the engine is started, the device must
not be tilted.
Risk of injury when the blade is running
Switch off the blade and wait until the blade
stops
– when you drive on surfaces other than
grass.
Risk of injury when the motor is running
Switch off the engine and wait until the blade
stops
– before you tilt or transport the device.
– before you step away from the device, even
for just a short time.
– before you adjust the cutting height.
– before you refuel.
Switch off the engine and wait until the blade
comes to a standstill, and pull off the spark
plug connector
– before you clean or check the device or be-
fore you carry out work on the device.
– before you unblock or unclog the discharge
area.
Risk of burns
Do not touch the engine or the silencer. These
parts become very hot during operation and
you can get burned. If a jumpy movement oc-
curs, the risk of additional injuries can result.
Prior to mowing
Personal protective measures
During mowing, always wear
safety shoes with good grip and
long trousers. Do not mow with
open sandals or while shoeless.
Wear safety gloves to protect
yourself against injuries and vi-
brations.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Wear safety glasses and
headgear.
Ask your specialised dealer about suitable pro-
tective equipment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter
of the lawn. Remove rocks, pieces of wood,
bones, wires, and other objects that could be
picked up and thrown out by the device.

10
Use caution when mowing
Risk of injury
Risk of injury caused by ejected objects. Never
mow when persons, children, pets or material
assets are in the danger area.
Keep your hands and feet away from the rotat-
ing parts. Keep a distance to the ejection area
while working with the device.
Make sure that help can be provided in case of
an emergency.
Only mow during daylight or with adequate arti-
ficial lighting. Never mow in the event of uncer-
tain weather conditions and risk of lightning.
Be especially carefully when mowing on soft
ground, nearby landfills, ditches and dikes.
Fig.2:
Avoid mowing damp grass, there is a sliding
risk!
Be extremely cautious when turning the device
round or pulling it toward you and when mov-
ing in reverse.
Always walk slowly!
Never lift or carry the device when the engine
is running.
Pay attention to traffic when working close to
roads.
Vibrations
When the device is used over a longer period
of time, vibrations can cause disturbances in
the blood supply of the hands. A generally ac-
cepted usage time cannot be determined.
– Use gloves.
– Take breaks on time.
Have an authorised service centre check the
device
– when the blade has hit an object.
– if the device starts to vibrate unusually
severely.
Mowing surfaces with fire hazard
– Carry a sufficient amount of suitable extin-
guishing agent.
– If side inclination is too great, fuel may leak
from the carburetor or the tank. This poses a
fire hazard!
– Observe the mowed surface also after mov-
ing is completed to ensure that no fire will
start.
To avoid risk of fire, keep the following com-
ponents free of dirt, grass, hay, leaking oil,
grease, etc.:
– Engine
– Silencer (manifold, guard, clearances)
– Area around the fuel tank
Caution when mowing slopes
Fig.3:
Risk of injury during mowing downhill due to
tipping over or sliding.
– Mow on steep terrain only when safe opera-
tion can be guaranteed.
– Do not mow excessively steep slopes.
– Take suitable precautions on steep slopes,
e.g. by using step irons.
– Always mow crossways to the slope, never
upwards or downwards.
– Always make sure that you step safely, use
non-slip safety shoes.
– Be extremely cautious when changing the
direction.
– Mow only when the ground is dry and has a
good grip.
– Mow only when the steerable front wheel is
locked.
When facing downhill, the device can roll
away. Park the device on level ground only
and secure it against rolling away.

11

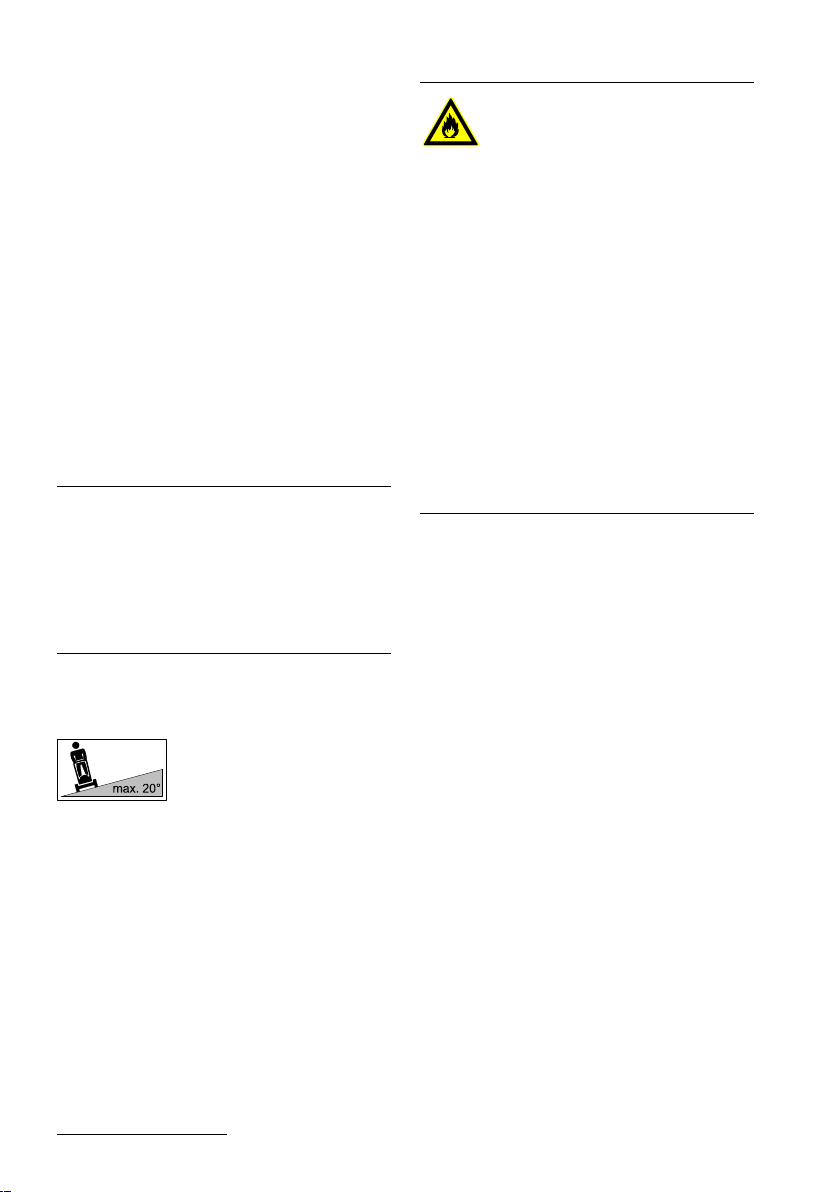

Devices fitted with a four stroke engines may
only be operated on less than 20° slopes. Oth-
erwise, the four stroke engine can by damaged
due to insufficient oil lubrication.
If the device tilts or slips
– Never try to stop a tilting or sliding device.
Severe injuries can result.
– Remove leaking fluids (oil, fuel, battery acid)
from the device and the floor. Deposit of
contaminated soil environment friendly ac-
cording to the local regulation.
– Undetectable damage may have occurred to
the device. In case of malfunctions, there is
a risk of injury. Have an authorised service
centre check the device.
When work is completed
After mowing, always close the fuel valve and
the tank ventilation.
Prior to leaving the device, wait until the engine
comes to a standstill and pull off the spark plug
connector.
After switching it off, let the device cool down
for at least 20 minutes before you store it in a
dry, closed, sufficiently ventilated room.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.
Use caution during maintenance
and repair
Only carry out work as described in these op-
erating instructions. Have an authorised ser-
vice centre perform all other work.
Only use the blades and spare parts author-
ised by “AS-Motor Germany”. Unauthorised
blades and spare parts can cause severe injur-
ies.
Prior to all maintenance work, wait until the en-
gine comes to a standstill and pull off the spark
plug connector.
We explicitly point out that, in accordance with
the Product Liability Act, we are not liable for
damages that were caused by our devices if
– worn or damaged parts were not repaired or
replaced on time.
– these damages were caused by improper
repair.
– when changing a part, our original parts or
parts authorised by us were not used.
– the repair work was not carried out by an au-
thorised service station.
The same applies for spare parts and
accessories.

12
Device description
Illustration shows AS 63 2T
1
2
3
4
5
6
7
9
11
15
16
17
19
20
13
12
8
10
9
14
18
1Handlebar with control elements
2Lever for lateral adjustment of
handlebar
3Tank ventilation
4Accelerator lever with engine stop
5Starter grip
6Ventilation grid
7Silencer
8Cutting height adjustment front
9Interlock steerable front wheel
10 Protection bow
11 Protection skirt
12 Cover
13 Air filter
14 Choke
15 Cutting height adjustment rear
16 Spark plug connector
17 Fuel valve
18 Type plate
19 Tank filler spout
20 Lever for height adjustment of handle-
bar

13

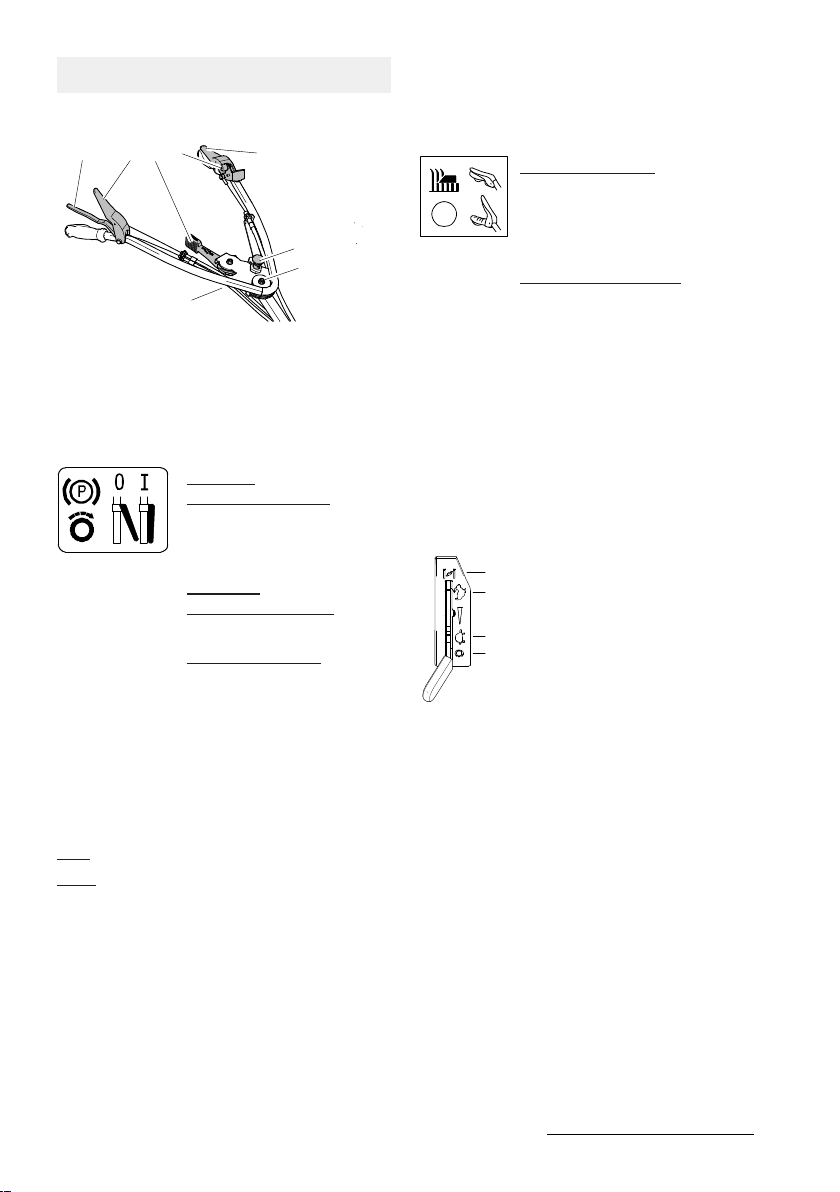

Control elements
Handlebar with control elements(1)
AB C D
F
H
E
G
Fig.4:
Drive lever(A) and brake (B)
With the drive lever, you switch the drive and
the parking brake on and off.
Drive on/
parking brake off (I):
Press the lever (A)
towards the handlebar and
continue to hold.
Drive off /
parking brake on (0):
Press the lever (A).
Release the brake:
Press the brake lever (B)
towards the handlebar.
Vario lever(C)
With the vario lever, you can continuously ad-
just the speed of the device while the engine
is running.
MIN: slow
MAX: fast
Blade clutch lever (D)
The blade clutch lever is a safety device.
When you release the lever the blade comes
to a standstill within 7seconds.
M
I
0
Engaging blade (I):
Lift the blade clutch lever, en-
gage the latch knob (E) and
press the blade clutch lever to-
wards the handlebar.
Disengaging blade (0):
Release the blade clutch lever
and set the accelerator lever to
MIN.
Accelerator lever with engine stop(4)
With the accelerator lever, you can change the
engine speed and thus control the engine out-
put.
For devices with choke, set the accelerator
lever to “Choke” when you start the cold en-
gine. At the lowest position “0”, the ignition is
switched off and the engine is turned off.
1
2
3
4
1: Choke = Choke closed
(only device with choke)
2 Full throttle
3 Idle speed
4 Engine off
Lever for lateral adjustment

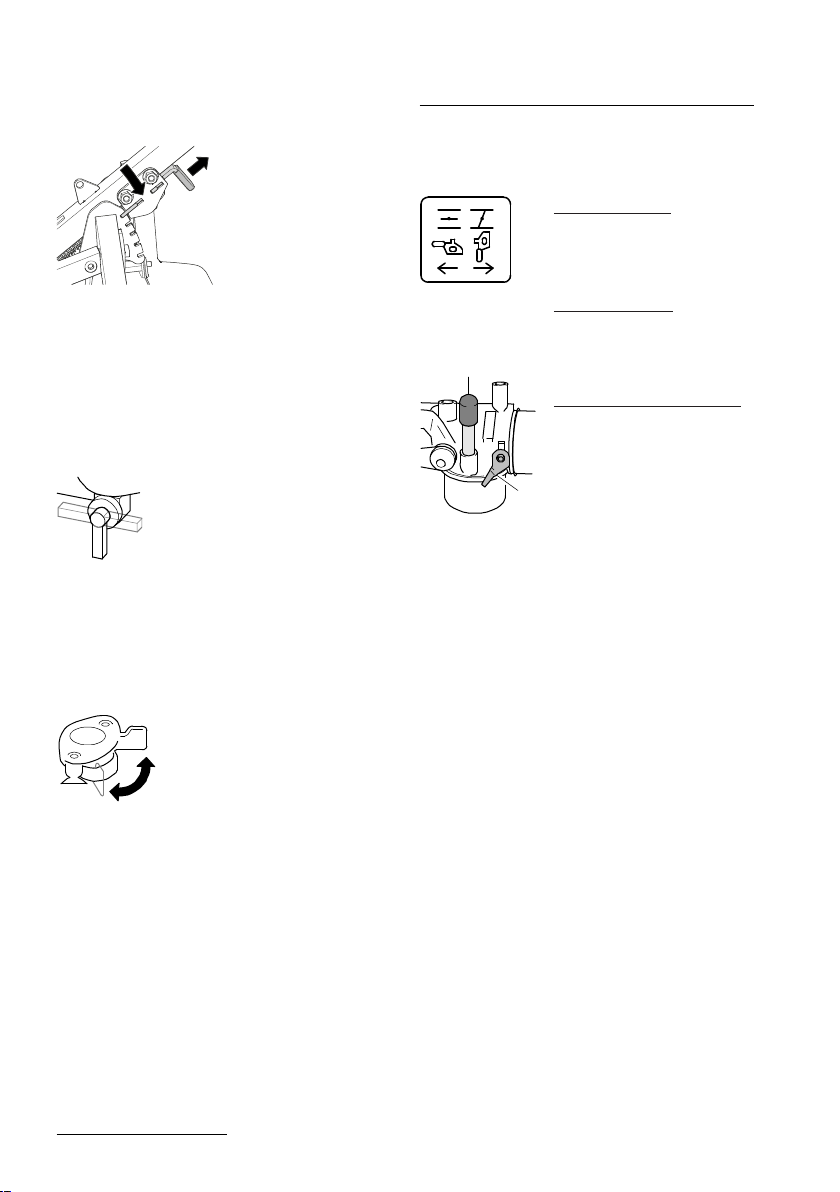

of handlebar(2/F)
The handlebar can be fixed in 3 positions.
1. Pull the stop bolt (F) out of the notch(H).
2. Beware: Do not squeeze the Bowden
cables when swivelling the handlebar.
Swivel the handlebar to the side to the de-
sired position. Let the stop bolt (F) engage
in one of the three notches(H) at the
guide bar.
Beware: A loose handlebar fastening can res-
ult in failure of the screwed connection.
Always firmly tighten the central handlebar
fastening (G).

14
Lever for height adjustment of
handlebar(20)
The height of the handlebar can be set to 5 po-
sitions.
1. Pull the lever out of the notch.
2. Move the handlebar to the desired position.
3. Let the lever engage in one of the 5
notches.
Fuel valve(17)
1
2
3
1: Reserve
2: Open
3: Closed
Fuel valve 2 – only Honda (at the
carburetor)
The second fuel valve must always be open.
The fuel supply is regulated with the fuel valve
at the tank.
2
1
1: Closed
2: Open
Operating elements only for
2-stroke devices
Carburetor with choke and tickler (14)
For cold start of the engine, you require the
choke (1) and the tickler (2).
Open the choke:
Turn clockwise as far as it
will go.
Close the choke:
Turn anti-clockwise as far
as it will go.
2
1
Filling carburetor with fuel:
Press the tickler briefly un-
til fuel flows out.

15
Information on mowing
Prior to mowing, check your device for com-
pleteness, proper functioning, and cleanliness.
A dirty ventilation grid causes overheating of
the engine, this can damage the engine. A dirty
protective grid at the silencer poses a fire haz-
ard.
Frequent engagement and disengagement of
the clutch increases wear of the blade drive
belt and the blade brake. Especially in case of
high grass, clutch engagement leads to over-
load.
To keep the area well maintained, mow fre-
quently and keep the grass short.
Only mow with a sharp and undamaged blade.
Have the blade sharpened and balanced regu-
larly (by authorised service centre).
Do not mow when the grass is wet or when it is
raining. The turf may be damaged and there is
a danger of slipping!
Turn the device around only in already mown
sections. Do not leave the device unattended
while the engine is running.
For mowing, always turn the accelerator lever
to full throttle to achieve the best mowing per-
formance.
To avoid blockage during the ejection of grass,
we recommend, for flat terrain, to proceed ac-
cording to the mowing patterns. Mulch is
shredded into much smaller pieces when you
mow the terrain once again in the opposite dir-
ection.
If the grass is extremely high, mow twice at dif-
ferent cutting height settings.
Prior to starting
Fuel used (2-stroke devices)
The engine must be run on a mixture of petrol
and two-stroke oil.
For possible mixing ratios, see chapter Mixing
ratios fuel.
Use unleaded petrol (octane rating at least
ROZ 91). You can use E10 petrol. Do not store
E10 petrol longer than 30 days. Do not use
fuels with more than 10 % ethanol (e.g. E15,
E85).
Only use fully synthetic two-stroke oil intended
for mixing in ratio 1:50. Do not use any mineral
two-stroke oil.
AS-Motor recommendation:
Fully synthetic two-stroke oil TITAN 2T 100S in
ratio 1:100.
Your benefits:
–Halve oil consumption compared to 1:50 -
therefore more environmentally and cost
friendly.
– Optimum protection of the engine for a long
service life.
– Low engine wear.
– Maximum engine performance.
You can buy Fuchs “TITAN 2T 100S“ of from
your AS-dealer:
Container ET no.
1 litre
(resealable bottle)
G00041042
100 ml
(disposable container)
G00041056
40 * 100 ml
(disposable containers in box)
G00041058
Notice: You can find on the market ready
mixed two-stroke fuels. Based on our experi-
ence, the ready mixed fuels “STIHL Motomix
1:50”, “ASPEN 2-stroke” and “Oest Oecomix”

16
can be used. No guarantee can be given for
operation of the device with other fuels and
oils!
Do not use mixtures with more oil than 1:50
(e.g. 1:35).
Too much oil results in carbon deposits and re-
duces the service life of the engine.
Only use the fully synthetic two-stroke oils ex-
plicitly intended for mixing.
Use of engine oils or even waste oil results in
engine damage.
No warranty is given in these cases.
Storing fuel mixture
The fuel mixture ages and can cause engine
damages. Only mix as much fuel as you are
going to use up during the next mowing.
Fuel used (4-stroke devices)
As fuel, use unleaded petrol (see operating in-
structions of the engine manufacturer).
You can use E10 petrol. Do not store E10 pet-
rol longer than 30 days.
Check engine oil level
(4-stroke devices)
Attention! Prior to each use, check the engine
oil level (see operating instructions of the en-
gine manufacturer).
To ensure sufficient oil supply for the four
stroke engine and to avoid resulting engine
damage, the device may only be used on
slopes up to 20°.
Tanking up
Danger!
Fuel is ignited by hot engine parts.
Prior to filling up, switch off the en-
gine and wait for at least 20minutes
until the engine has cooled down.
Observe the safety instructions re-
garding the fuel!
Filling up with fuel
1. For filling, use a canister with filler spout or
a funnel.
2. Open the canister carefully so that existing
excess pressure is slowly reduced.
3. Open the tank cap carefully so that existing
excess pressure is slowly reduced and no
fuel sprays out.
4. Fill the fuel tank.
5. Tightly close the tank cap again.
Adjusting cutting height
Adjust the cutting height setting only when the
engine is switched off.
Set the cutting height so that the blade does
not touch the ground even in case of terrain
unevenness. If the cutting height is set too
high, objects can be ejected and the “clean cut
appearance” can be destroyed.
The adjustment of the cutting height is per-
formed per axle.
If the scale shows the same position for both
axles, the blade is parallel to the mowing area.
Front axle
The cutting height adjustment of the front axle
is infinitely variable.
1. Switch off the engine and wait until the en-
gine comes to a standstill.

17
1
Fig.5:
2. Turn the crank at the front axle until the de-
sired cutting height was reached.
ðThe lubricating nipple (1) shows the set po-
sition on the scale.
Rear axle
The height at the rear axle can be adjusted to
4 positions.
1. Switch off the engine and wait until the en-
gine comes to a standstill.
1
Fig.6:
2. Push the lever at the rear axle to the left
using your foot.
3. Lift the device to the desired height.
4. Release the lever and let it engage in the
desired height.
ðThe edge (1) shows the set position on the
scale.
Locking steerable front wheel
It is more comfortable on an even surface to let
the front wheels swivel. If you move crossways
to the slope, make sure the wheels are locked.
Fig.7:
Releasing the steerable front wheel
1. Turn the lever out of the guide.
Interlocking the steerable front wheel
1. Position the steerable front wheel straight
in direction of travel.
2. Screw the lever into the guide.

18
Starting
Danger!
During startup, there is a risk of in-
jury caused by the rotating blade.
Make sure that no one is within the
danger zone of the blade. Do not tip
the device over to one side during
startup.
Danger!
If after startup the carburetor does
not close properly, fuel will overflow
and a fire hazard occurs.
Close the fuel valve and contact an
authorised service centre.
Starting the device
(2-stroke device)
1. Place the device on even terrain, not in
high grass.
2. Close the fuel valve and the tank ventila-
tion.
3. Plug in the plug connector.
4. Only for cold start: Close the choke at the
carburetor (turn anti-clockwise).
5. Press the tickler at the carburetor until fuel
flows.
6. Turn the accelerator lever to “idle speed”.
7. Pull the starter rope slowly out until you feel
resistance and then pull out quickly – en-
gine starts to run.
8. Slowly release the starter rope.
9. Reopen the choke (turn clockwise).
10. For mowing, set the accelerator lever to the
maximum speed.
Starting the device
(4-stroke device without choke)
1. Place the device on even terrain and not in
high grass.
2. Close the fuel valve and the tank ventila-
tion.
3. Plug in the plug connector.
4. Turn the accelerator lever to “idle speed”.
5. Pull the starter rope slowly out until you feel
resistance and then pull out quickly – en-
gine starts to run.
6. Slowly release the starter rope.
7. For mowing, set the accelerator lever to the
maximum speed.
Starting the device
(4-stroke device with choke)
1. Place the device on even terrain and not in
high grass.
2. Open the two fuel valves and the tank vent-
ilation.
3. Plug in the plug connector.
4. Set the accelerator lever during cold start
to the position “Choke”, otherwise to me-
dium speed.
5. Pull the starter rope slowly out until you feel
resistance and then pull out quickly – en-
gine starts to run.
6. Slowly release the starter rope.
7. For mowing, set the accelerator lever to the
maximum speed.
Engaging the blade
1. Lift the blade clutch lever.
2. Press the latch knob at the blade clutch
lever.
3. Press the blade clutch lever towards the
handlebar – the blade starts to move.
Disengaging the blade when moving over
paths:
1. Release the blade clutch lever.

19
Driving
Driving
In case of a hazardous situation, switch off the
drive and declutch the blade.
Drive on
1. Press the drive lever towards the handlebar
– device is running.
Drive off:
1. Release the drive lever.
Driving down slope
When driving down slope, continue to have the
drive switched on to keep the driving speed
constant.
Adjusting speed
With the vario lever, you can continuously ad-
just the speed of the device.
Only adjust the driving speed when the engine
is running; otherwise, the vario drive can be
damaged.
Turning
Turn the device around only in already mown
sections.
Turning on a level surface:
1. Switch off the drive.
2. Press the brake lever towards the handle-
bar to release the brake.
3. Swivel the device to the desired side.
4. Switch the drive back on.
Turning on the slope:
1. Keep the drive switched on.
2. Turn the device uphill.
3. Hold back the handlebar and the inside
wheel.
The drive prevents sliding and supports the
turning process.
Pushing
1. Release the drive lever.
2. Press the brake lever towards the handle-
bar to release the brake.
Switching off and parking
Caution!
On a slope, the device can roll
away.
Put the device on even ground only
or secure it against rolling away.
1. Release the drive lever.
2. Turn the accelerator lever to “0”.
3. Release the blade clutch lever.
4. Wait for the engine to stop completely be-
fore you step away from the device.
5. Close the fuel valve and the tank ventila-
tion.
6. Pull off the plug connector.

20
Transport
Warning!
Risk of injury due to the heavy
weight of the device. The device can
fall over and fall down and cause
severe injuries.
Observe the following notices.
Transport the device on a freight vehicle or a
trailer which is designed for a carrying capacity
of at least as great as the empty weight of the
device.
Prior to transport, let the device cool down for
at least 20 minutes. Close the tank ventilation
and the fuel valve.
For transport, you can fold up the handlebar.
Beware: Do not store or transport the device in
cleaning position.
Fuel and oil can leak and soil or damage the
device and the ground.
Transport position 1
1
Fig.8:
1. Pull the lever (1) out of the notch for the
lever for handelbar height adjustment and
flip the guide bar to the front.
Transport position 2
1
4
425
1. Release the interlock of the steerable front
wheel (4) at both front wheels.
2. Pull off the spring cotter (2) at the crank (1)
for height adjustment.
3. Completely flip up the crank (1) for the
height adjustment.
4. Completely flip up the protective bow (5).
5. Lock the steerable front wheels (4).
3
6. Pull the stop bolt (3) for the lever for the lat-
eral adjustment out of the notch.
7. Beware: Do not squeeze the Bowden
cables when swivelling the handlebar.
Swivel the handlebar anti-clockwise all the
way to the stop.
