Asahi KASEI Senseair Go User manual
Installation manual
Senseair Go
Public Transportation
Adapter Interlock
IMA11143
Rev 2
Local
representative
!
?
2
x1
x1
* Not included
2
Keep transmitting electronic devices, e.g. mobile phones
away from the system, in order to minimise interference.
An Asahi Kasei Group Company
x1
x1 x2
x1
x1
1
5
6
**
3
4
5
6
1
2
3
4
1
x1
** Included
* Not included
*
*
**
*
*
3
©2019 Senseair AB. All rights reserved.
Senseair AB (headquarter)
Stationsgatan 12, Box 96, 824 08 Delsbo, Sweden
Phone: +46-(0)653 – 71 77 70
www.senseair.com
The input and relay functionality of Senseair Go is congurable.
4

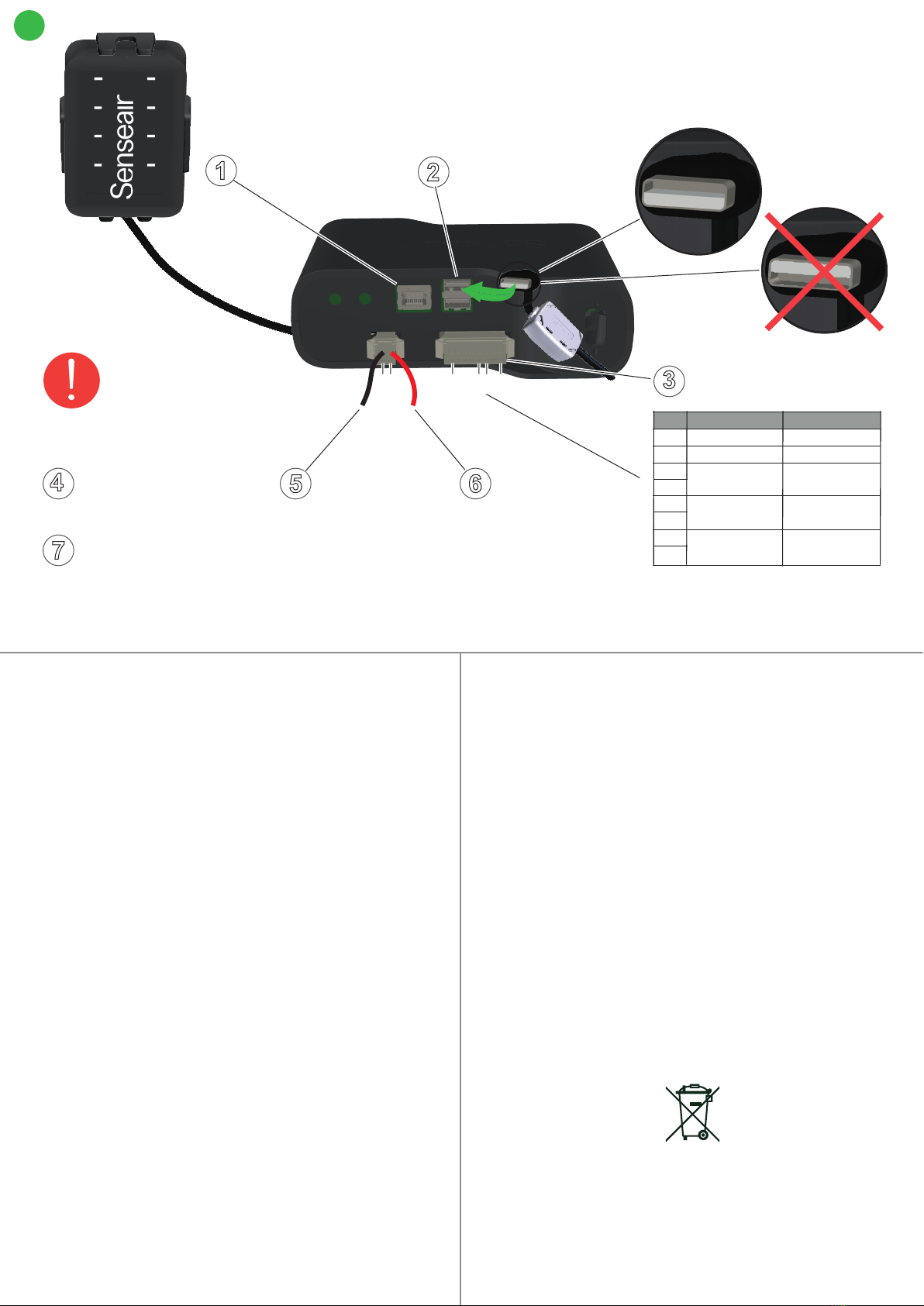

Connect cables for vehicle
locking functionality
Pin 3 and 4 respectively
3
1Connect vehicle router
to RJ-45 Ethernet
8 1
4Check that power circuit
is fused to max 10A
2
5
6
Connect Ground
to Pin 2: GND
Connect +12V
to Pin 1: V+
2 1
7Check that by-pass functionality
of Sensear Go system is implemented
Pin Name Specication
1 Digital in GND 0V
2 Digital in + 24V
3 Relay 1 30V, 2A
4
5 Relay 2 30V, 2A
6
7 Relay 3 30V, 2A
8
Contact Senseair for further information.
34
}
{
Note direction of
pin numbering
Connect RFID reader
