Asgard TROJAN PLUS User manual

It is always recommended to anchor the unit to the ground. Drill through
the four holes in the base of the unit using 6mm dia masonry drill to a
depth of 70mm. Screw in the anchor fixings. (These have a self cutting
thread). If not anchoring the unit, fit the 4 self-seal plugs BEFORE
BUILDING to block the fixing holes underneath. Fit 4 self-seal plugs
in the side of base to stop water from entering the unit.
TOOLS REQUIRED
Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
10mm socket or spanner.

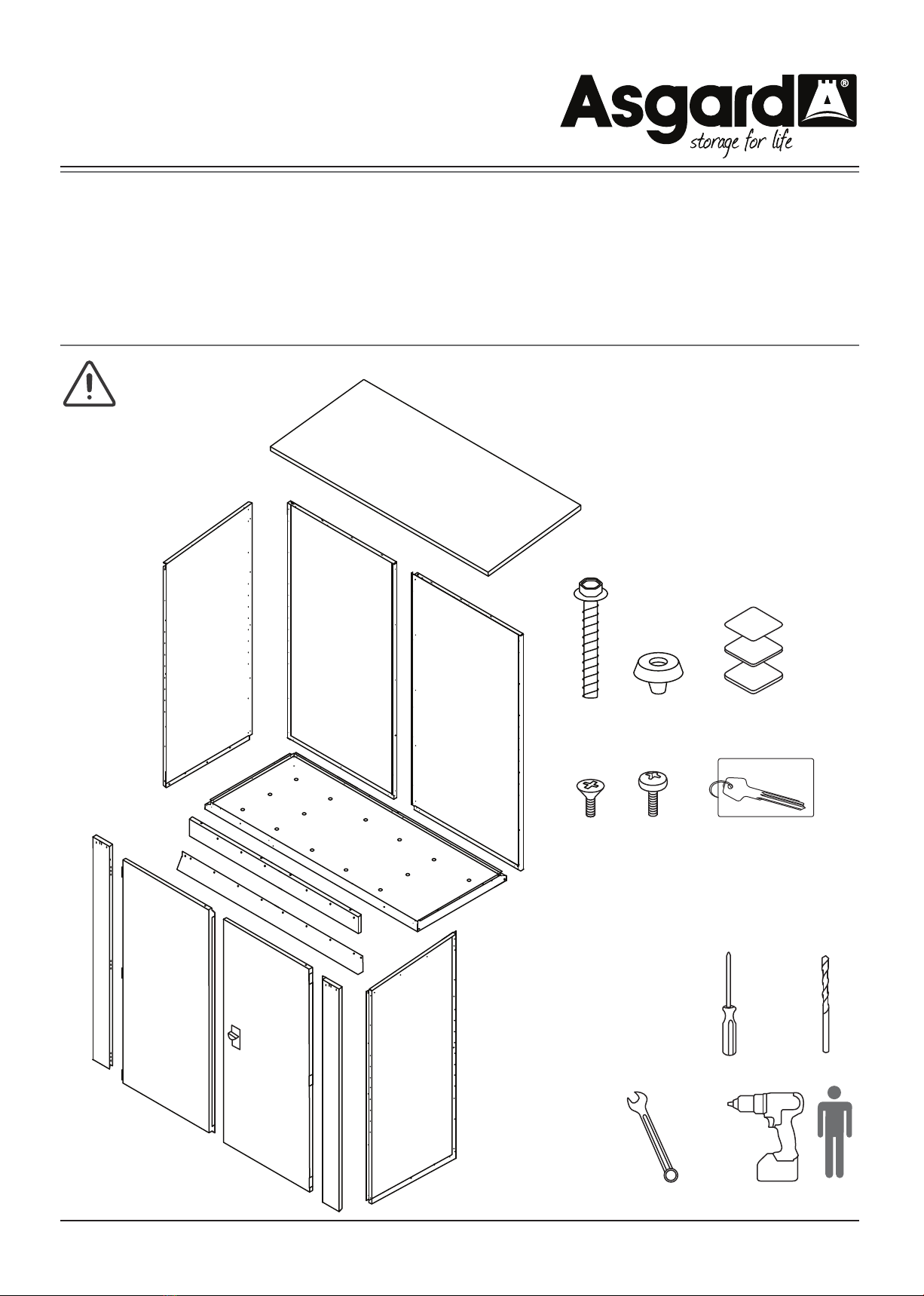

TROJAN PLUS
ZSCREW32 x4
ZSCREW61 x130
ZSCREW340 x18
ZCOMPPLZS02 x8
ZCOMPPLAS22-23-24 x12
2x 2mm, 2x 3mm, 2x 5mm
BASE INSTRUCTIONS
Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 2350mm x 1100mm x 50mm.
LEVELING THE UNIT
Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
Warning: some panels may weigh over
20Kg. Beware of manual handling
Warning: Please keep
this key card safe! Refer
to if replacement key is
required.
10mm
Spanner
18V
For maintenance instructions of this product visit www.asgardsss.co.uk
x2
LH SIDE PANEL
38982 x1
LH BACK PANEL
38984 x1
RH BACK PANEL
38985 x1
BASE PANEL
39030 x1
FASCIA 53020 x1
RAIN GUARD 053023 x1
00001
YOUR UNIQUE
KEY CODE
RH SIDE PANEL
38983 x1
RH DOOR
53355 x1
LH DOOR
53025 x1
LH FRONT PANEL 53016 x1
RH FRONT PANEL 53019 x1
6mm
Dia.
Posi-Driv
Screwdriver
TOP PANEL
38981 x1

x5
1
3
5 6
4
2
x15 x18
x18
PLEASE NOTE ALL SCREWS ARE FIXED FROM THE INSIDE
x16 x16
RH BACK PANEL
38985
BASE
PANEL
39030
RH SIDE PANEL
38983
LH BACK PANEL
38984
LH FRONT PANEL 53016
RH FRONT PANEL 53019 LH SIDE PANEL
38982
x5
x5
x13
x10
x5
x13
x5
x12
x12
x4
x4
FIT SELF-SEAL PLUGS: 4X SIDE OF
BASE. 4X BOTTOM OF BASE IF UNIT
IS NOT BEING SECURED TO FLOOR
!

7 8
910
12
11
x8 x20
x8
x9
FASCIA 53020
RAIN GUARD 053023
RH DOOR 53355
LH DOOR 53025
TOP PANEL 38981
x18
x4
x4
x4 x4
x4
x4
x2
x2
x8
x3
x3
x3
x3
x3
x3
9A. TRAP RAIN GUARD
BETWEEN FASICA &
LID. 9B. SCREW IN
!
ZCOMPPLAS22-23-24
LEVEL SHED UNTIL
DOORS ALIGN USING
ZCOMPPLAS
AS SUITABLE
!

www.asgardsss.co.uk
53354/29.10/20/KW/REV5
