Asiaventurelink ALT3213AD User manual

ATSC HD / Multi System LCD TV
Owner’s Manual
ALT3213AD / ALT4012AD / ALT4612AD
Please read this manual carefully before operating your set.
Retain it for future reference.
See the label attached on the back cover and quote this information to your dealer when
you require service.
Attention :
Please kindly refer to “TV Broadcasting system” (Page 63 of User’s manual) for the choos-
ing suitable TV broadcasting system as per your living area when you use this unit firstly.
TV Color system is automatically searched regardless of your living area.
ENGLISH

Contents
2
Contents 2-3
Warning 4
Safety Instructions 5
Remote control handset 6-8
Controls 6-7
Battery installation 8
Controls of 8-11
Front panel (ALT3213AD / ALT4012AD) 8
Front panel (ALT4612AD) 9

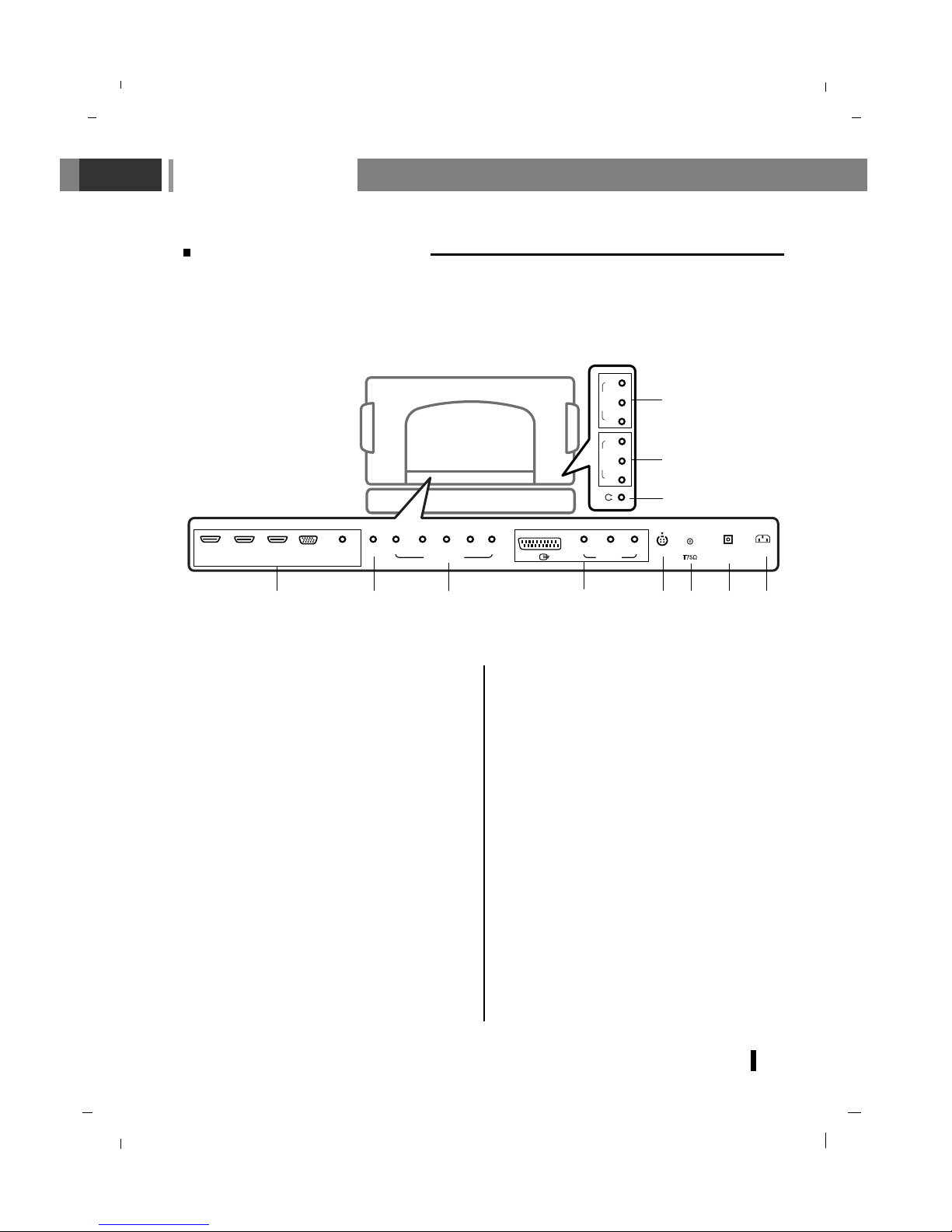

Back panel (ALT3213AD / ALT4012AD) 10
Back panel (ALT4612AD) 11

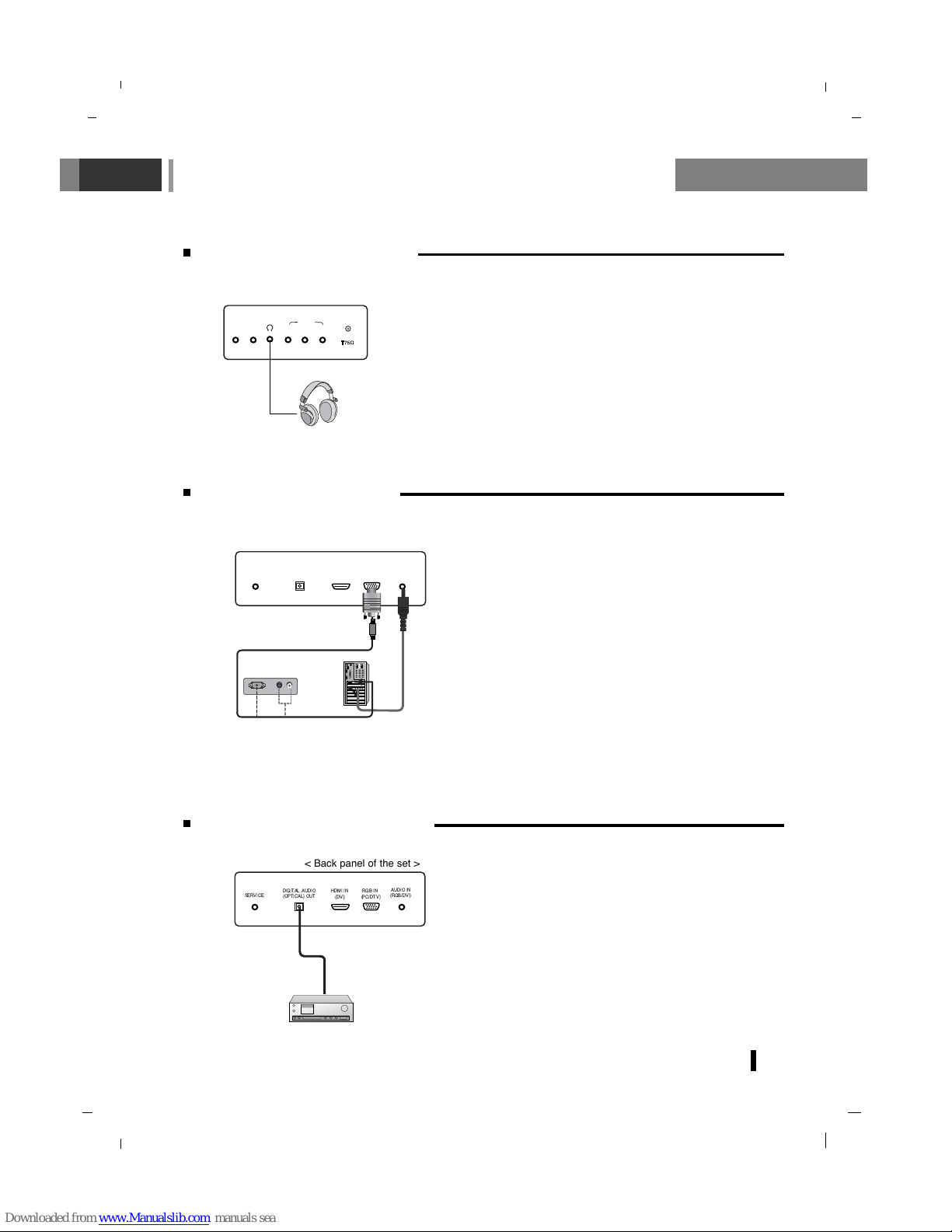

Connection to External equipment 12-15
Basic operation
On and Off 16
Channel selection 16
Volume adjustment 16
On screen language selection 16
Area Code selection 16

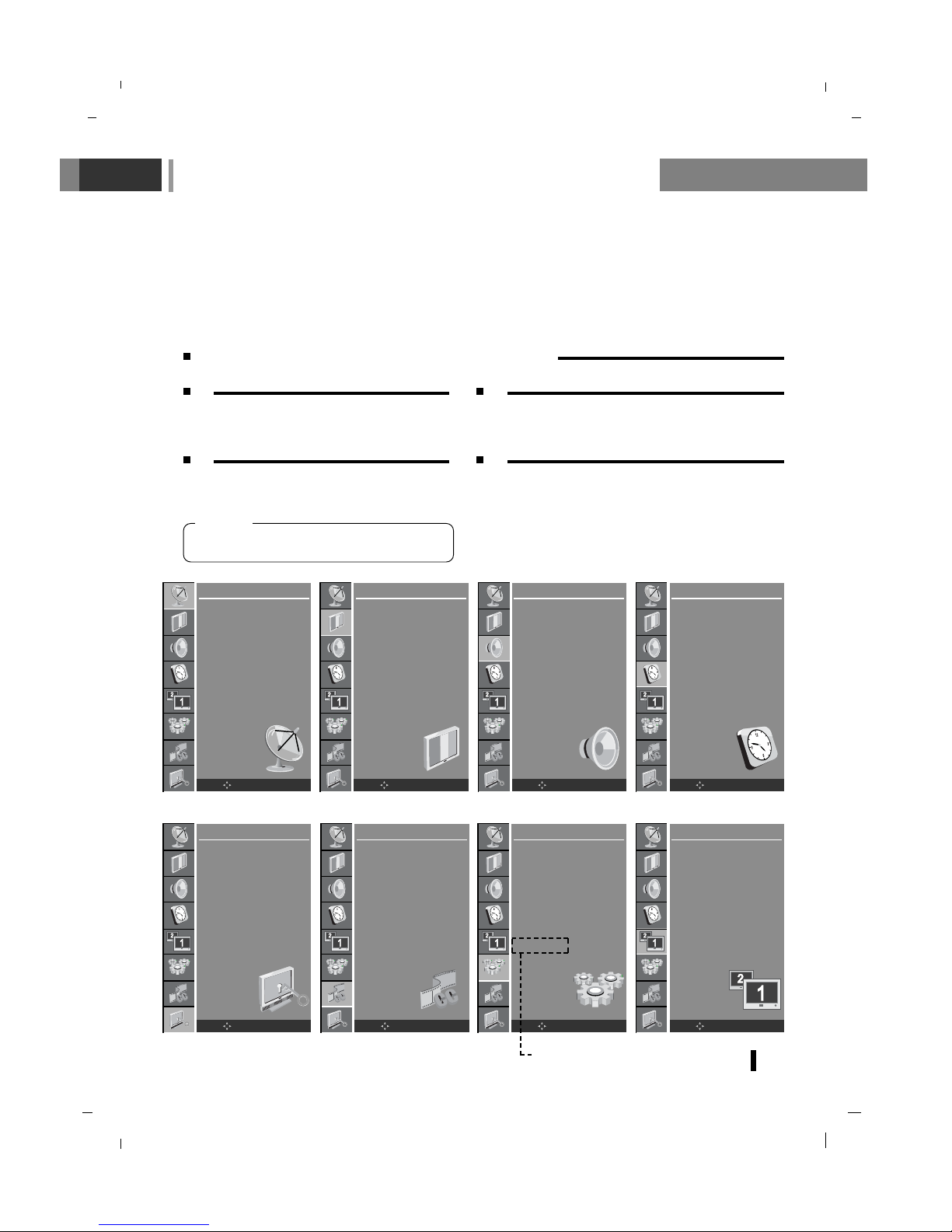

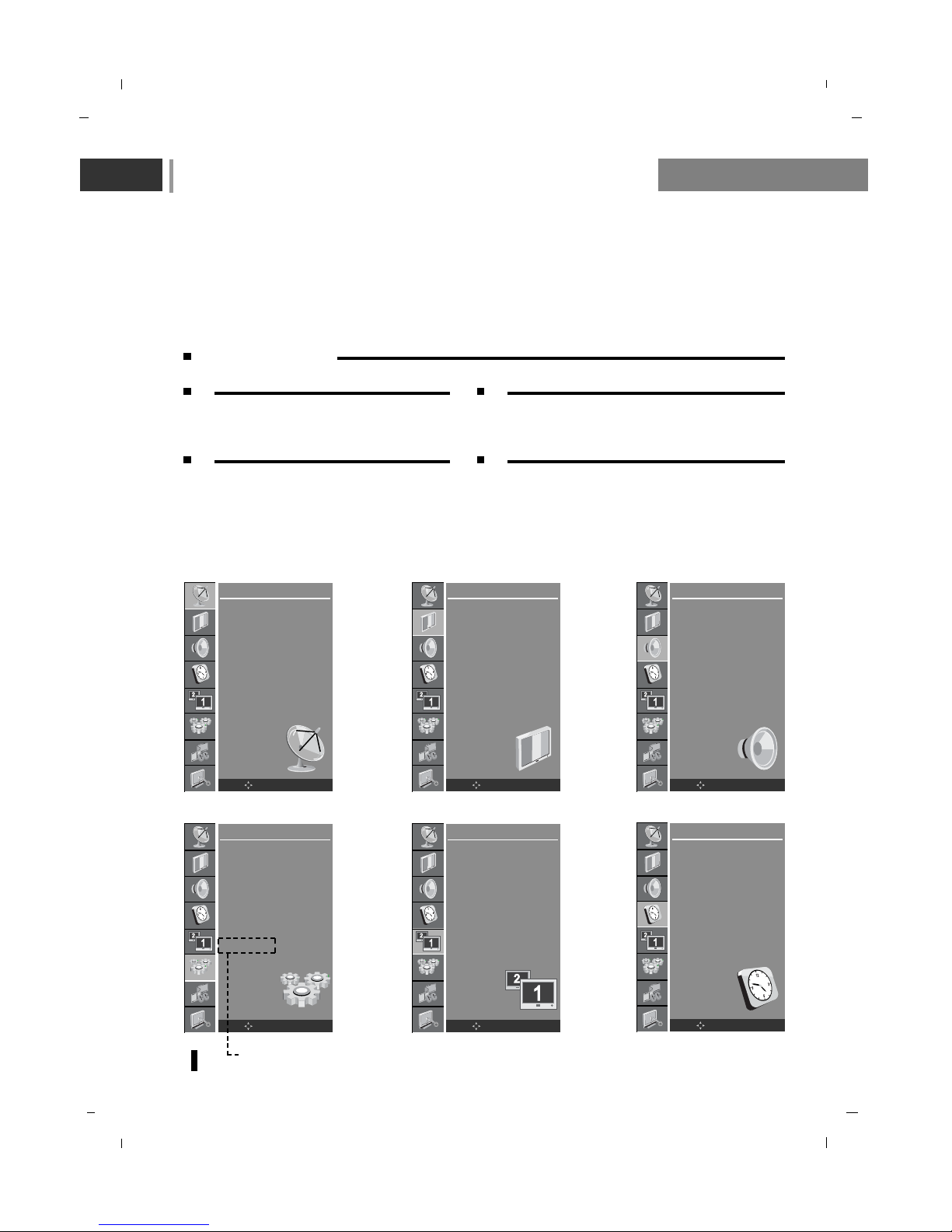

On screen menus Menu selection 17-18
USA + ATSC, KOREA + ATSC selection 17
Multi selection 18
Setting up TV stations (in ATSC system) 19-23
Memorizing the Channels with Auto 19
Add/Delete Channels with Manual 20
Fine Tuning Adjustment 21
Favorite Channels Setup 22
Assigning a station name 23
Setting up TV stations (in Multi system) 24-30
Auto programme tuning 24
Manual programme tuning 25
Fine Tuning Adjustment 26
Assigning a station name 27
Booster 28
Programme edit 29-30
Calling the programme table 30
Picture Menu 31-33
Color Temperature 31
Picture Mode 32
Manual Picture Control 32
Picture format 33
Sound Menu 34-39
Sound Mode 34
Balance 35
Auto Volume 35
SRS TruSurround XT 36
TV Speaker 36
Audio Language (in digital mode only) 37
Stereo/SAP Broadcasts Setup (in USA+ATSC system only) 38
Stereo/Dual/NICAM reception (in Multi/KOREA+ATSC system only) 39

Contents
3
FOR LCD TV
If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV.
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the monitor's performance.
Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so
may produce some temporary distortion effects on the screen.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
c. Disposal of this product must be carried out in accordance to the regulations of your local
authority.
Time Menu 40-45
Clock 40-41
On/Off Time 42
Auto sleep 43
Time zone (in USA+ATSC system only) 44
Daylight Saving (in USA+ATSC system only) 45
Sleep timer 45
Setup Menu
Child lock 46
Front Light (ALT4612AD model only) 46
Caption Menu (in ATSC system) 47-48
Caption Mode 47
Caption Option (in ATSC system only) 48
Lock Menu (in USA+ATSC system) 49-53
Lock Menu Options 49-50
Lock System 51-53
Connection of PC 54-55
PC Setup 54
WXGA or VGA (Only PC-RGB mode) 55
PIP (Picture-in-Picture) Feature 56-58
Watching PIP 56
PIP Audio Output 57
Moving the PIP 57
Selecting a Input Signal Source for the PIP 57
Channel selection for sub picture (Sub picture only TV mode) 58
Channel scan (in Multi system only) 58
Displayable Monitor Specification 59
Troubleshooting Check list 60
TV Broadcasting System 63
Product Spec. 64-66
ALT3213AD 64
ALT4012AD 65
ALT4612AD 66

Warning
4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOIS-
TURE.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building, as close to the point
of the cable entry as practical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

Safety Instructions
5
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obso-
lete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recep-
tacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
- Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.
“WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or mois-
ture.”
  

Remote control handset
6
Controls
1. POWER
Switches the set On from standby or Off to standby.
2. MUTE
Switches the sound on or off.
3. NUMBER BUTTONS
4. - (DASH)
Used to enter program number for multiple program
channels such as 2-1, 2-2 etc.
5. TV/DTV button
Select Analog TV, Digital TV mode.
6. PICTURE
Recalls your preferred picture setting.
7. ASPECT
Select your desired picture format.
8. SOUND
Recalls your preferred sound setting.
9. MENU
Selects a menu.
10.INPUT
Select TV,AV 1 ,AV 2 ,AV 3 ,S-Video,Component,
PC-RGB,HDMI1,HDMI2 (ALT4012AD/ALT4612AD
model only), HDMI3 (ALT4612AD model only) mode.
Switches the set on from standby.
Select on-screen menu setting.
11. Q.VIEW
Returns to the previously viewed channel.
12.EXIT
Exits from each mode.
13.CC
Select a closed caption.
-All the functions can be controlled with the remote control handset.
-Some functions can also be adjusted with the buttons on the front panel of the set.
-Before you use the remote control handset, please install the batteries.
12
3
4
5
6
9
11
8
10
7
- TV/DTV
PICTURE ASPECT
FCR/LIST
MTS
CC
SOUND
PIP PIP POSITION STILL SCAN
A.SWAP SLEEP INFO
12
13

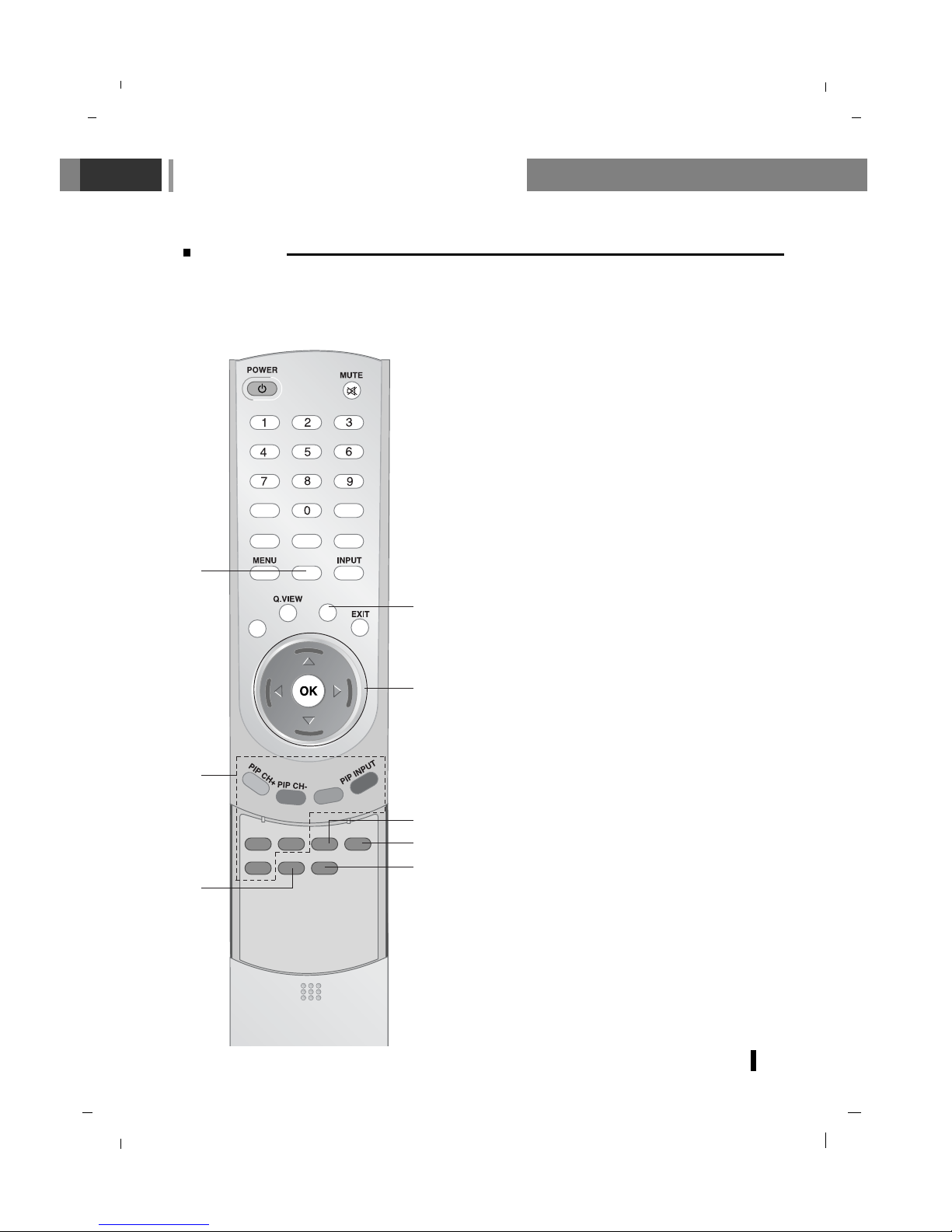

Remote control handset
7
Controls
14.FCR (In ATSC mode only)
Selects a favorite channel.
LIST
Displays the programme table.
15.MTS
Selects the audio language during dual language broad-
cast.
Selects the sound output.
16.D / E(Channel Up/Down)
Selects a channel or a menu item.
Switches the set on from standby.
F / G (Volume Down/Up)
Adjusts the volume.
Adjusts menu settings.
OK
Accepts your selection or displays the current mode.
17.PIP
Switches the sub picture On or Off.
A.SWAP
PIP mode - main and sub picture audio select.
PIP CH +/-
Selects a channel for the sub picture.
PIP INPUT
Selects the input mode for the sub picture.
PIP POSITION
Relocates the sub picture in clockwise direction.
18.STILL
Freezes motion of the picture.
19.SCAN (In Multi mode only)
Switches on the channel scan mode through 9 sub pic-
tures.
20.SLEEP
Sets the sleep timer.
21.INFO (In Digital mode only)
Displays information on top of the screen during watch-
ing TV.
14
16
19
17
- TV/DTV
PICTURE ASPECT
FCR/LIST
MTS
CC
SOUND
PIP PIP POSITION STILL SCAN
A.SWAP SLEEP INFO
21
18
15
20

Remote control handset
8
Battery installation
-Your remote control handset is powered by two AAA type batteries.
1. To insert batteries, turn the remote
control handset over and remove the
battery cover.
2. Put the two batteries into the com-
partment observing battery polarity.
3. Replace the cover.
To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the
remote control handset for an extended period time. Do not use batteries of differing age or type.
Always discard of batteries safely.
1) 2) 3)
Front panel (ALT3213AD / ALT4012AD)
-Shown is a simplified representation of the set.
-Here shown may be somewhat different from your set.
3 2
5 4
3 2
5 4
67
1
6
1/7

Controls of
9
Front panel (ALT4612AD)
-Shown is a simplified representation of the set.
-Here shown may be somewhat different from your set.
1. POWER (rr)
switches the set On from standby or On to
standby.
2. INPUT
Select TV,AV 1 ,AV 2 ,AV 3 ,S-Video,
Component,PC-RGB,HDMI1,HDMI2
(ALT4012AD/ALT4612AD model only),
HDMI3 (ALT4612AD model only) mode.
Switches the set on from standby.
Select on-screen menu setting.
3. MENU
selects a menu.
4. F / G (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
5. D / E(Channel Up/Down)
selects a programme or a menu item.
switches the set On from standby.
6. REMOTE CONTROL SENSOR
7. POWER/STANDBY INDICATOR (rr)
Illuminates red in standby mode.
Illuminates green when the set is switched On.
8. Front Light LED (ALT4612AD model only)
9. MAIN POWER (I yy)
(ALT4612AD model only)
switches the set On or Off.
On/Off
6
8
9
7
1
2
3
4
5

Controls of
10
Back panel (ALT3213AD / ALT4012AD)
1. POWER CORD SOCKET
This set operates on an AC power. The volt-
age is indicated on the Specifications page.
Never attempt to operate the set on DC
power.
2. SERVICE ONLY SOCKET
3. DIGITAL AUDIO (OPTICAL) OUT
Connect digital audio from various types of
equipment.
Note : In standby mode, these ports will not
work.
4. S-VIDEO IN
Connect video out from an S-Video VCR to
the S-VIDEO input.
5. EURO SCART SOCKET
Connect the euro scart socket of the VCR to
these sockets.
Available Video/Audio out function.
6. AUDIO/VIDEO IN SOCKET
Connect the audio/video out sockets of the
VCR to AV sockets of the set.
7. COMPONENT IN (480i / 480p / 720p / 1080i)
SOCKETS
8. HDMI1 IN (DVI) / HDMI2 IN (DVI) / RGB IN
(PC/DTV) / AUDIO IN (RGB/ DVI) SOCKETS
Connect the set output socket of the PER-
SONAL COMPUTER to this socket.
9. AUDIO OUT SOCKET
Connect an external amplifier or add a sub-
woofer to your surround sound system.
10. HEADPHONE SOCKET
Connect the headphone plug to this socket.
11. AERIAL SOCKET
-Shown is a simplified representation of the set.
-Here shown may be somewhat different from your set.
AC IN
AUDIO IN
(RGB/DVI)
SERVICE RGB IN
(PC/DTV)
DIGITAL AUDIO
(OPTICAL) OUT HDMI IN
(DVI)
YPbPr
COMPONENT IN
(R)
(L)
(R)
(L)
VIDEO
AV2 IN
(R)
(L)
S-VIDEO1 IN
AV1
(R)
(L)
VIDEO
AV3 IN
(R)
(L)
AUDIO OUT
ANT IN
1
2
3
47
56
8
10
9
11
6
AUDIO IN
(RGB/DVI)
RGB IN(PC/DTV)
HDMI(DVI)
(1)
(2)
8
*HDMI2 input mode
ALT4012AD model only

Controls of
11
Back panel (ALT4612AD)
-Shown is a simplified representation of the set.
-Here shown may be somewhat different from your set.
1. HDMI1 IN (DVI) / HDMI2 IN (DVI) / HDMI3 IN
(DVI) / RGB IN (PC/DTV) / AUDIO IN (RGB/
DTV) SOCKETS
Connect the set output socket of the PER-
SONAL COMPUTER to this socket.
2. SERVICE ONLY SOCKET
3. COMPONENT IN (480i / 480p / 720p / 1080i)
SOCKETS
4. AUDIO/VIDEO IN SOCKET
Connect the audio/video out sockets of the
VCR to AV sockets of the set.
5. S-VIDEO IN
Connect video out from an S-Video VCR to
the S-VIDEO input.
Connect the S-Video sound input socket of the
VCR to AV2 Audio sockets of the set.
6. AERIAL SOCKET
7. DIGITAL AUDIO (OPTICAL) OUT
Connect digital audio from various types of
equipment.
Note : In standby mode, these ports will not
work.
8. POWER CORD SOCKET
This set operates on an AC power. The volt-
age is indicated on the Specifications page.
Never attempt to operate the set on DC
power.
9. AUDIO/VIDEO OUT SOCKET
Connect an external amplifier or add a sub-
woofer to your surround sound system.
10. HEADPHONE SOCKET
Connect the headphone plug to this socket.
VIDEO
AV3 IN
(R)AUDIO(L)
VIDEO
AV OUT
(R)AUDIO(L)
HDMI1 IN
(DVI) HDMI2 IN
(DVI) HDMI3 IN (DVI) RGB IN
(PC/DTV) AUDIO IN (RGB/DTV) SERVICE COMPONENT
(R)AUDIO(L) Y PbPrS-VIDEO ANT. IN DIGITALAUDIO
(OPTICAL)OUT AC IN
AV2 IN
(R)AUDIO(L) VIDEO
AV1
1 2 5 8
346 7
4
9
10

Connection to External equipment
12
-You can connect additional equipment, such as VCRs, camcorders etc. to your set. However please
check with your manufacturers instruction books for specific information. Make sure all connections
are made with both your set and additional appliance unplugged from the mains to avoid damaging
your equipment.
-Here shown may be somewhat different from your set.
Watching VCR
-In Video mode, TV automatically reverts to TV mode if
the CH D / E button or number buttons are pressed.
Connection 1
Set VCR switch to 3 or 4 and then tune TV to the
same channel number.
Connection 2
1. Connect the audio/video output jacks on VCR to the
corresponding input jacks on the TV. When connect-
ing the TV to a VCR, match the jack colors (Video =
yellow, Audio Left = white, and Audio Right = red).
2. Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
3. Use the INPUT button on the remote control to select
AV 1 ,AV2 or AV 3 . (If connected to S-VIDEO on back
panel, select the S-Video external input source.)
(R)
(L)
VIDEO
AV2IN
YPbPr
COMPONENT IN
(R)
(L)
(R)
(L)
S-VIDEO1 IN
AV1
OUT
IN
CH3 CH4
S-VIDEO
ANT IN
ANT OUT
(R) (L)
AUDIO VIDEO
ANT
VCR
ANT
< Back panel of the set >
Multi-family Dwellings / Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
wall antenna socket
outdoor antenna
VHF antenna
UHF antenna
RF coaxial wire (75 ohms)
-Antenna or Cable Service without a Cable Box Connection.
-For optimum picture quality, adjust antenna direction if needed.
ANT
Bronze Wire
Be careful not to bend the bronze
wire when connecting the antenna.
Connect to Aerial socket

13
Connection to External equipment
Watching Cable TV
Connection 2
1. Connect the audio/video output jacks on Cable Box to the corresponding input jacks on the TV.
When connecting the TV to Cable Box, match the jack color
(Video = yellow, Audio Left = white, and Audio Right = red).
2 Use the INPUT button on the remote control to select AV 1 ,AV2 or AV 3 .
3. Select channels with the cable box remote control.
-
After subscribing to a local cable TV service and installing a
converter, you can watch cable TV channel.
-For further cable TV information, contact a local cable ser-
vice provider.
Connection 1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output channel
of cable box.
3. Select channels at the cable box or with the cable box
remote control.
Watching external AV source
Connections
Connect the audio/video output jacks on the exter-
nal A/V equipment to the corresponding input
jacks on the TV. When connecting the TV to exter-
nal A/V equipment, match the jack color (Video =
yellow, Audio Left = white, and Audio Right = red).
Viewing Setup
1. Turn on the external A/V equipment.
2. Use the INPUT button on the remote control to
select AV 1 ,AV2 or AV 3 .
3. Operate the corresponding external equipment.
Refer to external equipment operating guide.
(R)
(L)
VIDEO
AV2IN
AV1
ANT
TV
VCR
(R) AUDIO (L) VIDEO
RF Cable
Cable Box
RL
AUDIO VIDEO
(R)
(L)
VIDEO
AV2IN
AV1
Camcorder
Video Game set
External Equipment
Audio output The phone sockets for a Hi-Fi amplifier system are on
the back of the set, L=left sound channel, R=right
sound channel.
If you connect an amplifier system, you can also play
the TV sound through the stereo amplifier system.
If you press the MUTE button, only the sound of the
TV’s speakers are switched off.
(R)
(L)
AUDIO OUT
< Side panel of the set >

14
Connect the signal cable from the monitor output socket
of the PERSONAL COMPUTER to the HDMI INPUT
socket of the set.
Connect the audio cable from the PC to the AUDIO
INPUT sockets of the set.
Press the INPUT button to select HDMI1,HDMI2.
Switch on the HDMI, and the HDMI screen appears on
the set.
HDMI-DTV input signal : 480p-60Hz, 720p-50Hz,
720p-60Hz, 1080i-50Hz, 1080i-60Hz.
HDMI Interface with HDCP Copy Protection enables all-
digital rendering of video without the losses.
This TV SET can receive the High-Definition Multimedia
Interface(HDMI) or Input of Digital Visual Interface (DVI).
AUDIO IN
(RGB/DVI)
SERVICE RGB IN
(PC/DTV)
DIGITAL AUDIO
(OPTICAL) OUT HDMI IN
(DVI)
HDMI OUTPUT (R) AUDIO (L)
Watching DVD
Connecting HDMI (DTV)
Connections
Connect the DVD video outputs to the COMPO-
NENT (Y, Pb, Pr) jacks and connect the DVD audio
outputs to the AUDIO jacks.
Viewing Setup
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to
select Component.
3. Refer to the DVD player's manual for operating
instructions.
•Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
Component input signal : 480i / 480p / 720p / 1080i
Component ports
of the TV YPb Pr
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
YPbPr
COMPONENT IN
(R)
(L)
(R)
(L)
S-VIDEO1 IN
YPBPRAUDIO(L)
(R)
DVD
or
Connection to External equipment

15
Connection to External equipment
Connecting PC (DTV)
Connect the signal cable from the monitor output socket
of the PERSONAL COMPUTER to the RGB IN socket of
the set.
Connect the audio cable from the PC to the AUDIO IN
sockets of the set.
Press the INPUT button to select PC-RGB.
Switch on the PC, and the PC screen appears on the set.
The set can be operated as the PC monitor.
RGB-DTV input signal : 480p-60Hz, 720p-50Hz,
720p-60Hz, 1080i-50Hz, 1080i-60Hz.
AUDIO IN
(RGB/DVI)
SERVICE RGB IN
(PC/DTV)
DIGITAL AUDIO
(OPTICAL) OUT HDMI IN
(DVI)
RGB OUTPUTRGB OUTPUT (R)(R) AUDIO (L)AUDIO (L)
< Back panel of the set >
or
Connecting Headphone
Insert the headphone plug to the headphone socket of the set.
You can listen to the sound through the headphone. To adjust
the headphone volume, press the F /Gbutton.
Control the volume of the headphone to the appropriate level.
Hearing for a long time with the high volume may damage the
eardrum.
(R)
(L)
VIDEO
AV3IN
(R)
(L)
ANT IN
AUDIO OUT
< Side panel of the set >
Connecting Digital Audio
- Send the set’s audio to external audio equipment
(stereo system) via the Digital Audio Output (Optical).
Caution : Do not look into the optical output port.
Looking at the laser beam may damage your vision.
How to connect
Connect one end of an optical cable to the TV Digital
Audio (Optical) Output port.
Connect the other end of the optical cable to the digital
audio (optical) input on the audio equipment.
AUDIO IN
(RGB/DVI)
SERVICE RGB IN
(PC/DTV)
DIGITAL AUDIO
(OPTICAL) OUT HDMI IN
(DVI)
< Back panel of the set >

Basic operation
16
On and Off
First, connect power cord correctly.
At this moment the TV switches to standby mode.
If the set is in standby mode, press the POWER, D / Ebuttons on the remote control handset to switch
it on fully.
Press the POWER button on the remote control handset.
The set reverts to standby mode.
Press the power button again to switch the set standby mode.
Channel selection
You can select a channel number with the D / E or NUMBER buttons.
Volume adjustment
Press the F /G button to adjust the volume.
If you want to switch the sound off, press the MUTE button.
You can cancel it by pressing the MUTE, F /G,SOUND or MTS button.
On screen language selection
Press the MENU button and then use D / E button to select the SETUP menu.
Press the Gbutton and then use D / E button to select Language.
Press the Gbutton and then use D / Ebutton to select your desired language.
All the on screen displays will appear in the selected language.
Repeatedly press the MENU button to return to normal TV viewing.
Area Code selection
Press the MENU button and then use D / E button to select the SETUP menu.
Press the Gbutton and then use D / E button to select Area Code.
Press the G button and then use D / Ebutton to select USA + ATSC, KOREA + ATSC or Multi.
Press the OK button to “ Please, wait ” shows on the display.
When disappearing “ Please, wait ” TV turns off.
Turn on TV with POWER button on the remote controller pressed.
Operator TV with MENU button.

On screen menus Menu selection
17
-The dialogue between you and your set takes place on screen with an operator menu.
The buttons required for the operating steps are also displayed.
-In this manual,the OSD (On Screen Display) may be different from your TV ’s because it is just
example to help the TV operation.
-The OSD (On Screen Display) displays differently depending on the input signal.
Press the MENU button and then use D / E
button to display each menu.
Press the Gbutton and then use D / E button to
select a menu item.
Press the Gbutton to display the sub menu
or the pull-down menu.
Change the setting of an item in the sub or pull-down
menu with D / Eor F /G.
You can move to the higher level menu with F
button and to move to the lower level menu press the
G button.
1 2
3 4
STATION
Auto
Manual
Edit
Name
USA + ATSC, KOREA + ATSC selection
OK MENU
Color Temperature
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
OK MENU
SOUND
Sound Mode
Balance
Auto Volume
SRS TruSurround XT
TV Speaker
Audio Language
OK MENU
SETUP
Language
PC Control
WXGA
VGA
Child Lock
Area Code
Front Light
OK MENU
Main/PIP
Main Input
Aspect Ratio
PIP Mode
PIP Input
PIP Size
PIP Position
Audio Output
OK MENU
LOCK
Lock System
Set Password
Rating
Input Block
OK MENU
CAPTION
Caption Mode
Caption Option
OK MENU
TIME
Clock
Off Time
On Time
Auto Sleep
Time zone
Daylight Saving
OK MENU
• Menus may vary according to input mode.
[ Note ]
ALT4612AD model only

18
-The dialogue between you and your set takes place on screen with an operator menu.
The buttons required for the operating steps are also displayed.
-In this manual,the OSD (On Screen Display) may be different from your TV ’s because it is just
example to help the TV operation.
-The OSD (On Screen Display) displays differently depending on the input signal.
Press the MENU button and then use D / E
button to display each menu.
Press the Gbutton and then use D / E button to
select a menu item.
Press the Gbutton to display the sub menu
or the pull-down menu.
Change the setting of an item in the sub or pull-down
menu with D / Eor F /G.
You can move to the higher level menu with F
button and to move to the lower level menu press the
G button.
1 2
3 4
Multi selection
STATION
Auto
Manual
Edit
Name
OK MENU
Color Temperature
Picture Mode
Contrast
Brightness
Color
Sharpness
OK MENU
SOUND
Sound Mode
Balance
Auto Volume
SRS TruSurround XT
TV Speaker
Audio Language
OK MENU
SETUP
Language
PC Control
WXGA
VGA
Child Lock
Area Code
Front Light
OK MENU
Main/PIP
Main Input
Aspect Ratio
PIP Mode
PIP Input
PIP Size
PIP Position
Audio Output
OK MENU
TIME
Clock
Off Time
On Time
Auto Sleep
Time zone
Daylight Saving
OK MENU
On screen menus Menu selection
ALT4612AD model only

Setting up TV stations (in ATSC system)
19
Press the MENU button and then use D / E button
to select the STATION menu.
Press the G button and then use D / Ebutton to
select Auto.
Press the G button and then use D / Ebutton to
select Antenna or Cable.
Press the OK button to begin the channel search.
•Wait for auto channel to complete the channel
search cycle before choosing a channel. The TV
scans for over-the-air channels and then channels
provided by a cable service.
Memorizing the Channels with Auto
-For Auto channel to work, the channeling source must be connected to
the TV and the TV must be receiving channeling signals either over-the-
air or from a cable-type service provider.
• When the channel search is complete, use the
D / E buttons to review the memorized chan-
nels.
• If you press the MENU button in Auto, the func-
tion will stop and only channels channeling up
to that time will remain.
• Auto channel function can memorize only the
channels which are being received at that time.
• Press the MENU to stop the Analog channel
scan and start Digital channel search.
• To stop Digital channel searching, press the
MENU button.
[ Note ]
STATION
Auto
Manual
Edit
Name
OK MENU
STATION
Auto
Manual
Edit
Name
Antenna
Cable
OK MENU
G
OK To Start
Auto Program
CATV Channel 5
Analog Channels Found 7
Digital Channels Found
Progress(%) 40
MENU : CATV Skip
Wait for max. 25 minutes...
0
Auto

20
STATION
Auto
Manual
Edit
Name
OK MENU
STATION
Auto
Manual
Edit
Name
CH : CATV2
Storage : Memory
Fine Tune : 0
OK MENU
Add/Delete Channels with Manual
Press the MENU button and then use D / E button
to select the STATION menu.
Press the G button and then use D / Ebutton to
select Manual.
Press the G button and then use D / Ebutton to
select CH.
Press the F / Gbutton to select the channel number.
Press the D / Ebutton to select Storage.
Press the F / Gbutton to select Memory (add) or
Erase (delete).
Repeatedly press the MENU button to return to nor-
mal TV viewing.
The current channel is added to Memory or Erased
from the channel list.
-You can manually include or erase individual channels.
Manual
STATION
Auto
Manual
Edit
Name
CH : CATV2
Storage : Memory
Fine Tune : 0
OK MENU
Manual
Setting up TV stations (in ATSC system)
