U S E R M A N U A L
HDMI Splitter 1x4
Model No：HDSP0001M1

INTRODUCTION
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
The company produced products. designed to make your A/V device use more convenient,
comfortable, productive and cost efficient.
The 1x4 HDMI Splitter use a single HDMI source，accessing to multiple HDMI sinks. The
Splitter allows one HD source to be split easily to four HDMI compatible monitors or projectors.
It also supports extra analog stereo audio output and digital SPDIF audio output. And the user
can do choose the video mode output at the three video mode：3D mode, 4K x 2K mode and
Pass mode and choose the audio output mode at the three audio mode: 5.1CH mode, 2.0CH
Mode and Pass mode. It will bring the super vivid HD experience to the users.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.

FEATURES
One HDMI input signal split to four HDMI sink devices
Support 4K full HD signal input and output (The output port 4 only can support the 3D
signal output)
Support analog stereo audio and digital audio(SPDIF/Toslink) output (the function can not
work when the video output is 4KX2K Mode)
Support deep color 24bit,30bit, 36bit
Support Blue Ray 24/50/60fs/HD DVD/xvYCC
HDMI audio format: DTS HD/Dolby trueHD/LPCM7.1/DTS/Dolby AC3/DSD
Support LPCM2.0/DTS/Dolby AC3 digital audio(SPDIF/Toslink) output
The video and audio output mode can be controlled by the remote or R/M or by pressing s
the switch button.
Over voltage protection can prevent the damage caused by connecting unmatched power
adapter to the machine
LED status indication, it can tell us the working state of the device very easily.
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres
AWG26 cable length
No loss of quality
Installs in minutes
Need DC 5V/1A power supply
The accessories with the machines lists:
1. 5V Power Adaptor
2. one pc of Manual
3. Remote control unit

Physical Connection Showing Picture：
Figure 1.0 Front Panel Showing Picture
1. Power switch
2. Standby indication
3. Switch button for Video output mode, it can choose the 4K x 2K, 3D, Pass three kinds of
video mode by circulate switching(When choose the 4K x 2K mode output or 3D mode output,
the display terminal must can support 4K x 2 K or 3D , or the display terminal will have no
picture. If need to reach full screen at the display end, please switch to the pass mode output).
4. Switch button for Audio output mode, it can choose 5.1CH,2.0CH, ADV [Advance Audio]
three kinds of audio output mode by circulate switching(When switch to 5.1CH audio mode
output, the Digital audio signal receiving terminal must can support DTS/DOLBY AC3 decode, or
the input D audio signal receiving terminal will have no sound output; If need the audio signal
receiving terminal can output the audio, pls switch to 2CH audio mode. When audio output switch
to the ADV [Advance Audio] mode, the audio output format will be decided by the audio signal
receiving machine audio decode ability.
The splitter will output 7.1 channel audio signal while the output end connects the av amplifier wit
h HDMI port that support 7.1 channel audio decode.(the HD Source signal itself is 7.1 channel)
5. Video mode indication
6. IR Remote receiver
7. Audio mode indication
8. HDMI input indication
9. HDMI output indication
Figure 1.1 rear panel showing picture

1. DC/5V Power Adaptor Interface
2. HDMI input interface
3. HDMI output interface 1~3
4. HDMI output interface 4(For v1.3 only)
5. Analog stereo audio output interface(For v1.3 only)
6. Digital audio(SPDIF/Toslink)output interface(For v1.3 only)
Remote-control unit operating instructions
1. Power switch button
2. Audio mode switch button, like if you want to switch to the stereo output, Directly by
pressing the 2CH button
3. Video mode switch button, like if you want to switch to the 3D mode output, Directly by
pressing the 3D button
Note: Before using the remote of the unit, please first take out the insulation plastic film from
remote control unit tail. If the remote is under long time rest state, please insert the insulation
plastic film.

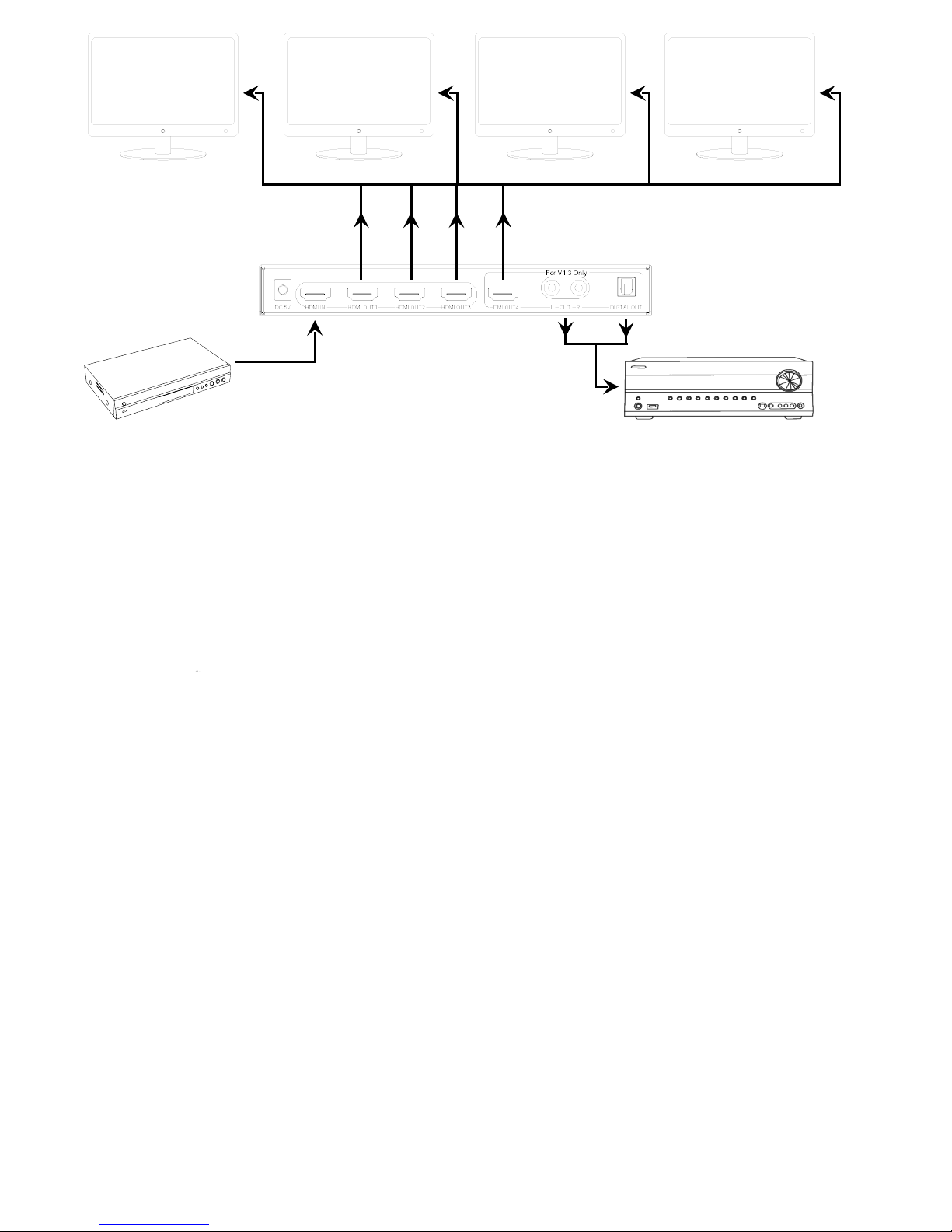

Operating and Connecting：

1. Through a HDMI cable, connect HD signal source to splitter input port.
2. Through the HDMI cable, connect the splitter output port to the display terminal.
3. Through the audio cable and optical fiber cable, The splitter of the audio output connected
to the audio receiving terminal.
4. Connect 5V power supply to the Splitter.
5. Press “ ” on the device or remote control to open or close the device
6. Operated through the R/M or device button
SPECIFICATIONS: HDSP0001M1
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit,30bit,36bit deep color
Support audio format……………….DTS HD/Dolby trueHD/LPCM7.1/DTS/Dolby AC3/DSD
Digital audio output format…………………………………………...LPCM2.0/DTS/Dolby AC3
Max bandwidth……………………………………………………………………………..340MHz
Max baud rate……………….…….………………….…………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..……. 0.5~1.5Volts p p（TTL）
Input/Output DDC signal ……………………………………………..………… 5Volts p p (TTL)
Input cable distance..…... ……………………….…….….≤15m AWG26 HDMI standard cable
Output cable distance…………………………..…….…...≤20m AWG26 HDMI standard cable
Max working current……………………………………………………………….………..700mA
Power adapter format..Input: …….............AC (50HZ, 60HZ) :100V 240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… ( 0 to +40 )℃
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………………205x74x226 (mm)
Weight…..………………………………………………………..…….………………………360g

Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High Temperature, Dusty,
Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the
socket.
5. Pls turn the power off when the machines not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
Before power on, pls check the connection line carefully. And make sure that all interfaces

are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non Power
Connected
1.Check if the power adaptor head is truly and correctly inserted the
power socket.
2.Check the power switch if it is in on status.
2 No Picture
1.Pls to make sure that the TV is on and has been connected with the
machine.
2.To check if the signal source is on and well connected.
3.Check the system connection quality.
4.Check if the line is all good quality.
5.Check the cable quality
3 Obscure Picture
1.To try again to connect the cable to be free from the unsuccessful
connection.
2.HDMI Cable Quality
4 No sound
1. Check the audio reciver divice is on
2. Check if the line is all good quality
3. To try again to connect the cable to be free from the unsuccessful
connection.
4. Confirm whether signal source is 4K sources.
