Asko D5426XLS Guide

Asko Design Guide
REVISED 3/2016

Features and specications are subject to change at any
time without notice. Visit askona.com/specs for the most
up-to-date information.
IMPORTANT NOTE: Throughout this guide, dimensions may
vary by ± 1/8"(3). Dimensions in parentheses are millimeters
unless otherwise specied.
Contents
3Asko Dishwashers
4Specications
8Custom Panel
10 Asko Washers | Dryers
12 Specications
19 Warranty

askona.com/specs | 3
ASKO DISHWASHERS
DISHWASHER MODELS
INTEGRATED HANDLE
TUBULAR | PRO HANDLE
PANEL READY
OUTDOOR
D5426XLS D5436XLS
D5636XXLSHI
D5526XLFI
D5526XXLFI
D5536XLFI
D5536XXLFI
D5536XXLFISOF
D5556XXLFI
D5636XLHS/TH
D5636XXLHS/TH
D5656XXLHS/TH
D5636XLHS/PH
D5636XXLHS/PH
D5656XXLHS/PH
D5956OUTDOORPH
Asko Dishwashers
At Asko, we design and manufacture premium quality dish-
washers with a special Scandinavian touch for design and
function. Panel ready models accept a custom panel and
handle. Tubular and pro handle models match Sub-Zero and
Wolf products. Our products meet the highest demands in
performance and durability, as well as environmental aware-
ness. XL models are ADA height compliant.

4 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
OPEN DOOR
237/8"(606) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)

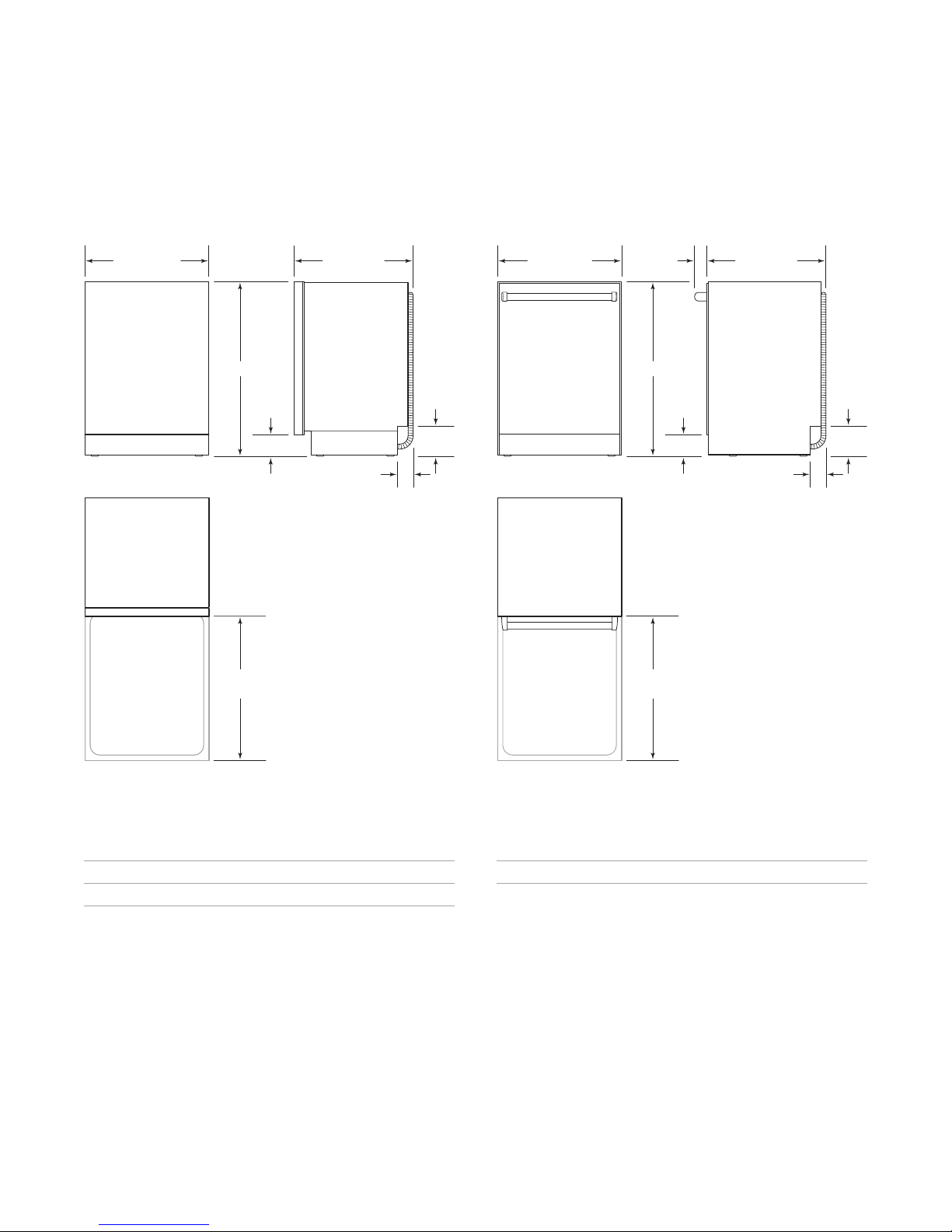

Overall Dimensions
INTEGRATED HANDLE
HEIGHT H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.
OPEN DOOR
237/8"(606) 23/8"
(60) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)
TUBULAR | PRO HANDLE
HEIGHT H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

askona.com/specs | 5
ASKO DISHWASHERS
Overall Dimensions
PANEL READY
239/16"(599) 227/8"(581)
OPEN DOOR
*Dimension will vary with product height.
H
4" (102)*
3"
(76)
53/8"
(137)
245/8"
(625)
OPEN DOOR
245/8"(625) 23/8"
(60) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)
OUTDOOR
HEIGHT H
Outdoor Model 35" (889) – 353/4"(908)
HEIGHT H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819).
IMPORTANT NOTE: Overall dimensions for panel ready
models do not include panels or handles. Dimensions will
vary with panel thickness.

6 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
W
OPENING WIDTH
341/2"
(876)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
TOP VIEW
SIDE
VIEW FRONT VIEW
NOTE:
31/2"(89) finished returns will be visible and should be finished to match cabinetry.
31/2"(89)
FINISHED
RETURN
FRAMELESS CABINETRY
3/4"
(19)
TYPICAL
31/2"(89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W
Opening Dimensions
DISHWASHERS
OPENING WIDTH W
Integrated Handle 24" (610)
Tubular | Pro Handle 24" (610)
Panel Ready 235/8"(600)
Outdoor 247/8"(632)
A minimum 31/2"(89) nished return is required on all sides
of the opening. Framed cabinets will require additional
nished ller material behind the face frame for a proper
installation. Refer to the illustration.
Integrated handle models and tubular and pro handle
models include top and side trim to accommodate slightly
larger or smaller openings. If top and side trim are removed,
the opening width should be reduced to 235/8"(600) to
achieve minimum reveals. Panel ready models do not
include trim. Dimensions provide minimum reveals.
For ADA installations and height restricted openings, all
XL models can be installed in a 321/4"(819) opening by
removing top trim and lowering side trim.

askona.com/specs | 7

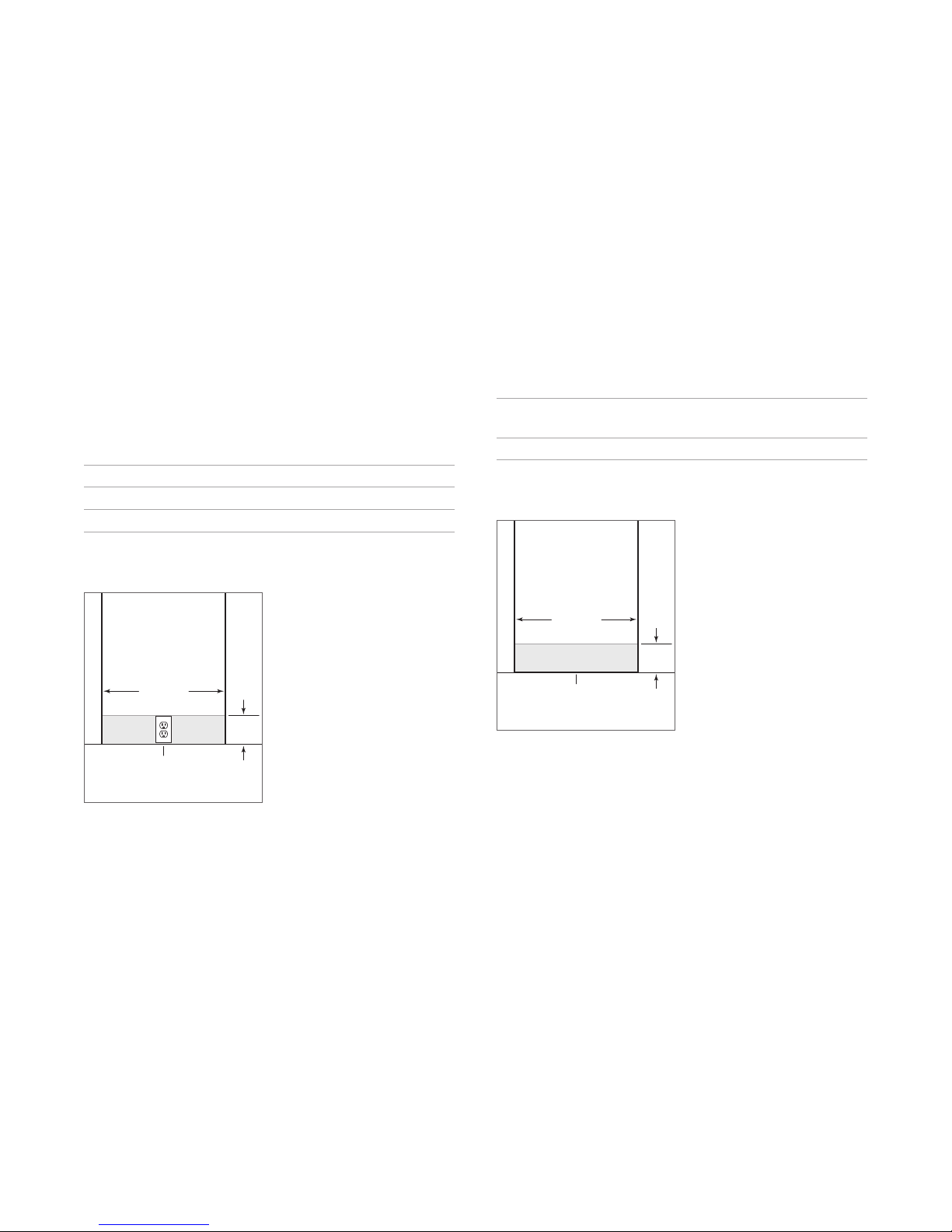

Electrical
The electrical supply should be located in an adjacent
cabinet. If the supply cannot be located in an adjacent
cabinet, it must be located within the shaded area shown in
the illustration below. A separate circuit, servicing only this
appliance is required.
IMPORTANT NOTE: For the outdoor model, a ground fault
circuit interrupter (GFCI) is required to reduce the risk of
electrical shock. A GFCI is not recommended for use with
other models and may cause interruption of operation.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp
Receptacle 3-prong grounding-type
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
Electrical supply location.
Plumbing
The water supply and drain should be located in an adjacent
cabinet. If they cannot be located in an adjacent cabinet,
they must be located within the shaded area shown in the
illustration below. The water supply line should be con-
nected to a hot or cold house supply with an easily acces-
sible shut-off valve between the supply and the unit.
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Connection 6' (1.8 m) PEX tubing with
3/8" NPT female connection
Pressure 4.2–140 psi (.3–9.7 bar)
ASKO DISHWASHERS
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
Water supply and drain location.

8 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
Custom Panel
PANEL READY
For panel ready models, a custom door panel and handle
must be provided. Typical panel dimensions are based on a
235/8"(600) opening width and 341/2"(876) nished height,
with a minimum 4" (102) toe kick and 1/8"(3) reveals. For all
other opening widths, the panel should be 1/4"(6) less than
the opening to achieve minimum reveals. Panel dimensions
must be adjusted accordingly for all other installations. Refer
to the chart and illustration below for panel requirements.
Finish all sides of the custom panel. They may be visible
when the door is open.
PANEL REQUIREMENTS
DIMENSIONS W H
Custom Panel (typical) 233/8"(594) 301/8"(765)
WEIGHT | THICKNESS
Max Weight (including handle) 20 lb (9 kg)
Min Thickness 3/4"(19)
W
H
Panel dimensions.

askona.com/specs | 9
ASKO DISHWASHERS

10 | Asko Customer Care 800.222.7820

askona.com/specs | 11
WASHER MODELS
ASKO WASHERS | DRYERS
DRYER MODELS
Asko Washers | Dryers
Asko’s range of washers and dryers reect 60 years of
Swedish ingenuity and continuous innovation, designed
to balance performance and durability with environmental
considerations. They provide the best possible washing and
drying results, handling your clothes with care. No matter
what life throws at you, Asko has the perfect UltraCare
system to make short work of your laundry. From the high-
efciency family size to the supersized XL washers and
dryers, Asko has the right laundry system for any family,
large or small.
W6424W
W6424T
W8844XLW
T754W
T754T
T754CW
T884XLW T884XLHPW

12 | Asko Customer Care 800.222.7820
ASKO WASHERS | DRYERS
OPEN
DOOR
231/2"(597) 237/8"(606)
331/2"
(851)
5"
(127)
61/2"
(165)
131/4"
(337)
SIDE VIEWFRONT VIEW BACK VIEW
TOP VIEW
Overall Dimensions
WASHERS
Model W6424.
231/2"(597) 283/16"(716)
331/2"
(851)
131/4"
(337)
OPEN
DOOR
5"
(127)
61/2"
(165)
SIDE VIEWFRONT VIEW BACK VIEW
TOP VIEW
Model W8844XL.

askona.com/specs | 13
ASKO WASHERS | DRYERS
227/8"
(581)
231/2"(597)
331/2"
(851)
OPEN DOOR
283/16"
(716)
SIDE VIEWFRONT VIEW BACK VIEW TOP VIEW
4"
(102)
157/8"
(403)
237/8"(606)
Overall Dimensions
DRYERS
Model T754(C).
227/8"
(581)
OPEN DOOR
231/2"(597) 293/8"(746)
331/2"
(851)
283/16"
(716)
SIDE VIEWFRONT VIEW BACK VIEW TOP VIEW
4"
(102)
203/8"
(516)
Model T884XL(HP).

14 | Asko Customer Care 800.222.7820
ASKO WASHERS | DRYERS
131/4"
(337)
227/8"
(581)
231/2"(597)
OPEN DOOR
283/16"
(716)
4"
(102)
*73" (1854) if hidden helper accessory is installed.
157/8"
(403)
237/8"(606)
67"
(1702)*
5"
(127)
61/2"
(165)
SIDE VIEWFRONT VIEW BACK VIEW
TOP VIEW

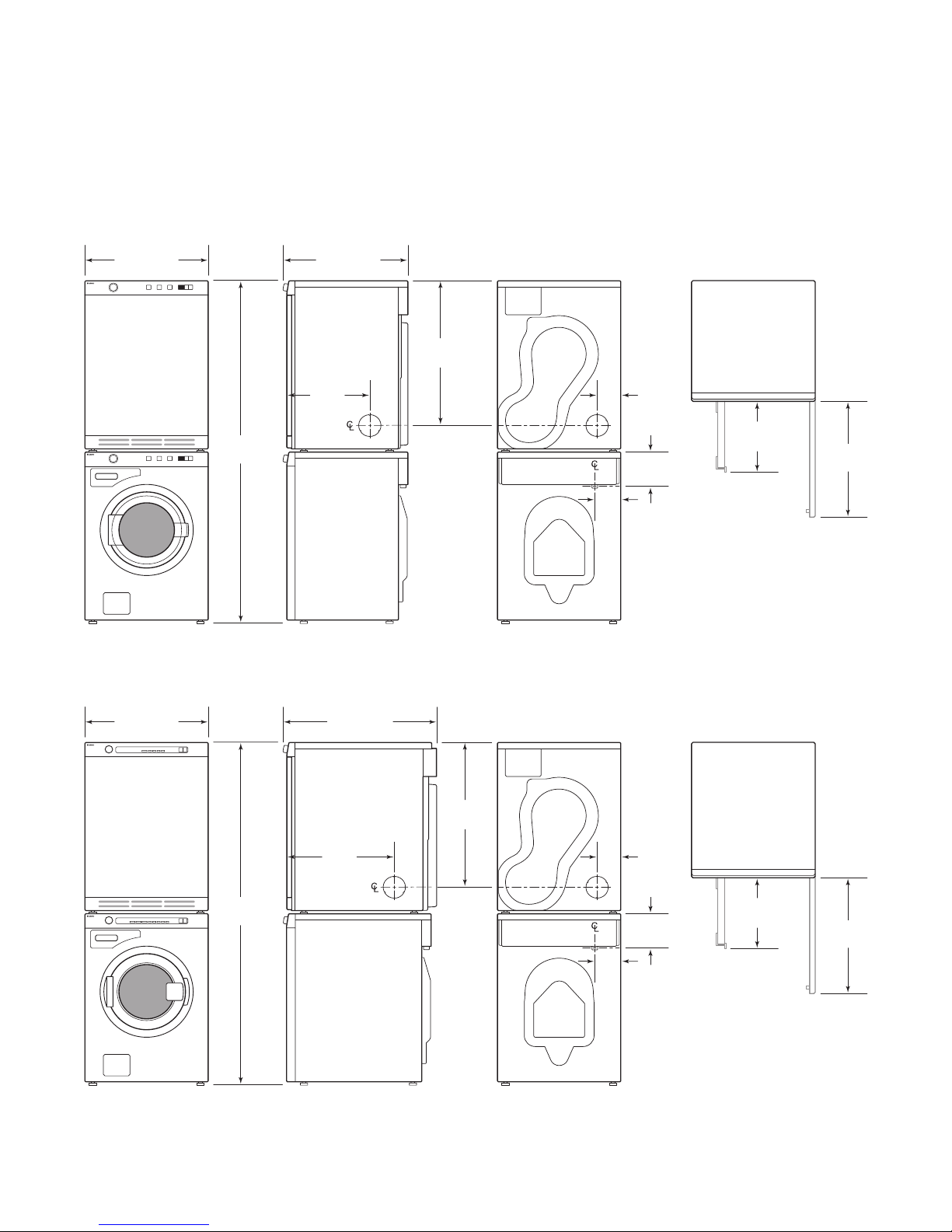

Overall Dimensions
STACKED
131/4"
(337)
227/8"
(581)
231/2"(597)
OPEN DOOR
4"
(102)
283/16"
(716)
293/8"(746)
203/8"
(516)
67"
(1702)*
5"
(127)
61/2"
(165)
SIDE VIEWFRONT VIEW BACK VIEW
*73" (1854) if hidden helper accessory is installed.
TOP VIEW
Model W6424 | T754(C).
Model W8844XL | T884XL(HP).

askona.com/specs | 15
211/4"
(540)
231/2"(597) 211/4"(540)
12"
(305)
NOTE: For W6424 and T754(C) only
.
Overall Dimensions
PLATFORM
Washer | dryer platform.
ASKO WASHERS | DRYERS

16 | Asko Customer Care 800.222.7820
Built In Opening
SINGLE INSTALLATION
OPENING DEPTH D
W6424 237/8"(606)
W8844XL 293/8"(746)
T754(C) 237/8"(606)
T884XL(HP) 293/8"(746)
D
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
341/2"
(876)
OPENING
HEIGHT
241/2"(622)
OPENING WIDTH
NOTE: Dimensions provide minimum reveals.
ASKO WASHERS | DRYERS
SIDE BY SIDE INSTALLATION
OPENING DEPTH D
W6424 and T754(C) 237/8"(606)
W8844XL and T884XL(HP) 293/8"(746)
D
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
341/2"
(876)
OPENING
HEIGHT
481/2"(1232)
OPENING WIDTH
NOTE: Dimensions provide minimum reveals.
D
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
341/2"
(876)
OPENING
HEIGHT
241/2"(622)
OPENING WIDTH
NOTE: Dimensions provide minimum reveals.

askona.com/specs | 17
Built In Opening
STACKED INSTALLATION
D
OPENING
DEPTH
TOP VIEW
SIDE VIEW FRONT VIEW
68"
(1727)
OPENING
HEIGHT
241/2"(622)
OPENING WIDTH
NOTE: Dimensions provide minimum reveals.
ASKO WASHERS | DRYERS
OPENING DEPTH D
W6424 and T754(C) 237/8"(606)
W8844XL and T884XL(HP) 293/8"(746)
Planning Information
If a washer or dryer is installed in a closet or an enclosure
with a door, the door must be vented, louvered or left open
during operation. Insufcient ventilation will signicantly
reduce performance.

18 | Asko Customer Care 800.222.7820
ASKO WASHERS | DRYERS
Electrical
A separate electrical service is not required for the washer.
The receptacle for the washer is located on the back of the
dryer.
If the washer is being installed separate from the dryer, refer
to the electrical requirements below. The electrical location
must be placed within reach of the power cord.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
WASHER
Electrical Supply grounded, 220 VAC, 60 Hz
Service 15 amp
Receptacle NEMA 6–20R grounding-type
Power Cord 6' (1.8 m)
DRYER
Electrical Supply grounded, 240/208 VAC, 60 Hz
Service 30 amp
Plumbing
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Connection 1/2" ID min (cold only)
Pressure 15–146 psi (1–10 bar)

Asko Residential Limited Warranty
RESIDENTIAL APPLIANCES
ASKO Distribution North America, LLC. (“ASKO”) warrants to the original purchaser (the “ASKO Customer”) of the ASKO product
(the “ASKO Product”), who purchased the ASKO Product from a distributor, dealer, manufacturer’s representative or other seller who
has been authorized by ASKO, that this ASKO Product is free of defects in materials and/or workmanship, subject to the terms and
conditions set forth herein. This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service must be
provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE PRODUCT REPAIR AS PROVIDED HEREIN. This Limited Warranty is valid only when the ASKO Product is used in the country in
which it was purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.
Residential ASKO Products Used Exclusively for Household/Personal Purposes:
Two (2) Years Limited Warranty—Any warranty service claims for residential ASKO Products must be led with ASKO within two (2) years
from date of purchase. Service will be provided during normal business hours.
Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used Commercially or used in Marine, Mobile
or Aeronautical Applications:
One (1) Year Limited Warranty—Any warranty service claims for ASKO Products not used exclusively for household and personal use,
or used commercially or used in marine, mobile, or aeronautical applications must be led with ASKO within one (1) year from date of
purchase. Service will be provided during normal business hours.
ITEMS EXCLUDED FROM WARRANTY
This Limited Warranty does not cover:
1) Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent with published user or operator
instructions and/or installation instructions.
2) Service calls to correct the installation of the ASKO Product, to instruct you on how to use the ASKO Product, to replace or repair
house fuses, or to correct house wiring or plumbing.
3) Consumable items and parts, such as lters.
4) Damage resulting from accident, alteration, misuse, abuse, negligence, re, ood, acts of God, improper use, improper installa-
tion, installation not in accordance with electrical or plumbing codes, or use of products not approved by ASKO, as well as any
attempted repair by other than authorized ASKO service companies.
5) Cosmetic damage, including scratches, dents, chips or other damage to the nish of the ASKO Product, unless such damage
results from defects in materials or workmanship and is reported to ASKO within 5 days from date of purchase.
6) Pickup and delivery. The ASKO Product is intended to be repaired in your home.
7) Repairs to parts or systems resulting from unauthorized modications made to the ASKO Product.
8) Expenses for travel and transportation for product service if the ASKO Product is located in a remote area where service by an
authorized ASKO service company is not available.
9) The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location or is not installed in accordance with
ASKO’s published installation instructions.
10) Replacement parts or repair labor on ASKO Products with original model/serial numbers that have been removed, altered or cannot
be easily determined.
DISCLAIMER
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding
warranty rights. This Limited Warranty gives you specic legal rights and you may have other rights that vary from jurisdiction to jurisdic-
tion. Attempted repair by any person other than an authorized ASKO service company will void this Limited Warranty.
LIMITATION OF LIABILITY
IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE
LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE
MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER THAN
ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH
A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or limitation of incidental, consequential or other damages, so these
limitations and exclusions may not apply to you. This Limited Warranty gives you specic legal rights. You also may have other rights
that vary from jurisdiction to jurisdiction.
TROUBLESHOOTING AND ASKO CUSTOMER CARE
If you think you need repair service, rst see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the
problem after checking “Troubleshooting,” then additional help can be obtained by calling ASKO Customer Care at 1-800-898-1879.
Read the “Troubleshooting” chapter before contacting the Customer Care Center. Make a note of the details on the rating plate posi-
tioned on the right inside the dishwasher. Make a note of the (1) service number, (2) item number and (3) serial number.
SERVICE AFTER EXPIRATION OF LIMITED WARRANTY
For information about obtaining parts and labor after expiration of this Limited Warranty or arising outside the scope of this Limited
Warranty, please contact ASKO Customer Care at 1-800-898-1879. After your purchase and prior to rst use of the ASKO Product,
register your ASKO Product with ASKO by utilizing the address information below. Should you need further assistance as well, contact
us at the address information below:
ASKO Distribution North America, LLC Customer Care Center PO Box 44848 MADISON WI 53744 1-800-898-1879 www.askona.com

ASKO, INC. P.O. BOX 44848 MADISON, WI 53744 ASKONA.COM 800.222.7820
