Asko D5426XLS Guide

Asko Design Guide
REVISED 8/2015

Features and specications are subject to change at any
time without notice. Visit askona.com/specs for the most
up-to-date information.
IMPORTANT NOTE: Throughout this guide, dimensions may
vary by ± 1/8"(3). Dimensions in parentheses are millimeters
unless otherwise specied.
Contents
3Asko Dishwashers
4Specications
8Custom Panel
11 Asko Washers and Dryers
12 Specications
19 Warranty

askona.com/specs | 3
ASKO DISHWASHERS
DISHWASHER MODELS
INTEGRATED HANDLE
TUBULAR AND PRO HANDLE
PANEL READY
OUTDOOR
D5426XLS D5436XLS
D5636XXLSHI
D5526XLFI
D5526XXLFI
D5536XLFI
D5536XXLFI
D5536XXLFISOF
D5556XXLFI
D5636XLHS/TH
D5636XXLHS/TH
D5656XXLHS/TH
D5636XLHS/PH
D5636XXLHS/PH
D5656XXLHS/PH
D5956OUTDOORPH
Asko Dishwashers
At Asko, we design and manufacture premium quality dish-
washers with a special Scandinavian touch for design and
function. Our products meet the highest demands in perfor-
mance and durability, as well as environmental awareness.
•Stainless models feature TouchProof™ stainless steel.
•Tubular and pro handles match Sub-Zero and Wolf
products.
•Panel ready models accept custom panel and handle.
•Stainless steel wrapped outdoor model is UL approved
for outdoor use.
•Large interior capacity makes room for larger dinnerware.
•Multi-spray wash system; separate spray nozzles cleans
pot & pans and continuously sprays cutlery basket.
•XL models are ADA height compliant.
•Energy saving features give all models Energy Star®
qualied rating.
MODEL REFERENCE
INTEGRATED HANDLE (CURRENT) NEW
D5424XLW, D5424XLB NA
D5424XLS D5426XLS
D5434XLW, D5434XLB NA
D5434XLS D5436XLS
D5459XLSSOF, D5434XXLS NA
D5628XXLS D5636XXLSHI
TUBULAR AND PRO HANDLE (CURRENT) NEW**
D5634XLHS/TH D5636XLHS/TH
D5634XLHS/PH D5636XLHS/PH
D5634XXLHS/TH D5636XXLHS/TH
D5634XXLHS/PH D5636XXLHS/PH
D5654XXLHS/TH D5656XXLHS/TH
D5654XXLHS/PH D5656XXLHS/PH
PANEL READY (CURRENT) NEW*
D5534XLFI D5536XLFI
D5549XLFISOF NA
NA D5536XXLFISOF
NA D5526XLFI
D5524XXLFI D5526XXLFI
D5534XXLFI D5536XXLFI
D5554XXLFI D5556XXLFI
OUTDOOR (CURRENT) NEW**
D5954OUTDOORPH D5956OUTDOORPH
*Available 3rd quarter, 2015. **Available 4th quarter, 2015.

4 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
OPEN DOOR
237/8"(606) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)

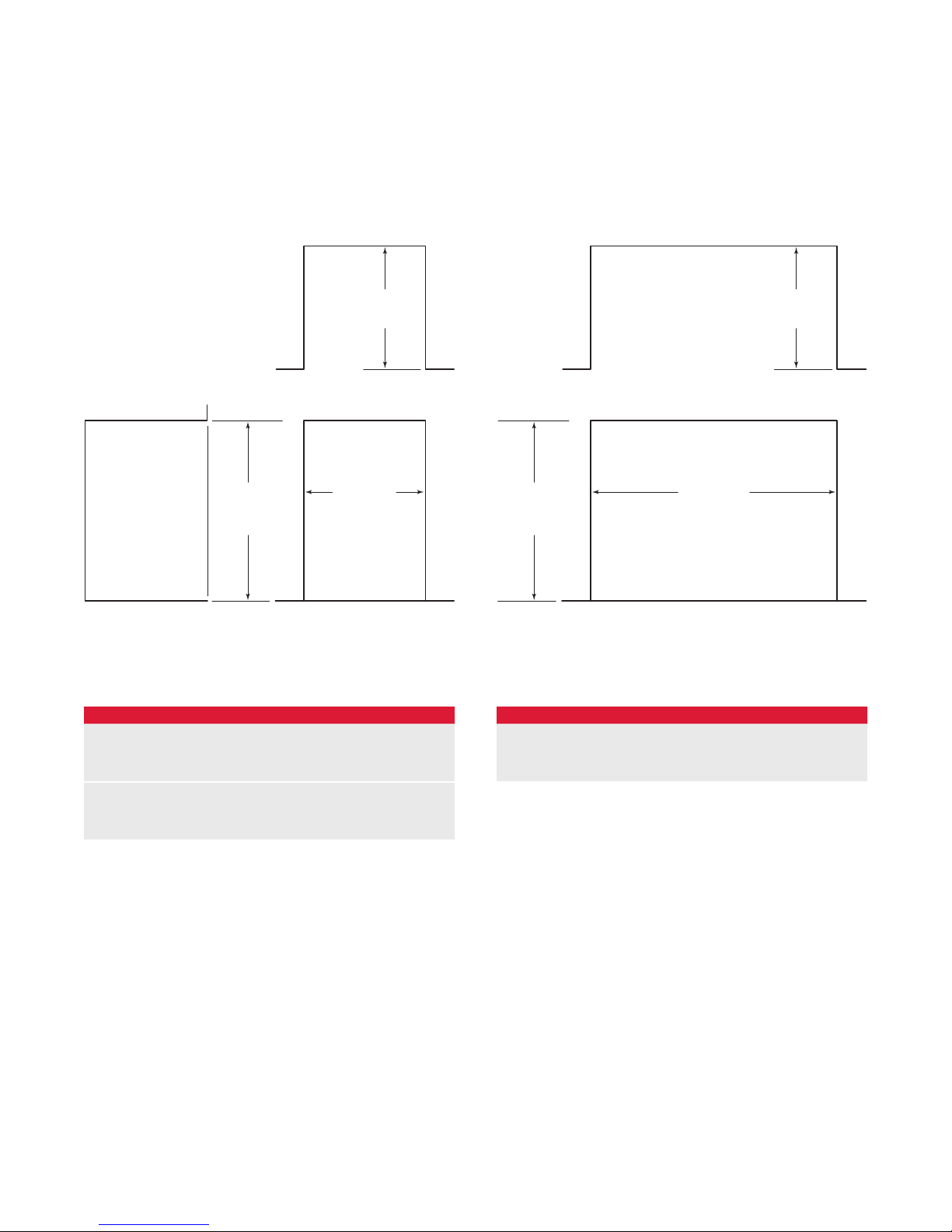

Overall Dimensions
INTEGRATED HANDLE
HEIGHT
INTEGRATED HANDLE H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.
OPEN DOOR
237/8"(606) 23/8"
(60) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)
TUBULAR AND PRO HANDLE
HEIGHT
TUBULAR AND PRO HANDLE H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

askona.com/specs | 5
ASKO DISHWASHERS
Overall Dimensions
PANEL READY
239/16"(599) 227/8"(581)
OPEN DOOR
*Dimension will vary with product height.
H
4" (102)*
3"
(76)
53/8"
(137)
245/8"
(625)
OPEN DOOR
245/8"(625) 23/8"
(60) 227/8"(581)
H
4" (102)*
3"
(76)
53/8"
(137)
*Dimension will vary with product height.
245/8"
(625)
OUTDOOR
HEIGHT
OUTDOOR H
Outdoor Model 35" (889) – 353/4"(908)
HEIGHT
PANEL READY H
XL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819).
IMPORTANT NOTE: Overall dimensions for panel ready
models do not include panels or handles. Dimensions will
vary with panel thickness.

6 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
W
OPENING WIDTH
341/2"
(876)
OPENING
HEIGHT
24" (610)
OPENING
DEPTH
TOP VIEW
SIDE
VIEW FRONT VIEW
NOTE:
31/2"(89) finished returns will be visible and should be finished to match cabinetry.
31/2"(89)
FINISHED
RETURN
FRAMELESS CABINETRY
3/4"
(19)
TYPICAL
31/2"(89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W
Opening Dimensions
DISHWASHERS
OPENING WIDTH
MODEL W
Integrated Handle 24" (610)
Tubular and Pro Handle 24" (610)
Panel Ready 235/8"(600)
Outdoor 247/8"(632)
A minimum 31/2"(89) nished return is required on all sides
of the opening. Framed cabinets will require additional
nished ller material behind the face frame for a proper
installation. Refer to the illustration.
Integrated handle models and tubular and pro handle
models include top and side trim to accommodate slightly
larger or smaller openings. If top and side trim are removed,
the opening width should be reduced to 235/8"(600) to
achieve minimum reveals. Panel ready models do not
include trim. Dimensions provide minimum reveals.
For ADA installations and height restricted openings, all
XL models can be installed in a 321/4"(819) opening by
removing top trim and lowering side trim.

askona.com/specs | 7

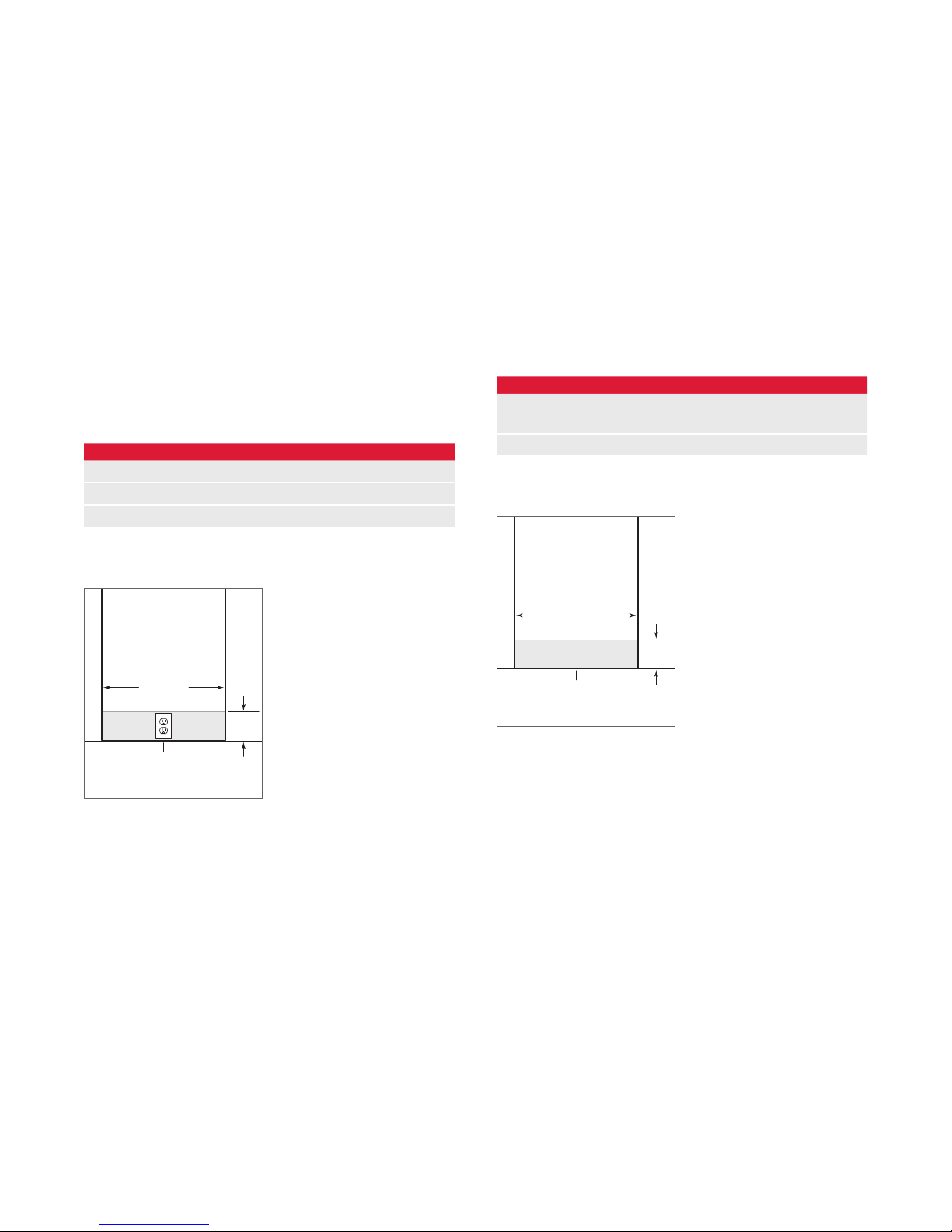

Electrical
The electrical supply should be located in an adjacent
cabinet. If the supply cannot be located in an adjacent
cabinet, it must be located within the shaded area shown in
the illustration below. A separate circuit, servicing only this
appliance is required.
IMPORTANT NOTE: For the outdoor model, a ground fault
circuit interrupter (GFCI) is required to reduce the risk of
electrical shock. A GFCI is not recommended for use with
other models and may cause interruption of operation.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp
Receptacle 3-prong grounding-type
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
Electrical supply location.
Plumbing
The plumbing supply and drain should be located in an
adjacent cabinet. If they cannot be located in an adjacent
cabinet, they must be located within the shaded area shown
in the illustration below. The water supply line should be
connected to a hot or cold house supply with an easily
accessible shut-off valve between the supply and the unit.
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Supply 1/4" OD copper, braided
stainless steel or PEX tubing
Pressure 4.2–140 psi (.3–9.7 bar)
ASKO DISHWASHERS
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
Water supply and drain location.

8 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
Custom Panel
PANEL READY
For panel ready models, a custom door panel and handle
must be provided. Typical panel dimensions are based on a
235/8"(600) opening width and 341/2"(876) nished height,
with a minimum 4" (102) toe kick and 1/8"(3) reveals. For all
other opening widths, the panel should be 1/4"(6) less than
the opening to achieve minimum reveals. Panel dimensions
must be adjusted accordingly for all other installations.
Refer to the chart and illustration below for panel dimen-
sions and requirements.
Finish all sides of the custom panel. They may be visible
when the door is open.
PANEL READY
PANEL DIMENSIONS W H
Custom Panel 233/8"(594) 301/8"(765)
PANEL REQUIREMENTS
Max Weight (including handle) 20 lb (9 kg)
Min Thickness 3/4"(19)
W
H
Panel dimensions.

askona.com/specs | 9
ASKO DISHWASHERS

10 | Asko Customer Care 800.222.7820
