Asko D1706 User manual

The ASKO way
2
We are aware that our environmental
footprint will affect our future. It’s essential
that we make informed choices and take
their green consequences into account. We
are proud to say that commitment to the
environment has traditionally been an
important part of ASKO’s ethos. Perhaps
because the factories have always had nature
on their doorstep.
Today ASKO is a leader in environmental
responsibility. We do much more than make
water and energy efficient appliances. Much
more than having the intelligent technology
that automatically selects the minimum
amount of water needed.
For us it’s not about how much we use, but
how little we waste. By adhering to stringent
manufacturing standards we keep our
wastage to a minimum; in production, in use
and at the end of the life cycle. In fact, all our
machines are marked for recycling. This has
awarded us with the ISO14001
Environmental Accreditation which ensures
that ASKO’s products are ecologically aware
from the cradle to the grave.
So when you choose to purchase an ASKO
appliance for its design and functions, we can
promise many years of dependable service.
And as your ASKO toils away, year after year,
you can relax in the certain knowledge that
your choice is environmentally responsible.

3

ASKO offers practical, integrated solutions in
the laundry. Don't let the fact that they are
hidden fool you. In fact, you are looking at
your new best friends in the laundry.
The pull-out shelf with an integrated basket
can be used for extra bench space or for
folding and sorting garments in the shrinking
laundries of modern homes.
The Hidden Helper ironing board is a simple,
yet well considered solution. It's always
readily available, but easy to hide away when
not in use.
The spacious pedestal drawer is made of
steel for durability, in true ASKO tradition. It
has been designed to look seamless when
matched with our washer or dryer and will
not only act as a useful storage area, but also
makes loading and unloading the machine
simple.
Each of the ASKO Hidden Helpers is
integrated with the washing machine and
tumble dryer, preserving the chosen design
theme. All handles have been removed in
favour of a push-pull solution.
Hidden Helpers
3b

3a

4
Make it simple.
Scandinavian design is unique, with its own
aesthetic expression and appearance. It is
pure, simple and minimalist. It is also
extremely functional and ergonomic.
ASKO's new range of laundry appliances
focuses on these characteristics. Being
coordinated and integrated these products
are simple and easy to use. The In Line
control panel displays what the machine is
doing, and program changes can be made by
one simple turn of the control knob.

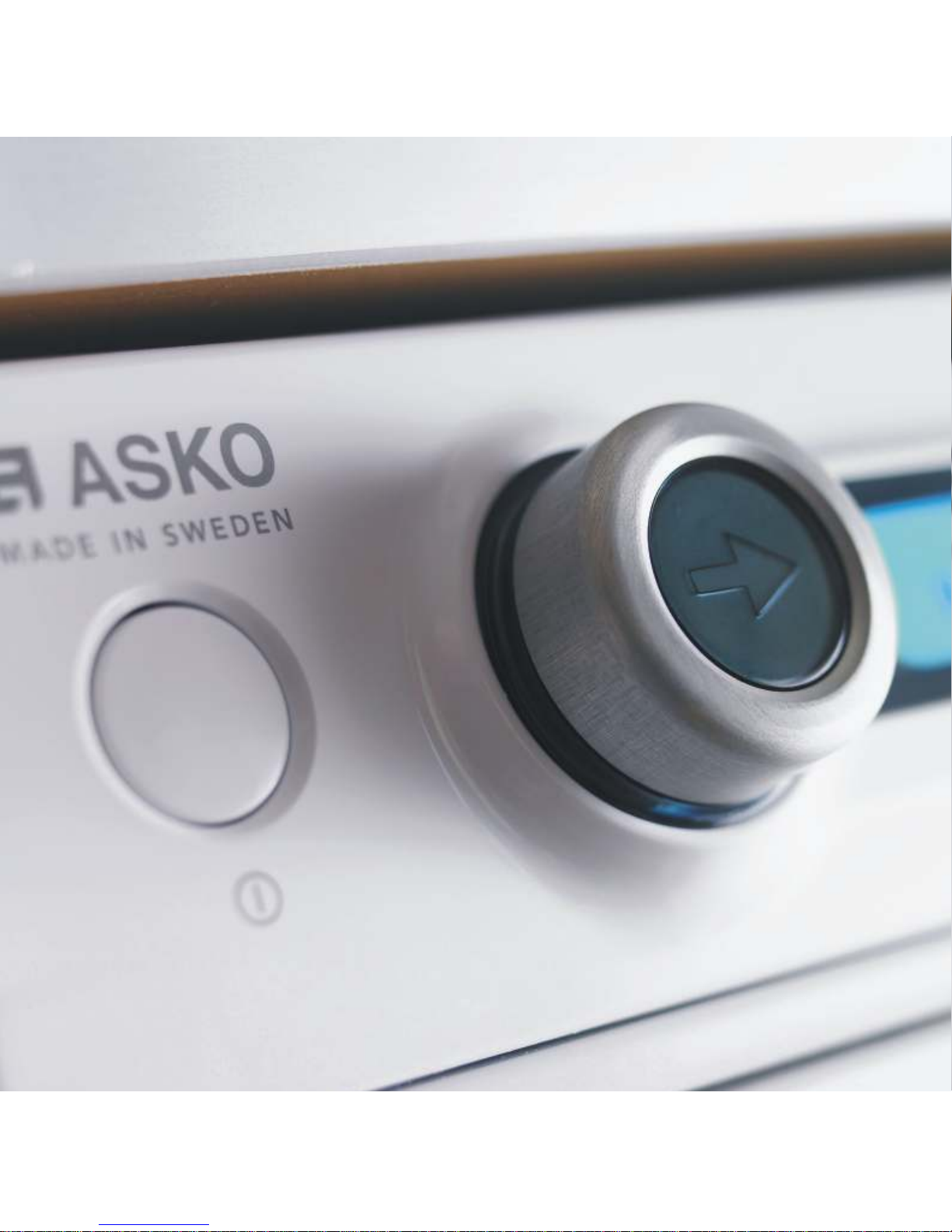

The tactile feel and durability of the control
knob, communicates the quality of the
product. This multifunctional single control
simplifies the complexity of the machines
operation.

5

6
Make it disappear.
We are proud to present the world's most
coordinated range of laundry appliances.

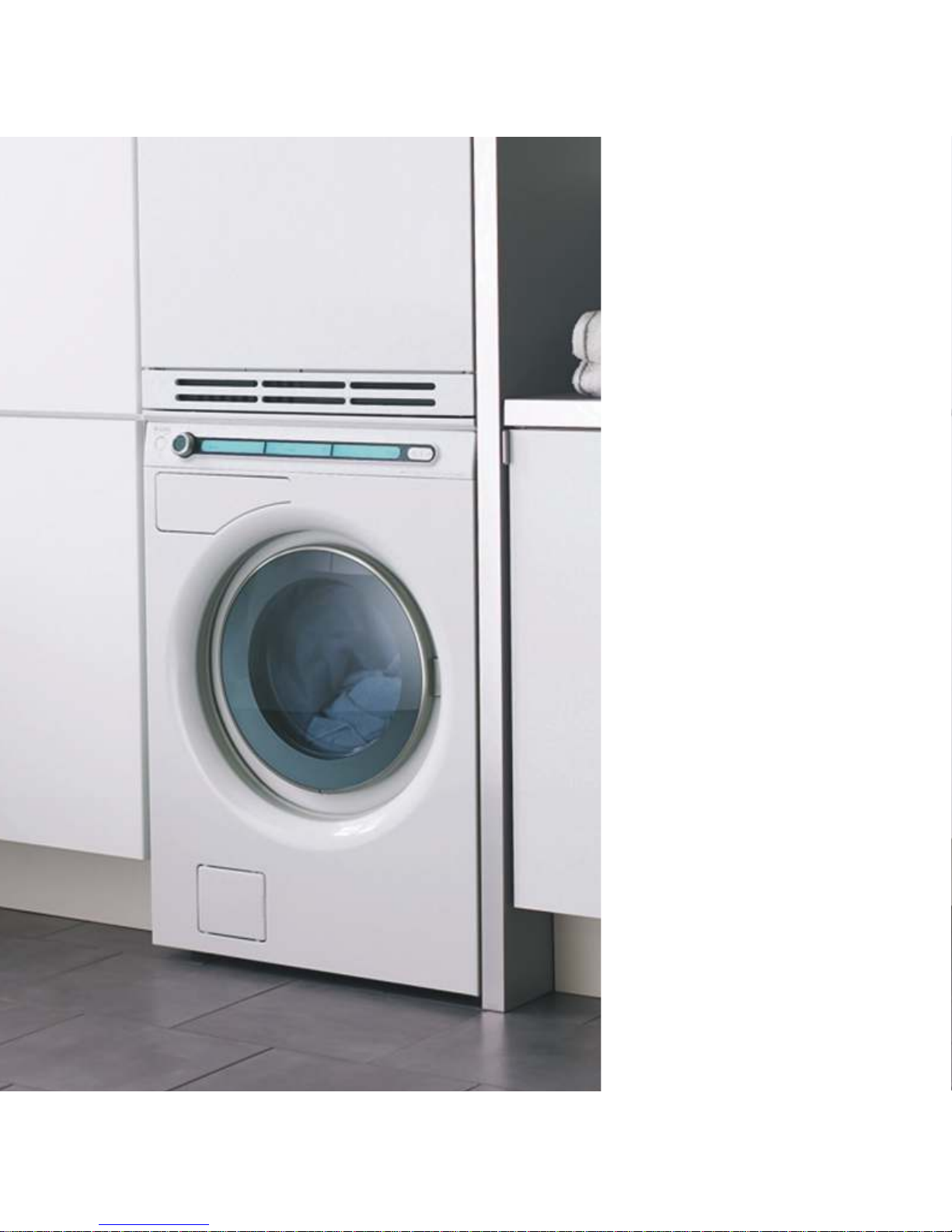

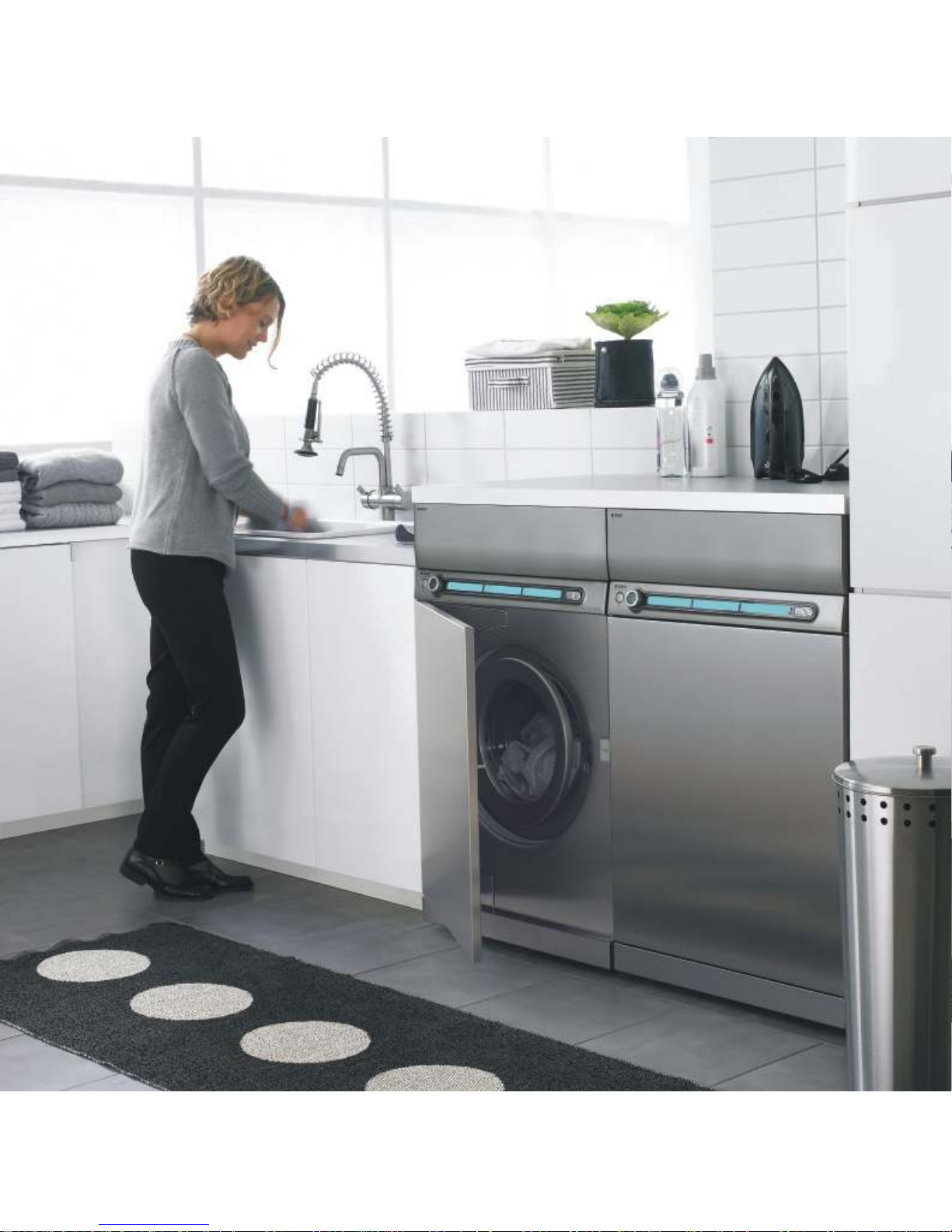

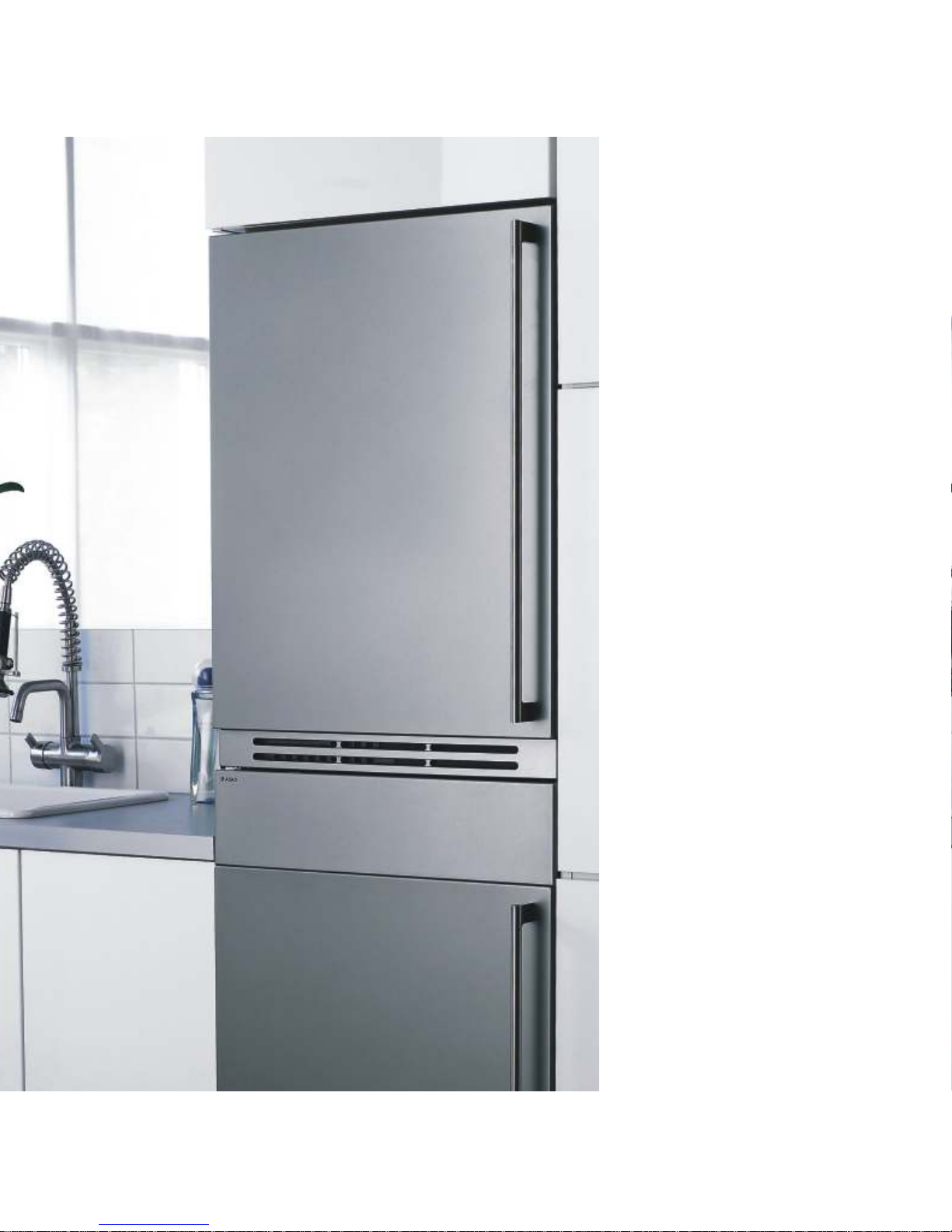

By integrating the appliances with your
cabinetry the laundry will become a pleasant
and harmonious environment in which to
work. But it also gives you the freedom of
putting your laundry appliances into any part
of the home.

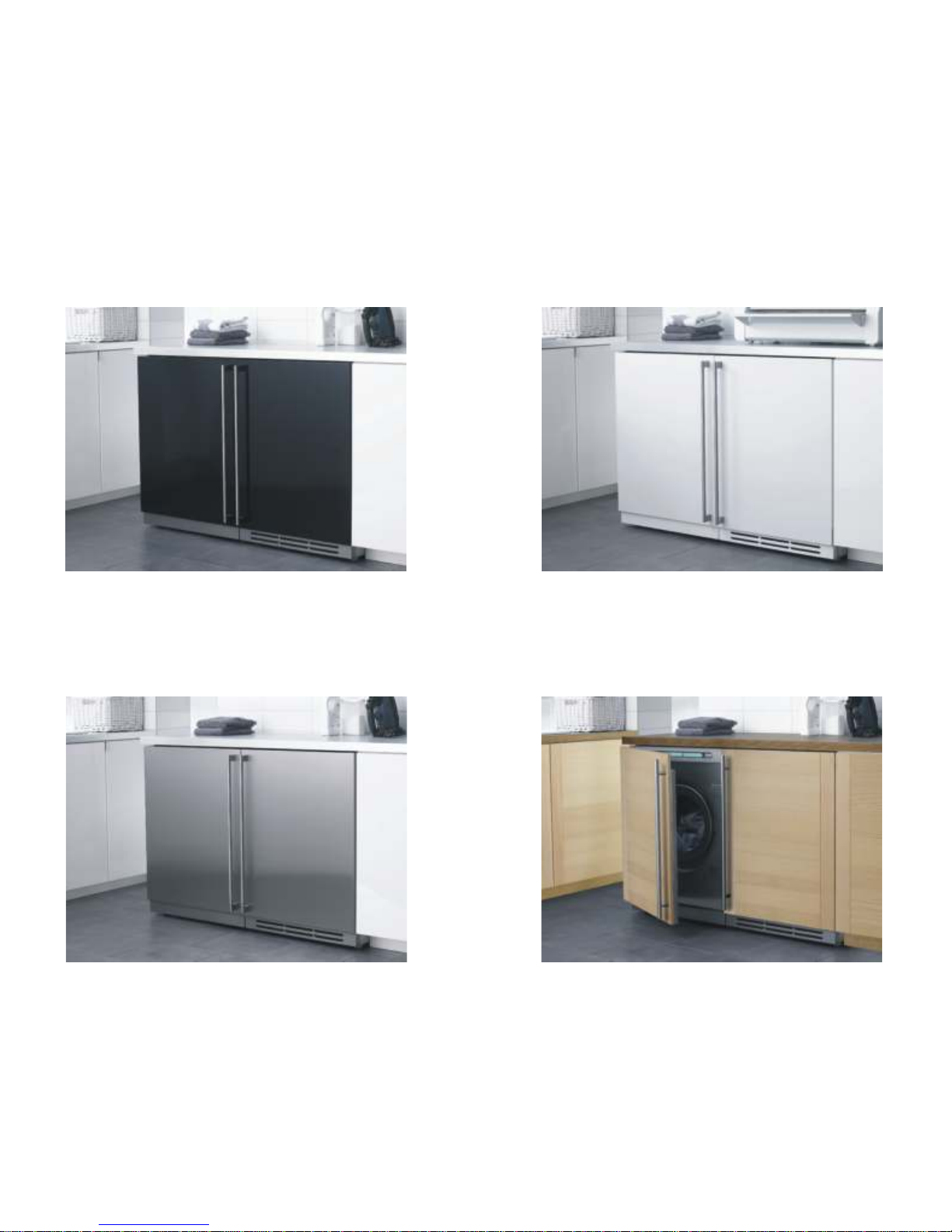

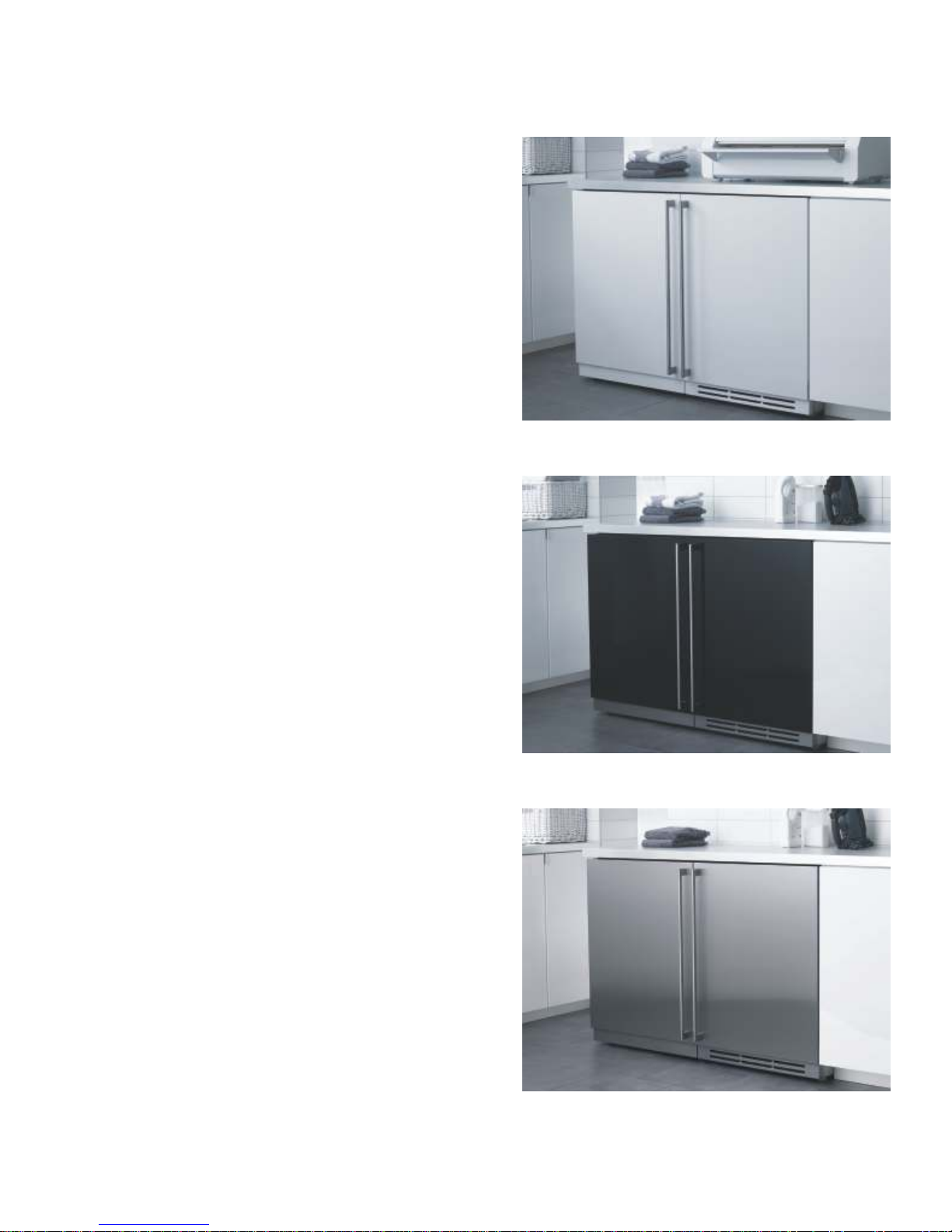

When buying an ASKO washing machine or
tumble dryer you can choose between
different doors: stainless steel, white, black or
integrate the door to match your cabinetry.
That's what we call flexibility.

7

8
When our designers adopted the motto 'less
is more' it was the beginning of the simplicity
of ASKO designs. ASKO became the first
whitegoods manufacturer to apply this
principle to the laundry and kitchen.
The new laundry solutions do more than
offer form and function. They adhere to
ASKO's core values; caring for the
environment, offering you durability and
Scandinavian design. In short, ASKO's
laundry solutions will cater for your every
need.
The age of change in the laundry.

9

10
W6903
Front Loading Washing Machine with
concealed door.
Models:
W6903Fi - Customize with your own
door or an ASKO Door
W6903SS - TouchProof™ stainless steel as
depicted
W6903WH - White
Programs:
- 13 Programs
Options:
- Pre-soak
- Anti-crease
- High water level
- Rinse: Economy, Normal, Super
- Temperature: cold or 30º- 95º C
- Spin speed: No drain, 0 - 2000 rpm
- Delayed start: 1 - 24 hours
Capacity:
- 6kg wash
Environment:
- 4 Star Water Rating
- 4 Star Energy Rating
- All components marked for future recycling
- ISO14001-Envrionmentally Certified
Technology:
- SensiSave™
- Temperature sensor
- Balance control
Construction:
- Quattro™
- SmartSeal™ no rubber bellows
- 307mm door opening for easy access
- Stainless steel inner/outer drum
- Quiet Induction Motor
- Induction motor without carbon brushes
- ISO 9001 - certified production
Convenience:
- Logic Line Control panel with easy to use dial
- Easy to read display with all program
information and status
- Program memory
- Audible end signal
- Delayed start
- Door can be opened during wash
Safety:
- 7 Step Aqua Safety System™
- Kidsafe Controls™

11
W6983
Front Loading Washer
W6983 all features the same as the W6903
except for the following
- Only available in white
- 1800 Rpm maximum spin speed
- No side opening door
- ASKO's new Heat Safe Door available on
W6983
Key Features:
Logic Line Control
- ASKO's simple one dial operation. A new
machine can be daunting in the beginning so
ASKO has simplified it by having a clear and easy
to read screen combined with a durable steel
control dial.
Quattro™
- ASKO's unique construction of mounting the
washer onto 4 shock absorbers which stop the
machine from severe vibration or moving from
its original location.

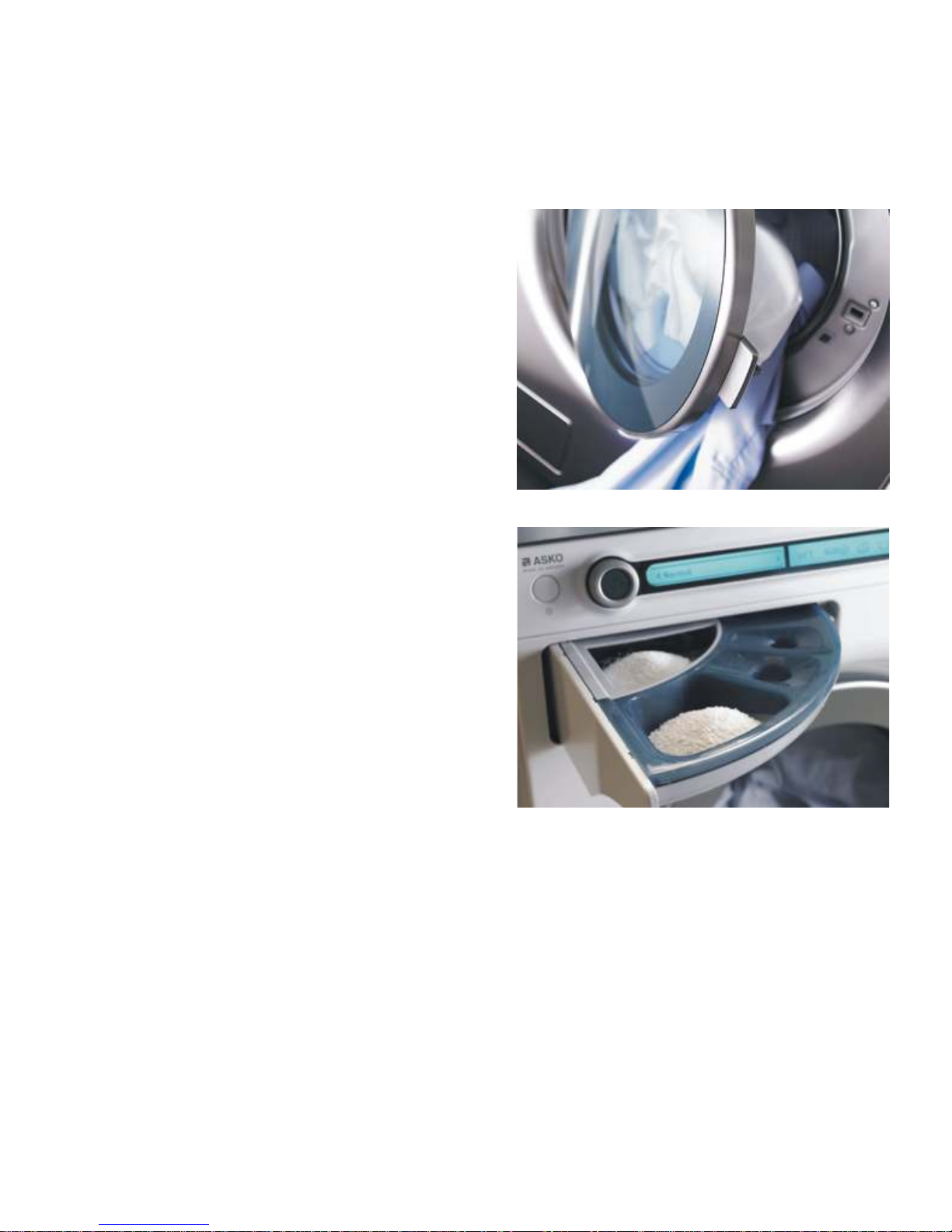

SmartSeal™
- ASKO is the only machine not to have rubber
bellows, which means no more cleaning of
unsightly rubber seals. SmartSeal™ also makes
the machine easier to load and unload as you
don't have to drag the clothes through wet
rubber bellows.
Steel Construction
- ASKO has reduced the use of plastic in our
machines in favour of more durable steel. In
addition to that, we quality test everything
before it leaves our factory.
Stainless Steel inner and outer drums
- We use stainless steel on both drums quite
simply because it is more durable. Secondly it is
much more hygienic than plastic, which many of
our competitors use.

T793C
Sensor condenser dryer
Models:T793CFI - Fully Integrated,depicted
withTouchProof™ stainless steel door
T793CSS - TouchProof™ stainless steel
door
T793CWH - White door
Programs:
- Auto Extra dry
- Auto Dry
- Auto Normal dry
- Auto Iron dry
- Timed drying 5 - 180 min
- Airing program 5 - 180 min
Options:
- Temperatures: low/normal
- Anti-crease: 60/120/180 min
- Garment cool down
- Delayed start: 1 - 24 hours
Capacity:
- 111 litre drum /6kg
Environment:
- 2 star energy rating
- All components marked for future recycling
- ISO14001-Envrionmentally Certified
Technology:
- SensiDry™
- Temperature sensor
Construction:
- Butterfly™: non-stop tumbling
- Drum in Stainless steel
- Ball bearing suspension
- Double lint filter
- Cleanable fan
- ISO 9001 - certified production
Convenience:
- Display with program information and
remaining time indication
- Internal light
- Audible end signal
Safety:
- KidSafe™
12

DC7181
Drying Cabinet "The Internal Clothes Line”
Colour: White, titanium
Height: 184 cm
Programs:
- Normal 0 - 4 hours
- Medium 0 - 4 hours
- Low 0 - 4 hours
Capacity:
- Dehumidification capacity: 17.5 g/min
- Total drying length: 16 m
- Drying time, Normal, 120 min
- Airing capacity: 180 m3/h
Environment:
- Energy consumption:
Normal 0.8 kWh/kg
- Marked for recycling
- ISO 14001 certified production
Comfort:
- Folding hangers for extra room
- Slide out hangers make loading and unloading
easy
- Shoe rack
- Door hanger
- Glove hanger
- Variable timer up to 4 hours
- Door can be hung left or right
- 1 metre of venting duct included
Please Note:
The drying cabinet is a vented product. Please read instruction
manual before building any cabinetry.
13

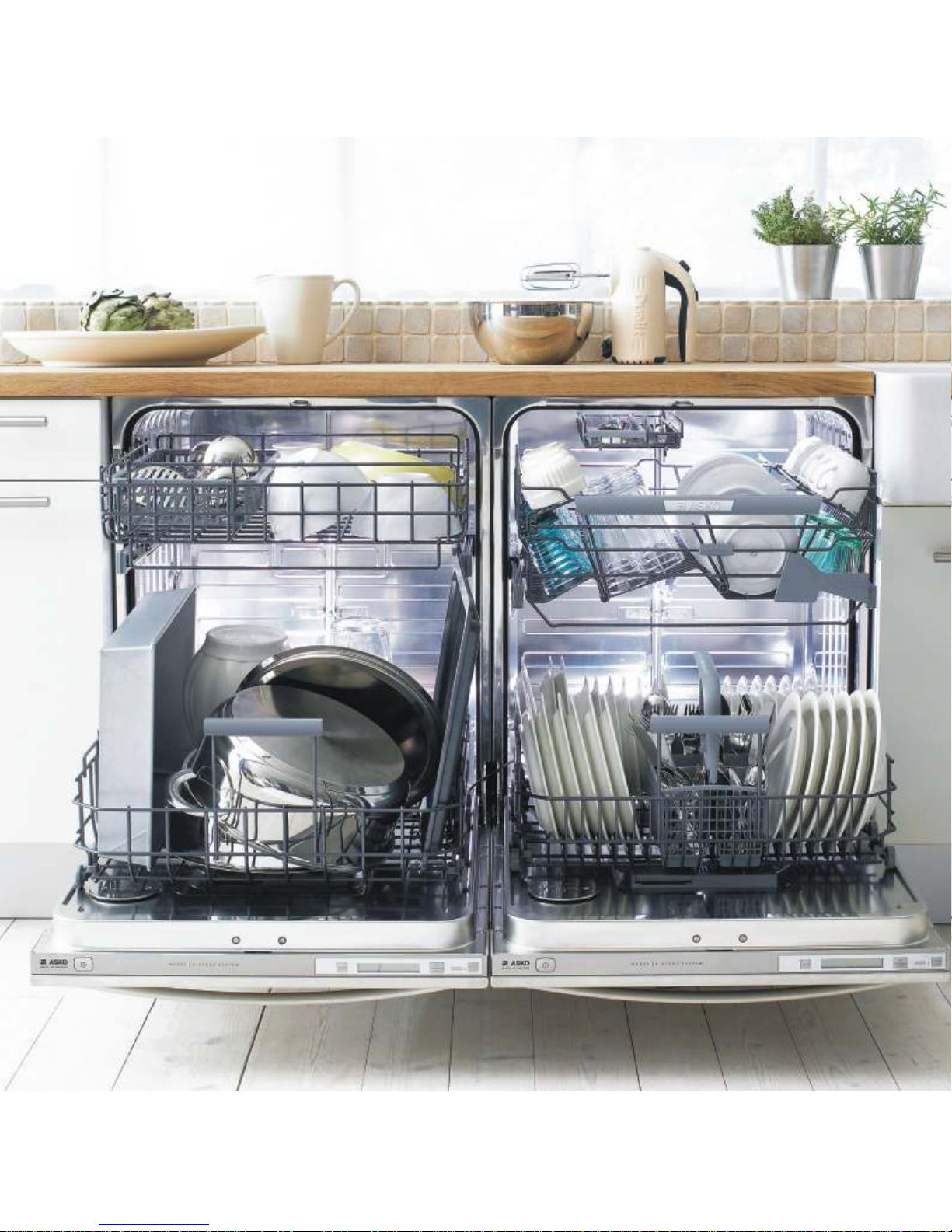

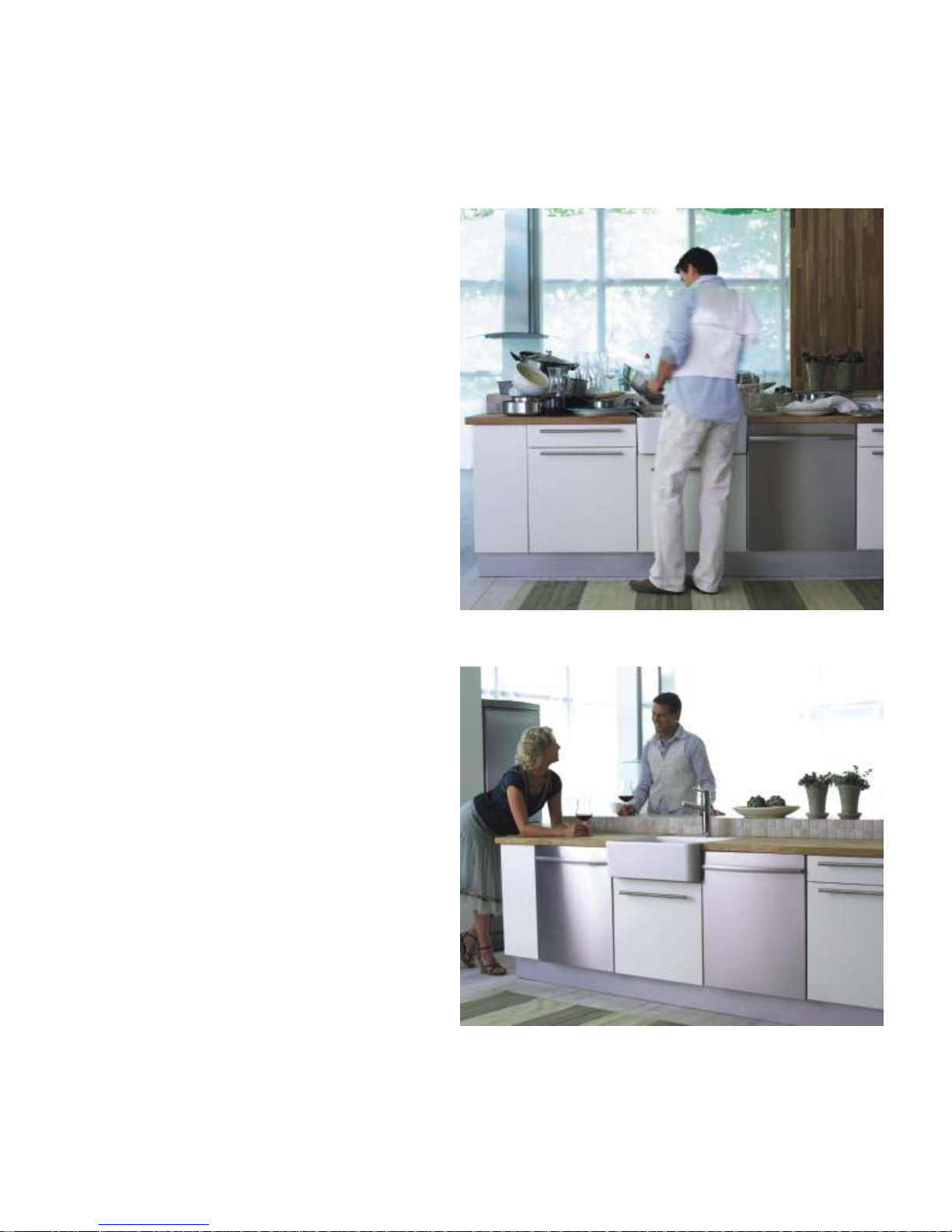

Imagine never having to wash up by hand
again. Then think of the ASKO DuoPro™.
The before and after dinner dishwasher is
here. With this combination you can wash
just about anything. What you can’t fit in one,
you can fit in the other. For instance, the pre-
dinner dishwasher has 38cm in the lower
basket to take everything you used to have
to wash by hand; saucepans, frying pans, large
baking trays, casseroles and other large
utensils.
While the after-dinner dishwasher has an
extra 4cm in the top basket for your long-
stemmed wine glasses and champagne flutes.
Together they can take up to 22 place
settings.
You couldn’t wish for a better combination.
And at 86cm high they complement today’s
trend in higher bench tops. You can also
integrate the doors to match the rest of your
kitchen cabinetry.
The ASKO DuoPro™ combination brings a
new dimension to the kitchen.
The DuoPro™
The before and
after dinner dishwasher
14

15

D3530XL Fully Integrated FlexiRacks™
Depicted with Optional ASKO Upper basket
Door, can also have your own - Dividable cup shelf
cabinetry door attached - Foldable glass support rack
Program: - Height-adjustable wine shelf
- Adjustable pin racks
- Auto wash
- China guard
- Heavy wash
- Knife basket
- Normal wash
- Knife Stop/knife stand
- Mix wash
- ½ Load Upper Rack Lower basket
- ½ Load Lower Rack - Foldable plate rack
- Delicate wash - Handle
- Quick wash - 2 Cutlery baskets with lids
- Rinse & Hold Cleaning System:
- Rinse & Dry - PowerZone™ Pots-and-Pans
Program options: - PowerZone™ Cutlery
- Delayed start 0.5 - 24hours - AquaLevel™ Sensor
- Express - SensiClean™ Sensor
- SuperRinse™ - 8Spray™
- CoolTouch™ Drying System:
- 9 Temperatures: - Turbo Drying
Cold/30/40/45/50/55/60/70/75ºC - SensiDry™ Sensor
- Drying: (short/normal/extra) Simplicity/Comfort:
Capacity: - Read out display/LCD
- XL 86cm Height - Audible end signal
- 4cm extra height in the upper - Interior Light
basket compared to an ASKO - Rinse-aid indicator
standard model - Fault-tracing/fault indication
- 14 place settings - Noise level: 46 dB(A)
Consumption, Normal Wash: Safety:
- 4 star water rating - SteamSafe™
- 3 star energy rating - AquaDetect™ Sensor
- Detergent: 25g
D3530
D3730
D3730XL Fully Integrated FlexiRacks™
Depicted with Optional ASKO Upper basket
Door, can also have your own - Flat basket with utensil basket
cabinetry door attached Lower basket
Programs: - Flat basket with:
- Heavy wash One dividable & foldable plate
- Normal wash rack, two dividable & foldable
- Delicate wash Maxi glass holders
- Quick wash Cleaning System:
- Sani - PowerZone™ Pots-and-Pans
- Rinse & Hold - AquaLevel™ Sensor
Programing options: - 7Spray™
- Delayed start 0.5 -24hours - SuperCleaningSystem™
- Express Drying System:
- SuperRinse™ - Turbo Drying
- CoolTouch™ Simplicity/Comfort:
- Drying (short, normal, extra) - Read out display/LCD
- 9 Temperatures: - Audible end signal
Cold/30/40/50/55/60/65/70/75º C - Interior Light
Capacity: - Rinse-aid indicator
- XL 86cm Height - Fault-tracing/fault indication
- 4cm extra height in the upper - Noise level: 46 dB(A)
basket compared to an ASKO Safety:
standard model - KidSafe™
- 8 place settings - SteamSafe™
Consumption, Normal Wash: - AquaDetect™ Sensor
- Water: 11 litres - AquaSafe™
- Detergent: 25g
Total place settings - 22. 15b

15a

Hidden helpers, doors and accessories With an individual door, your washing machine and tumble dryer
blend nicely into the environment. Choose between stainless steel,
white or black.
16
A Bar Door - Black Article no: 8080696-86 A Bar Door - White Article no: 8080696-0
TouchProof Stainless Steel Door - Article no: 8080696-91 This image shows an ASKO washer and dryer with a
customer’s own doors matching existing cabinetry.
