CONTENTS

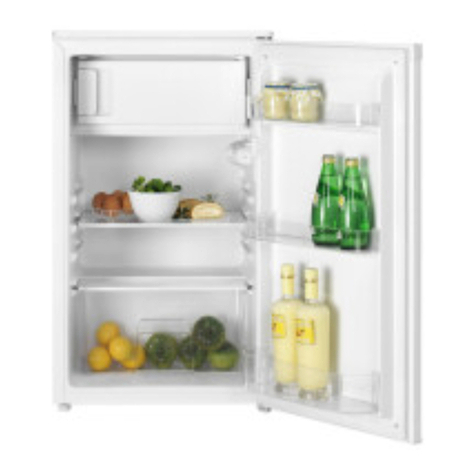

Parts and Features
Because of product improvement, your refrigerator
may vary from this user manual
Please read this users operation manual before using.
7
Troubleshooting 9
Changing the Light Bulb
Warnings 10
Important Disposal Instructions 10
R600a Refrigerant
11

2
Shelf in freezer compartment
Thermostat
Wire shelves
Crisper bin
Compressor
Adjustable levelling foot
Door bottle rack
Parts and FeaturesParts and Features

Instructions for InstallationInstructions for Installation
For optimum performance ensure correct ventilation space around the refrigerator.
3.
Avoid direct sunlight, heat sources and very moist or humid places. Do not install this
refrigerator near flammable, combustible or explosive materials.
Install the refrigerator on a strong, level floor. Do not install on soft materials
such as foam or plastic.
5.
The appliance should be left for 2 hours after installation before it is turned
on, in order to allow the refrigerant to settle.
6.
4.
Do not tilt the refrigerator more than 45.
1.
2.
To ensure the cabinet does not become damaged,
do not apply force to any part of the refrigerator
such as the condenser, the door and its handle.
Damage to the cabinet will result in poor
refrigeration performance.
Force
Avoid installing the appliance in very cold conditions as the performance of the
appliance will be impaired.
7.

1.
Ensure the voltage in the power socket is the same as the rated voltage
of this appliance.

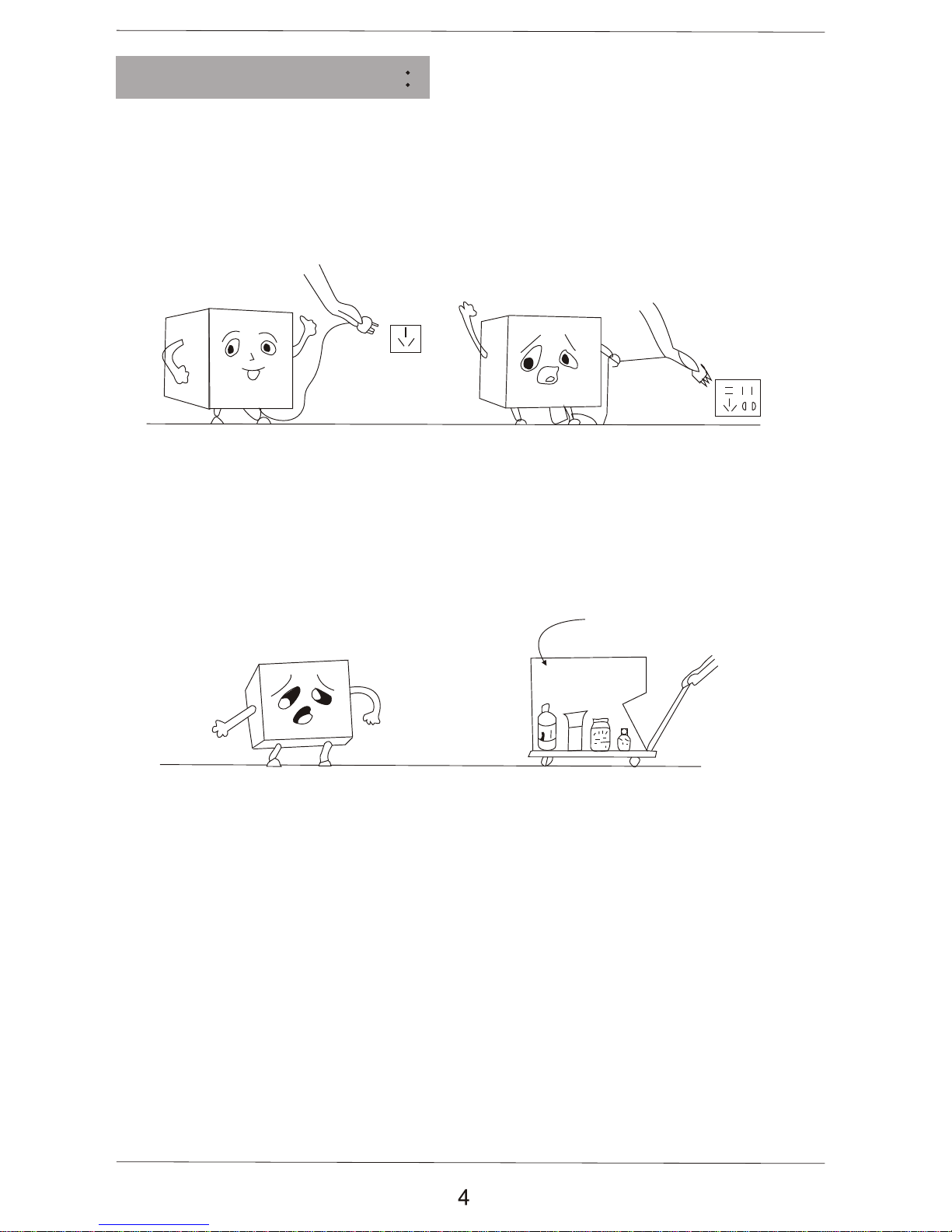

Cautions for SafetyCautions for Safety
Do not splash water on to the refrigerator, this may cause a malfunction
or electric shock.
Do not store flammable materials such as petrol, LP gas and glue
etc, inside the refrigerator.
3.
4.
2.
The power plug should have its own separate outlet socket in order to
prevent the outlet socket from being overloaded by other plugs.
Chemical Material
If the power supply cord is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified persons.
5.
Under no circumstances should you attempt to repair the machine
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local Service Centre.
6.

CautionsCautions
When defrosting, never use any sharp or metallic objects to remove the frost /
ice on the surface of the evaporator as this will damage the evaporator.
Do not store bottled beverages in the freezer as liquids may expand during
freezing causing the bottle to break and damage the appliance.
If the power supply is turned off for any reason, wait ten minutes before
switching the appliance on again.
The refrigerator compartment will defrost automatically. Defrost the freezer
compartment whenever the layer of frost on the surface reaches 3 or 4 mm.
When defrosting, remove all foods, unplug the appliance and open the door.
After the frost has melted, discard the water and dry the interior of the
refrigerator. The refrigerator can then be restarted.
4.

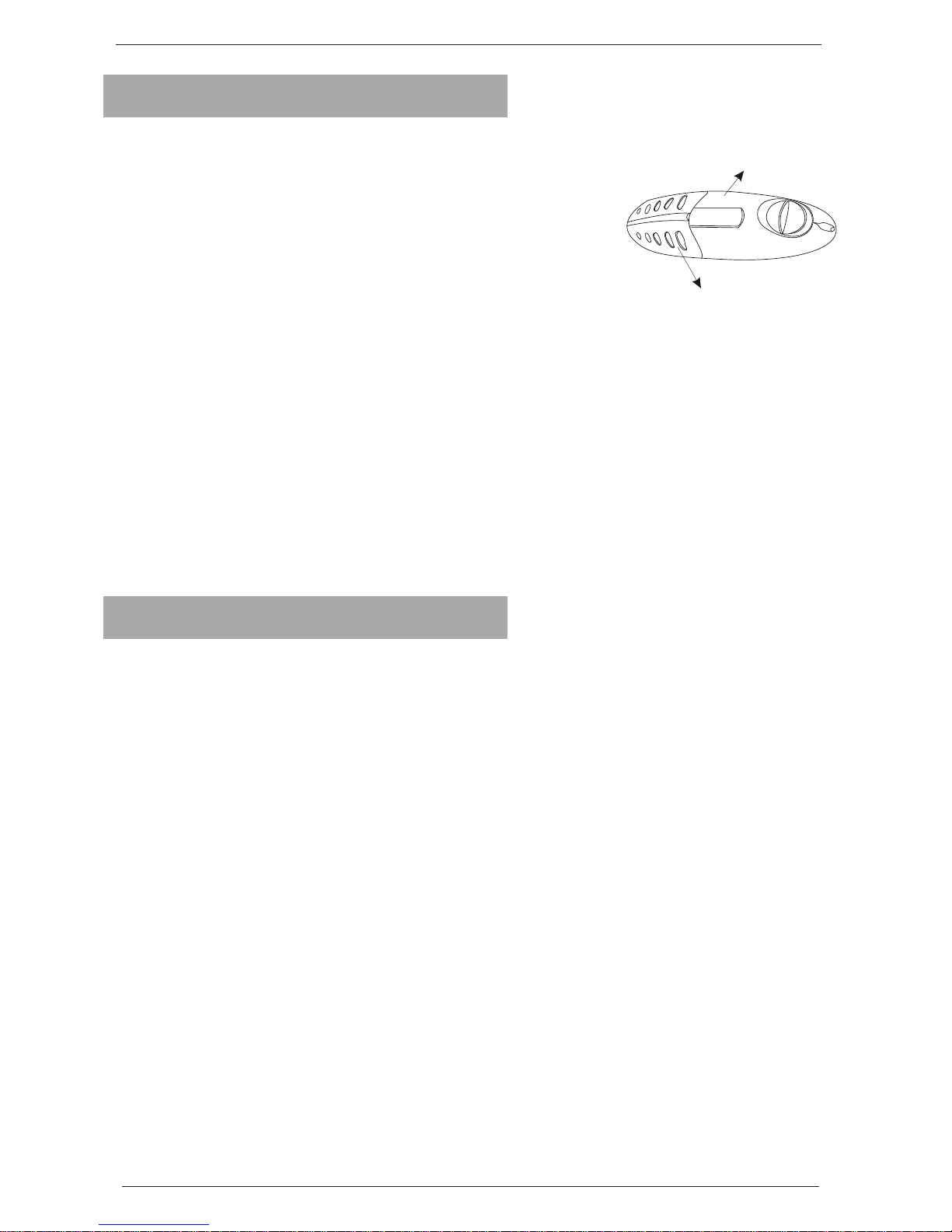

The temperature of the refrigerator can be adjusted by turning the
thermostatic dial. Setting of the thermostat dial at 3~4 is the most suitable
for general operation. The higher the number, the colder the temperature.
Do not overload the refrigerator. Where possible
open the door less often in order to maintain the
temperature of the refrigerator and save electricity.
3.
OperationOperation
2.
When operating the refrigerator for the first time, set the thermostat dial at 3,
connect to the electricity and turn it on without loading any food.
Then set the thermostat
dial to the desired setting and place foods into the refrigerator.
Wait for the
appliance to become cold, usually this takes 2 or 3 hours.
1.

Cleaning and Maintenance:Cleaning and Maintenance:
Detergent
When cleaning the refrigerator, first disconnect the appliance from the power
supply by removing the plug. Wipe the appliance carefully with a cloth and
neutral cleaning agent, then wipe it clean with fresh water.
1.
Never use acids, chemical solutions, thinners or the like to clean the refrigerator
because they may damage the paint work and plastic components of the refrigerator.
2.

Changing the Light Bulb:Changing the Light Bulb:
1. Hold the lamp cover and push toward the inside of the cabinet.
2. Remove the lamp cover.
3. Unscrew the bulb and screw in a new 10W bulb.
4. Hold the lamp cover and put the hook of the lamp cover to click into the thermostat box.
5. Pull the lamp cover forward to click into the thermostat box.
4
5
6
7
Thermostat
Lamp cover
The refrigerator has the capability of opening the door from either the left or the right side.
The unit is delivered to you with the door opening from the left side. To change the opening
direction, please follow these instructions.
Note: Before reversing the door, unplug the appliance from the mains or disconnect the
electrical power supply.
Reversing the Door:
7

1. Remove the screws (1) holding the top panel (2) to the unit. Remove the top panel.
2. Remove the two screws (3) holding the top hinge (4) (right side) to the frame.
Remove the top hinge (4).
3. Lift the door off the middle hinge pin and place it on a non-scratching surface.
4. Remove the two screws (5) holding the middle hinge (6). Remove the middle hinge (6).
5. Lift the lower door off the bottom hinge pin and place it on a non-scratching surface.
6. Remove the two screws (7) holding the bottom hinge (8). Remove the bottom hinge (8).
7. Remove the left front leg (9) and transfer it to the right side.
8. Before replacing the bottom hinge (8), remove the hinge pin (10) and reverse the direction
of the hinge (8). Reassemble the bottom hinge (8) on the left hand side using the two screws (7).
9. Refit the hinge pin (10) into the bottom hinge (8).
10. Lower the door onto the bottom hinge pin (10).
11. While holding the lower door in the closed position, reassemblethe middle hinge (6) on the
left hand side using the two screws (5). Do not tighten the screws (5) until the top of the lower
door is level with the counter top.
12. Before replacing the upper hinge (4), remove the hinge pin (11) and reverse the
direction of the hinge (4). Refit the hinge pin (11) into the upper hinge (4).
13. Lower the upper door onto the middle hinge pin.
14. While holding the upper door in the closed position, reassemblethe upper hinge (4) on the
left hand side using the two screws (3). Do not tighten the screws (3) until the top of the upper
door is level with the counter top.
15. Refit the top panel (2) using the screws (1).
8
Door opening from left side fig.1 Door opening from right side fig.2

If the refrigerator is not cool enough ensure that:
The thermostat is at the correct setting.
There is enough space around the refrigerator.
The doors are not opened too frequently and for too long.
The refrigerator is not overloaded and hot food has not been placed in the refrigerator.
The refrigerator is not in direct sunlight or placed near a heat source.
2.
If the food in the refrigerator is freezing ensure that:
The thermostat is at the correct setting.
There is not too much food in the refrigerator.
When the refrigerator operates too noisily ensure that:
The refrigerator is properly leveled.
The refrigerator is not touching objects around it.
The containers or solid packages stored inside are not touching each other.
During periods of high humidity, moisture may form on the surfaces of
the refrigerator. This is not a fault and maybe wiped away.
If after checking the above suggestions your refrigerator is still not
functioning properly, please contact Customer Services without delay.
Note:Note:
3.
4.
When the refrigerator does not operate ensure that:
The electric power is supplied and the voltage is normal.
The fuse or circuit breaker is not out or tripped.
The power plug is plugged in firmly in the outlet socket.
blown
1.
Troubleshooting:
9

This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Keep ventilation openings, in the appliance enclosure or in the built-in structure
clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
Warnings:
Important Disposal Instructions:
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for your product
and packaging materials, this will help conserve natural resourses
and ensure that it is recycled in a manner that protects health and the
environment.
You must dispose of this product and its packaging according to local laws
and regulations. Because this product contains electronic components and
sometimes batteries, the product and its accessories must be disposed of
separately from household waste when the product reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The product should be taken to your local collection point for recycling.
10
Remove the plug and ensure that any locks or catches are removed, to
prevent young children being trapped inside.

This appliance may contain a small quantity of environmentally friendly, but
flammable, non-synthetic R600a refrigerant:
Upon opening and installing your product, check that the tubing of the refrigerant
circuit is not damaged during transportation.
Leaking refrigerant may cause eye injuries or ignite.
The room for installing appliance must be at least 1m per 8g of refrigerant.
The amount of refrigerant in the appliance can be found on the rating plate the
back of the unit.
Keep ventilation openings in the appliance enclosure or in thebuilt-in structure
cleaer of obstruction.
Do not damage the refrigeration circuit.
If you are unsure of the refrigerant type check the rating plate on the back of the unit.
11
R600a Refrigerant:
