ASROCK 960GC-GS FX User manual

1
960GC-GS FX
User Manual
Version 1.0
Published June 2013
Copyright©2013 ASRock INC. All rights reserved.

2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ofcers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in Cali-
fornia, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents ..................................................................... 5
1.2 Specications............................................................................. 6
1.3 Unique Features ........................................................................ 9
1.4 Motherboard Layout ................................................................. 12

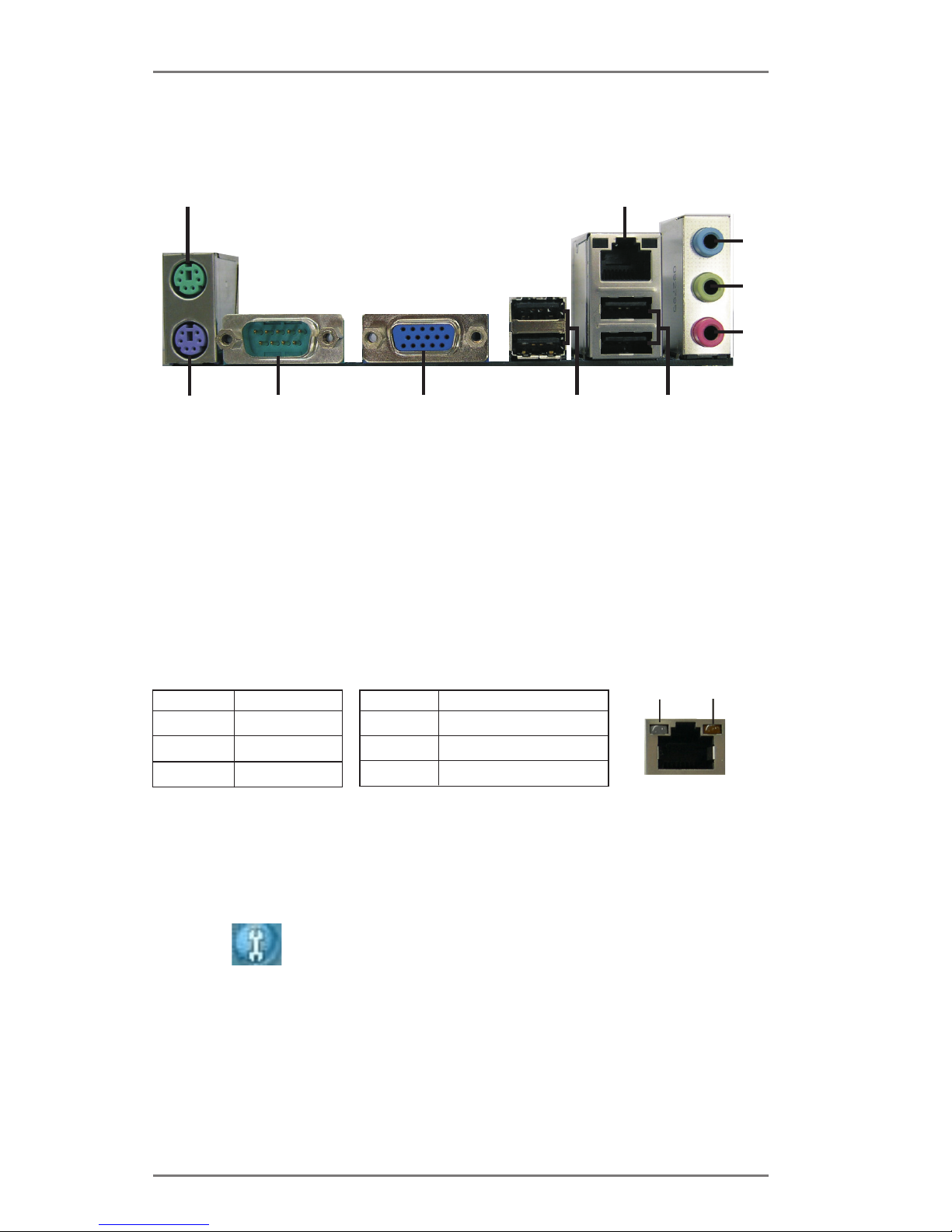

1.5 I/O Panel .................................................................................. 13
2. Installation .................................................................. 14
Pre-installation Precautions ................................................................ 14
2.1 CPU Installation ......................................................................... 15
2.2 Installation of CPU Fan and Heatsink ...................................... 15

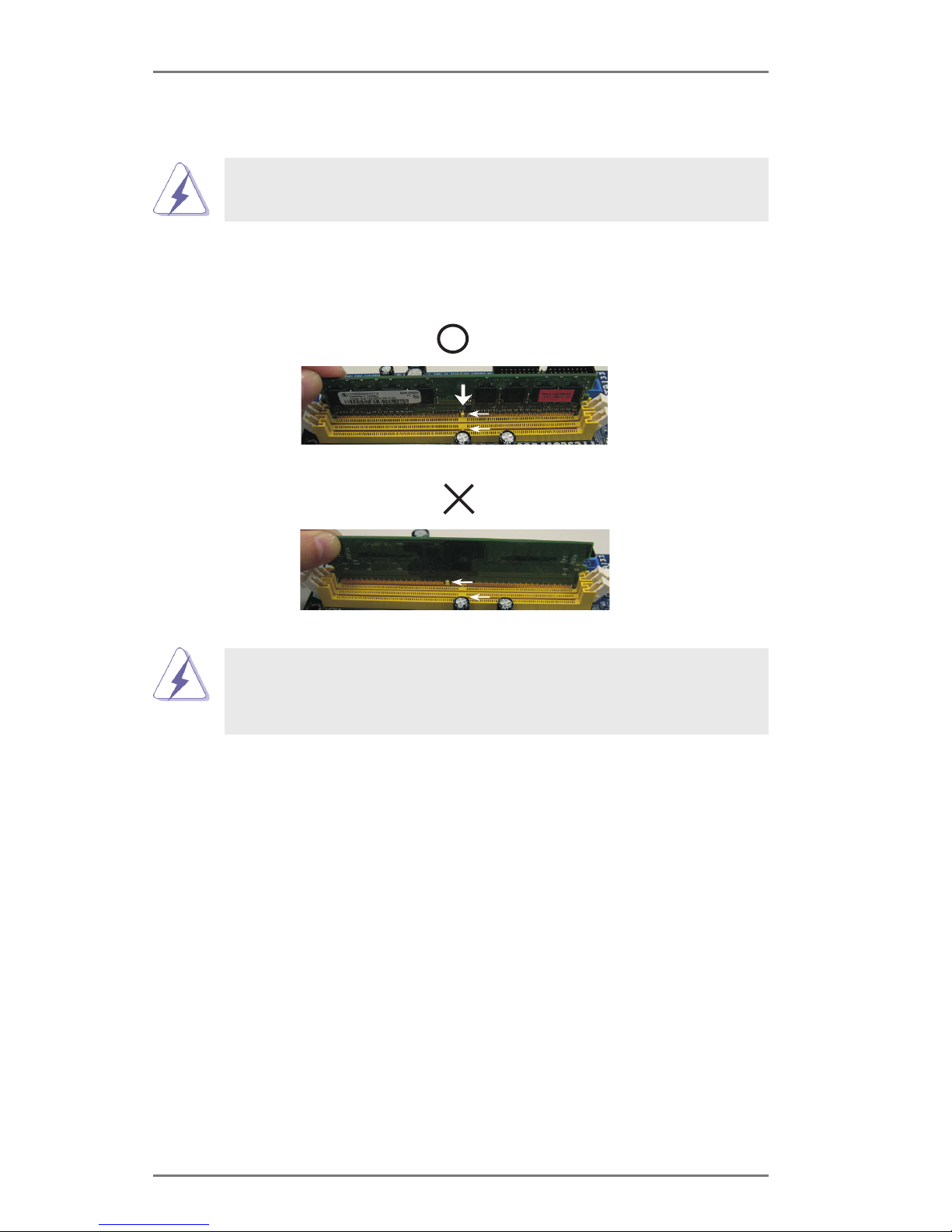

2.3 Installation of Memory Modules (DIMM) .................................... 16
2.4 Expansion Slots (PCI and PCI Express Slots)........................... 18

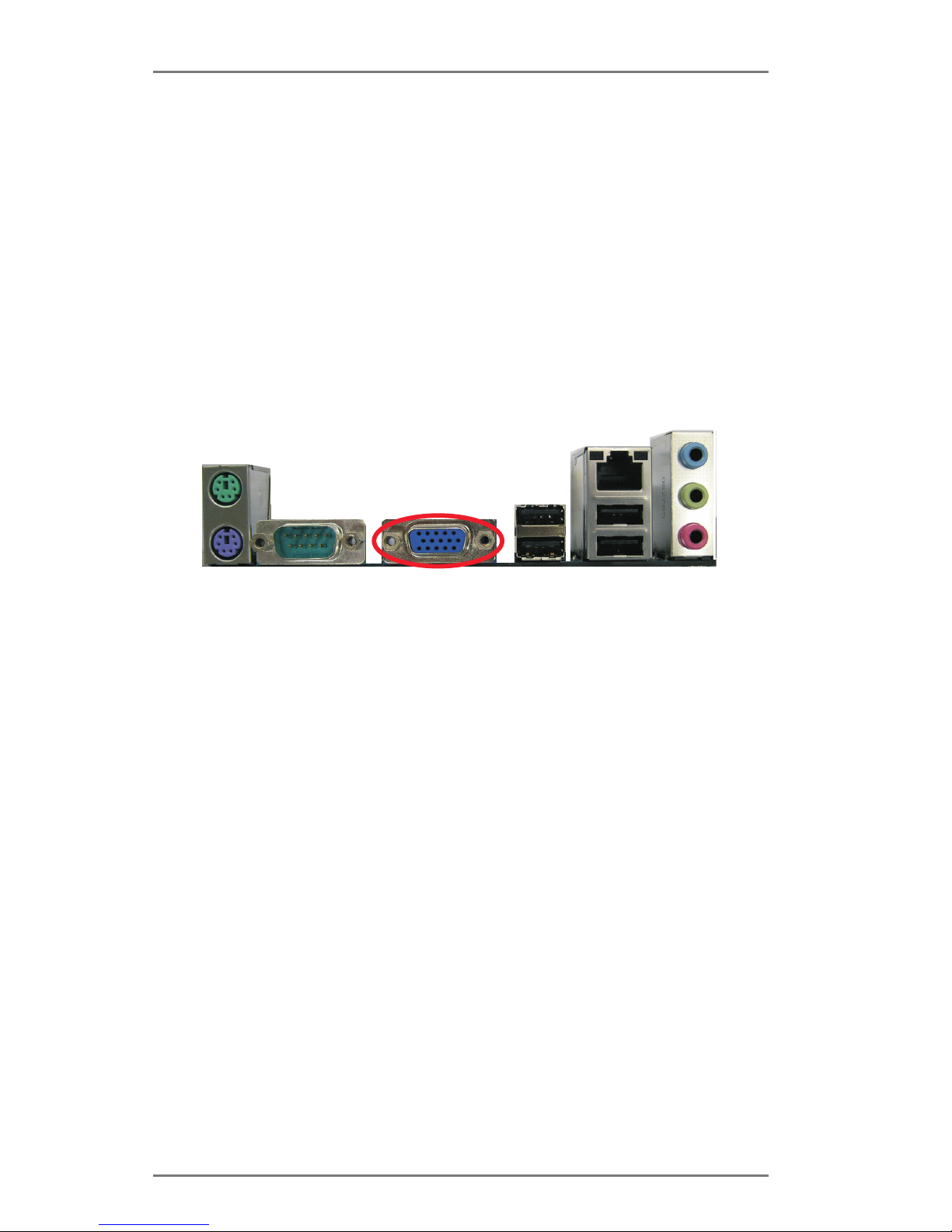

2.5 Multi Monitor Feature................................................................. 19
2.6 Jumpers Setup........................................................................... 21
2.7 Onboard Headers and Connectors ....................................... 22
2.8 Serial ATA2 (SATA2) Hard Disks Installation ......................... 27
2.9 Hot Plug and Hot Swap Functions for Serial ATA2 (SATA2)
HDDs ........................................................................................ 27
2.10 Driver Installation Guide ............................................................ 28
2.11 Installing Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM
64-bit / XP / XP 64-bit With RAID Functions .............................. 28
2.11.1 Installing Windows®XP / XP 64-bit With RAID
Functions ....................................................................... 28
2.11.2 Installing Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit With RAID Functions................................ 29
2.12 Installing Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM
64-bit / XP / XP 64-bit Without RAID Functions ......................... 30
2.12.1 Installing Windows®XP / XP 64-bit Without RAID
Functions ....................................................................... 30
2.12.2 Installing Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit Without RAID Functions........................... 31
2.13 Untied Overclocking Technology ............................................ 31

4
3. BIOS SETUP UTILITY ................................................. 32
3.1 Introduction ................................................................................ 32
3.1.1 BIOS Menu Bar ............................................................... 32
3.1.2 Navigation Keys............................................................... 33
3.2 Main Screen............................................................................... 33
3.3 OC Tweaker Screen................................................................... 34
3.4 Advanced Screen ...................................................................... 38
3.4.1 CPU Conguration........................................................... 39
3.4.2 Chipset Conguration ...................................................... 40
3.4.3 ACPI Conguration.......................................................... 41
3.4.4 Storage Conguration...................................................... 43
3.4.5 PCIPnP Conguration...................................................... 44
3.4.6 Floppy Conguration ....................................................... 45
3.4.7 Super IO Conguration.................................................... 46
3.4.8 USB Conguration........................................................... 47
3.5 Hardware Health Event Monitoring Screen ............................... 48
3.6 Boot Screen ............................................................................... 49
3.6.1 Boot Settings Conguration............................................. 49
3.7 Security Screen ......................................................................... 50
3.8 Exit Screen ................................................................................ 51
4. Software Support ....................................................... 52
4.1 Install Operating System............................................................ 52
4.2 Support CD Information ............................................................. 52
4.2.1 Running Support CD ....................................................... 52
4.2.2 Drivers Menu ................................................................... 52
4.2.3 Utilities Menu ................................................................... 52
4.2.4 Contact Information ......................................................... 52

5
1. Introduction
Thank you for purchasing ASRock 960GC-GS FX motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modications of this manual occur, the updated ver-
sion will be available on ASRock website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRock website as
well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock 960GC-GS FX Motherboard (Micro ATX Form Factor)
ASRock 960GC-GS FX Quick Installation Guide
ASRock 960GC-GS FX Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
ASRock Reminds You...
To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM
/ VistaTM 64-bit, it is recommended to set the BIOS option in Storage
Conguration to AHCI mode.

6
1.2 Specications
Platform - Micro ATX Form Factor
CPU - Support for Socket AM3+ processors (see CAUTION 1)
- Support for Socket AM3 processors: AMD PhenomTM II X6 /
X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 /
Sempron processors
- Support for Socket AM2+ / AM2 processors: AMD PhenomTM
FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core /
Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports 8-Core CPU
- Supports AMD OverDriveTM with ACC feature (Advanced
Clock Calibration)
- Supports AMD’s Cool ‘n’ QuietTM Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset - Northbridge: AMD 760G
- Southbridge: AMD SB710
Memory - Dual Channel DDR3/DDR2 Memory Technology
- 2 x DDR3 DIMM slots
- Support DDR3 1866(OC)/1600(OC)/1333/1066 non-ECC,
un-buffered memory (see CAUTION 2)
- Max. capacity of system memory: 16GB (see CAUTION 3)
- 2 x DDR2 DIMM slots
- Supports DDR2 1066/800/667/533 non-ECC, un-buffered
memory
- Max. capacity of system memory: 8GB (see CAUTION 3)
Expansion Slot - 1 x PCI Express 2.0 x16 slot (PCIE2 @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
Graphics - Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Supports D-Sub with max. resolution up to 2048x1536 @
60Hz
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Supports Wake-On-LAN

7
- Supports LAN Cable Detection
- Supports Energy Efcient Ethernet 802.3az
- Supports PXE
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Storage - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug
Connector - 1 x ATA 133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print Port header
- 1 x Chassis Intrusion header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (3-pin)
- 1 x Power Fan connector (3-pin)
- 1 x 24 pin ATX power connector
- 1 x 4 pin 12V power connector
- 1 x CD In header
- 1 x Front panel audio connector
- 1 x SPDIF Out connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature - 16Mb AMI Legal BIOS
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
CyberLink MediaEspresso 6.5 Trial, Google Chrome
Browser and Toolbar
Hardware - CPU/Chassis Temperature Sensing
Monitor - CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis/Power Fan Multi-Speed Control

8
CAUTION!
1. This motherboard supports CPU up to 95W. Please refer to our
website for CPU support list.
ASRock website: http://www.asrock.com
2. Whether 1866/1600MHz memory speed is supported depends
on the AM3/AM3+ CPU you adopt. If you want to adopt DDR3
1866/1600 memory module on this motherboard, please refer
to the memory support list on our website for the compatible
memory modules.
ASRock website: http://www.asrock.com
3. Due to the operating system limitation, the actual memory size
may be less than 4GB for the reservation for system usage un-
der Windows®8 / 7 / VistaTM / XP. For Windows®64-bit OS with
64-bit CPU, there is no such limitation.
WARNING
Please realize that there is a certain risk involved with overclocking,
including adjusting the setting in the BIOS, applying Untied Overclocking
Technology, or using third-party overclocking tools. Overclocking may
affect your system’s stability, or even cause damage to the components
and devices of your system. It should be done at your own risk and
expense. We are not responsible for possible damage caused by
overclocking.
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit / XP / XP Media Center / XP 64-bit compliant
Certications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

9
1.3 Unique Features
ASRock OC Tuner
ASRock OC Tuner is a user-friendly overclocking tool which al-
lows you to surveil your system by hardware monitor function
and overclock your hardware devices to get the best system
performance under Windows®environment. Please visit our
website for the operation procedures of ASRock OC Tuner.
ASRock Intelligent Energy Saver
Featuring an advanced proprietary hardware and software de-
sign, Intelligent Energy Saver is a revolutionary technology that
delivers unparalleled power savings. The voltage regulator can
reduce the number of output phases to improve efciency when
the CPU cores are idle. In other words, it is able to provide ex-
ceptional power saving and improve power efficiency without
sacrificing computing performance. To use Intelligent Energy
Saver function, please enable Cool ‘n’ Quiet option in the BIOS
setup in advance. Please visit our website for the operation pro-
cedures of Intelligent Energy Saver.
ASRock Instant Boot
ASRock Instant Boot allows you to turn on your PC in just a few
seconds, provides a much more efcient way to save energy,
time, money, and improves system running speed for your sys-
tem. It leverages the S3 and S4 ACPI features which normally
enable the Sleep/Standby and Hibernation modes in Windows®
to shorten boot up time. By calling S3 and S4 at specic timing
during the shutdown and startup process, Instant Boot allows
you to enter your Windows®desktop in a few seconds.
ASRock Instant Flash
ASRock Instant Flash is a BIOS ash utility embedded in Flash
ROM. This convenient BIOS update tool allows you to update
system BIOS without entering operating systems rst like MS-
DOS or Windows®. With this utility, you can press the <F6> key
during the POST or the <F2> key to enter into the BIOS setup
menu to access ASRock Instant Flash. Just launch this tool and
save the new BIOS le to your USB ash drive, oppy disk or
hard drive, then you can update your BIOS only in a few clicks
without preparing an additional oppy diskette or other

10
complicated flash utility. Please be noted that the USB flash
drive or hard drive must use FAT32/16/12 le system.
ASRock OC DNA
The software name itself – OC DNA literally tells you what it is
capable of. OC DNA, an exclusive utility developed by ASRock,
provides a convenient way for the user to record the OC set-
tings and share with others. It helps you to save your overclock-
ing record under the operating system and simplies the compli-
cated recording process of overclocking settings. With OC DNA,
you can save your OC settings as a prole and share with your
friends! Your friends then can load the OC prole to their own
system to get the same OC settings as yours! Please be noticed
that the OC prole can only be shared and worked on the same
motherboard.
ASRock APP Charger
If you desire a faster, less restricted way of charging your
Apple devices, such as iPhone/iPad/iPod Touch, ASRock has
prepared a wonderful solution for you - ASRock APP Charger.
Simply install the APP Charger driver, it makes your iPhone
charge much quickly from your computer and up to 40% faster
than before. ASRock APP Charger allows you to quickly charge
many Apple devices simultaneously and even supports continu-
ous charging when your PC enters into Standby mode (S1),
Suspend to RAM (S3), hibernation mode (S4) or power off (S5).
With APP Charger driver installed, you can easily enjoy the mar-
velous charging experience.
ASRock XFast USB
ASRock XFast USB can boost USB storage device perfor-
mance. The performance may depend on the properties of the
device.
ASRock XFast LAN
ASRock XFast LAN provides a faster internet access, which
includes the benefits listed below. LAN Application Prioritiza-
tion: You can congure your application’s priority ideally and/or
add new programs. Lower Latency in Game: After setting online
game’s priority higher, it can lower the latency in games. Trafc
Shaping: You can watch Youtube HD videos and download

11
simultaneously. Real-Time Analysis of Your Data: With the sta-
tus window, you can easily recognize which data streams you
are transferring currently.
ASRock XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot
be used under Windows®OS 32-bit CPU. ASRock XFast RAM
shortens the loading time of previously visited websites, mak-
ing web surng faster than ever. And it also boosts the speed of
Adobe Photoshop 5 times faster. Another advantage of ASRock
XFast RAM is that it reduces the frequency of accessing your
SSDs or HDDs in order to extend their lifespan.
ASRock X-Boost
ASRock’s X-Boost Technology is a smart auto-overclocking
function and is brilliantly designed to unlock the hidden power of
your CPUs. Simply press “X” when turning on the PC, X-Boost
will automatically overclock the relative components to get up to
15.77% performance boost! With the smart X-Boost, overclock-
ing CPU can become a near one-button process.
* The functionality of “Unlock CPU Cores” feature might vary by
different processors.

12
1.4 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 14 SATA2 Connector (SATAII_1 (PORT 0))
2 2 x 240-pin DDR2 DIMM Slots 15 SATA2 Connector (SATAII_2 (PORT 1))
(Dual Channel: DDRII_1, DDRII_2) 16 USB 2.0 Header (USB8_9)
3 2 x 240-pin DDR3 DIMM Slots 17 USB 2.0 Header (USB6_7)
(Dual Channel: DDR3_A1, DDR3_B1) 18 USB 2.0 Header (USB4_5)
4 CPU Fan Connector (CPU_FAN1) 19 System Panel Header (PANEL1)
5 ATX Power Connector (ATXPWR1) 20 Floppy Connector (FLOPPY1)
6 Primary IDE Connector (IDE1) 21 Infrared Module Header (IR1)
7 Clear CMOS Jumper (CLRCMOS1) 22 Chassis Intrusion Header (CI1)
8 Chassis Fan Connector (CHA_FAN1) 23 Print Port Header (LPT1)
9 SATA2 Connector (SATAII_6 (PORT 5)) 24 SPDIF Out Connector (SPDIF_OUT1)
10 SATA2 Connector (SATAII_5 (PORT 4)) 25 Front Panel Audio Header (HD_AUDIO1)
11 SATA2 Connector (SATAII_4 (PORT 3)) 26 Internal Audio Connector (CD1)
12 SATA2 Connector (SATAII_3 (PORT 2)) 27 Power Fan Connector (PWR_FAN1)
13 Chassis Speaker Header (SPEAKER1)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
760G
Chipset
PCI1
LAN
AUDIO
CODEC
1
CLRCMOS1
CPU_FAN1
HD_AUDIO1
1
RoHS
16Mb
BIOS
AMD
SB710
Chipset
USB4_5
1
PCIE2
960GC-GS FX
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
FSB800
DDRII_1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
COM1
ATX12V1
AM2/AM3/AM3+
SATAI I_1 ( PO RT 0)
CI1
1
XFast RAM
XFast USB
XFast LAN
PCIE1
PCI2
FSB800
DDRII_2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
VGA1
IDE1
FLOPPY1
CD1
SPDIF_OUT1
1
1
LPT1
IR1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB6_7
1
USB8_9
1
PWR_FAN1
CHA_FAN1
SATAI I_2 ( PO RT 1)
SATAI I_3 ( PO RT 2)
SATAI I_4 ( PO RT 3)
SATAI I_5 ( POR T 4)
SATAI I_6 ( POR T 5)
SPEAKER1
1
7
8
9
10
14
16 1112
13
17
19
20
2122
23 18
15
25
234
6
5
1
27
24
26

13
1.5 I/O Panel
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows®XP:
After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows®8 / 7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)
* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 8 D-Sub Port
** 4 Front Speaker (Lime) 9 COM Port
5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)
12
5
3
6
7
89
10
4

14
2. Installation
This is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
Before you install or remove any component, ensure that the
power is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
1. Unplug the power cord from the wall socket before touching any
component.
2. To avoid damaging the motherboard components due to static elec-
tricity, NEVER place your motherboard directly on the carpet or the
like. Also remember to use a grounded wrist strap or touch a safety
grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-
static pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the mother-
board to the chassis, please do not over-tighten the screws! Doing
so may damage the motherboard.

15
STEP 1:
Lift Up The Socket Lever
STEP 2 / STEP 3:
Match The CPU Golden Triangle
To The Socket Corner Small
Triangle
STEP 4:
Push Down And Lock
The Socket Lever
Lever 90° Up
CPU Golden Triangle
Socker Corner
Small Triangle
2.1 CPU Installation
Step 1. Unlock the socket by lifting the lever up to a 90oangle.
Step 2. Position the CPU directly above the socket such that the CPU corner with
the golden triangle matches the socket corner with a small triangle.
Step 3. Carefully insert the CPU into the socket until it ts in place.
The CPU ts only in one correct orientation. DO NOT force the CPU
into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it rmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side tab
to indicate that it is locked.
2.2 Installation of CPU Fan and Heatsink
After you install the CPU into this motherboard, it is necessary to install a
larger heatsink and cooling fan to dissipate heat. You also need to spray
thermal grease between the CPU and the heatsink to improve heat dis-
sipation. Make sure that the CPU and the heatsink are securely fastened
and in good contact with each other. Then connect the CPU fan to the
CPU FAN connector (CPU_FAN1, see Page 12, No. 4). For proper in-
stallation, please kindly refer to the instruction manuals of the CPU fan
and the heatsink.

16
1. If you want to install two memory modules, for optimal compatibility
and reliability, it is recommended to install them in the slots of the
same color. In other words, install them in the set of black slots
(DDR3_A1 and DDR3_B1), or in the set of yellow slots (DDRII_1
and DDRII_2).
2. If only one memory module is installed in the DIMM slot on this
motherboard, it is unable to activate the Dual Channel Memory
Technology.
3. It is not allowed to install a DDR3 memory module into DDR2 slot
or install a DDR2 memory module into DDR3 slot; otherwise, this
motherboard and DIMM may be damaged.
4. DDR2 and DDR3 memory modules cannot be installed on this
motherboard at the same time.
5. DDR3 memory module is only supported by installing AM3/AM3+
CPU. DDR2 memory module is only supported by installing AM2/
AM2+/AM3 CPU.
2.3 Installation of Memory Modules (DIMM)
This motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM
slots and two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports
Dual Channel Memory Technology. For dual channel conguration, you always
need to install identical (the same brand, speed, size and chip-type) DDR2/
DDR3 DIMM pair in the slots of the same color. In other words, you have to
install identical DDR2 DIMM pair in Dual Channel (DDRII_1 and DDRII_2;
Yellow slots; see p.12 No.2), or identical DDR3 DIMM pair in Dual Channel
(DDR3_A1 and DDR3_B1; Blue slots; see p.12 No.3), so that Dual Chan-
nel Memory Technology can be activated. You may refer to the Dual Channel
Memory Conguration Table below.
DDR3_A1 DDR3_B1
(Black Slot) (Black Slot)
2 memory modules SS SS
2 memory modules DS DS
Dual Channel DDR3 Memory Congurations
(DS: Double Side, SS: Single Side)
DDRII_1 DDRII_2
(Yellow Slot) (Yellow Slot)
2 memory modules SS SS
2 memory modules DS DS
Dual Channel DDR2 Memory Congurations
(DS: Double Side, SS: Single Side)

17
DDR3_A1 DDR3_B1
(Black Slot) (Black Slot)
2 memory modules SS SS
2 memory modules DS DS
DDRII_1 DDRII_2
(Yellow Slot) (Yellow Slot)
2 memory modules SS SS
2 memory modules DS DS
notch
break
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the
break on the slot.
The DIMM only ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into
the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends
fully snap back in place and the DIMM is properly seated.
notch
break

18
2.4 Expansion Slots (PCI and PCI Express Slots)
There are 2 PCI slots and 2 PCI Express slots on this motherboard.
PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE Slots:
PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width graphics
cards.
PCIE2 (PCIE x16 slot) is used for PCI Express x16 lane width graphics
cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

19
2.5 Multi Monitor Feature
This motherboard supports multi monitor feature. With the internal VGA output
support and the external add-on PCI Express VGA card, you can easily enjoy the
benets of multi monitor feature.
Please refer to the following steps to set up a surround display environment:
1. Install the PCI Express VGA cards on PCIE2 slot. Please refer to page 18 for
proper expansion card installation procedures for details.
2. Connect D-Sub monitor cable to VGA port on the I/O panel. And connect other
monitor cables to the corresponding connectors of the add-on PCI Express VGA
cards on PCIE2 slot.
3. Boot your system. Press <F2> or <Del> to enter BIOS setup. Enter “Share
Memory” option to adjust the memory capability to [32MB], [64MB], [128MB]
[256MB] or [512MB] to enable the function of VGA. Please make sure that the
value you select is less than the total capability of the system memory. If you do
not adjust the BIOS setup, the default value of “Share Memory”, [Auto], will
disable VGA function when the add-on VGA card is inserted to this motherboard.
4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to
your system. If you have installed the drivers already, there is no need to install
them again.
5. Set up a multi-monitor display.
For Windows®XP / XP 64-bit OS:
Right click the desktop, choose “Properties”, and select the “Settings” tab
so that you can adjust the parameters of the multi-monitor according to
the steps below.
A. Click the “Identify” button to display a large number on each monitor.
B. Right-click the display icon in the Display Properties dialog that you
wish to be your primary monitor, and then select “Primary”. When you
use multiple monitors with your card, one monitor will always be
Primary, and all additional monitors will be designated as Secondary.
C. Select the display icon identied by the number 2.
VGA port

20
D. Click “Extend my Windows desktop onto this monitor”.
E. Right-click the display icon and select “Attached”, if necessary.
F. Set the “Screen Resolution” and “Color Quality” as appropriate for the
second monitor. Click “Apply” or “OK” to apply these new values.
G. Repeat steps C through E for the diaplay icon identied by the number
one, two and three.
For Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:
Right click the desktop, choose “Personalize”, and select the “Display
Settings” tab so that you can adjust the parameters of the multi-monitor
according to the steps below.
A. Click the number ”2” icon.
B. Click the items “This is my main monitor” and “Extend the desktop onto
this monitor”.
C. Click “OK” to save your change.
D. Repeat steps A through C for the display icon identied by the number
three.
6. Use multi monitor feature. Click and drag the display icons to positions
representing the physical setup of your monitors that you would like to use. The
placement of display icons determines how you move items from one monitor to
another.
